◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶

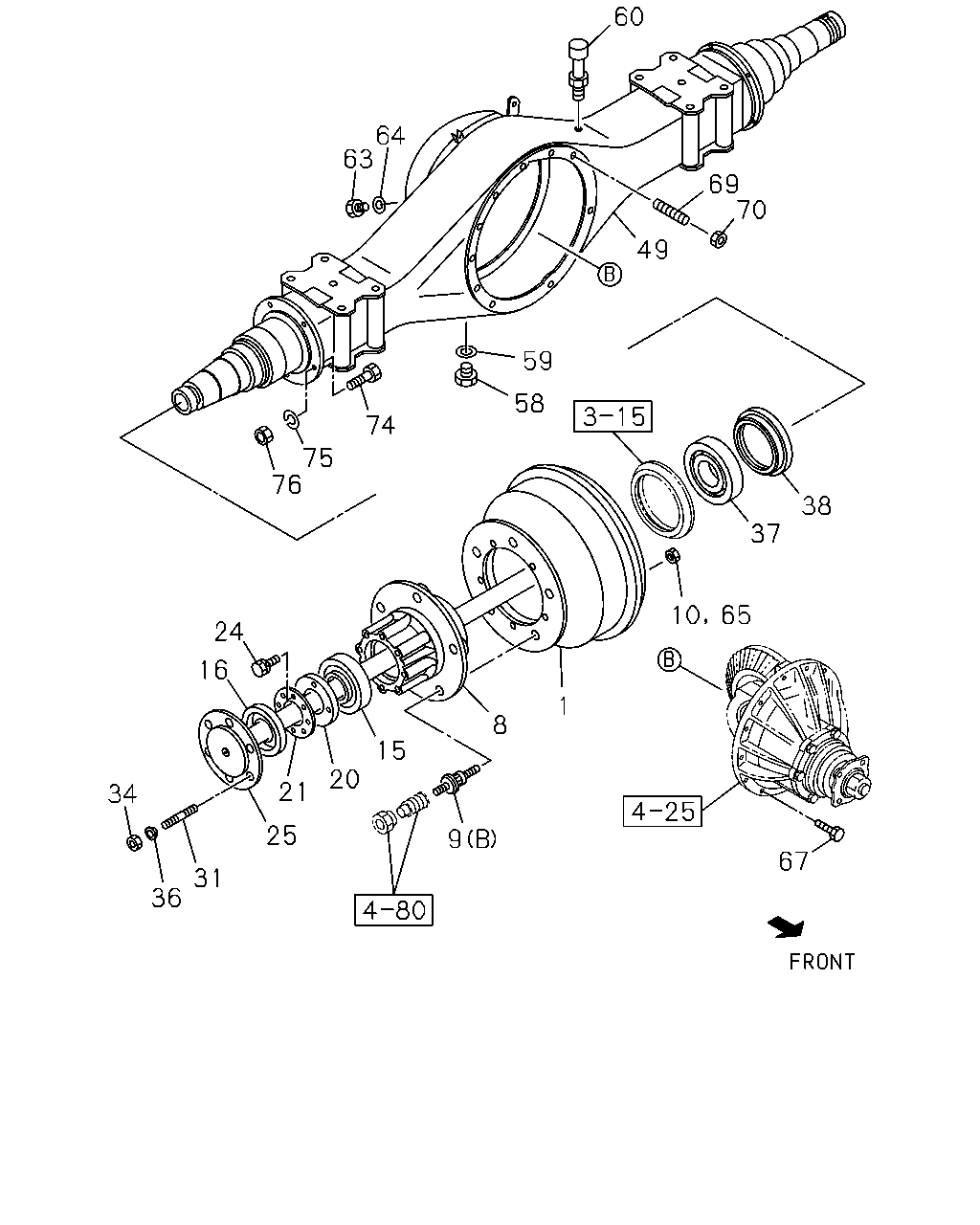

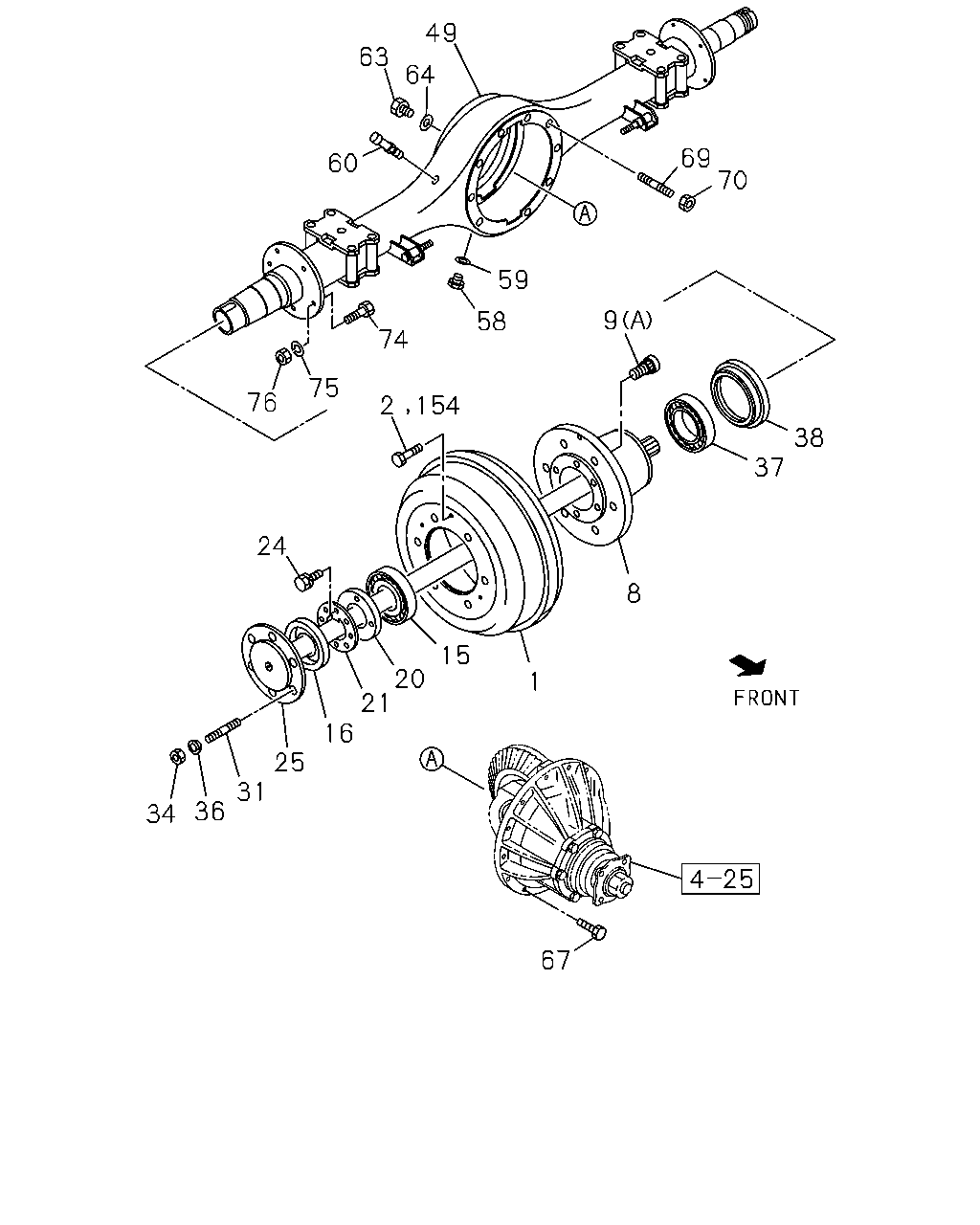

4-20 — REAR AXLE CASE AND SHAFT (#51074) — 444 parça
çizim 45236
60 64 63 69 70 49 59 58 74 75 76 38 37 10 65 24 16 1 8 15 20 21 34 25 9 67 31 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97034-770-3 02 1 0911-1310 ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-98248-900-0 02 1 1311- ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97192-097-1 02 1 0211-0305 ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97366-736-0 02 1 0306-1308 ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-98248-899-0 02 1 1309- ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94455-285-2 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94455-285-2 02 1 0502- ●
1 05.809 DRUM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97034-770-3 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97034-770-3 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-94382-884-4 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0502-0504 ● ● ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 0505-0910 ● ● ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0911- ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 0911- ● ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97169-806-2 02 1 0212-0501 ●
1 05.809 DRUM; BRK,RR 8-97169-806-2 02 1 0502- ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		5-42315-041-4 02 1 0211-0501 ●
8 05.809 HUB; RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97034-406-4 02 1 0911- ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0211-0501 ● ● ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97026-139-3 02 1 0502-0504 ● ● ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0505-0910 ● ● ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97026-139-3 02 1 0911- ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0911- ● ●
8 05.809 HUB; RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-94335-927-4 02 1 0211- ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		5-42311-009-3 02 1 0211-0501 ● ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-42311-009-3 02 1 0502- ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97032-606-2 02 1 0211-0211 ●
8 05.809 HUB; RR AXLE 8-97032-606-3 02 1 0212- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0304 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0306-0501 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0304 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0306-0501 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0502-0504 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0505- ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0211-0211 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0212-0501 ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) (B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0502-0502 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X26 LH THREAD,M16X37 RH THREAD 		8-98000-406-1 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0502-0504 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0505- ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0211-0211 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0212-0501 ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) (B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0502-0502 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X26,M16X37 RH THREAD 		8-98000-404-1 06 1 0502- ●
10 05.813 NUT; WHEEL PIN,RR AXLE
00.050 M20 		9-99110-520-0 10 1 0211-0501 ● ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 00.050 M20 		9-99110-520-0 10 1 0502-0504 ● ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
00.050 M20 		9-99110-520-0 10 1 0505-0512 ● ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
05.812 M20 		0-91110-520-0 10 1 0601- ● ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> M16 LH THREAD 		8-94161-997-0 06 1 0211-0211 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
M16 LH THREAD 		8-94161-997-0 06 1 0212-0501 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) M16 LH THREAD 		8-94161-997-0 06 1 0502-0502 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 08.915 M16 		9-99110-516-0 06 1 0211-0211 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
08.915 M16 		9-99110-516-0 06 1 0212-0501 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 08.915 M16 		9-99110-516-0 06 1 0502-0502 ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0211-0501 ● ● ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0502- ● ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 0211-0501 ● ● ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 0502- ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0211-0501 ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0502-1207 ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0211-0501 ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0502-1106 ● ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0211-0501 ● ● ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0502-1303 ● ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0211-0501 ● ● ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-1 02 1 0502- ● ● ● ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 0211-0501 ● ● ● ● ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 0502-0512 ● ● ● ● ●
24 05.830 BOLT; LK WASHER
03.342 M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0611 ● ● ● ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0612-1509 ● ● ● ● ●
24 05.830 BOLT; LK WASHER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1510- ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94366-192-0 02 1 0211-0501 ● ●
25 05.420 SHAFT; AXLE,RR 8-94366-192-0 02 1 0502- ●
25 05.420 SHAFT; AXLE,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 0211-0501 ●
25 05.420 SHAFT; AXLE,RR
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 0502-0910 ●
25 05.420 SHAFT; AXLE,RR
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97032-495-0 02 1 0911- ●
25 05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 		8-97032-496-0 02 1 0211-0501 ● ●
25 05.420 SHAFT; AXLE,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97032-496-0 02 1 0211-0501 ● ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0211-0501 ●
25 05.420 SHAFT; AXLE,RR
EXC. DUMP CHASSIS(V4D) 		8-97032-496-0 02 1 0502- ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0502- ● ●
25 05.420 SHAFT; AXLE,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94341-978-0 02 1 0211-0211 ●
25 05.420 SHAFT; AXLE,RR 8-94341-978-0 02 1 0212- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0211-0211 ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
EXC. BRK WHL LK CONT LSPV<6PH> M10X30 L=49 		5-09300-066-1 12 1 0211-0211 ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0212-0501 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0502-0709 ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 12 1 0710- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0211-0501 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
EXC. BRK WHL LK CONT LSPV<6PH> M10X30 L=49 		5-09300-066-1 16 1 0502-0504 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0505-0709 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0710- ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0211-0211 ● ●
34 05.387 NUT; AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> 08.917 M10 FLANGE 		0-91150-210-0 12 1 0211-0211 ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0212-0501 ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0502-0602 ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 12 1 0603- ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 0211-0501 ● ● ●
34 05.387 NUT; AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> 08.917 M10 FLANGE 		0-91150-210-0 16 1 0502-0504 ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 0505-0602 ● ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0603- ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0211-0211 ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> ID=10.5 		9-09855-207-0 12 1 0211-0211 ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0212-0501 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0502-0709 ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 12 1 0710- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0211-0501 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> ID=10.5 		9-09855-207-0 16 1 0502-0504 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0505-0709 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0710- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0211-0501 ● ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0502- ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 0211-0501 ● ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 0502- ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0211-0501 ● ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0502- ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0211-0501 ● ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0502- ● ● ● ● ●
49 05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97251-368-3 01 1 0911- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97304-377-2 01 1 0211- ●
49 05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97032-768-3 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE 8-97032-768-3 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97032-768-3 01 1 0502- ●
49 05.387 CASE; RR AXLE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97258-241-1 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) 		8-97258-241-1 01 1 0502-0910 ●
49 05.387 CASE; RR AXLE
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97258-241-1 01 1 0911- ●
49 05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 		8-97032-861-4 01 1 0211-0501 ● ●
49 05.387 CASE; RR AXLE
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97032-861-4 01 1 0211-0501 ● ●
49 05.387 CASE; RR AXLE 8-97032-861-4 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE
EXC. DUMP CHASSIS(V4D) 		8-97032-861-5 01 1 0502-0910 ●
49 05.387 CASE; RR AXLE 8-97032-861-5 01 1 0502-0910 ● ●
49 05.387 CASE; RR AXLE
EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97032-861-5 01 1 0911- ●
49 05.387 CASE; RR AXLE 8-97032-861-5 01 1 0911- ● ●
49 05.387 CASE; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97032-770-2 01 1 0211-0211 ●
49 05.387 CASE; RR AXLE 8-97032-770-3 01 1 0212- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0211-0501 ● ● ● ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0502-0611 ● ● ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0211-0501 ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0502- ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0211-0409 ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-0501 ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0502-0606 ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 0211-0501 ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 0502-0611 ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0211-0501 ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0502- ● ● ● ● ●
65 05.387 NUT
05.586 M16 FLANGE 		1-09449-065-0 12 1 0502- ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0212-0501 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0212-0501 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0502-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0502-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0211-0501 ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0502-0610 ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ● ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING 8-97259-178-0 12 1 0211-0501 ● ●
74 05.002 BOLT; RR BRK ASM SETTING 8-97259-178-0 12 1 0502-0610 ●
74 05.002 BOLT; RR BRK ASM SETTING 8-98007-877-0 12 1 0611- ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0211-0501 ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M12X32 		5-09000-078-0 12 1 0502-0504 ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0505-0611 ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0612- ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M12X32 		5-09000-078-0 08 1 0211-0211 ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 08 1 0212-0611 ●
74 05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) M12X32 		8-97359-819-0 08 1 0612-1004 ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 08 1 1005- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		9-09150-610-0 12 1 0211-0501 ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		9-09150-610-0 12 1 0502-0603 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		0-91510-610-0 12 1 0604-0611 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
02.277 ID=10.2 		0-91510-810-0 12 1 0612- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 0211-0501 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 06.515 ID=12.2 		9-09150-612-0 12 1 0502-0504 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 0505-0603 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=12.2 		0-91510-612-0 12 1 0604-0611 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 12 1 0612- ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 06.515 ID=12.2 		9-09150-612-0 08 1 0211-0211 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 0212-0603 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 00.002 ID=12.2 		0-91510-612-0 08 1 0604-0611 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 07.347 ID=12.2 		0-91510-812-0 08 1 0612-1004 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 08 1 1005- ●
76 05.002 NUT; RR BRK ASM SETTING
00.002 M10 		9-09110-510-0 12 1 0211-0501 ● ●
76 05.002 NUT; RR BRK ASM SETTING
00.002 M10 		9-09110-510-0 12 1 0502-0512 ●
76 05.002 NUT; RR BRK ASM SETTING
00.833 M10 		0-91110-510-0 12 1 0601- ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 0211-0501 ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 04.634 M12 		9-99110-512-0 12 1 0502-0504 ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 0505-0512 ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 0601- ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 04.634 M12 		9-99110-512-0 08 1 0211-0211 ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 08 1 0212-0501 ●
76 05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 04.634 M12 		9-99110-512-0 08 1 0502-0512 ●
76 05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) M12 		0-91110-512-0 08 1 0601-1004 ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 08 1 1005- ●
çizim 45726
49 63 64 69 70 60 59 9 58 74 75 76 2 154 38 37 24 8 15 20 21 16 1 25 31 36 34 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97034-770-3 02 1 0911-1310 ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-98248-900-0 02 1 1311- ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97192-097-1 02 1 0211-0305 ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97366-736-0 02 1 0306-1308 ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-98248-899-0 02 1 1309- ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94455-285-2 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94455-285-2 02 1 0502- ●
1 05.809 DRUM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97034-770-3 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97034-770-3 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0211-0501 ● ●
1 05.809 DRUM; BRK,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-94382-884-4 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0502-0504 ● ● ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 0505-0910 ● ● ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94382-884-4 02 1 0911- ●
1 05.809 DRUM; BRK,RR 8-94382-884-4 02 1 0911- ● ●
1 05.809 DRUM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97169-806-2 02 1 0212-0501 ●
1 05.809 DRUM; BRK,RR 8-97169-806-2 02 1 0502- ●
1 05.809 DRUM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		5-42315-041-4 02 1 0211-0501 ●
2 05.812 BOLT; BRK DRUM
04.012 M6X18 		0-20800-618-0 02 1 0211-0305 ● ●
2 05.812 BOLT; BRK DRUM
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 04.012 M6X18 		0-20800-618-0 02 1 0306-0501 ● ●
2 05.812 BOLT; BRK DRUM
EXC. BRK WHL LK CONT LSPV<6PH> 04.012 M6X18 		0-20800-618-0 02 1 0502- ●
8 05.809 HUB; RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97034-406-4 02 1 0911- ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0211-0501 ● ● ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97026-139-3 02 1 0502-0504 ● ● ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0505-0910 ● ● ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97026-139-3 02 1 0911- ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0911- ● ●
8 05.809 HUB; RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-94335-927-4 02 1 0211- ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		5-42311-009-3 02 1 0211-0501 ● ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-42311-009-3 02 1 0502- ●
8 05.809 HUB; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97032-606-2 02 1 0211-0211 ●
8 05.809 HUB; RR AXLE 8-97032-606-3 02 1 0212- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0304 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0306-0501 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0304 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0306-0501 ● ●
9 05.812 PIN; WHEEL,RR AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0502-0504 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0505- ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0211-0211 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0212-0501 ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) (B) M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0502-0502 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X26 LH THREAD,M16X37 RH THREAD 		8-98000-406-1 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0502-0504 ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0505- ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> (B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0211-0211 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0212-0501 ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) (B) M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0502-0502 ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M16X26,M16X37 RH THREAD 		8-98000-404-1 06 1 0502- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0211-0501 ● ● ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0502- ● ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 0211-0501 ● ● ● ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 0502- ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0211-0501 ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0502-1207 ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0211-0501 ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0502-1106 ● ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0211-0501 ● ● ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0502-1303 ● ● ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0211-0501 ● ● ● ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-1 02 1 0502- ● ● ● ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 0211-0501 ● ● ● ● ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 0502-0512 ● ● ● ● ●
24 05.830 BOLT; LK WASHER
03.342 M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0611 ● ● ● ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0612-1509 ● ● ● ● ●
24 05.830 BOLT; LK WASHER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1510- ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94366-192-0 02 1 0211-0501 ● ●
25 05.420 SHAFT; AXLE,RR 8-94366-192-0 02 1 0502- ●
25 05.420 SHAFT; AXLE,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 0211-0501 ●
25 05.420 SHAFT; AXLE,RR
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) 		8-97032-495-0 02 1 0502-0910 ●
25 05.420 SHAFT; AXLE,RR
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97032-495-0 02 1 0911- ●
25 05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 		8-97032-496-0 02 1 0211-0501 ● ●
25 05.420 SHAFT; AXLE,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97032-496-0 02 1 0211-0501 ● ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0211-0501 ●
25 05.420 SHAFT; AXLE,RR
EXC. DUMP CHASSIS(V4D) 		8-97032-496-0 02 1 0502- ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0502- ● ●
25 05.420 SHAFT; AXLE,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94341-978-0 02 1 0211-0211 ●
25 05.420 SHAFT; AXLE,RR 8-94341-978-0 02 1 0212- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0211-0211 ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
EXC. BRK WHL LK CONT LSPV<6PH> M10X30 L=49 		5-09300-066-1 12 1 0211-0211 ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0212-0501 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0502-0709 ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 12 1 0710- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0211-0501 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
EXC. BRK WHL LK CONT LSPV<6PH> M10X30 L=49 		5-09300-066-1 16 1 0502-0504 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0505-0709 ● ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0710- ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0211-0211 ● ●
34 05.387 NUT; AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> 08.917 M10 FLANGE 		0-91150-210-0 12 1 0211-0211 ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0212-0501 ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0502-0602 ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 12 1 0603- ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 0211-0501 ● ● ●
34 05.387 NUT; AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> 08.917 M10 FLANGE 		0-91150-210-0 16 1 0502-0504 ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 0505-0602 ● ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0603- ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0211-0211 ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> ID=10.5 		9-09855-207-0 12 1 0211-0211 ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0212-0501 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0502-0709 ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 12 1 0710- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0211-0501 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. BRK WHL LK CONT LSPV<6PH> ID=10.5 		9-09855-207-0 16 1 0502-0504 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0505-0709 ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0710- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0211-0501 ● ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0502- ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 0211-0501 ● ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 0502- ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0211-0501 ● ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0502- ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0211-0501 ● ● ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0502- ● ● ● ● ●
49 05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97251-368-3 01 1 0911- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97304-377-2 01 1 0211- ●
49 05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97032-768-3 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE 8-97032-768-3 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97032-768-3 01 1 0502- ●
49 05.387 CASE; RR AXLE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97258-241-1 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) 		8-97258-241-1 01 1 0502-0910 ●
49 05.387 CASE; RR AXLE
4HF1-N ENG(RJZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) DUMP CHASSIS(V4D) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97258-241-1 01 1 0911- ●
49 05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) 		8-97032-861-4 01 1 0211-0501 ● ●
49 05.387 CASE; RR AXLE
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97032-861-4 01 1 0211-0501 ● ●
49 05.387 CASE; RR AXLE 8-97032-861-4 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE
EXC. DUMP CHASSIS(V4D) 		8-97032-861-5 01 1 0502-0910 ●
49 05.387 CASE; RR AXLE 8-97032-861-5 01 1 0502-0910 ● ●
49 05.387 CASE; RR AXLE
EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97032-861-5 01 1 0911- ●
49 05.387 CASE; RR AXLE 8-97032-861-5 01 1 0911- ● ●
49 05.387 CASE; RR AXLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97032-770-2 01 1 0211-0211 ●
49 05.387 CASE; RR AXLE 8-97032-770-3 01 1 0212- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0211-0501 ● ● ● ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0502-0611 ● ● ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0211-0501 ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0502- ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0211-0409 ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-0501 ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0502-0606 ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 0211-0501 ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 0502-0611 ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0211-0501 ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0502- ● ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0212-0501 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0212-0501 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0502-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0502-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0211-0501 ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0502-0610 ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ● ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING 8-97259-178-0 12 1 0211-0501 ● ●
74 05.002 BOLT; RR BRK ASM SETTING 8-97259-178-0 12 1 0502-0610 ●
74 05.002 BOLT; RR BRK ASM SETTING 8-98007-877-0 12 1 0611- ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0211-0501 ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M12X32 		5-09000-078-0 12 1 0502-0504 ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0505-0611 ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0612- ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M12X32 		5-09000-078-0 08 1 0211-0211 ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 08 1 0212-0611 ●
74 05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) M12X32 		8-97359-819-0 08 1 0612-1004 ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 08 1 1005- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		9-09150-610-0 12 1 0211-0501 ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		9-09150-610-0 12 1 0502-0603 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=10.2 		0-91510-610-0 12 1 0604-0611 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
02.277 ID=10.2 		0-91510-810-0 12 1 0612- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 0211-0501 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 06.515 ID=12.2 		9-09150-612-0 12 1 0502-0504 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 0505-0603 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=12.2 		0-91510-612-0 12 1 0604-0611 ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 12 1 0612- ● ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 06.515 ID=12.2 		9-09150-612-0 08 1 0211-0211 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 0212-0603 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 00.002 ID=12.2 		0-91510-612-0 08 1 0604-0611 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 07.347 ID=12.2 		0-91510-812-0 08 1 0612-1004 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 08 1 1005- ●
76 05.002 NUT; RR BRK ASM SETTING
00.002 M10 		9-09110-510-0 12 1 0211-0501 ● ●
76 05.002 NUT; RR BRK ASM SETTING
00.002 M10 		9-09110-510-0 12 1 0502-0512 ●
76 05.002 NUT; RR BRK ASM SETTING
00.833 M10 		0-91110-510-0 12 1 0601- ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 0211-0501 ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 04.634 M12 		9-99110-512-0 12 1 0502-0504 ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 0505-0512 ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 0601- ● ● ●
76 05.002 NUT; RR BRK ASM SETTING
EXC. BRK WHL LK CONT LSPV<6PH> 04.634 M12 		9-99110-512-0 08 1 0211-0211 ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 08 1 0212-0501 ●
76 05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 04.634 M12 		9-99110-512-0 08 1 0502-0512 ●
76 05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) M12 		0-91110-512-0 08 1 0601-1004 ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 08 1 1005- ●
154 04.665 SCREW; SLOTTED
BRK WHL LK CONT LSPV<6PH> 05.812 M6X16 CK-HEAD 		9-03090-616-0 02 1 0306-0703 ●
154 04.665 SCREW; SLOTTED
BRK WHL LK CONT LSPV<6PH> 05.812 M6X16 CK-HEAD 		0-36410-616-0 02 1 0704- ●
çizim 99632
67 96 96 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. BRK WHL LK CONT LSPV<6PH> M10X40 W/LK WASHER 		0-50061-040-0 08 1 0211-0211 ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0212-0501 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0212-0501 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER 		0-50061-040-0 08 1 0502-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0502-0909 ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ●
96 04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> (A) 		8-98030-956-0 01 1 1005- ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> (B) 		8-98030-957-0 01 1 0911- ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> (A) 		8-94368-449-2 01 1 0211-0211 ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> (A) 		8-94368-449-2 01 1 0212-1004 ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> (A) 		8-94368-449-2 01 1 1005- ●
96 04.730 BRACKET; LSPV,AXLE CASE
(A) 		8-94368-449-2 01 1 1005- ●
96 04.730 BRACKET; LSPV,AXLE CASE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (B) 		8-97161-213-1 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
