◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#51073) — 221 parça

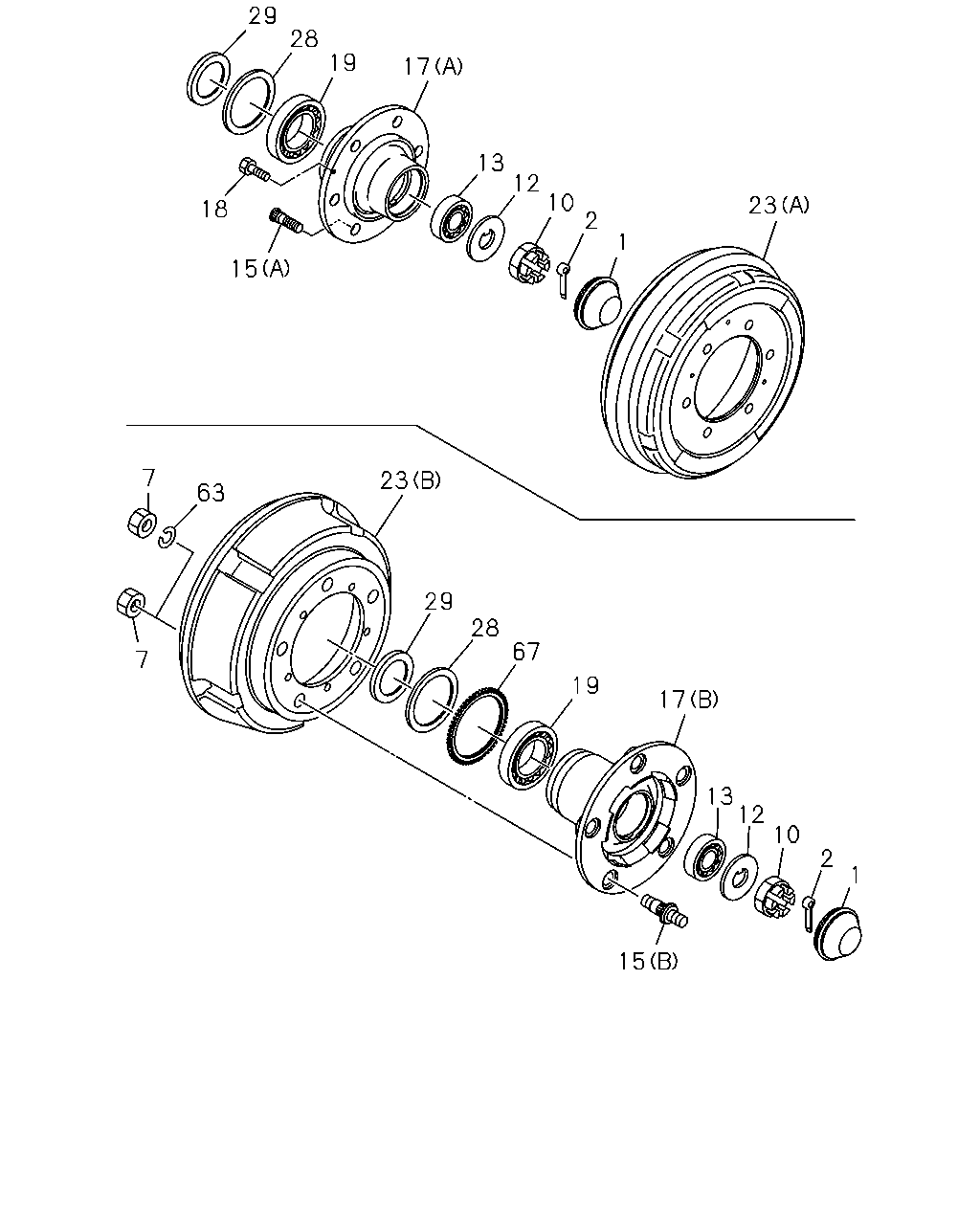

çizim 46935
29 28 19 17 13 12 10 2 23 18 1 15 7 23 63 29 28 67 7 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-98276-604-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-101-0 02 1 0612-0612 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-0612 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0701-1406 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-101-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1407-1407 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0211-0211 ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0211-0211 ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0211 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0212-0501 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0502-0611 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0612-0612 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) OD=4.6 L=40 		9-08115-040-0 02 1 0211-0211 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(6PP) OD=4.6 L=40 		9-08115-040-0 02 1 0211-0211 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0211 ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0212-0501 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0502-0606 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ●
7 05.812 NUT; FRT HUB
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 M14 		9-99110-514-0 12 1 0212-0501 ● ●
7 05.812 NUT; FRT HUB
(CQP) G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 07.529 M14 		9-99110-514-0 12 1 0502-0512 ●
7 05.812 NUT; FRT HUB
07.529 M14 		9-99110-514-0 12 1 0502-0512 ●
7 05.812 NUT; FRT HUB
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 07.833 M14 		0-91110-514-0 12 1 0601- ●
7 05.812 NUT; FRT HUB
07.833 M14 		0-91110-514-0 12 1 0601- ●
7 05.812 NUT; FRT HUB
00.050 M20 		9-99110-520-0 10 1 0211-0512 ● ● ●
7 05.812 NUT; FRT HUB
M20 		0-91110-520-0 10 1 0601- ● ● ●
10 05.812 NUT; FRT HUB BRG
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 06.022 		8-94247-357-1 02 1 0211-0211 ● ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(6PP) 06.022 		8-94247-357-1 02 1 0211-0211 ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211-0211 ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0212-0501 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0502- ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 0211-0211 ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-0211 ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 0212-0501 ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0212-0501 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 0502-1502 ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0502-1502 ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.812 		8-98282-435-0 02 1 1503- ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 0211-0211 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 0211-0211 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211-0211 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0212-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0502- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0211 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0211 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0211 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0212-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0502- ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-1 06 1 0211- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-1 06 1 0211- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5 LH THREAD,M14X38.5 RH THREAD 		5-42332-002-3 06 1 0212-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5 LH THREAD,M14X38.5 RH THREAD 		5-42332-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X29.5 LH THREAD,M14X38.5 RH THREAD 		5-42332-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5,M14X38.5 RH THREAD 		5-42331-002-3 06 1 0212-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5,M14X38.5 RH THREAD 		5-42331-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X29.5,M14X38.5 RH THREAD 		5-42331-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0211- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0211- ● ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97140-126-0 02 1 0911- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97090-751-0 02 1 0211- ●
17 06.307 HUB; FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0211-0501 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0502- ●
17 06.307 HUB; FRT AXLE
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97359-224-0 02 1 0212-0501 ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97359-224-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
(B) 		8-97359-224-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0211-0910 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-94365-459-0 02 1 0911- ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0911- ● ●
18 06.022 BOLT; DRUM TO HUB
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 04.012 M6X18 		0-20800-618-0 02 1 0211-0501 ● ● ●
18 06.022 BOLT; DRUM TO HUB
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.012 M6X18 		0-20800-618-0 02 1 0502- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 06.313 NTN 		8-98008-156-1 02 1 1206- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0211- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0211-0211 ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-0211 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0212-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0212-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0502-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0502-1009 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-98171-254-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0211-0211 ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-0211 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0212-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0212-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0502-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0502-1009 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ●
23 05.809 DRUM; BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-94385-650-3 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-071-1 02 1 0211-0501 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-071-2 02 1 0502-1306 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-98242-348-0 02 1 1307- ●
23 05.809 DRUM; BRK,FRT
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97358-857-0 02 1 0212-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97358-857-0 02 1 0502- ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97358-857-0 02 1 0502- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT) EXC. BRAZIL EQUIPMENT(RWF) (B) 		8-97094-434-2 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) (B) 		8-97094-434-2 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0502-0910 ● ● ●
23 05.809 DRUM; BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97094-434-2 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0911- ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT) BRAZIL EQUIPMENT(RWF) (B) 		8-94385-650-3 02 1 0211-0501 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0211- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0211-0211 ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211-0211 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0212-0501 ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0212-0501 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0502- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0502- ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) NTN 		8-97234-513-0 02 1 0211-0211 ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211-0211 ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) NTN 		8-97234-513-0 02 1 0212-0501 ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0212-0501 ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) NTN 		8-97234-513-0 02 1 0502- ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0502- ● ● ● ●
63 05.809 WASHER; LK,DRUM TO HUB
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.387 ID=14.2 		9-09150-614-0 12 1 0212-0501 ● ●
63 05.809 WASHER; LK,DRUM TO HUB
(CQP) G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.387 ID=14.2 		9-09150-614-0 12 1 0502-0603 ●
63 05.809 WASHER; LK,DRUM TO HUB
05.387 ID=14.2 		9-09150-614-0 12 1 0502-0603 ●
63 05.809 WASHER; LK,DRUM TO HUB
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.586 ID=14.2 		0-91510-614-0 12 1 0604- ●
63 05.809 WASHER; LK,DRUM TO HUB
05.586 ID=14.2 		0-91510-614-0 12 1 0604- ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-458-0 02 1 0911- ●

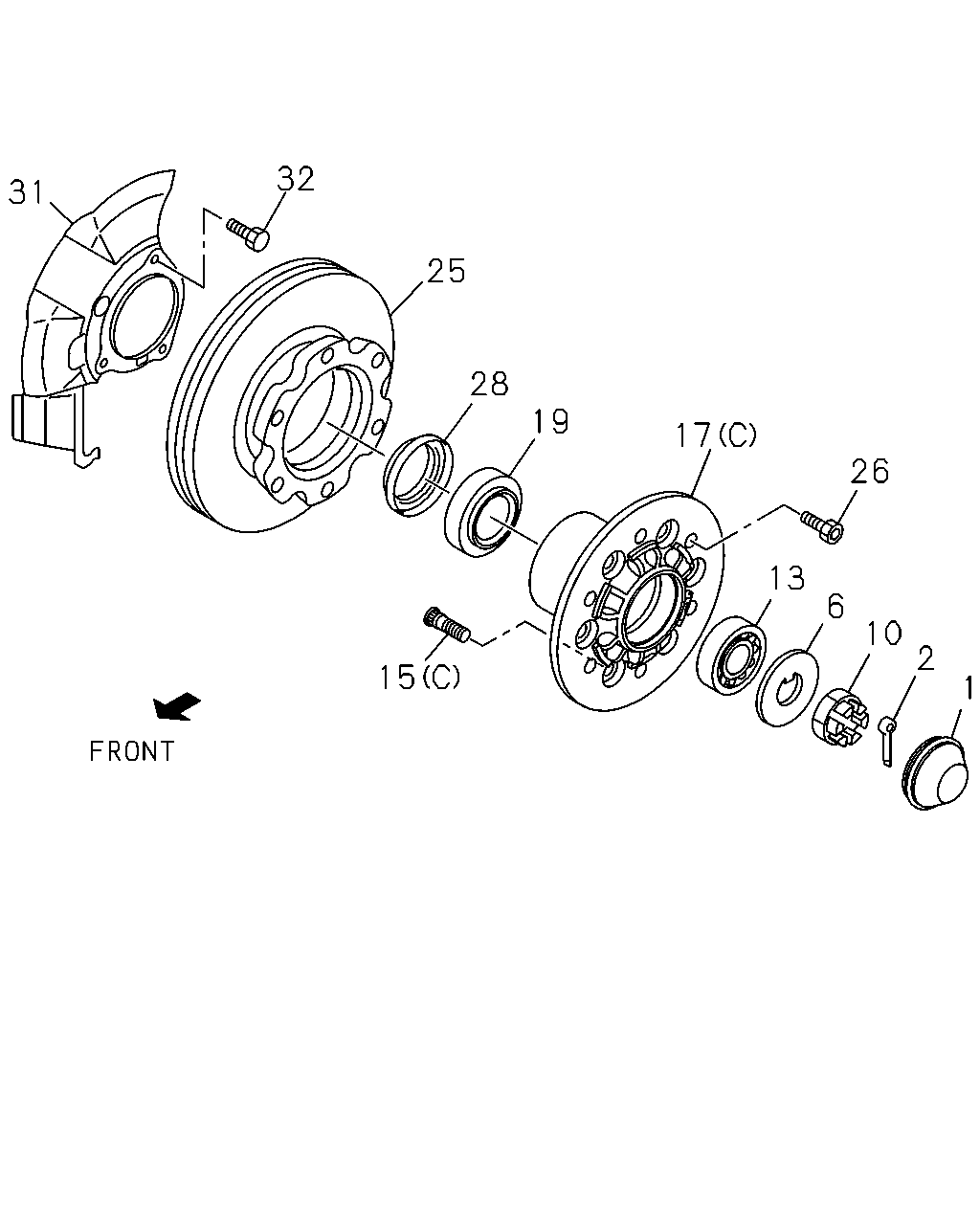

çizim 99686
32 31 25 28 19 17 26 13 6 10 2 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-98276-604-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-101-0 02 1 0612-0612 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-0612 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0701-1406 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-101-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1407-1407 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0211-0211 ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0211-0211 ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0211 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0212-0501 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0502-0611 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0612-0612 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) OD=4.6 L=40 		9-08115-040-0 02 1 0211-0211 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(6PP) OD=4.6 L=40 		9-08115-040-0 02 1 0211-0211 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0211 ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0212-0501 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0502-0606 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 0211-1502 ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-98282-435-0 02 1 1503- ●
10 05.812 NUT; FRT HUB BRG
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 06.022 		8-94247-357-1 02 1 0211-0211 ● ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(6PP) 06.022 		8-94247-357-1 02 1 0211-0211 ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211-0211 ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0212-0501 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0502- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 0211-0211 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 0211-0211 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211-0211 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0212-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0502- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0211 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0211 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0211 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0212-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0502- ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-1 06 1 0211- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-1 06 1 0211- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5 LH THREAD,M14X38.5 RH THREAD 		5-42332-002-3 06 1 0212-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5 LH THREAD,M14X38.5 RH THREAD 		5-42332-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X29.5 LH THREAD,M14X38.5 RH THREAD 		5-42332-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5,M14X38.5 RH THREAD 		5-42331-002-3 06 1 0212-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) M14X29.5,M14X38.5 RH THREAD 		5-42331-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X29.5,M14X38.5 RH THREAD 		5-42331-002-4 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0211- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0211- ● ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97140-126-0 02 1 0911- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97090-751-0 02 1 0211- ●
17 06.307 HUB; FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0211-0501 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0502- ●
17 06.307 HUB; FRT AXLE
TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97359-224-0 02 1 0212-0501 ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97359-224-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
(B) 		8-97359-224-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0211-0910 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-94365-459-0 02 1 0911- ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0911- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 06.313 NTN 		8-98008-156-1 02 1 1206- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0211- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0211-0211 ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-0211 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0212-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0212-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0502-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0502-1009 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-98171-254-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0211-0211 ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-0211 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0212-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0212-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0502-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0502-1009 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-007-1 02 1 0211- ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 0211-0612 ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-98021-780-0 12 1 0701- ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0211- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0211-0211 ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211-0211 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0212-0501 ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0212-0501 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0502- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0502- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-208-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-207-0 01 1 0211- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 0211-0612 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-98029-928-0 06 1 0701- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
