6 |

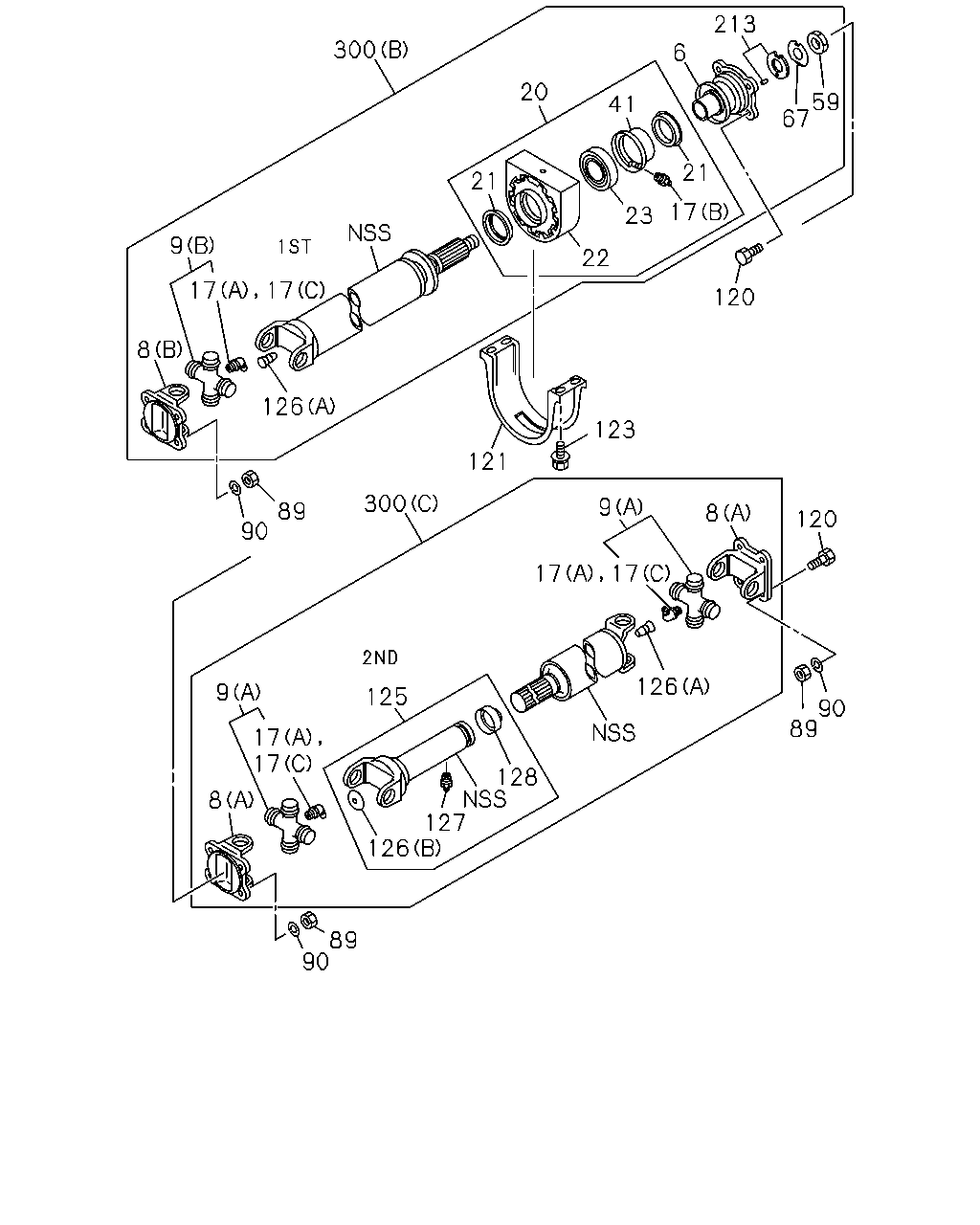

05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
8-94258-907-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
8-94258-907-1 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
8-94258-907-1 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
|
8-97036-123-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
|
8-97036-123-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
|
8-97036-123-0 |
01 |
1 |
0502- |
|
|
|
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
|
8-97036-123-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
8 |

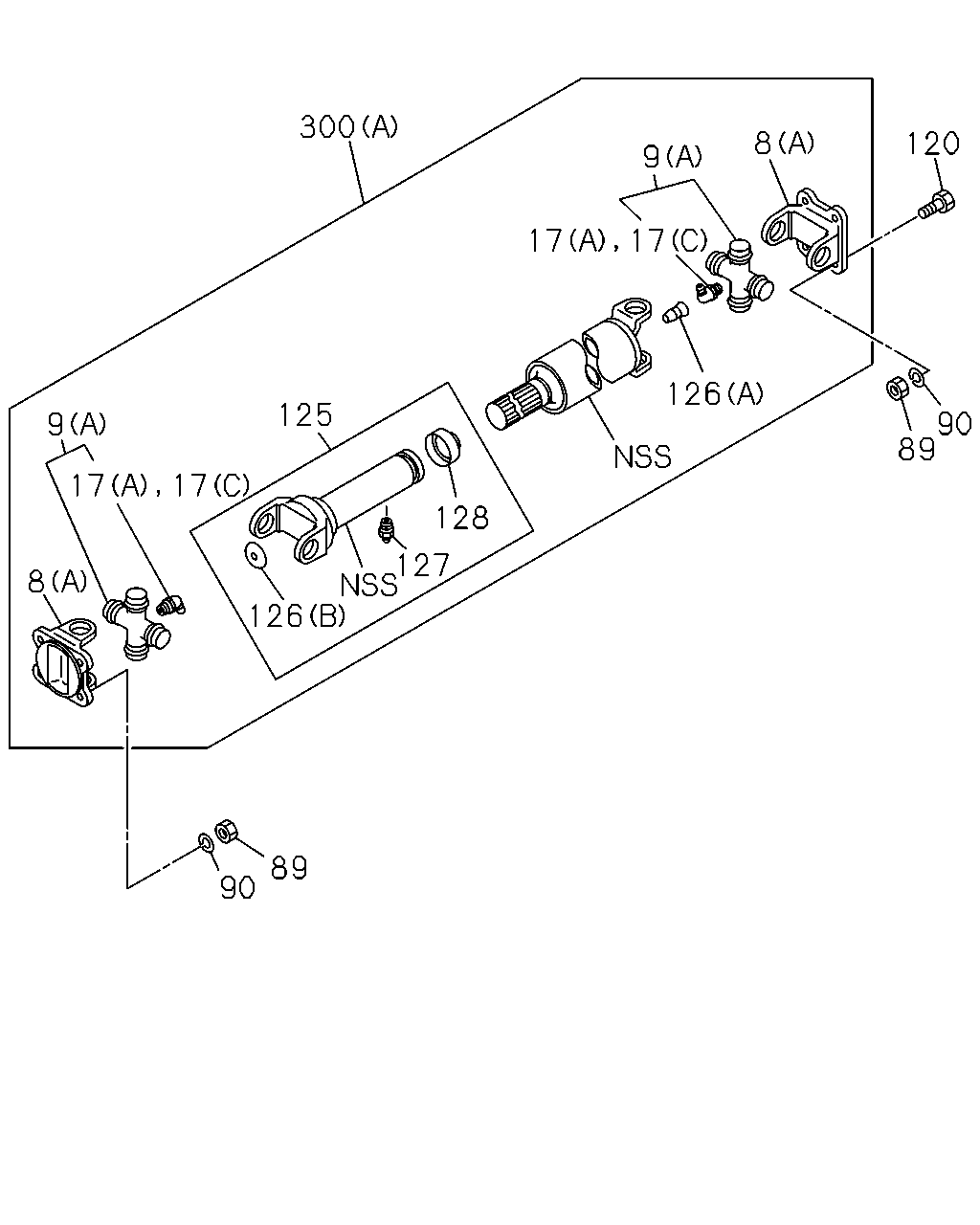

05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
|
8-97211-116-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(A)
|
8-97211-116-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(A)
|
8-97211-116-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-116-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
(A)
|
8-97211-116-0 |
02 |
1 |
0502-0504 |
● |
|
● |
● |
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
|
8-97211-116-0 |
02 |
1 |
0505-0606 |
● |
|
|
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(A)
|
8-97211-116-0 |
02 |
1 |
0505-0606 |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-116-0 |
02 |
1 |
0505-0606 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(A)
|
8-97211-116-0 |
02 |
1 |
0505-0606 |
|
|
● |
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
|
8-97211-116-0 |
02 |
1 |
0607-0910 |
● |
|
|
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
|
8-97211-116-0 |
02 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97211-116-0 |
02 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-116-0 |
02 |
1 |
0607-0910 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(A)
|
8-97211-116-0 |
02 |
1 |
0607-0910 |
|
|
● |
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
|
8-97211-116-0 |
02 |
1 |
0911-1101 |
● |
|
|
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
|
8-97211-116-0 |
02 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97211-116-0 |
02 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-116-0 |
02 |
1 |
0911-1101 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(A)
|
8-97211-116-0 |
02 |
1 |
0911-1101 |
|
|
● |
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
|
8-97211-116-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5S(R45)
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97211-116-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
|
8-97211-116-0 |
02 |
1 |
1102- |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97211-116-0 |
02 |
1 |
1102- |
|
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-116-0 |
02 |
1 |
1102- |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(A)
|
8-97211-116-0 |
02 |
1 |
1102- |
|
|
● |
|
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
D=80
|
8-97322-663-0 |
02 |
1 |
0211-0302 |
● |
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
D=80
|
8-97322-663-0 |
02 |
1 |
0303-0501 |
● |
|
|
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(A)
D=80
|
8-97322-663-0 |
02 |
1 |
0303-0501 |
|
|
|
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(A)
D=80
|
8-97322-663-0 |
02 |
1 |
0502-1004 |
● |
|
|
● |
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
(A)
D=80
|
8-97322-663-0 |
02 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
|
8-97211-116-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
|
8-97211-116-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
|
8-97211-116-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(A)
|
8-97225-254-0 |
02 |
1 |
0211-0301 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(A)
|
8-97225-254-0 |
02 |
1 |
0211-0301 |
|
|
|
|
|
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(B)
D=80
|
8-97322-663-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(B)
D=80
|
8-97322-663-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(B)
D=80
|
8-97322-663-0 |
01 |
1 |
0502- |
|
|
|
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
(B)
D=80
|
8-97322-663-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
|
8-97211-135-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(A)
|
8-97211-135-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(A)
|
8-97211-135-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-135-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
(A)
|
8-97211-135-0 |
02 |
1 |
0502-0504 |
● |
|
● |
● |
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
|
8-97211-135-0 |
02 |
1 |
0505-0606 |
● |
|
|
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(A)
|
8-97211-135-0 |
02 |
1 |
0505-0606 |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-135-0 |
02 |
1 |
0505-0606 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(A)
|
8-97211-135-0 |
02 |
1 |
0505-0606 |
|
|
● |
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
|
8-97211-135-0 |
02 |
1 |
0607-0910 |
● |
|
|
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
|
8-97211-135-0 |
02 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97211-135-0 |
02 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-135-0 |
02 |
1 |
0607-0910 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(A)
|
8-97211-135-0 |
02 |
1 |
0607-0910 |
|
|
● |
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
|
8-97211-135-0 |
02 |
1 |
0911-1101 |
● |
|
|
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
|
8-97211-135-0 |
02 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97211-135-0 |
02 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-135-0 |
02 |
1 |
0911-1101 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(A)
|
8-97211-135-0 |
02 |
1 |
0911-1101 |
|
|
● |
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
|
8-97211-135-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5S(R45)
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97211-135-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
|
8-97211-135-0 |
02 |
1 |
1102- |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
|
8-97211-135-0 |
02 |
1 |
1102- |
|
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(A)
|
8-97211-135-0 |
02 |
1 |
1102- |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(A)
|
8-97211-135-0 |
02 |
1 |
1102- |
|
|
● |
|
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
|
8-97322-749-0 |
02 |
1 |
0211-0302 |
● |
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
|
8-97322-749-0 |
02 |
1 |
0303-0501 |
● |
|
|
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(A)
|
8-97322-749-0 |
02 |
1 |
0303-0501 |
|
|
|
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(A)
|
8-97322-749-0 |
02 |
1 |
0502-0612 |
● |
|
|
● |
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(A)
|
8-98033-605-1 |
02 |
1 |
0701-1004 |
● |
|
|
● |
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
(A)
|
8-98033-605-1 |
02 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
|
8-97211-135-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
|
8-97211-135-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
|
8-97211-135-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(A)
|
8-97080-505-0 |
02 |
1 |
0211-0301 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(A)
|
8-97080-505-0 |
02 |
1 |
0211-0301 |
|
|
|
|
|
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(B)
|
8-97322-749-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(B)
|
8-97322-749-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(B)
|
8-97322-749-0 |
01 |
1 |
0502-0612 |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(B)
|
8-97322-749-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(B)
|
8-98033-605-1 |
01 |
1 |
0701- |
|
|
|
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
(B)
|
8-98033-605-1 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5S(R45)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0502-0504 |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1 NA ENG(RLF)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0505-0606 |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0505-0606 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0505-0606 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0505-0606 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0505-0606 |
|
|
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0607-0607 |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0607-0607 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0607-0607 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0607-0607 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0607-0607 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(C)
M6 STRAIGHT
|
9-09031-006-0 |
02 |
1 |
0607-0607 |
|
|
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0608-0910 |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0608-0910 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0608-0910 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0608-0910 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0608-0910 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0608-0910 |
|
|
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0911-1101 |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0911-1101 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0911-1101 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
0911-1101 |
|
|
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5S(R45)
REAR AXLE HEAVY DUTY 292MM(G73)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
|
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
(C)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1102- |
|
|
● |
|
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0211-0301 |
● |
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0211-0301 |
|
|
|
|
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0302-0302 |
● |
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0303-0501 |
● |
|
|
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0303-0501 |
|
|
|
|
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0502-0512 |
● |
|
|
● |
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
0601-1004 |
● |
|
|
● |
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
08.984
(B)
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(B)
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
08.984
(B)
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0502-0607 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(B)
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0502-0607 |
|
|
|
|
|
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
0608- |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
(B)
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
0608- |
|
|
|
|
|
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
01 |
1 |
0502-0512 |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
05.556
(A)
PT1/8 ELBOW
|
9-09031-210-0 |
01 |
1 |
0502-0512 |
|
|
|
|
|
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0601- |
|
|
|
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-008-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-008-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-008-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-007-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-007-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-007-1 |
01 |
1 |
0502-0702 |
|
|
|
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
W/NIPPLE;GREASE DOWN SIDE
|
5-37510-007-1 |
01 |
1 |
0502-0702 |
|
|
|
|
|
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
|
8-98020-880-0 |
01 |
1 |
0703- |
|
|
|
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
|
8-98020-880-0 |
01 |
1 |
0703- |
|
|
|
|
|
● |
| |
21 |
05.590 SEAL; OIL,CENTER BRG
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=39
|
5-09625-063-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
21 |
05.590 SEAL; OIL,CENTER BRG
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=39
|
5-09625-063-0 |
02 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
21 |
05.590 SEAL; OIL,CENTER BRG
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=39
|
5-09625-063-0 |
02 |
1 |
0505- |
|
|
|
|
● |
|
| |
21 |
05.590 SEAL; OIL,CENTER BRG
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
05.601
ID=49
|
5-09625-067-1 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
21 |
05.590 SEAL; OIL,CENTER BRG
05.601
ID=49
|
5-09625-067-1 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
21 |
05.590 SEAL; OIL,CENTER BRG
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
05.601
ID=49
|
5-09625-067-1 |
02 |
1 |
0502- |
|
|
|
|
● |
|
| |
21 |
05.590 SEAL; OIL,CENTER BRG
05.601
ID=49
|
5-09625-067-1 |
02 |
1 |
0502- |
|
|
|
|
|
● |
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
5-37516-006-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
5-37516-006-1 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
5-37516-006-1 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
|
5-37516-005-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
|
5-37516-005-1 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
|
5-37516-005-2 |
01 |
1 |
0502-0612 |
|
|
|
|
● |
|
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
|
5-37516-005-2 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
|
8-98020-875-0 |
01 |
1 |
0701- |
|
|
|
|
● |
|
| |
22 |
05.600 RUBBER; CUSHION,CENTER BRG,1ST
|
8-98020-875-0 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
D=75
|
5-09800-067-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
D=75
|
5-09800-067-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
D=75
|
5-09800-067-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
OD=80
|
5-09800-068-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
OD=80
|
5-09800-068-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
OD=80
|
5-09800-068-0 |
01 |
1 |
0502- |
|
|
|
|
● |
|
| |
23 |
05.600 BEARING; CENTER,PROP SHAFT
OD=80
|
5-09800-068-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
5-37512-005-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
5-37512-005-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
5-37512-005-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
|
5-37512-004-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
|
5-37512-004-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
|
5-37512-004-0 |
01 |
1 |
0502-0612 |
|
|
|
|
● |
|
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
|
5-37512-004-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
|
8-98020-795-0 |
01 |
1 |
0701- |
|
|
|
|
● |
|
| |
41 |
05.601 COVER; CENTER BRG,PROP SHAFT
|
8-98020-795-0 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
59 |
05.586 NUT; RET TO SUPPORT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=20
|
9-09841-038-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=20
|
9-09841-038-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=20
|
9-09841-038-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
M30
|
8-97160-857-0 |
01 |
1 |
0211-0303 |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
M30
|
8-97160-857-0 |
01 |
1 |
0211-0303 |
|
|
|
|
|
● |
| |
59 |
05.586 NUT; RET TO SUPPORT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
04.412
M27 H=25
|
8-97253-126-0 |
01 |
1 |
0304-0501 |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
04.412
M27 H=25
|
8-97253-126-0 |
01 |
1 |
0304-0501 |
|
|
|
|
|
● |
| |
59 |
05.586 NUT; RET TO SUPPORT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
04.412
M27 H=25
|
8-97253-126-0 |
01 |
1 |
0502-0612 |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
04.412
M27 H=25
|
8-97253-126-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
59 |
05.586 NUT; RET TO SUPPORT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
04.525
M27 H=25
|
8-97360-410-0 |
01 |
1 |
0701- |
|
|
|
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
04.525
M27 H=25
|
8-97360-410-0 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
67 |
05.586 WASHER; PROP SHAFT TO COUPLING D
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=20.5 OD=47 T=1.2
|
9-09855-214-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
67 |
05.586 WASHER; PROP SHAFT TO COUPLING D
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=20.5 OD=47 T=1.2
|
9-09855-214-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
67 |
05.586 WASHER; PROP SHAFT TO COUPLING D
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
ID=20.5 OD=47 T=1.2
|
9-09855-214-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
08 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M10
|
8-94159-009-1 |
08 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
08 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
08 |
1 |
0502-0504 |
● |
|
|
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
08 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M10
|
8-94159-009-1 |
08 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
08 |
1 |
0505-0610 |
● |
|
|
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
08 |
1 |
0505-0610 |
|
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M10
|
8-94159-009-1 |
08 |
1 |
0505-0610 |
|
|
● |
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10
|
8-98056-949-0 |
08 |
1 |
0611-0910 |
● |
|
|
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10
|
8-98056-949-0 |
08 |
1 |
0611-0910 |
|
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M10
|
8-98056-949-0 |
08 |
1 |
0611-0910 |
|
|
● |
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M10
|
8-98056-949-0 |
08 |
1 |
0911- |
● |
|
|
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10
|
8-98056-949-0 |
08 |
1 |
0911- |
|
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M10
|
8-98056-949-0 |
08 |
1 |
0911- |
|
|
● |
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HF1-S ENG(RLS)
M12
|
8-94477-841-0 |
08 |
1 |
0211-0501 |
● |
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HF1-N ENG(RJZ)
M12
|
8-94477-841-0 |
08 |
1 |
0502-0610 |
● |
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HF1-N ENG(RJZ)
M12
|
8-97365-450-1 |
08 |
1 |
0611-1004 |
● |
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
M12
|
8-97365-450-1 |
08 |
1 |
1005- |
● |
|
|
|
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HF1-N ENG(RJZ)
M12
|
8-97365-450-1 |
08 |
1 |
1005- |
|
|
|
● |
|
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
12 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
12 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10
|
8-94159-009-1 |
12 |
1 |
0505-0610 |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10
|
8-98056-949-0 |
12 |
1 |
0611- |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M12
|
8-94477-841-0 |
12 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M12
|
8-94477-841-0 |
12 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M12
|
8-94477-841-0 |
12 |
1 |
0502-0610 |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M12
|
8-94477-841-0 |
12 |
1 |
0502-0610 |
|
|
|
|
|
● |
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M12
|
8-97365-450-1 |
12 |
1 |
0611- |
|
|
|
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M12
|
8-97365-450-1 |
12 |
1 |
0611- |
|
|
|
|
|
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0502-0504 |
● |
|
|
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0505-0603 |
● |
|
|
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0505-0603 |
|
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=10.2
|
9-09150-610-0 |
08 |
1 |
0505-0603 |
|
|
● |
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
0-91510-610-0 |
08 |
1 |
0604-0910 |
● |
|
|
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
0-91510-610-0 |
08 |
1 |
0604-0910 |
|
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=10.2
|
0-91510-610-0 |
08 |
1 |
0604-0910 |
|
|
● |
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
00.002
ID=10.2
|
0-91510-610-0 |
08 |
1 |
0911- |
● |
|
|
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
0-91510-610-0 |
08 |
1 |
0911- |
|
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=10.2
|
0-91510-610-0 |
08 |
1 |
0911- |
|
|
● |
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HF1-S ENG(RLS)
00.002
ID=12.2
|
9-09150-812-0 |
08 |
1 |
0211-0501 |
● |
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HF1-N ENG(RJZ)
00.002
ID=12.2
|
9-09150-812-0 |
08 |
1 |
0502-0603 |
● |
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HF1-N ENG(RJZ)
07.347
ID=12.2
|
0-91510-812-0 |
08 |
1 |
0604-1004 |
● |
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
07.347
ID=12.2
|
0-91510-812-0 |
08 |
1 |
1005- |
● |
|
|
|
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HF1-N ENG(RJZ)
07.347
ID=12.2
|
0-91510-812-0 |
08 |
1 |
1005- |
|
|
|
● |
|
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0505-0603 |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
00.002
ID=10.2
|
0-91510-610-0 |
12 |
1 |
0604- |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
0502-0603 |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
0502-0603 |
|
|
|
|
|
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0604- |
|
|
|
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0604- |
|
|
|
|
|
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
04 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M10X29
|
8-97168-458-1 |
04 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
04 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
04 |
1 |
0502-0504 |
● |
|
|
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
04 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M10X29
|
8-97168-458-1 |
04 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
04 |
1 |
0505-0610 |
● |
|
|
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
04 |
1 |
0505-0610 |
|
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M10X29
|
8-97168-458-1 |
04 |
1 |
0505-0610 |
|
|
● |
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10X29
|
8-98056-948-0 |
04 |
1 |
0611-0910 |
● |
|
|
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10X29
|
8-98056-948-0 |
04 |
1 |
0611-0910 |
|
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M10X29
|
8-98056-948-0 |
04 |
1 |
0611-0910 |
|
|
● |
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M10X29
|
8-98056-948-0 |
04 |
1 |
0911- |
● |
|
|
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M10X29
|
8-98056-948-0 |
04 |
1 |
0911- |
|
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M10X29
|
8-98056-948-0 |
04 |
1 |
0911- |
|
|
● |
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HF1-S ENG(RLS)
M12X35
|
8-94477-842-0 |
04 |
1 |
0211-0501 |
● |
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HF1-N ENG(RJZ)
M12X35
|
8-94477-842-0 |
04 |
1 |
0502-0610 |
● |
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HF1-N ENG(RJZ)
M12X35
|
8-97365-451-1 |
04 |
1 |
0611-1004 |
● |
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
M12X35
|
8-97365-451-1 |
04 |
1 |
1005- |
● |
|
|
|
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HF1-N ENG(RJZ)
M12X35
|
8-97365-451-1 |
04 |
1 |
1005- |
|
|
|
● |
|
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
08 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
08 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10X29
|
8-97168-458-1 |
08 |
1 |
0505-0610 |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M10X29
|
8-98056-948-0 |
08 |
1 |
0611- |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M12X35
|
8-94477-842-0 |
08 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-94477-842-0 |
08 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M12X35
|
8-94477-842-0 |
08 |
1 |
0502-0610 |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-94477-842-0 |
08 |
1 |
0502-0610 |
|
|
|
|
|
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M12X35
|
8-97365-451-1 |
08 |
1 |
0611- |
|
|
|
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-97365-451-1 |
08 |
1 |
0611- |
|
|
|
|
|
● |
| |
121 |
05.598 RETAINER; CUSHION RUBBER
|
8-97035-623-1 |
01 |
1 |
0211- |
|
|
|
|
● |
● |
| |
123 |
05.601 BOLT; RET
01.252
M10X25 W/LK&PL WASHER
|
0-50141-025-0 |
04 |
1 |
0211-0512 |
|
|
|
|
● |
● |
| |
123 |
05.601 BOLT; RET
M10X25 W/LK&PL WASHER
|
0-50641-025-0 |
04 |
1 |
0601- |
|
|
|
|
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
L=177
|
8-97211-131-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177
|
8-97211-131-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
L=177
|
8-97211-131-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
L=177
|
8-97211-131-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
L=177
|
8-97211-131-0 |
01 |
1 |
0502-0504 |
● |
|
● |
● |
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
L=177
|
8-97211-131-0 |
01 |
1 |
0505-0606 |
● |
|
|
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
L=177
|
8-97211-131-0 |
01 |
1 |
0505-0606 |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
L=177
|
8-97211-131-0 |
01 |
1 |
0505-0606 |
|
|
|
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177
|
8-97211-131-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
L=177
|
8-97211-131-0 |
01 |
1 |
0607-0910 |
● |
|
|
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
L=177
|
8-97211-131-0 |
01 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
L=177
|
8-97211-131-0 |
01 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
L=177
|
8-97211-131-0 |
01 |
1 |
0607-0910 |
|
|
|
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177
|
8-97211-131-0 |
01 |
1 |
0607-0910 |
|
|
● |
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
L=177
|
8-97211-131-0 |
01 |
1 |
0911-1101 |
● |
|
|
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
L=177
|
8-97211-131-0 |
01 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
L=177
|
8-97211-131-0 |
01 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
L=177
|
8-97211-131-0 |
01 |
1 |
0911-1101 |
|
|
|
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177
|
8-97211-131-0 |
01 |
1 |
0911-1101 |
|
|
● |
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
L=177
|
8-97211-131-0 |
01 |
1 |
1102- |
● |
|
|
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5S(R45)
REAR AXLE HEAVY DUTY 292MM(G73)
L=177
|
8-97211-131-0 |
01 |
1 |
1102- |
● |
|
|
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
L=177
|
8-97211-131-0 |
01 |
1 |
1102- |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
L=177
|
8-97211-131-0 |
01 |
1 |
1102- |
|
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
L=177
|
8-97211-131-0 |
01 |
1 |
1102- |
|
|
|
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177
|
8-97211-131-0 |
01 |
1 |
1102- |
|
|
● |
|
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
L=183
|
8-97327-979-0 |
01 |
1 |
0211-0302 |
● |
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
L=183
|
8-97327-979-1 |
01 |
1 |
0303-0501 |
● |
|
|
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
L=183
|
8-97327-979-1 |
01 |
1 |
0303-0501 |
|
|
|
|
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
L=183
|
8-97327-979-1 |
01 |
1 |
0502-1004 |
● |
|
|
● |
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
L=183
|
8-97327-979-1 |
01 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JH1 ENG(RJX),4HF1-S ENG(RLS)
L=191
|
8-97036-126-1 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=191
|
8-97036-126-1 |
01 |
1 |
0211-0301 |
|
|
|
|
|
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
|
1-09600-023-0 |
01 |
1 |
0211-0501 |
● |
|
|
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
|
1-09600-023-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
|
1-09600-023-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(A)
|
1-09600-023-0 |
01 |
1 |
0502-1004 |
● |
|
|
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(A)
|
1-09600-023-0 |
01 |
1 |
0502-1004 |
|
|
|
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
(A)
|
1-09600-023-0 |
01 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(A)
|
1-09600-023-0 |
01 |
1 |
1005- |
|
|
|
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(B)
|
8-94366-900-0 |
01 |
1 |
0211-0301 |
● |
|
|
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(B)
|
8-94366-900-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(B)
|
8-94366-900-0 |
01 |
1 |
0302-0302 |
● |
|
|
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(B)
|
8-94366-900-0 |
01 |
1 |
0303-0501 |
● |
|
|
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(B)
|
8-94366-900-0 |
01 |
1 |
0303-0501 |
|
|
|
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(B)
|
8-94366-900-0 |
01 |
1 |
0502-1004 |
● |
|
|
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
(B)
|
8-94366-900-0 |
01 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
● |
|
|
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
● |
|
|
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
|
● |
● |
|
|
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
EXC. REAR WIDE TREAD(V4T),FRAME-KICK
UP<7EW>
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
REAR WIDE TREAD(V4T)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
FRAME-KICK UP<7EW>
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA
ENG(RLF),4HF1-S ENG(RLS)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
● |
|
|
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
● |
|
|
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
|
● |
● |
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
EXC. REAR WIDE TREAD(V4T),FRAME-KICK
UP<7EW>
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
REAR WIDE TREAD(V4T)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
FRAME-KICK UP<7EW>
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0302-0302 |
|
|
|
|
● |
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
● |
|
|
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
● |
|
|
|
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
EXC. REAR WIDE TREAD(V4T),FRAME-KICK
UP<7EW>
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
REAR WIDE TREAD(V4T)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
FRAME-KICK UP<7EW>
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
|
|
|
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA
ENG(RLF),4HF1-S ENG(RLS)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0303-0501 |
|
|
|
|
● |
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HF1-N ENG(RJZ),4JB1 NA ENG(RLF)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0502-0504 |
● |
|
● |
● |
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA
ENG(RLF)
08.984
M6 STRAIGHT
|
9-09031-006-0 |
01 |
1 |
0505-0607 |
● |
|
● |
● |
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA
ENG(RLF)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
0608-1004 |
● |
|
● |
● |
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4HF1-N
ENG(RJZ),4JB1 NA ENG(RLF)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1005- |
● |
|
● |
● |
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
05.545
|
8-97020-597-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
05.545
|
8-97020-597-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
05.545
|
8-97020-597-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
05.545
|
8-97020-597-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
05.545
|
8-97020-597-1 |
01 |
1 |
0502-0504 |
● |
|
● |
● |
● |
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
05.545
|
8-97020-597-1 |
01 |
1 |
0505-0606 |
● |
|
|
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
05.545
|
8-97020-597-1 |
01 |
1 |
0505-0606 |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
05.545
|
8-97020-597-1 |
01 |
1 |
0505-0606 |
|
|
|
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
05.545
|
8-97020-597-1 |
01 |
1 |
0505-0606 |
|
|
● |
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
05.545
|
8-97020-597-1 |
01 |
1 |
0607-0910 |
● |
|
|
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
05.545
|
8-97020-597-1 |
01 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
05.545
|
8-97020-597-1 |
01 |
1 |
0607-0910 |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
05.545
|
8-97020-597-1 |
01 |
1 |
0607-0910 |
|
|
|
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
05.545
|
8-97020-597-1 |
01 |
1 |
0607-0910 |
|
|
● |
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
05.545
|
8-97020-597-1 |
01 |
1 |
0911-1101 |
● |
|
|
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
05.545
|
8-97020-597-1 |
01 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
05.545
|
8-97020-597-1 |
01 |
1 |
0911-1101 |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
05.545
|
8-97020-597-1 |
01 |
1 |
0911-1101 |
|
|
|
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
05.545
|
8-97020-597-1 |
01 |
1 |
0911-1101 |
|
|
● |
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
05.545
|
8-97020-597-1 |
01 |
1 |
1102- |
● |
|
|
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT)
M/T MSB5S(R45)
REAR AXLE HEAVY DUTY 292MM(G73)
05.545
|
8-97020-597-1 |
01 |
1 |
1102- |
● |
|
|
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
05.545
|
8-97020-597-1 |
01 |
1 |
1102- |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
05.545
|
8-97020-597-1 |
01 |
1 |
1102- |
|
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
05.545
|
8-97020-597-1 |
01 |
1 |
1102- |
|
|
|
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
05.545
|
8-97020-597-1 |
01 |
1 |
1102- |
|
|
● |
|
|
|
| |
128 |
05.586 SEAL; SLEEVE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
|
8-97145-746-0 |
01 |
1 |
0211-0301 |
● |
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
|
8-97145-746-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
|
8-97145-746-0 |
01 |
1 |
0302-0302 |
● |
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
|
8-97145-746-0 |
01 |
1 |
0303-0501 |
● |
|
|
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JH1 ENG(RJX),4HF1-S ENG(RLS)
|
8-97145-746-0 |
01 |
1 |
0303-0501 |
|
|
|
|
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
|
8-97145-746-0 |
01 |
1 |
0502-1004 |
● |
|
|
● |
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
|
8-97145-746-0 |
01 |
1 |
1005- |
● |
|
|
● |
● |
● |
| |
213 |
05.586 WASHER ASM; PROP SHAFT TO COUPLI
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
9-09855-212-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
213 |
05.586 WASHER ASM; PROP SHAFT TO COUPLI
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
9-09855-212-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
213 |
05.586 WASHER ASM; PROP SHAFT TO COUPLI
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
|
9-09855-212-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
L=1134
|
8-98002-497-0 |
01 |
1 |
0607-1101 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT)
M/T MSB5S(R45)
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
L=1134
|
8-98002-497-0 |
01 |
1 |
1102- |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
L=1134
|
8-98002-497-0 |
01 |
1 |
1102- |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(A)
L=984
|
8-97308-055-2 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
EXC. REAR WIDE TREAD(V4T),FRAME-KICK
UP<7EW>
(A)
L=984
|
8-97308-055-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(A)
L=984
|
8-97308-055-3 |
01 |
1 |
0502-1004 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
EXC. REAR WIDE TREAD(V4T),FRAME-KICK
UP<7EW>
(A)
L=984
|
8-97308-055-3 |
01 |
1 |
0502-1004 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(A)
L=984
|
8-97308-055-3 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
EXC. REAR WIDE TREAD(V4T),FRAME-KICK
UP<7EW>
(A)
L=984
|
8-97308-055-3 |
01 |
1 |
1005- |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
L=1084
|
8-97211-674-0 |
01 |
1 |
0211-0411 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(A)
L=1084
|
8-97211-674-0 |
01 |
1 |
0211-0411 |
|
● |
● |
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
L=1084
|
8-97211-674-0 |
01 |
1 |
0211-0411 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0412-0501 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0412-0501 |
|
● |
● |
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0412-0501 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0502-0504 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0505-0606 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
EXC. REAR WIDE TREAD(V4T)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0505-0606 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0607-0910 |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0607-0910 |
|
|
● |
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1
NA ENG(RLF)
M/T MSB5S(R45)
REAR AXLE STANDARD 244MM(R39)
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0911- |
● |
|
|
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(A)
L=1084
|
8-98002-490-0 |
01 |
1 |
0911- |
|
|
● |
|
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
FRAME-KICK UP<7EW>
(A)
L=979
|
8-97308-054-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
FRAME-KICK UP<7EW>
(A)
L=979
|
8-97308-054-3 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
REAR WIDE TREAD(V4T)
(A)
L=988
|
8-97327-870-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
REAR WIDE TREAD(V4T)
(A)
L=988
|
8-97327-870-3 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
L=1064
|
8-97211-664-0 |
01 |
1 |
0211-0411 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
L=1064
|
8-98002-496-0 |
01 |
1 |
0412-0501 |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
REAR WIDE TREAD(V4T)
(A)
L=1064
|
8-98002-496-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(C)
L=1044
|
8-97211-672-0 |
01 |
1 |
0211-0411 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(C)
L=1044
|
8-98002-488-0 |
01 |
1 |
0412-0501 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
(C)
L=1044
|
8-98002-488-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
(C)
L=1044
|
8-98002-488-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
L=914
|
8-97211-669-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
L=914
|
8-97211-669-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JG2 ENG(RJC),4JB1 NA ENG(RLF)
M/T MSB5M(RM5)
(B)
L=914
|
8-97211-669-0 |
01 |
1 |
0505- |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(C)
L=1050
|
8-97206-688-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(C)
L=1050
|
8-97206-688-0 |
01 |
1 |
0211-0301 |
|
|
|
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(C)
L=1090
|
8-97364-108-2 |
01 |
1 |
0302-0501 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(C)
L=1090
|
8-97364-108-2 |
01 |
1 |
0302-0501 |
|
|
|
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
(C)
L=1090
|
8-97364-108-3 |
01 |
1 |
0502- |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(C)
L=1090
|
8-97364-108-3 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
M/T MYY5T(RSM)
(B)
L=802
|
8-97308-048-3 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(B)
L=802
|
8-97308-048-3 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
M/T MYY5T(RSM)
(B)
L=802
|
8-97308-048-4 |
01 |
1 |
0502- |
|
|
|
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
(B)
L=802
|
8-97308-048-4 |
01 |
1 |
0502- |
|
|
|
|
|
● |
