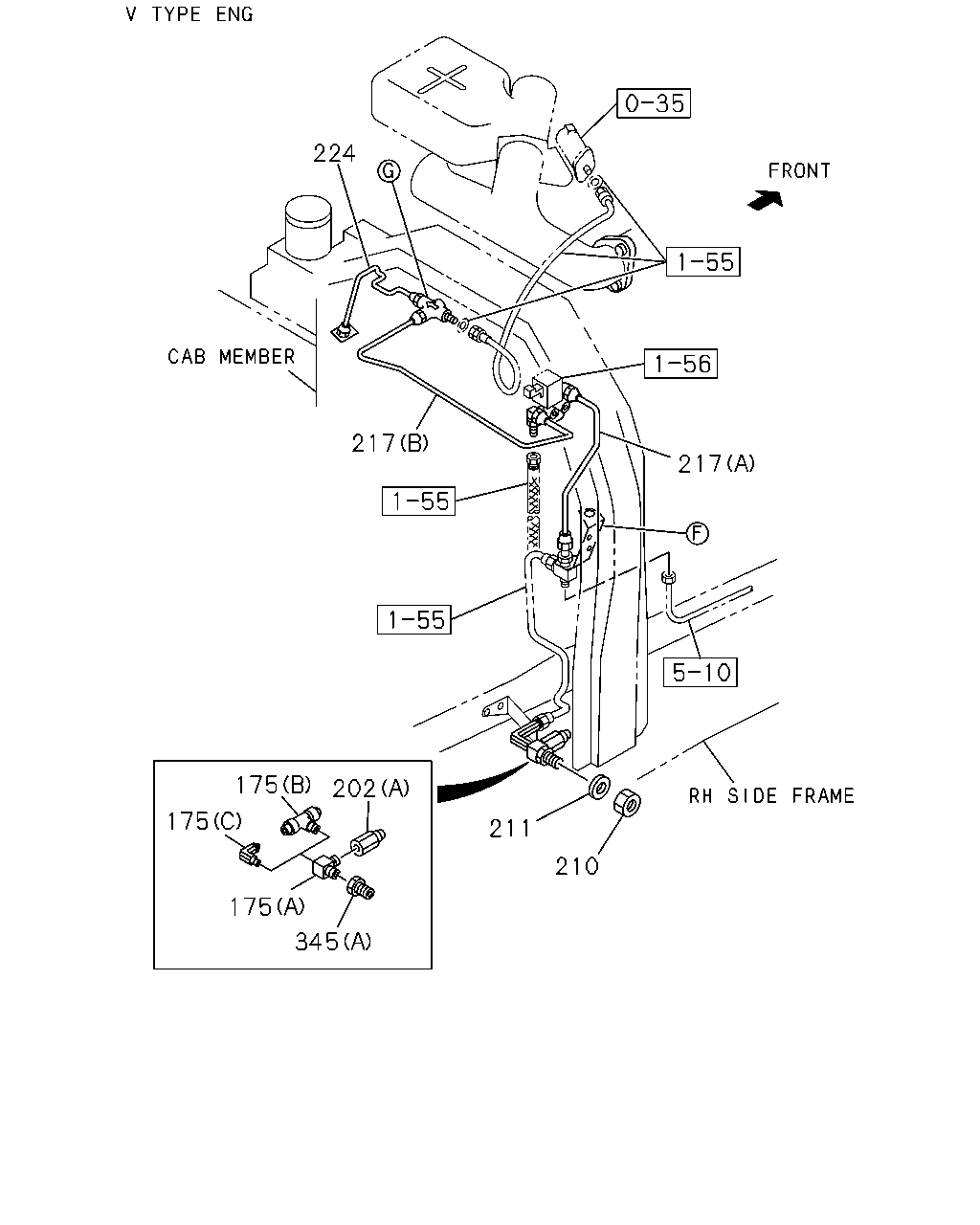

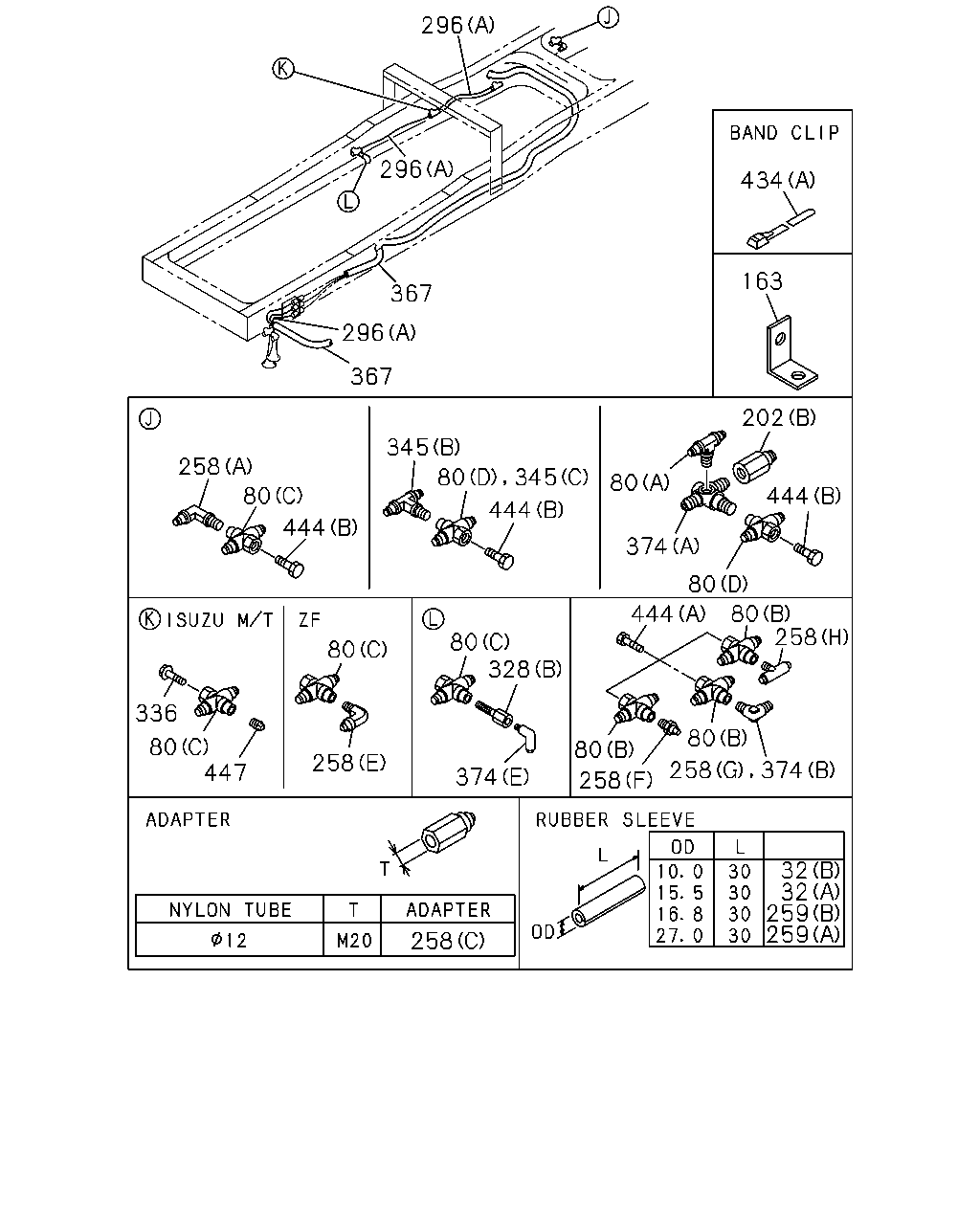

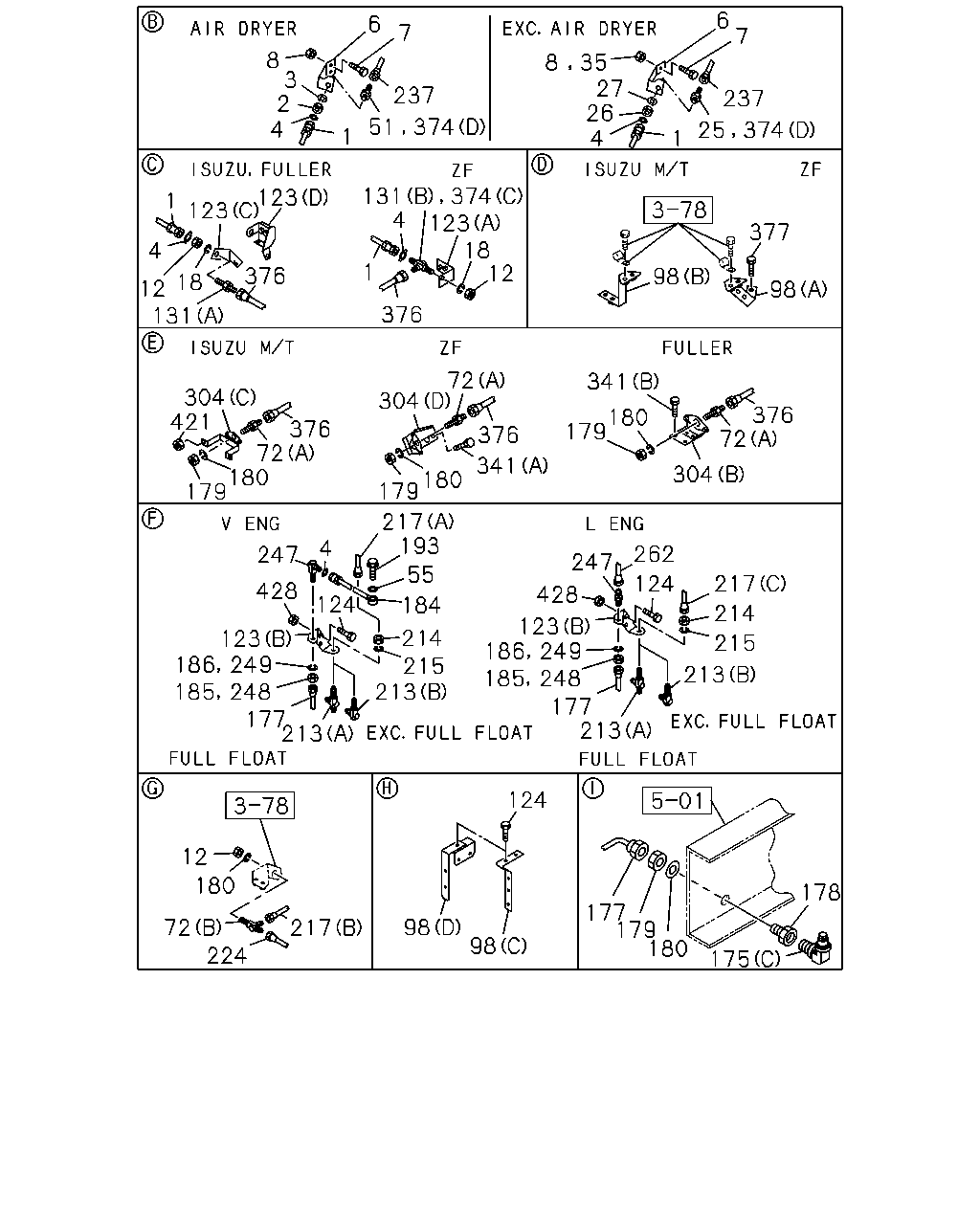

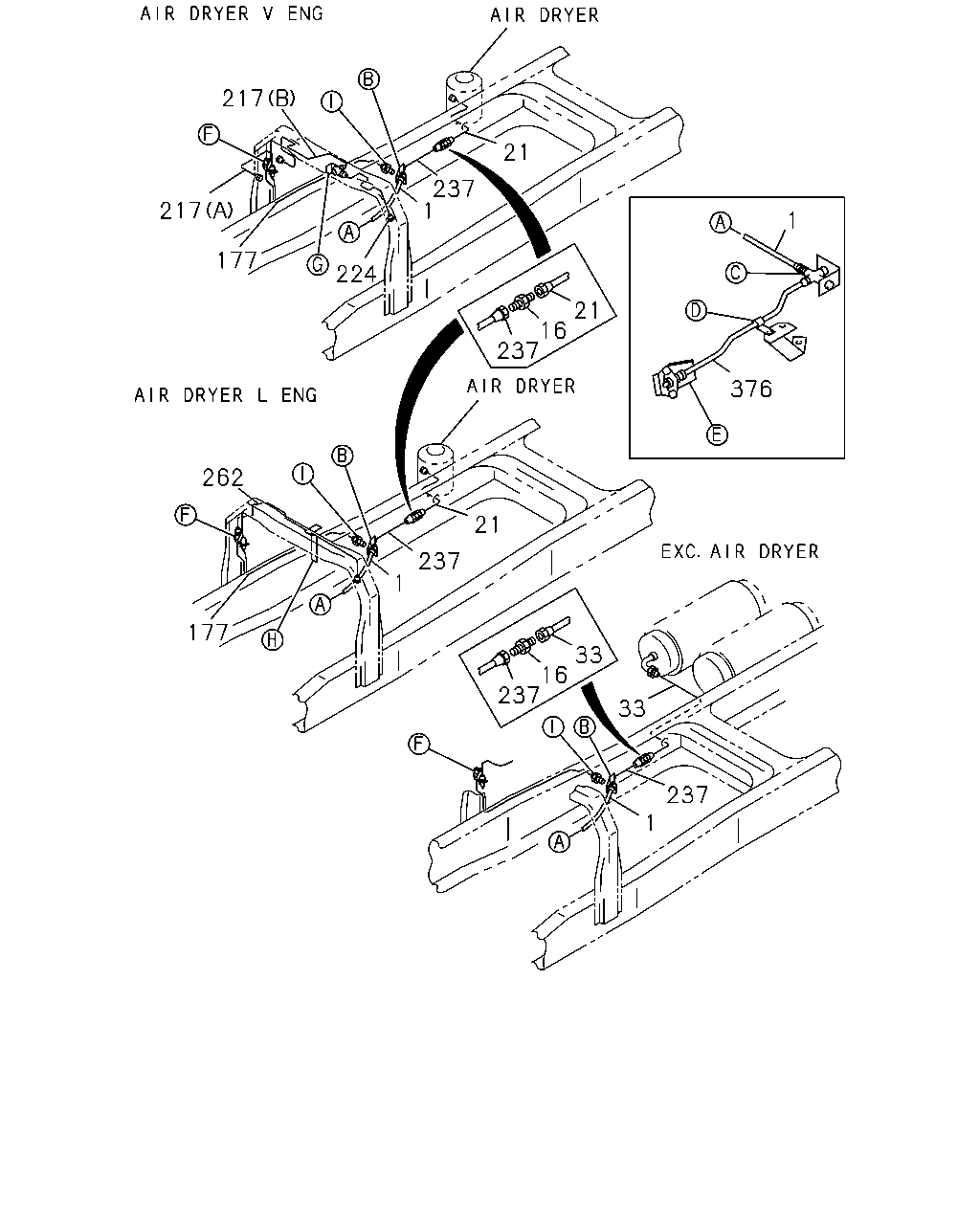

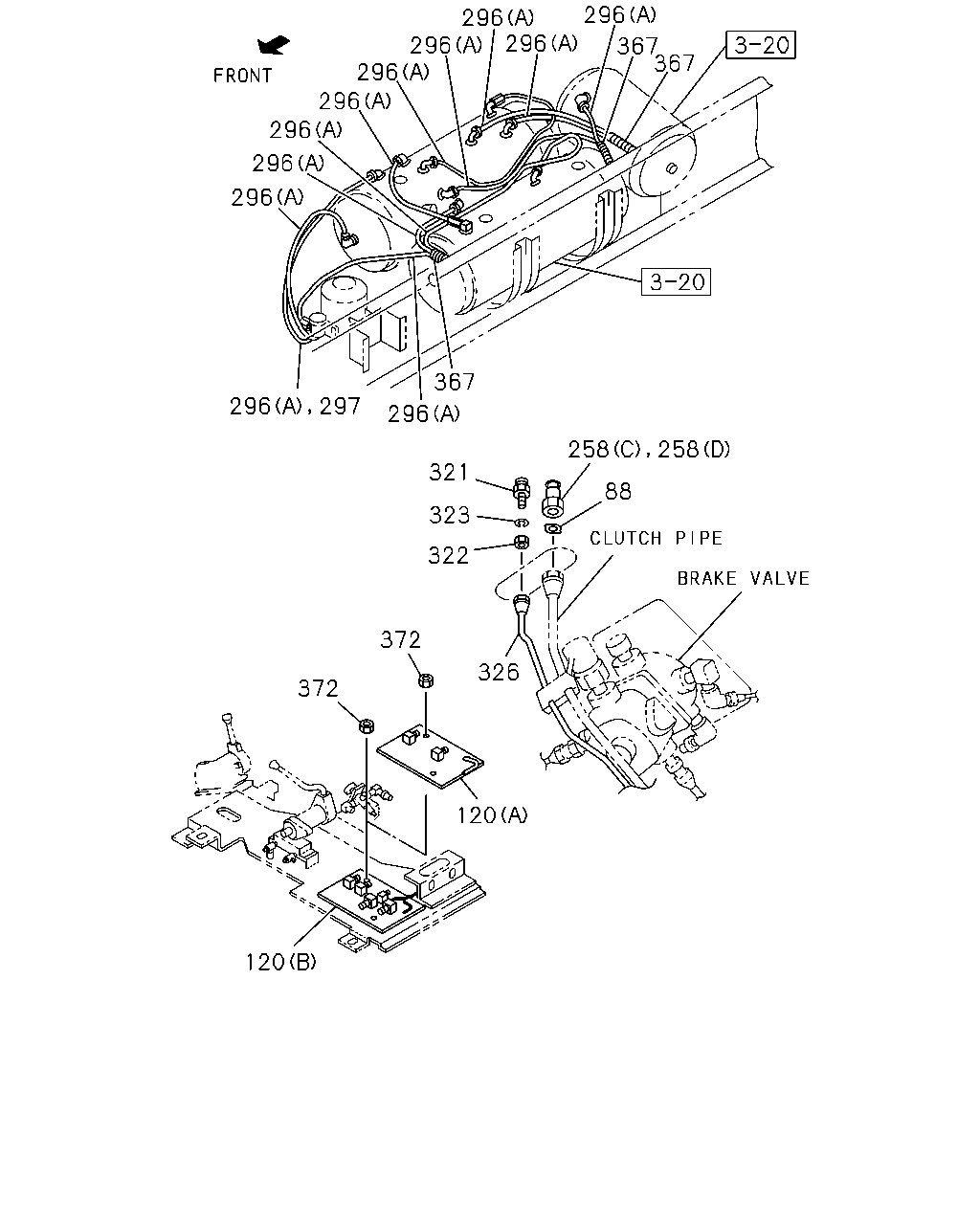

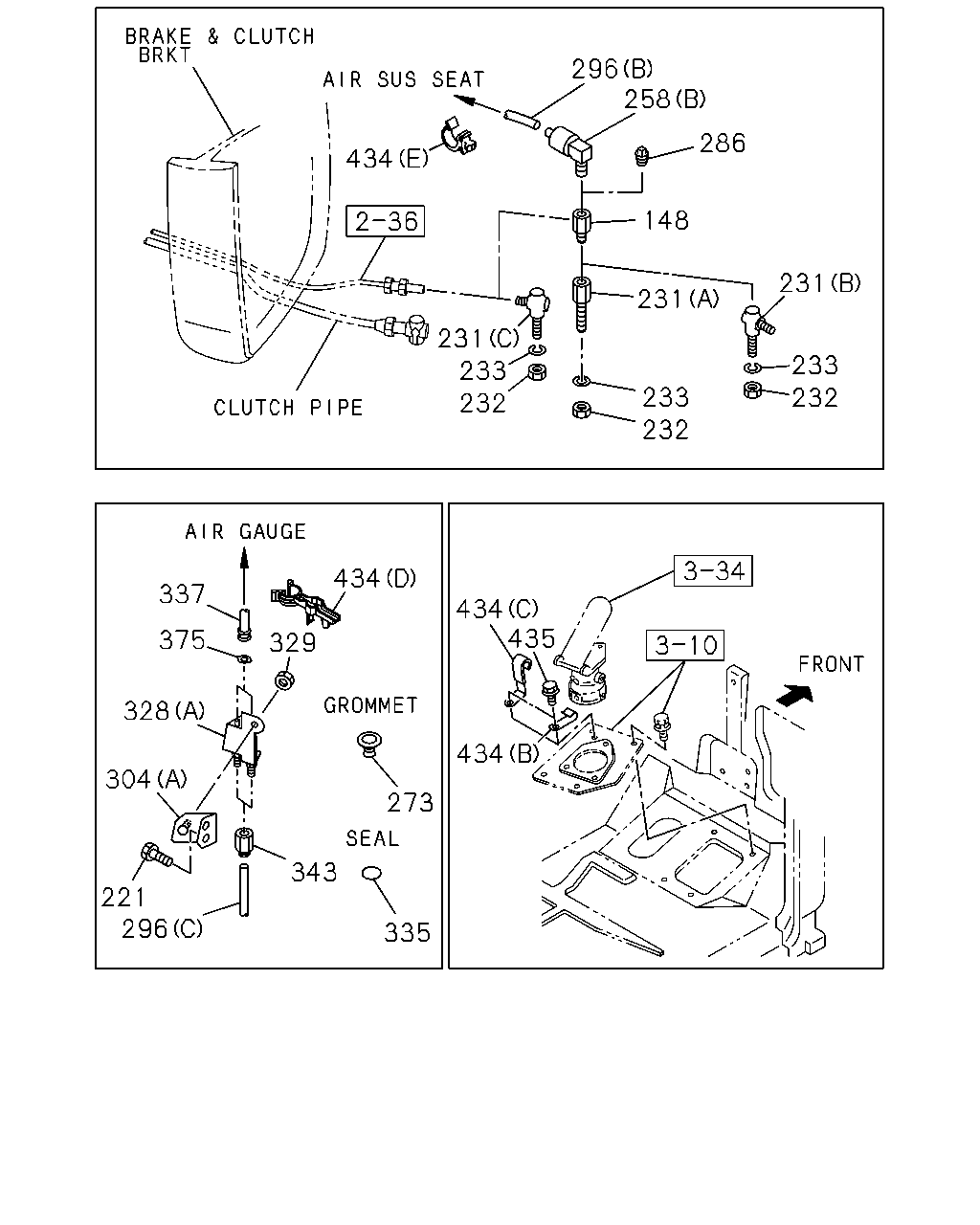

3-70 — BRAKE PIPING; AIR,AIR MASTER (#5107) — 721 parça

296 296 434 163 367 296 367 202 345 258 80 80 444 444 444 374 80 80 258 444 80 328 80 336 80 80 447 80 258 258 374 258 32 32 259 259 258 80 345 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE (A) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	9606-0104
32	SLEEVE; RUBBER,AIR PIPE L TYPE ENG<90L> (B) ID=6 L=30	5-09360-352-0	01	1	9606-9609
32	SLEEVE; RUBBER,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 L=30	5-09360-352-0	01	1	9610-
80	UNION; 3 WAY FULLER M/T<X9B> (C)	1-09660-757-0	01	1	9606-9702
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,ZF M/T<X9E> (C)	1-09660-757-0	01	1	9606-9702
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C)	1-09660-757-0	01	1	9703-9905
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (C)	1-09660-757-0	01	1	9703-9905
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9906-0011
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (C) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9906-0011
80	UNION; 3 WAY DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0012-
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (C) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0012-
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9606-9704
80	UNION; 3 WAY POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (B) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9705-9706
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9705-9706
80	UNION; 3 WAY POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (B) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9707-9905
80	UNION; 3 WAY BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9707-9905
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9707-9905
80	UNION; 3 WAY POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
80	UNION; 3 WAY BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
80	UNION; 3 WAY FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
80	UNION; 3 WAY ISUZU M/T<X9A>,ZF M/T<X9E> (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9606-9704
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9705-9905
80	UNION; 3 WAY POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9705-9905
80	UNION; 3 WAY ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-
80	UNION; 3 WAY ISUZU M/T<X9A> (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9905
80	UNION; 3 WAY ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
80	UNION; 3 WAY DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> 25X37	1-34656-004-0	01	1	9606-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9606-9905
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9906-0005
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
202	ADAPTER ISUZU M/T<X9A>,ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
202	ADAPTER ISUZU M/T<X9A>,ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0011
202	ADAPTER DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0012-
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9612
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9906-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9606-0011
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9606-9811
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9606-9811
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9905
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9606-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9612
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9701-9704
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9706
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9706
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
259	SLEEVE; RUBBER,NYLON TUBE BRAKE REGULATION ECE<TDV> FULLER M/T<X9B> (A) ID=23 OD=27 L=40	1-09337-015-0	01	1	9911-
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> (B) OD=16.8 L=50	1-09369-010-0	02	1	9606-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> (A) ID=23 OD=27 L=40	1-09337-015-0	02	1	9606-
296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9606-
296	TUBE; NYLON DUAL AIR GAUGE<UG2> (C) SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	9906-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-0	01	1	0002-0011
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-1	01	1	0012-
328	UNION; AIR PIPE (A)	1-47470-442-0	01	1	9606-9905
328	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-47470-442-0	01	1	9906-
328	UNION; AIR PIPE (B)	1-09654-280-1	01	1	0103-
336	BOLT; PIPE UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28080-825-0	01	1	9707-
336	BOLT; PIPE UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
336	BOLT; PIPE UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	01	1	9607-0011
336	BOLT; PIPE UNION DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	01	1	0012-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	9606-
345	UNION; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9704
345	UNION; AIR PIPE ZF M/T<X9E> (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9704
345	UNION; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9705-9905
345	UNION; AIR PIPE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9705-9905
345	UNION; AIR PIPE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9606-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9606-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9911-
374	CONNECTOR (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0103-
374	CONNECTOR FULLER M/T<X9B> (D) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
374	CONNECTOR MJA7 M/T<X9Q> (D) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
374	CONNECTOR POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
374	CONNECTOR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9606-9905
374	CONNECTOR ISUZU M/T<X9A>,ZF M/T<X9E> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9906-0011
374	CONNECTOR DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0012-
374	CONNECTOR ZF M/T<X9E> (C)	1-09654-203-1	01	1	0007-
434	CLIP (B)	1-09701-222-0	01	1	9701-9704
434	CLIP (C) ID=17	8-94449-734-1	01	1	9705-9905
434	CLIP DUAL AIR GAUGE<UG2> (C) ID=17	8-94449-734-1	01	1	9906-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=17	1-09987-105-1	01	1	9906-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (E)	8-94297-486-0	02	1	9906-
434	CLIP L TYPE ENG<90L> (A) L=140	5-09707-031-0	01	1	9606-9609
434	CLIP L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) L=140	5-09707-031-1	01	1	9610-
444	BOLT; UNION (B) M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
444	BOLT; UNION (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9704
444	BOLT; UNION (B) M8X20 FLANGE	0-28680-820-0	01	1	9705-
444	BOLT; UNION POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (B) M8X20 FLANGE	0-28680-820-0	01	1	9705-
444	BOLT; UNION FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
444	BOLT; UNION FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-
447	PLUG; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> PT3/8	9-09204-517-0	01	1	9606-0011
447	PLUG; UNION DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> PT3/8	9-09204-517-0	01	1	0012-

6 7 6 7 8 3 2 4 8 35 27 26 4 237 237 51 374 1 1 4 123 18 12 123 123 1 377 98 4 376 18 1 12 131 98 376 72 304 341 304 421 376 72 376 180 179 376 72 180 179 341 304 180 179 217 193 4 262 247 247 55 217 124 428 428 124 123 177 213 184 214 123 177 213 214 215 213 215 213 124 12 180 178 177 179 180 175 72 224 98 98 217 25 374 374 131 186 185 248 249 186 185 248 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=440	0-07846-440-1	01	1	9606-9609
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> L=440	0-07846-440-1	01	1	9610-9612
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> EXC. ZF M/T<X9E> L=440	0-07846-440-1	01	1	9701-
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> ZF M/T<X9E> L=400	0-07846-400-1	01	1	9701-0007
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> L TYPE ENG<90L> L=400	0-07846-400-1	01	1	0008-
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> L=530	0-07846-530-1	01	1	9606-
2	NUT; FLEX HOSE,AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> ZF M/T<X9E> M22	9-09111-422-0	01	1	9701-0007
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> ZF M/T<X9E> L TYPE ENG<90L> M22	9-09111-422-0	01	1	0008-
2	NUT; FLEX HOSE,AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> EXC. ZF M/T<X9E> M20	9-99111-420-0	01	1	9606-0007
2	NUT; FLEX HOSE,AIR TANK V TYPE ENG<91L> AIR DRYER<PS7> M20	9-99111-420-0	01	1	9606-0007
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> EXC. ZF M/T<X9E> M20	9-99111-420-0	01	1	0008-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> V TYPE ENG<91L> M20	9-99111-420-0	01	1	0008-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9606-9612
3	WASHER; LK,FLEX HOSE,AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> EXC. ZF M/T<X9E> ID=20.2	9-09150-520-0	01	1	9701-0007
3	WASHER; LK,FLEX HOSE,AIR TANK V TYPE ENG<91L> AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9701-0007
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> EXC. ZF M/T<X9E> ID=20.2	9-09150-520-0	01	1	0008-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> V TYPE ENG<91L> ID=20.2	9-09150-520-0	01	1	0008-
3	WASHER; LK,FLEX HOSE,AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> ZF M/T<X9E> ID=22.5	9-09150-522-0	01	1	9701-0007
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ZF M/T<X9E> L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	0008-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9606-9606
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9607-9706
4	GASKET; FLEX HOSE 10PE1S(60L) ID=11 OD=18	9-09572-510-0	01	1	9607-9706
4	GASKET; FLEX HOSE V TYPE ENG<91L> ID=11 OD=18	9-09572-510-0	01	1	9707-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9707-
6	BRACKET; FLEX HOSE,AIR TANK FULLER M/T<X9B>	1-47477-252-0	01	1	9606-9609
6	BRACKET; FLEX HOSE,AIR TANK L TYPE ENG<90L>	1-47477-252-0	01	1	9610-9612
6	BRACKET; FLEX HOSE,AIR TANK L TYPE ENG<90L> EXC. ZF M/T<X9E>	1-47477-252-0	01	1	9701-
6	BRACKET; FLEX HOSE,AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> ZF M/T<X9E>	1-47477-432-0	01	1	9701-0007
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7> ZF M/T<X9E> L TYPE ENG<90L>	1-47477-432-0	01	1	0008-
6	BRACKET; FLEX HOSE,AIR TANK V TYPE ENG<91L>	1-47477-232-0	01	1	9606-
7	BOLT; BRKT,FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
7	BOLT; BRKT,FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9607-9905
7	BOLT; BRKT,FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9906-0003
7	BOLT; BRKT,FLEX HOSE,AIR TANK LIGHT DUTY PACKAGE TRUCK(Y21) M8X35 FLANGE	0-28680-835-0	02	1	9906-0003
7	BOLT; BRKT,FLEX HOSE,AIR TANK FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	0004-
7	BOLT; BRKT,FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
7	BOLT; BRKT,FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
7	BOLT; BRKT,FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M8X30 FLANGE	0-28680-830-0	02	1	9906-0003
7	BOLT; BRKT,FLEX HOSE,AIR TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	0004-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9606-9606
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9607-
12	NUT; UNION V TYPE ENG<91L> M20	9-99111-420-0	01	1	9606-9702
12	NUT; UNION FULLER M/T<X9B> M20	9-99111-420-0	01	1	9606-9702
12	NUT; UNION MJA7 M/T<X9Q> M20	9-99111-420-0	01	1	9606-9702
12	NUT; UNION FULLER M/T<X9B> M20	9-99111-420-0	01	1	9703-
12	NUT; UNION MJA7 M/T<X9Q> M20	9-99111-420-0	01	1	9703-
12	NUT; UNION V TYPE ENG<91L> M12	9-09840-280-0	01	1	9703-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	9606-
18	WASHER; LK,UNION FULLER M/T<X9B> ID=20.2	9-09150-520-0	01	1	9606-
18	WASHER; LK,UNION MJA7 M/T<X9Q> ID=20.2	9-09150-520-0	01	1	9606-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	9606-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	9606-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9606-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9606-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9606-9606
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9606-9612
51	UNION L TYPE ENG<90L> AIR DRYER<PS7> EXC. ZF M/T<X9E> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9701-0007
51	UNION V TYPE ENG<91L> AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9701-0007
51	UNION AIR DRYER<PS7> L TYPE ENG<90L> EXC. ZF M/T<X9E> M20 & M22 STRAIGHT	1-09654-166-1	01	1	0008-
51	UNION AIR DRYER<PS7> V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-166-1	01	1	0008-
51	UNION L TYPE ENG<90L> AIR DRYER<PS7> ZF M/T<X9E>	1-09654-202-1	01	1	9906-0007
51	UNION AIR DRYER<PS7> ZF M/T<X9E> L TYPE ENG<90L>	1-09654-202-1	01	1	0008-
55	GASKET; AIR PIPE V TYPE ENG<91L> ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-
72	UNION; AIR PIPE L TYPE ENG<90L> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09654-318-1	01	1	9606-0007
72	UNION; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) L TYPE ENG<90L> (A)	1-09654-318-1	01	1	0008-
72	UNION; AIR PIPE L TYPE ENG<90L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09654-097-1	01	1	9606-
72	UNION; AIR PIPE V TYPE ENG<91L> (A)	1-09654-097-1	01	1	9606-
72	UNION; AIR PIPE V TYPE ENG<91L> (B)	1-09656-292-1	01	1	9606-9702
72	UNION; AIR PIPE V TYPE ENG<91L> (B) M12 3WAY	9-09228-906-1	01	1	9703-
98	BRACKET; AIR PIPE L TYPE ENG<90L> (C)	1-47477-385-0	01	1	9606-9905
98	BRACKET; AIR PIPE L TYPE ENG<90L> (D)	1-47477-471-0	01	1	9906-
98	BRACKET; AIR PIPE MJA7 M/T<X9Q> (B)	1-47477-190-2	02	1	9606-9612
98	BRACKET; AIR PIPE MJA7 M/T<X9Q> (B)	1-47477-840-0	02	1	9701-
98	BRACKET; AIR PIPE ZF M/T<X9E> (A)	1-47477-693-0	01	1	9606-9612
98	BRACKET; AIR PIPE ZF M/T<X9E> (A)	1-47477-902-0	01	1	9701-
123	BRACKET; UNION (B)	1-47477-045-0	01	1	9606-
123	BRACKET; UNION FULLER M/T<X9B> (C)	1-47477-536-0	01	1	9606-
123	BRACKET; UNION MJA7 M/T<X9Q> (D)	1-47477-187-0	01	1	9606-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	9606-
124	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-
124	BOLT; BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
124	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
131	UNION; AIR PIPE FULLER M/T<X9B> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9606-0006
131	UNION; AIR PIPE MJA7 M/T<X9Q> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9606-0006
131	UNION; AIR PIPE ZF M/T<X9E> (B)	1-09654-203-1	01	1	9606-0006
175	CONNECTOR; AIR PIPE (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9606-
175	CONNECTOR; AIR PIPE (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0012-
177	PIPE; AIR,UNION TO UNION L=1387 SERVICED BY L=1500	1-47428-819-0	01	1	9606-9606
177	PIPE; AIR,UNION TO UNION L=1375	1-49117-532-0	01	1	9607-9702
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-49117-532-0	01	1	9703-9905
177	PIPE; AIR,UNION TO UNION V TYPE ENG<91L>	1-49117-532-0	01	1	9703-9905
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>	1-49117-532-0	01	1	9906-9908
177	PIPE; AIR,UNION TO UNION V TYPE ENG<91L>	1-49117-532-0	01	1	9906-9908
177	PIPE; AIR,UNION TO UNION CAB UP +110MM<TGG> L TYPE ENG<90L>	1-49121-894-0	01	1	9906-9908
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-49122-248-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION V TYPE ENG<91L>	1-49122-248-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> MIXER TRUCK<RA2> L=1444 SERVICED BY L=1500	1-47428-819-0	01	1	9703-0007
177	PIPE; AIR,UNION TO UNION MIXER TRUCK<RA2> L TYPE ENG<90L> L=1444 SERVICED BY L=1500	1-47428-819-0	01	1	0008-
178	UNION; AIR PIPE	1-09654-280-1	01	1	9606-9904
178	UNION; AIR PIPE	1-09654-280-1	01	1	9906-0102
179	NUT; UNION M22	9-09111-422-0	01	1	9606-
179	NUT; UNION M12	9-99111-412-0	01	1	9606-9606
179	NUT; UNION M12	9-09840-280-0	01	1	9607-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9606-9702
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9703-
180	WASHER; LK,UNION 10PE1S(60L) ID=12.2	9-09150-512-0	01	1	9703-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9606-
180	WASHER; LK,UNION V TYPE ENG<91L> ID=20.2	9-09150-520-0	01	1	9606-9702
184	HOSE; FLEX,AIR GOV V TYPE ENG<91L> L=370	0-07532-370-1	01	1	9606-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9606-9711
185	NUT; FLEX HOSE,AIR GOV L TYPE ENG<90L> M12	9-09840-280-0	01	1	9712-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9606-9711
186	WASHER; LK,FLEX HOSE,AIR GOV L TYPE ENG<90L> ID=12.2	9-09150-512-0	01	1	9712-
193	BOLT; EYE,FLEX HOSE,GOV LINE V TYPE ENG<91L> M14X27 FLANGE	1-09675-086-0	01	1	9606-
213	UNION; AIR PIPE FULL FLOATING CAB(W16) (A) M12 3WAY	9-09228-906-1	01	1	9606-
213	UNION; AIR PIPE EXC. FULL FLOATING CAB(W16) (B) M12 ELBOW	9-09225-206-1	01	1	9606-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9606-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9606-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9606-9609
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9610-9701
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9702-9706
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9707-9905
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9906-9909
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=666	1-49121-249-0	01	1	9910-9910
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1643	1-49122-249-0	01	1	9911-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9606-9702
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=620	1-49121-778-0	01	1	9906-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=336	1-47499-145-0	01	1	9606-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=552	1-49121-876-0	01	1	9906-
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=480 SERVICED BY L=500	1-47428-807-0	01	1	9606-9702
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L>	1-49117-442-0	01	1	9606-9612
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. ZF M/T<X9E>	1-49117-442-0	01	1	9701-
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> ZF M/T<X9E>	1-49117-835-0	01	1	9701-9905
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> ZF M/T<X9E>	1-49121-888-0	01	1	9906-0003
237	PIPE; AIR,FLEX HOSE TO UNION ZF M/T<X9E> L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-49121-888-0	01	1	0004-
237	PIPE; AIR,FLEX HOSE TO UNION MIXER TRUCK<RA2> ZF M/T<X9E> L TYPE ENG<90L>	1-49122-467-0	01	1	0004-
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L>	1-49117-441-0	01	1	9606-
247	UNION; AIR PIPE L TYPE ENG<90L> M12 L=66.5	9-09223-306-1	01	1	9606-
247	UNION; AIR PIPE V TYPE ENG<91L> M12	1-09654-087-1	01	1	9606-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	9606-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9606-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-S(56L) L=871	1-49114-257-0	01	1	9606-9905
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> CAB UP +110MM<TGG>	1-49121-783-0	01	1	9906-0007
262	PIPE; AIR,UNION TO FLEX CAB UP +110MM<TGG> L TYPE ENG<90L>	1-49121-783-0	01	1	0008-
262	PIPE; AIR,UNION TO FLEX 6WG1 TC-N(71L)	1-49116-729-0	01	1	9707-9905
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=896	1-49121-787-0	01	1	9906-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	9606-9905
304	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-71117-211-0	01	1	9906-
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	9908-
304	BRACKET; UNION ENGINE REAR PTO<SV1> (C)	1-47477-184-1	01	1	9606-9702
304	BRACKET; UNION V TYPE ENG<91L> ENGINE REAR PTO<SV1> (C)	1-47477-184-1	01	1	9703-9907
304	BRACKET; UNION ENGINE REAR PTO<SV1> ISUZU M/T<X9A> V TYPE ENG<91L> (C)	1-47477-184-1	01	1	9908-
304	BRACKET; UNION FULLER M/T<X9B> (B)	1-47477-405-0	01	1	9606-9905
304	BRACKET; UNION FULLER M/T<X9B> (B)	1-47477-405-0	01	1	9906-
304	BRACKET; UNION MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> (C)	1-47477-182-1	01	1	9606-9702
304	BRACKET; UNION L TYPE ENG<90L> MJA7 M/T<X9Q> (C)	1-47477-182-1	01	1	9703-9907
304	BRACKET; UNION V TYPE ENG<91L> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> (C)	1-47477-182-1	01	1	9703-9907
304	BRACKET; UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	9908-
304	BRACKET; UNION ISUZU M/T<X9A> V TYPE ENG<91L> EXC. ENGINE REAR PTO<SV1>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	9908-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-436-0	01	1	9606-9704
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	9705-
341	BOLT; BRKT FULLER M/T<X9B> (B) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
341	BOLT; BRKT FULLER M/T<X9B> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
341	BOLT; BRKT ZF M/T<X9E> (A) M16X35 FLANGE	0-28881-635-0	02	1	9606-9704
374	CONNECTOR (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0103-
374	CONNECTOR FULLER M/T<X9B> (D) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
374	CONNECTOR MJA7 M/T<X9Q> (D) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
374	CONNECTOR POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
374	CONNECTOR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9606-9905
374	CONNECTOR ISUZU M/T<X9A>,ZF M/T<X9E> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9906-0011
374	CONNECTOR DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0012-
374	CONNECTOR ZF M/T<X9E> (C)	1-09654-203-1	01	1	0007-
376	PIPE; AIR,FLEX HOSE ENGINE REAR PTO<SV1> MJA7 M/T<X9Q>	1-49112-567-0	01	1	9606-9702
376	PIPE; AIR,FLEX HOSE V TYPE ENG<91L> ENGINE REAR PTO<SV1> MJA7 M/T<X9Q>	1-49112-567-0	01	1	9703-
376	PIPE; AIR,FLEX HOSE FULLER M/T<X9B>	1-49114-857-0	01	1	9606-9606
376	PIPE; AIR,FLEX HOSE FULLER M/T<X9B>	1-49117-491-0	01	1	9607-
376	PIPE; AIR,FLEX HOSE MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> L=639	1-49112-566-0	01	1	9606-9702
376	PIPE; AIR,FLEX HOSE L TYPE ENG<90L> MJA7 M/T<X9Q> L=639	1-49112-566-0	01	1	9703-
376	PIPE; AIR,FLEX HOSE V TYPE ENG<91L> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> L=639	1-49112-566-0	01	1	9703-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49116-862-0	01	1	9606-9608
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	9609-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	9606-
421	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-110-0	02	1	9606-9606
421	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-210-0	02	1	9607-9704
421	NUT; BRKT ISUZU M/T<X9A>,ZF M/T<X9E> M10 FLANGE	0-91150-210-0	02	1	9705-
428	NUT; BRKT M8	9-09110-508-0	02	1	9606-9606
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-

296 258 286 434 148 231 231 231 233 233 233 232 232 232 434 337 434 435 375 329 328 434 304 273 343 221 296 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
148	CONNECTOR; UNION ZF M/T<X9E>	8-94338-417-0	01	1	9606-9912
148	CONNECTOR; UNION TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0001-
221	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9606-9905
221	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
221	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	01	1	9606-9606
221	BOLT; BRKT EXC. AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9607-
231	UNION; AIR PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (C)	1-09654-356-0	01	1	9906-9912
231	UNION; AIR PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (C)	1-09654-356-0	01	1	0001-0011
231	UNION; AIR PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (C)	1-09654-356-0	01	1	0012-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	9606-9905
231	UNION; AIR PIPE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	9606-9905
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-09656-713-2	01	1	9906-9912
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	9906-9912
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0001-0011
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-09656-713-2	01	1	0001-0011
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0012-
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-09656-713-2	01	1	0012-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DUAL AIR GAUGE<UG2> (B)	1-09656-682-0	01	1	9906-9912
231	UNION; AIR PIPE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (B)	1-09656-682-0	01	1	9906-9912
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (B)	1-09656-682-0	01	1	0001-0011
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DUAL AIR GAUGE<UG2> (B)	1-09656-682-0	01	1	0001-0011
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (B)	1-09656-682-0	01	1	0012-
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. DUAL AIR GAUGE<UG2> (B)	1-09656-682-0	01	1	0012-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	9606-9905
232	NUT; UNION,AIR PIPE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	9606-9905
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9906-9912
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	9906-9912
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9906-9912
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0001-0011
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-0011
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-0011
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0012-
232	NUT; UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0012-
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0012-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	9606-9905
233	WASHER; LK,UNION,AIR PIPE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	9606-9905
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9906-9912
233	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	9906-9912
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9906-9912
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0001-0011
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-0011
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-0011
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0012-
233	WASHER; LK,UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0012-
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0012-
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9612
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9906-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9606-0011
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9606-9811
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9606-9811
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9905
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9606-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9612
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9701-9704
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9706
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9706
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
273	GROMMET	1-09332-135-0	01	1	9606-9905
273	GROMMET DUAL AIR GAUGE<UG2>	1-09332-135-0	01	1	9906-
286	PLUG; AIR PIPE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	9606-9912
286	PLUG; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0001-0011
286	PLUG; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0012-
296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9606-
296	TUBE; NYLON DUAL AIR GAUGE<UG2> (C) SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	9906-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-0	01	1	0002-0011
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-1	01	1	0012-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	9606-9905
304	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-71117-211-0	01	1	9906-
304	BRACKET; UNION CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	9908-
304	BRACKET; UNION ENGINE REAR PTO<SV1> (C)	1-47477-184-1	01	1	9606-9702
304	BRACKET; UNION V TYPE ENG<91L> ENGINE REAR PTO<SV1> (C)	1-47477-184-1	01	1	9703-9907
304	BRACKET; UNION ENGINE REAR PTO<SV1> ISUZU M/T<X9A> V TYPE ENG<91L> (C)	1-47477-184-1	01	1	9908-
304	BRACKET; UNION FULLER M/T<X9B> (B)	1-47477-405-0	01	1	9606-9905
304	BRACKET; UNION FULLER M/T<X9B> (B)	1-47477-405-0	01	1	9906-
304	BRACKET; UNION MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> (C)	1-47477-182-1	01	1	9606-9702
304	BRACKET; UNION L TYPE ENG<90L> MJA7 M/T<X9Q> (C)	1-47477-182-1	01	1	9703-9907
304	BRACKET; UNION V TYPE ENG<91L> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> (C)	1-47477-182-1	01	1	9703-9907
304	BRACKET; UNION ISUZU M/T<X9A> L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	9908-
304	BRACKET; UNION ISUZU M/T<X9A> V TYPE ENG<91L> EXC. ENGINE REAR PTO<SV1>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	9908-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-436-0	01	1	9606-9704
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	9705-
328	UNION; AIR PIPE (A)	1-47470-442-0	01	1	9606-9905
328	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-47470-442-0	01	1	9906-
328	UNION; AIR PIPE (B)	1-09654-280-1	01	1	0103-
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91150-106-0	01	1	9606-9905
329	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M6 FLANGE	0-91150-106-0	01	1	9906-
335	SEAL; UNION ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	9606-9905
335	SEAL; UNION DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	9906-9912
335	SEAL; UNION DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0001-0011
335	SEAL; UNION DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0012-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	9606-9905
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=520	0-07210-520-0	02	1	9906-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=850	0-07210-850-0	01	1	9906-
343	UNION; NYLON TUBE	1-09660-796-0	02	1	9606-9905
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-1	02	1	9906-
375	GASKET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=11 OD=18	9-09572-510-0	01	1	9606-9811
375	GASKET ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=11 OD=18	9-09572-510-0	01	1	9606-9811
434	CLIP (B)	1-09701-222-0	01	1	9701-9704
434	CLIP (C) ID=17	8-94449-734-1	01	1	9705-9905
434	CLIP DUAL AIR GAUGE<UG2> (C) ID=17	8-94449-734-1	01	1	9906-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=17	1-09987-105-1	01	1	9906-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (E)	8-94297-486-0	02	1	9906-
434	CLIP L TYPE ENG<90L> (A) L=140	5-09707-031-0	01	1	9606-9609
434	CLIP L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) L=140	5-09707-031-1	01	1	9610-
435	BOLT; CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9701-9704
435	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9705-9905
435	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9906-

217 21 237 1 217 1 177 224 21 16 237 376 262 21 237 1 177 33 16 237 33 237 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK FULLER M/T<X9B> L=440	0-07846-440-1	01	1	9606-9609
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> L=440	0-07846-440-1	01	1	9610-9612
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> EXC. ZF M/T<X9E> L=440	0-07846-440-1	01	1	9701-
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> ZF M/T<X9E> L=400	0-07846-400-1	01	1	9701-0007
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> L TYPE ENG<90L> L=400	0-07846-400-1	01	1	0008-
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> L=530	0-07846-530-1	01	1	9606-
16	UNION; AIR PIPE M22	9-09233-015-1	01	1	9606-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-586-0	01	1	9606-
33	PIPE; AIR,UNION TO AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7>	1-49117-314-0	01	1	9606-9609
33	PIPE; AIR,UNION TO AIR TANK L TYPE ENG<90L> WHEEL BASE 6600MM(66W) EXC. AIR DRYER<PS7>	1-49117-314-0	01	1	9610-
33	PIPE; AIR,UNION TO AIR TANK V TYPE ENG<91L> EXC. AIR DRYER<PS7>	1-49117-315-0	01	1	9606-9609
33	PIPE; AIR,UNION TO AIR TANK V TYPE ENG<91L> WHEEL BASE 6600MM(66W) EXC. AIR DRYER<PS7>	1-49117-315-0	01	1	9610-0007
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7>	1-49117-315-0	01	1	9610-0007
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7>	1-49117-315-0	01	1	0008-
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6600MM(66W) V TYPE ENG<91L> EXC. AIR DRYER<PS7>	1-49117-315-0	01	1	0008-
177	PIPE; AIR,UNION TO UNION L=1387 SERVICED BY L=1500	1-47428-819-0	01	1	9606-9606
177	PIPE; AIR,UNION TO UNION L=1375	1-49117-532-0	01	1	9607-9702
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-49117-532-0	01	1	9703-9905
177	PIPE; AIR,UNION TO UNION V TYPE ENG<91L>	1-49117-532-0	01	1	9703-9905
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>	1-49117-532-0	01	1	9906-9908
177	PIPE; AIR,UNION TO UNION V TYPE ENG<91L>	1-49117-532-0	01	1	9906-9908
177	PIPE; AIR,UNION TO UNION CAB UP +110MM<TGG> L TYPE ENG<90L>	1-49121-894-0	01	1	9906-9908
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-49122-248-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION V TYPE ENG<91L>	1-49122-248-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> MIXER TRUCK<RA2> L=1444 SERVICED BY L=1500	1-47428-819-0	01	1	9703-0007
177	PIPE; AIR,UNION TO UNION MIXER TRUCK<RA2> L TYPE ENG<90L> L=1444 SERVICED BY L=1500	1-47428-819-0	01	1	0008-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9606-9609
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9610-9701
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9702-9706
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9707-9905
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9906-9909
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=666	1-49121-249-0	01	1	9910-9910
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1643	1-49122-249-0	01	1	9911-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9606-9702
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=620	1-49121-778-0	01	1	9906-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=336	1-47499-145-0	01	1	9606-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=552	1-49121-876-0	01	1	9906-
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=480 SERVICED BY L=500	1-47428-807-0	01	1	9606-9702
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L>	1-49117-442-0	01	1	9606-9612
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. ZF M/T<X9E>	1-49117-442-0	01	1	9701-
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> ZF M/T<X9E>	1-49117-835-0	01	1	9701-9905
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> ZF M/T<X9E>	1-49121-888-0	01	1	9906-0003
237	PIPE; AIR,FLEX HOSE TO UNION ZF M/T<X9E> L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>	1-49121-888-0	01	1	0004-
237	PIPE; AIR,FLEX HOSE TO UNION MIXER TRUCK<RA2> ZF M/T<X9E> L TYPE ENG<90L>	1-49122-467-0	01	1	0004-
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L>	1-49117-441-0	01	1	9606-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-S(56L) L=871	1-49114-257-0	01	1	9606-9905
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> CAB UP +110MM<TGG>	1-49121-783-0	01	1	9906-0007
262	PIPE; AIR,UNION TO FLEX CAB UP +110MM<TGG> L TYPE ENG<90L>	1-49121-783-0	01	1	0008-
262	PIPE; AIR,UNION TO FLEX 6WG1 TC-N(71L)	1-49116-729-0	01	1	9707-9905
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=896	1-49121-787-0	01	1	9906-
376	PIPE; AIR,FLEX HOSE ENGINE REAR PTO<SV1> MJA7 M/T<X9Q>	1-49112-567-0	01	1	9606-9702
376	PIPE; AIR,FLEX HOSE V TYPE ENG<91L> ENGINE REAR PTO<SV1> MJA7 M/T<X9Q>	1-49112-567-0	01	1	9703-
376	PIPE; AIR,FLEX HOSE FULLER M/T<X9B>	1-49114-857-0	01	1	9606-9606
376	PIPE; AIR,FLEX HOSE FULLER M/T<X9B>	1-49117-491-0	01	1	9607-
376	PIPE; AIR,FLEX HOSE MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> L=639	1-49112-566-0	01	1	9606-9702
376	PIPE; AIR,FLEX HOSE L TYPE ENG<90L> MJA7 M/T<X9Q> L=639	1-49112-566-0	01	1	9703-
376	PIPE; AIR,FLEX HOSE V TYPE ENG<91L> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO<SV1> L=639	1-49112-566-0	01	1	9703-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49116-862-0	01	1	9606-9608
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	9609-

296 296 296 296 296 367 367 296 296 296 296 367 296 297 296 321 88 323 322 372 326 372 120 120 258 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	GASKET; NYLON TUBE ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	9606-
120	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> (B)	1-47470-402-2	01	1	9606-9905
120	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-402-3	01	1	9906-9906
120	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> (B)	1-47470-402-3	01	1	9907-
120	CONNECTOR; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A)	1-47470-492-1	01	1	9606-
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (F) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9612
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9906-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-0011
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (H) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9606-0011
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9606-9811
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9606-9811
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9905
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0011
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9606-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9612
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9701-9704
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9706
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9706
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9905
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
258	CONNECTOR; NYLON TUBE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9606-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9606-
296	TUBE; NYLON DUAL AIR GAUGE<UG2> (C) SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	9906-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-0	01	1	0002-0011
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-1	01	1	0012-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9606-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9701-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09654-362-1	01	1	9606-9811
321	JOINT; FLEX HOSE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09654-362-1	01	1	9606-9811
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	9812-9905
321	JOINT; FLEX HOSE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	9812-9905
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9906-9912
321	JOINT; FLEX HOSE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	9906-9912
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9906-9912
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0001-0011
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0001-0011
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0001-0011
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0012-
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0012-
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0012-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	9606-9905
322	NUT; JOINT,FLEX HOSE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	9606-9905
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9906-9912
322	NUT; JOINT,FLEX HOSE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	9906-9912
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9906-9912
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0001-0011
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-0011
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-0011
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0012-
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0012-
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0012-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	9606-9905
323	WASHER; LK,JOINT ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	9606-9905
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9906-9912
323	WASHER; LK,JOINT DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	9906-9912
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9906-9912
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0001-0011
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-0011
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-0011
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0012-
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0012-
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0012-
326	PIPE; AIR,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	9606-9905
326	PIPE; AIR,FLEX HOSE ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	9606-9905
326	PIPE; AIR,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> L=529	1-47494-216-3	01	1	9906-9912
326	PIPE; AIR,FLEX HOSE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	9906-9912
326	PIPE; AIR,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=529	1-47494-216-3	01	1	9906-9912
326	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0001-0011
326	PIPE; AIR,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> L=529	1-47494-216-3	01	1	0001-0011
326	PIPE; AIR,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=529	1-47494-216-3	01	1	0001-0011
326	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0012-
326	PIPE; AIR,FLEX HOSE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> L=529	1-47494-216-3	01	1	0012-
326	PIPE; AIR,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=529	1-47494-216-3	01	1	0012-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9606-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9606-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9911-
372	NUT M8 FLANGE	0-91150-108-0	02	1	9606-

224 217 217 175 202 175 211 210 175 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	CONNECTOR; AIR PIPE (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9606-
175	CONNECTOR; AIR PIPE (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0012-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9606-9905
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9906-0005
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
202	ADAPTER ISUZU M/T<X9A>,ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
202	ADAPTER ISUZU M/T<X9A>,ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0011
202	ADAPTER DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0012-
210	NUT; UNION M12	9-09840-280-0	01	1	9606-
211	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9606-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9606-9609
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9610-9701
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9702-9706
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9707-9905
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9906-9909
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=666	1-49121-249-0	01	1	9910-9910
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1643	1-49122-249-0	01	1	9911-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9606-9702
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=620	1-49121-778-0	01	1	9906-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=336	1-47499-145-0	01	1	9606-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=552	1-49121-876-0	01	1	9906-
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=480 SERVICED BY L=500	1-47428-807-0	01	1	9606-9702
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	9606-
345	UNION; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9704
345	UNION; AIR PIPE ZF M/T<X9E> (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9704
345	UNION; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9705-9905
345	UNION; AIR PIPE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9705-9905
345	UNION; AIR PIPE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-

262 217 287 217 202 345 210 211 175 175 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	CONNECTOR; AIR PIPE (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9606-
175	CONNECTOR; AIR PIPE (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A>,ZF M/T<X9E> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-
175	CONNECTOR; AIR PIPE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0012-
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9606-9905
175	CONNECTOR; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-0011
175	CONNECTOR; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0012-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9606-9905
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9906-0005
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
202	ADAPTER ISUZU M/T<X9A>,ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
202	ADAPTER ISUZU M/T<X9A>,ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0011
202	ADAPTER DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0012-
210	NUT; UNION M12	9-09840-280-0	01	1	9606-
211	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9606-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9606-9609
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9610-9701
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9702-9706
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9707-9905
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9906-9909
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=666	1-49121-249-0	01	1	9910-9910
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG> (C) L=1643	1-49122-249-0	01	1	9911-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9606-9702
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=620	1-49121-778-0	01	1	9906-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=336	1-47499-145-0	01	1	9606-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=552	1-49121-876-0	01	1	9906-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-S(56L) L=871	1-49114-257-0	01	1	9606-9905
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> CAB UP +110MM<TGG>	1-49121-783-0	01	1	9906-0007
262	PIPE; AIR,UNION TO FLEX CAB UP +110MM<TGG> L TYPE ENG<90L>	1-49121-783-0	01	1	0008-
262	PIPE; AIR,UNION TO FLEX 6WG1 TC-N(71L)	1-49116-729-0	01	1	9707-9905
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=896	1-49121-787-0	01	1	9906-
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L) CAB UP +110MM<TGG>	1-49121-786-0	01	1	9906-9910
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L) CAB UP +110MM<TGG>	1-49122-365-0	01	1	9911-
287	PIPE; AIR,MAG VLV 6WG1 TC-N(71L) L=1310	1-49116-707-0	01	1	9707-9905
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> L=1220	1-49121-788-0	01	1	9906-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	9606-
345	UNION; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9704
345	UNION; AIR PIPE ZF M/T<X9E> (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9606-9704
345	UNION; AIR PIPE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9705-9905
345	UNION; AIR PIPE ZF M/T<X9E> EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9705-9905
345	UNION; AIR PIPE POWER TAKE OFF-ZF TRANSMISSION<BDM> ZF M/T<X9E> (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
