3-55 — BRAKE PIPING; OIL,REAR (#51067) — 133 parça

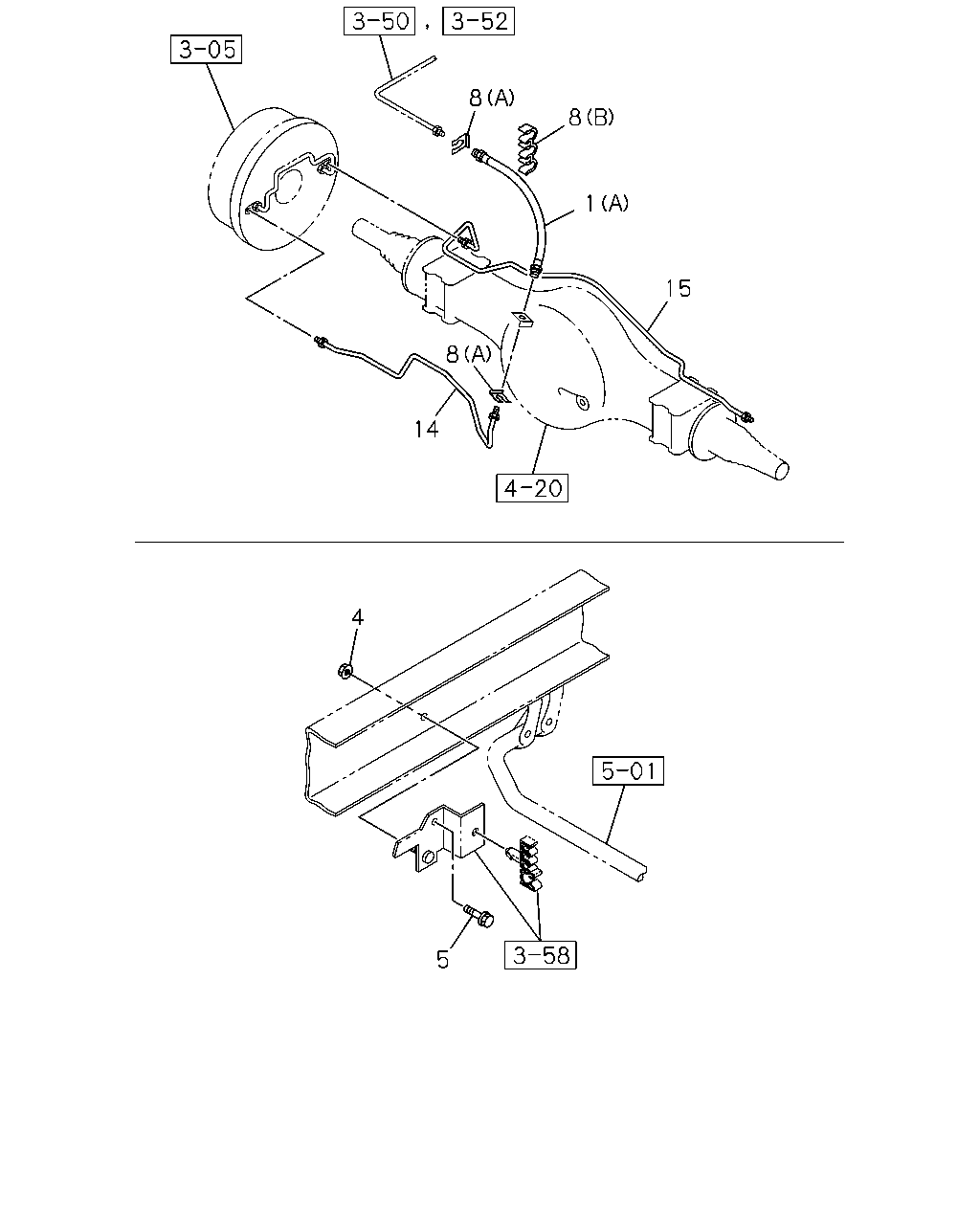

çizim 45718
8 8 1 15 8 14 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0911- ●
1 04.680 HOSE; FLEX,RR BRK
4HF1-S ENG(RLS) (A) L=405 		8-97089-061-0 01 1 0211-0501 ●
1 04.680 HOSE; FLEX,RR BRK
4HF1-N ENG(RJZ) (A) L=405 		8-97089-061-0 01 1 0502-1005 ●
1 04.680 HOSE; FLEX,RR BRK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) L=405 		8-97089-061-0 01 1 1006- ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0211-0501 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0502-0504 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0502-0504 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0505-0910 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0505-0910 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0911- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0911- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0911- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0911- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97360-054-0 04 1 0911- ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 0502-0610 ● ● ● ● ●
8 04.686 CLIP; RR BRK
(A) 		8-97360-054-0 02 1 0611-0910 ● ● ● ● ●
8 04.686 CLIP; RR BRK
(A) 		8-97360-054-0 02 1 0911- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97360-054-0 02 1 0911- ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 0211-0501 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 0502- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> 		8-97304-924-0 01 1 0211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) EXC. DISC BRAKE FRT<J52> 		8-97306-902-0 01 1 0211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-406-0 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-406-0 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-406-0 01 1 0502- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-838-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97076-838-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-838-2 01 1 0502- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-97258-297-0 01 1 0211-0805 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-98021-867-0 01 1 0806-0910 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-98021-867-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97070-590-0 01 1 0211-0910 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0211-0910 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97070-590-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0911- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97034-532-1 01 1 0211-0211 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97034-532-1 01 1 0212-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97359-487-0 01 1 0212-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-487-0 01 1 0502- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> 		8-97162-846-0 01 1 0211- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) EXC. DISC BRAKE FRT<J52> 		8-97047-813-2 01 1 0211- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-407-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-407-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-407-0 01 1 0502- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97089-922-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97089-922-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97089-922-0 01 1 0502- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-97034-531-0 01 1 0211-0805 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-98021-868-0 01 1 0806-0910 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-98021-868-0 01 1 0911- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) G.V.W. 5.0-5.5TON(RPT) BRAZIL EQUIPMENT(RWF) 		8-97070-591-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) 		8-97070-591-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 NA ENG(RLF) G.V.W. 5.0-5.5TON(RPT) 		8-97034-530-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) G.V.W. 5.0-5.5TON(RPT) EXC. BRAZIL EQUIPMENT(RWF) 		8-97034-530-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1 ENG(RJX),4JB1 NA ENG(RLF) G.V.W. 5.0-5.5TON(RPT) 		8-97034-530-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97034-530-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97034-530-0 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 0502-0504 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97034-530-0 01 1 0502-0504 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97034-530-0 01 1 0502-0504 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 0505-0910 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97034-530-0 01 1 0505-0910 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97034-530-0 01 1 0505-0910 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97034-530-0 01 1 0911- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1-TC ENG(RDM),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97034-530-0 01 1 0911- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97034-530-0 01 1 0911- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97089-923-0 01 1 0211-0211 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97089-923-0 01 1 0212-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97359-488-0 01 1 0212-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97359-488-0 01 1 0502- ●

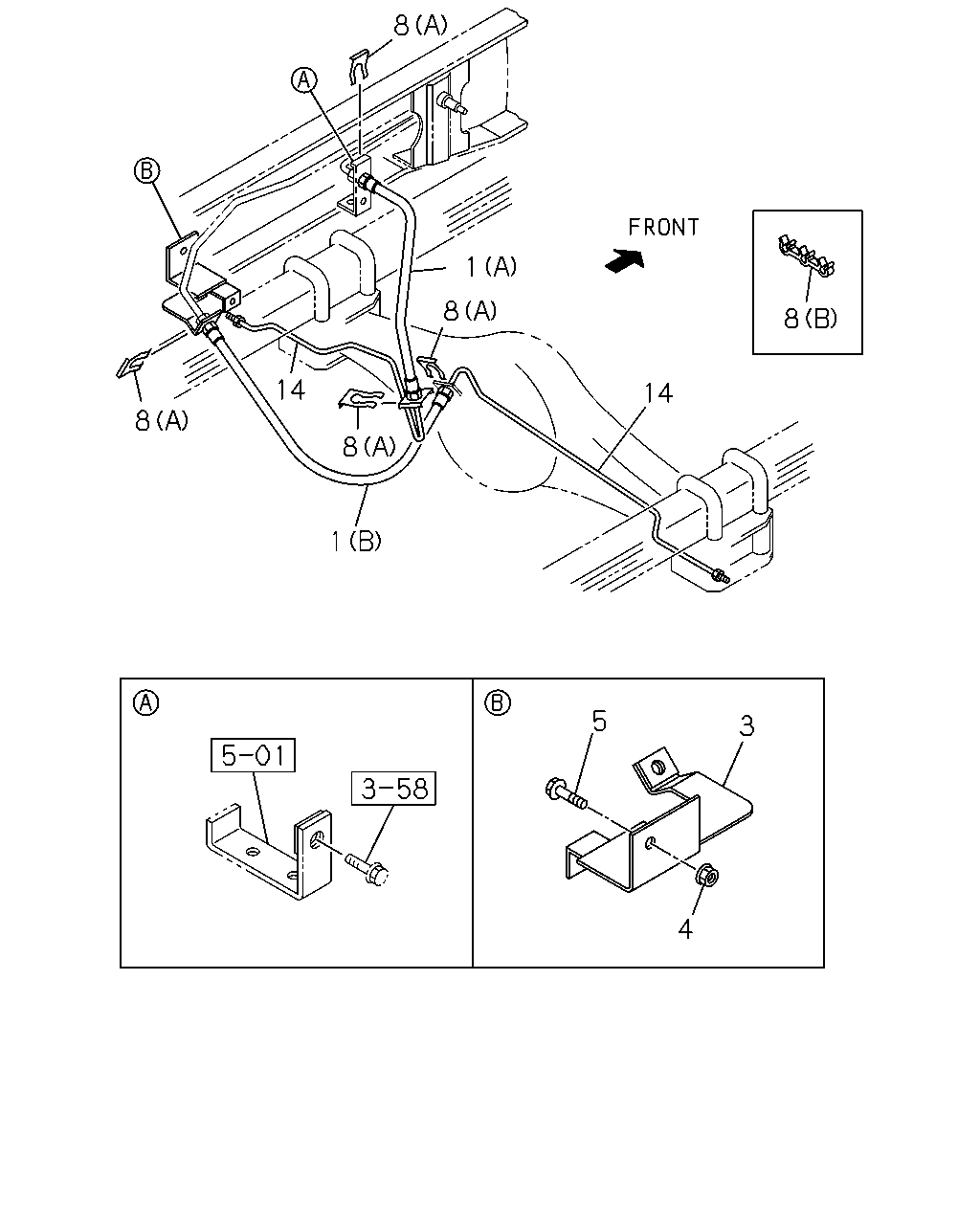

çizim 46215
8 1 8 8 14 14 8 8 1 5 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0911- ●
1 04.680 HOSE; FLEX,RR BRK
4HF1-S ENG(RLS) (A) L=405 		8-97089-061-0 01 1 0211-0501 ●
1 04.680 HOSE; FLEX,RR BRK
4HF1-N ENG(RJZ) (A) L=405 		8-97089-061-0 01 1 0502-1005 ●
1 04.680 HOSE; FLEX,RR BRK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) L=405 		8-97089-061-0 01 1 1006- ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0211-0501 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0502-0504 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0502-0504 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0505-0910 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0505-0910 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) L=370 		8-97035-574-0 01 1 0911- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0911- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97046-936-0 01 1 0911-1101 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98178-774-0 01 1 1102- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0911- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0911- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97360-054-0 04 1 0911- ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 0502-0610 ● ● ● ● ●
8 04.686 CLIP; RR BRK
(A) 		8-97360-054-0 02 1 0611-0910 ● ● ● ● ●
8 04.686 CLIP; RR BRK
(A) 		8-97360-054-0 02 1 0911- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97360-054-0 02 1 0911- ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 0211-0501 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 0502- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> 		8-97304-924-0 01 1 0211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) EXC. DISC BRAKE FRT<J52> 		8-97306-902-0 01 1 0211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-406-0 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-406-0 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) TURKISH EQUIPMENT(S6S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97204-406-0 01 1 0502- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-838-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97076-838-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-838-2 01 1 0502- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-97258-297-0 01 1 0211-0805 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-98021-867-0 01 1 0806-0910 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REAR WIDE TREAD(V4T) 		8-98021-867-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97070-590-0 01 1 0211-0910 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0211-0910 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97070-590-0 01 1 0911- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0911- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97034-532-1 01 1 0211-0211 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97034-532-1 01 1 0212-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97359-487-0 01 1 0212-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-487-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
