◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#51066) — 951 parça

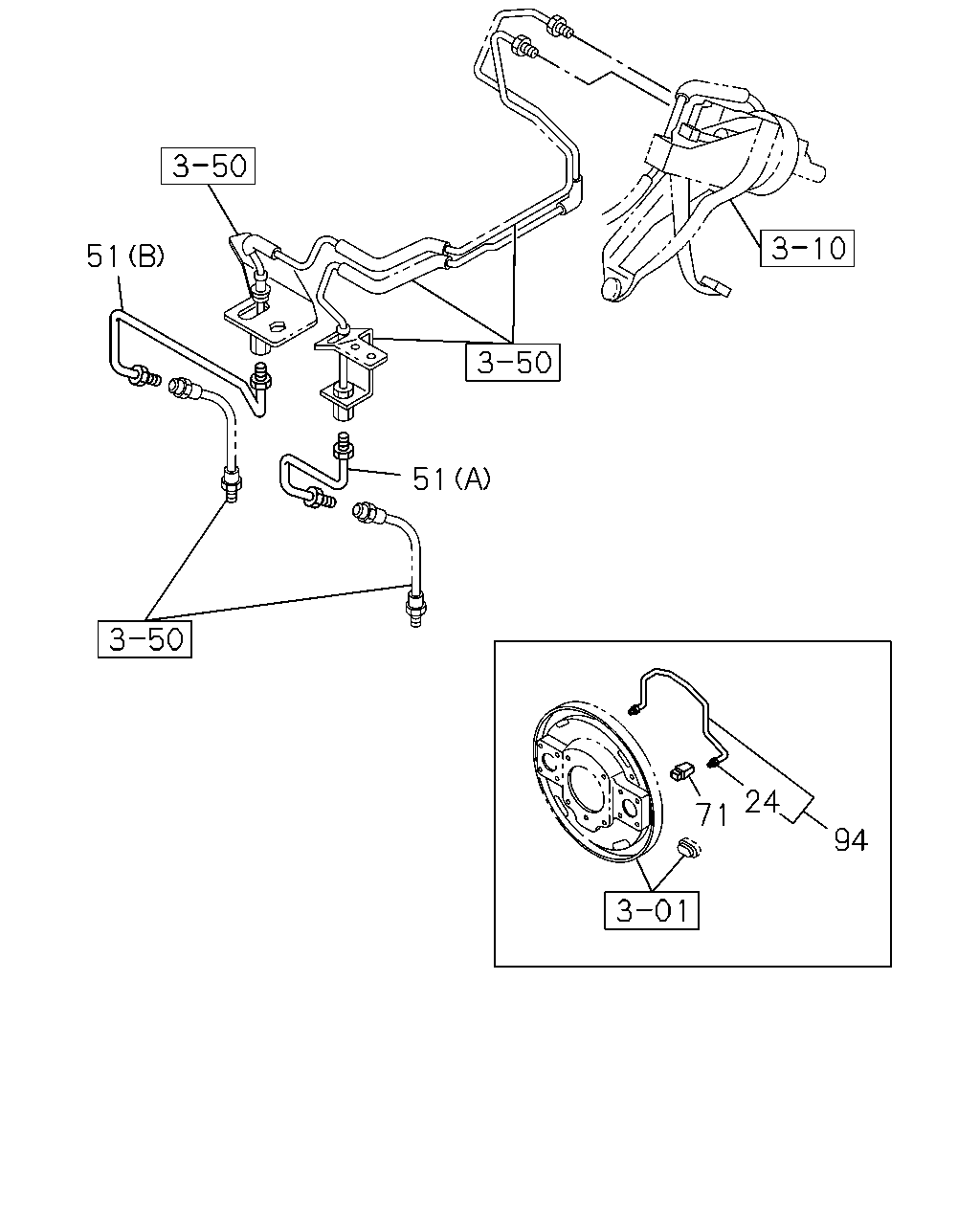

çizim 45338
51 51 24 71 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 04.686 NUT; UNION,OIL PIPE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0211-0501 ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 5.0-5.5TON(RPT) EXC. BRAZIL EQUIPMENT(RWF) 08.963 		9-09217-625-0 02 1 0211-0501 ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 08.963 		9-09217-625-0 02 1 0211-0501 ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0502-0505 ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0502-0505 ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0506-0506 ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0506-0506 ● ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0506-0607 ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0506-0607 ● ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		0-92107-605-0 02 1 0608-0706 ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608-0706 ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		0-92107-605-0 02 1 0707-0707 ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0707-0707 ● ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		0-92107-605-0 02 1 0707-0910 ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0707-0910 ● ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		0-92107-605-0 02 1 0911- ●
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		0-92107-605-0 02 1 0911- ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0911- ● ●
51 04.685 PIPE; BRK
(B) FRONT 		5-47411-763-0 01 1 0211-0501 ● ● ● ● ● ●
51 04.685 PIPE; BRK
(B) FRONT 		5-47411-763-0 01 1 0502- ● ● ● ● ●
51 04.685 PIPE; BRK
(A) REAR 		8-97070-296-2 01 1 0211-0501 ● ● ● ● ● ●
51 04.685 PIPE; BRK
(A) REAR 		8-97070-296-2 01 1 0502- ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0211-0501 ● ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0502-0505 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0506-0506 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0506-0506 ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0506-0706 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0506-0706 ● ● ●
71 04.686 GROMMET; OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0707-0707 ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0707-0910 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0707-0910 ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0911- ●
71 04.686 GROMMET; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		9-09756-034-0 02 1 0911- ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0911- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0211-0501 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) EXC. BRAZIL EQUIPMENT(RWF) 		8-97019-223-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97019-223-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0502-0505 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0502-0505 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0506-0506 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0506-0506 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0506-0706 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0506-0706 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0707-0707 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0707-0707 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0707-0910 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0707-0910 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0911- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-223-0 01 1 0911- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0911- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0211-0501 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) EXC. BRAZIL EQUIPMENT(RWF) 		8-97019-222-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) 		8-97019-222-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0502-0505 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0502-0505 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0506-0506 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0506-0506 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0506-0706 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0506-0706 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0707-0707 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0707-0707 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0707-0910 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0707-0910 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0911- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-222-0 01 1 0911- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0911- ● ●

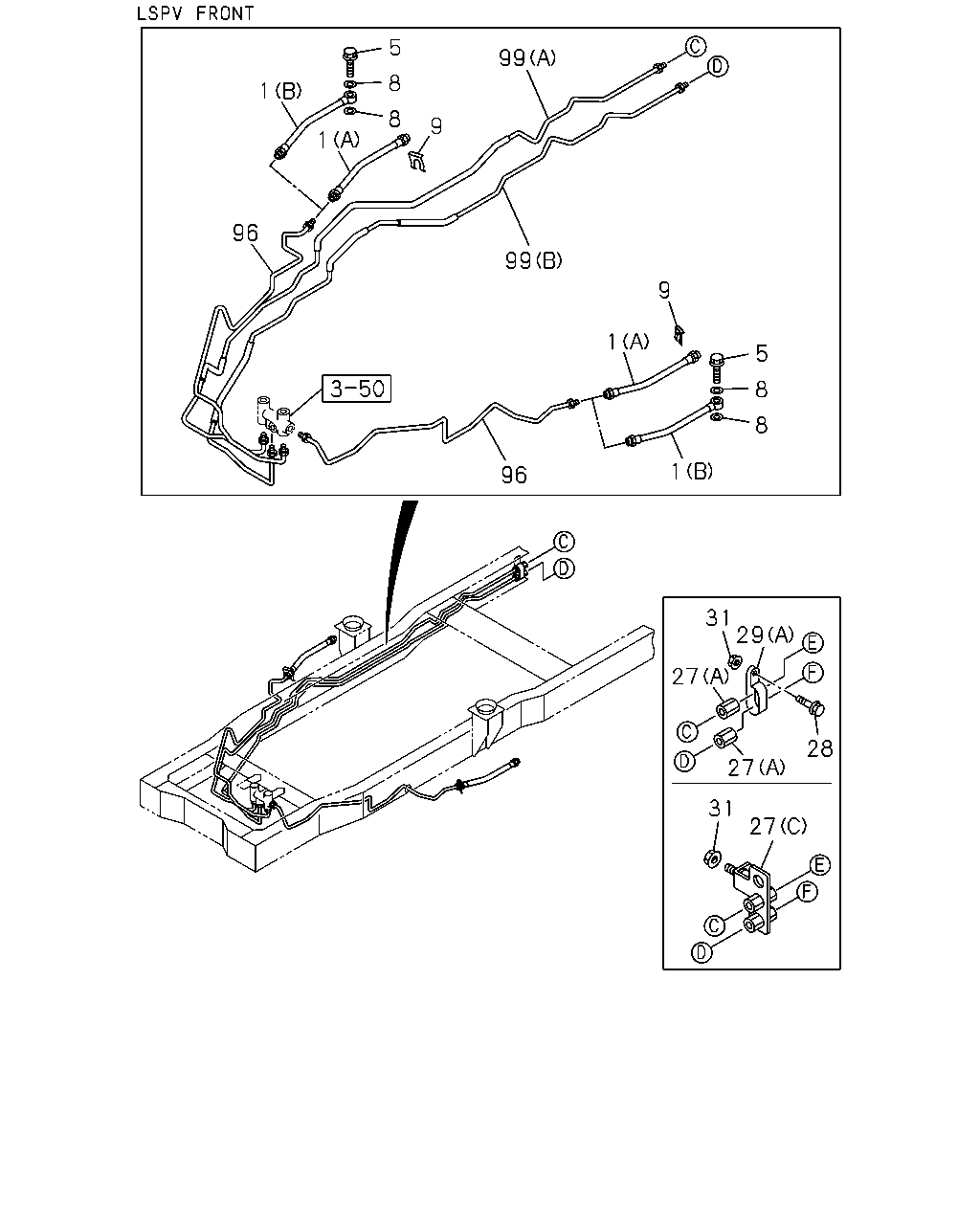

çizim 45720
5 99 8 1 8 9 1 96 99 9 1 5 8 8 1 96 31 29 27 28 27 31 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0211- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0211-0211 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0212-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-0 02 1 0212-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-1 02 1 0502- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0502- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0211-0410 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-97381-454-0 02 1 0411-0610 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-98014-005-0 02 1 0611- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0211- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0211 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0211-0211 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0212-0501 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0212-0501 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0212-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0502-0610 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-054-0 02 1 0611- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) (B) 		8-97287-444-1 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ●

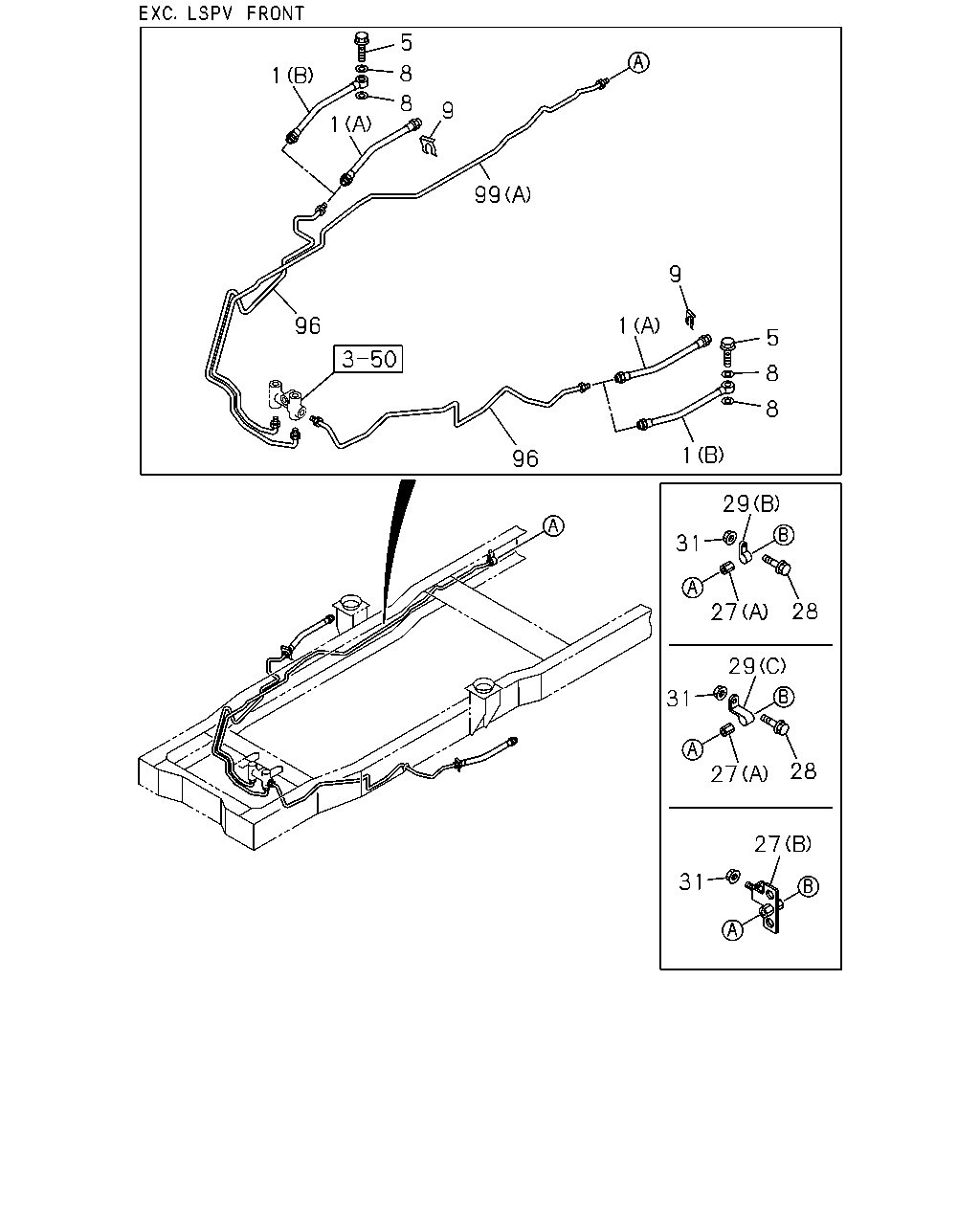

27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0912- ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
31 04.686 NUT; UNION CLIP
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-322-0 01 1 1007- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-323-0 01 1 1007- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY 8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-98002-749-1 01 1 0505- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-918-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-914-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-98002-748-1 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) 		8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) 		8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM) 		8-97325-915-1 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97075-570-3 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 		8-97146-895-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 05.476 		8-97200-660-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 05.476 		8-97200-660-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0502-0504 ●
96 04.686 PIPE ASM; 6 WAY
05.476 		8-97200-660-0 01 1 0502-0504 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0505-0910 ●
96 04.686 PIPE ASM; 6 WAY
05.476 		8-97200-660-0 01 1 0505-0910 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
05.476 		8-97200-660-0 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0502-0504 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0505-0910 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH>,FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0911- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0502-0504 ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0505-0910 ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSP ENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0911- ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-921-0 01 1 0211-0304 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97367-554-0 01 1 0305-0910 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97367-554-0 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-917-0 01 1 0211-0910 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97325-917-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97288-635-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97288-635-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97288-635-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97288-635-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97288-635-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97326-379-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97326-379-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97326-379-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97326-379-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97326-379-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97326-379-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97122-632-2 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97122-636-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97300-283-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97300-283-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0502-0504 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0505-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> (A) REAR 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97070-368-3 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0502-0504 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) 05.476 (A) REAR 		8-97070-368-3 01 1 0502-0504 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0505-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.476 (A) REAR 		8-97070-368-3 01 1 0505-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.476 (A) REAR 		8-97070-368-3 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97122-631-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97225-305-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
çizim 45722
5 8 1 8 9 1 99 9 1 96 5 8 8 1 96 29 31 28 27 29 31 28 27 27 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0211- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0211-0211 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0212-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-0 02 1 0212-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-1 02 1 0502- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0502- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0211-0410 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-97381-454-0 02 1 0411-0610 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-98014-005-0 02 1 0611- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0211- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0211 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0211-0211 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0212-0501 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0212-0501 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0212-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0502-0610 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-054-0 02 1 0611- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) (B) 		8-97287-444-1 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0912- ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
31 04.686 NUT; UNION CLIP
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-322-0 01 1 1007- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-323-0 01 1 1007- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY 8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-98002-749-1 01 1 0505- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-918-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-914-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-98002-748-1 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) 		8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) 		8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0502-0910 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0911-1007 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM) 		8-97325-915-1 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97075-570-3 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 		8-97146-895-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 05.476 		8-97200-660-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 05.476 		8-97200-660-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0502-0504 ●
96 04.686 PIPE ASM; 6 WAY
05.476 		8-97200-660-0 01 1 0502-0504 ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0505-0910 ●
96 04.686 PIPE ASM; 6 WAY
05.476 		8-97200-660-0 01 1 0505-0910 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97200-660-0 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
05.476 		8-97200-660-0 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0502-0504 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0505-0910 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH>,FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.685 		8-97091-666-3 01 1 0911- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0502-0504 ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0505-0910 ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSP ENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0911- ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-921-0 01 1 0211-0304 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97367-554-0 01 1 0305-0910 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97367-554-0 01 1 0911- ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-917-0 01 1 0211-0910 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97325-917-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97288-635-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97288-635-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97288-635-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97288-635-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97288-635-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97288-635-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97326-379-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97326-379-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97326-379-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97326-379-0 01 1 0502-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97326-379-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97326-379-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97122-632-2 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97122-636-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97300-283-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97300-283-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0502-0504 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0505-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97300-283-0 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> (A) REAR 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97070-368-3 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0502-0504 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) 05.476 (A) REAR 		8-97070-368-3 01 1 0502-0504 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0505-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.476 (A) REAR 		8-97070-368-3 01 1 0505-0910 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97070-368-3 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 05.476 (A) REAR 		8-97070-368-3 01 1 0911- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97122-631-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97225-305-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
çizim 46212
88 103 48 26 89 89 122 95 95 88 26 122 28 27 103 29 31 27 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> L=2067 		8-98159-108-0 01 1 0911-1006 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98173-848-0 01 1 1007- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> L=1987 		8-98159-109-0 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) (B) 		8-97287-444-1 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0504 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0505-0512 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0910 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0911-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
(A) ID=16X2 L=20 		0-95325-533-0 01 1 0911- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0504 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0505-0606 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607-0910 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0912- ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
31 04.686 NUT; UNION CLIP
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
44 04.686 BOLT; JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0911- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0911- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
REAR 		8-97208-980-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> REAR 		8-97093-659-3 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> REAR 		8-97148-830-2 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0211-0501 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-962-0 01 1 0911-1205 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-842-0 01 1 1206- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-965-0 01 1 0911-1205 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-843-0 01 1 1206- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-968-0 01 1 0911-1205 ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-844-0 01 1 1206- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-971-0 01 1 0911-1205 ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-845-0 01 1 1206- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97247-850-2 01 1 0911- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97247-851-2 01 1 0911- ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-958-0 01 1 0911-1205 ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-841-0 01 1 1206- ●
122 04.685 PIPE ASM; BRK,2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-941-0 01 1 0911- ●
çizim 46319
31 88 27 95 27 48 95 122 88 26 26 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0211- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0211-0211 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0212-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-0 02 1 0212-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-1 02 1 0502- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0502- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0211 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. TURKISH EQUIPMENT(S6S),FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0211-0211 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0212-0501 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0212-0501 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0212-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0502-0610 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97360-054-0 02 1 0611- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> L=2067 		8-98159-108-0 01 1 0911-1006 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98173-848-0 01 1 1007- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> L=1987 		8-98159-109-0 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0911- ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0502-0910 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0911-1004 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 1005-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) (B) 		8-97287-444-1 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0911- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0504 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0505-0607 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JG2 ENG(RJC),4HF1-N ENG(RJZ),4JB1 NAENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
31 04.686 NUT; UNION CLIP
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0910 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0911-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0911- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
REAR 		8-97208-980-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> REAR 		8-97093-659-3 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> REAR 		8-97148-830-2 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0211-0501 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-962-0 01 1 0911-1205 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-842-0 01 1 1206- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-965-0 01 1 0911-1205 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-98216-843-0 01 1 1206- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97247-850-2 01 1 0911- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97247-851-2 01 1 0911- ●
122 04.685 PIPE ASM; BRK,2 WAY
4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-941-0 01 1 0911- ●
çizim 99628
48 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> FRONT 		8-97325-938-0 01 1 0911- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97325-937-1 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97325-937-1 01 1 0502- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97208-981-1 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> FRONT 		8-97208-981-1 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97208-981-1 01 1 0502- ●
46 04.685 PIPE; BRK,JOINT TO VLV
FRONT 		8-97208-981-1 01 1 0502- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97093-658-3 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97148-829-1 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97325-939-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0911- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH> REAR 		8-97208-980-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
REAR 		8-97208-980-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> REAR 		8-97093-659-3 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> REAR 		8-97148-830-2 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0211-0501 ●
çizim 99630
13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) 		8-98167-275-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION 8-98167-275-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-S ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97325-933-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97325-933-0 01 1 0502-0606 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97325-933-0 01 1 0607-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT LSPV<6PH> 		8-98167-274-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97300-213-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0502-0504 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0505-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0701-0910 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0911- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8> 		8-97325-936-0 01 1 0211-0910 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT DSPV<JL8>,BRK WHL LK CON T LSPV<6PH> 		8-97325-936-0 01 1 0911- ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-S ENG(RLS) EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW> 		8-97325-934-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW> 		8-97325-934-0 01 1 0502-0910 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT DSPV<JL8>,BRK WHL LK CON T LSPV<6PH>,FRAME-KICK UP<7EW> 		8-97325-934-0 01 1 0911- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8>, CHARGEAIR COOLER<6PL>,FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 0502-0910 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT DSPV<JL8>,BRK WHL LK CON T LSPV<6PH>,FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 0911- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW> 		8-97255-086-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW> 		8-97255-086-0 01 1 0502-0910 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT DSPV<JL8>,BRK WHL LK CON T LSPV<6PH>,FRAME-KICK UP<7EW> 		8-97255-086-0 01 1 0911- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) 		8-97178-897-0 01 1 0502-0504 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97178-897-0 01 1 0505- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97325-935-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-935-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 		8-97325-935-0 01 1 0502-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-935-0 01 1 0502-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1-TC ENG(RDM) 		8-97325-935-0 01 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
