3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#51065) — 90 parça

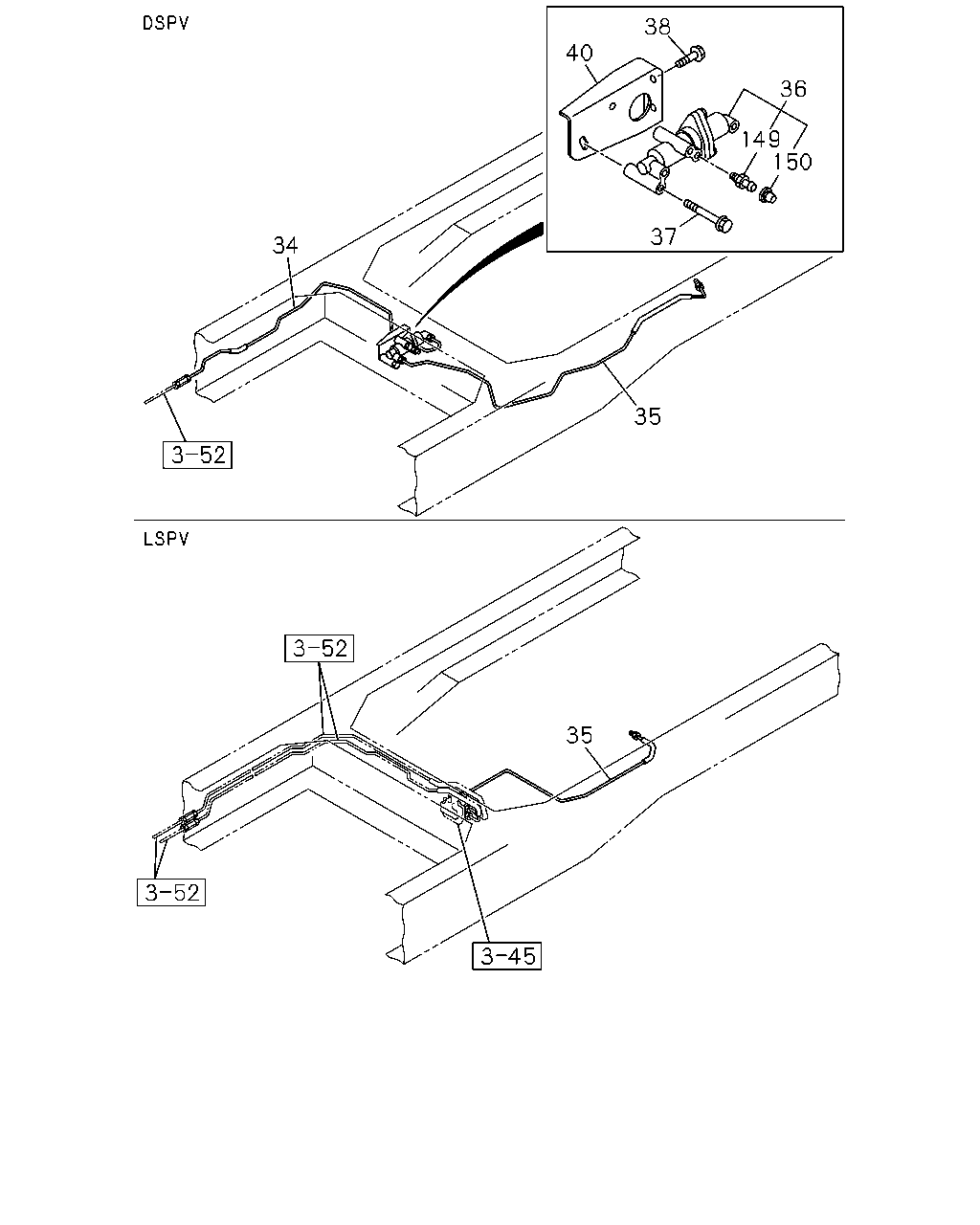

38 40 36 149 150 37 34 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	04.685 PIPE; BRK,UNION TO DSPV 4JB1 NA ENG(RLF) BRK WHL LK CONT DSPV<JL8>	8-97072-951-3	01	1	0211-0501	●
34	04.685 PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8>	8-97072-951-3	01	1	0211-0501		●
34	04.685 PIPE; BRK,UNION TO DSPV 4HF1-S ENG(RLS) BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW>	8-97325-950-0	01	1	0211-0501			●
34	04.685 PIPE; BRK,UNION TO DSPV 4HF1-N ENG(RJZ) BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW>	8-97325-950-0	01	1	0502-			●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-948-0	01	1	0911-			●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97325-946-0	01	1	0211-0501	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH>	8-97325-946-0	01	1	0502-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JB1 NA ENG(RLF) BRK WHL LK CONT DSPV<JL8>	8-97091-258-1	01	1	0211-0501	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8>	8-97091-258-1	01	1	0211-0501		●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH>	8-97259-533-1	01	1	0211-0501	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH>	8-97259-533-1	01	1	0211-0501				●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JB1 NA ENG(RLF) BRK WHL LK CONT LSPV<6PH>	8-97259-533-1	01	1	0502-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97259-533-1	01	1	0502-				●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97100-892-0	01	1	0211-0501	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4HF1-S ENG(RLS) BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW>	8-97325-951-0	01	1	0211-0501			●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4HF1-N ENG(RJZ) BRK WHL LK CONT DSPV<JL8> EXC. FRAME-KICK UP<7EW>	8-97325-951-0	01	1	0502-			●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH>	8-97070-371-0	01	1	0211-0501					●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97325-948-0	01	1	0211-0501					●
36	04.690 VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	0211-0501	●	●	●
36	04.690 VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	0502-			●
37	04.690 BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 FLANGE	0-28080-870-0	02	1	0211-0501	●	●	●
37	04.690 BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 FLANGE	0-28080-870-0	02	1	0502-0512			●
37	04.690 BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> 00.206 M8X70 FLANGE	0-28050-870-0	02	1	0601-			●
38	04.690 BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●
38	04.690 BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
38	04.690 BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
40	04.690 BRACKET BRK WHL LK CONT DSPV<JL8>	8-94156-783-4	01	1	0211-0501	●	●	●
40	04.690 BRACKET BRK WHL LK CONT DSPV<JL8>	8-94156-783-4	01	1	0502-			●
149	04.685 PLUG; BLEEDER,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-663-0	01	1	0211-0501	●	●	●
149	04.685 PLUG; BLEEDER,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-663-0	01	1	0502-			●
150	04.685 CAP; BLEEDER PLUG,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-662-0	01	1	0211-0501	●	●	●
150	04.685 CAP; BLEEDER PLUG,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-662-0	01	1	0502-			●

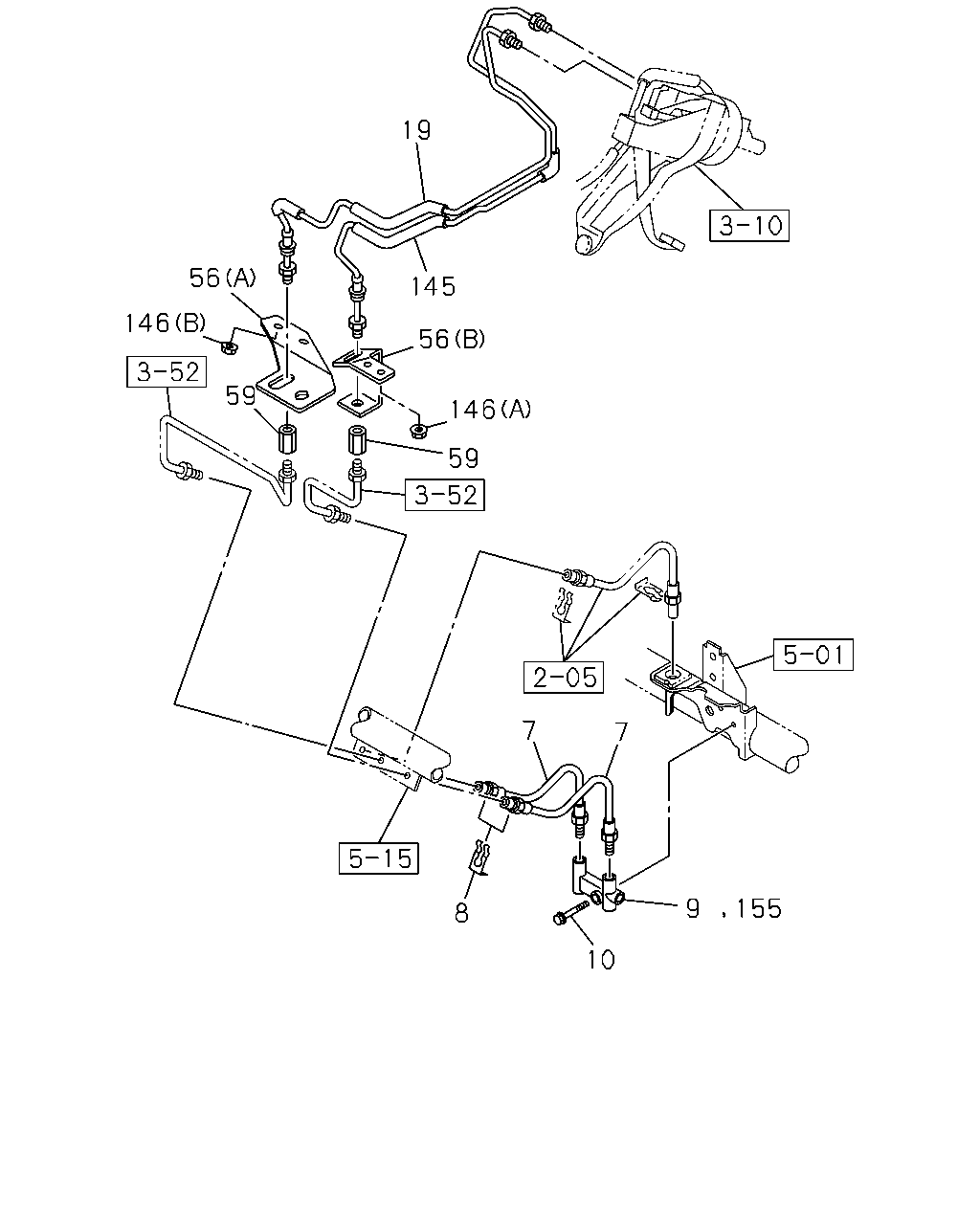

19 56 145 146 56 59 146 59 7 7 9 155 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0211-0501	●	●	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0502-	●		●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785	8-94167-006-0	02	1	0211-0501	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785	8-94167-006-0	02	1	0502-0610	●		●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE	8-97365-304-0	02	1	0611-	●		●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-1	01	1	0911-			●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	0211-0501	●			●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-1	01	1	0211-0501		●	●			●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	0502-0910	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-1	01	1	0502-0910			●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	0911-	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	0911-			●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-1	01	1	0911-					●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0211-0501	●	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0502-0512	●		●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-	●		●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-591-0	01	1	0211-0501	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-591-0	01	1	0502-	●		●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	0211-0501	●	●	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	0502-	●		●	●	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	0211-0501	●	●	●	●	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	0502-	●		●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0211-0501	●	●	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0502-0607	●		●	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●		●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	0211-0501	●	●	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	0502-	●		●	●	●	●
146	04.685 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●	●	●	●	●	●
146	04.685 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●		●	●	●	●
146	04.685 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●		●	●	●	●
146	04.685 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●		●	●	●	●
146	04.685 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-2	01	1	0211-0501	●			●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-2	01	1	0502-0910	●
155	04.686 JOINT; 6WAY	8-97120-033-2	01	1	0502-0910				●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-2	01	1	0911-	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	0911-			●
155	04.686 JOINT; 6WAY	8-97120-033-2	01	1	0911-				●

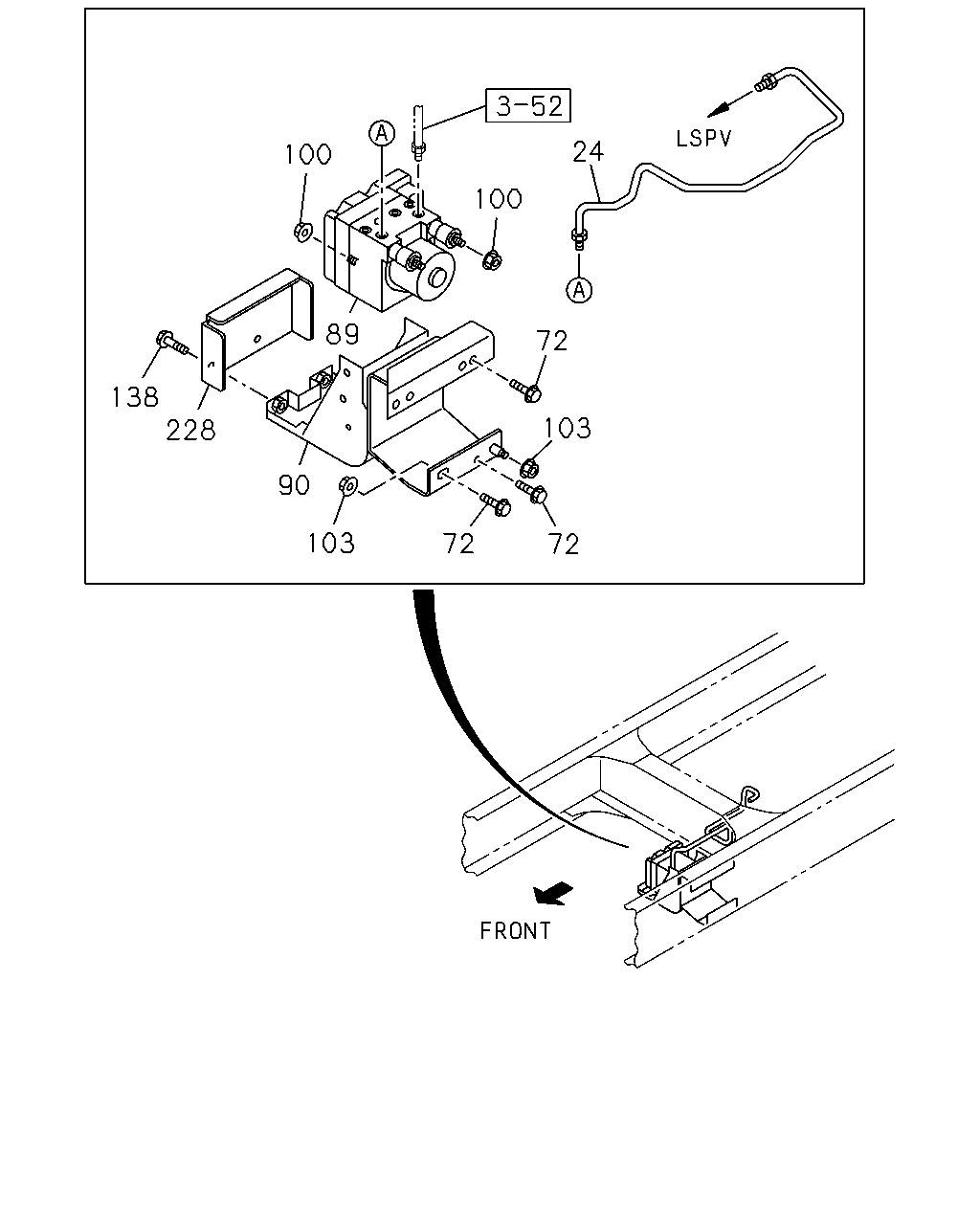

24 100 100 89 72 138 228 103 90 103 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW>	8-97325-954-0	01	1	0911-1205	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JB1-TC ENG(RDT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW>	8-98216-840-0	01	1	1206-	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0911-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-075-3	01	1	0911-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98155-358-1	01	1	1007-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-501-0	01	1	0911-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	03	1	0911-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0911-	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-760-0	01	1	0911-	●

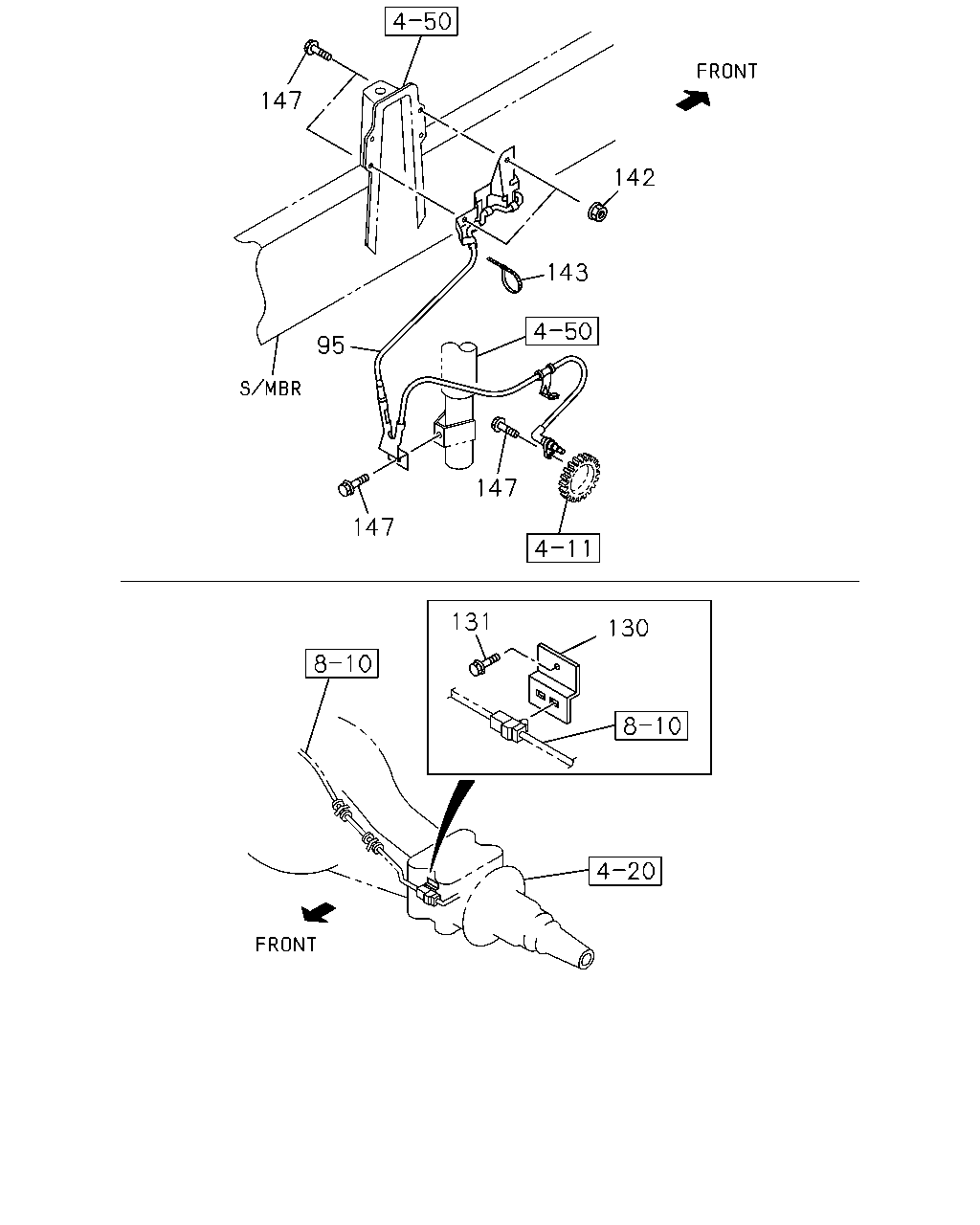

147 142 143 95 147 147 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-379-0	01	1	0911-	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-380-0	01	1	0911-	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0911-	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0911-	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-	●
143	04.710 CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 L=140	5-09707-031-1	01	1	0911-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0911-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0911-	●
