3-11 — PARKING BRAKE CONTROL (#51059) — 279 parça
çizim 45305
324 241 181 236 241 324 181 236 101 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 04.785 NUT; CABLE TO LEVER
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
101 04.785 NUT; CABLE TO LEVER
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
181 04.785 BOLT; BRKT
4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ● ● ● ●
181 04.785 BOLT; BRKT
4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ● ● ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
198 04.785 BRACKET; CABLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-818-0 01 1 0211- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1 ENG(RJX),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
236 04.785 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-814-2 01 1 0211- ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0211- ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0211-0501 ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0211-0501 ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0211-0501 ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0502- ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0502- ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0502- ● ● ●
324 04.785 BRACKET
4HF1-S ENG(RLS) (A) 		8-97357-242-0 01 1 0211-0501 ● ● ●
324 04.785 BRACKET
(A) 		8-97357-242-0 01 1 0211-0501 ●
324 04.785 BRACKET
4HF1-N ENG(RJZ) (A) 		8-97357-242-0 01 1 0502-1004 ● ● ●
324 04.785 BRACKET
(A) 		8-97357-242-0 01 1 0502-1004 ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) 		8-97357-242-0 01 1 1005- ● ● ●
324 04.785 BRACKET
(A) 		8-97357-242-0 01 1 1005- ●
324 04.785 BRACKET
4JH1 ENG(RJX) (C) 		8-97289-364-0 01 1 0211-0501 ●
324 04.785 BRACKET
4JH1-TC ENG(RDM) (C) 		8-97289-364-0 01 1 0502- ●

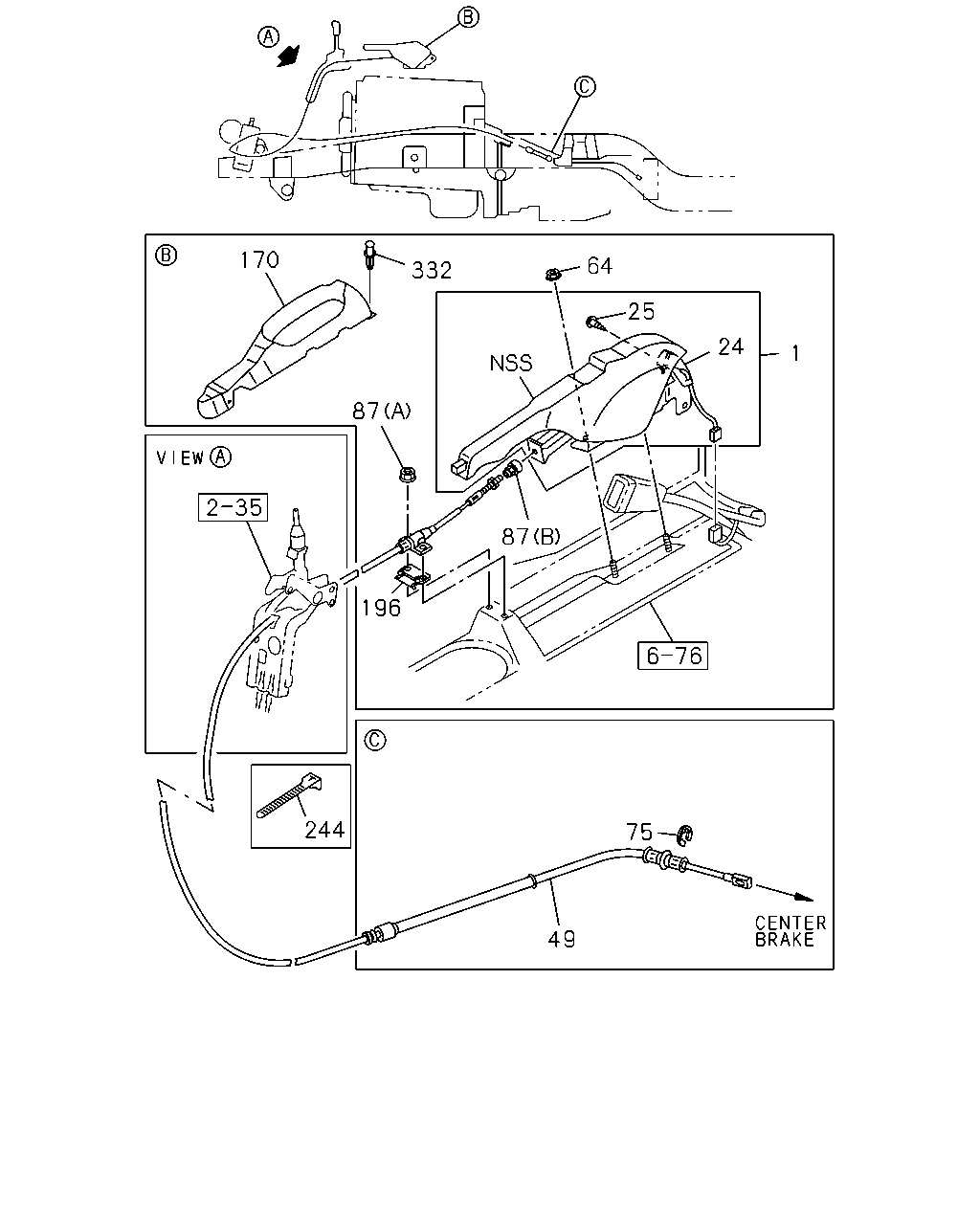

çizim 45335
170 64 332 25 24 1 87 87 196 244 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0211-0501 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306- ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0211-0501 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0502-1305 ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0211-0501 ● ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0502- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1-T ENG(RDP) 		8-98166-956-0 01 1 1005- ●
49 04.779 CABLE; PARKING BRK
4HF1-S ENG(RLS) 		8-97351-563-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97351-563-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK 8-97351-563-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK
4HF1-N ENG(RJZ) 		8-97351-563-0 01 1 0502- ● ●
49 04.779 CABLE; PARKING BRK
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97351-563-0 01 1 0502- ●
49 04.779 CABLE; PARKING BRK 8-97351-563-0 01 1 0502- ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK
4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK
4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0502-0504 ● ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0502-0504 ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0502-0504 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0505-0910 ● ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0505-0910 ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0505-0910 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 1005- ● ● ● ●
49 04.779 CABLE; PARKING BRK
FRAME-KICK UP<7EW> 		8-97215-427-0 01 1 0211- ●
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97351-562-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) 		8-97351-562-0 01 1 0502- ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0501 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0610 ● ● ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 0211-0501 ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 0502-0604 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0211-0310 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0501 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0502-0611 ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY 		8-97158-915-0 01 1 0211-0501 ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97400-347-1 01 1 0502- ● ● ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 0211-0501 ● ● ● ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 0502- ● ● ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0211-0501 ● ● ● ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0502- ● ● ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 0211-0501 ● ● ● ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 0502- ● ● ● ● ●

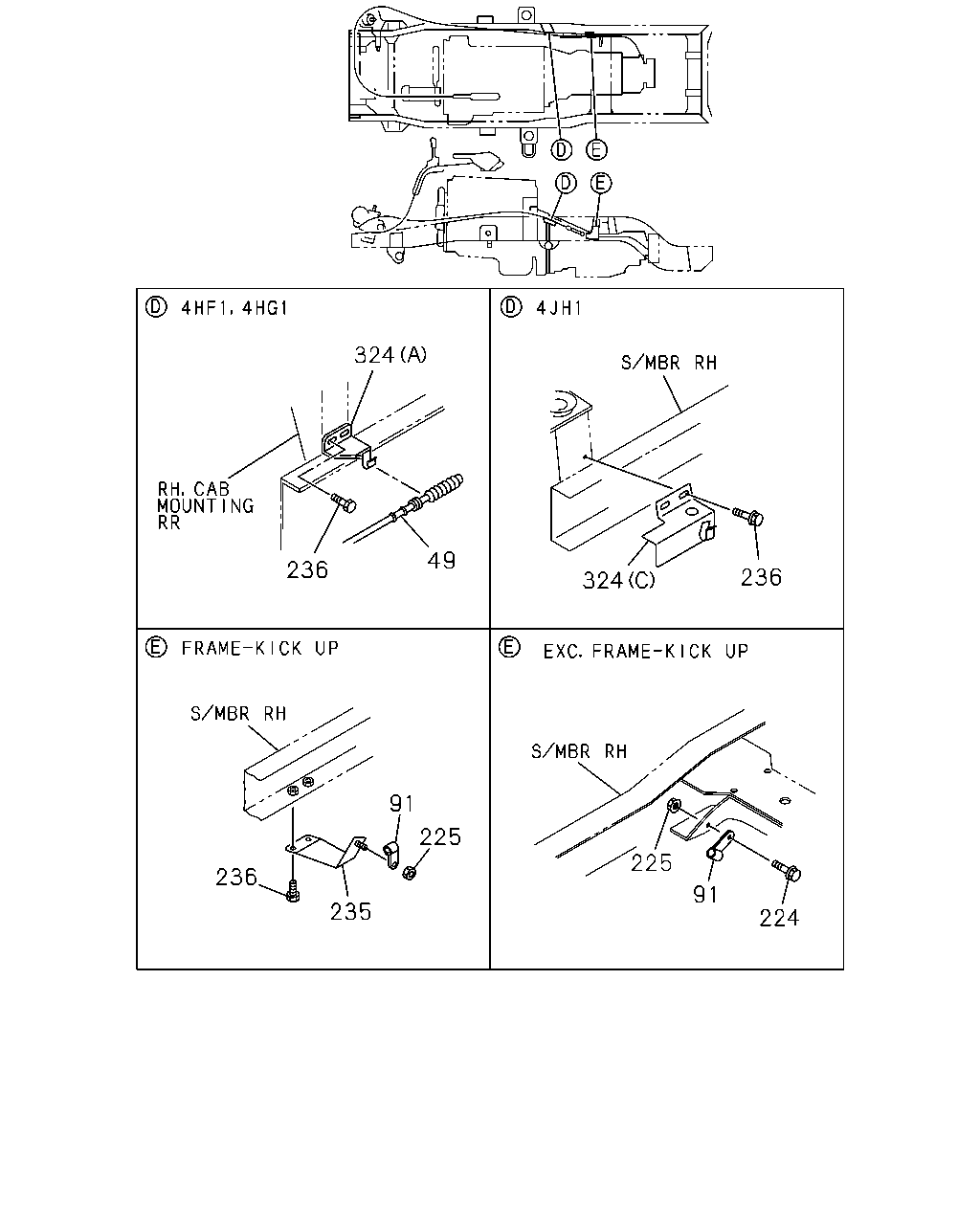

çizim 45341
324 49 236 236 324 91 225 225 236 91 235 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 04.779 CABLE; PARKING BRK
4HG1-T ENG(RDP) 		8-98166-956-0 01 1 1005- ●
49 04.779 CABLE; PARKING BRK
4HF1-S ENG(RLS) 		8-97351-563-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97351-563-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK 8-97351-563-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK
4HF1-N ENG(RJZ) 		8-97351-563-0 01 1 0502- ● ●
49 04.779 CABLE; PARKING BRK
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 		8-97351-563-0 01 1 0502- ●
49 04.779 CABLE; PARKING BRK 8-97351-563-0 01 1 0502- ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK
4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK
4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0502-0504 ● ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0502-0504 ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0502-0504 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0505-0910 ● ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0505-0910 ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0505-0910 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK 8-97184-272-0 01 1 0911-1004 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97184-272-0 01 1 1005- ● ● ● ●
49 04.779 CABLE; PARKING BRK
FRAME-KICK UP<7EW> 		8-97215-427-0 01 1 0211- ●
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97351-562-0 01 1 0211-0501 ●
49 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) 		8-97351-562-0 01 1 0502- ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX),4HF1-S ENG(RLS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0211-0501 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0502-1004 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1005- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 0211-0501 ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 0502-0504 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 0505-0606 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) ID=13 L=50 		0-95235-286-0 01 1 0607- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HF1-S ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX),4HF1-S ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX),4HF1-S ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-1004 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1005- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> 		8-97176-465-1 01 1 0211- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1 ENG(RJX),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
236 04.785 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-1004 ●
236 04.785 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1005- ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-814-2 01 1 0211- ●
324 04.785 BRACKET
EXC. REAR WIDE TREAD(V4T) (D) 		8-97101-814-2 01 1 0211- ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0211-0501 ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0211-0501 ● ● ● ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0211-0501 ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97101-815-2 01 1 0502- ●
324 04.785 BRACKET
REAR WIDE TREAD(V4T) (B) 		8-97101-815-2 01 1 0502- ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0502- ● ● ●
324 04.785 BRACKET
4HF1-S ENG(RLS) (A) 		8-97357-242-0 01 1 0211-0501 ● ● ●
324 04.785 BRACKET
(A) 		8-97357-242-0 01 1 0211-0501 ●
324 04.785 BRACKET
4HF1-N ENG(RJZ) (A) 		8-97357-242-0 01 1 0502-1004 ● ● ●
324 04.785 BRACKET
(A) 		8-97357-242-0 01 1 0502-1004 ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) (A) 		8-97357-242-0 01 1 1005- ● ● ●
324 04.785 BRACKET
(A) 		8-97357-242-0 01 1 1005- ●
324 04.785 BRACKET
4JH1 ENG(RJX) (C) 		8-97289-364-0 01 1 0211-0501 ●
324 04.785 BRACKET
4JH1-TC ENG(RDM) (C) 		8-97289-364-0 01 1 0502- ●
çizim 100540
225 89 224 91 181
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
89 04.785 BRACKET; CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97113-984-1 01 1 0211-0501 ● ● ● ● ●
89 04.785 BRACKET; CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 		8-97113-984-1 01 1 0502-0504 ● ● ● ●
89 04.785 BRACKET; CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 		8-97113-984-1 01 1 0505- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX),4HF1-S ENG(RLS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0211-0501 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0502-1004 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1005- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 NA ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 0211-0501 ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 0502-0504 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 0505-0606 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) ID=13 L=50 		0-95235-286-0 01 1 0607- ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
181 04.785 BOLT; BRKT
4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ● ● ● ●
181 04.785 BOLT; BRKT
4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0910 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ● ● ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911- ●
224 04.785 BOLT; CABLE CLIP
4HF1-S ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX),4HF1-S ENG(RLS) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1004 ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1005- ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0504 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0505-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX),4HF1-S ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-1004 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HF1-N ENG(RJZ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1005- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0504 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT),4JG2 ENG(RJC),4JB1 NA ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
