◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50943 - NKR55,66,69,71,77LHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#51058) — 90 parça

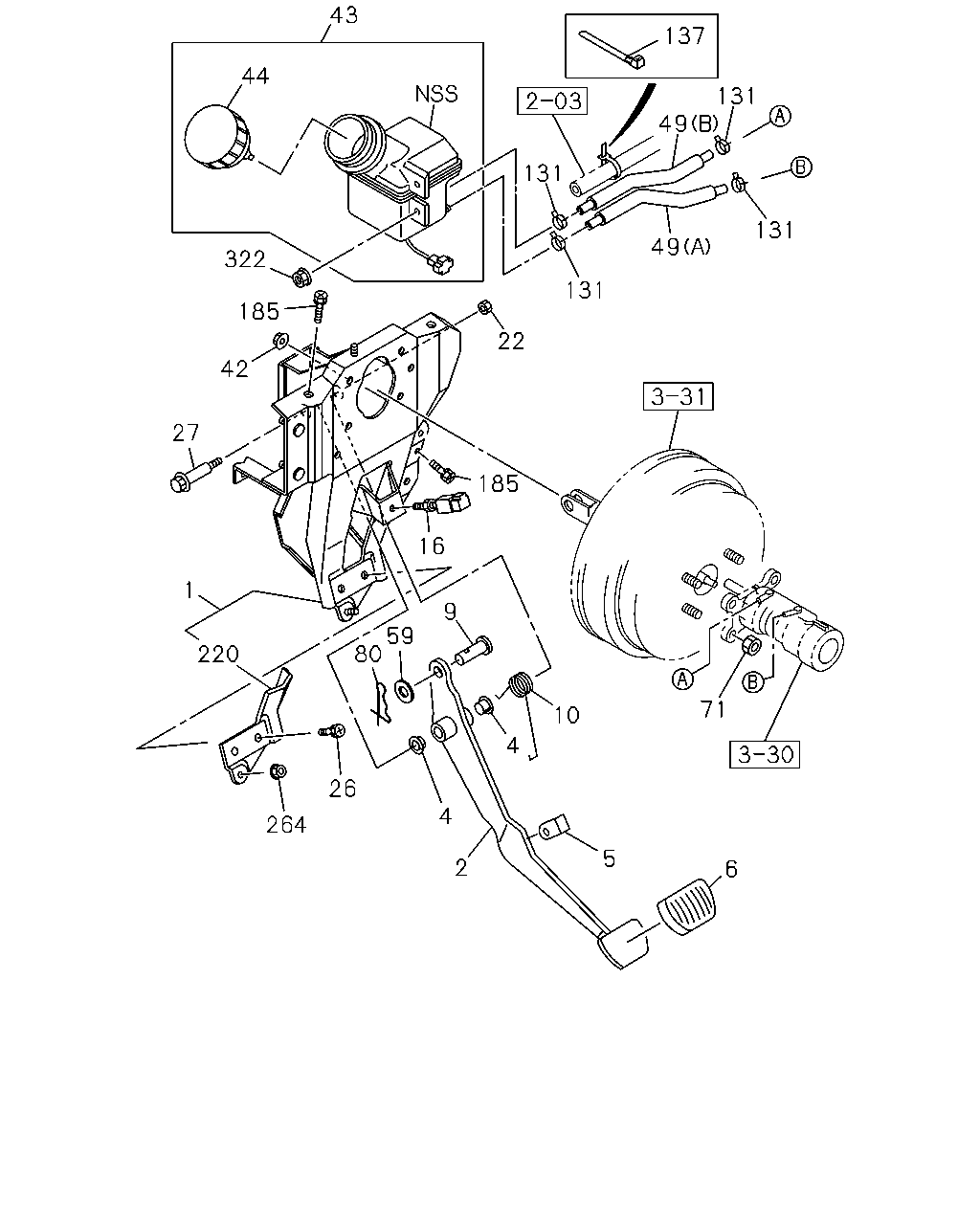

çizim 45370
43 137 44 131 49 131 131 49 322 131 185 22 42 27 185 16 1 59 80 220 71 10 4 26 4 264 5 2 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.634 BRACKET ASM; PEDAL 8-97896-969-2 01 1 0211-0412 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 		8-97896-969-2 01 1 0501-0501 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-97896-969-3 01 1 0502-0504 ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97896-969-5 01 1 0505-1005 ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 		8-97896-969-5 01 1 1006- ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL
4JH1 ENG(RJX) 		8-97410-026-0 01 1 0501-0501 ●
1 04.634 BRACKET ASM; PEDAL
4JH1-TC ENG(RDM) 		8-97410-026-3 01 1 0502- ●
2 04.625 PEDAL; BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97856-336-2 01 1 0603-0708 ● ● ● ● ●
2 04.625 PEDAL; BRK
4JH1-TC ENG(RDM) 		8-97856-336-2 01 1 0709- ●
2 04.625 PEDAL; BRK 8-97856-336-2 01 1 0211-0501 ● ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97856-336-2 01 1 0502-0602 ● ● ● ● ●
2 04.625 PEDAL; BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) IDENTIFICATION LABEL FOR KD<6UT> 		8-97856-336-2 01 1 0603-0708 ● ● ● ● ●
2 04.625 PEDAL; BRK
4JH1-TC ENG(RDM) 		8-97856-336-2 01 1 0603-0708 ●
2 04.625 PEDAL; BRK
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97856-336-2 01 1 0709-1005 ● ● ● ● ●
2 04.625 PEDAL; BRK
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 		8-97856-336-2 01 1 1006- ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 0211-0501 ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 0502- ● ● ● ● ●
5 04.634 STOPPER; BRK PEDAL 8-97853-602-1 01 1 0211-0501 ● ● ● ● ● ●
5 04.634 STOPPER; BRK PEDAL 8-97853-602-1 01 1 0502- ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-2 01 1 0211-0501 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-2 01 1 0502- ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-94410-276-0 01 1 0211-0501 ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-94410-276-0 01 1 0502-1406 ● ● ● ● ●
9 04.634 PIN; JAW JOINT
00.833 		8-97359-812-0 01 1 1407- ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0211-0501 ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0502- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1NA ENG(RLF) 		8-97855-187-0 01 1 0502-0504 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JB1-TC ENG(RDT),4JG2 ENG(RJC), 4HF1-NENG(RJZ),4JB1 NA ENG(RLF) 		8-97855-187-0 01 1 0505-1004 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JG2ENG(RJC),4HF1-N ENG(RJZ),4JB1 NA ENG (RLF) 		8-97855-187-0 01 1 1005- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JG2 ENG(RJC),4JB1 NA ENG(RLF), 4HF1-SENG(RLS) 		8-97855-187-0 01 1 0211-0501 ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 0211-0501 ● ● ●
16 02.447 SWITCH; STOP LAMP
4JB1 NA ENG(RLF),4HF1-S ENG(RLS) 		8-97855-187-0 01 1 0211-0501 ●
16 02.447 SWITCH; STOP LAMP
4JH1 ENG(RJX) 03.340 		8-94337-761-0 01 1 0211-0501 ●
16 02.447 SWITCH; STOP LAMP
4JH1-TC ENG(RDM) 03.340 		8-94337-761-0 01 1 0502- ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 0211-0501 ● ● ● ● ● ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 0502- ● ● ● ● ●
26 04.634 BOLT; PEDAL
00.833 M10X22 W/PL WASHER 		8-97313-188-0 02 1 0211-0501 ● ● ● ● ● ●
26 04.634 BOLT; PEDAL
00.833 M10X22 W/PL WASHER 		8-97313-188-0 02 1 0502- ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0211-0501 ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0502- ● ● ● ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 0211-0501 ● ● ● ● ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 0502- ● ● ● ● ●
43 04.651 TANK ASM; OIL
DISC BRAKE FRT<J52> 		8-97178-245-1 01 1 0211- ●
43 04.651 TANK ASM; OIL
EXC. DISC BRAKE FRT<J52> 		8-97179-813-1 01 1 0211-0501 ●
43 04.651 TANK ASM; OIL 8-97179-813-1 01 1 0211-0501 ● ● ● ● ●
43 04.651 TANK ASM; OIL
EXC. DISC BRAKE FRT<J52> 		8-97179-813-1 01 1 0502- ●
43 04.651 TANK ASM; OIL 8-97179-813-1 01 1 0502- ● ● ● ●
44 04.651 CAP; OIL TANK 8-97178-291-1 01 1 0211-0501 ● ● ● ● ● ●
44 04.651 CAP; OIL TANK 8-97178-291-1 01 1 0502- ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (B) L=315 		8-97129-584-0 01 1 0211-0501 ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) L=315 		8-97129-584-0 01 1 0211-0501 ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (B) L=315 		8-97129-584-0 01 1 0211-0501 ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52> (B) L=315 		8-97129-584-0 01 1 0502- ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ) (B) L=315 		8-97129-584-0 01 1 0502- ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (B) L=315 		8-97129-584-0 01 1 0502- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) L=315 		8-97129-584-0 01 1 0502- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) L=320 		8-97129-585-0 01 1 0211-0501 ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) L=320 		8-97129-585-0 01 1 0211-0501 ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (A) L=320 		8-97129-585-0 01 1 0211-0501 ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52> (A) L=320 		8-97129-585-0 01 1 0502- ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ) (A) L=320 		8-97129-585-0 01 1 0502- ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (A) L=320 		8-97129-585-0 01 1 0502- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) L=320 		8-97129-585-0 01 1 0502- ● ●
59 04.634 WASHER; PL,JAW JOINT
02.575 ID=15 		9-09160-514-0 01 1 0211-0501 ● ● ● ● ● ●
59 04.634 WASHER; PL,JAW JOINT
02.575 ID=15 		9-09160-514-0 01 1 0502-0605 ● ● ● ● ●
59 04.634 WASHER; PL,JAW JOINT
ID=15 		0-91610-514-0 01 1 0606- ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 0211-0501 ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 0502- ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 0211-0501 ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 0502- ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97130-480-0 04 1 0211-0501 ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 0211-0501 ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97130-480-0 04 1 0211-0501 ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52> 		8-97130-480-0 04 1 0502- ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 3.5-4.0TON(RPQ) 		8-97130-480-0 04 1 0502- ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97130-480-0 04 1 0502- ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 0502- ● ●
137 04.681 CLIP; BAND,RUBBER HOSE
02.559 L=250 		5-09707-030-1 01 1 0211-0501 ● ● ● ● ● ●
137 04.681 CLIP; BAND,RUBBER HOSE
02.559 L=250 		5-09707-030-1 01 1 0502- ● ● ● ● ●
185 04.634 BOLT; BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 02 1 0211-0501 ● ● ● ● ● ●
185 04.634 BOLT; BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 02 1 0502-0512 ● ● ● ● ●
185 04.634 BOLT; BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 02 1 0601- ● ● ● ● ●
220 04.634 BRACKET; STRG SHAFT 8-97857-044-1 01 1 0211-0501 ● ● ● ● ● ●
220 04.634 BRACKET; STRG SHAFT 8-97857-044-1 01 1 0502- ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0211-0501 ● ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0502-0610 ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ● ● ●
322 04.651 NUT; OIL TANK
04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ● ● ● ● ●
322 04.651 NUT; OIL TANK
04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ● ●
322 04.651 NUT; OIL TANK
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ● ●
