3-05 — REAR WHEEL BRAKE (#51056) — 451 parça

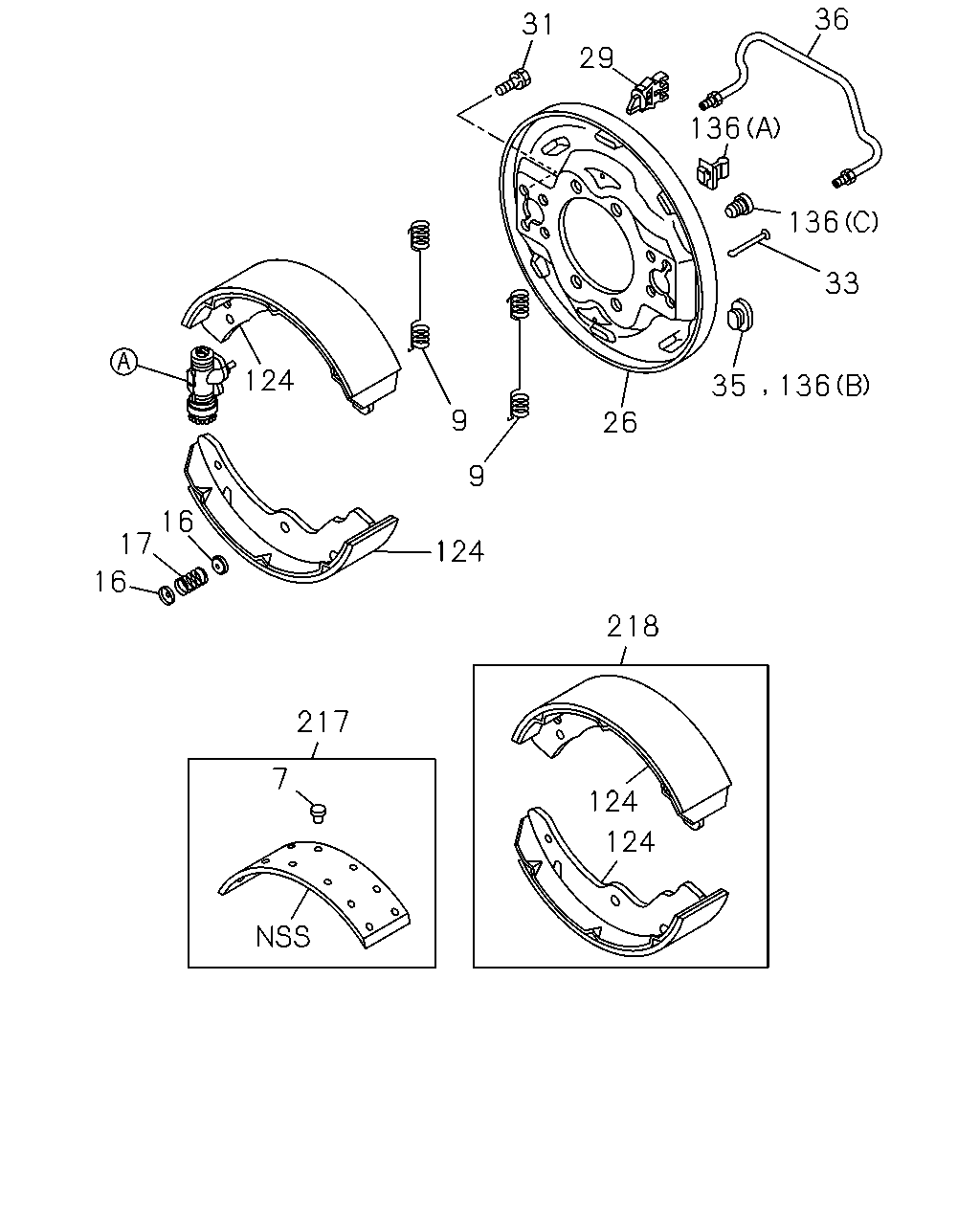

çizim 45340
36 31 29 136 136 33 124 136 35 9 26 9 16 17 124 16 218 217 7 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 05.019 RIVET; LINING,RR BRK
BRK WHL LK CONT LSPV<6PH> 		1-09732-029-0 40 1 0911- ●
7 05.019 RIVET; LINING,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		1-09732-029-0 40 1 0211-0501 ● ●
7 05.019 RIVET; LINING,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		1-09732-029-0 40 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
BRK WHL LK CONT LSPV<6PH> 		5-09583-118-0 04 1 0911- ●
9 05.026 SPRING; RETURN,BRK SHOE
BRK WHL LK CONT LSPV<6PH> 		8-97191-707-0 04 1 0211- ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-739-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 0211-0501 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-739-0 04 1 0211-0501 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97078-739-0 04 1 0211-0501 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97078-739-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-739-0 04 1 0502-0910 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 0502-0910 ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-739-0 04 1 0911- ● ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 0911- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		5-09583-118-0 04 1 0211-0501 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		5-09583-118-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
BRK WHL LK CONT LSPV<6PH> REAR 		8-97191-705-0 02 1 0212-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR 		8-97191-705-0 02 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE
BRK WHL LK CONT LSPV<6PH> FRONT 		8-97191-706-0 02 1 0212-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
FRONT 		8-97191-706-0 02 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-47629-026-0 04 1 0211-0501 ●
16 05.043 CUP; SHOE HOLDING
BRK WHL LK CONT LSPV<6PH> 		9-47165-096-0 08 1 0911- ●
16 05.043 CUP; SHOE HOLDING
BRK WHL LK CONT LSPV<6PH> 		8-97191-712-0 08 1 0211-0211 ●
16 05.043 CUP; SHOE HOLDING
BRK WHL LK CONT LSPV<6PH> 		8-97191-712-0 08 1 0212- ● ●
16 05.043 CUP; SHOE HOLDING
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		9-47162-033-0 08 1 0211-0501 ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0211-0501 ● ●
16 05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-033-0 08 1 0211-0501 ● ●
16 05.043 CUP; SHOE HOLDING
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		9-47162-033-0 08 1 0211-0501 ● ●
16 05.043 CUP; SHOE HOLDING
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		9-47162-033-0 08 1 0211-0501 ●
16 05.043 CUP; SHOE HOLDING
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-033-0 08 1 0211-0501 ●
16 05.043 CUP; SHOE HOLDING
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-033-0 08 1 0502-0910 ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0502-0910 ● ● ●
16 05.043 CUP; SHOE HOLDING
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-033-0 08 1 0911- ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0911- ● ●
16 05.043 CUP; SHOE HOLDING
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		9-47165-096-0 08 1 0211-0501 ● ●
16 05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		9-47165-096-0 08 1 0211-0501 ●
17 04.043 SPRING; SHOE HOLD DOWN
BRK WHL LK CONT LSPV<6PH> 05.043 		5-09580-101-1 04 1 0911- ●
17 04.043 SPRING; SHOE HOLD DOWN
BRK WHL LK CONT LSPV<6PH> 		8-97191-708-0 04 1 0211-0211 ●
17 04.043 SPRING; SHOE HOLD DOWN
BRK WHL LK CONT LSPV<6PH> 		8-97191-708-0 04 1 0212- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.043 		9-09940-989-1 04 1 0211-0501 ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0211-0501 ● ●
17 04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.043 		9-09940-989-1 04 1 0211-0501 ● ●
17 04.043 SPRING; SHOE HOLD DOWN
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 05.043 		9-09940-989-1 04 1 0211-0501 ● ●
17 04.043 SPRING; SHOE HOLD DOWN
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 05.043 		9-09940-989-1 04 1 0211-0501 ●
17 04.043 SPRING; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH> 05.043 		9-09940-989-1 04 1 0211-0501 ●
17 04.043 SPRING; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH> 05.043 		9-09940-989-1 04 1 0502-0910 ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0502-0910 ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH> 05.043 		9-09940-989-1 04 1 0911- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0911- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 05.043 		5-09580-101-1 04 1 0211-0501 ● ●
17 04.043 SPRING; SHOE HOLD DOWN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 05.043 		5-09580-101-1 04 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97079-854-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97079-855-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-496-0 01 1 0211-0910 ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-98148-181-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-495-0 01 1 0211-0910 ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-98148-180-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-935-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97093-935-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-934-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97093-934-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97078-606-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97078-606-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97078-605-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97078-605-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-680-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97078-680-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97078-680-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97078-680-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-680-0 01 1 0502-0504 ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97078-680-0 01 1 0505-0910 ● ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-680-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-680-0 01 1 0911- ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-679-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97078-679-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97078-679-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97078-679-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-679-0 01 1 0502-0504 ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97078-679-0 01 1 0505-0910 ● ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-679-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-679-0 01 1 0911- ● ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-494-1 01 1 0212-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97191-494-1 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-493-1 01 1 0212-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97191-493-1 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97080-787-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97080-786-0 01 1 0211-0501 ●
29 04.685 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> 		8-94128-306-0 02 1 0911- ●
29 04.685 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-703-0 02 1 0211-0211 ●
29 04.685 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-703-0 02 1 0212- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94128-307-0 02 1 0211-0501 ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 0211-0501 ● ●
29 04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-307-0 02 1 0211-0501 ● ●
29 04.685 CLIP; PIPE,BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94128-307-0 02 1 0211-0501 ● ●
29 04.685 CLIP; PIPE,BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-94128-307-0 02 1 0211-0501 ●
29 04.685 CLIP; PIPE,BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-307-0 02 1 0502-0910 ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 0502-0910 ● ● ●
29 04.685 CLIP; PIPE,BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-307-0 02 1 0911- ● ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 0911- ● ●
29 04.685 CLIP; PIPE,BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-94128-306-0 02 1 0211-0501 ● ●
29 04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-94128-306-0 02 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		5-09030-016-1 16 1 0911- ●
31 04.665 BOLT; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-714-0 16 1 0211- ●
31 04.665 BOLT; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		5-09030-036-1 16 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 0211-0501 ● ●
31 04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		5-09030-036-1 16 1 0211-0501 ● ●
31 04.665 BOLT; RR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		5-09030-036-1 16 1 0211-0501 ● ●
31 04.665 BOLT; RR WHEEL CYL
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		5-09030-036-1 16 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		5-09030-016-1 16 1 0211-0501 ● ●
31 04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		5-09030-016-1 16 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-09030-016-1 16 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-09030-036-1 16 1 0502-0910 ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 0502-0910 ● ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-09030-036-1 16 1 0911- ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 0911- ● ●
31 04.665 BOLT; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97192-214-0 16 1 0212-0501 ●
31 04.665 BOLT; RR WHEEL CYL 8-97192-214-0 16 1 0502- ●
33 05.043 PIN; SHOE HOLD DOWN
BRK WHL LK CONT LSPV<6PH> 		5-47162-001-0 04 1 0911- ●
33 05.043 PIN; SHOE HOLD DOWN
BRK WHL LK CONT LSPV<6PH> 		8-97191-711-0 04 1 0211- ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		9-47162-607-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 0211-0501 ● ●
33 05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-607-0 04 1 0211-0501 ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		9-47162-607-0 04 1 0211-0501 ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		9-47162-607-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-607-0 04 1 0502-0910 ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 0502-0910 ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47162-607-0 04 1 0911- ● ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 0911- ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		5-47162-001-0 04 1 0211-0501 ● ●
33 05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		5-47162-001-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN
BRK WHL LK CONT LSPV<6PH> 		8-97191-710-0 04 1 0212-0501 ●
33 05.043 PIN; SHOE HOLD DOWN 8-97191-710-0 04 1 0502- ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. BRK WHL LK CONT LSPV<6PH> L=52 		9-47162-045-0 04 1 0211-0501 ●
35 05.002 GROMMET; CHECK HOLE
BRK WHL LK CONT LSPV<6PH> 		8-94171-287-0 02 1 0911- ●
35 05.002 GROMMET; CHECK HOLE
BRK WHL LK CONT LSPV<6PH> 		8-97191-720-0 02 1 0211-0211 ●
35 05.002 GROMMET; CHECK HOLE
BRK WHL LK CONT LSPV<6PH> 		8-97191-720-0 02 1 0212- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94344-919-0 02 1 0211-0501 ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 0211-0501 ● ●
35 05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94344-919-0 02 1 0211-0501 ● ●
35 05.002 GROMMET; CHECK HOLE
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94344-919-0 02 1 0211-0501 ● ●
35 05.002 GROMMET; CHECK HOLE
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-94344-919-0 02 1 0211-0501 ●
35 05.002 GROMMET; CHECK HOLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94344-919-0 02 1 0502-0910 ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 0502-0910 ● ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94344-919-0 02 1 0911- ● ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 0911- ● ●
35 05.002 GROMMET; CHECK HOLE
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-94171-287-0 02 1 0211-0501 ● ●
35 05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-94171-287-0 02 1 0211-0501 ●
35 05.002 GROMMET; CHECK HOLE
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94171-287-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-94154-916-0 02 1 0911- ●
36 04.685 PIPE; OIL,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-702-0 02 1 0211- ●
36 04.685 PIPE; OIL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94128-192-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 0211-0501 ● ●
36 04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-192-0 02 1 0211-0501 ● ●
36 04.685 PIPE; OIL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-94128-192-0 02 1 0211-0501 ● ●
36 04.685 PIPE; OIL,RR BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-94128-192-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-192-0 02 1 0502-0910 ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 0502-0910 ● ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-192-0 02 1 0911- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 0911- ● ●
36 04.685 PIPE; OIL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-94154-916-0 02 1 0211-0501 ● ●
36 04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-94154-916-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-701-0 02 1 0212-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-97191-701-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-191-3 01 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-190-3 01 1 0211-0304 ●
36 04.685 PIPE; OIL,RR BRK
FINAL GEAR RATIO 39/8(RV9) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-190-3 01 1 0312-0501 ●
124 05.017 SHOE ASM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97287-778-0 04 1 0911- ●
124 05.017 SHOE ASM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97331-932-0 04 1 0211- ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-085-1 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97035-085-1 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97035-085-1 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97035-085-1 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97035-085-1 04 1 0502-0910 ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 0502-0910 ● ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97035-085-1 04 1 0911- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 0911- ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97287-778-0 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97287-778-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		8-97171-439-0 04 1 0212-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97171-439-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97035-083-1 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) BEST VALUE PARTS 		5-87610-123-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
BEST VALUE PARTS 		5-87610-123-0 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> BEST VALUE PARTS 		5-87610-123-0 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> BEST VALUE PARTS 		5-87610-123-0 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) BEST VALUE PARTS 		5-87610-123-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> BEST VALUE PARTS 		5-87610-123-0 04 1 0502-0910 ●
124 05.017 SHOE ASM; BRK,RR
BEST VALUE PARTS 		5-87610-123-0 04 1 0502-0910 ● ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> BEST VALUE PARTS 		5-87610-123-0 04 1 0911- ● ●
124 05.017 SHOE ASM; BRK,RR
BEST VALUE PARTS 		5-87610-123-0 04 1 0911- ● ●
136 05.002 GROMMET
BRK WHL LK CONT LSPV<6PH> 04.670 (C) 		1-47154-008-0 04 1 0911- ●
136 05.002 GROMMET
BRK WHL LK CONT LSPV<6PH> (B) 		8-94171-287-0 04 1 0911- ●
136 05.002 GROMMET
BRK WHL LK CONT LSPV<6PH> (B) 		8-97191-718-0 08 1 0211- ●
136 05.002 GROMMET
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		9-09956-640-0 04 1 0211-0501 ●
136 05.002 GROMMET
(A) 		9-09956-640-0 04 1 0211-0501 ● ●
136 05.002 GROMMET
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		9-09956-640-0 04 1 0211-0501 ● ●
136 05.002 GROMMET
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> (A) 		9-09956-640-0 04 1 0211-0501 ● ●
136 05.002 GROMMET
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) (A) 		9-09956-640-0 04 1 0211-0501 ●
136 05.002 GROMMET
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) (A) 		9-09756-034-0 04 1 0211-0501 ● ●
136 05.002 GROMMET
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (A) 		9-09756-034-0 04 1 0211-0501 ●
136 05.002 GROMMET
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		9-09756-034-0 04 1 0211-0501 ●
136 05.002 GROMMET
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		9-09956-640-0 04 1 0502-0910 ●
136 05.002 GROMMET
(A) 		9-09956-640-0 04 1 0502-0910 ● ● ●
136 05.002 GROMMET
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		9-09956-640-0 04 1 0911- ● ●
136 05.002 GROMMET
(A) 		9-09956-640-0 04 1 0911- ● ●
136 05.002 GROMMET
BRK WHL LK CONT LSPV<6PH> (B) 		8-97191-718-0 04 1 0212-0501 ●
136 05.002 GROMMET
(B) 		8-97191-718-0 04 1 0502- ●
217 05.018 LINING KIT; RR BRK
BRK WHL LK CONT LSPV<6PH> 		5-87831-801-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		5-87831-801-0 01 1 0211-0501 ● ●
217 05.018 LINING KIT; RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		5-87831-801-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK
BRK WHL LK CONT LSPV<6PH> BEST VALUE PARTS 		5-87610-121-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-121-0 01 1 0211-0501 ● ●
217 05.018 LINING KIT; RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) BEST VALUE PARTS 		5-87610-121-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		5-87832-047-0 01 1 0911- ●
218 05.017 SHOE KIT; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		5-87832-044-0 01 1 0211- ●
218 05.017 SHOE KIT; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		5-87832-045-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 0211-0501 ● ●
218 05.017 SHOE KIT; BRK,RR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		5-87832-045-0 01 1 0211-0501 ● ●
218 05.017 SHOE KIT; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		5-87832-045-0 01 1 0211-0501 ● ●
218 05.017 SHOE KIT; BRK,RR
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		5-87832-045-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87832-045-0 01 1 0502-0910 ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 0502-0910 ● ● ●
218 05.017 SHOE KIT; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87832-045-0 01 1 0911- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 0911- ● ●
218 05.017 SHOE KIT; BRK,RR
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		5-87832-047-0 01 1 0211-0501 ● ●
218 05.017 SHOE KIT; BRK,RR
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		5-87832-047-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR
BRK WHL LK CONT LSPV<6PH> 		5-87832-109-0 01 1 0212-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87832-109-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87832-087-0 01 1 0211-0501 ●

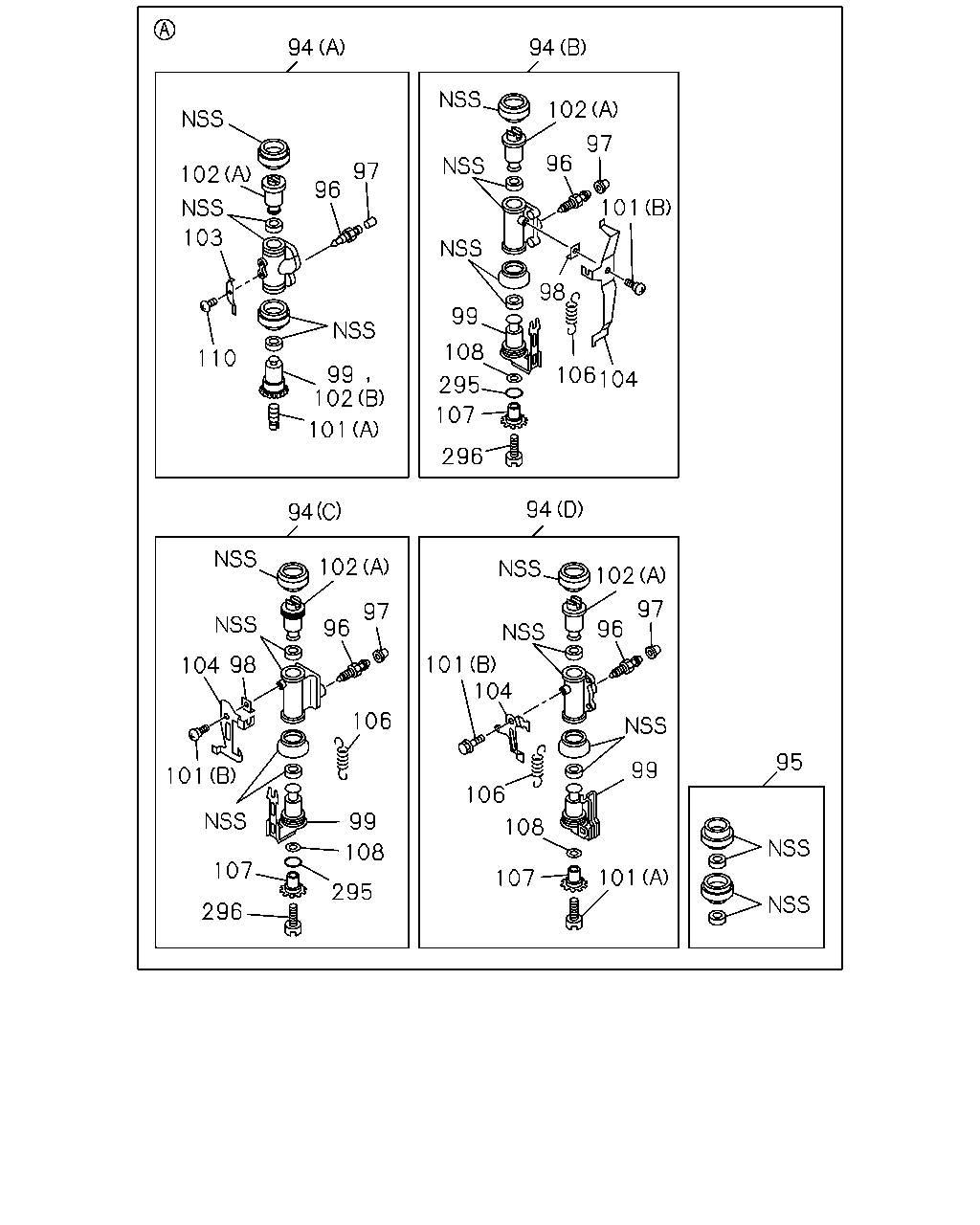

çizim 100962
94 94 102 97 96 97 102 96 101 103 98 99 108 110 99 102 106 104 295 107 101 296 94 94 102 102 97 97 96 96 101 104 98 104 106 95 99 101 106 99 108 108 107 101 107 295 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (D) REAR 		8-97349-689-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (D) REAR 		8-97349-690-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (D) FRONT 		8-97349-691-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (D) FRONT 		8-97349-692-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (B) 		8-97191-502-0 02 1 0211- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97191-497-0 01 1 0211- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (B) REAR 		8-97191-499-0 01 1 0211- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97139-842-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-842-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-842-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) (A) 		8-97139-842-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97139-842-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-842-0 02 1 0502-0504 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97139-842-0 02 1 0505-0910 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-842-0 02 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97139-842-0 02 1 0911- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT 		8-97139-840-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-840-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-840-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) (A) FRONT 		8-97139-840-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97139-840-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-840-0 01 1 0502-0504 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97139-840-0 01 1 0505-0910 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-840-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97139-840-0 01 1 0911- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97139-841-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-841-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-841-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) (A) REAR 		8-97139-841-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97139-841-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-841-0 01 1 0502-0504 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97139-841-0 01 1 0505-0910 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-841-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97139-841-0 01 1 0911- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97179-337-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97179-337-0 02 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT 		8-97179-335-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97179-335-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97179-336-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97179-336-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) (A) 		8-97179-352-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (A) 		8-97179-352-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) (A) FRONT 		8-97179-350-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (A) FRONT 		8-97179-350-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) (A) REAR 		8-97179-351-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (A) REAR 		8-97179-351-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (C) 		8-97191-724-0 02 1 0212-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) 		8-97191-724-0 02 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (C) FRONT 		8-97191-722-0 01 1 0212-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97191-722-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
BRK WHL LK CONT LSPV<6PH> (C) REAR 		8-97191-723-0 01 1 0212-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97191-723-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97179-349-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97179-347-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97179-348-0 01 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		5-87831-622-0 01 1 0911- ●
95 04.665 CUP SET; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		5-87831-781-0 01 1 0211- ●
95 04.665 CUP SET; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		5-87831-621-0 01 1 0211-0501 ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0211-0501 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87831-621-0 01 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87831-621-0 01 1 0502-0504 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0505-0910 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87831-621-0 01 1 0911- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0911- ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		5-87831-625-0 01 1 0211-0501 ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		5-87831-625-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		5-87831-776-0 01 1 0212-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-776-0 01 1 0502- ●
96 04.666 SCREW; BLEEDER,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-98050-476-0 02 1 0911- ●
96 04.666 SCREW; BLEEDER,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-759-0 01 1 0211-0211 ●
96 04.666 SCREW; BLEEDER,RR BRK
BRK WHL LK CONT LSPV<6PH> 		8-97191-759-0 01 1 0212- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 01 1 0211-0501 ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0211-0501 ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47615-027-0 01 1 0211-0501 ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		9-47615-027-0 01 1 0502-0711 ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0502-0711 ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-98050-476-0 01 1 0712-0910 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0712-0910 ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> 		8-98050-476-0 01 1 0911- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0911- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-98050-479-0 02 1 0911- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-774-0 01 1 0211-0211 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-774-0 01 1 0212- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 01 1 0211-0501 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0211-0501 ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		1-47619-009-0 01 1 0211-0501 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		1-47619-009-0 01 1 0502-0711 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0502-0711 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-98050-479-0 01 1 0712-0910 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0712-0910 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-98050-479-0 01 1 0911- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0911- ● ●
98 04.669 SPRING; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-768-0 04 1 0211-0211 ●
98 04.669 SPRING; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-768-0 04 1 0212- ● ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97349-727-0 02 1 0911- ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97349-728-0 02 1 0911- ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-732-0 02 1 0211- ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-731-0 02 1 0211- ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-698-0 02 1 0211-0304 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-698-0 02 1 0211-0304 ● ●
99 04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97078-698-0 02 1 0211-0304 ● ●
99 04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97078-698-0 02 1 0211-0304 ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 02 1 0211-0304 ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-698-0 03 1 0305-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-698-0 03 1 0305-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-97078-698-0 03 1 0305-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) 		8-97078-698-0 03 1 0305-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 03 1 0305-0501 ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-698-0 03 1 0502-0504 ● ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 03 1 0505-0910 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97078-698-0 03 1 0911- ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 03 1 0911- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-149-0 02 1 0211-0304 ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-149-0 03 1 0305-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97081-149-0 03 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97078-622-0 02 1 0211-0304 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97078-622-0 02 1 0211-0304 ●
99 04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) 		8-97078-622-0 03 1 0305-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) 		8-97078-622-0 03 1 0305-0501 ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-730-0 02 1 0212-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97191-730-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-729-0 02 1 0212-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97191-729-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> D=25.4 		8-94128-536-1 02 1 0211-0304 ●
99 04.668 PISTON; RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> D=25.4 		8-94128-536-1 03 1 0305-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0911- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0911- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (B) 		8-97349-747-0 04 1 0911- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (B) 		8-97191-770-0 04 1 0211-0211 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (B) 		8-97191-770-0 04 1 0212- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.110 (A) 		8-97078-623-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		8-97078-623-0 04 1 0211-0501 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 05.110 (A) 		8-97078-623-0 04 1 0502-0910 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		8-97078-623-0 04 1 0502-0910 ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 05.110 (A) 		8-97078-623-0 04 1 0911- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		8-97078-623-0 04 1 0911- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 05.110 (A) 		5-47629-027-1 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (A) 		8-97191-755-0 04 1 0211- ●
102 04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) D=25.4 		8-94128-531-1 04 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 0211-0501 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (A) D=25.4 		8-94128-531-1 04 1 0502-0504 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 0505- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-698-0 02 1 0211-0304 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-698-0 02 1 0211-0304 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-698-0 02 1 0211-0304 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97078-698-0 02 1 0211-0304 ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 02 1 0211-0304 ●
102 04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT DSPV<JL8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-698-0 01 1 0305-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-698-0 01 1 0305-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-698-0 01 1 0305-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97078-698-0 01 1 0305-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 01 1 0305-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-698-0 01 1 0502-0504 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 01 1 0505-0910 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-698-0 01 1 0911- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 01 1 0911- ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (A) D=22.22 		8-94128-533-1 04 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (A) D=22.22 		8-94128-533-1 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-149-0 02 1 0211-0304 ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-149-0 01 1 0305-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97081-149-0 01 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) (B) 		8-97078-622-0 02 1 0211-0304 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (B) 		8-97078-622-0 02 1 0211-0304 ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS) G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>,ENGINE POWER N-SPEC(7QV) (B) 		8-97078-622-0 01 1 0305-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> BRAZIL EQUIPMENT(RWF) (B) 		8-97078-622-0 01 1 0305-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> (A) 		8-97191-756-0 04 1 0212-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97191-756-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (B) D=25.4 		8-94128-536-1 02 1 0211-0304 ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (B) D=25.4 		8-94128-536-1 01 1 0305-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> (A) D=25.4 		8-94128-537-1 04 1 0211-0501 ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94128-486-0 04 1 0211-0501 ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0211-0501 ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-487-0 04 1 0211-0501 ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-486-0 04 1 0502-0910 ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0502-0910 ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-486-0 04 1 0911- ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0911- ● ●
104 05.103 LEVER; ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97349-743-0 02 1 0911- ●
104 05.103 LEVER; ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97349-744-0 02 1 0911- ●
104 05.103 LEVER; ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97191-740-0 02 1 0211- ●
104 05.103 LEVER; ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97191-739-0 02 1 0211- ●
104 05.103 LEVER; ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97191-742-0 02 1 0212-0501 ●
104 05.103 LEVER; ADJ 8-97191-742-0 02 1 0502- ●
104 05.103 LEVER; ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97191-741-0 02 1 0212-0501 ●
104 05.103 LEVER; ADJ 8-97191-741-0 02 1 0502- ●
106 05.107 SPRING; ADJ LEVER
BRK WHL LK CONT LSPV<6PH> 		8-97349-745-0 04 1 0911- ●
106 05.107 SPRING; ADJ LEVER
BRK WHL LK CONT LSPV<6PH> 		8-97191-743-0 02 1 0709- ●
106 05.107 SPRING; ADJ LEVER
BRK WHL LK CONT LSPV<6PH> 		8-97191-744-0 02 1 0211- ●
106 05.107 SPRING; ADJ LEVER
BRK WHL LK CONT LSPV<6PH> 		8-97191-745-0 02 1 0211-0211 ●
106 05.107 SPRING; ADJ LEVER
BRK WHL LK CONT LSPV<6PH> 		8-97191-745-0 02 1 0212-0708 ● ●
106 05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 39/8(RV9),FINAL GEARRATIO 41/7(R41) 		8-97191-745-0 02 1 0709-1004 ●
106 05.107 SPRING; ADJ LEVER 8-97191-745-0 02 1 1005- ●
106 05.107 SPRING; ADJ LEVER
BRK WHL LK CONT LSPV<6PH> 		8-97191-746-0 02 1 0212-0501 ●
106 05.107 SPRING; ADJ LEVER 8-97191-746-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
BRK WHL LK CONT LSPV<6PH> 		8-97349-737-0 02 1 0911- ●
107 05.110 GEAR; ADJ,RR W/CYL
BRK WHL LK CONT LSPV<6PH> 		8-97349-739-0 02 1 0911- ●
107 05.110 GEAR; ADJ,RR W/CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-748-0 02 1 0211- ●
107 05.110 GEAR; ADJ,RR W/CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-747-0 02 1 0211- ●
107 05.110 GEAR; ADJ,RR W/CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-750-0 02 1 0212-0501 ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97191-750-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-749-0 02 1 0212-0501 ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97191-749-0 02 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97029-304-0 04 1 0911- ●
108 05.110 WASHER; THRUST,GEAR ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97191-762-0 04 1 0211- ●
108 05.110 WASHER; THRUST,GEAR ADJ
BRK WHL LK CONT LSPV<6PH> 		8-97241-310-0 04 1 0212-0501 ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97241-310-0 04 1 0502- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94128-727-0 04 1 0211-0501 ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0211-0501 ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-727-0 04 1 0211-0501 ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-727-0 04 1 0502-0910 ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0502-0910 ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH> 		8-94128-727-0 04 1 0911- ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0911- ● ●
295 05.110 SEAL; DUST
BRK WHL LK CONT LSPV<6PH> 		8-97191-751-0 04 1 0211-0211 ●
295 05.110 SEAL; DUST
BRK WHL LK CONT LSPV<6PH> 		8-97191-751-0 04 1 0212- ● ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-765-0 02 1 0211- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-764-0 02 1 0211- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-767-0 02 1 0212-0501 ●
296 05.125 BOLT; ADJ,RR WHEEL CYL 8-97191-767-0 02 1 0502- ●
296 05.125 BOLT; ADJ,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH> 		8-97191-766-0 02 1 0212-0501 ●
296 05.125 BOLT; ADJ,RR WHEEL CYL 8-97191-766-0 02 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
