1-56 — EXHAUST BRAKE SYSTEM (#51048) — 59 parça
çizim 147950
1 5 5 1 10 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.632 BRAKE UNIT; EXH
(A) 		8-98068-178-1 01 1 1109-1210 ●
1 03.632 BRAKE UNIT; EXH
(A) 		8-98068-178-1 01 1 1211-1212 ● ●
1 03.632 BRAKE UNIT; EXH
(A) 		8-98227-170-0 01 1 1301- ● ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-98167-677-1 01 1 1109-1210 ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-98167-677-1 01 1 1211-1310 ● ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-98258-268-0 01 1 1311- ● ●
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 1109-1210 ●
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 1211- ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1109-1210 ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1211- ● ●
10 03.634 NUT; BRKT,EXH BRAKE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER 		8-97581-234-0 04 1 1211- ● ●
10 03.634 NUT; BRKT,EXH BRAKE
03.417 (A) M8 W/LK WASHER 		8-97581-234-0 04 1 1109-1203 ●
10 03.634 NUT; BRKT,EXH BRAKE
03.613 (B) M8 		1-09400-118-1 04 1 1204-1210 ●
10 03.634 NUT; BRKT,EXH BRAKE
IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8 		1-09400-118-1 04 1 1211- ● ●

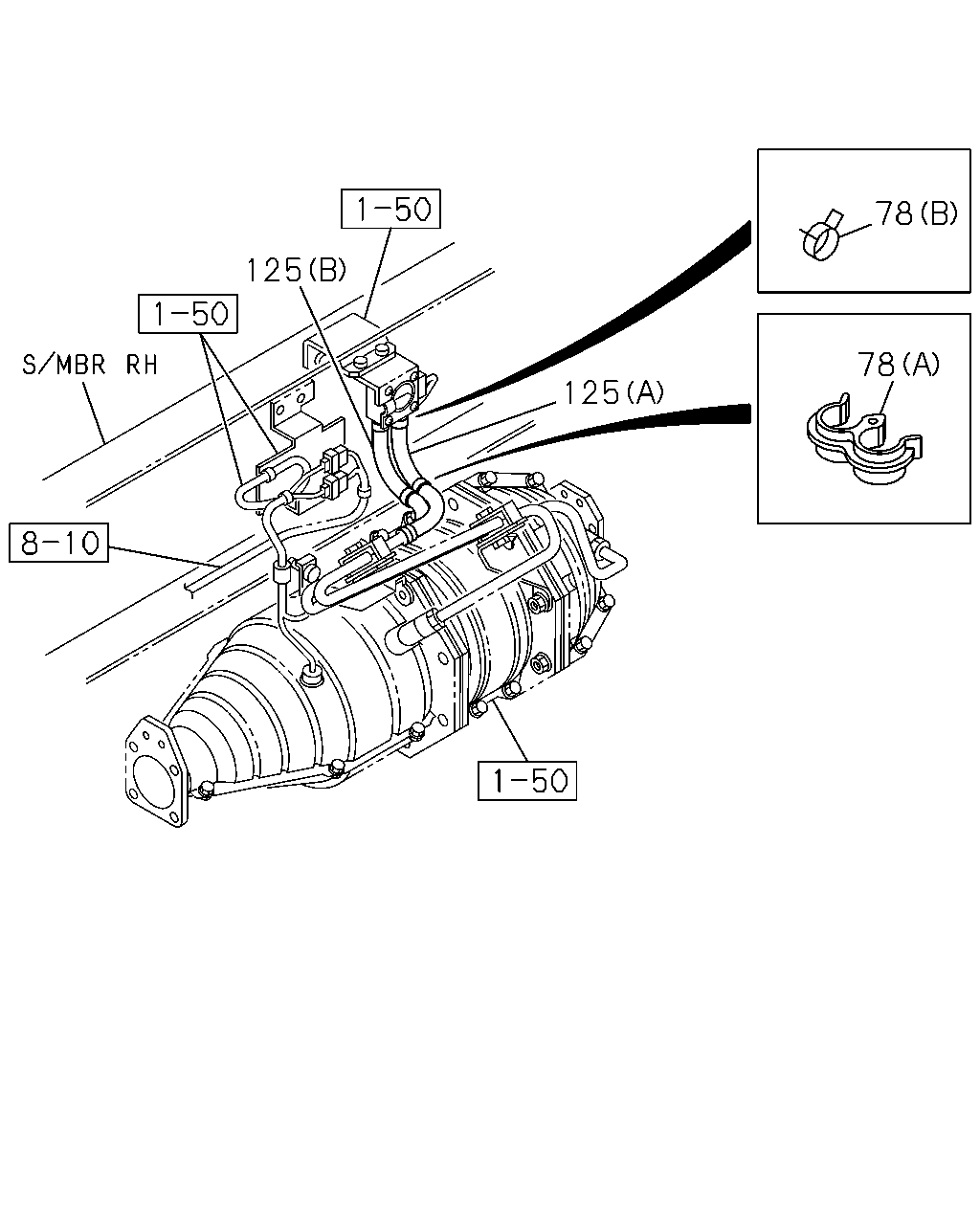

çizim 147952
125 125 78 78
BalonParca AdiParca NoAdetTipApplied Date A B
78 03.636 CLIP; HOSE
03.162 (A) 		8-97173-119-0 01 1 1109-1210 ●
78 03.636 CLIP; HOSE
03.162 (A) 		8-97173-119-0 01 1 1211- ● ●
78 03.636 CLIP; HOSE
03.162 (B) ID=13 		8-97329-627-0 04 1 1109-1210 ●
78 03.636 CLIP; HOSE
03.162 (B) ID=13 		8-97329-627-0 04 1 1211- ● ●
125 03.630 HOSE; DPD
(A) L=90 		8-98029-399-0 01 1 1109-1210 ●
125 03.630 HOSE; DPD
(A) L=90 		8-98029-399-0 01 1 1211- ● ●
125 03.630 HOSE; DPD
(B) L=110 		8-98029-400-0 01 1 1109-1210 ●
125 03.630 HOSE; DPD
(B) L=110 		8-98029-400-0 01 1 1211- ● ●

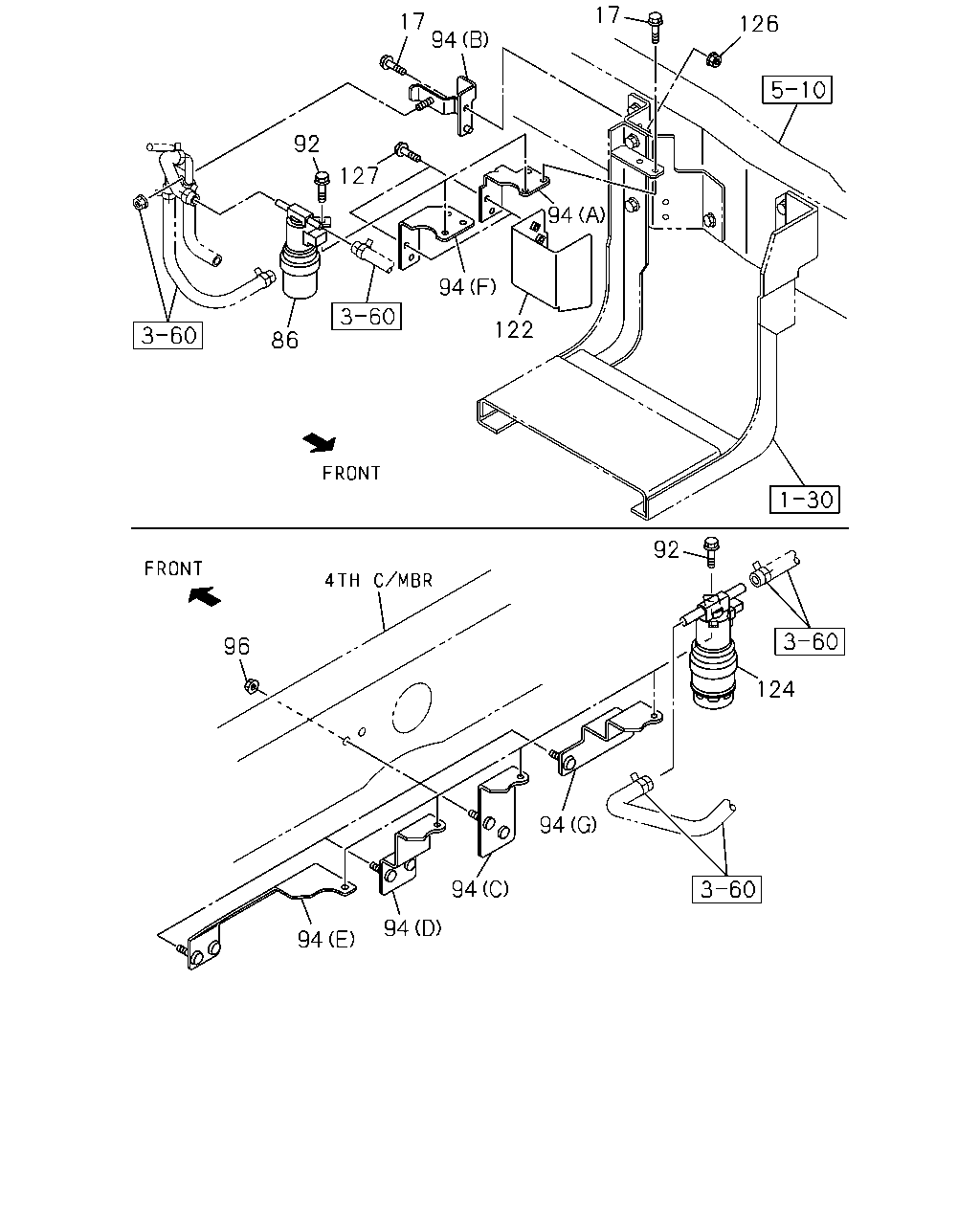

çizim 147953
17 94 17 126 94 122 94 127 92 86 96 92 124 94 94 94 94
BalonParca AdiParca NoAdetTipApplied Date A B
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1210 ●
17 03.634 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ●
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ●
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1109-1210 ●
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 1109-1210 ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 1211- ● ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1210 ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1210 ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1211- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (G) 		8-98064-722-0 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D) 		8-98039-762-1 01 1 1109-1210 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D) 		8-98039-762-1 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) (D) 		8-98039-762-1 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1109-1210 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2800MM(28W) (E) 		8-98039-761-2 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (C) 		8-98039-764-1 01 1 1109-1210 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (C) 		8-98039-764-1 01 1 1211- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1109-1210 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1211- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98042-145-2 01 1 1109-1206 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(F) 		8-98211-757-1 01 1 1207-1210 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(F) 		8-98211-757-1 01 1 1211- ● ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1109-1210 ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1211- ● ●
122 03.640 PROTECTOR; MAG VLV 8-98098-564-0 01 1 1109-1210 ●
122 03.640 PROTECTOR; MAG VLV 8-98098-564-0 01 1 1211- ● ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 1109-1210 ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 1211- ● ●
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1210 ●
126 03.634 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1211- ●
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1211- ●
127 04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1109-1210 ●
127 04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1211- ● ●
