Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#51045) — 412 parça

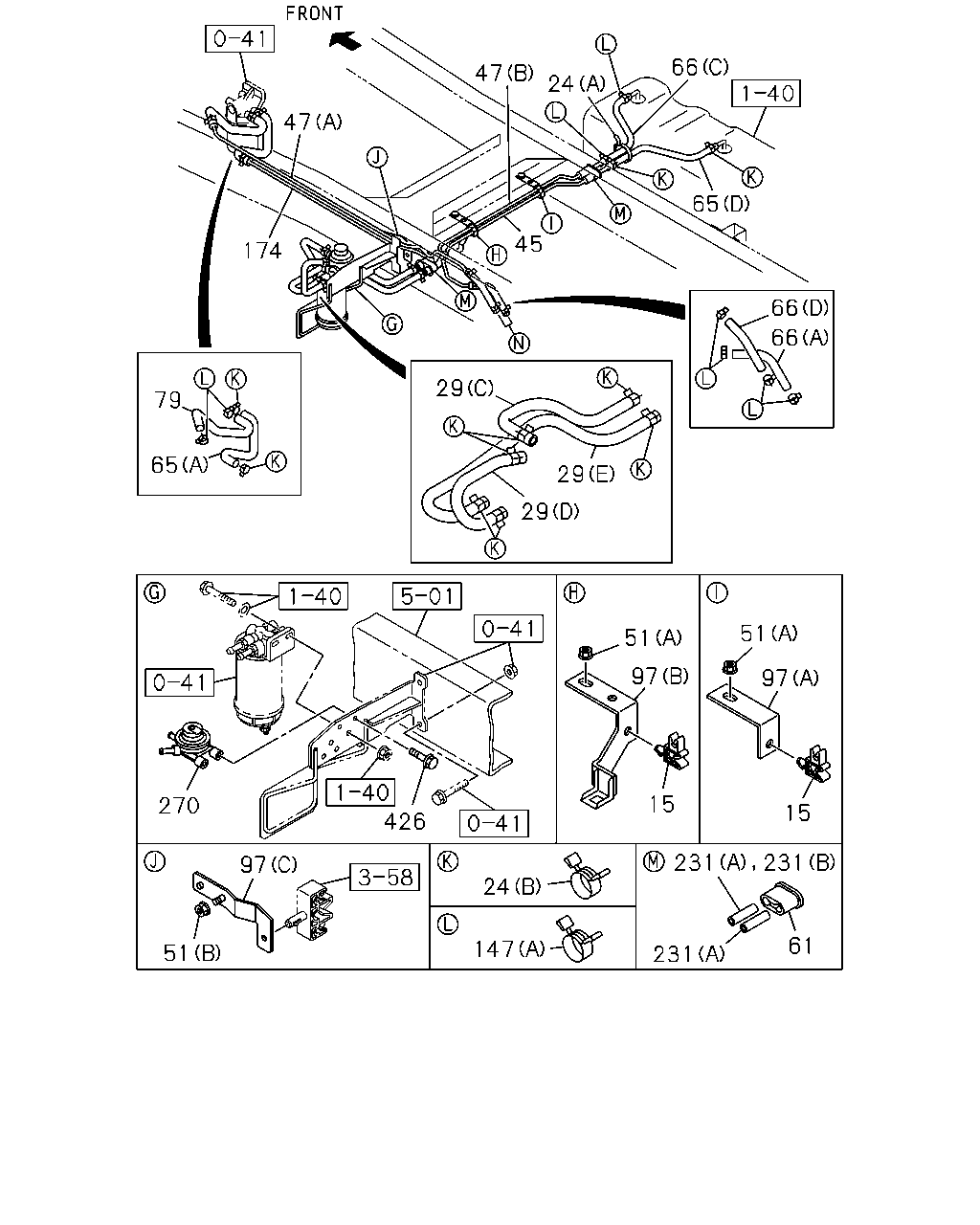

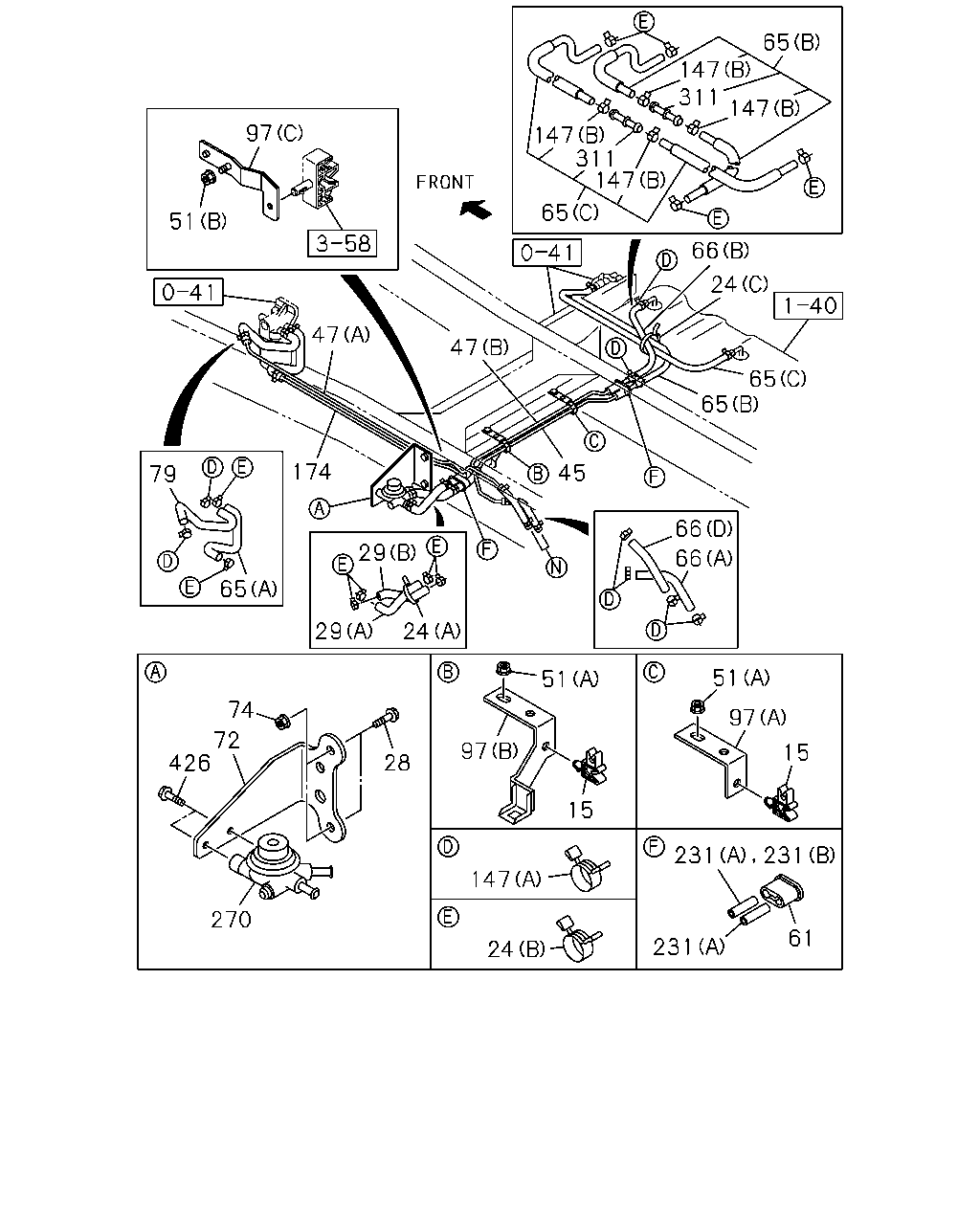

97 51 147 311 147 65 147 311 147 65 66 24 65 65 45 66 66 51 97 15 231 231 231 61 24 147 15 97 51 28 270 426 72 74 29 24 29 65 79 174 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1109-1210	●
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	01	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	01	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1211-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1211-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1211-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-1210	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1211-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1211-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1211-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) (C)	8-98099-502-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04) (C)	8-98099-502-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1211-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) (E)	8-98099-503-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04) (E)	8-98099-503-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1211-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1211-		●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1211-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1109-1210	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1211-	●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	1211-	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1109-1309	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	1211-	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN (A) L=994	8-98137-014-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1109-1210	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1211-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1211-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1109-1210	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1211-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1211-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1211-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1211-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1211-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1211-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1211-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1211-	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	1109-1210	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	1211-	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1210	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1109-1210	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1211-	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1109-1210	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1211-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1109-1210	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1211-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1109-1210	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1211-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1109-1210	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1211-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1109-1210	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1211-	●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1109-1309	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT	8-98064-632-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1109-1210	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1211-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1109-1210	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1211-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1109-1210	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1211-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1109-1210	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1211-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1109-1210	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1211-	●	●

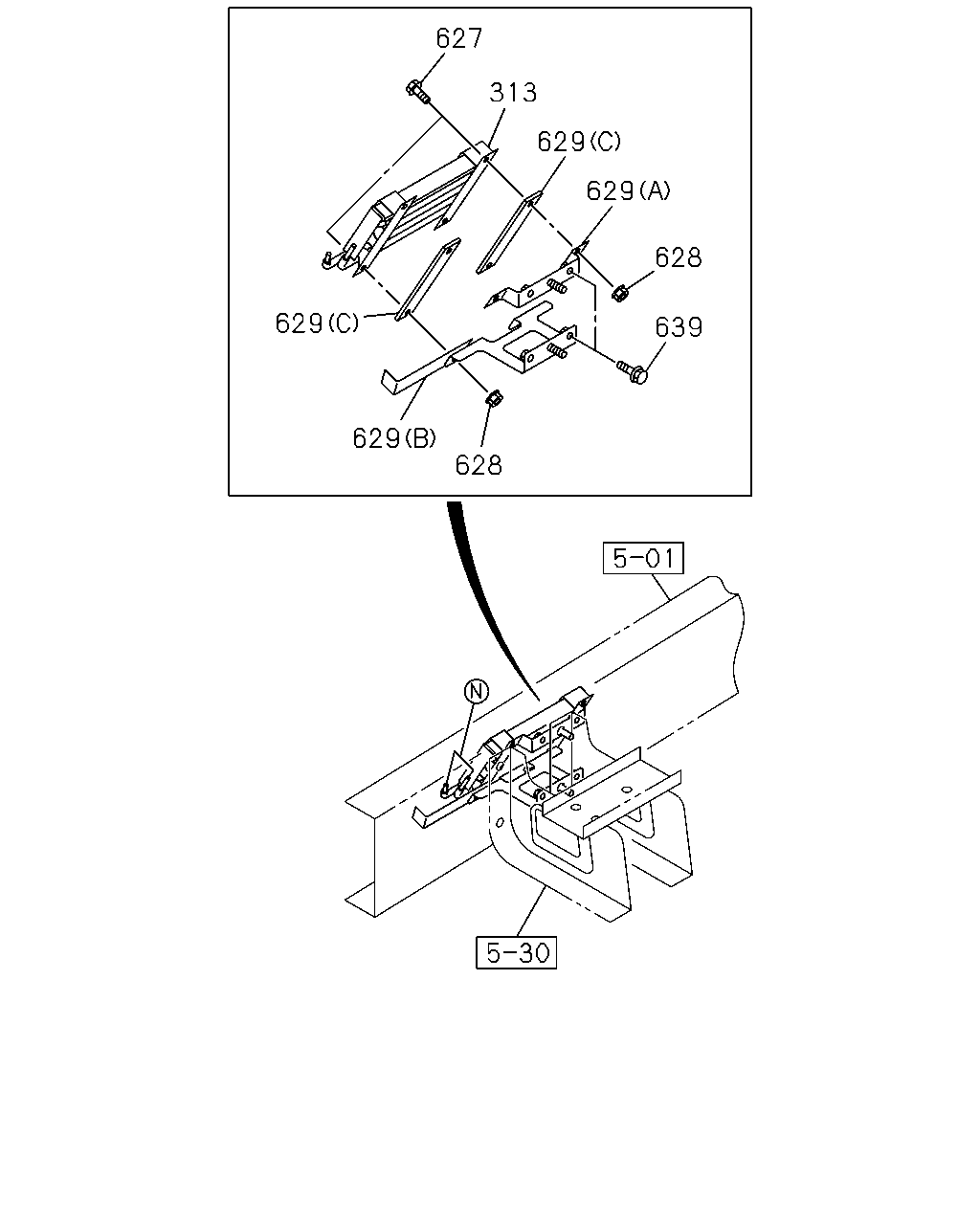

627 313 629 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	1109-1210	●
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	1211-	●	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1109-1203	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1109-1203	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1211-1308		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1109-1203	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-	●
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-		●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	1109-1210	●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	1211-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-070-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-070-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A)	8-98142-070-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (A)	8-98142-070-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A)	8-98142-070-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (A)	8-98142-070-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-071-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-071-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B)	8-98142-071-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (B)	8-98142-071-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (B)	8-98142-071-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (B)	8-98142-071-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (A)	8-98142-068-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (A)	8-98142-068-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (A)	8-98142-066-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (A)	8-98142-066-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	1309-1510		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	1511-		●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	1109-1210	●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	1211-	●	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-1203	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1211-1308		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1203	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1203	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-		●

47 47 24 66 65 45 174 79 65 29 29 29 66 66 51 97 15 15 97 51 426 270 97 51 24 147 231 231 231 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1109-1210	●
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	01	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	01	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1211-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1211-		●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1211-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1109-1210	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1211-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1211-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1211-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) (C)	8-98099-502-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04) (C)	8-98099-502-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1211-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) (E)	8-98099-503-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. TAIWAN EQUIPMENT(B04) (E)	8-98099-503-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1211-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1109-1210	●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1211-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1211-		●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1211-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1109-1210	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1211-	●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	1211-	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1109-1309	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	1211-	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1109-1210	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1211-1309	●
47	03.163 PIPE; FUEL,RETURN (A) L=994	8-98137-014-2	01	1	1211-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1109-1210	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1211-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1211-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1109-1210	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1211-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1211-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1211-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1211-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1211-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1109-1210	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1211-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=500	8-98057-029-0	01	1	1211-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1109-1210	●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1211-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1109-1210	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1211-	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1109-1210	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1211-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1109-1210	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1211-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1109-1210	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1211-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1109-1210	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1211-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1109-1210	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1211-	●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1109-1309	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1109-1210	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-632-1	01	1	1211-1309	●
174	03.163 PIPE; FUEL,FEED,FRT	8-98064-632-1	01	1	1211-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1109-1210	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1211-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1109-1210	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1211-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1109-1210	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1211-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1109-1210	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1211-	●	●

627 313 629 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	1109-1210	●
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	1211-	●	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1109-1203	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1109-1203	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1211-1308		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1109-1203	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1204-1210	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1211-1308		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-	●
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-		●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	1109-1210	●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	1211-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-070-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-070-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A)	8-98142-070-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (A)	8-98142-070-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A)	8-98142-070-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (A)	8-98142-070-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-071-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-071-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B)	8-98142-071-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (B)	8-98142-071-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (B)	8-98142-071-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) (B)	8-98142-071-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (A)	8-98142-068-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (A)	8-98142-068-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (A)	8-98142-066-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (A)	8-98142-066-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1109-1203	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1204-1210	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1211-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	1211-1308		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	1309-1510		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	1511-		●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	1109-1210	●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	1211-	●	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-1203	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1211-1308		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1203	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1203	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1204-1210	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1211-1308		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
