◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#51041) — 27 parça

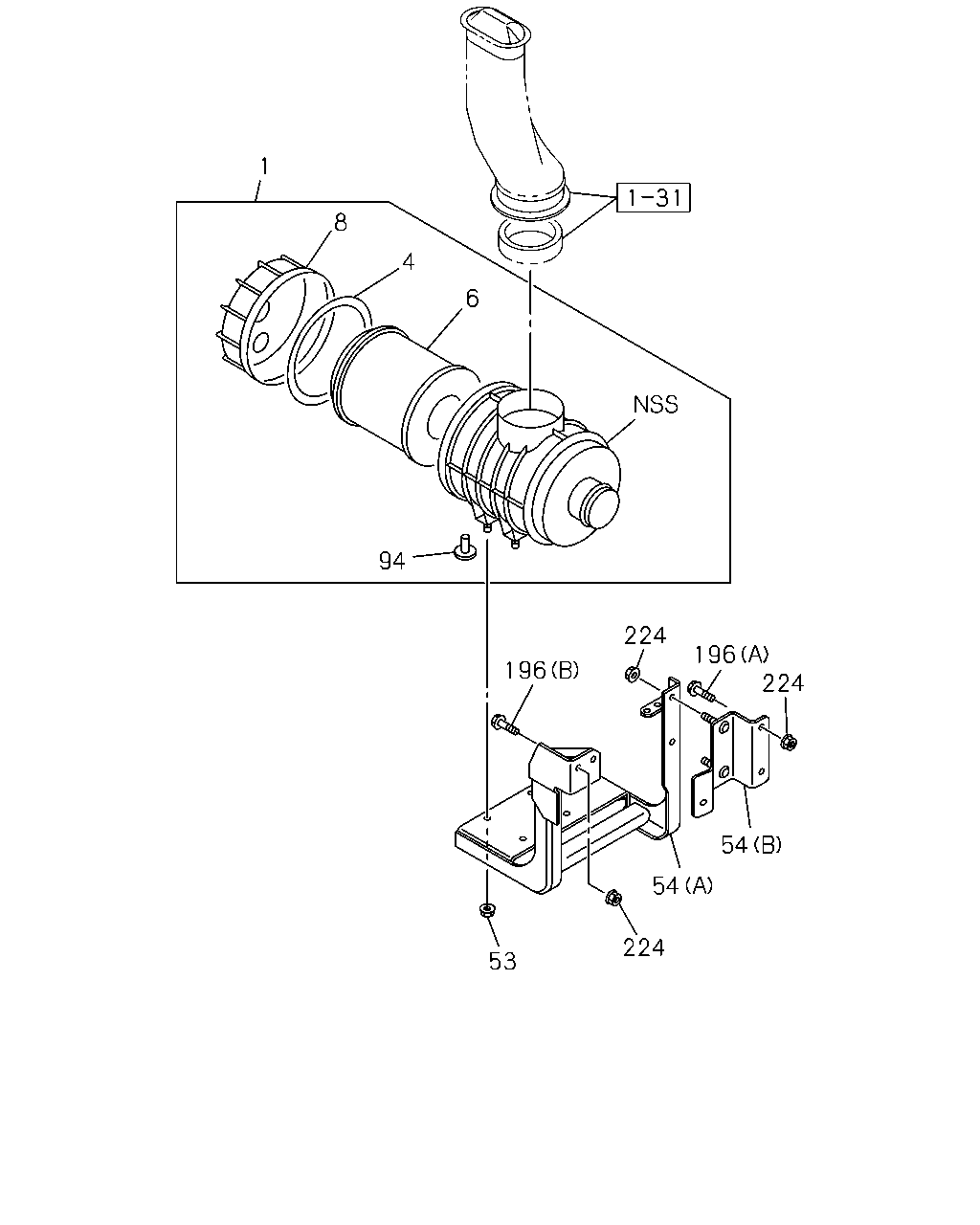

çizim 147931
54 224 53 196 224 196 224 6 4 8 1 94 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.402 CLEANER ASM; AIR 8-98050-415-2 01 1 1109-1210 ●
1 03.402 CLEANER ASM; AIR 8-98050-415-2 01 1 1211- ● ●
4 03.403 GASKET; COVER TO BODY 8-97352-113-0 01 1 1109-1210 ●
4 03.403 GASKET; COVER TO BODY 8-97352-113-0 01 1 1211- ● ●
6 03.410 FILTER; ACL 8-97062-294-0 01 1 1109-1210 ●
6 03.410 FILTER; ACL 8-97062-294-0 01 1 1211- ● ●
6 03.410 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 1109-1210 ●
6 03.410 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 1211- ● ●
8 03.410 COVER ASM; ACL 8-98050-434-1 01 1 1109-1210 ●
8 03.410 COVER ASM; ACL 8-98050-434-1 01 1 1211- ● ●
53 03.403 NUT; ACL
01.062 M8 FLANGE 		0-91180-108-0 04 1 1109-1210 ●
53 03.403 NUT; ACL
01.062 M8 FLANGE 		0-91180-108-0 04 1 1211- ● ●
54 03.405 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1109-1210 ●
54 03.405 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1211- ● ●
54 03.405 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1109-1210 ●
54 03.405 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1211- ● ●
94 03.415 VALVE; VACUATOR 8-97093-694-0 01 1 1109-1210 ●
94 03.415 VALVE; VACUATOR 8-97093-694-0 01 1 1211- ● ●
196 03.417 BOLT; BRKT,ACL
00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1109-1210 ●
196 03.417 BOLT; BRKT,ACL
00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1211- ● ●
196 03.417 BOLT; BRKT,ACL
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1109-1210 ●
196 03.417 BOLT; BRKT,ACL
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1211- ● ●
224 03.407 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 06 1 1211- ●
224 03.407 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 M10 FLANGE 		0-91180-110-0 07 1 1211- ●
224 03.407 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 07 1 1211- ●
224 03.407 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 05 1 1109-1210 ●
224 03.407 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1211- ● ●
