3-46 — AIR DRYER (#5104) — 82 parça

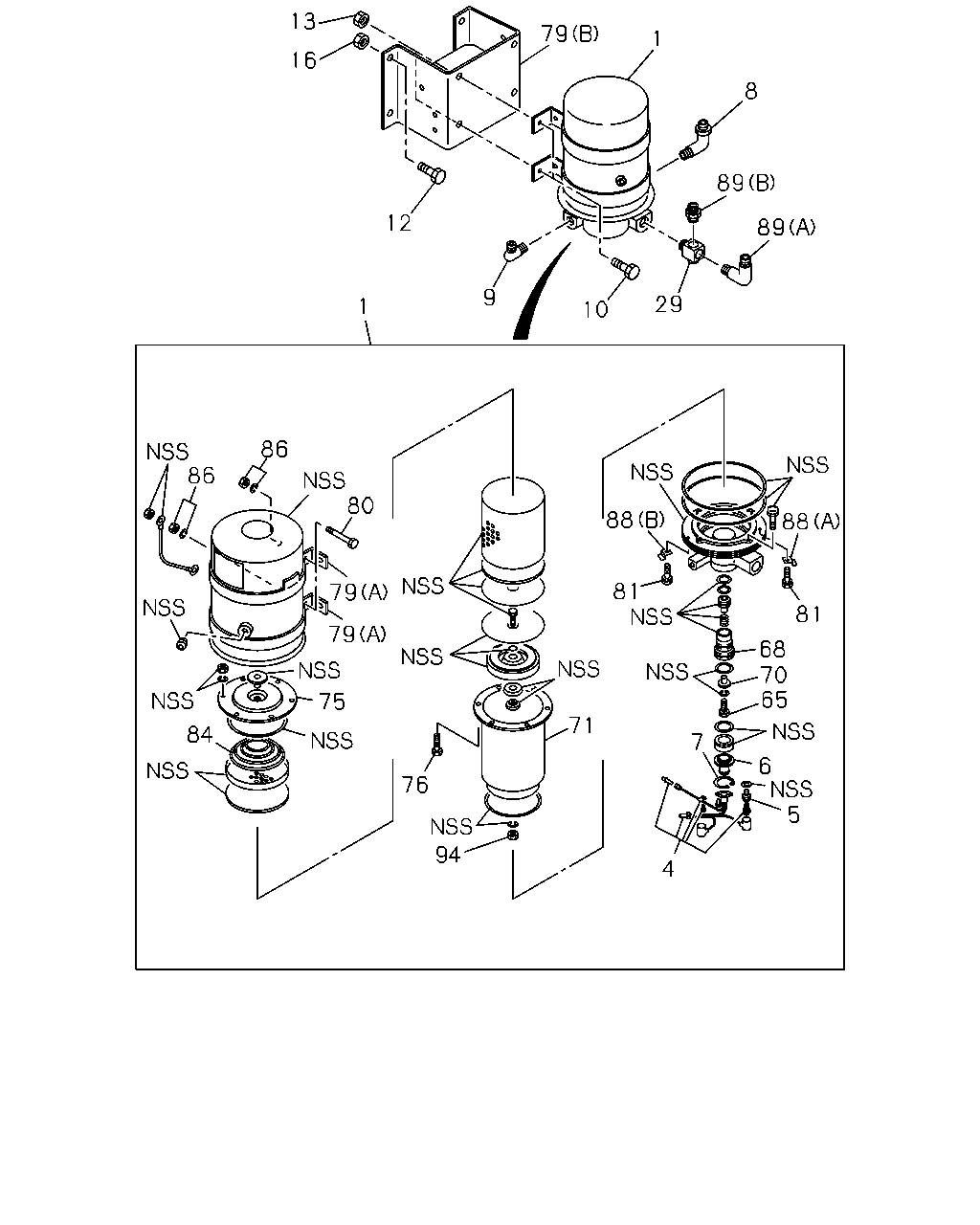

13 79 1 16 8 89 12 89 9 29 1 10 86 86 80 88 88 81 79 81 79 68 70 65 75 71 84 7 6 5 76 94 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48190-105-3	01	1	9606-9905
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9906-
4	THERMOSTAT KIT; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-85576-129-0	01	1	9606-9905
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	9906-
5	HEATER ASM; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-085-0	02	1	9606-9905
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	9906-
6	COVER; EXH,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-101-0	01	1	9606-9905
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9906-
7	RING; SNAP,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-154-0	01	1	9606-9905
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9906-
8	CONNECTOR; OUT,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9606-9905
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
9	CONNECTOR; PIPE,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9606-9905
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9906-
10	BOLT; AIR DRYER 10PE1S(60L) AIR DRYER<PS7> M10X25 FLANGE	0-28681-025-0	04	1	9607-9609
10	BOLT; AIR DRYER FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> M10X25 FLANGE	0-28681-025-0	04	1	9610-9905
10	BOLT; AIR DRYER FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> M10X25 FLANGE	0-28681-025-0	04	1	9906-0003
10	BOLT; AIR DRYER AIR DRYER<PS7> LIGHT DUTY PACKAGE TRUCK(Y21) M10X25 FLANGE	0-28681-025-0	04	1	9906-0003
10	BOLT; AIR DRYER FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> M10X25 FLANGE	0-28681-025-0	04	1	0004-0010
10	BOLT; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	04	1	9606-9606
10	BOLT; AIR DRYER 6WA1 TC-S(56L) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-9609
10	BOLT; AIR DRYER L TYPE ENG<90L> WHEEL BASE 6600MM(66W) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE	0-28681-030-0	04	1	9610-9905
10	BOLT; AIR DRYER WHEEL BASE 6600MM(66W) AIR DRYER<PS7> L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M10X30 FLANGE	0-28681-030-0	04	1	9906-0003
10	BOLT; AIR DRYER WHEEL BASE 6600MM(66W) AIR DRYER<PS7> L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE	0-28681-030-0	04	1	0004-0010
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	0011-
12	BOLT; BRKT AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	9606-
13	NUT; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9606-9606
13	NUT; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9905
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9906-
16	NUT; BRKT AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9606-
29	UNION; 3 WAY,PURGE TANK L TYPE ENG<90L> AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9606-9609
29	UNION; 3 WAY,PURGE TANK L TYPE ENG<90L> WHEEL BASE 6600MM(66W) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9610-9612
29	UNION; 3 WAY,PURGE TANK 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9701-9905
29	UNION; 3 WAY,PURGE TANK AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9906-
29	UNION; 3 WAY,PURGE TANK V TYPE ENG<91L> AIR DRYER<PS7> PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9606-9609
29	UNION; 3 WAY,PURGE TANK FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9610-9612
65	BOLT; PURGE VLV 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-102-0	01	1	9606-9704
65	BOLT; PURGE VLV 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-413-0	01	1	9705-9905
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	9906-
68	BODY; VALVE 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-216-0	01	1	9606-9905
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9906-
70	VALVE; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-105-0	01	1	9606-9905
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9906-
71	CASE; INNER,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-156-1	01	1	9606-9905
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	9906-
75	COVER; CASE,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-167-0	01	1	9606-9905
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	9906-
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-478-0	06	1	9906-
79	BRACKET; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9606-9905
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9906-
79	BRACKET; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9606-9905
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9906-
80	BOLT; BRKT 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-190-0	02	1	9606-9905
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	9906-
81	BOLT; CASE,AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-177-0	02	1	9606-9905
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	9906-
84	SPRING; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-166-0	01	1	9606-9905
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	9906-
86	NUT; BRKT 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-320-0	02	1	9606-9905
86	NUT; BRKT AIR DRYER<PS7>	1-48199-320-0	02	1	9906-
88	PLATE; STOPPER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9606-9905
88	PLATE; STOPPER AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9906-
88	PLATE; STOPPER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9606-9905
88	PLATE; STOPPER AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9906-
89	ADAPTER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
89	ADAPTER AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
89	ADAPTER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9606-9905
89	ADAPTER AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9906-0005
89	ADAPTER AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
94	NUT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-479-0	07	1	9906-

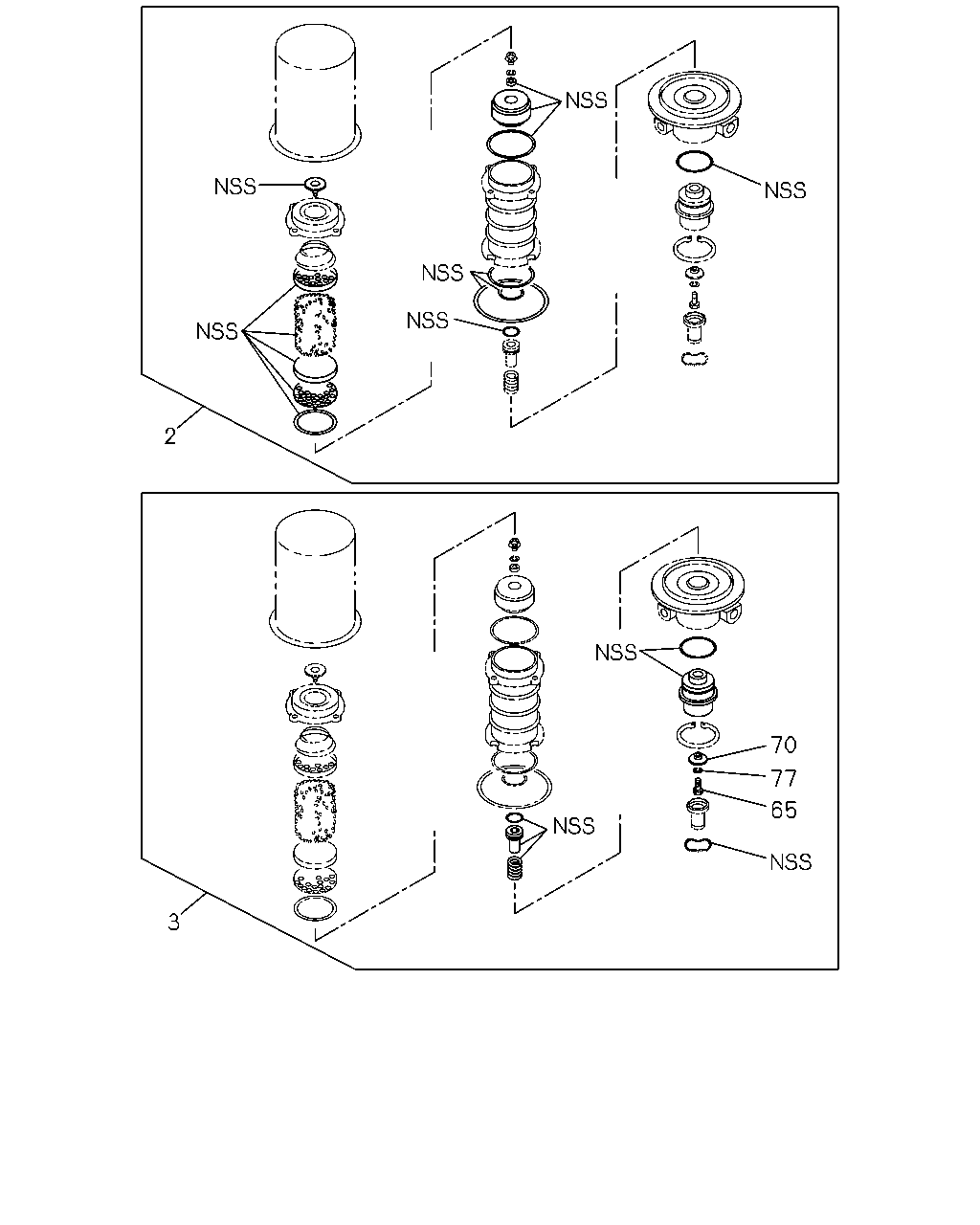

2 1 70 77 65 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48190-105-3	01	1	9606-9905
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9906-
2	REPAIR KIT; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-85576-055-1	01	1	9606-9905
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	9906-
3	PISTON KIT; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-85576-057-1	01	1	9606-9905
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	9906-
65	BOLT; PURGE VLV 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-102-0	01	1	9606-9704
65	BOLT; PURGE VLV 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-413-0	01	1	9705-9905
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	9906-
70	VALVE; AIR DRYER 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-105-0	01	1	9606-9905
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9906-
77	WASHER; LK,VALVE 6WA1 TC-S(56L),10PE1S(60L) AIR DRYER<PS7>	1-48199-103-0	01	1	9606-9704
