3-45 — LOAD SENSING PROPORTIONING VALVE (#5103) — 144 parça

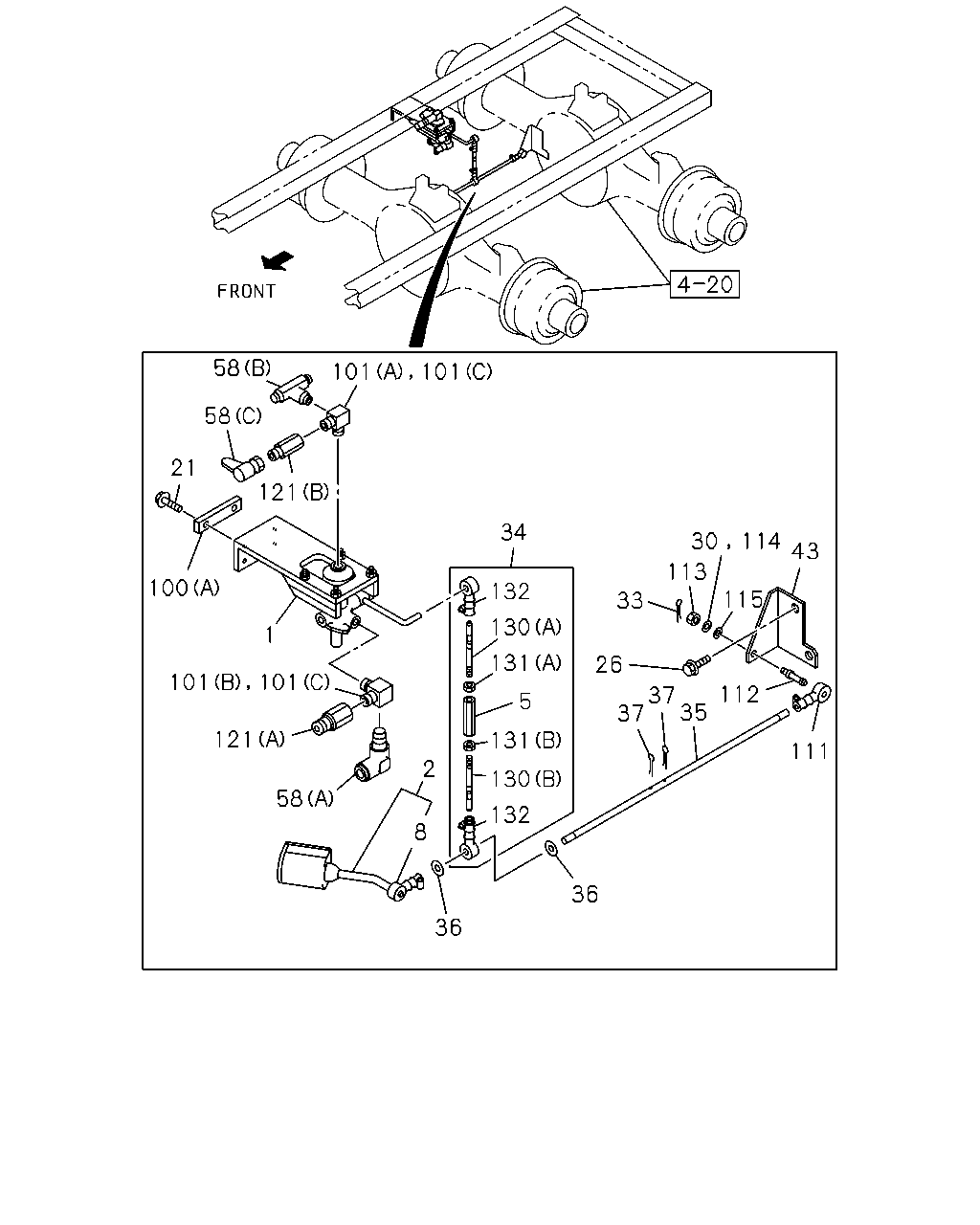

58 101 101 58 21 121 34 30 114 43 113 100 132 115 33 130 1 131 26 101 101 112 37 5 121 131 111 2 130 58 132 8 36 36 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	9606-9905
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-061-0	01	1	9906-
2	DAMPER NEW ZEALAND EQUIPMENT(PK5)	1-47725-016-0	01	1	9606-9905
2	DAMPER BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	9906-
5	JOINT NEW ZEALAND EQUIPMENT(PK5)	1-09768-004-0	01	1	9606-9704
5	JOINT NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	9705-9905
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	9906-
8	ROD END NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	9606-9905
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9906-
21	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	04	1	9606-9606
21	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	04	1	9607-9905
21	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	04	1	9906-
26	BOLT; DAMPER NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	02	1	9606-9611
26	BOLT; DAMPER NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE	0-28080-812-0	02	1	9612-9905
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	9906-
30	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	02	1	9606-9611
33	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	01	1	9606-9905
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	9906-
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47725-023-0	01	1	9606-9611
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47725-024-1	01	1	9612-9704
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47725-025-0	01	1	9705-9905
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	9906-
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-049-0	01	1	9606-9610
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-086-0	01	1	9611-9905
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV>	1-09740-086-0	01	1	9906-
36	WASHER; PL,ROD NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	02	1	9606-9905
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9906-
37	PIN; SPLIT,ROD NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	02	1	9606-9905
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	9906-
43	BRACKET; DAMPER TO AXLE NEW ZEALAND EQUIPMENT(PK5)	1-42129-185-0	01	1	9606-9905
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	9906-
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9712
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9801-9905
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9606-9905
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (C)	1-47459-013-0	01	1	9606-9905
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47459-013-0	01	1	9906-
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-204-0	01	1	9606-9702
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	9703-9905
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (A)	1-42129-245-0	01	1	9906-
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	9606-9905
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-147-0	01	1	9906-
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9606-9606
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9607-9612
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-09656-557-1	01	1	9701-9905
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B)	1-09656-557-1	01	1	9906-
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9607-9905
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9906-
111	RUBBER; JOINT,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	9606-9905
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9906-
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-052-0	01	1	9606-9611
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-123-0	01	1	9612-9905
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	9906-
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9606-9611
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	9612-9905
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	9906-
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9906-
114	WASHER; PL,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	01	1	9606-9611
115	WASHER; LK,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.2	9-09150-508-0	01	1	9606-9611
121	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9606-9905
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-0007
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
121	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9606-9905
121	ADAPTER BRAKE REGULATION ECE<TDV> (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9906-
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-071-0	01	1	9606-9611
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-280-1	01	1	9612-9704
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-282-0	01	1	9705-9905
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	9906-
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-212-0	01	1	9606-9611
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-281-1	01	1	9612-9704
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-283-0	01	1	9705-9905
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	9906-
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) (A) LH THREAD	1-09409-002-0	01	1	9606-9905
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	9906-
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48119-089-0	01	1	9606-9905
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	9906-
132	RUBBER ASM; CONN NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	9606-9905
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9906-

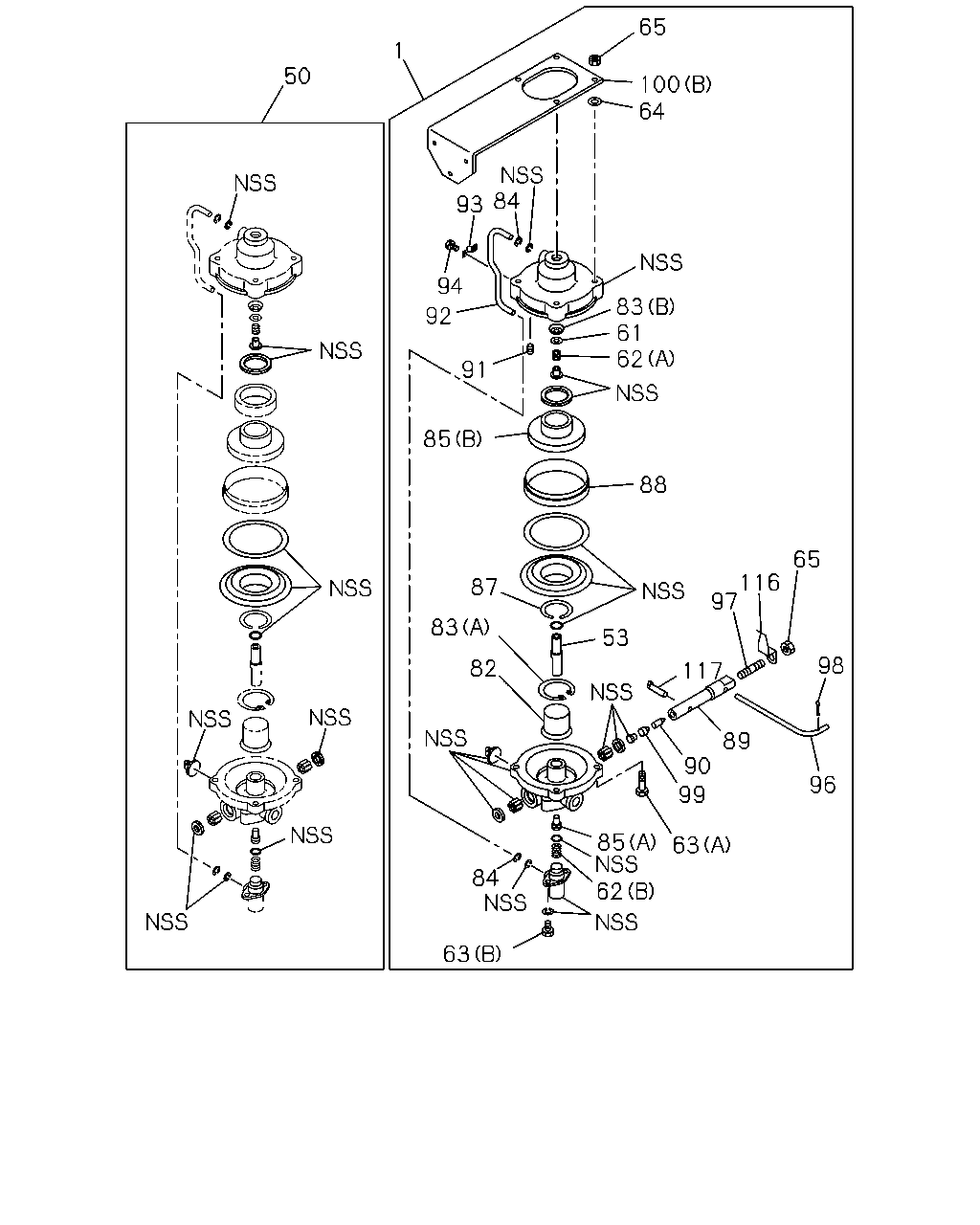

65 1 50 100 64 84 93 94 83 61 62 92 91 85 88 65 116 97 87 83 53 98 82 117 89 90 96 99 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	9606-9905
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-061-0	01	1	9906-
50	REPAIR KIT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-088-0	01	1	9606-9905
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-088-0	01	1	9906-
53	PLUNGER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	9606-9905
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	9906-
61	RETAINER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-47769-026-0	01	1	9606-9905
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-026-0	01	1	9906-
62	SPRING; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-025-0	01	1	9606-9905
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	9906-
62	SPRING; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-042-0	01	1	9606-9905
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	9906-
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	9606-9905
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	9906-
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-094-0	04	1	9606-9905
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	9906-
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-079-0	04	1	9606-9905
64	WASHER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-079-0	04	1	9906-
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	9606-9905
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	9906-
82	GUIDE; PISTON,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	9606-9905
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	9906-
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	9606-9905
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	9906-
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-027-0	01	1	9606-9905
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-027-0	01	1	9906-
84	RETAINER; GASKET NEW ZEALAND EQUIPMENT(PK5)	1-47769-021-0	02	1	9606-9905
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	9906-
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-023-0	01	1	9606-9905
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-023-0	01	1	9906-
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-043-0	01	1	9606-9905
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	9906-
87	RETAINER; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	9606-9905
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	9906-
88	GUIDE; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	9606-9905
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	9906-
89	ROD; CONN,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	9606-9905
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	9906-
90	SCREW; CAM NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	9606-9905
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	9906-
91	FILTER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	9606-9905
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	9906-
92	PIPE; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	9606-9905
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	9906-
93	CLIP; PIPE NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	9606-9905
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	9906-
94	SCREW; CLIP NEW ZEALAND EQUIPMENT(PK5)	1-47769-144-0	02	1	9606-9905
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-144-0	02	1	9906-
96	ARM; OPERATING NEW ZEALAND EQUIPMENT(PK5)	1-47769-143-0	01	1	9606-9905
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-143-0	01	1	9906-
97	BOLT; OPERATING ARM NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	9606-9905
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	9906-
98	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	9606-9905
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	9906-
99	CAP; SCREW NEW ZEALAND EQUIPMENT(PK5)	1-47769-055-0	01	1	9606-9905
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	9906-
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-204-0	01	1	9606-9702
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	9703-9905
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (A)	1-42129-245-0	01	1	9906-
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	9606-9905
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-147-0	01	1	9906-
116	INDICATOR; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-078-0	01	1	9606-9905
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	9906-
117	CAM; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-038-0	01	1	9606-9905
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	9906-
