Sayfa 0-41 - Isuzu EPC

0-41 — FUEL FILTER AND BRACKET (#51029) — 38 parça

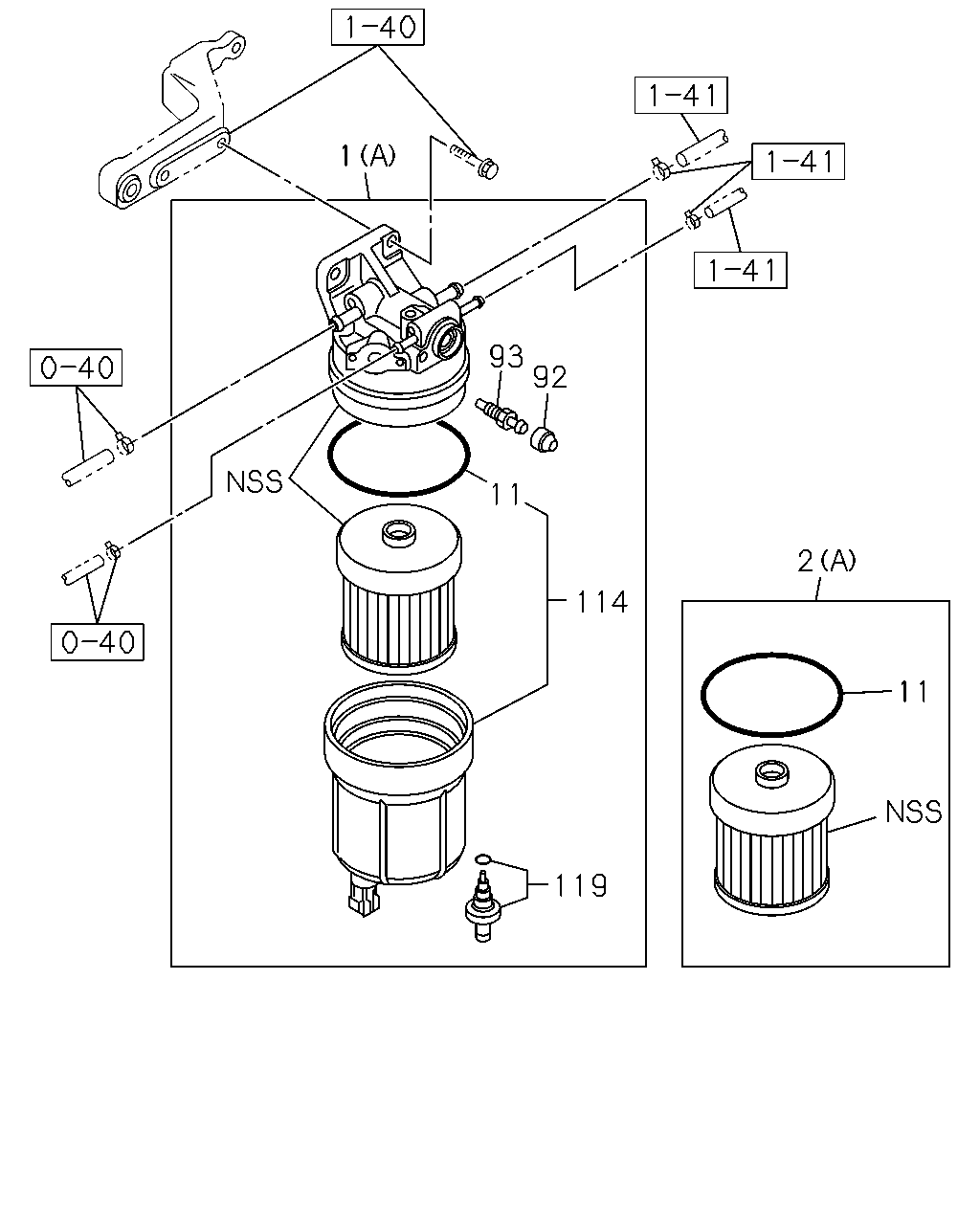

1 93 92 11 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1109-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1109-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	1109-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1109-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1109-1112
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1109-
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1109-
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1109-
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1109-

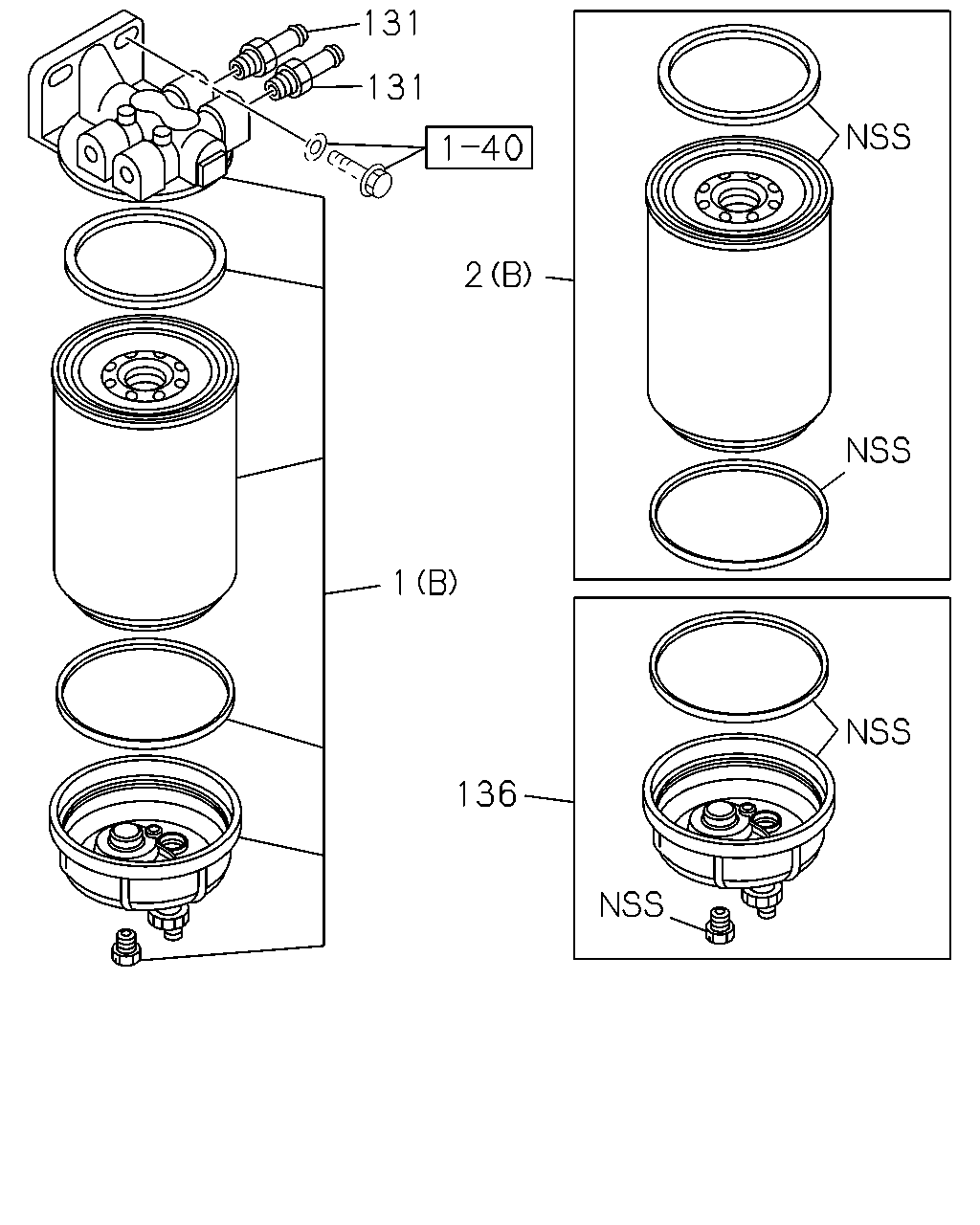

131 131 2 1 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1109-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1109-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	1109-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1109-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	1109-
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	1109-1408
136	03.890 CAP KIT; FUEL FILTER	8-98279-324-0	01	1	1409-

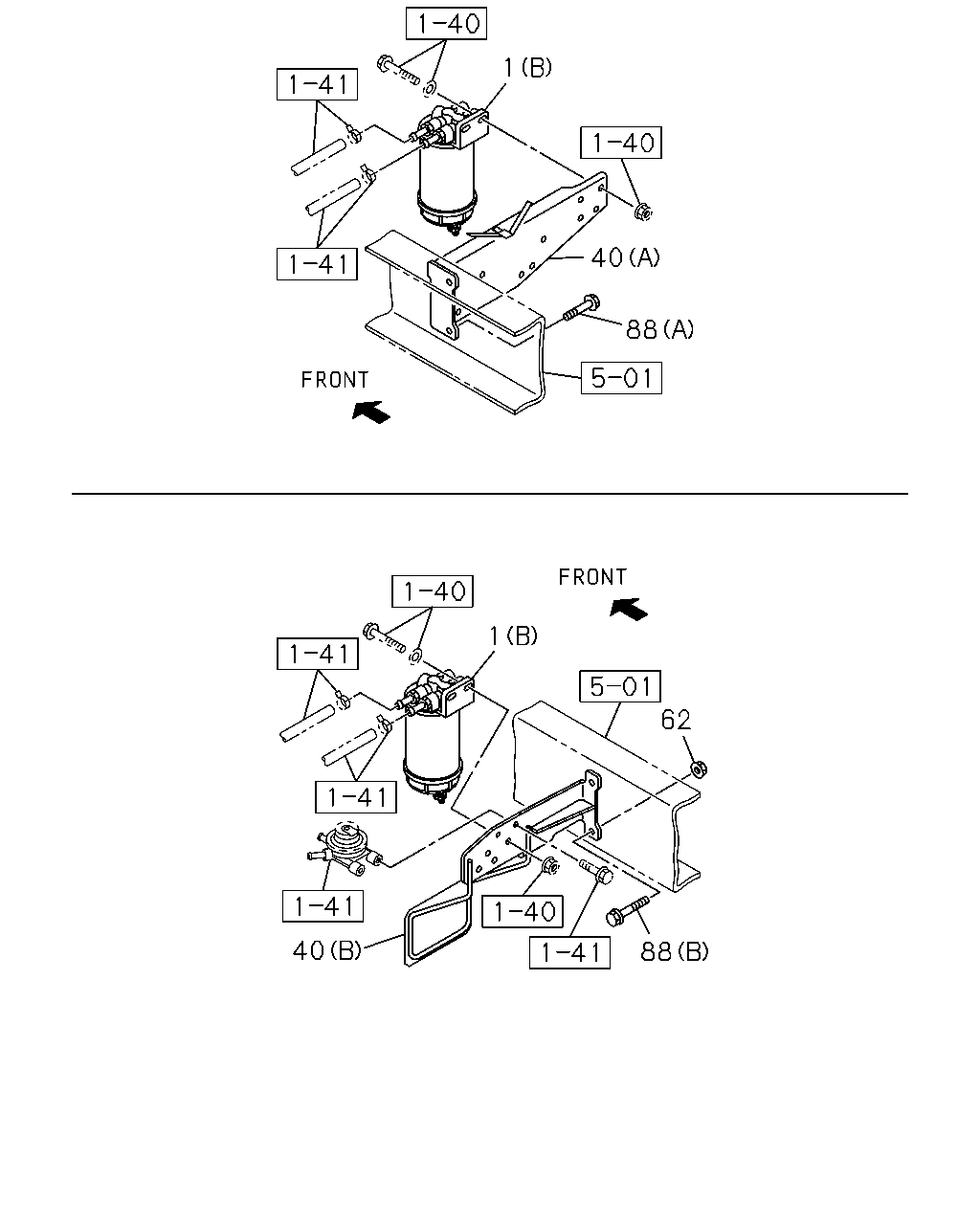

1 40 88 1 62 88 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	1109-
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1109-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98147-247-0	01	1	1211-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98147-247-0	01	1	1211-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W) (A)	8-98107-351-2	01	1	1109-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-354-3	01	1	1109-1210
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98107-354-3	01	1	1211-
62	03.895 NUT; FUEL FILTER WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04) POOR QUALITY DIESEL FUEL(KF0) EXC. RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	01	1	1211-
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	01	1	1211-
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-1210
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1109-1210
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1211-
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1211-
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 3300MM(33W) 09.171 (B) M10X25 FLANGE	0-28051-025-0	02	1	1109-1210
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 09.171 (B) M10X25 FLANGE	0-28051-025-0	02	1	1211-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
