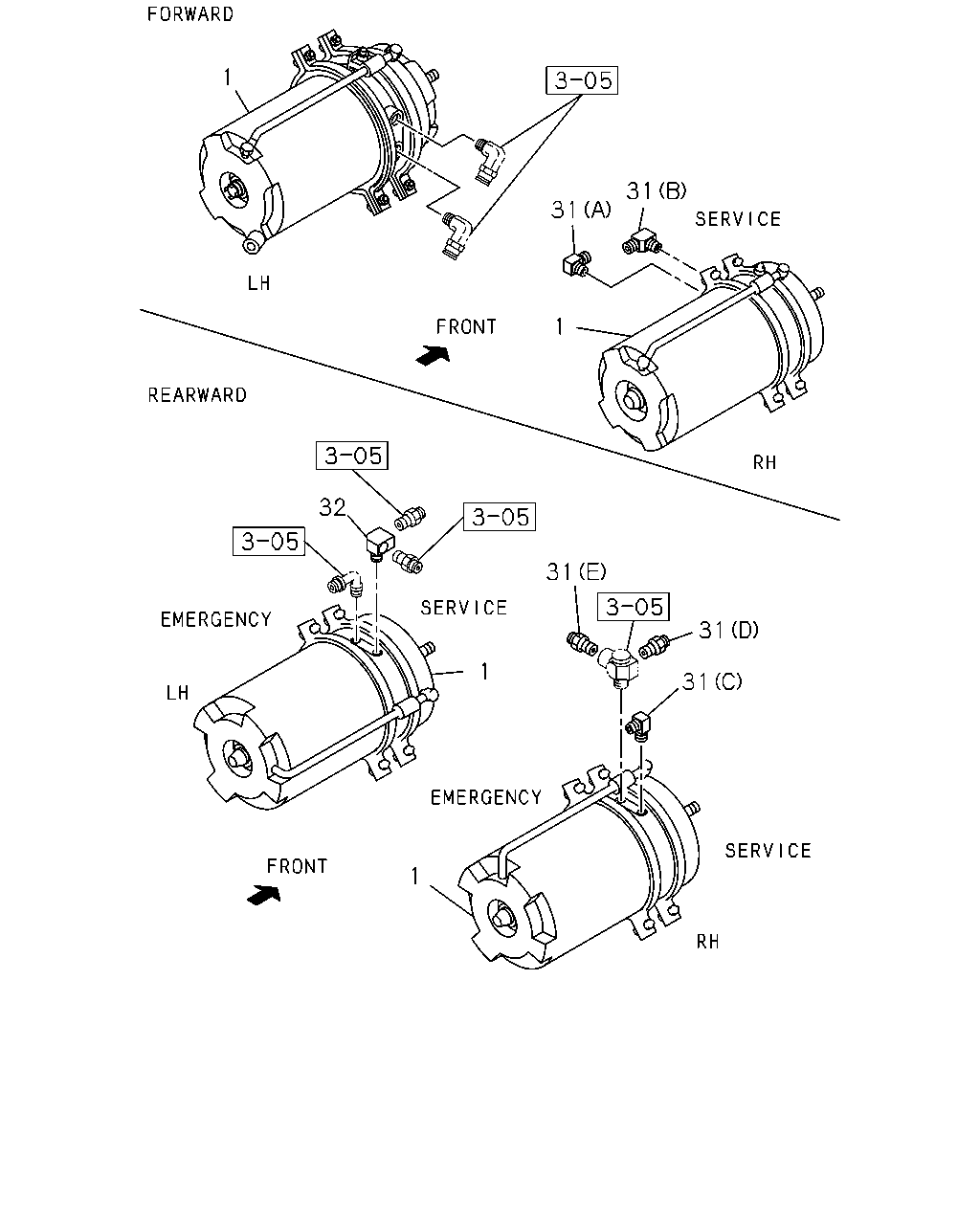

3-41 — REAR BRAKE POWER CHAMBER (#5102) — 135 parça
çizim 38856
1 31 31 1 32 31 31 1 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-2 01 1 9606-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-2 01 1 9606-
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-2 01 1 9606-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-2 01 1 9606-
31 CONNECTOR
FINAL GEAR 41/9 17.5"(W4C) P115 PROP SHAFT(C5X) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 41/6 17.5"(W4W) P90 PROP SHAFT(C5T) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) P115 PROP SHAFT(C5X) (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 41/9 17.5"(W4C) P115 PROP SHAFT(C5X) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9610-9701
31 CONNECTOR
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9610-9701
31 CONNECTOR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 17.5"(W4W) P90 PROP SHAFT(C5T) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9610-9701
31 CONNECTOR
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) P115 PROP SHAFT(C5X) (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9610-9701
31 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9702-0003
31 CONNECTOR
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9702-0003
31 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0004-
31 CONNECTOR
BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0004-
31 CONNECTOR
FINAL GEAR 41/9 17.5"(W4C) P115 PROP SHAFT(C5X) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 41/6 17.5"(W4W) P90 PROP SHAFT(C5T) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) P115 PROP SHAFT(C5X) (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9606-9609
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9606-9609
31 CONNECTOR
FINAL GEAR 41/9 17.5"(W4C) P115 PROP SHAFT(C5X) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9610-9701
31 CONNECTOR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 17.5"(W4W) P90 PROP SHAFT(C5T) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9610-9701
31 CONNECTOR
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) P115 PROP SHAFT(C5X) (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9610-9701
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9610-9701
31 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9702-0003
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9702-0003
31 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0004-
31 CONNECTOR
EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0004-
31 CONNECTOR
INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9606-
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9606-9905
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL AL<SDM> (D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9906-0003
31 CONNECTOR
EXC. BRAKE REGULATION ECE<TDV> (D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 0004-
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9606-9905
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL AL<SDM> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9906-0003
31 CONNECTOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0004-
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL AL<SDM> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0004-
32 CONNECTOR; SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> REARWARD DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9606-
32 CONNECTOR; SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> REARWARD 		1-09660-697-1 01 1 9606-9905
32 CONNECTOR; SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL AL<SDM> REARWARD 		1-09660-697-1 01 1 9906-0003
32 CONNECTOR; SPR CHAMBER
EXC. BRAKE REGULATION ECE<TDV> REARWARD 		1-09660-697-1 01 1 0004-

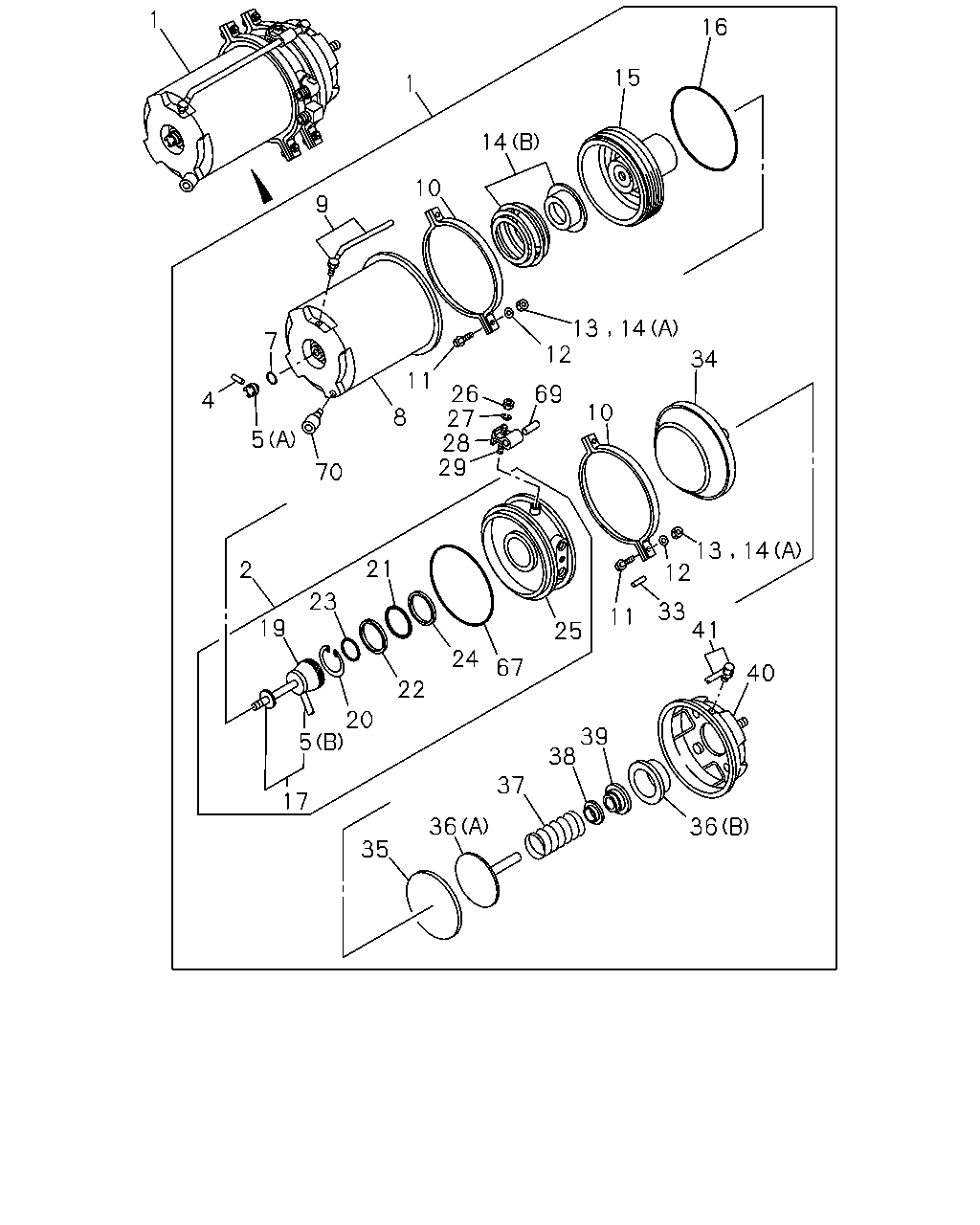

çizim 39884
1 16 15 1 14 10 9 12 7 34 11 26 27 28 29 69 4 10 8 5 70 12 21 2 23 33 41 11 19 25 24 67 40 22 20 5 39 38 37 17 36 36 35 13 14 13 14
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-2 01 1 9606-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-2 01 1 9606-
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-2 01 1 9606-
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-2 01 1 9606-
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-021-0 01 1 9606-
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-040-0 01 1 9606-
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-020-0 01 1 9606-
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-039-0 01 1 9606-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9606-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9606-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9606-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9606-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9606-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9606-
7 GASKET 1-48259-055-0 02 1 9606-0003
7 GASKET 1-48259-055-0 02 1 9606-0003
7 GASKET 1-48259-055-0 02 1 0004-
8 SHELL; CYL,SPR CHAMBER
REARWARD 		1-48251-043-0 02 1 9606-
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-070-0 01 1 9606-
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-069-0 01 1 9606-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9606-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9606-
10 RING; CLAMP,SPR CHAMBER
FORWARD 		1-48259-016-0 04 1 9606-
10 RING; CLAMP,SPR CHAMBER
FORWARD 		1-48259-016-0 04 1 9606-
10 RING; CLAMP,SPR CHAMBER
REARWARD 		1-48259-031-0 04 1 9606-
10 RING; CLAMP,SPR CHAMBER
REARWARD 		1-48259-031-0 04 1 9606-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9606-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9606-
12 WASHER; LK,CLAMP RING
FORWARD 		1-48259-046-0 08 1 9606-
12 WASHER; LK,CLAMP RING
REARWARD ID=10.2 		9-09150-510-0 08 1 9606-
13 NUT; CLAMP RING
REARWARD RH M10 		9-09110-510-0 04 1 9606-
13 NUT; CLAMP RING
FORWARD M10 		9-09110-510-0 08 1 9606-
14 SPRING & SEAT SET
(B) 		1-48259-037-1 02 1 9606-
14 SPRING & SEAT SET
(B) 		1-48259-037-1 02 1 9606-
14 SPRING & SEAT SET
(A) REARWARD LH 		8-83315-080-0 04 1 9606-
15 PISTON 1-48262-005-0 02 1 9606-
15 PISTON 1-48262-005-0 02 1 9606-
16 GASKET 1-48259-048-0 02 1 9606-
16 GASKET 1-48259-048-0 02 1 9606-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9606-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9606-
19 COVER; PISTON 1-48269-011-0 02 1 9606-
19 COVER; PISTON 1-48269-011-0 02 1 9606-
20 RING; RET 1-48259-060-0 02 1 9606-
20 RING; RET 1-48259-060-0 02 1 9606-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9606-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9606-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9606-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9606-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9606-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9606-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9606-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9606-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-088-0 01 1 9606-
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-140-0 01 1 9606-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-087-0 01 1 9606-
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-138-0 01 1 9606-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9606-0003
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9606-0003
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0004-
27 WASHER; PRESSURE PLATE
FORWARD 		1-48259-057-0 02 1 9606-
27 WASHER; PRESSURE PLATE
REARWARD ID=8.2 		9-09150-508-0 02 1 9606-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9606-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9606-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9606-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9606-
33 RETAINER; DIAPH
REARWARD 		1-48250-044-0 02 1 9606-
33 RETAINER; DIAPH
FORWARD 		1-48259-044-0 04 1 9606-
34 DIAPHRAGM
FORWARD 		1-48252-011-0 02 1 9606-
34 DIAPHRAGM
REARWARD 		1-48258-011-0 02 1 9606-
35 PLATE; ROD END,SPR CHAMBER
FORWARD 		1-48253-011-0 02 1 9606-
35 PLATE; ROD END,SPR CHAMBER
REARWARD 		1-48253-035-0 01 1 9606-
35 PLATE; ROD END,SPR CHAMBER
REARWARD 		1-48253-029-0 01 1 9606-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9606-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9606-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 9606-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 9606-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9606-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9606-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9606-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9606-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9606-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9606-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48259-082-1 01 1 9606-
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-139-0 01 1 9606-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48259-081-1 01 1 9606-
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-137-0 01 1 9606-
41 PIPE ASM; LWR COVER 1-48259-080-0 02 1 9606-
41 PIPE ASM; LWR COVER 1-48259-080-0 02 1 9606-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9606-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9606-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9606-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9606-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 9606-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9606-
