Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#510) — 305 parça

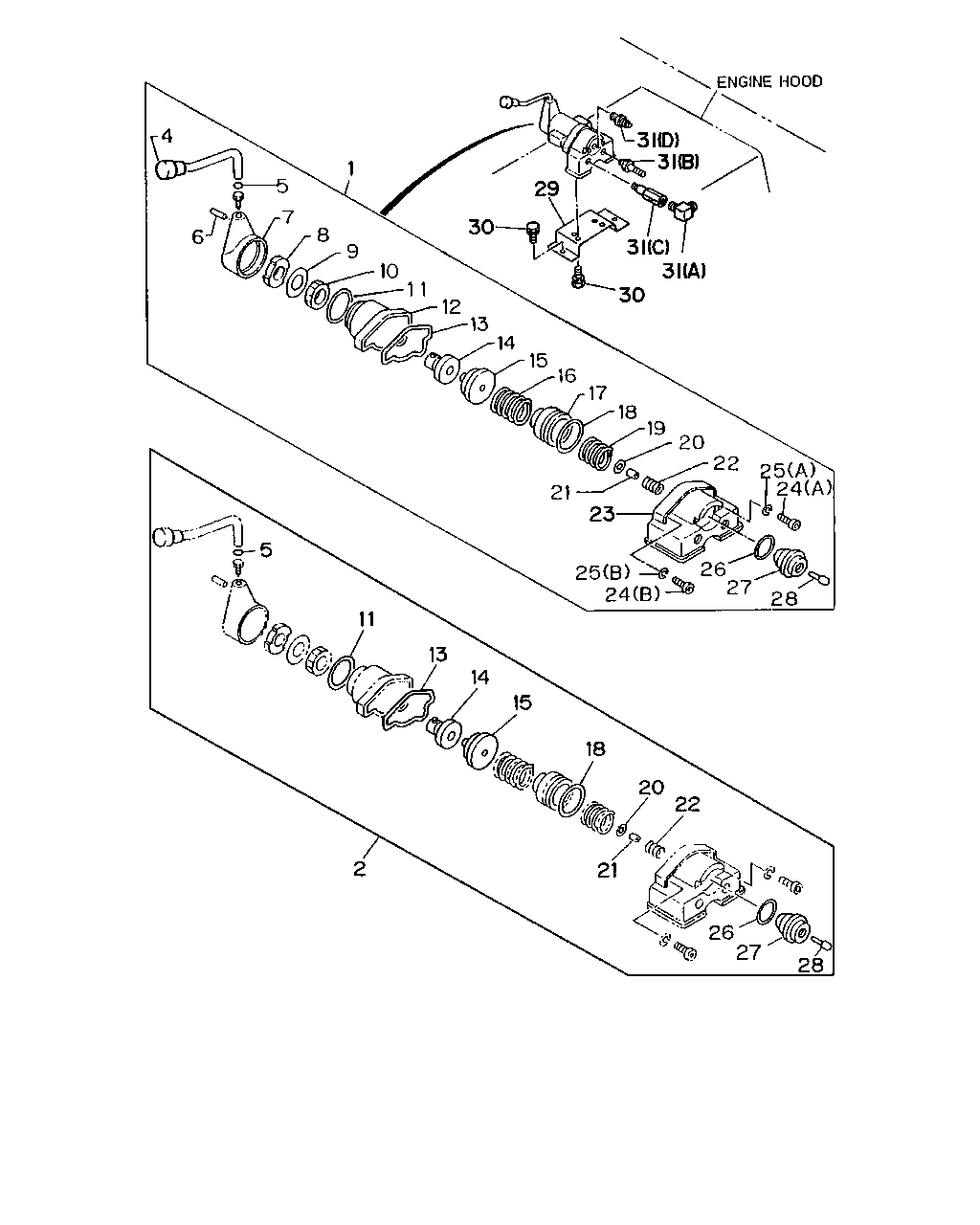

31 31 31 31 30 29 30 1 4 6 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 25 24 21 23 25 24 26 27 28 5 11 13 14 15 18 20 22 21 26 27 28 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48100-523-0	01	1	8905-9001
1	VALVE ASM; HAND BRK FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48100-651-0	01	1	9002-9306
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48460-282-0	01	1	9307-
2	REPAIR KIT; HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-87830-499-0	01	1	8905-9306
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-157-0	01	1	9307-
4	HANDLE ASM; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-240-1	01	1	8905-9001
4	HANDLE ASM; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-144-0	01	1	9002-9306
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-144-0	01	1	9307-
5	GASKET; HANDLE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-128-0	01	1	8905-9306
5	GASKET; HANDLE NEW ZEALAND EQUIPMENT(PK5)	1-48119-128-0	01	1	9307-
6	PIN; SPR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-132-0	01	1	8905-9001
6	PIN; SPR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-143-0	01	1	9002-9306
6	PIN; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48119-143-0	01	1	9307-
7	HEAD; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-131-0	01	1	8905-9306
7	HEAD; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-131-0	01	1	9307-
8	STOPPER; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-239-0	01	1	8905-9306
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-327-0	01	1	9307-
9	WASHER; LK,ADJ FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-123-0	01	1	8905-9306
9	WASHER; LK,ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-123-0	01	1	9307-
10	RING; ADJ FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-122-0	01	1	8905-9306
10	RING; ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-122-0	01	1	9307-
11	GASKET; HD TO COVER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-130-0	01	1	8905-9306
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	9307-
12	COVER; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-097-0	01	1	8905-9306
12	COVER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-097-0	01	1	9307-
13	GASKET; BODY TO COVER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48119-120-0	01	1	8905-9306
13	GASKET; BODY TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-120-0	01	1	9307-
14	FOLLOWER; CAM FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-135-0	01	1	8905-9306
14	FOLLOWER; CAM NEW ZEALAND EQUIPMENT(PK5)	1-48129-135-0	01	1	9307-
15	CAM; FOLLOWER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-134-0	01	1	8905-9306
15	CAM; FOLLOWER NEW ZEALAND EQUIPMENT(PK5)	1-48129-134-0	01	1	9307-
16	SPRING; GRUDUATING FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-101-0	01	1	8905-9306
16	SPRING; GRUDUATING NEW ZEALAND EQUIPMENT(PK5)	1-48129-101-0	01	1	9307-
17	PISTON; SPR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-095-0	01	1	8905-9306
17	PISTON; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48129-095-0	01	1	9307-
18	GASKET; BODY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-096-0	01	1	8905-9306
18	GASKET; BODY NEW ZEALAND EQUIPMENT(PK5)	1-48129-096-0	01	1	9307-
19	SPRING; PISTON FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-094-0	01	1	8905-9306
19	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48129-094-0	01	1	9307-
20	GUIDE; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-090-0	01	1	8905-9306
20	GUIDE; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-090-0	01	1	9307-
21	VALVE; IN & EXH FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48121-017-0	01	1	8905-9306
21	VALVE; IN & EXH NEW ZEALAND EQUIPMENT(PK5)	1-48121-017-0	01	1	9307-
22	SPRING; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48123-024-0	01	1	8905-9306
22	SPRING; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48123-024-0	01	1	9307-
23	BODY; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48111-030-0	01	1	8905-9306
23	BODY; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48111-030-0	01	1	9307-
24	BOLT; EXH VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-48129-092-0	02	1	8905-9306
24	BOLT; EXH VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48129-121-0	02	1	8905-9306
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-121-0	02	1	9307-
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-48129-092-0	02	1	9307-
25	WASHER; LK,EXH VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48119-134-0	02	1	8905-9306
25	WASHER; LK,EXH VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-48129-093-0	02	1	8905-9306
25	WASHER; LK,EXH VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-134-0	02	1	9307-
25	WASHER; LK,EXH VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-48129-093-0	02	1	9307-
26	GASKET; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-091-0	01	1	8905-9306
26	GASKET; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-091-0	01	1	9307-
27	SEAT; INL VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48122-007-0	01	1	8905-9306
27	SEAT; INL VLV NEW ZEALAND EQUIPMENT(PK5)	1-48122-007-0	01	1	9307-
28	STEM ASM; BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-089-0	01	1	8905-9306
28	STEM ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-089-0	01	1	9307-
29	BRACKET; HAND BRK FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-47475-257-0	01	1	8905-9306
29	BRACKET; HAND BRK NYLON TUBE AIR PIPING<Z29>	1-47475-257-0	01	1	9307-
30	BOLT; BRKT,HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X20 W/LK WASHER	9-01901-020-0	02	1	8905-9204
30	BOLT; BRKT,HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-9306
30	BOLT; BRKT,HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01910-820-0	02	1	8905-9005
30	BOLT; BRKT,HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302
30	BOLT; BRKT,HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
30	BOLT; BRKT,HAND BRK VLV NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-
30	BOLT; BRKT,HAND BRK VLV NYLON TUBE AIR PIPING<Z29> M10X20 W/LK WASHER	0-50041-020-0	02	1	9307-
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	8905-9306
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-243-0	01	1	8905-9306
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-09660-335-0	01	1	8905-9306
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) L=45	8-94338-874-0	01	1	8905-9306
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (C)	1-09660-335-0	01	1	9307-
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-635-0	01	1	9307-
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (D) L=45	8-94338-874-0	01	1	9307-

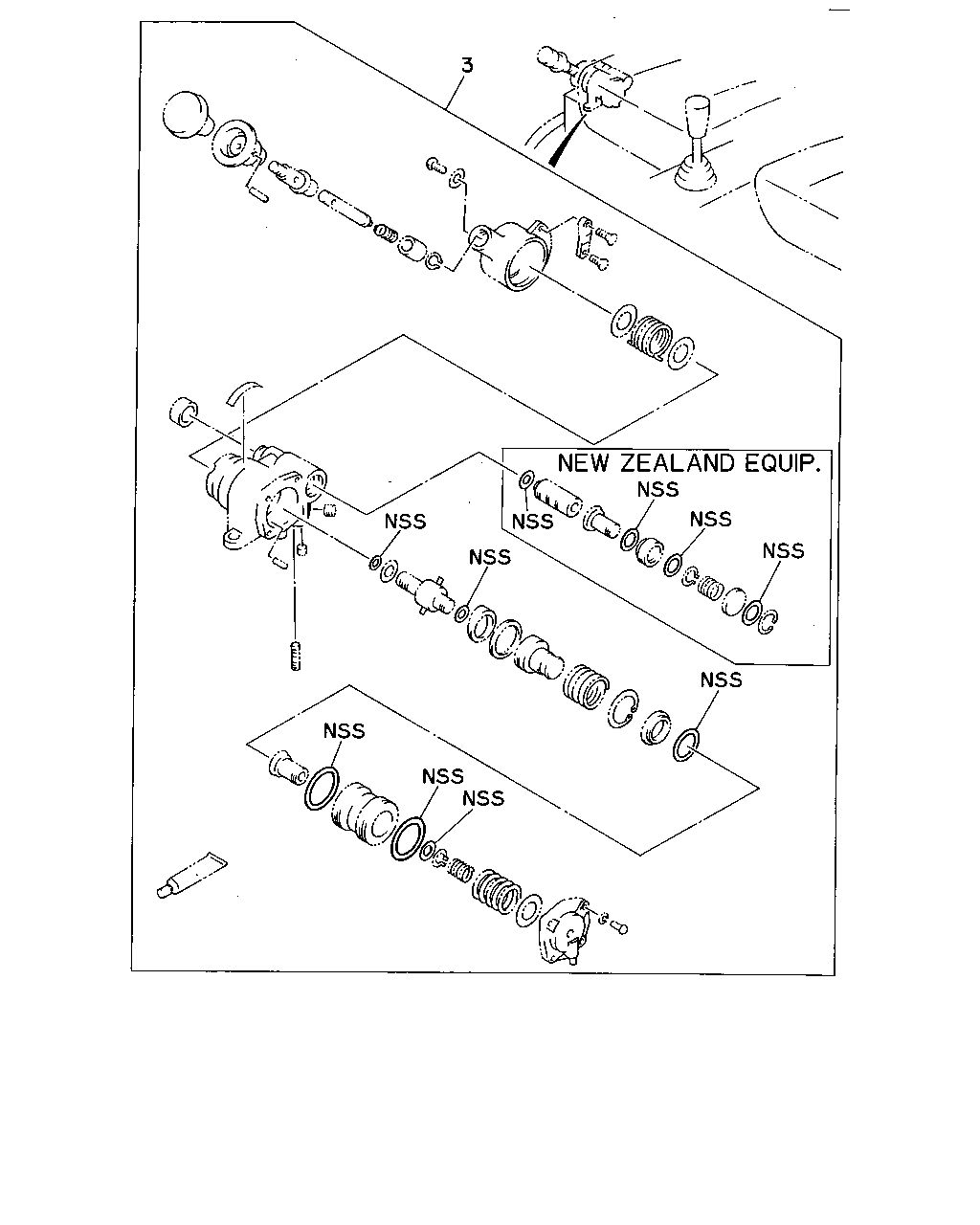

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-096-0	01	1	8712-
	3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-083-0	01	1	9307-

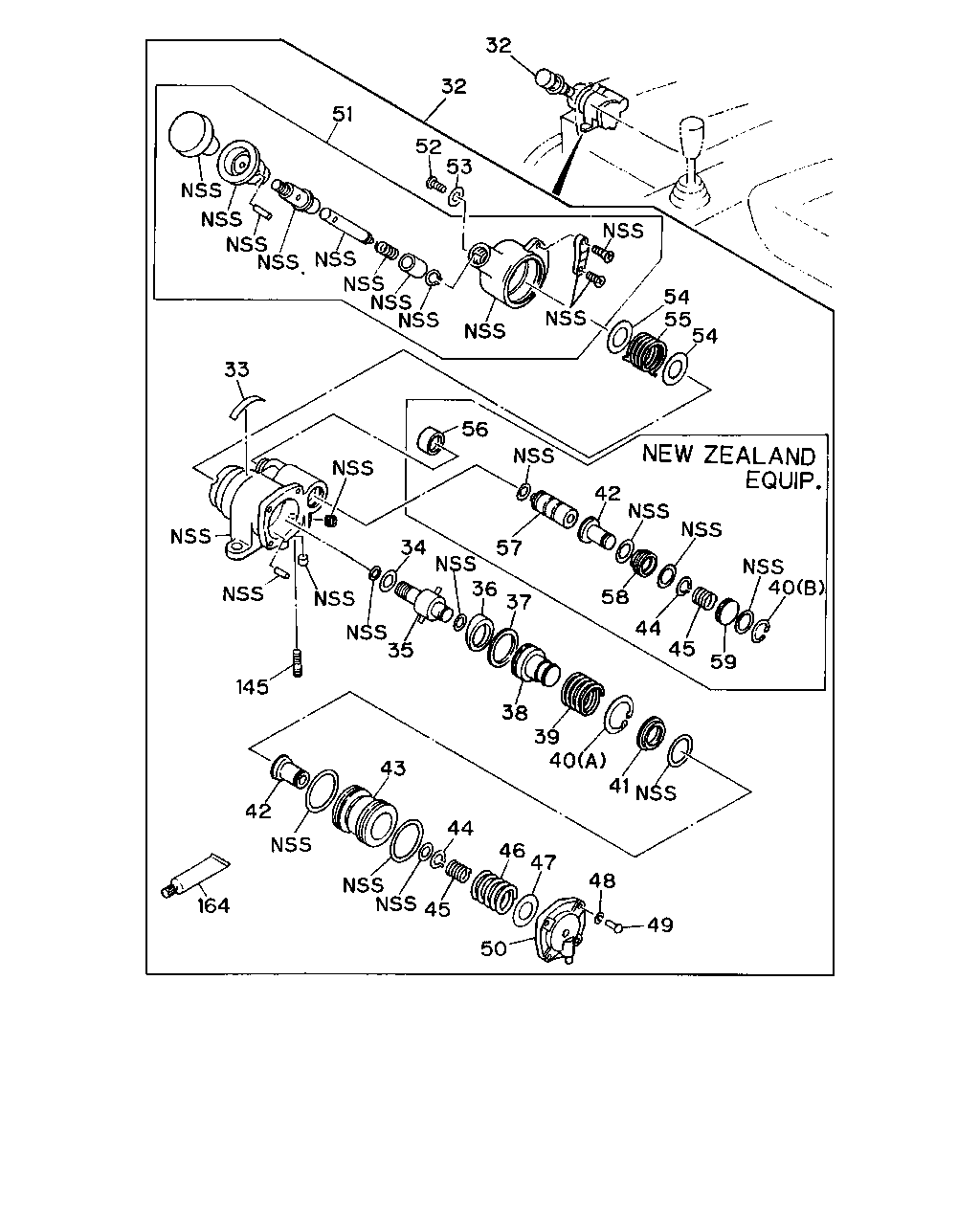

32 32 51 52 53 54 55 54 40 42 59 45 44 58 57 56 33 34 36 37 35 145 38 39 40 41 49 48 47 46 44 43 42 45 50 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-168-0	01	1	9002-9011
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-275-1	01	1	9012-
32	VALVE; BRK,HAND CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-152-2	01	1	8712-
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5)	1-48460-292-0	01	1	9307-
32	VALVE; BRK,HAND CONT NYLON TUBE AIR PIPING<Z29>	1-48460-238-0	01	1	8712-9306
33	PLATE; CAUTION HONG KONG EQUIPMENT(PQ1)	1-48469-093-0	01	1	8712-
33	PLATE; CAUTION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-121-0	01	1	9307-
34	SHIM; CAM HOLDER HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	8712-9306
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9307-
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-085-0	01	1	8712-9011
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9012-9306
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9307-
36	RING; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	8712-9306
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9307-
37	GUIDE; CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	8712-9306
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9307-
38	SEAT; EXH VLV HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	8712-9306
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9307-
39	SPRING; RETURN,CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	8712-9306
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9307-
40	RING; SNAP HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	8712-9306
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9307-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9307-
41	SEAT; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	8712-9306
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9307-
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	8712-
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9307-
43	PISTON; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	8712-9306
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9307-
44	RING; SNAP,FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	01	1	8712-
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-068-0	02	1	9307-
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	8712-
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9307-
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	8712-
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9307-
47	SHIM; MAIN SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	8712-9306
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9307-
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-091-0	04	1	8712-9011
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1) ID=6.1	9-09150-506-0	04	1	9012-
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-092-0	04	1	8712-
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5)	1-48469-120-0	04	1	9307-
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	8712-
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9307-
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-088-0	01	1	8712-9011
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-117-0	01	1	9012-
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9307-
52	SCREW; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	8712-9306
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9307-
53	WASHER; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	8712-9306
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9307-
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	8712-9306
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9307-
55	SPRING; RETURN,HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	8712-9306
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9307-
56	BOOT; PLUNGER NEW ZEALAND EQUIPMENT(PK5)	1-48469-080-0	01	1	9307-
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-076-0	01	1	9307-
58	HOLDER; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-077-0	01	1	9307-
59	HOLDER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-078-0	01	1	9307-
145	STUD; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-069-0	01	1	9307-
164	GREASE; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	8712-9306
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9307-

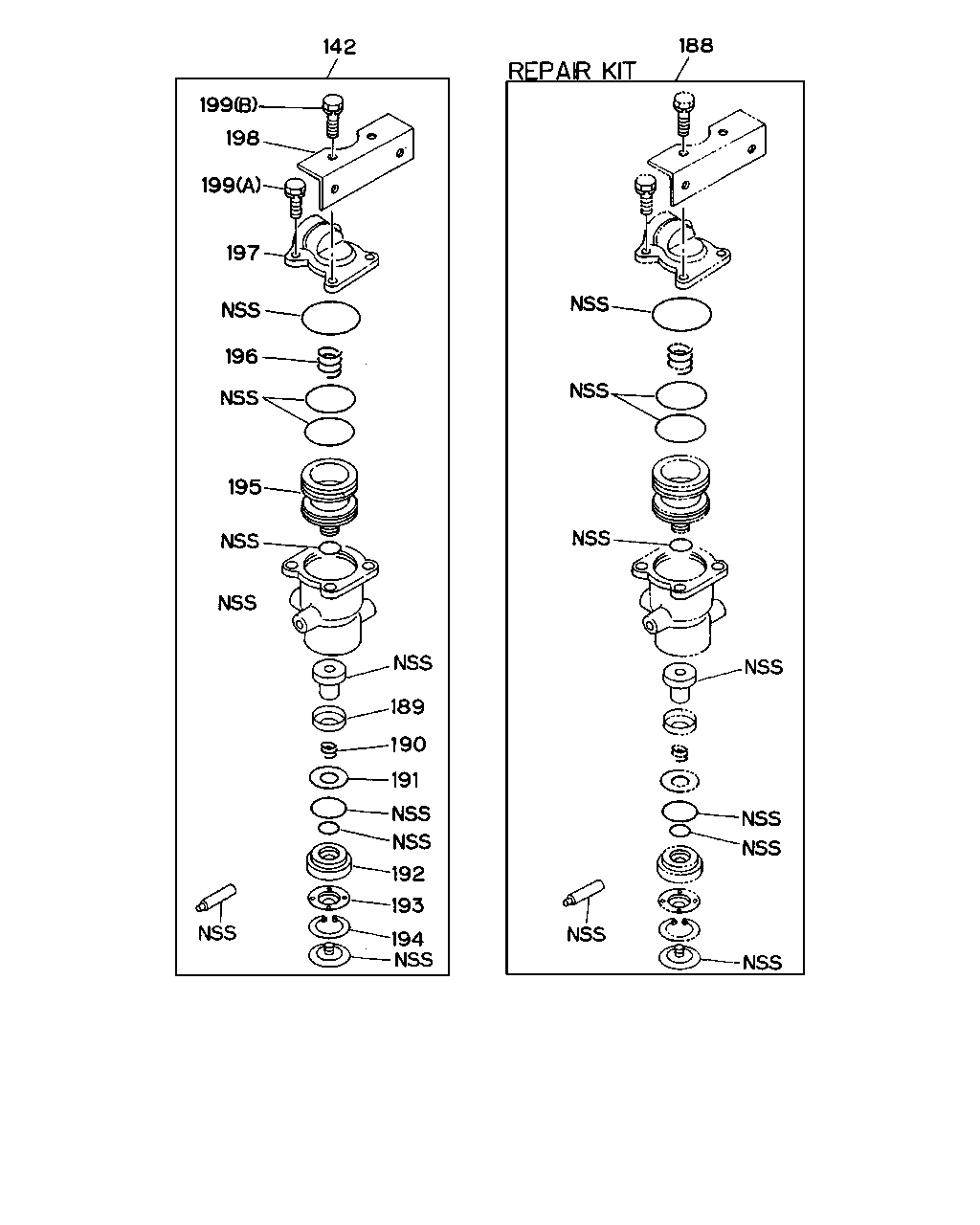

188 194 193 192 191 190 189 195 196 197 199 198 199 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	VALVE; SUPPLY DUMP NYLON TUBE AIR PIPING<Z29>	1-48210-367-0	01	1	9307-
188	REPAIR KIT; DUMP VLV NYLON TUBE AIR PIPING<Z29>	1-85576-117-0	01	1	9307-
189	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-099-0	01	1	9307-
190	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-100-0	01	1	9307-
191	PLATE; VALVE HOLDER NYLON TUBE AIR PIPING<Z29>	1-48219-101-0	01	1	9307-
192	HOLDER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-102-0	01	1	9307-
193	PLATE; DUST SEAL NYLON TUBE AIR PIPING<Z29>	1-48219-098-0	01	1	9307-
194	RING; SNAP,VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-097-0	01	1	9307-
195	PISTON; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-103-0	01	1	9307-
196	SPRING; MAIN,VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-079-1	01	1	9307-
197	COVER; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-104-0	01	1	9307-
198	BRACKET; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-105-0	01	1	9307-
199	BOLT; COVER NYLON TUBE AIR PIPING<Z29> (A) M8X22	9-01900-822-0	02	1	9307-
199	BOLT; COVER NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9307-

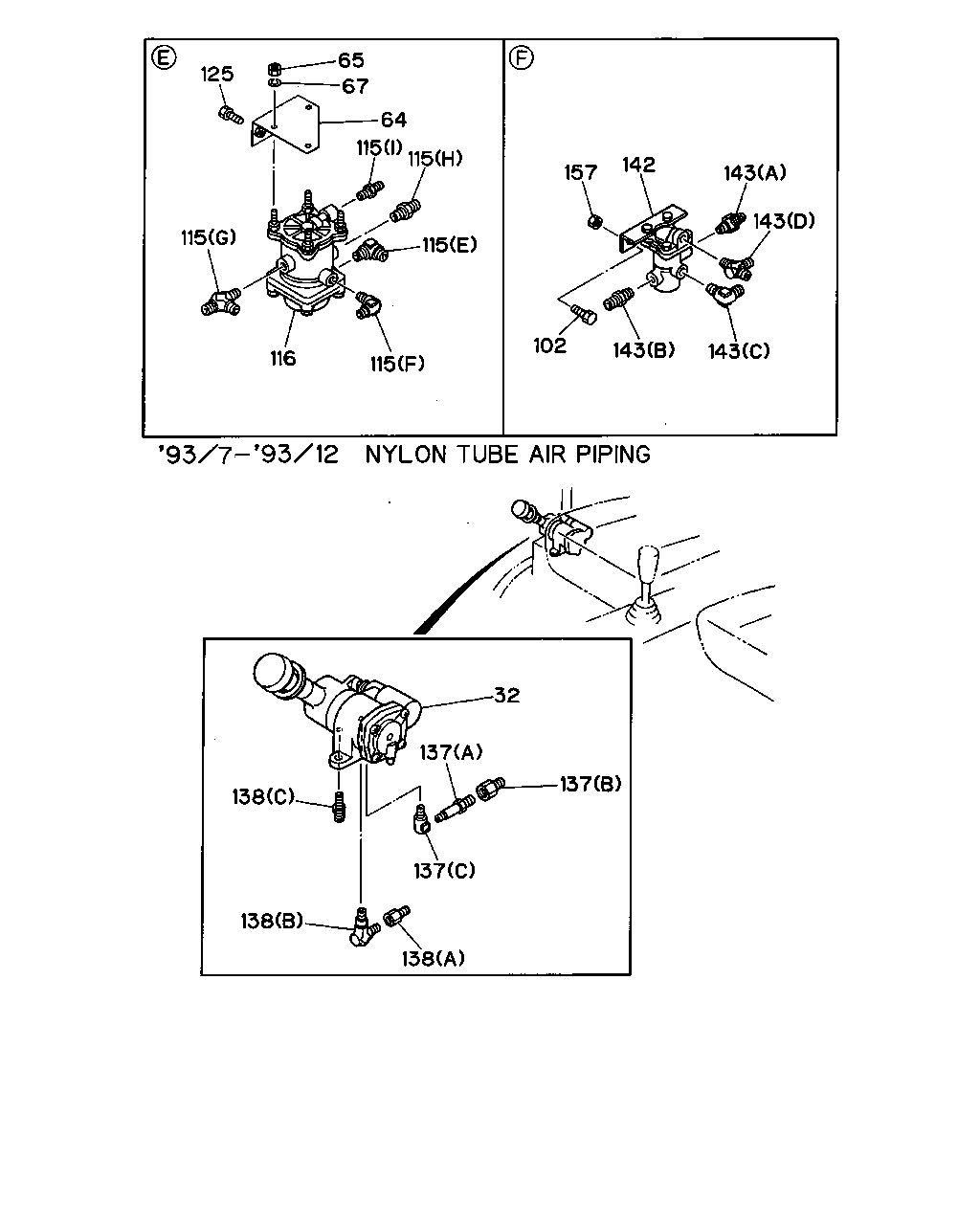

125 65 67 64 115 115 115 115 115 116 157 142 143 143 143 143 102 32 137 137 137 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-168-0	01	1	9002-9011
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-275-1	01	1	9012-
32	VALVE; BRK,HAND CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-152-2	01	1	8712-
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5)	1-48460-292-0	01	1	9307-
32	VALVE; BRK,HAND CONT NYLON TUBE AIR PIPING<Z29>	1-48460-238-0	01	1	8712-9306
64	BRACKET; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48495-126-0	01	1	9307-
65	NUT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	8905-9306
65	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-
65	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-
67	WASHER; LK,RELAY VLV NYLON TUBE AIR PIPING<Z29> ID=8.2	9-09150-508-0	03	1	9307-
102	BOLT; SUPPLY DUMP VLV NYLON TUBE AIR PIPING<Z29> M10X22 W/LK WASHER	0-50041-022-0	02	1	9307-
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (F) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-552-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (H)	1-09660-572-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (I) 17/32" PT1/4	1-09660-573-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-574-0	01	1	9307-
116	VALVE; DUAL RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-347-0	01	1	9307-
125	BOLT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	9-01911-035-0	02	1	8905-9002
125	BOLT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9306
125	BOLT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9307-
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (A)	1-09650-400-0	01	1	9307-
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (B) M20X36	1-09660-576-0	01	1	9307-
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (C) PT1/4 2WAY	1-09660-693-0	01	1	9307-
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (A)	1-09650-373-0	01	1	9307-
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (B)	1-09650-401-0	01	1	9307-
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-
142	VALVE; SUPPLY DUMP NYLON TUBE AIR PIPING<Z29>	1-48210-367-0	01	1	9307-
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (B)	1-09660-572-0	01	1	9307-
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (C)	1-09660-574-0	01	1	9307-
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (D)	1-09664-182-0	01	1	9307-
157	NUT; SUPPLY DUMP VALVE NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-

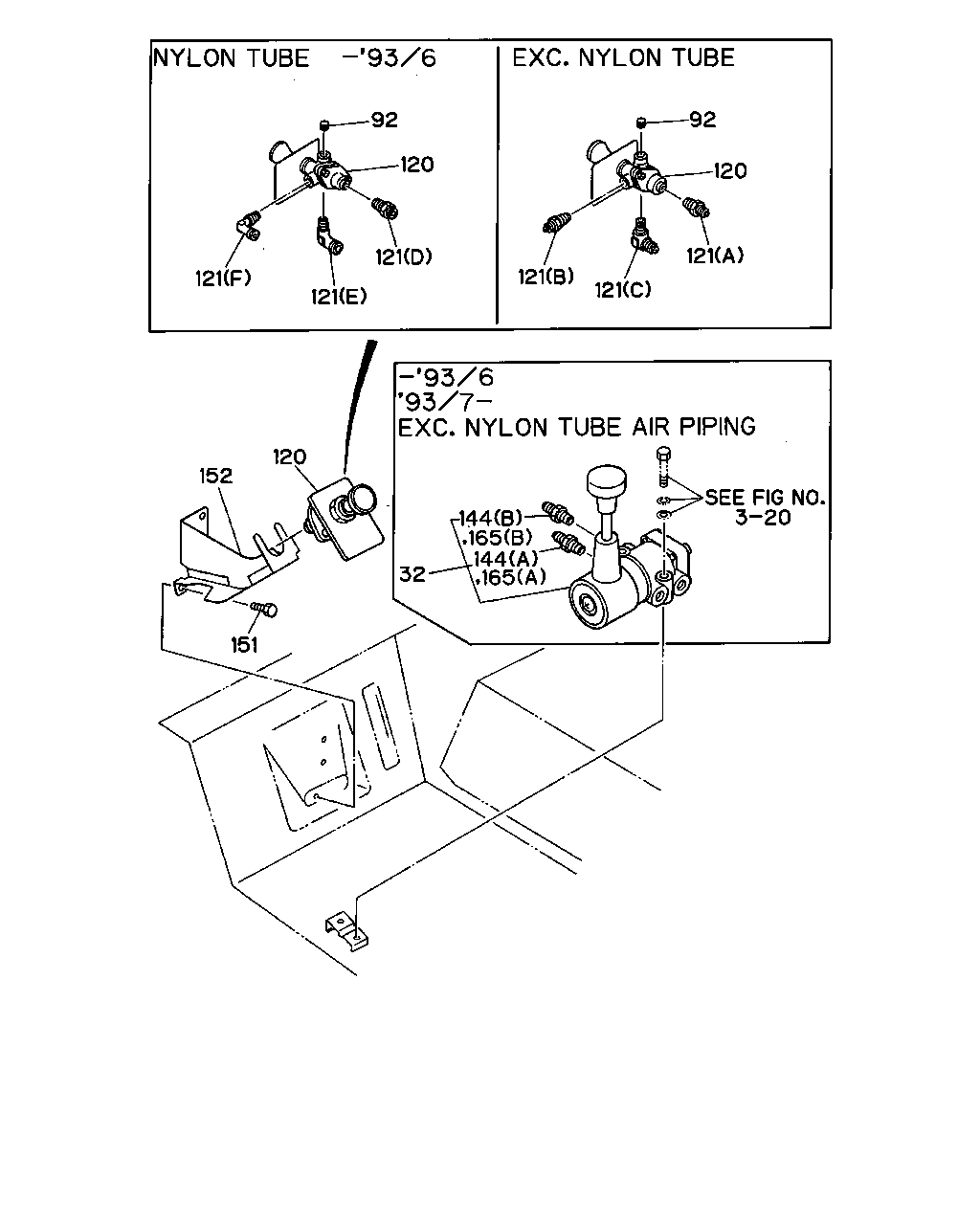

92 120 121 121 121 92 120 121 121 121 32 144 165 144 165 120 152 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-168-0	01	1	9002-9011
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-275-1	01	1	9012-
32	VALVE; BRK,HAND CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-152-2	01	1	8712-
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5)	1-48460-292-0	01	1	9307-
32	VALVE; BRK,HAND CONT NYLON TUBE AIR PIPING<Z29>	1-48460-238-0	01	1	8712-9306
92	PLUG; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	8712-9306
92	PLUG; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> PT1/4	9-99204-513-0	01	1	9307-
120	VALVE; SUPPLY EXC. HONG KONG EQUIPMENT(PQ1)	1-48460-117-0	01	1	8712-9306
120	VALVE; SUPPLY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-117-0	01	1	9307-
121	CONNECTOR; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M14	1-09650-031-0	01	1	8712-9103
121	CONNECTOR; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-
121	CONNECTOR; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	8712-
121	CONNECTOR; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	8712-9302
121	CONNECTOR; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-
121	CONNECTOR; SUPPLY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-231-0	01	1	8712-9306
121	CONNECTOR; SUPPLY VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-238-0	01	1	8712-9306
121	CONNECTOR; SUPPLY VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-403-0	01	1	8712-9306
144	CONNECTOR; PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-09650-341-1	01	1	8712-
144	CONNECTOR; PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09650-342-1	01	1	8712-
144	CONNECTOR; PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-226-0	01	1	8712-9306
144	CONNECTOR; PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-231-0	01	1	8712-9306
151	BOLT; VLV BRKT M6X20	9-01910-620-0	03	1	8712-8801
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) M6X20	9-01910-620-0	03	1	8802-9005
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) M6X20 W/LK WASHER	0-50040-620-0	03	1	9006-9302
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	03	1	9303-9306
151	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X20	1-09980-529-0	02	1	9309-9312
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20	1-09980-529-0	02	1	9401-
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	03	1	9307-
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M6X14 W/LK&PL WASHER	1-09980-549-0	06	1	9401-9401
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-
152	BRACKET; SUPPLY VLV	1-47475-565-1	01	1	8712-8801
152	BRACKET; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-47475-565-1	01	1	8802-9008
152	BRACKET; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-565-1	01	1	9009-9105
152	BRACKET; SUPPLY VLV NYLON TUBE AIR PIPING<Z29>	1-47476-673-0	01	1	9009-9105
152	BRACKET; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-47476-673-0	01	1	9106-9306
152	BRACKET; SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47476-673-0	01	1	9307-
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09650-341-1	01	1	8712-
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09650-342-1	01	1	8712-

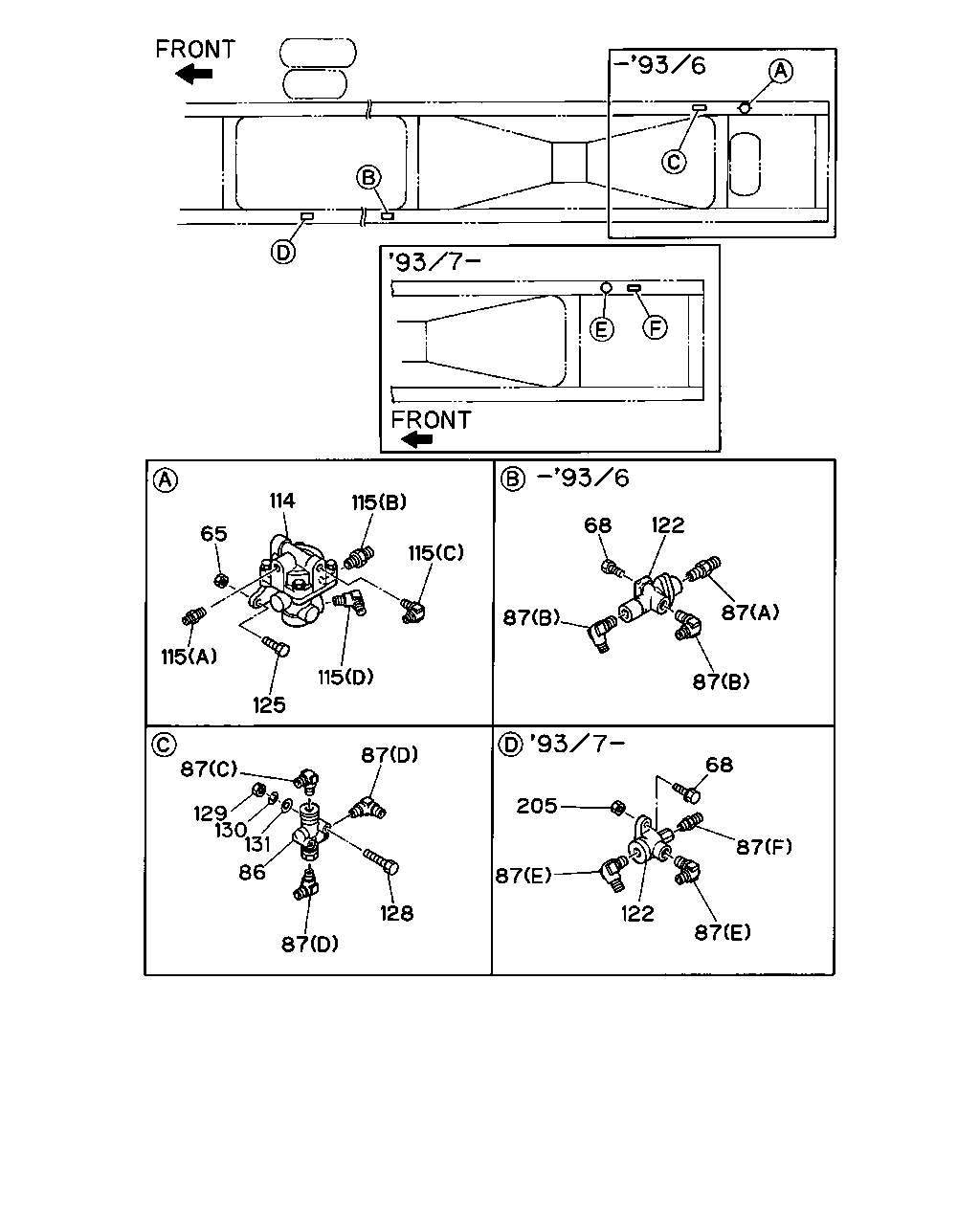

65 114 115 115 115 125 115 87 129 130 131 86 87 128 87 87 122 87 87 68 205 87 87 122 68 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	NUT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	8905-9306
65	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-
65	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-
68	BOLT; DOUBLE CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	02	1	8905-9204
68	BOLT; DOUBLE CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
68	BOLT; DOUBLE CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
68	BOLT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8X35 FLANGE	0-28080-835-0	02	1	9307-
86	VALVE; SYN FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48460-173-0	01	1	9006-9306
87	CONNECTOR; DBL CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	8905-9306
87	CONNECTOR; DBL CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8905-9306
87	CONNECTOR; DBL CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-09660-226-0	01	1	9006-9306
87	CONNECTOR; DBL CHECK VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D)	1-09660-238-0	02	1	9006-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-535-0	02	1	9307-
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-555-0	01	1	9307-
114	VALVE; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48210-157-1	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	8905-9306
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (F) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-552-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (H)	1-09660-572-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (I) 17/32" PT1/4	1-09660-573-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-574-0	01	1	9307-
122	VALVE ASM; DOUBLE CHECK FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48410-050-0	01	1	8905-9306
122	VALVE ASM; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	01	1	9307-
125	BOLT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	9-01911-035-0	02	1	8905-9002
125	BOLT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9306
125	BOLT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9307-
128	BOLT; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	0-10805-665-0	02	1	9006-9008
128	BOLT; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M6X60	0-10805-660-0	02	1	9009-9306
129	NUT; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M6	9-09110-406-0	02	1	8905-9306
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9401-
130	WASHER; LK,VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> ID=6.1	9-09150-606-0	02	1	8905-9306
131	WASHER; PL,VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> ID=6.4 OD=18	9-09160-706-0	02	1	8905-9306
205	NUT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-

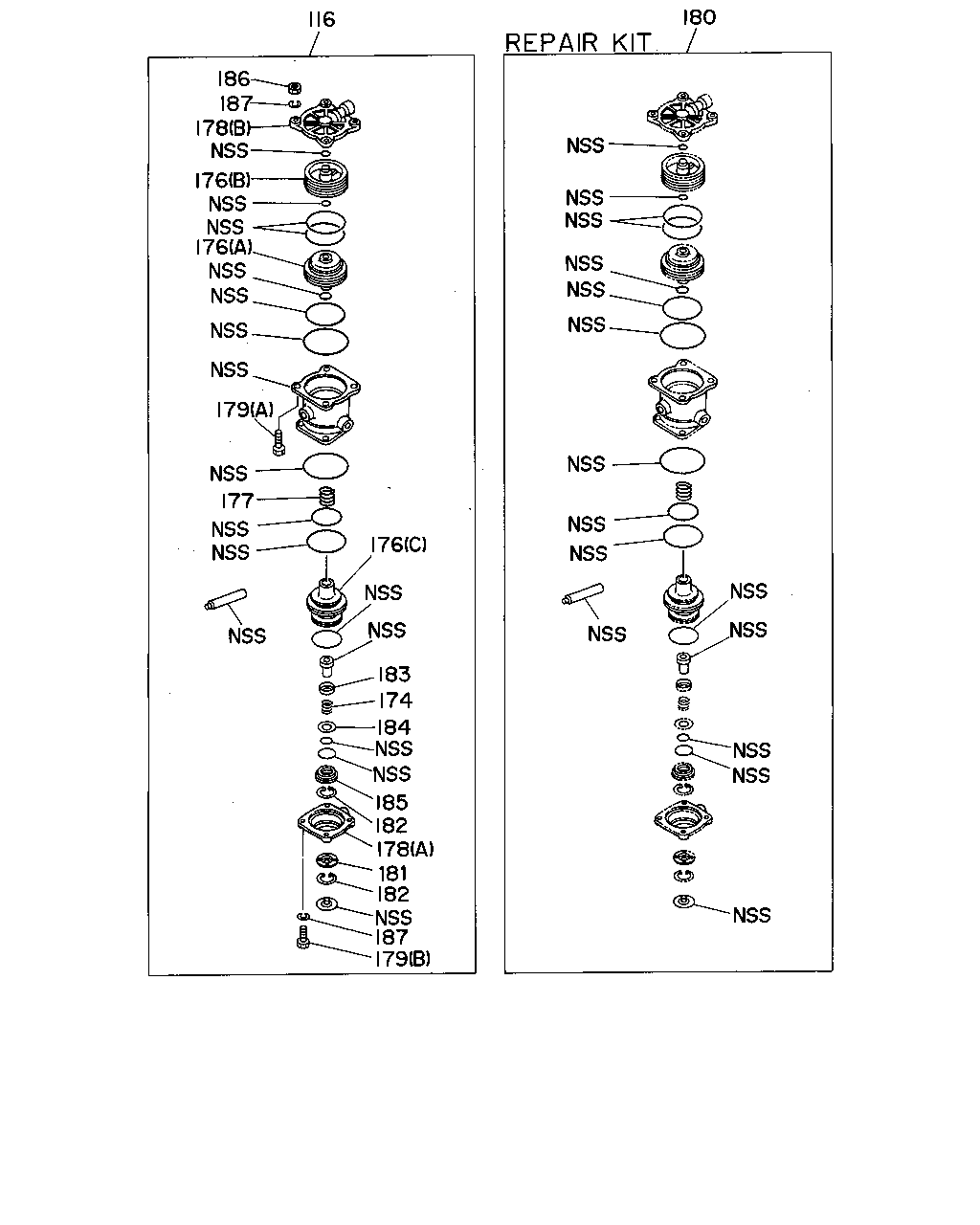

180 116 186 187 178 176 176 179 177 176 183 174 184 185 182 181 182 187 179 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	VALVE; DUAL RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-347-0	01	1	9307-
174	SPRING; INL VLV NYLON TUBE AIR PIPING<Z29>	1-48219-094-0	01	1	9307-
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M14	1-48219-088-0	01	1	9307-
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-48219-089-0	01	1	9307-
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (C)	1-48219-092-0	01	1	9307-
177	SPRING; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48219-091-0	01	1	9307-
178	COVER; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A)	1-48211-011-0	01	1	9307-
178	COVER; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-48219-090-0	01	1	9307-
179	BOLT; COVER,RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M8X50	9-01045-850-0	04	1	9307-
179	BOLT; COVER,RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	04	1	9307-
180	REPAIR KIT; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-85576-116-0	01	1	9307-
181	PLATE; DUST SEAL NYLON TUBE AIR PIPING<Z29>	1-48219-098-0	01	1	9307-
182	RING; SNAP,RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48219-097-0	02	1	9307-
183	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-093-0	01	1	9307-
184	PLATE; VALVE HOLDER NYLON TUBE AIR PIPING<Z29>	1-48219-095-0	01	1	9307-
185	HOLDER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-096-0	01	1	9307-
186	NUT; COVER NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-
187	WASHER; COVER NYLON TUBE AIR PIPING<Z29> ID=8.2	9-09150-508-0	08	1	9307-

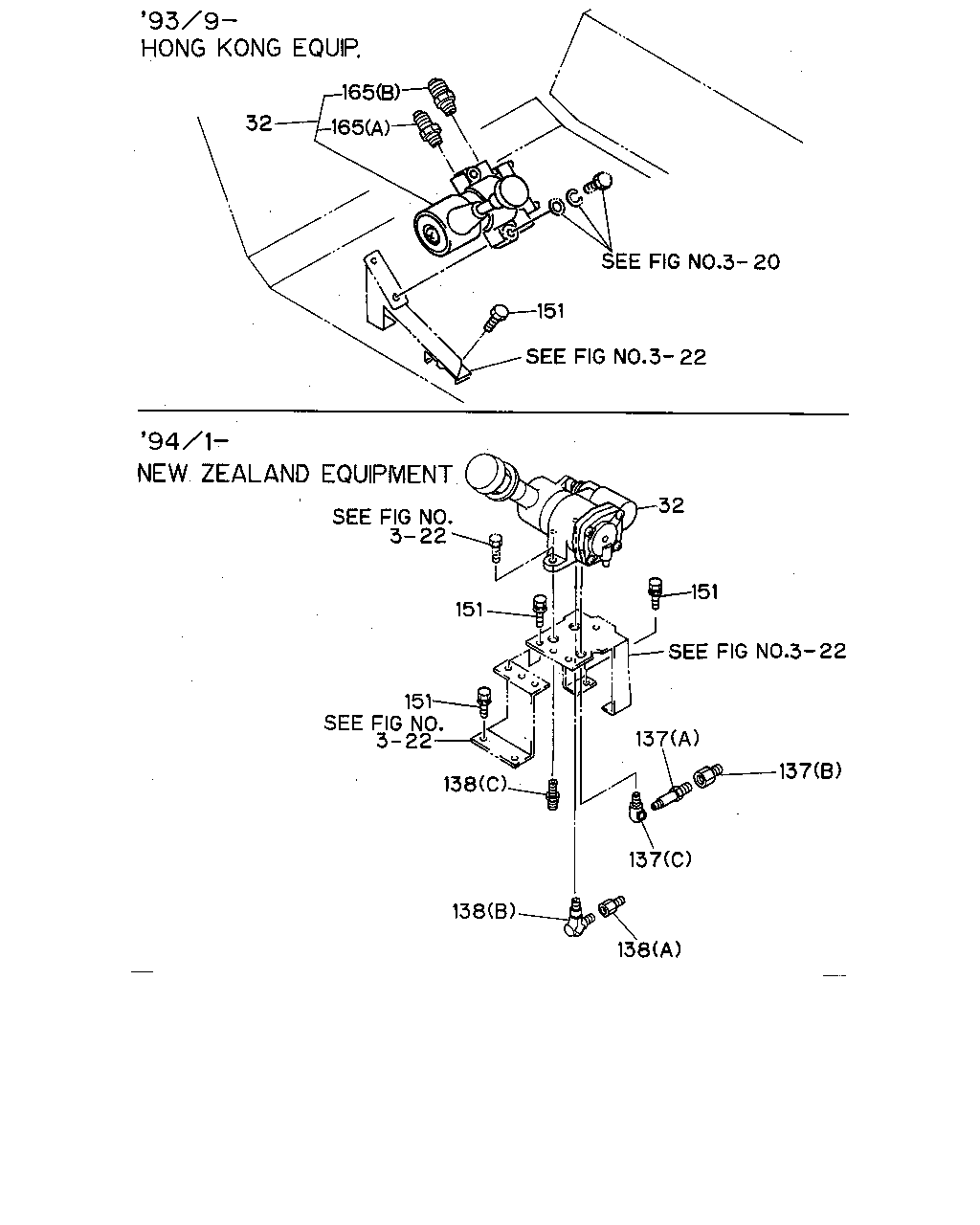

32 165 165 151 151 151 138 138 138 137 137 137 151 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-168-0	01	1	9002-9011
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1)	1-48460-275-1	01	1	9012-
32	VALVE; BRK,HAND CONT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48460-152-2	01	1	8712-
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5)	1-48460-292-0	01	1	9307-
32	VALVE; BRK,HAND CONT NYLON TUBE AIR PIPING<Z29>	1-48460-238-0	01	1	8712-9306
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (A)	1-09650-400-0	01	1	9307-
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (B) M20X36	1-09660-576-0	01	1	9307-
137	CONNECTOR; SUPPLY NYLON TUBE AIR PIPING<Z29> (C) PT1/4 2WAY	1-09660-693-0	01	1	9307-
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (A)	1-09650-373-0	01	1	9307-
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (B)	1-09650-401-0	01	1	9307-
138	CONNECTOR; DELIVERY NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-
151	BOLT; VLV BRKT M6X20	9-01910-620-0	03	1	8712-8801
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) M6X20	9-01910-620-0	03	1	8802-9005
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) M6X20 W/LK WASHER	0-50040-620-0	03	1	9006-9302
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	03	1	9303-9306
151	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X20	1-09980-529-0	02	1	9309-9312
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20	1-09980-529-0	02	1	9401-
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	03	1	9307-
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M6X14 W/LK&PL WASHER	1-09980-549-0	06	1	9401-9401
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09650-341-1	01	1	8712-
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09650-342-1	01	1	8712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
