◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51245 - NPR CNG-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#50994) — 172 parça

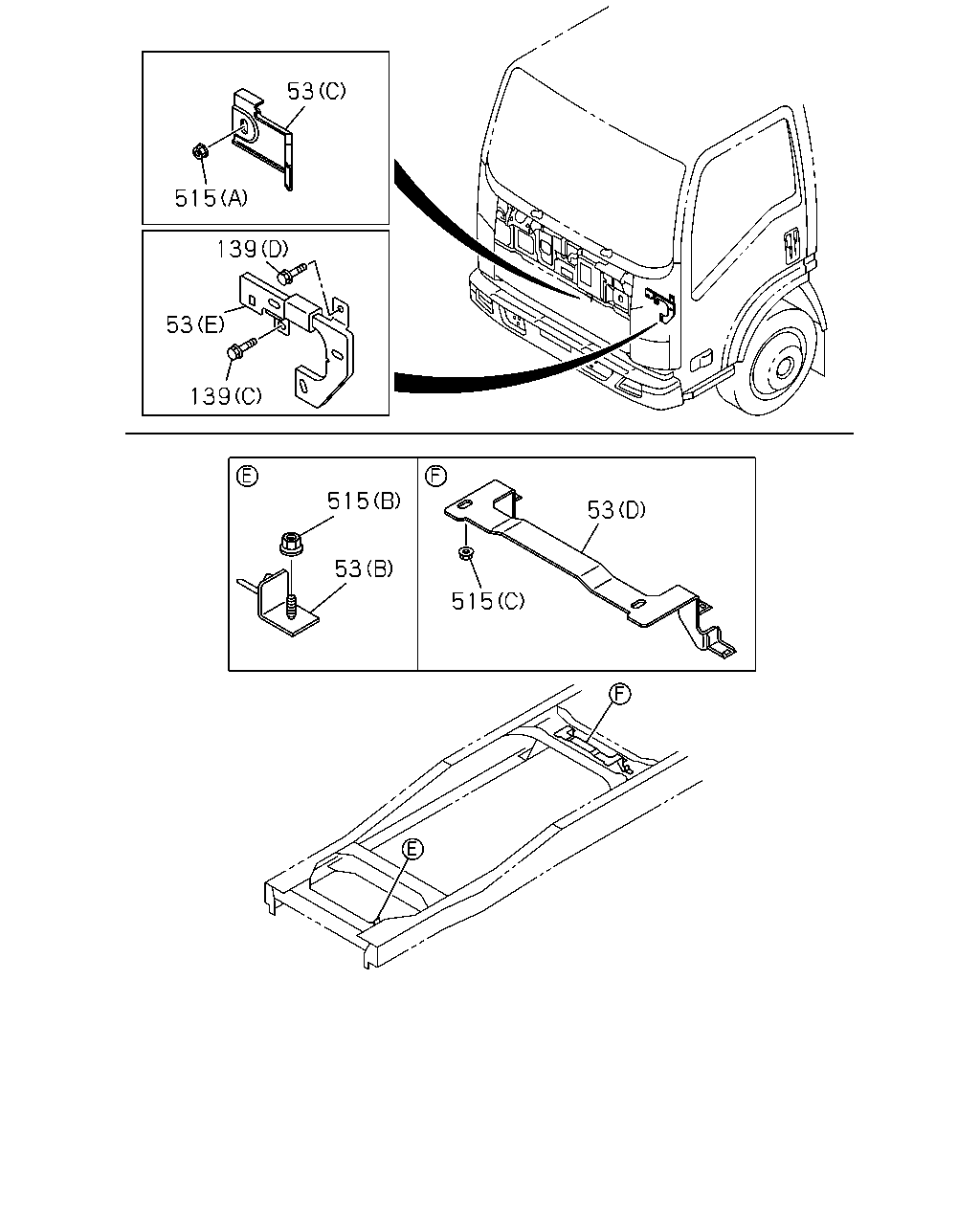

çizim 60285
53 515 139 53 139 515 53 53 515
BalonParca AdiParca NoAdetTipApplied Date
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1004-
53 02.483 BRACKET; HARNESS
(B) 		8-98032-016-1 01 1 1004-
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1004-
53 02.483 BRACKET; HARNESS
(D) 		8-98058-646-2 01 1 1004-
53 02.483 BRACKET; HARNESS
(E) 		8-98089-765-1 01 1 1004-
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-98084-699-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1004-
139 02.559 BOLT; BRKT
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1004-
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1004-
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
515 02.559 NUT; BRKT
00.787 (C) M10 		0-91111-510-0 02 1 1004-
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004-
515 02.559 NUT; BRKT
03.162 (D) M10 FLANGE 		0-91180-110-0 01 1 1004-
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1004-
515 02.559 NUT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 1004-

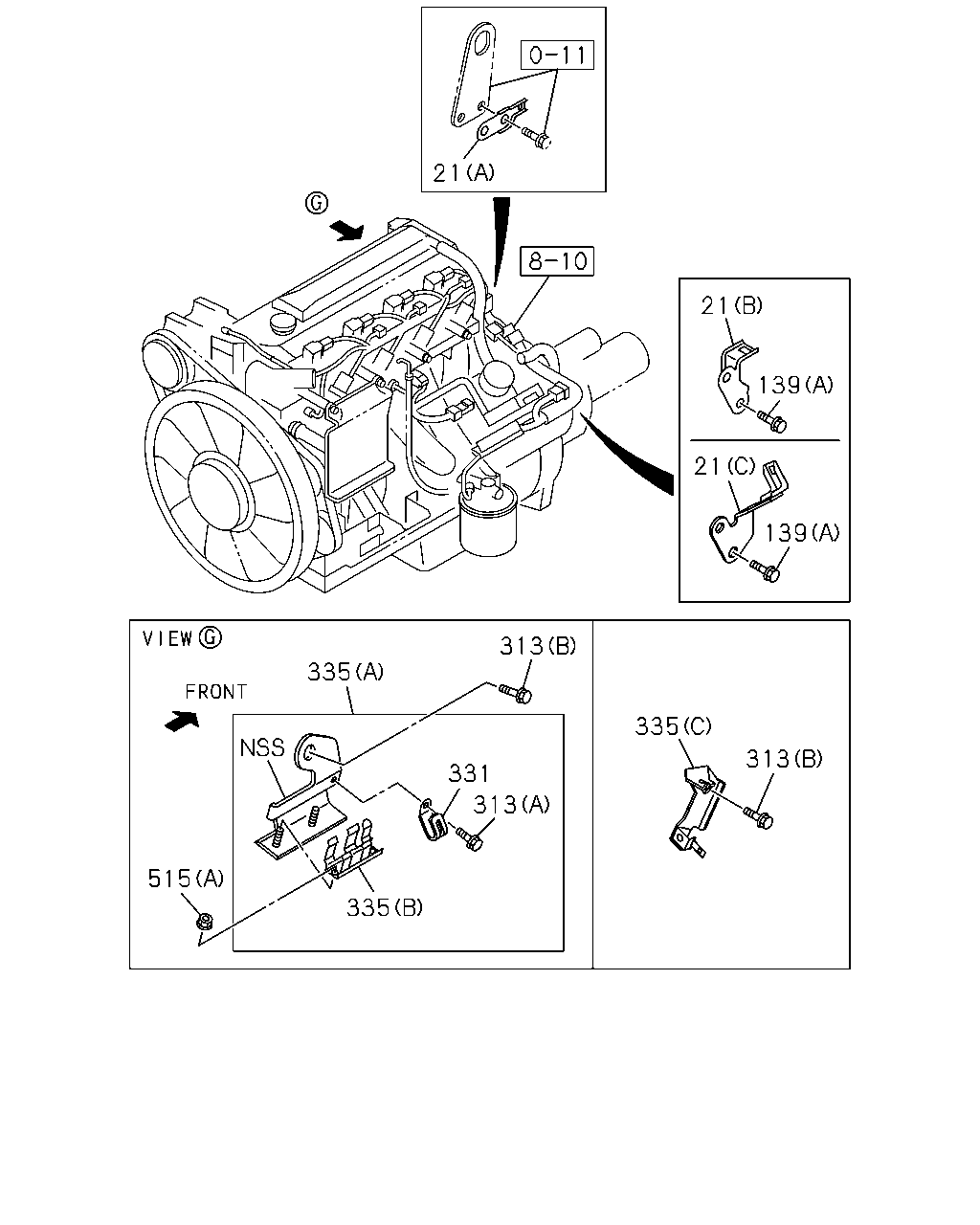

çizim 60290
21 21 139 21 139 313 335 335 313 331 313 515 335
BalonParca AdiParca NoAdetTipApplied Date
21 02.483 BRACKET; ENG HARNESS
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98165-459-0 01 1 1004-
21 02.483 BRACKET; ENG HARNESS
(A) 		8-97383-683-0 01 1 1004-
21 02.483 BRACKET; ENG HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97383-684-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1004-
139 02.559 BOLT; BRKT
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1004-
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1004-
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
313 02.559 BOLT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 09.171 (B) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
313 02.559 BOLT; BRKT
09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 1004-
313 02.559 BOLT; BRKT
09.171 (B) M14X20 FLANGE 		0-28851-420-0 01 1 1004-1005
313 02.559 BOLT; BRKT
06.509 (D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 02.559 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.509 (D) M14X25 FLANGE 		0-28851-425-0 01 1 1009-
313 02.559 BOLT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
331 02.559 CLIP; HARNESS BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1004-
335 02.510 BRACKET; CONNECTOR
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98105-196-3 01 1 1004-
335 02.510 BRACKET; CONNECTOR
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97262-725-0 01 1 1004-
335 02.510 BRACKET; CONNECTOR
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97262-726-0 01 1 1004-
515 02.559 NUT; BRKT
00.787 (C) M10 		0-91111-510-0 02 1 1004-
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004-
515 02.559 NUT; BRKT
03.162 (D) M10 FLANGE 		0-91180-110-0 01 1 1004-
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1004-
515 02.559 NUT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 1004-
çizim 60361
16 16 22 331 483 48 22 16 22 617 48 488 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
HYDRO BRAKE BOOSTER(7QQ) (D) ID=11X2 L=20 		9-09535-036-0 02 1 1004-
16 02.559 CLIP; HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1004-
16 02.559 CLIP; HARNESS
03.162 (B) 		5-09709-095-0 01 1 1004-
16 02.559 CLIP; HARNESS
04.930 (H) L=91 ID=8.5 		8-94329-956-0 01 1 1004-
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 01 1 1004-
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1004-
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1004-
16 02.559 CLIP; HARNESS
16.578 (I) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1004-
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1004-
22 02.559 CLIP; ENG HARNESS
(B) L=170.3 		1-09987-182-0 03 1 1004-
22 02.559 CLIP; ENG HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) L=140 		5-09707-031-1 01 1 1004-
22 02.559 CLIP; ENG HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1004-
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 02 1 1004-
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 05 1 1004-
48 02.559 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1004-
331 02.559 CLIP; HARNESS BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1004-
483 02.559 CLIP; ENG HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1009-
483 02.559 CLIP; ENG HARNESS
HYDRO BRAKE BOOSTER(7QQ) 02.575 (A) 		1-09987-161-0 02 1 1004-
483 02.559 CLIP; ENG HARNESS
03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1004-
488 02.559 CLIP; CABLE,TRAILER
RR FOG LAMP<T79> L=250 		5-09707-030-1 04 1 1004-
488 02.559 CLIP; CABLE,TRAILER
EXC. RR FOG LAMP<T79> L=250 		5-09707-030-1 01 1 1004-
617 02.559 STRAP; BAND
03.162 L=140 		5-09707-031-1 01 1 1012-1106

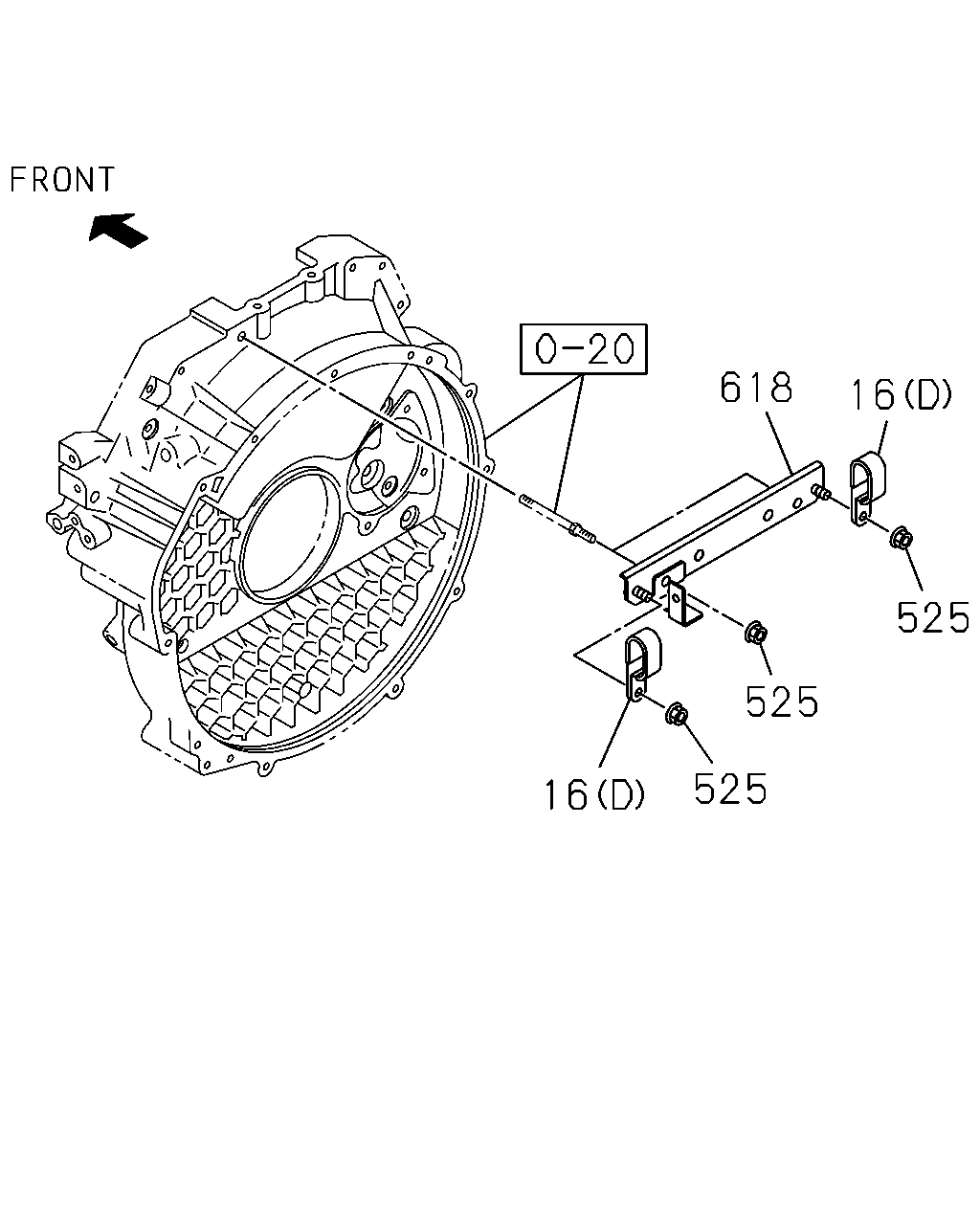

çizim 60375
618 16 525 525 525 16
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
HYDRO BRAKE BOOSTER(7QQ) (D) ID=11X2 L=20 		9-09535-036-0 02 1 1004-
16 02.559 CLIP; HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1004-
16 02.559 CLIP; HARNESS
03.162 (B) 		5-09709-095-0 01 1 1004-
16 02.559 CLIP; HARNESS
04.930 (H) L=91 ID=8.5 		8-94329-956-0 01 1 1004-
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 01 1 1004-
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1004-
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1004-
16 02.559 CLIP; HARNESS
16.578 (I) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1004-
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1004-
525 02.559 NUT; CLIP
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-
525 02.559 NUT; CLIP
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
525 02.559 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
618 02.559 BRACKET; OIL PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 		8-98105-197-1 01 1 1004-

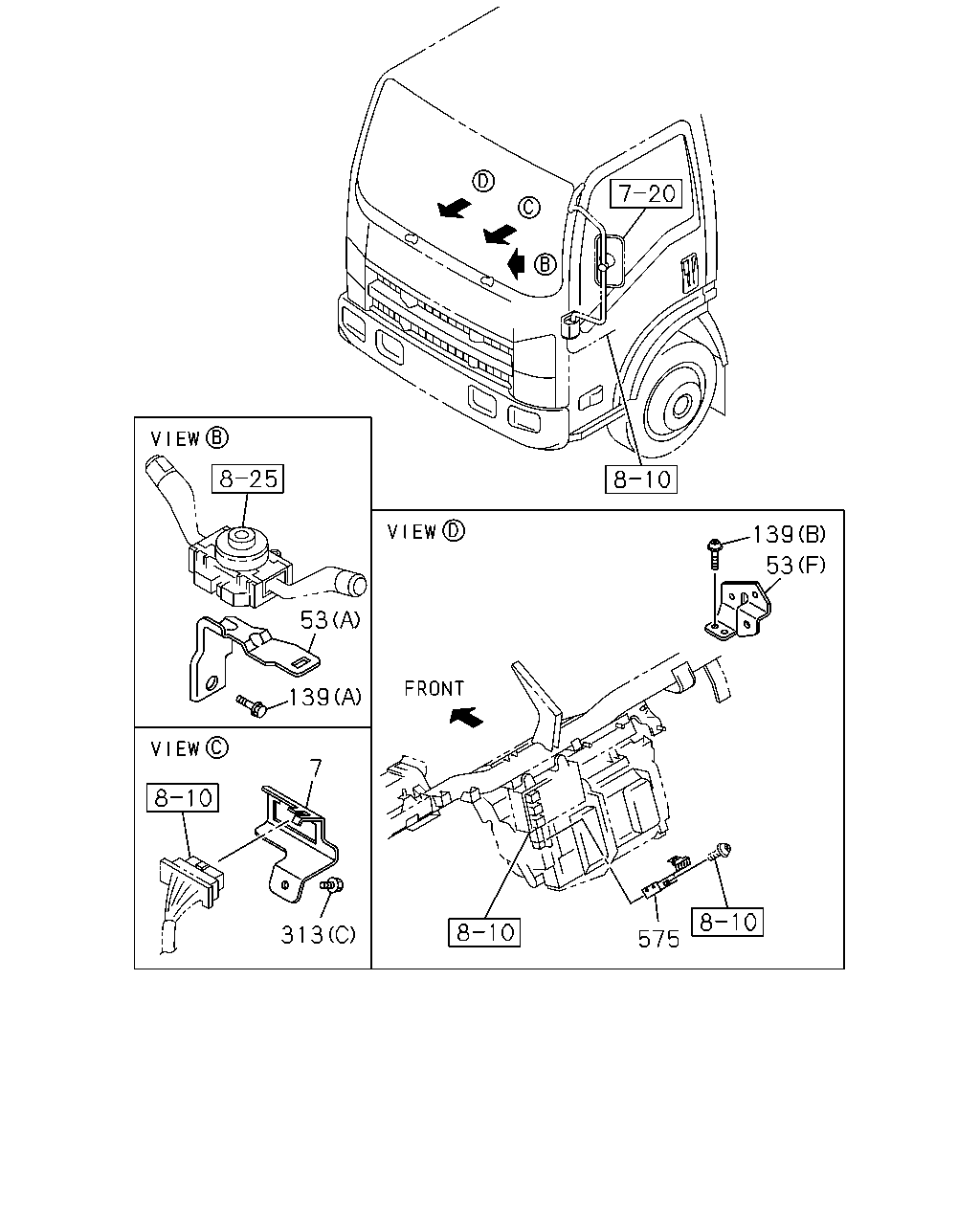

çizim 60467
139 53 53 139 7 313 575
BalonParca AdiParca NoAdetTipApplied Date
7 02.559 BRACKET; CONNECTOR 8-98043-070-1 01 1 1004-
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1004-
53 02.483 BRACKET; HARNESS
(B) 		8-98032-016-1 01 1 1004-
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1004-
53 02.483 BRACKET; HARNESS
(D) 		8-98058-646-2 01 1 1004-
53 02.483 BRACKET; HARNESS
(E) 		8-98089-765-1 01 1 1004-
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-98084-699-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1004-
139 02.559 BOLT; BRKT
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1004-
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1004-
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
313 02.559 BOLT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 09.171 (B) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
313 02.559 BOLT; BRKT
09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 1004-
313 02.559 BOLT; BRKT
09.171 (B) M14X20 FLANGE 		0-28851-420-0 01 1 1004-1005
313 02.559 BOLT; BRKT
06.509 (D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 02.559 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.509 (D) M14X25 FLANGE 		0-28851-425-0 01 1 1009-
313 02.559 BOLT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
575 02.559 BRACKET; FUSE BOX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98054-320-2 01 1 1004-
575 02.559 BRACKET; FUSE BOX
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98132-932-1 01 1 1004-
çizim 60521
516 38 139 313 150 304 313 480 313 313 529 377 386 377 386 377 386 377 386 139 620 515 515 552 219 515 525 552 24 294 515 577
BalonParca AdiParca NoAdetTipApplied Date
24 02.559 NUT; HARNESS
01.062 M6 FLANGE 		0-91180-106-0 01 1 1004-1409
24 02.559 NUT; HARNESS
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410-
38 02.559 BOLT; CLIP,HARNESS
09.216 M6X12 FLANGE 		0-28250-612-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1004-
139 02.559 BOLT; BRKT
02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1004-
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1004-
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
150 02.343 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1004-
219 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-1506
294 02.559 NUT
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 1004-
304 02.483 BOLT; ENG HARNESS CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1004-
313 02.559 BOLT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 09.171 (B) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
313 02.559 BOLT; BRKT
09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 1004-
313 02.559 BOLT; BRKT
09.171 (B) M14X20 FLANGE 		0-28851-420-0 01 1 1004-1005
313 02.559 BOLT; BRKT
06.509 (D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 02.559 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.509 (D) M14X25 FLANGE 		0-28851-425-0 01 1 1009-
313 02.559 BOLT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1004-
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1004-1004
377 02.559 BOLT; CAB EARTH
02.343 (D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1005-
377 02.559 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1004-1004
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1005-
377 02.559 BOLT; CAB EARTH
02.343 (C) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1004-1004
386 02.559 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1004-1004
386 02.559 BOLT; GRAND HARNESS
02.343 (C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1004-1004
386 02.559 BOLT; GRAND HARNESS
02.343 (D) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
480 02.483 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1004-
515 02.559 NUT; BRKT
00.787 (C) M10 		0-91111-510-0 02 1 1004-
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1004-
515 02.559 NUT; BRKT
03.162 (D) M10 FLANGE 		0-91180-110-0 01 1 1004-
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1004-
515 02.559 NUT; BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 1004-
516 02.559 BOLT; HARNESS
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1004-
525 02.559 NUT; CLIP
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-
525 02.559 NUT; CLIP
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
525 02.559 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1004-
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1004-
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1004-
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1004-
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1004-
620 02.559 WASHER; PL BRKT
EXC. HYDRO BRAKE BOOSTER(7QQ) 06.216 ID=15 		0-91614-614-0 01 1 1006-1008

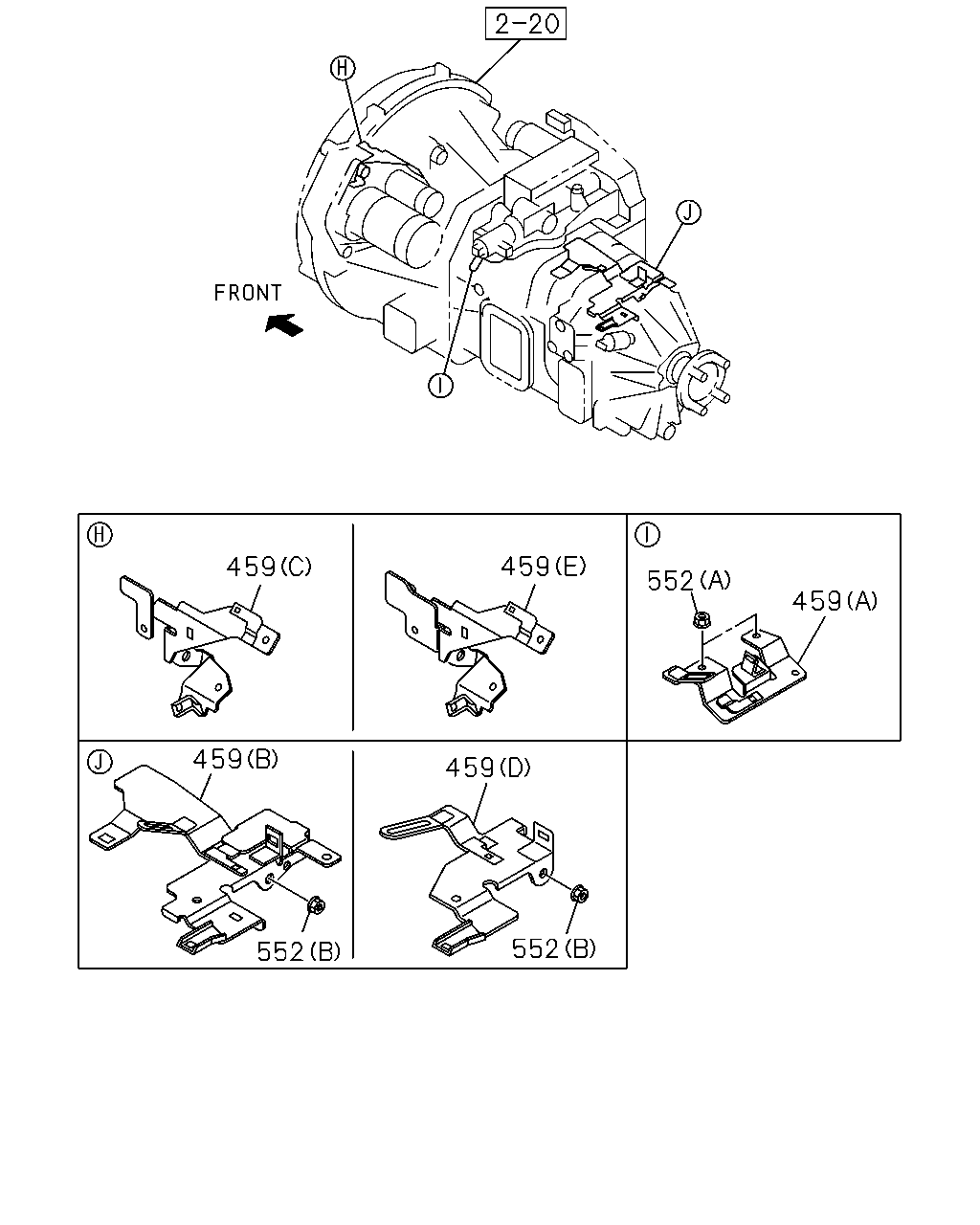

çizim 101481
459 459 552 459 459 459 552 552
BalonParca AdiParca NoAdetTipApplied Date
459 02.483 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 1004-
459 02.483 BRACKET; SUPPORT,HARNESS
(B) 		8-98030-990-2 01 1 1004-1109
459 02.483 BRACKET; SUPPORT,HARNESS
(D) 		8-98196-974-0 01 1 1110-
459 02.483 BRACKET; SUPPORT,HARNESS
(C) 		8-98081-708-0 01 1 1004-1205
459 02.483 BRACKET; SUPPORT,HARNESS
(E) 		8-98210-989-0 01 1 1206-
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1004-
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1004-
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1004-

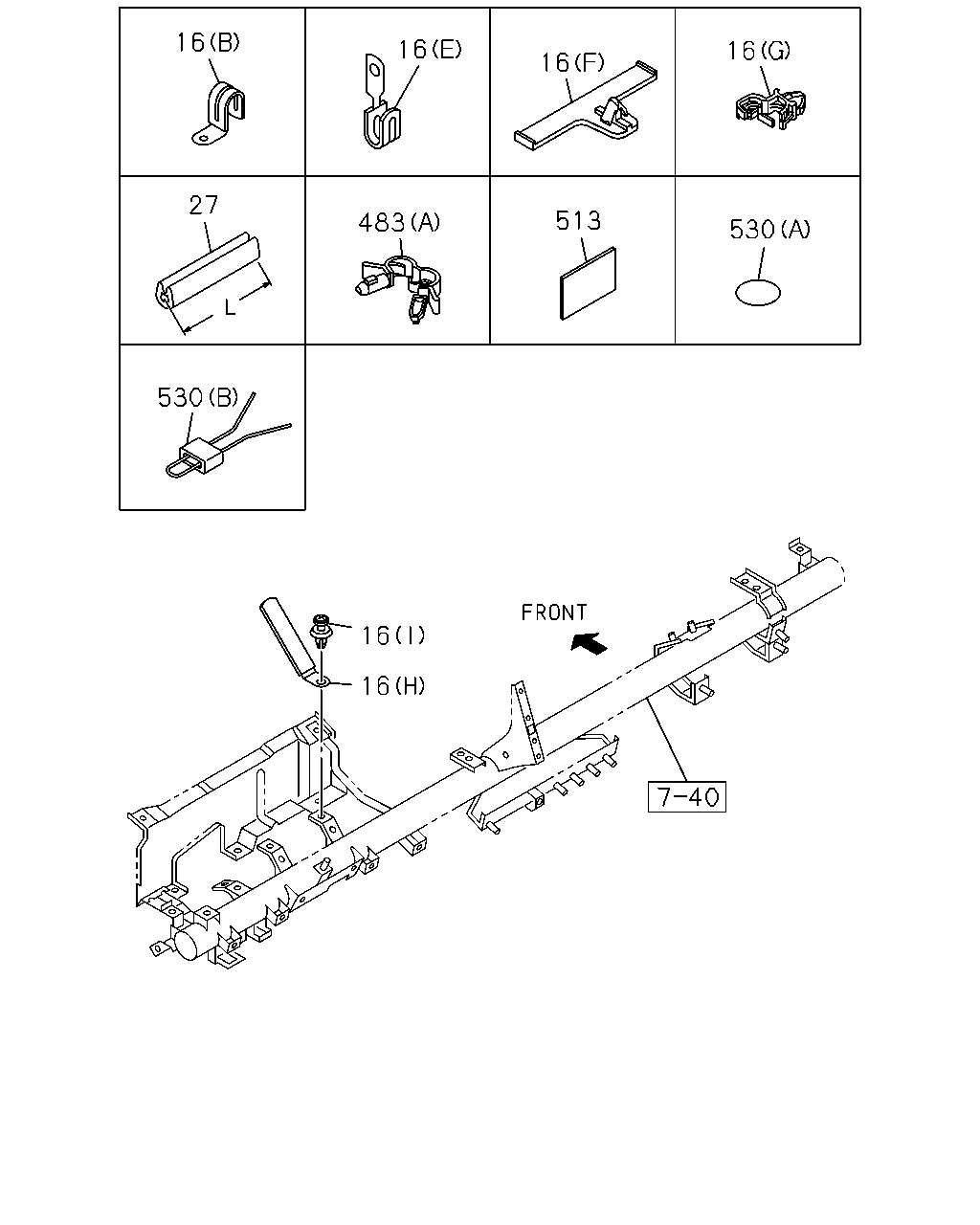

çizim 101519
16 16 16 16 530 513 483 27 530 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
HYDRO BRAKE BOOSTER(7QQ) (D) ID=11X2 L=20 		9-09535-036-0 02 1 1004-
16 02.559 CLIP; HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1004-
16 02.559 CLIP; HARNESS
03.162 (B) 		5-09709-095-0 01 1 1004-
16 02.559 CLIP; HARNESS
04.930 (H) L=91 ID=8.5 		8-94329-956-0 01 1 1004-
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 01 1 1004-
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1004-
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1004-
16 02.559 CLIP; HARNESS
16.578 (I) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1004-
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1004-
27 02.559 PROTECTOR; EDGE
COUNTRY UZBEKISTAN<CL4> 16.742 L=120 		1-73948-004-0 01 1 1410-
483 02.559 CLIP; ENG HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1009-
483 02.559 CLIP; ENG HARNESS
HYDRO BRAKE BOOSTER(7QQ) 02.575 (A) 		1-09987-161-0 02 1 1004-
483 02.559 CLIP; ENG HARNESS
03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1004-
513 02.559 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 1004-1309
513 02.559 TAPE; SOFT,HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 1004-1204
513 02.559 TAPE; SOFT,HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 1205-
513 02.559 TAPE; SOFT,HARNESS
130X80 		8-97304-373-0 01 1 1205-
530 02.559 SEAL; HARNESS
SPEED LIMITER 90KM(NMJ) 03.483 (B) 		8-97382-876-0 02 1 1004-
530 02.559 SEAL; HARNESS
16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 1004-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
