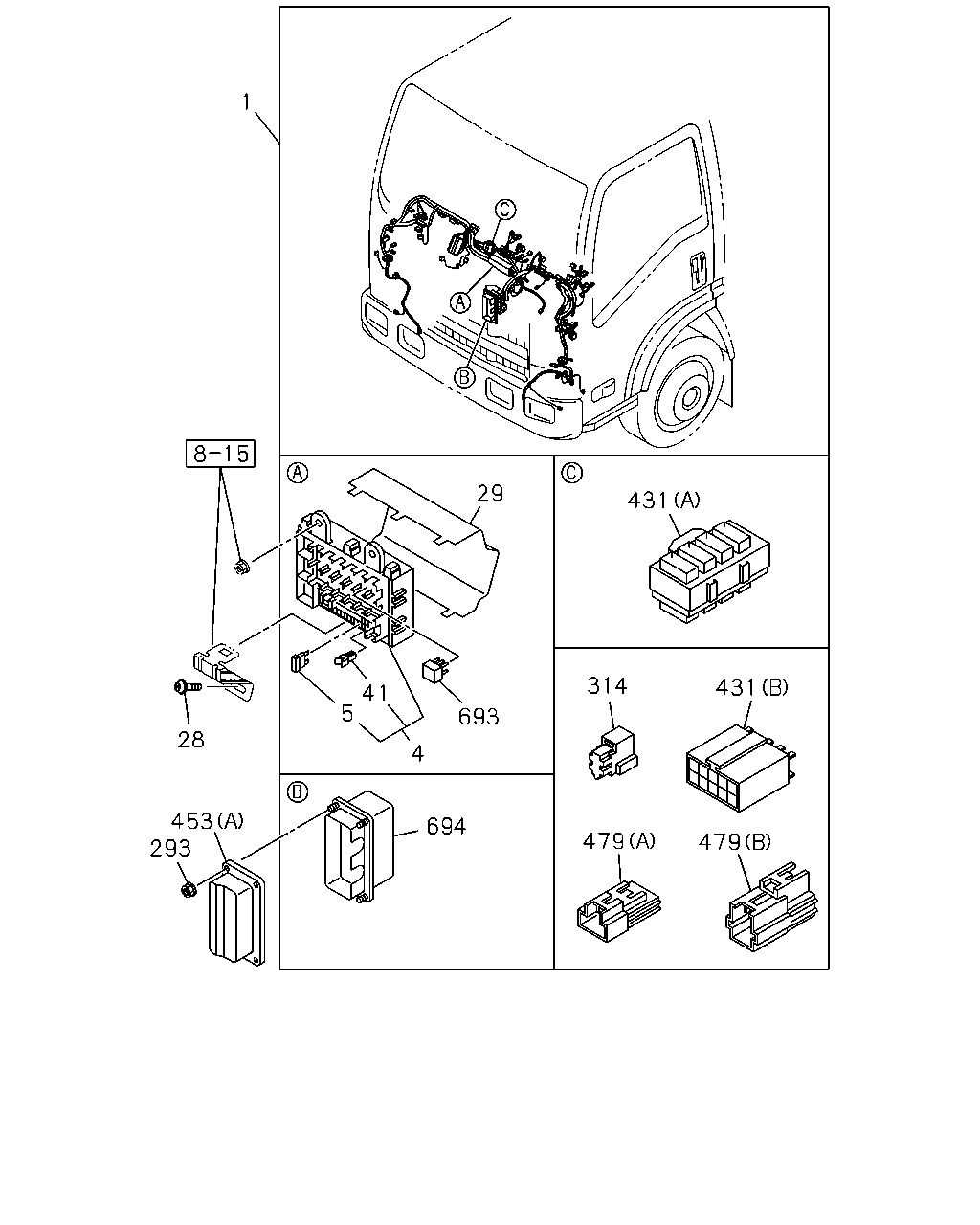

8-10 — WIRING HARNESS AND FUSE (#50993) — 111 parça

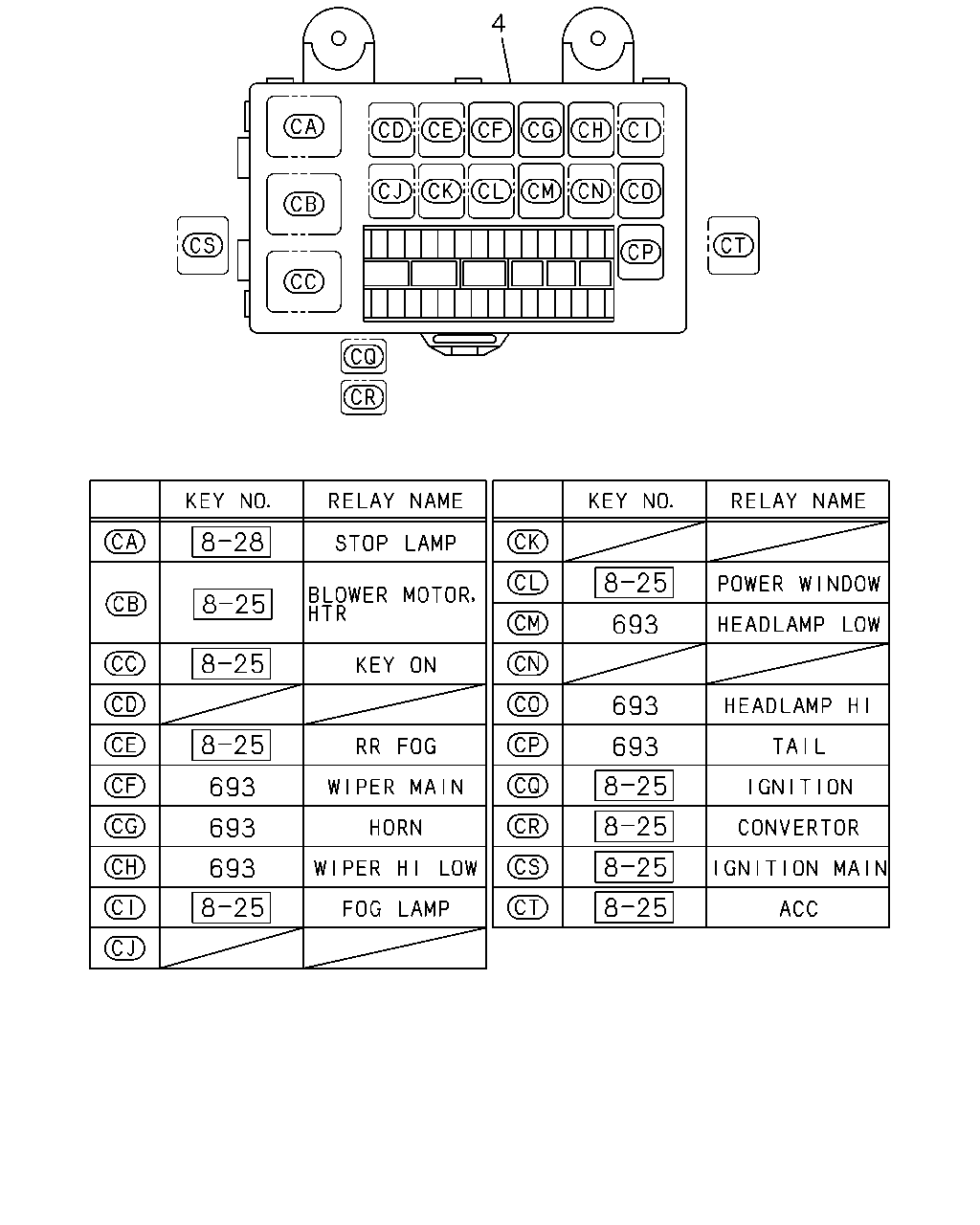

1 29 431 314 431 41 5 693 28 4 453 293 694 479 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB	8-98147-444-1	01	1	1004-1204
1	02.480 HARNESS; CAB	8-98207-579-0	01	1	1205-
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1004-
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1004-
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1004-
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1004-
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1004-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1004-
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1004-
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1004-
314	02.510 RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1004-1204
431	02.530 CONNECTOR; JOINT (B) 10P	8-97077-943-0	02	1	1004-1204
431	02.530 CONNECTOR; JOINT (A)	8-98046-206-0	01	1	1004-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	06	1	1004-1506
453	02.483 PROTECTOR; HARNESS HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	06	1	1004-1506
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	06	1	1507-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94417-716-0	06	1	1507-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98031-620-1	01	1	1004-1506
453	02.483 PROTECTOR; HARNESS HYDRO BRAKE BOOSTER(7QQ) (B)	8-98031-620-1	01	1	1004-1506
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98031-620-1	01	1	1507-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98031-620-1	01	1	1507-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1004-
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1004-
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1004-
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1004-
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	1004-1204
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1205-

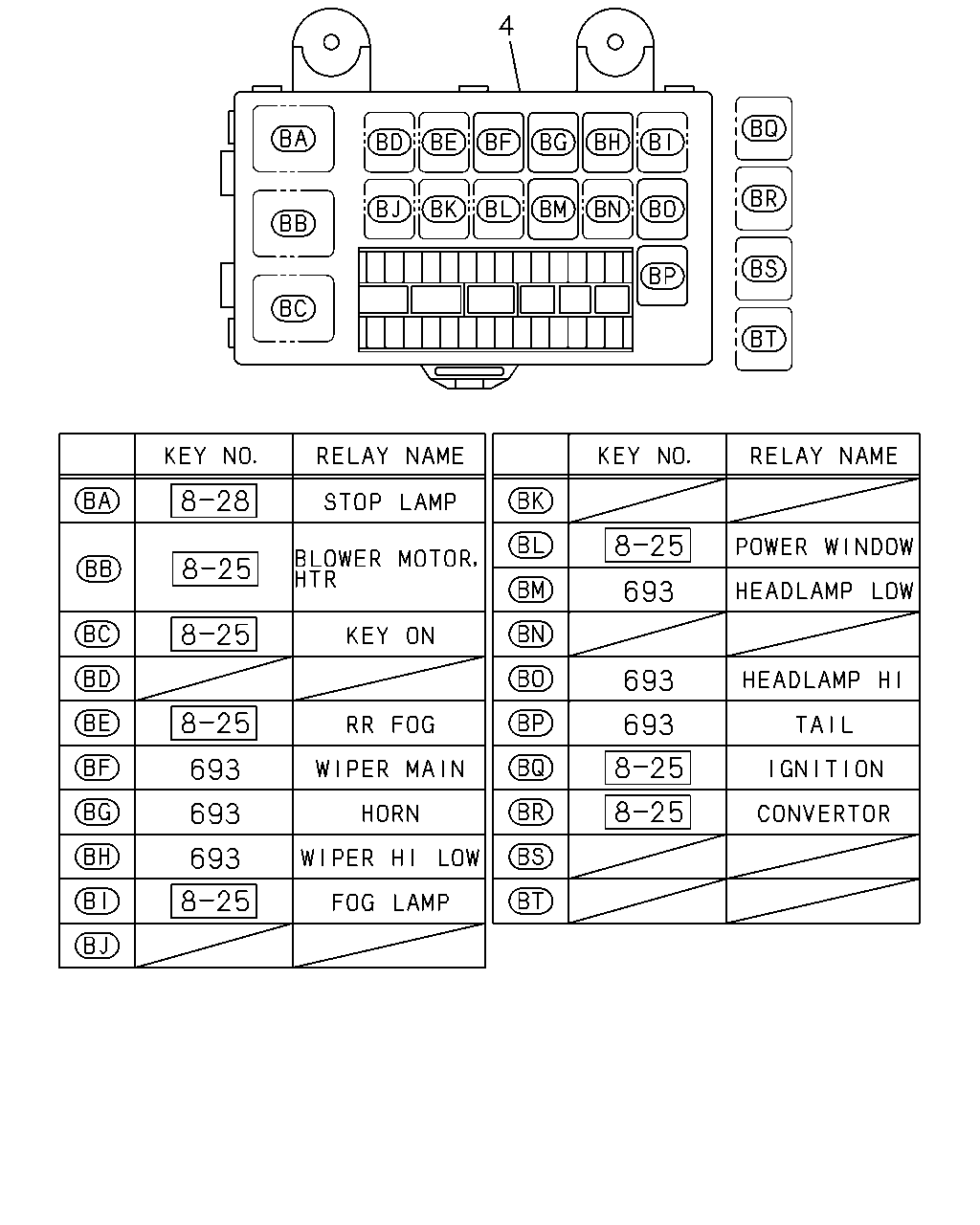

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1004-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1004-

228 626

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

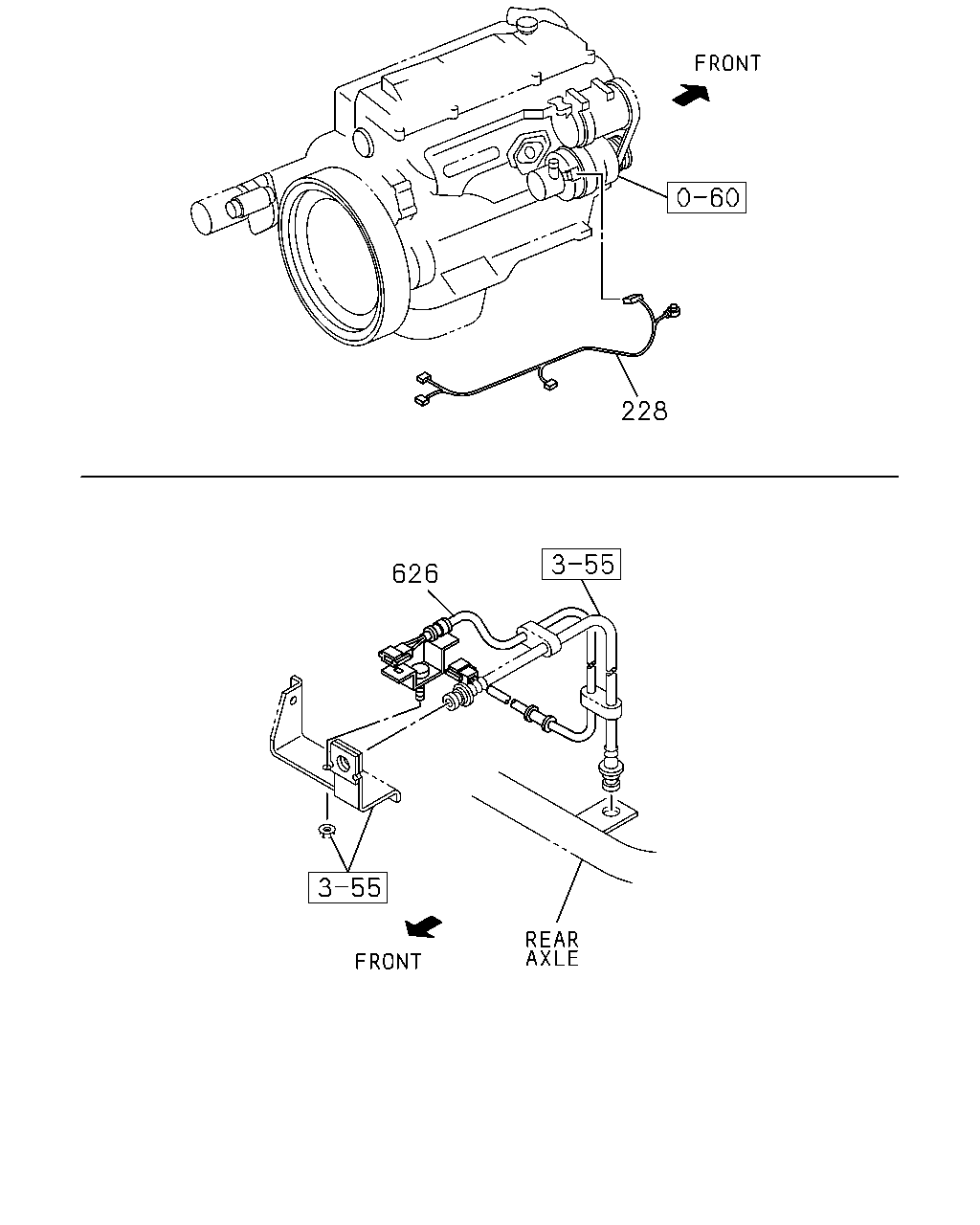

228	02.559 HARNESS; GEN HYDRO BRAKE BOOSTER(7QQ)	8-98164-722-0	01	1	1004-
228	02.559 HARNESS; GEN EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98113-872-2	01	1	1004-
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-968-1	01	1	1004-
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-969-1	01	1	1004-

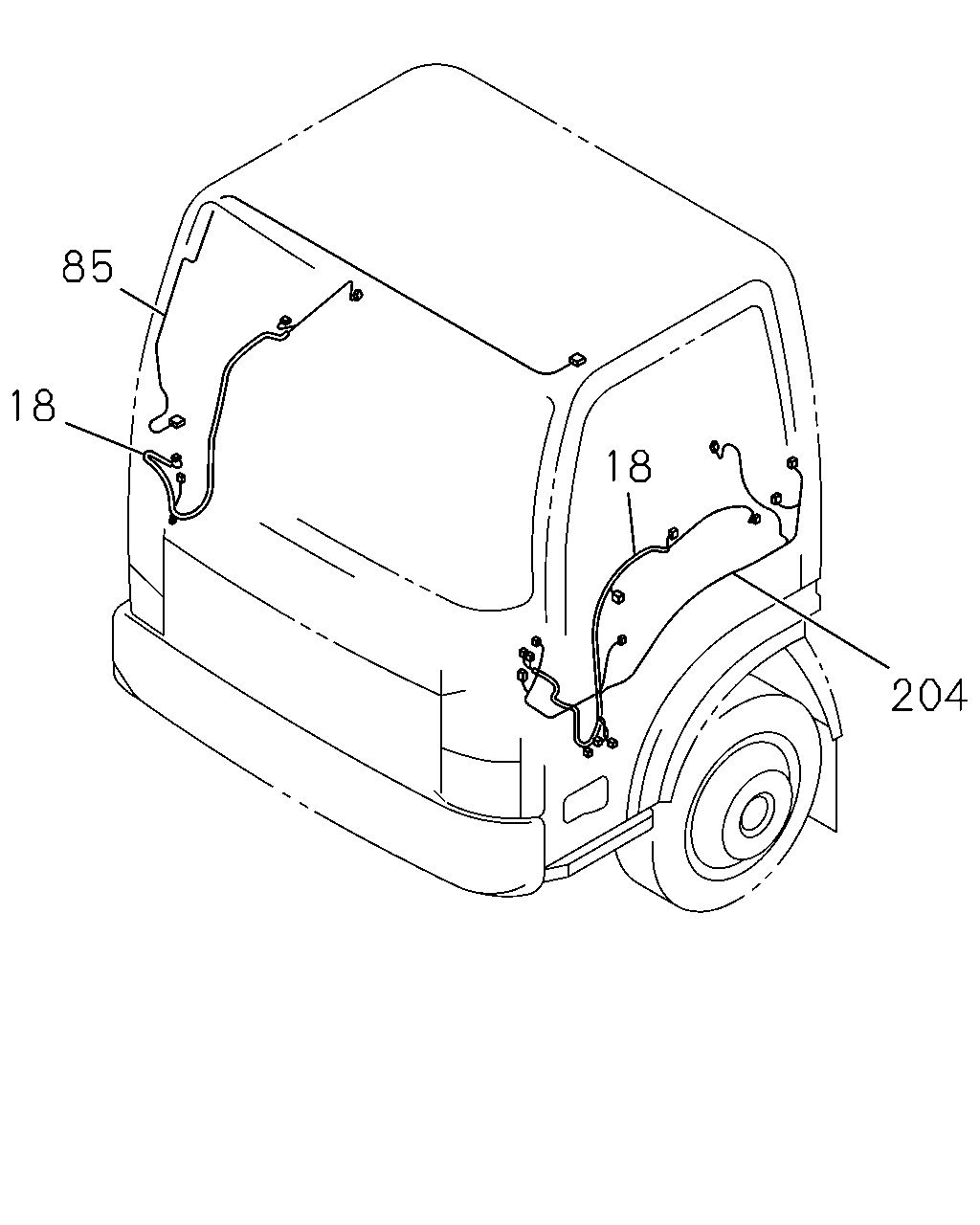

85 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87>	8-98077-592-3	01	1	1004-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87>	8-98077-600-3	01	1	1004-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87>	8-98071-080-3	01	1	1004-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87>	8-98071-088-3	01	1	1004-
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>	8-98077-591-2	01	1	1004-
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>	8-98077-599-2	01	1	1004-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87>	8-98071-079-2	01	1	1004-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87>	8-98071-087-2	01	1	1004-
85	06.495 HARNESS; ROOM LAMP	8-98050-518-3	01	1	1004-
204	02.559 HARNESS; CABLE,FLOOR	8-98070-799-5	01	1	1004-

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

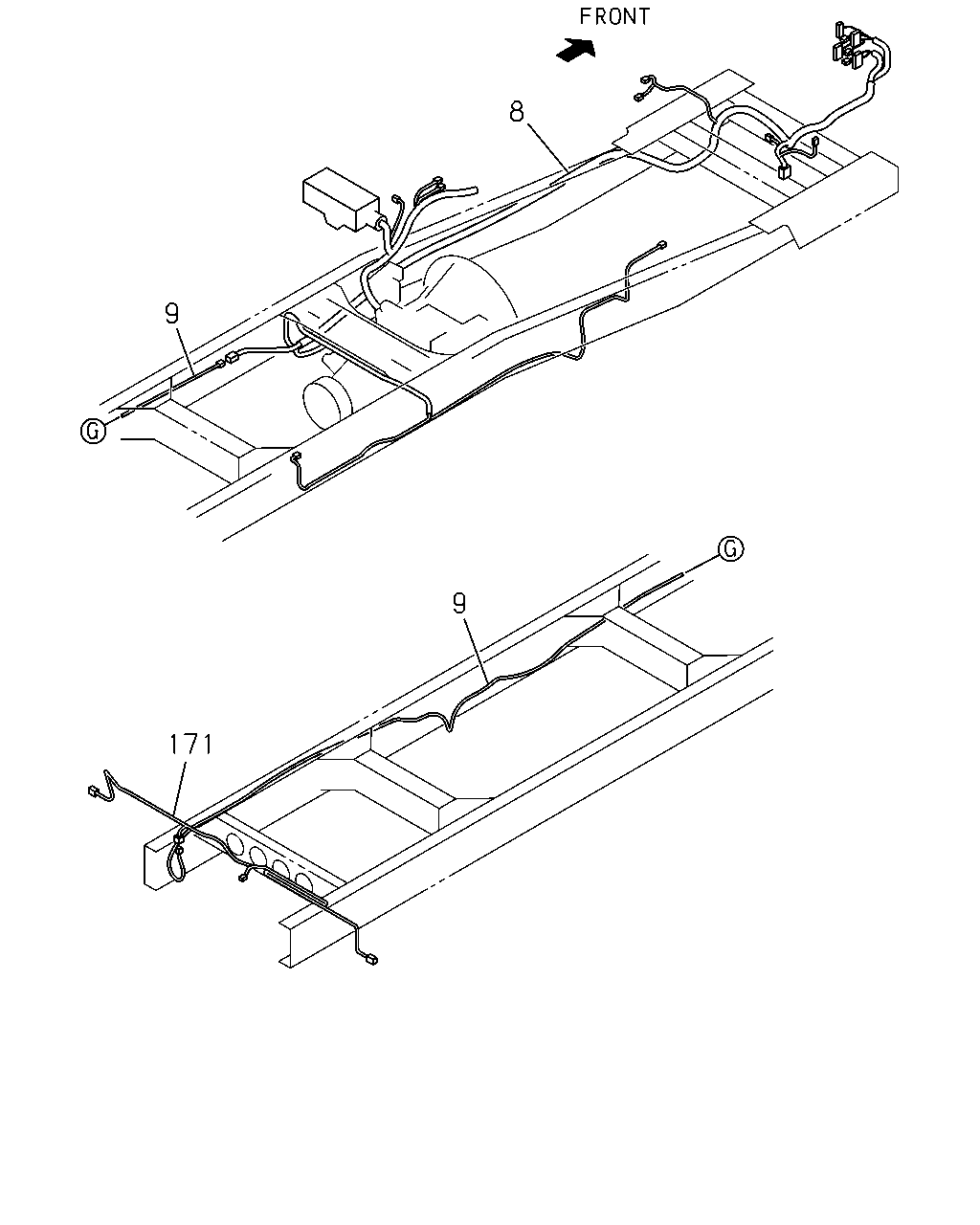

8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98276-762-0	01	1	1408-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98293-970-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98276-763-0	01	1	1408-1409
8	02.480 HARNESS; FRAME,FRT HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98293-971-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98276-761-0	01	1	1408-1409
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98293-969-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98113-869-6	01	1	1004-1407
8	02.480 HARNESS; FRAME,FRT HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98153-892-3	01	1	1004-1407
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98146-873-5	01	1	1004-1407
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-254-0	01	1	1004-
9	02.480 HARNESS; FRAME,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-249-0	01	1	1004-
171	02.596 HARNESS; CABLE,TAIL LAMP RR FOG LAMP<T79>	8-98070-319-1	01	1	1004-1009
171	02.596 HARNESS; CABLE,TAIL LAMP RR FOG LAMP<T79>	8-98156-025-0	01	1	1010-
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. RR FOG LAMP<T79>	8-98156-028-0	01	1	1004-

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1004-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1004-

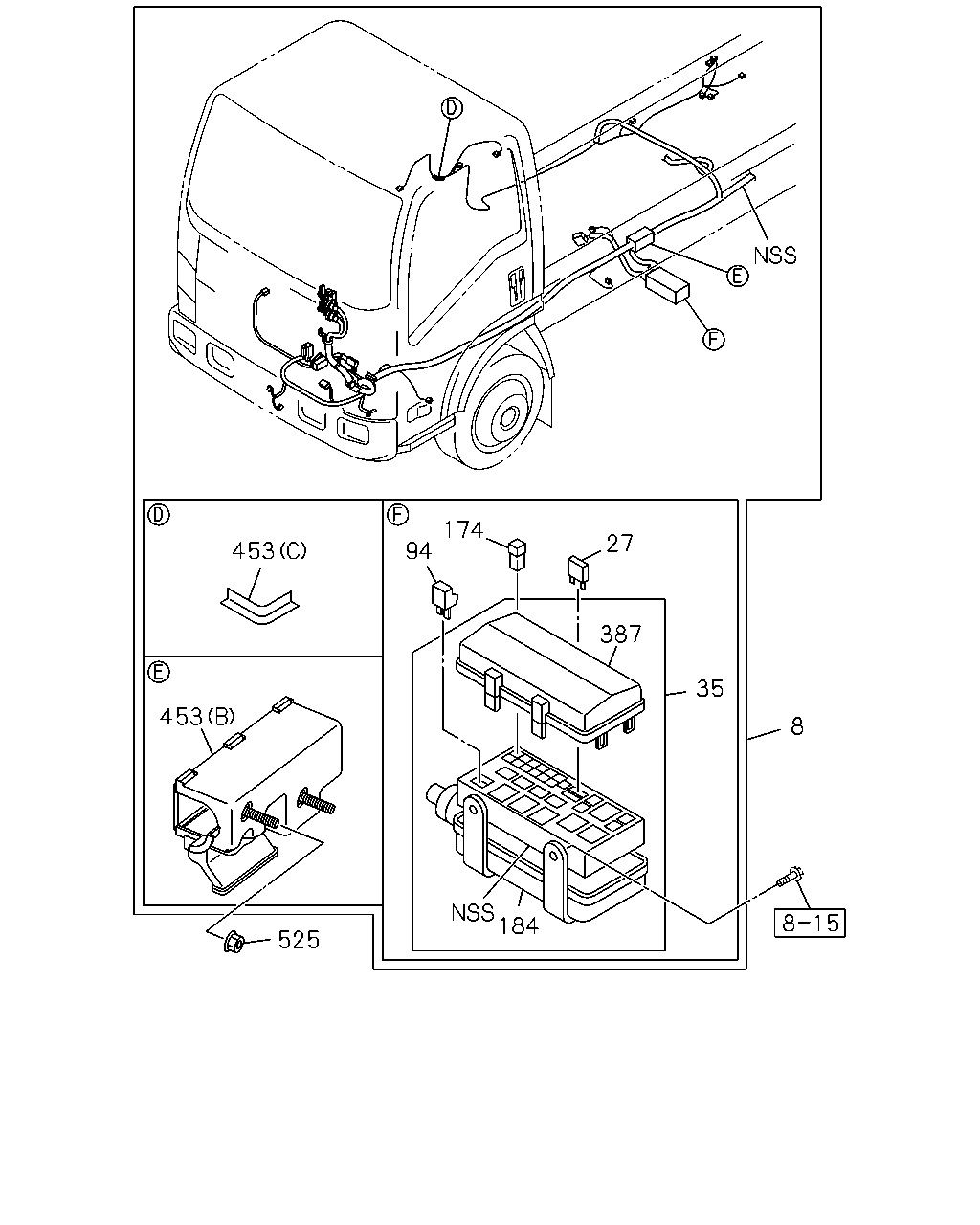

174 27 453 94 387 35 453 8 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98276-762-0	01	1	1408-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98293-970-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98276-763-0	01	1	1408-1409
8	02.480 HARNESS; FRAME,FRT HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98293-971-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98276-761-0	01	1	1408-1409
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98293-969-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98113-869-6	01	1	1004-1407
8	02.480 HARNESS; FRAME,FRT HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98153-892-3	01	1	1004-1407
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98146-873-5	01	1	1004-1407
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1004-
27	08.965 FUSE UNIT 02.485 15A BLUE	8-98054-258-0	AR	1	1004-
35	02.530 BOX; RELAY & FUSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98030-763-0	01	1	1004-1506
35	02.530 BOX; RELAY & FUSE HYDRO BRAKE BOOSTER(7QQ)	8-98030-763-0	01	1	1004-1506
35	02.530 BOX; RELAY & FUSE 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98030-763-0	01	1	1507-
35	02.530 BOX; RELAY & FUSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-763-0	01	1	1507-
94	02.483 DIODE; FRAME HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) BLACK 2P-1.5A	8-94422-639-1	01	1	1004-1506
94	02.483 DIODE; FRAME HARNESS HYDRO BRAKE BOOSTER(7QQ) BLACK 2P-1.5A	8-94422-639-1	01	1	1004-1506
94	02.483 DIODE; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) BLACK 2P-1.5A	8-94422-639-1	01	1	1507-
94	02.483 DIODE; FRAME HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BLACK 2P-1.5A	8-94422-639-1	01	1	1507-
94	02.483 DIODE; FRAME HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 3.0A	8-98005-936-0	02	1	1004-1506
94	02.483 DIODE; FRAME HARNESS HYDRO BRAKE BOOSTER(7QQ) 3.0A	8-98005-936-0	02	1	1004-1506
94	02.483 DIODE; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 3.0A	8-98005-936-0	02	1	1507-
94	02.483 DIODE; FRAME HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 3.0A	8-98005-936-0	02	1	1507-
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1004-
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1004-
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1004-
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1004-
184	02.559 COVER; RELAY & FUSE BOX EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98030-766-0	01	1	1004-1506
184	02.559 COVER; RELAY & FUSE BOX HYDRO BRAKE BOOSTER(7QQ)	8-98030-766-0	01	1	1004-1506
184	02.559 COVER; RELAY & FUSE BOX 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98030-766-0	01	1	1507-
184	02.559 COVER; RELAY & FUSE BOX EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-766-0	01	1	1507-
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1004-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	06	1	1004-1506
453	02.483 PROTECTOR; HARNESS HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	06	1	1004-1506
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	06	1	1507-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94417-716-0	06	1	1507-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98031-620-1	01	1	1004-1506
453	02.483 PROTECTOR; HARNESS HYDRO BRAKE BOOSTER(7QQ) (B)	8-98031-620-1	01	1	1004-1506
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98031-620-1	01	1	1507-
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98031-620-1	01	1	1507-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1004-
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1004-

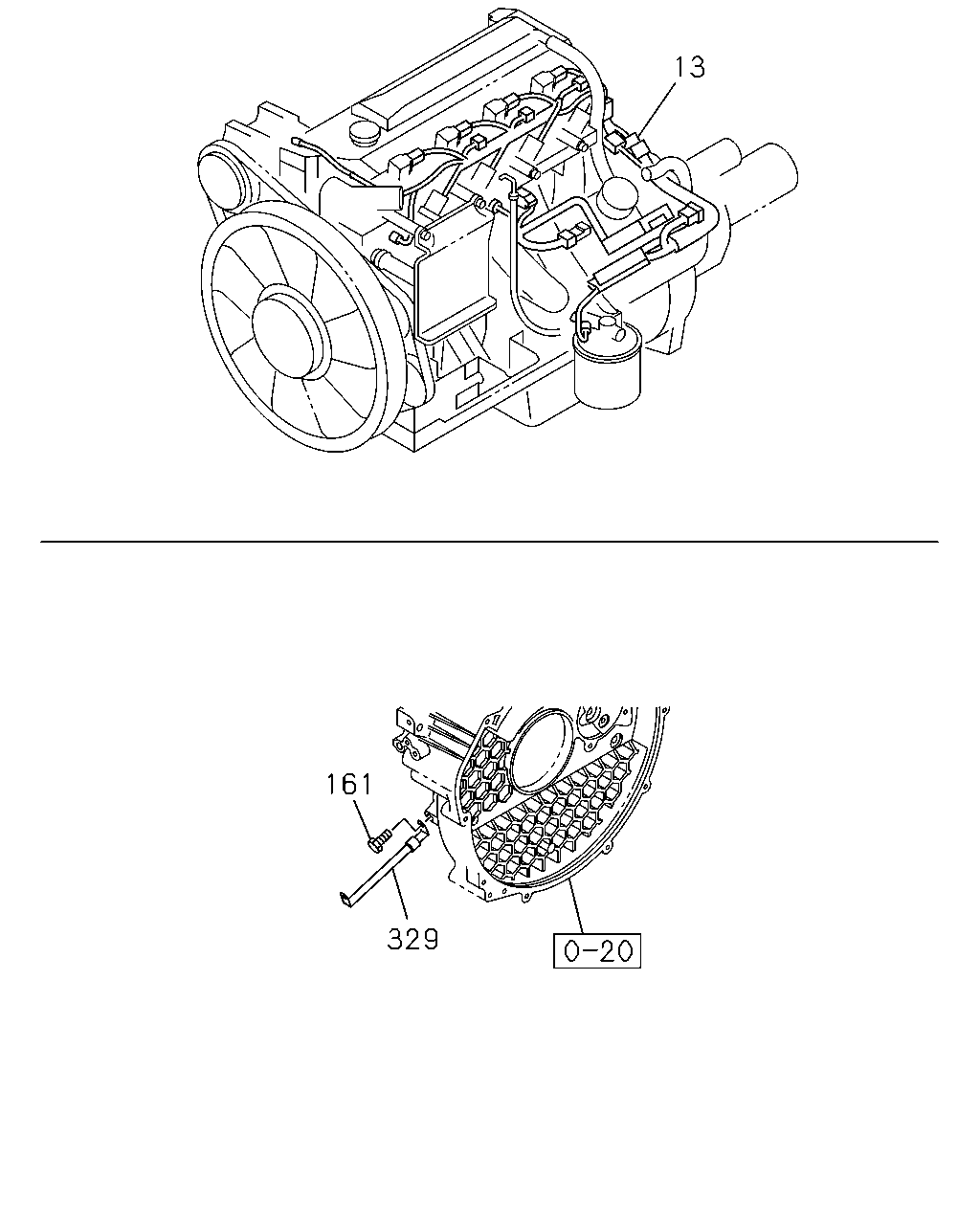

13 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG HYDRO BRAKE BOOSTER(7QQ)	8-98157-698-0	01	1	1004-
13	02.525 HARNESS; ENG EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98157-697-0	01	1	1004-
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1004-
329	02.480 CABLE; ENG TO FRAME	8-98123-064-0	01	1	1004-

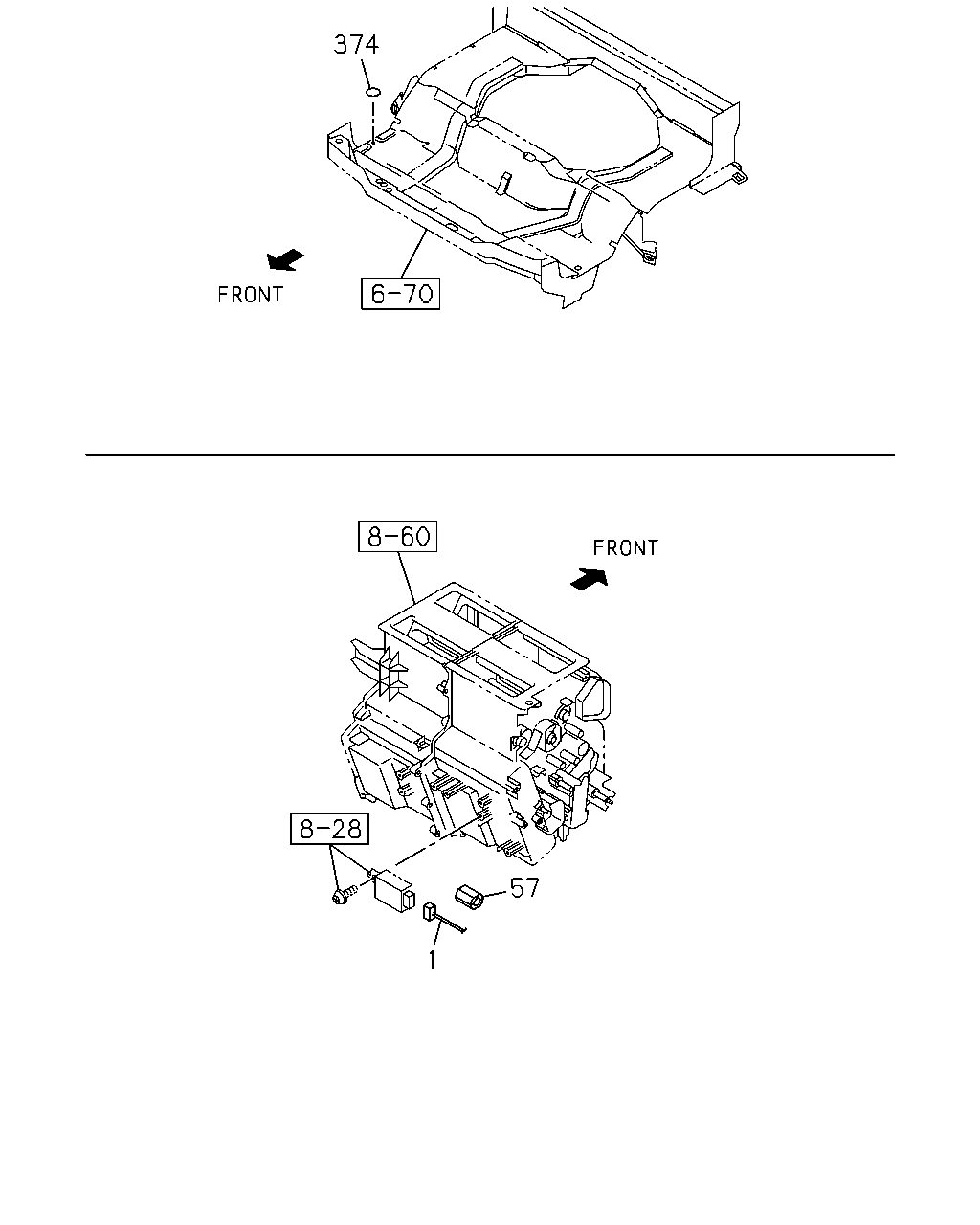

374 57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB	8-98147-444-1	01	1	1004-1204
1	02.480 HARNESS; CAB	8-98207-579-0	01	1	1205-
57	02.483 FILTER; FUSE BOX	8-98211-338-0	01	1	1205-
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=32 BLACK	8-98031-126-0	01	1	1004-
