Sayfa 8-03 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51245 - NPR CNG-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶

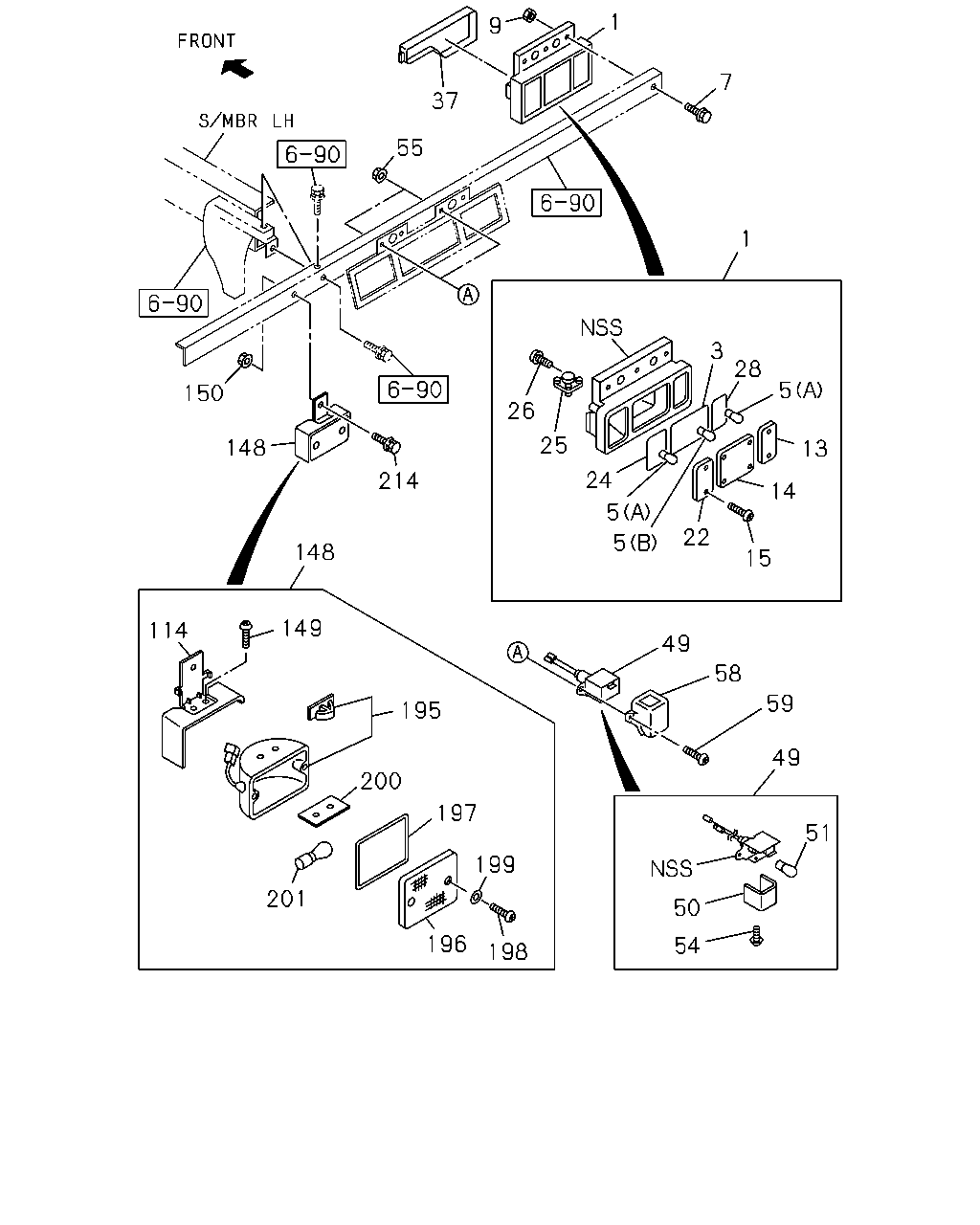

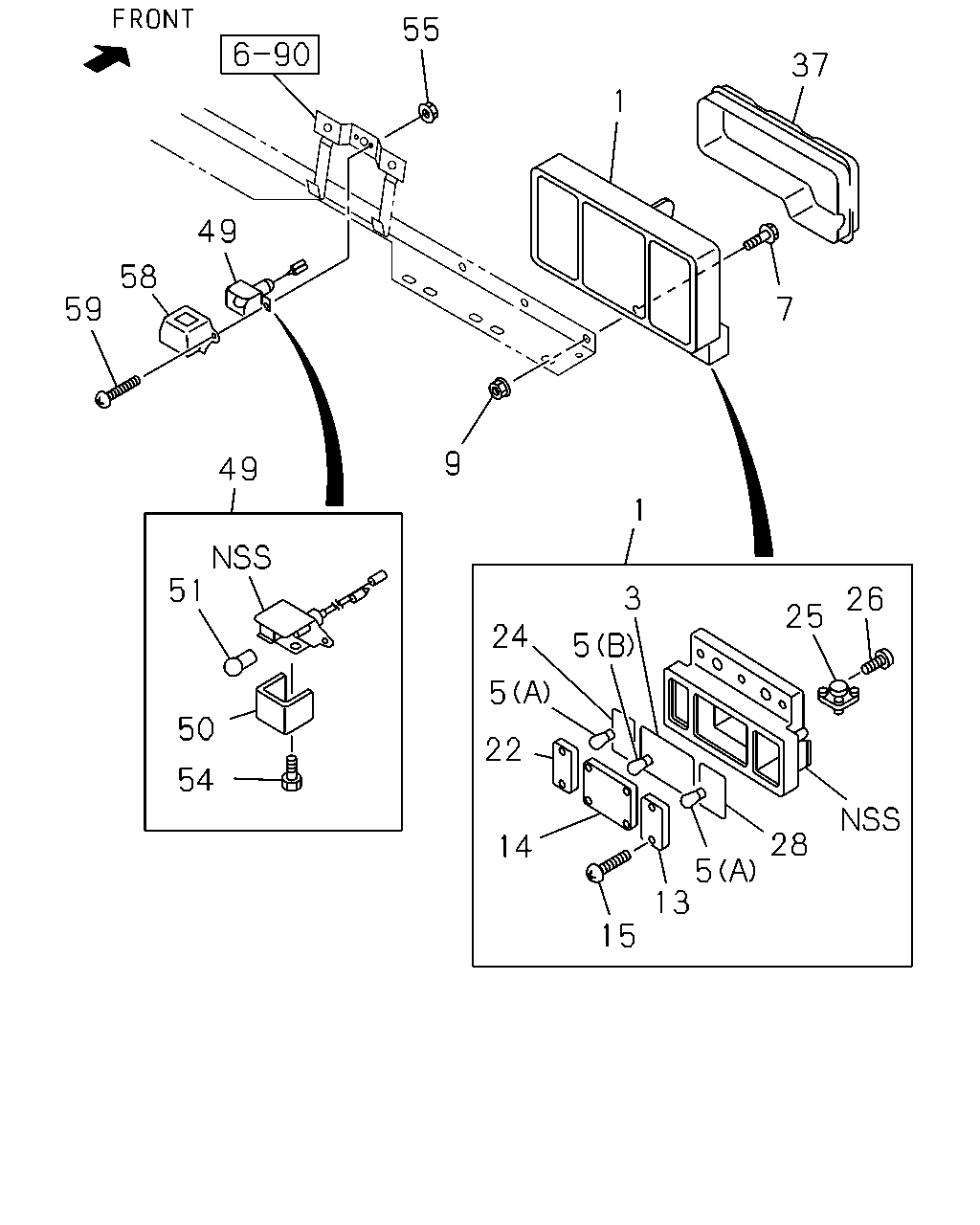

8-03 — LAMP; REAR AND REAR SIDE (#50991) — 150 parça

55 37 1 49 58 59 7 9 49 1 51 3 26 25 24 5 5 50 22 54 28 14 5 13 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.679 LAMP ASM; RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-165-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB COUNTRY UZBEKISTAN<CL4>	8-98002-165-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5> BACK BUZZER<YM9>	8-98002-166-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB COUNTRY UZBEKISTAN<CL4> BACK BUZZER<YM9>	8-98002-166-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BACK BUZZER<YM9>	8-98002-164-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB COUNTRY UZBEKISTAN<CL4> EXC. BACK BUZZER<YM9>	8-98002-164-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98034-328-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. COUNTRY UZBEKISTAN<CL4>	8-98034-328-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98034-325-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB EXC. COUNTRY UZBEKISTAN<CL4>	8-98034-325-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BACK BUZZER<YM9>	8-98034-324-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB EXC. COUNTRY UZBEKISTAN<CL4>,BACK BUZZER<YM9>	8-98034-324-0	01	1	1510-
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1004-
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1004-
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1004-
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1004-
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1004-
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1004-
7	02.664 SCREW; RR COMB LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> M6X20	8-94402-623-0	06	1	1004-1509
7	02.664 SCREW; RR COMB LAMP COUNTRY UZBEKISTAN<CL4> M6X20	8-94402-623-0	06	1	1510-
7	02.664 SCREW; RR COMB LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X20	8-94402-623-0	04	1	1004-1509
7	02.664 SCREW; RR COMB LAMP EXC. COUNTRY UZBEKISTAN<CL4> M6X20	8-94402-623-0	04	1	1510-
9	02.689 NUT; LAMP,RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5> 07.829 M6 FLANGE	5-09440-004-0	06	1	1004-1509
9	02.689 NUT; LAMP,RR COMB COUNTRY UZBEKISTAN<CL4> 07.829 M6 FLANGE	5-09440-004-0	06	1	1510-
9	02.689 NUT; LAMP,RR COMB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.829 M6 FLANGE	5-09440-004-0	04	1	1004-1509
9	02.689 NUT; LAMP,RR COMB EXC. COUNTRY UZBEKISTAN<CL4> 07.829 M6 FLANGE	5-09440-004-0	04	1	1510-
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	1004-
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	1004-
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1004-
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1004-
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1004-
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1004-
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1004-
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1004-
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1004-
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1004-
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	1004-
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1004-
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1004-
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1004-
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1004-
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1004-
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	1004-
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	1004-
49	02.700 LAMP; LICENSE PLATE 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 5W	8-97105-380-0	02	1	1004-1509
49	02.700 LAMP; LICENSE PLATE 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 5W	8-98329-430-0	02	1	1510-
49	02.700 LAMP; LICENSE PLATE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 10W	8-98029-477-0	01	1	1004-1509
49	02.700 LAMP; LICENSE PLATE EXC. COUNTRY UZBEKISTAN<CL4> 24V 10W	8-98029-477-0	01	1	1510-
50	02.709 LENS; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97108-212-0	02	1	1004-
50	02.709 LENS; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-82125-004-0	01	1	1004-1509
50	02.709 LENS; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4>	5-82125-004-0	01	1	1510-
51	08.991 BULB; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 5W	1-82194-039-0	02	1	1004-
51	08.991 BULB; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 10W	1-82194-037-0	01	1	1004-1509
51	08.991 BULB; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4> 24V 10W	1-82194-037-0	01	1	1510-
54	02.708 SCREW; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.709 M4X8	8-94419-312-0	02	1	1004-
54	02.708 SCREW; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.709 M4X8	8-94419-312-0	01	1	1004-1509
54	02.708 SCREW; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4> 02.709 M4X8	8-94419-312-0	01	1	1510-
55	02.708 NUT; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.444 M5 FLANGE	8-94153-039-0	04	1	1004-1509
55	02.708 NUT; LICENSE PLATE LAMP COUNTRY UZBEKISTAN<CL4> 03.444 M5 FLANGE	8-94153-039-0	04	1	1510-
55	02.708 NUT; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.444 M5 FLANGE	8-94153-039-0	02	1	1004-1509
55	02.708 NUT; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4> 03.444 M5 FLANGE	8-94153-039-0	02	1	1510-
58	02.705 COVER; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97076-590-1	02	1	1004-1509
58	02.705 COVER; LICENSE PLATE LAMP COUNTRY UZBEKISTAN<CL4>	8-97076-590-1	02	1	1510-
58	02.705 COVER; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97076-590-1	01	1	1004-1509
58	02.705 COVER; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4>	8-97076-590-1	01	1	1510-
59	02.708 SCREW; TAP,LICENSE LAMP BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 14.550 M5X20	9-93490-520-0	04	1	1004-1509
59	02.708 SCREW; TAP,LICENSE LAMP BODY COUNTRY UZBEKISTAN<CL4> 14.550 M5X20	9-93490-520-0	04	1	1510-
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 14.550 M5X20	9-93490-520-0	02	1	1004-1509
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. COUNTRY UZBEKISTAN<CL4> 14.550 M5X20	9-93490-520-0	02	1	1510-

1 9 7 37 55 1 3 28 5 150 26 25 148 13 24 214 14 5 22 5 148 15 149 114 49 58 59 195 49 200 197 51 199 201 50 196 54 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.679 LAMP ASM; RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-165-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB COUNTRY UZBEKISTAN<CL4>	8-98002-165-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5> BACK BUZZER<YM9>	8-98002-166-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB COUNTRY UZBEKISTAN<CL4> BACK BUZZER<YM9>	8-98002-166-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BACK BUZZER<YM9>	8-98002-164-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB COUNTRY UZBEKISTAN<CL4> EXC. BACK BUZZER<YM9>	8-98002-164-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98034-328-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. COUNTRY UZBEKISTAN<CL4>	8-98034-328-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98034-325-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB EXC. COUNTRY UZBEKISTAN<CL4>	8-98034-325-0	01	1	1510-
1	02.679 LAMP ASM; RR COMB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BACK BUZZER<YM9>	8-98034-324-0	01	1	1004-1509
1	02.679 LAMP ASM; RR COMB EXC. COUNTRY UZBEKISTAN<CL4>,BACK BUZZER<YM9>	8-98034-324-0	01	1	1510-
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1004-
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1004-
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1004-
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1004-
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1004-
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1004-
7	02.664 SCREW; RR COMB LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> M6X20	8-94402-623-0	06	1	1004-1509
7	02.664 SCREW; RR COMB LAMP COUNTRY UZBEKISTAN<CL4> M6X20	8-94402-623-0	06	1	1510-
7	02.664 SCREW; RR COMB LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X20	8-94402-623-0	04	1	1004-1509
7	02.664 SCREW; RR COMB LAMP EXC. COUNTRY UZBEKISTAN<CL4> M6X20	8-94402-623-0	04	1	1510-
9	02.689 NUT; LAMP,RR COMB 4 WHEEL ANTI LOCK BRAKE<JE5> 07.829 M6 FLANGE	5-09440-004-0	06	1	1004-1509
9	02.689 NUT; LAMP,RR COMB COUNTRY UZBEKISTAN<CL4> 07.829 M6 FLANGE	5-09440-004-0	06	1	1510-
9	02.689 NUT; LAMP,RR COMB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.829 M6 FLANGE	5-09440-004-0	04	1	1004-1509
9	02.689 NUT; LAMP,RR COMB EXC. COUNTRY UZBEKISTAN<CL4> 07.829 M6 FLANGE	5-09440-004-0	04	1	1510-
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	1004-
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	1004-
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1004-
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1004-
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1004-
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1004-
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1004-
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1004-
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1004-
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1004-
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	1004-
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1004-
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1004-
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1004-
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1004-
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1004-
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	1004-
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	1004-
49	02.700 LAMP; LICENSE PLATE 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 5W	8-97105-380-0	02	1	1004-1509
49	02.700 LAMP; LICENSE PLATE 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 5W	8-98329-430-0	02	1	1510-
49	02.700 LAMP; LICENSE PLATE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 10W	8-98029-477-0	01	1	1004-1509
49	02.700 LAMP; LICENSE PLATE EXC. COUNTRY UZBEKISTAN<CL4> 24V 10W	8-98029-477-0	01	1	1510-
50	02.709 LENS; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97108-212-0	02	1	1004-
50	02.709 LENS; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-82125-004-0	01	1	1004-1509
50	02.709 LENS; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4>	5-82125-004-0	01	1	1510-
51	08.991 BULB; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 5W	1-82194-039-0	02	1	1004-
51	08.991 BULB; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 10W	1-82194-037-0	01	1	1004-1509
51	08.991 BULB; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4> 24V 10W	1-82194-037-0	01	1	1510-
54	02.708 SCREW; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.709 M4X8	8-94419-312-0	02	1	1004-
54	02.708 SCREW; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.709 M4X8	8-94419-312-0	01	1	1004-1509
54	02.708 SCREW; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4> 02.709 M4X8	8-94419-312-0	01	1	1510-
55	02.708 NUT; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.444 M5 FLANGE	8-94153-039-0	04	1	1004-1509
55	02.708 NUT; LICENSE PLATE LAMP COUNTRY UZBEKISTAN<CL4> 03.444 M5 FLANGE	8-94153-039-0	04	1	1510-
55	02.708 NUT; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.444 M5 FLANGE	8-94153-039-0	02	1	1004-1509
55	02.708 NUT; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4> 03.444 M5 FLANGE	8-94153-039-0	02	1	1510-
58	02.705 COVER; LICENSE PLATE LAMP 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97076-590-1	02	1	1004-1509
58	02.705 COVER; LICENSE PLATE LAMP COUNTRY UZBEKISTAN<CL4>	8-97076-590-1	02	1	1510-
58	02.705 COVER; LICENSE PLATE LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97076-590-1	01	1	1004-1509
58	02.705 COVER; LICENSE PLATE LAMP EXC. COUNTRY UZBEKISTAN<CL4>	8-97076-590-1	01	1	1510-
59	02.708 SCREW; TAP,LICENSE LAMP BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 14.550 M5X20	9-93490-520-0	04	1	1004-1509
59	02.708 SCREW; TAP,LICENSE LAMP BODY COUNTRY UZBEKISTAN<CL4> 14.550 M5X20	9-93490-520-0	04	1	1510-
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 14.550 M5X20	9-93490-520-0	02	1	1004-1509
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. COUNTRY UZBEKISTAN<CL4> 14.550 M5X20	9-93490-520-0	02	1	1510-
114	02.679 BRACKET; RR FOG LAMP RR FOG LAMP<T79>	8-97108-583-0	01	1	1004-
148	02.679 LAMP ASM; RR FOG RR FOG LAMP<T79>	8-97181-002-0	01	1	1004-
149	02.689 SCREW; BRKT TO LAMP BODY RR FOG LAMP<T79>	8-94336-372-0	02	1	1004-
150	02.664 NUT; RR FOG LAMP RR FOG LAMP<T79> 07.829 M6 FLANGE	5-09440-004-0	01	1	1004-
195	02.679 LAMP UNIT; RR FOG RR FOG LAMP<T79>	8-94336-322-0	01	1	1004-
196	02.679 LENS; RR FOG LAMP RR FOG LAMP<T79>	8-94336-325-0	01	1	1004-
197	02.679 GASKET; RR FOG LAMP RR FOG LAMP<T79>	8-94336-324-0	01	1	1004-
198	02.688 SCREW; LENS TO BODY RR FOG LAMP<T79>	0-71190-416-0	02	1	1004-
199	02.689 WASHER; LENS,RR FOG LAMP RR FOG LAMP<T79>	8-94336-326-0	02	1	1004-
200	02.679 PLATE; SET,RR FOG LAMP RR FOG LAMP<T79>	8-94336-323-0	01	1	1004-
201	08.991 BULB; RR FOG LAMP RR FOG LAMP<T79> 24V 21W	1-82194-036-0	01	1	1004-
214	02.679 BOLT; RR FOG LAMP RR FOG LAMP<T79> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
