Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#5099) — 455 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

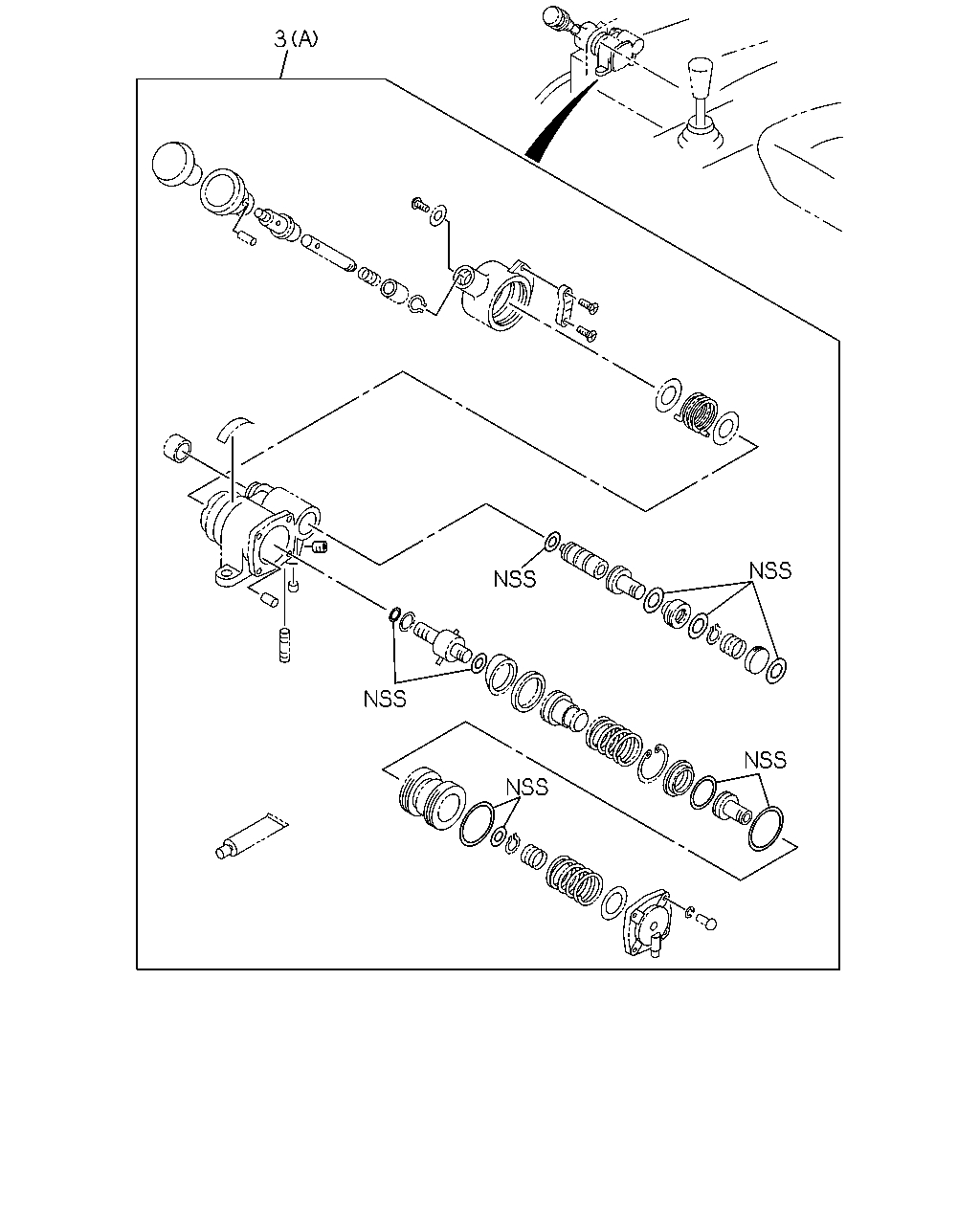

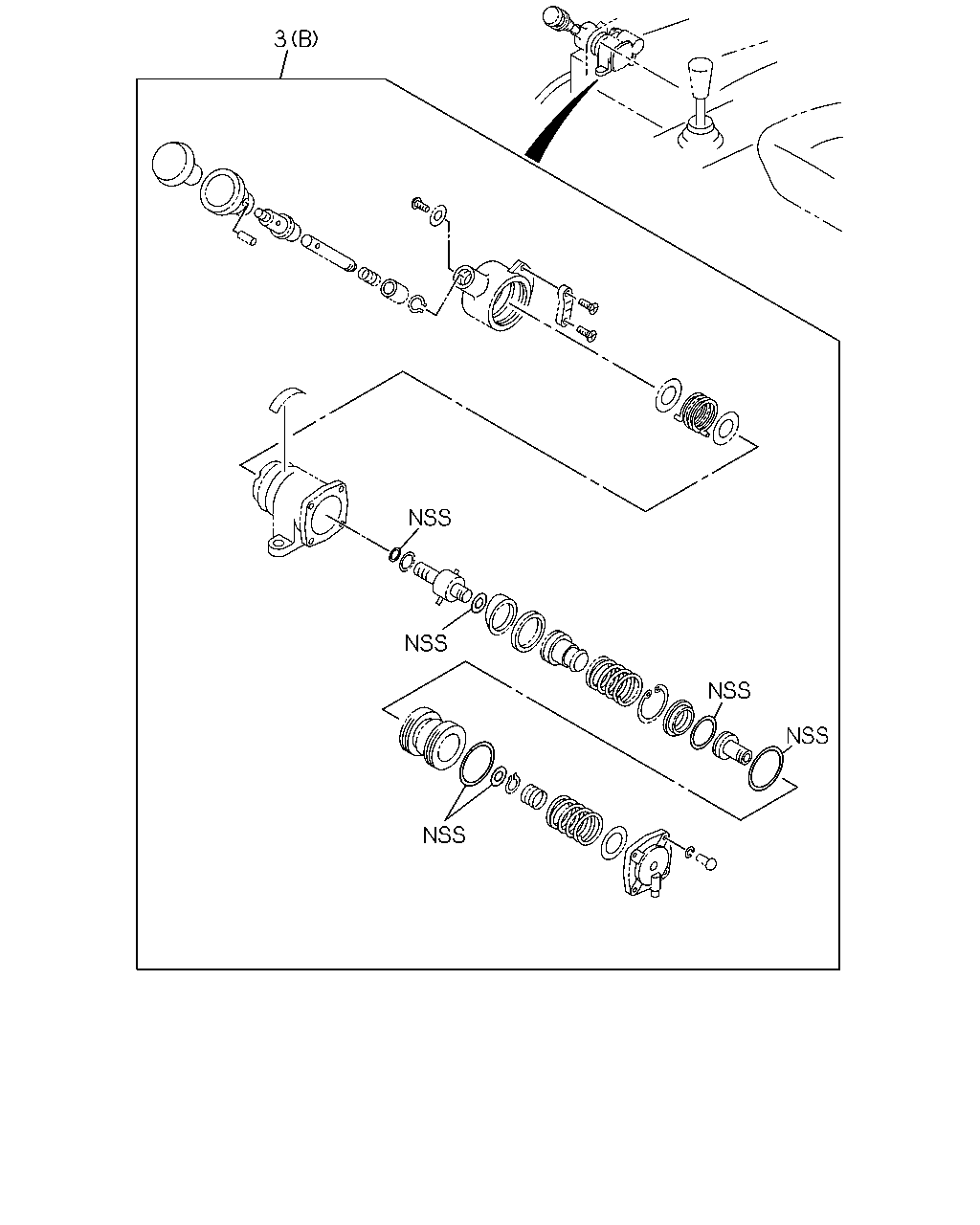

3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48469-096-0	01	1	9606-9701
3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-48469-096-0	01	1	9702-9702
3	REPAIR KIT; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-096-0	01	1	9703-9905
3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-083-0	01	1	9606-9905
3	REPAIR KIT; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (A)	1-48469-083-0	01	1	9906-

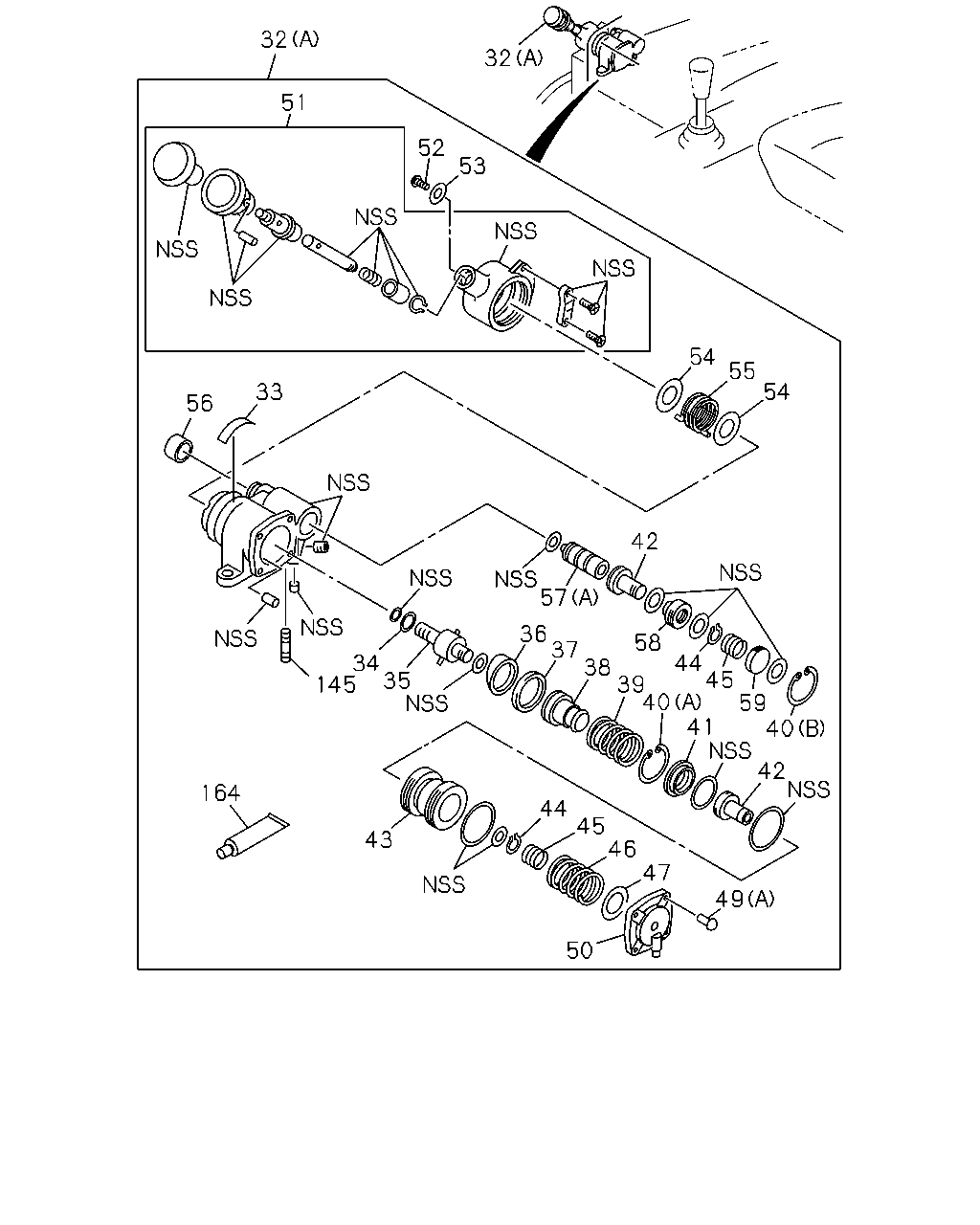

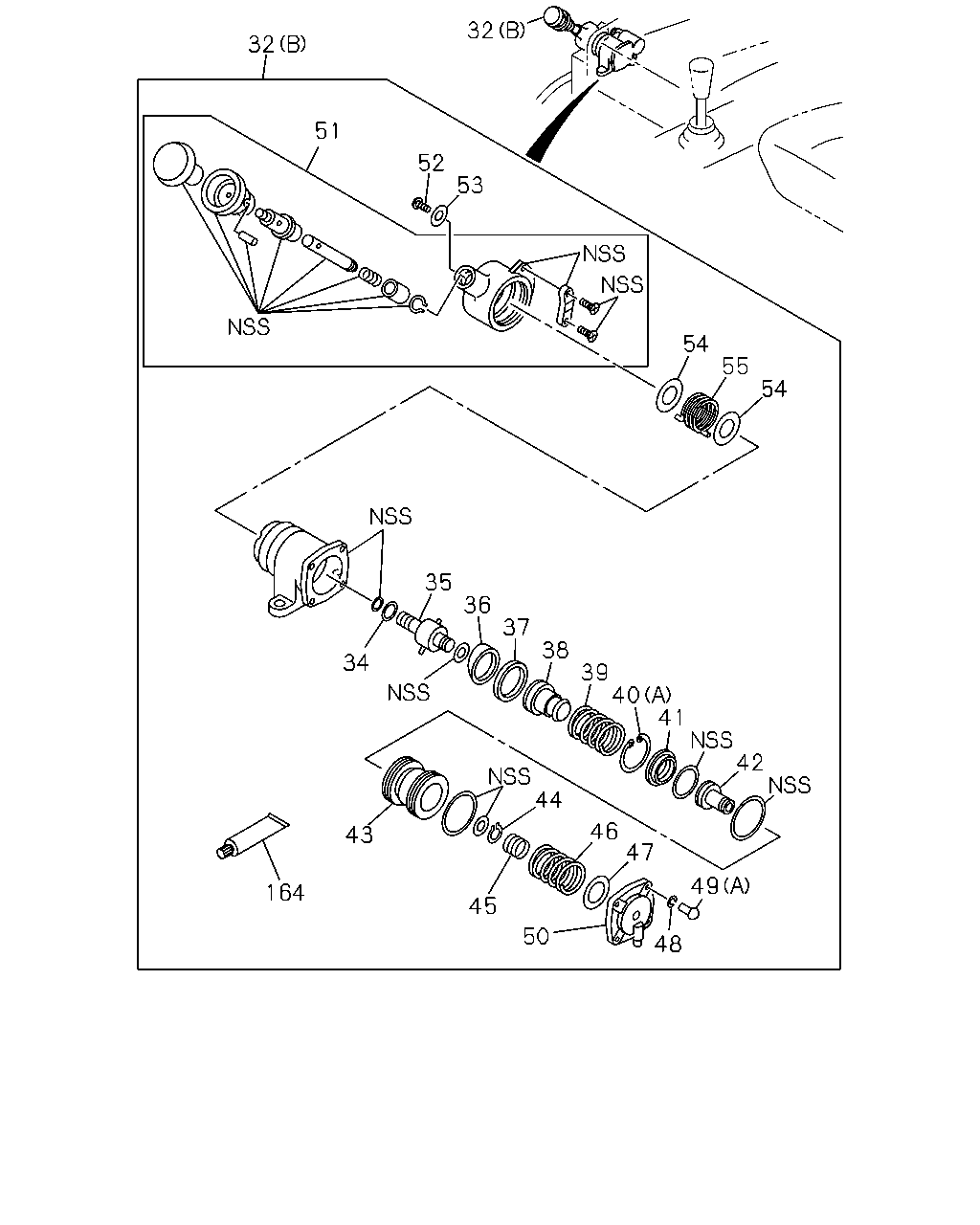

32 32 51 52 53 54 55 54 33 56 42 57 36 37 38 44 45 39 40 59 41 40 42 58 34 145 35 164 44 45 46 47 43 49 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

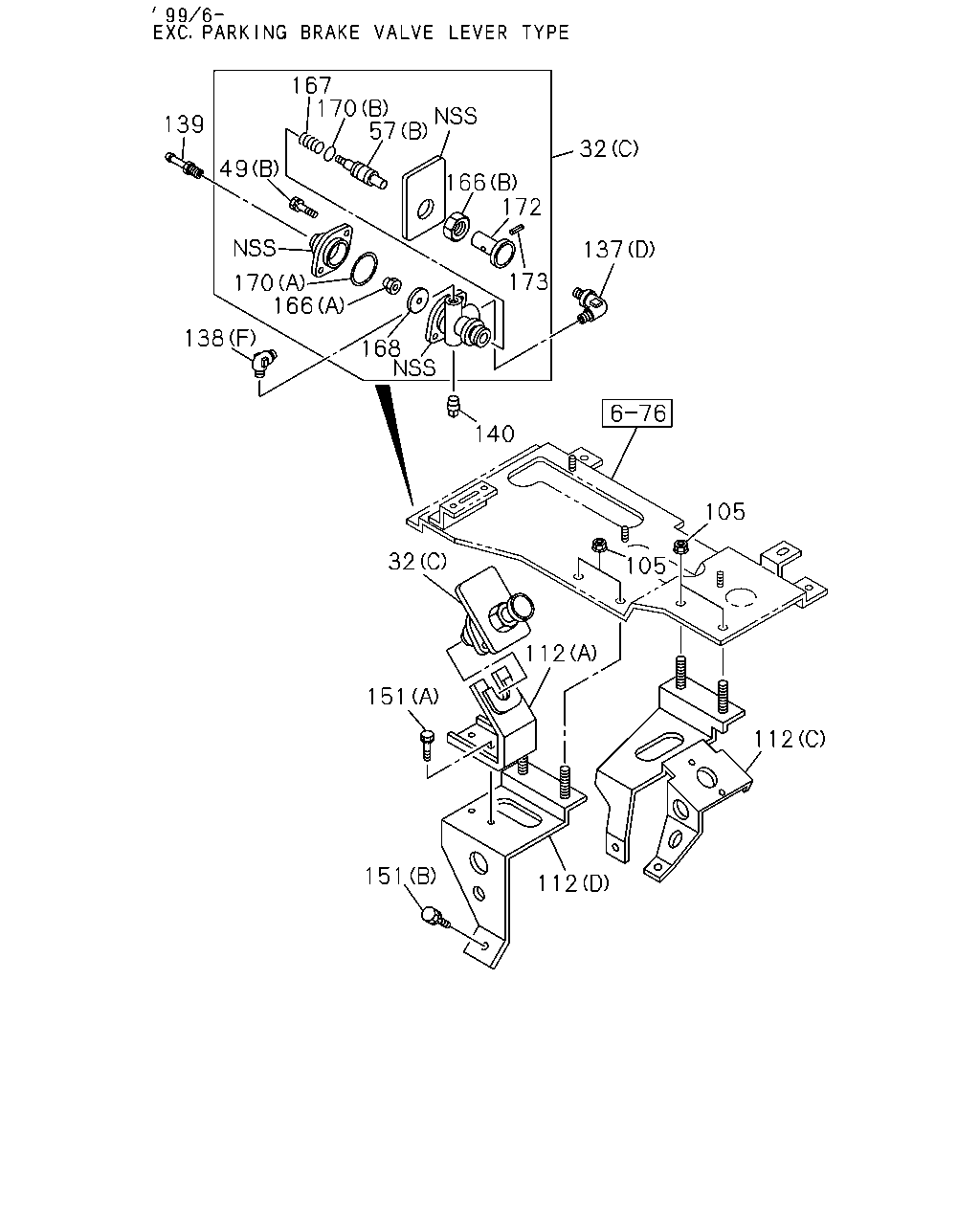

32	VALVE; BRK,HAND CONT EXC. FULL TRACTOR TRUCK<RD6> (C)	1-48460-198-0	01	1	9906-
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9606-9701
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-48460-306-0	01	1	9702-9702
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-306-0	01	1	9703-9905
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-316-0	01	1	9606-9905
32	VALVE; BRK,HAND CONT FULL TRACTOR TRUCK<RD6> (A)	1-48460-316-0	01	1	9906-
33	PLATE; CAUTION NEW ZEALAND EQUIPMENT(PK5)	1-48469-121-0	01	1	9606-9905
33	PLATE; CAUTION FULL TRACTOR TRUCK<RD6>	1-48469-121-0	01	1	9906-
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9606-9701
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-055-0	AR	1	9702-9702
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	9703-9905
34	SHIM; CAM HOLDER FULL TRACTOR TRUCK<RD6>	1-48469-055-0	AR	1	9906-
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9606-9701
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-054-0	01	1	9702-9702
35	HOLDER; CAM	1-48469-054-0	01	1	9703-9905
35	HOLDER; CAM FULL TRACTOR TRUCK<RD6>	1-48469-054-0	01	1	9906-
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9606-9701
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-056-0	01	1	9702-9702
36	RING; CAM	1-48469-056-0	01	1	9703-9905
36	RING; CAM FULL TRACTOR TRUCK<RD6>	1-48469-056-0	01	1	9906-
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9606-9701
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-058-0	01	1	9702-9702
37	GUIDE; CAM RING	1-48469-058-0	01	1	9703-9905
37	GUIDE; CAM RING FULL TRACTOR TRUCK<RD6>	1-48469-058-0	01	1	9906-
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9606-9701
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-057-0	01	1	9702-9702
38	SEAT; EXH VLV	1-48469-057-0	01	1	9703-9905
38	SEAT; EXH VLV FULL TRACTOR TRUCK<RD6>	1-48469-057-0	01	1	9906-
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9606-9701
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-063-0	01	1	9702-9702
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	9703-9905
39	SPRING; RETURN,CAM RING FULL TRACTOR TRUCK<RD6>	1-48469-063-0	01	1	9906-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9606-9905
40	RING; SNAP FULL TRACTOR TRUCK<RD6> (B)	1-48469-079-0	01	1	9906-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9606-9701
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A)	1-48469-067-0	01	1	9702-9702
40	RING; SNAP (A)	1-48469-067-0	01	1	9703-9905
40	RING; SNAP FULL TRACTOR TRUCK<RD6> (A)	1-48469-067-0	01	1	9906-
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9606-9701
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-066-0	01	1	9702-9702
41	SEAT; FEED VLV	1-48469-066-0	01	1	9703-9905
41	SEAT; FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-066-0	01	1	9906-
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9606-9905
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9606-9701
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-065-0	01	1	9702-9702
42	VALVE; FEED EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	01	1	9703-9905
42	VALVE; FEED FULL TRACTOR TRUCK<RD6>	1-48469-065-0	02	1	9906-
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9606-9701
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-064-0	01	1	9702-9702
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	9703-9905
43	PISTON; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-064-0	01	1	9906-
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9606-9701
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-068-0	02	1	9702-9702
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	9703-9905
44	RING; SNAP,FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-068-0	02	1	9906-
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9606-9905
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9606-9701
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-070-0	01	1	9702-9702
45	SPRING; FEED VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	01	1	9703-9905
45	SPRING; FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-070-0	02	1	9906-
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9606-9701
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-089-0	01	1	9702-9702
46	SPRING; MAIN,PISTON EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-089-0	01	1	9703-9905
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9606-9905
46	SPRING; MAIN,PISTON FULL TRACTOR TRUCK<RD6>	1-48469-119-0	01	1	9906-
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9606-9701
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-072-0	AR	1	9702-9702
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	9703-9905
47	SHIM; MAIN SPRING FULL TRACTOR TRUCK<RD6>	1-48469-072-0	AR	1	9906-
49	SCREW; COVER EXC. FULL TRACTOR TRUCK<RD6> (B)	1-52139-005-0	01	1	9906-
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9606-9701
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-48469-092-0	04	1	9702-9702
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-092-0	04	1	9703-9905
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9606-9905
49	SCREW; COVER FULL TRACTOR TRUCK<RD6> (A)	1-48469-120-0	04	1	9906-
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9606-9701
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-090-0	01	1	9702-9702
50	COVER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-090-0	01	1	9703-9905
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9606-9905
50	COVER; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-073-0	01	1	9906-
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-122-0	01	1	9606-9701
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-122-0	01	1	9702-9702
51	HANDLE ASM; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-122-0	01	1	9703-9905
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9606-9905
51	HANDLE ASM; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-060-0	01	1	9906-
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9606-9701
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-062-0	01	1	9702-9702
52	SCREW; HANDLE	1-48469-062-0	01	1	9703-9905
52	SCREW; HANDLE FULL TRACTOR TRUCK<RD6>	1-48469-062-0	01	1	9906-
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9606-9701
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-061-0	01	1	9702-9702
53	WASHER; HANDLE	1-48469-061-0	01	1	9703-9905
53	WASHER; HANDLE FULL TRACTOR TRUCK<RD6>	1-48469-061-0	01	1	9906-
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-123-0	02	1	9606-9701
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-123-0	02	1	9702-9702
54	SEAT; SPRING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-123-0	02	1	9703-9905
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-082-0	02	1	9606-9905
54	SEAT; SPRING FULL TRACTOR TRUCK<RD6>	1-48469-082-0	02	1	9906-
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9606-9701
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-059-0	01	1	9702-9702
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	9703-9905
55	SPRING; RETURN,HANDLE FULL TRACTOR TRUCK<RD6>	1-48469-059-0	01	1	9906-
56	BOOT; PLUNGER NEW ZEALAND EQUIPMENT(PK5)	1-48469-080-0	01	1	9606-9905
56	BOOT; PLUNGER FULL TRACTOR TRUCK<RD6>	1-48469-080-0	01	1	9906-
57	PLUNGER; HAND BRK VLV EXC. FULL TRACTOR TRUCK<RD6> (B)	1-48469-097-0	01	1	9906-
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9606-9905
57	PLUNGER; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (A)	1-48469-076-0	01	1	9906-
58	HOLDER; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-077-0	01	1	9606-9905
58	HOLDER; FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-077-0	01	1	9906-
59	HOLDER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-078-0	01	1	9606-9905
59	HOLDER; SPRING FULL TRACTOR TRUCK<RD6>	1-48469-078-0	01	1	9906-
145	STUD; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-069-0	01	1	9606-9905
145	STUD; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-069-0	01	1	9906-
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9606-9701
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-084-0	01	1	9702-9702
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	9703-9905
164	GREASE; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-084-0	01	1	9906-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48469-096-0	01	1	9606-9701
3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-48469-096-0	01	1	9702-9702
3	REPAIR KIT; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-096-0	01	1	9703-9905
3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-083-0	01	1	9606-9905
3	REPAIR KIT; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (A)	1-48469-083-0	01	1	9906-

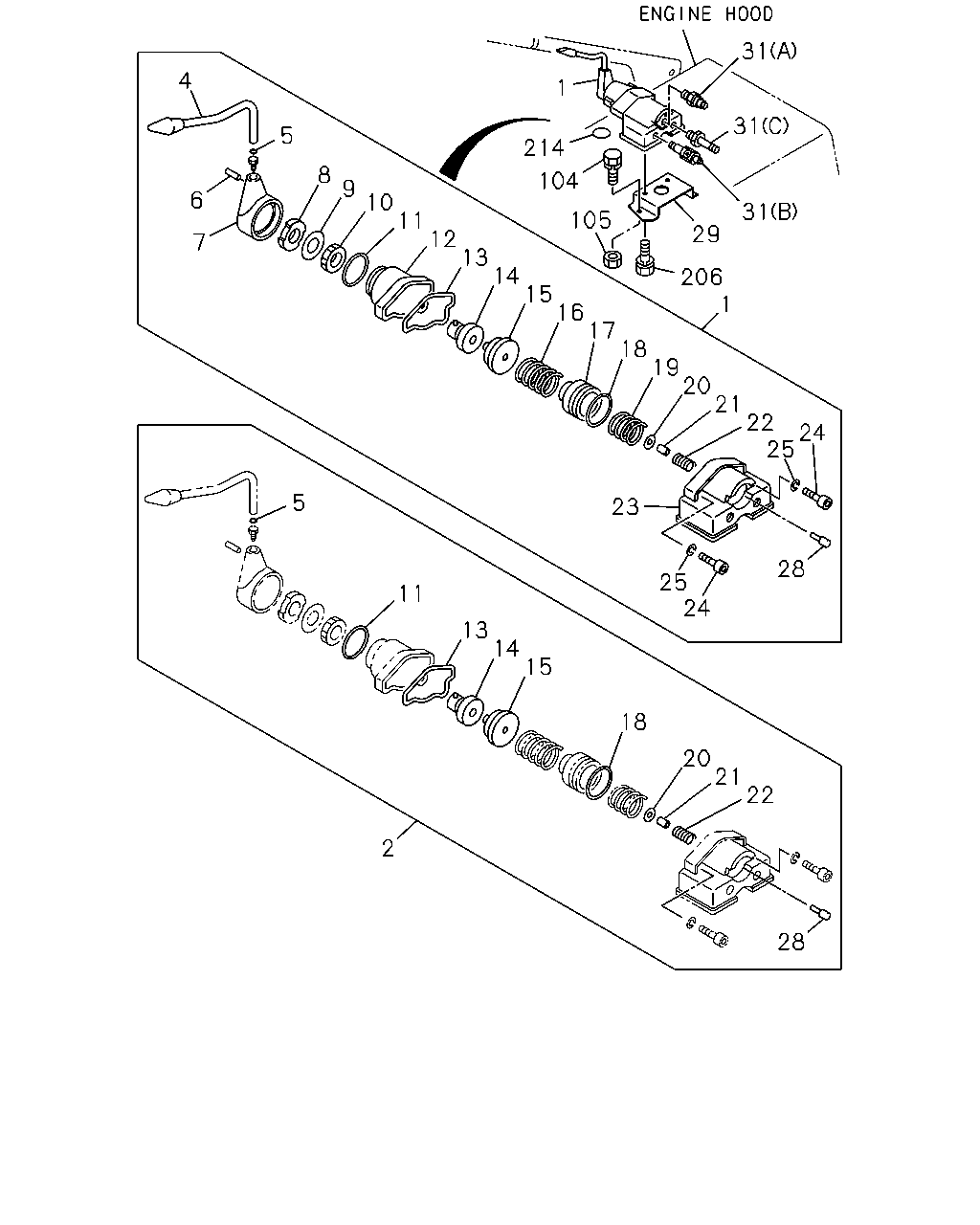

31 4 1 31 5 214 8 104 9 6 10 11 31 105 29 12 13 14 15 16 17 18 19 20 21 22 24 25 7 206 1 5 23 28 25 24 11 13 14 15 18 20 21 22 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-762-1	01	1	9606-9905
1	VALVE ASM; HAND BRK FULL TRACTOR TRUCK<RD6>	1-48100-762-1	01	1	9906-
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-187-0	01	1	9606-9905
2	REPAIR KIT; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-85576-187-0	01	1	9906-
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-360-0	01	1	9606-9905
4	HANDLE ASM; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48119-360-0	01	1	9906-
5	GASKET; HANDLE NEW ZEALAND EQUIPMENT(PK5)	1-48119-128-0	01	1	9606-9905
5	GASKET; HANDLE FULL TRACTOR TRUCK<RD6>	1-48119-128-0	01	1	9906-
6	PIN; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48119-143-0	01	1	9606-9905
6	PIN; SPR FULL TRACTOR TRUCK<RD6>	1-48119-143-0	01	1	9906-
7	HEAD; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-131-0	01	1	9606-9905
7	HEAD; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48119-131-0	01	1	9906-
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-327-0	01	1	9606-9905
8	STOPPER; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48119-327-0	01	1	9906-
9	WASHER; LK,ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-123-0	01	1	9606-9905
9	WASHER; LK,ADJ FULL TRACTOR TRUCK<RD6>	1-48119-123-0	01	1	9906-
10	RING; ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-122-0	01	1	9606-9905
10	RING; ADJ FULL TRACTOR TRUCK<RD6>	1-48119-122-0	01	1	9906-
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	9606-9905
11	GASKET; HD TO COVER FULL TRACTOR TRUCK<RD6>	1-48119-328-0	01	1	9906-
12	COVER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-097-0	01	1	9606-9905
12	COVER; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48129-097-0	01	1	9906-
13	GASKET; BODY TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-120-0	01	1	9606-9905
13	GASKET; BODY TO COVER FULL TRACTOR TRUCK<RD6>	1-48119-120-0	01	1	9906-
14	FOLLOWER; CAM NEW ZEALAND EQUIPMENT(PK5)	1-48129-135-0	01	1	9606-9905
14	FOLLOWER; CAM FULL TRACTOR TRUCK<RD6>	1-48129-135-0	01	1	9906-
15	CAM; FOLLOWER NEW ZEALAND EQUIPMENT(PK5)	1-48129-134-0	01	1	9606-9905
15	CAM; FOLLOWER FULL TRACTOR TRUCK<RD6>	1-48129-134-0	01	1	9906-
16	SPRING; GRUDUATING NEW ZEALAND EQUIPMENT(PK5)	1-48129-101-0	01	1	9606-9905
16	SPRING; GRUDUATING FULL TRACTOR TRUCK<RD6>	1-48129-101-0	01	1	9906-
17	PISTON; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48129-095-0	01	1	9606-9905
17	PISTON; SPR FULL TRACTOR TRUCK<RD6>	1-48129-095-0	01	1	9906-
18	GASKET; BODY NEW ZEALAND EQUIPMENT(PK5)	1-48129-096-0	01	1	9606-9905
18	GASKET; BODY FULL TRACTOR TRUCK<RD6>	1-48129-096-0	01	1	9906-
19	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48129-094-0	01	1	9606-9905
19	SPRING; PISTON FULL TRACTOR TRUCK<RD6>	1-48129-094-0	01	1	9906-
20	GUIDE; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-090-0	01	1	9606-9905
20	GUIDE; VLV FULL TRACTOR TRUCK<RD6>	1-48129-090-0	01	1	9906-
21	VALVE; IN & EXH NEW ZEALAND EQUIPMENT(PK5)	1-48121-017-0	01	1	9606-9905
21	VALVE; IN & EXH FULL TRACTOR TRUCK<RD6>	1-48121-017-0	01	1	9906-
22	SPRING; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48123-024-0	01	1	9606-9905
22	SPRING; VLV FULL TRACTOR TRUCK<RD6>	1-48123-024-0	01	1	9906-
23	BODY; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48111-060-0	01	1	9606-9905
23	BODY; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48111-060-0	01	1	9906-
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-092-0	02	1	9606-9905
24	BOLT; EXH VLV FULL TRACTOR TRUCK<RD6>	1-48129-092-0	02	1	9906-
25	WASHER; LK,EXH VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-093-0	02	1	9606-9905
25	WASHER; LK,EXH VLV FULL TRACTOR TRUCK<RD6>	1-48129-093-0	02	1	9906-
28	STEM ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-089-0	01	1	9606-9905
28	STEM ASM; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48129-089-0	01	1	9906-
29	BRACKET; HAND BRK FULL TRACTOR TRUCK<RD6>	1-79997-357-1	01	1	9606-
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (B) M14	1-09656-391-2	01	1	9606-9905
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	9906-
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (C) L=45	8-94338-874-0	01	1	9606-9905
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9906-
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9606-9905
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9906-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9606-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9606-9905
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9907-9907
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9907-9907
105	NUT; BRKT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9908-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9908-
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9606-9905
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9906-
206	BOLT; HAND BRK VALVE BRAKE REGULATION ECE<TDV> M10X20 W/LK WASHER	0-50041-020-0	02	1	9906-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	9606-

65 64 125 115 115 115 115 215 115 68 95 123 122 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV NEW ZEALAND EQUIPMENT(PK5)	1-48495-193-0	01	1	9606-9905
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV>	1-48495-193-0	01	1	9906-0007
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV>	1-48495-226-0	01	1	0008-
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	03	1	9606-9905
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	03	1	9906-
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	02	1	9606-9606
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91150-210-0	02	1	9607-9905
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91150-210-0	02	1	9906-
68	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	02	1	9606-9905
95	BOLT; BRKT,DOUBLE CHECK VLV BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	02	1	9906-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	03	1	9606-9905
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9906-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9606-9905
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9906-
122	VALVE ASM; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	01	1	9606-9902
122	VALVE ASM; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	01	1	9903-9905
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9906-
123	CONNECTOR; DBL CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9606-9905
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9906-
123	CONNECTOR; DBL CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9606-9905
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION ECE<TDV> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9906-
125	BOLT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10X35 W/LK WASHER	0-50041-035-0	02	1	9606-9606
125	BOLT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10X40 FLANGE	0-28681-040-0	02	1	9607-9905
125	BOLT; RELAY VLV BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28681-040-0	02	1	9906-
215	VALVE; TRAILER CONT NEW ZEALAND EQUIPMENT(PK5)	1-48210-628-0	01	1	9606-9905
215	VALVE; TRAILER CONT BRAKE REGULATION ECE<TDV>	1-48210-628-0	01	1	9906-

167 170 57 139 32 49 166 172 137 173 170 166 138 168 140 105 32 105 112 151 112 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT EXC. FULL TRACTOR TRUCK<RD6> (C)	1-48460-198-0	01	1	9906-
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9606-9701
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-48460-306-0	01	1	9702-9702
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-306-0	01	1	9703-9905
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-316-0	01	1	9606-9905
32	VALVE; BRK,HAND CONT FULL TRACTOR TRUCK<RD6> (A)	1-48460-316-0	01	1	9906-
49	SCREW; COVER EXC. FULL TRACTOR TRUCK<RD6> (B)	1-52139-005-0	01	1	9906-
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9606-9701
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-48469-092-0	04	1	9702-9702
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-092-0	04	1	9703-9905
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9606-9905
49	SCREW; COVER FULL TRACTOR TRUCK<RD6> (A)	1-48469-120-0	04	1	9906-
57	PLUNGER; HAND BRK VLV EXC. FULL TRACTOR TRUCK<RD6> (B)	1-48469-097-0	01	1	9906-
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9606-9905
57	PLUNGER; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (A)	1-48469-076-0	01	1	9906-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9606-9905
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9907-9907
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9907-9907
105	NUT; BRKT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9908-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9908-
112	BRACKET; CONT VLV EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47475-260-2	01	1	9906-9906
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> (B)	1-79996-336-1	01	1	9606-9905
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-336-1	01	1	9906-9906
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> (B)	1-79996-336-1	01	1	9907-
112	BRACKET; CONT VLV EXC. FULL TRACTOR TRUCK<RD6> (B)	1-79907-068-0	01	1	9606-9905
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-79907-068-0	01	1	9906-9906
112	BRACKET; CONT VLV EXC. FULL TRACTOR TRUCK<RD6> (B)	1-79907-068-0	01	1	9907-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79997-355-0	01	1	9906-9906
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-79997-358-1	01	1	9906-9906
137	CONNECTOR; SUPPLY (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9606-9608
137	CONNECTOR; SUPPLY (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9609-9905
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9906-9906
137	CONNECTOR; SUPPLY (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9907-9911
137	CONNECTOR; SUPPLY (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9912-
137	CONNECTOR; SUPPLY FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9606-9608
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9906-9906
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9606-9905
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) M14	1-09656-391-2	01	1	9906-9906
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9907-
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9906-9906
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9907-9911
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9912-
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9606-9905
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9906-9906
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9907-9911
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-
138	CONNECTOR; DELIVERY EXC. FULL TRACTOR TRUCK<RD6> (A)	1-09650-240-1	01	1	9606-9905
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (E)	1-09650-240-1	01	1	9906-9906
138	CONNECTOR; DELIVERY EXC. FULL TRACTOR TRUCK<RD6> (E)	1-09650-240-1	01	1	9907-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) PT1/4 2WAY	1-09660-693-0	01	1	9906-9906
138	CONNECTOR; DELIVERY (A) PT1/4 2WAY	1-09660-693-0	01	1	9907-
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9906-9906
139	CONNECTOR; EXH EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9906-9906
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9906-9906
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9606-
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9906-9906
166	NUT; PLUNGER EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48129-069-0	01	1	9906-
166	NUT; PLUNGER EXC. FULL TRACTOR TRUCK<RD6> (B)	1-48469-101-0	01	1	9906-
167	SPRING; VALVE EXC. FULL TRACTOR TRUCK<RD6>	1-48469-098-0	01	1	9906-
168	VALVE; INL EXC. FULL TRACTOR TRUCK<RD6>	1-48469-099-0	01	1	9906-
170	GASKET; VALVE EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48469-100-0	01	1	9906-
170	GASKET; VALVE EXC. FULL TRACTOR TRUCK<RD6> (B)	9-19519-094-0	01	1	9906-
172	KNOB; VALVE EXC. FULL TRACTOR TRUCK<RD6>	1-48469-102-0	01	1	9906-
173	PIN; SPR,KNOB EXC. FULL TRACTOR TRUCK<RD6>	8-94124-044-0	01	1	9906-

32 32 51 52 53 54 55 54 35 36 37 38 34 39 40 41 42 44 46 47 43 49 164 45 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT EXC. FULL TRACTOR TRUCK<RD6> (C)	1-48460-198-0	01	1	9906-
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9606-9701
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-48460-306-0	01	1	9702-9702
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-306-0	01	1	9703-9905
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-316-0	01	1	9606-9905
32	VALVE; BRK,HAND CONT FULL TRACTOR TRUCK<RD6> (A)	1-48460-316-0	01	1	9906-
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9606-9701
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-055-0	AR	1	9702-9702
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	9703-9905
34	SHIM; CAM HOLDER FULL TRACTOR TRUCK<RD6>	1-48469-055-0	AR	1	9906-
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9606-9701
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-054-0	01	1	9702-9702
35	HOLDER; CAM	1-48469-054-0	01	1	9703-9905
35	HOLDER; CAM FULL TRACTOR TRUCK<RD6>	1-48469-054-0	01	1	9906-
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9606-9701
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-056-0	01	1	9702-9702
36	RING; CAM	1-48469-056-0	01	1	9703-9905
36	RING; CAM FULL TRACTOR TRUCK<RD6>	1-48469-056-0	01	1	9906-
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9606-9701
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-058-0	01	1	9702-9702
37	GUIDE; CAM RING	1-48469-058-0	01	1	9703-9905
37	GUIDE; CAM RING FULL TRACTOR TRUCK<RD6>	1-48469-058-0	01	1	9906-
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9606-9701
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-057-0	01	1	9702-9702
38	SEAT; EXH VLV	1-48469-057-0	01	1	9703-9905
38	SEAT; EXH VLV FULL TRACTOR TRUCK<RD6>	1-48469-057-0	01	1	9906-
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9606-9701
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-063-0	01	1	9702-9702
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	9703-9905
39	SPRING; RETURN,CAM RING FULL TRACTOR TRUCK<RD6>	1-48469-063-0	01	1	9906-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9606-9905
40	RING; SNAP FULL TRACTOR TRUCK<RD6> (B)	1-48469-079-0	01	1	9906-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9606-9701
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A)	1-48469-067-0	01	1	9702-9702
40	RING; SNAP (A)	1-48469-067-0	01	1	9703-9905
40	RING; SNAP FULL TRACTOR TRUCK<RD6> (A)	1-48469-067-0	01	1	9906-
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9606-9701
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-066-0	01	1	9702-9702
41	SEAT; FEED VLV	1-48469-066-0	01	1	9703-9905
41	SEAT; FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-066-0	01	1	9906-
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9606-9905
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9606-9701
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-065-0	01	1	9702-9702
42	VALVE; FEED EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	01	1	9703-9905
42	VALVE; FEED FULL TRACTOR TRUCK<RD6>	1-48469-065-0	02	1	9906-
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9606-9701
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-064-0	01	1	9702-9702
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	9703-9905
43	PISTON; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-064-0	01	1	9906-
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9606-9701
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-068-0	02	1	9702-9702
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	9703-9905
44	RING; SNAP,FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-068-0	02	1	9906-
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9606-9905
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9606-9701
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-070-0	01	1	9702-9702
45	SPRING; FEED VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	01	1	9703-9905
45	SPRING; FEED VLV FULL TRACTOR TRUCK<RD6>	1-48469-070-0	02	1	9906-
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9606-9701
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-089-0	01	1	9702-9702
46	SPRING; MAIN,PISTON EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-089-0	01	1	9703-9905
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9606-9905
46	SPRING; MAIN,PISTON FULL TRACTOR TRUCK<RD6>	1-48469-119-0	01	1	9906-
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9606-9701
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-072-0	AR	1	9702-9702
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	9703-9905
47	SHIM; MAIN SPRING FULL TRACTOR TRUCK<RD6>	1-48469-072-0	AR	1	9906-
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-091-0	04	1	9606-9701
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-091-0	04	1	9702-9702
48	WASHER; COVER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-091-0	04	1	9703-9905
49	SCREW; COVER EXC. FULL TRACTOR TRUCK<RD6> (B)	1-52139-005-0	01	1	9906-
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9606-9701
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-48469-092-0	04	1	9702-9702
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-092-0	04	1	9703-9905
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9606-9905
49	SCREW; COVER FULL TRACTOR TRUCK<RD6> (A)	1-48469-120-0	04	1	9906-
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9606-9701
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-090-0	01	1	9702-9702
50	COVER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-090-0	01	1	9703-9905
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9606-9905
50	COVER; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-073-0	01	1	9906-
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-122-0	01	1	9606-9701
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-122-0	01	1	9702-9702
51	HANDLE ASM; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-122-0	01	1	9703-9905
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9606-9905
51	HANDLE ASM; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-060-0	01	1	9906-
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9606-9701
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-062-0	01	1	9702-9702
52	SCREW; HANDLE	1-48469-062-0	01	1	9703-9905
52	SCREW; HANDLE FULL TRACTOR TRUCK<RD6>	1-48469-062-0	01	1	9906-
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9606-9701
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-061-0	01	1	9702-9702
53	WASHER; HANDLE	1-48469-061-0	01	1	9703-9905
53	WASHER; HANDLE FULL TRACTOR TRUCK<RD6>	1-48469-061-0	01	1	9906-
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-123-0	02	1	9606-9701
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48469-123-0	02	1	9702-9702
54	SEAT; SPRING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48469-123-0	02	1	9703-9905
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-082-0	02	1	9606-9905
54	SEAT; SPRING FULL TRACTOR TRUCK<RD6>	1-48469-082-0	02	1	9906-
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9606-9701
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-059-0	01	1	9702-9702
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	9703-9905
55	SPRING; RETURN,HANDLE FULL TRACTOR TRUCK<RD6>	1-48469-059-0	01	1	9906-
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9606-9701
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-48469-084-0	01	1	9702-9702
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	9703-9905
164	GREASE; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-48469-084-0	01	1	9906-

32 32 105 112 129 137 151 137 138 138 137 138 162 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT EXC. FULL TRACTOR TRUCK<RD6> (C)	1-48460-198-0	01	1	9906-
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9606-9701
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-48460-306-0	01	1	9702-9702
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-306-0	01	1	9703-9905
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-316-0	01	1	9606-9905
32	VALVE; BRK,HAND CONT FULL TRACTOR TRUCK<RD6> (A)	1-48460-316-0	01	1	9906-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9606-9905
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9906-9906
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9907-9907
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9907-9907
105	NUT; BRKT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9908-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9908-
112	BRACKET; CONT VLV EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47475-260-2	01	1	9906-9906
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> (B)	1-79996-336-1	01	1	9606-9905
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-336-1	01	1	9906-9906
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> (B)	1-79996-336-1	01	1	9907-
112	BRACKET; CONT VLV EXC. FULL TRACTOR TRUCK<RD6> (B)	1-79907-068-0	01	1	9606-9905
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-79907-068-0	01	1	9906-9906
112	BRACKET; CONT VLV EXC. FULL TRACTOR TRUCK<RD6> (B)	1-79907-068-0	01	1	9907-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79997-355-0	01	1	9906-9906
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-79997-358-1	01	1	9906-9906
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	9606-9905
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	01	1	9906-9906
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	9907-
137	CONNECTOR; SUPPLY (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9606-9608
137	CONNECTOR; SUPPLY (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9609-9905
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9906-9906
137	CONNECTOR; SUPPLY (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9907-9911
137	CONNECTOR; SUPPLY (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9912-
137	CONNECTOR; SUPPLY FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9606-9608
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9906-9906
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9606-9905
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) M14	1-09656-391-2	01	1	9906-9906
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9907-
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9906-9906
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9907-9911
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9912-
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9606-9905
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9906-9906
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9907-9911
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-
138	CONNECTOR; DELIVERY EXC. FULL TRACTOR TRUCK<RD6> (A)	1-09650-240-1	01	1	9606-9905
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (E)	1-09650-240-1	01	1	9906-9906
138	CONNECTOR; DELIVERY EXC. FULL TRACTOR TRUCK<RD6> (E)	1-09650-240-1	01	1	9907-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) PT1/4 2WAY	1-09660-693-0	01	1	9906-9906
138	CONNECTOR; DELIVERY (A) PT1/4 2WAY	1-09660-693-0	01	1	9907-
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9906-9906
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9606-
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9906-9906
162	SWITCH; PARKING BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-72447-390-0	01	1	9606-9905
162	SWITCH; PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48>	1-72447-390-0	01	1	9906-9906
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
