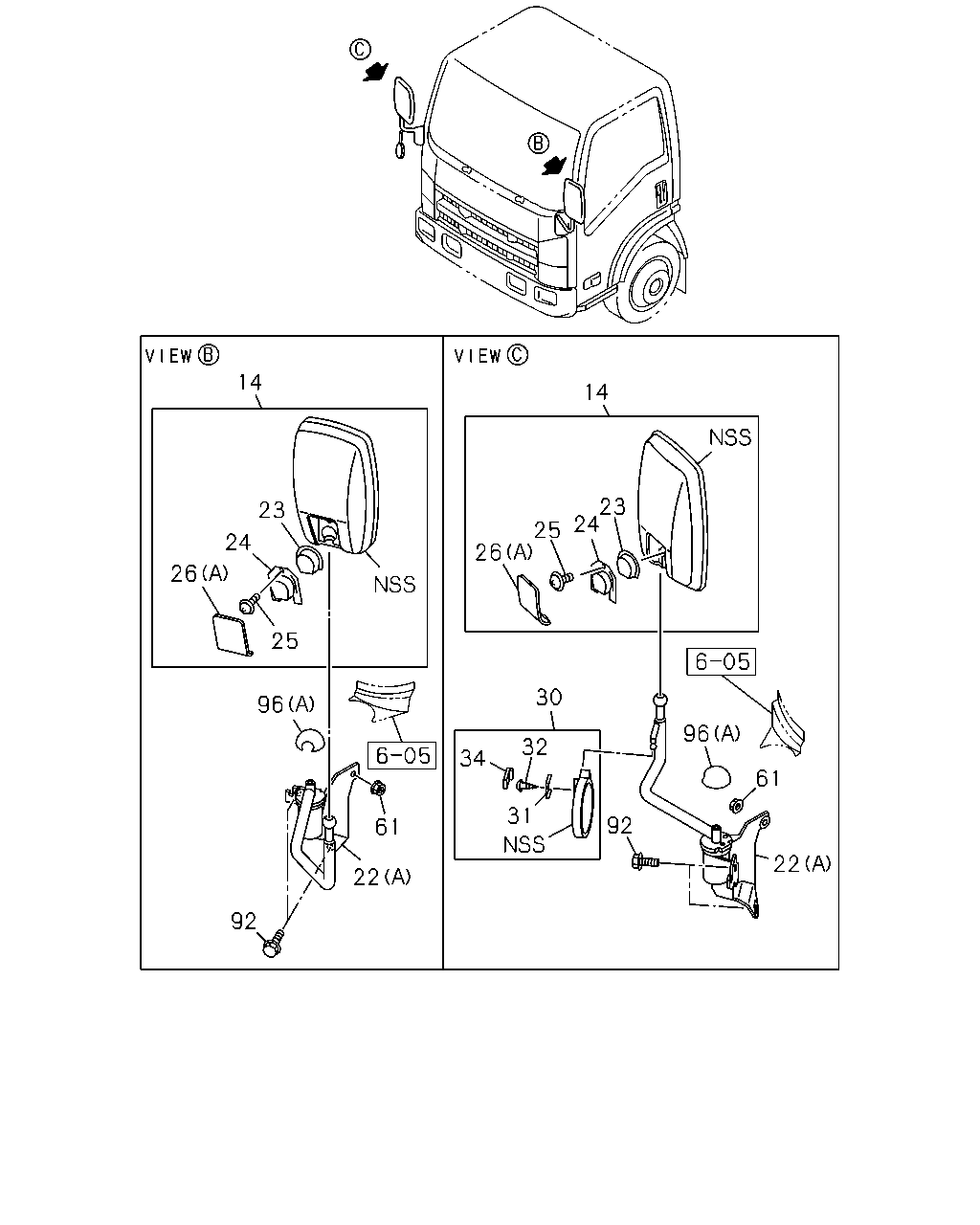

22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(B)
|
8-98067-514-1 |
01 |
1 |
1012-1202 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(B)
|
8-98166-181-0 |
01 |
1 |
1203- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(B)
|
8-98067-515-1 |
01 |
1 |
1012-1202 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(B)
|
8-98166-180-0 |
01 |
1 |
1203- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98067-510-0 |
01 |
1 |
1012-1204 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98158-846-0 |
01 |
1 |
1205- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98067-511-0 |
01 |
1 |
1012-1204 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98158-847-0 |
01 |
1 |
1205- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98067-512-0 |
01 |
1 |
1012-1202 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98158-848-0 |
01 |
1 |
1203- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98067-513-0 |
01 |
1 |
1012-1202 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98158-849-0 |
01 |
1 |
1203- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
(A)
|
8-98070-510-0 |
01 |
1 |
1004-1011 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>
(A)
|
8-98070-510-0 |
01 |
1 |
1012- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
(A)
|
8-98070-503-0 |
01 |
1 |
1004-1011 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>
(A)
|
8-98070-503-0 |
01 |
1 |
1012- |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-508-0 |
01 |
1 |
1004-1011 |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-508-0 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98031-802-2 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98031-803-2 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(C)
|
8-98031-805-0 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(C)
|
8-98031-806-0 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1012- |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1004-1011 |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1004-1011 |
| |
51 |
16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
16.323
M8X23
|
8-97310-216-1 |
08 |
1 |
1012- |
| |
64 |
16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1012- |
| |
64 |
16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
16.332
(B)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1012- |
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL
GRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR DARK
BLUE(695),BODY COLOR CARDINAL RED(736),BO
DY COLOR WOODLAND GREEN(807),BODY COLOR
WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG
E(829),BODY COLOR MARINE BLUE(890),BODY
COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT
GREEN(989),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
EXC. WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1004- |
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR
ARCWHITE(729)
EXC. WINDOW RR<8LF>
16.570
(A)
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
02 |
1 |
1004- |
| |
69 |
16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
M10 CAP NUT
|
8-98059-913-0 |
02 |
1 |
1012-1404 |
| |
69 |
16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1405- |
| |
69 |
16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1012- |
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98031-793-2 |
01 |
1 |
1012- |
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98031-794-2 |
01 |
1 |
1012- |
| |
72 |
16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
|
8-98031-796-0 |
01 |
1 |
1012- |
| |
72 |
16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
|
8-98031-797-0 |
01 |
1 |
1012- |
| |
72 |
16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98080-418-0 |
02 |
1 |
1012- |
| |
87 |
16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-789-0 |
02 |
1 |
1012- |
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1012- |
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1012- |
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98080-173-0 |
02 |
1 |
1012- |
| |
96 |
16.069 CAP; MIRROR STAY
(A)
|
8-98027-552-2 |
02 |
1 |
1004-1011 |
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>
(A)
|
8-98027-552-2 |
02 |
1 |
1012- |
| |
152 |
16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-786-0 |
02 |
1 |
1012- |
| |
307 |
16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-784-2 |
01 |
1 |
1012- |
| |
307 |
16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-785-2 |
01 |
1 |
1012- |
| |
312 |
16.081 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98164-812-0 |
02 |
1 |
1012- |
