Isuzu WW
▶
TRUCKS
▶
NPR
▶
51245 - NPR CNG-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶

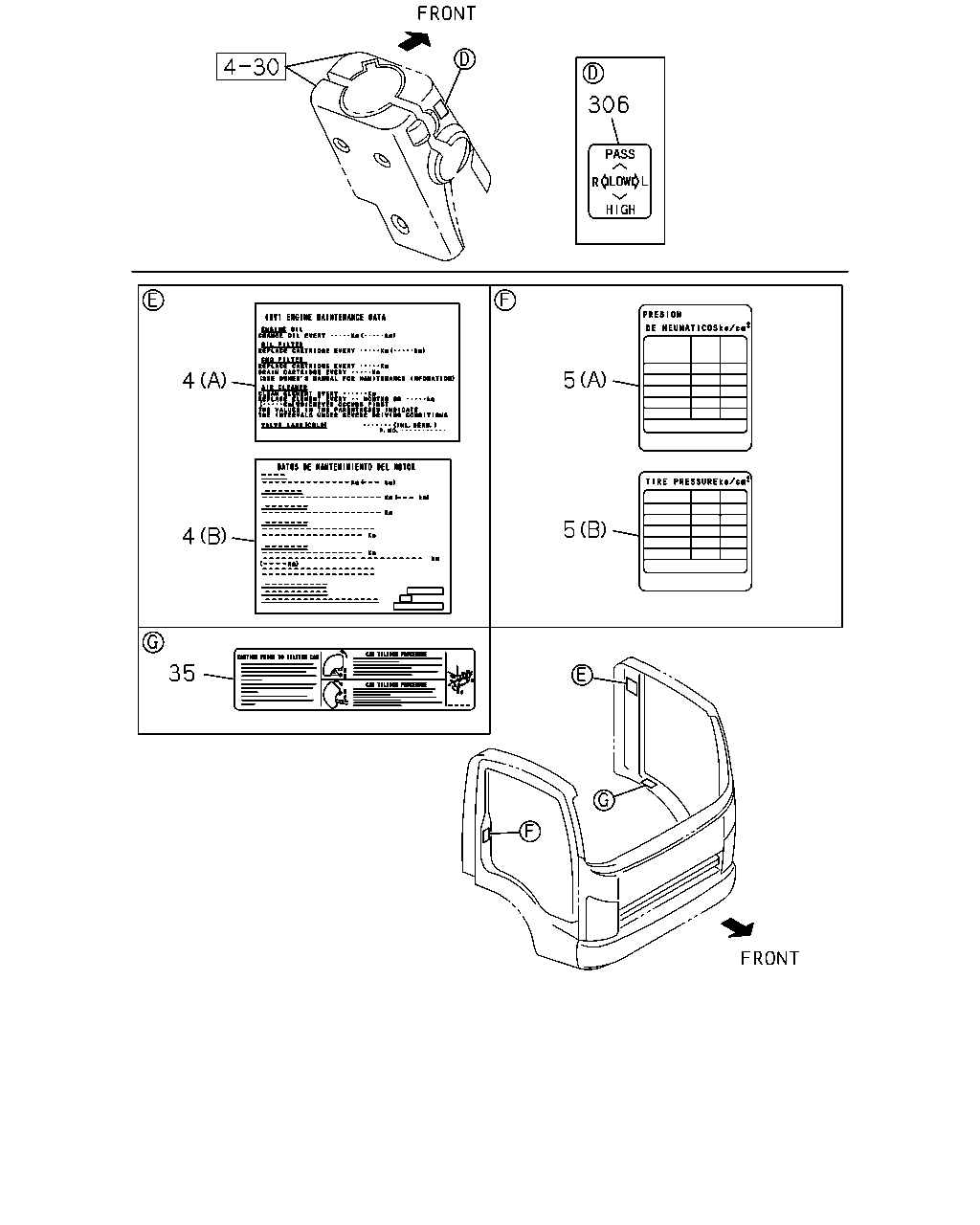

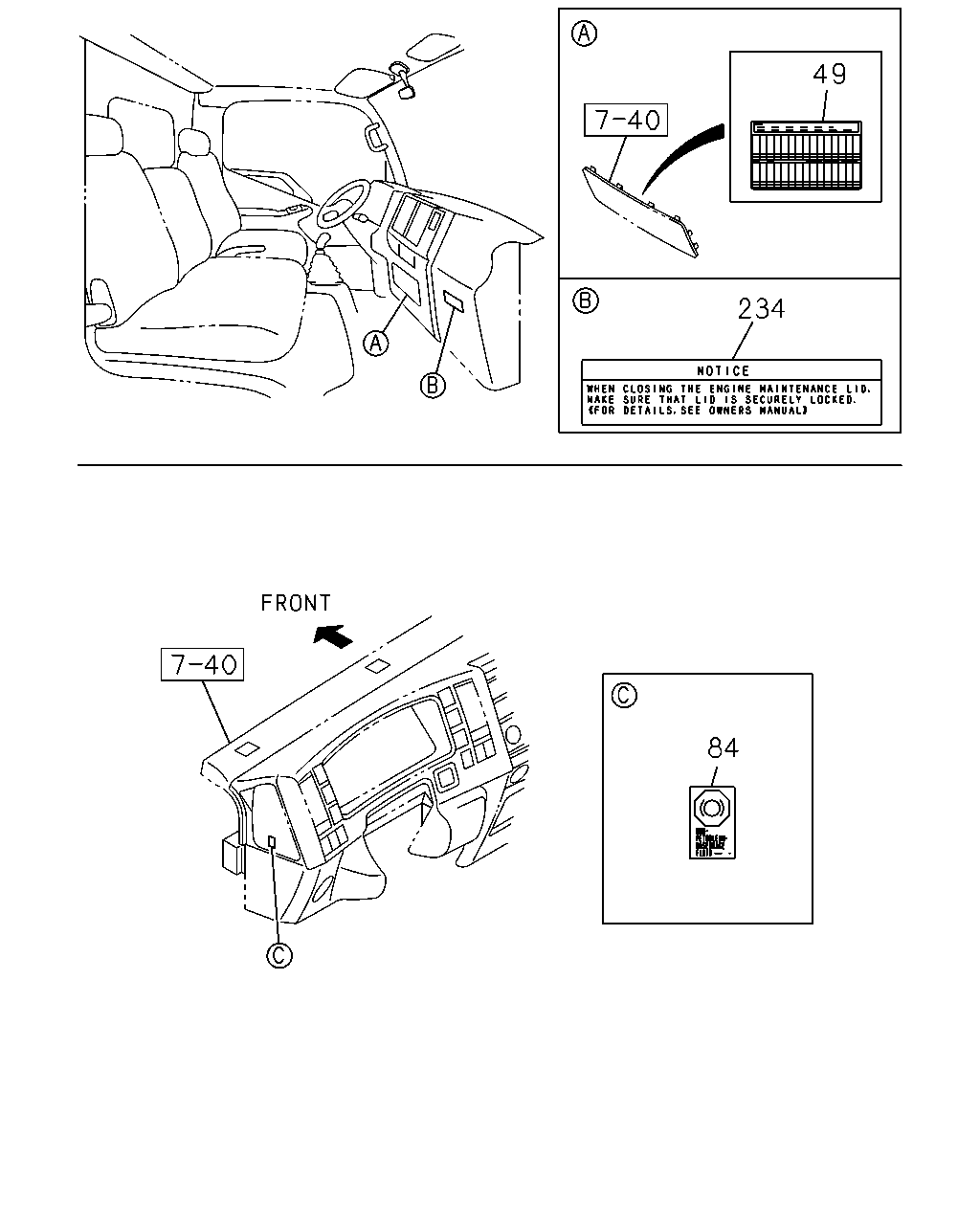

7-10 — CAUTION PLATE AND LABEL
(#50981) — 14 parça
◀
[710A] NO.1 (4 parça)
[710A] NO.2 (8 parça)
[710A] NO.3 (2 parça)
▶
49
234
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
08.808 PLATE; CAUTION,FUSE BOX
8-98114-062-0
01
1
1004-
84
08.808 PLATE; CAUTION,BRAKE FLUID
HYDRO BRAKE BOOSTER(7QQ)
8-98022-836-1
01
1
1004-
234
08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA>
8-98071-067-0
01
1
1206-
234
08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1>
8-97994-545-0
01
1
1206-
4
4
35
5
5
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B)
8-98160-105-0
01
1
1004-
4
00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A)
8-98145-345-0
01
1
1004-1203
4
00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A)
8-98209-490-0
01
1
1204-
5
05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A)
8-97188-835-0
01
1
1004-
5
05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B)
8-97188-834-0
01
1
1004-
35
08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1>
8-98070-512-0
01
1
1004-
35
08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>
8-98067-809-0
01
1
1004-
306
08.808 LABEL; BEAM & PASS
8-98070-239-0
01
1
1004-
78
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.808 PLATE; NAME,SPD RANGE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) SPEED LIMITER 90KM(NMJ)
8-98303-897-0
01
1
1512-
78
08.808 PLATE; CAUTION,ENG COOLAN
8-98141-782-0
01
1
1004-
