◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51245 - NPR CNG-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#50978) — 10 parça

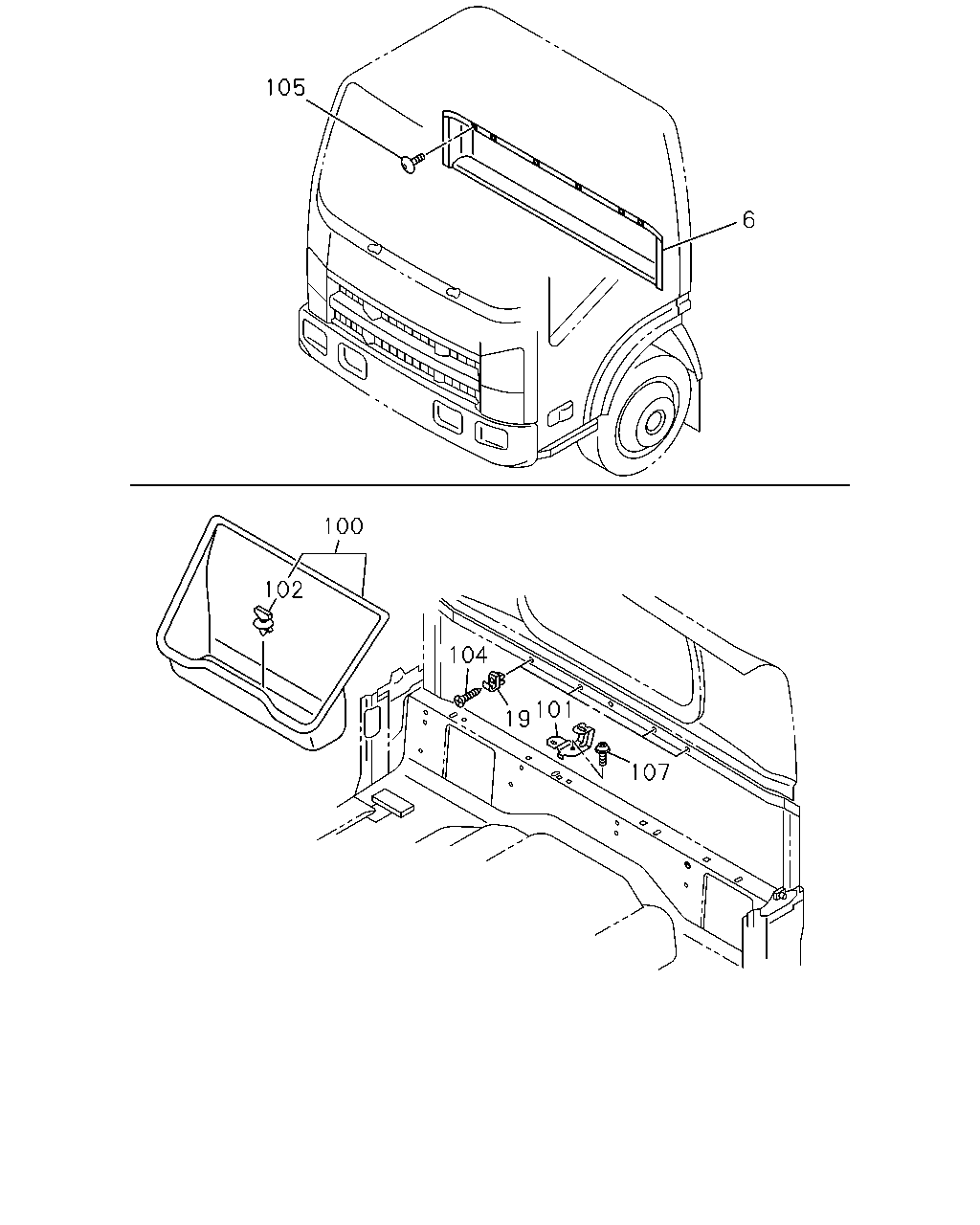

çizim 60319
105 6 100 102 104 101 19 107
BalonParca AdiParca NoAdetTipApplied Date
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97412-462-2 01 1 1206-
6 16.592 MAT; SILENCER,CAB BACK
GRAY 		8-97405-289-3 01 1 1004-1205
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 1206-
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 1004-
100 16.587 TRAY; BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> GRAY 		8-97405-174-1 01 1 1004-
101 17.225 BRACKET; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98029-439-1 01 1 1004-
102 16.584 CLIP; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> GRAY 		8-97406-996-0 01 1 1004-
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1004-
105 16.166 CLIP; BACK TRIM
GRAY 		8-97405-295-0 02 1 1004-
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 1004-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
