◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51245 - NPR CNG-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#50972) — 57 parça

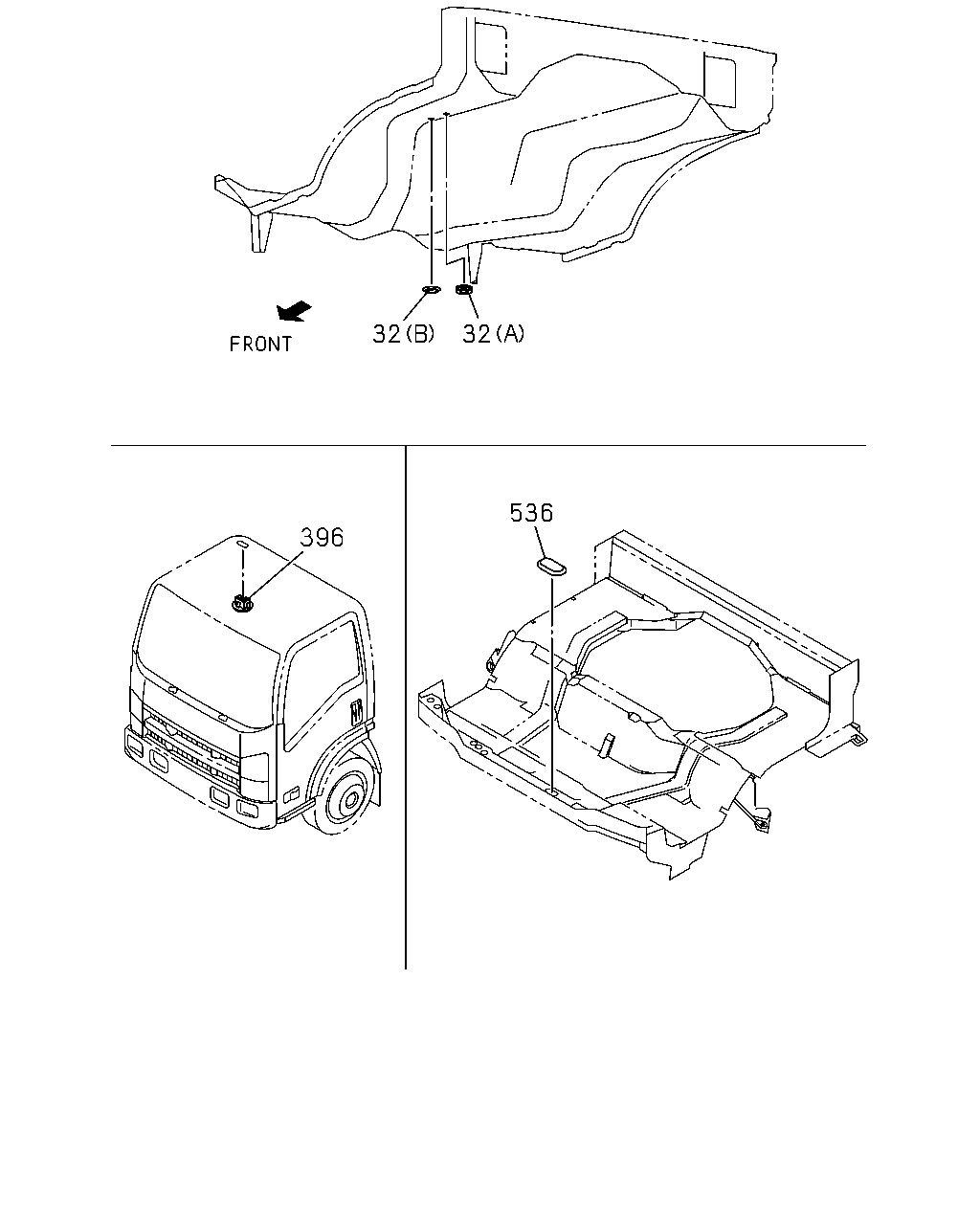

çizim 60435
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1004-
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1004-
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1004-
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1004-

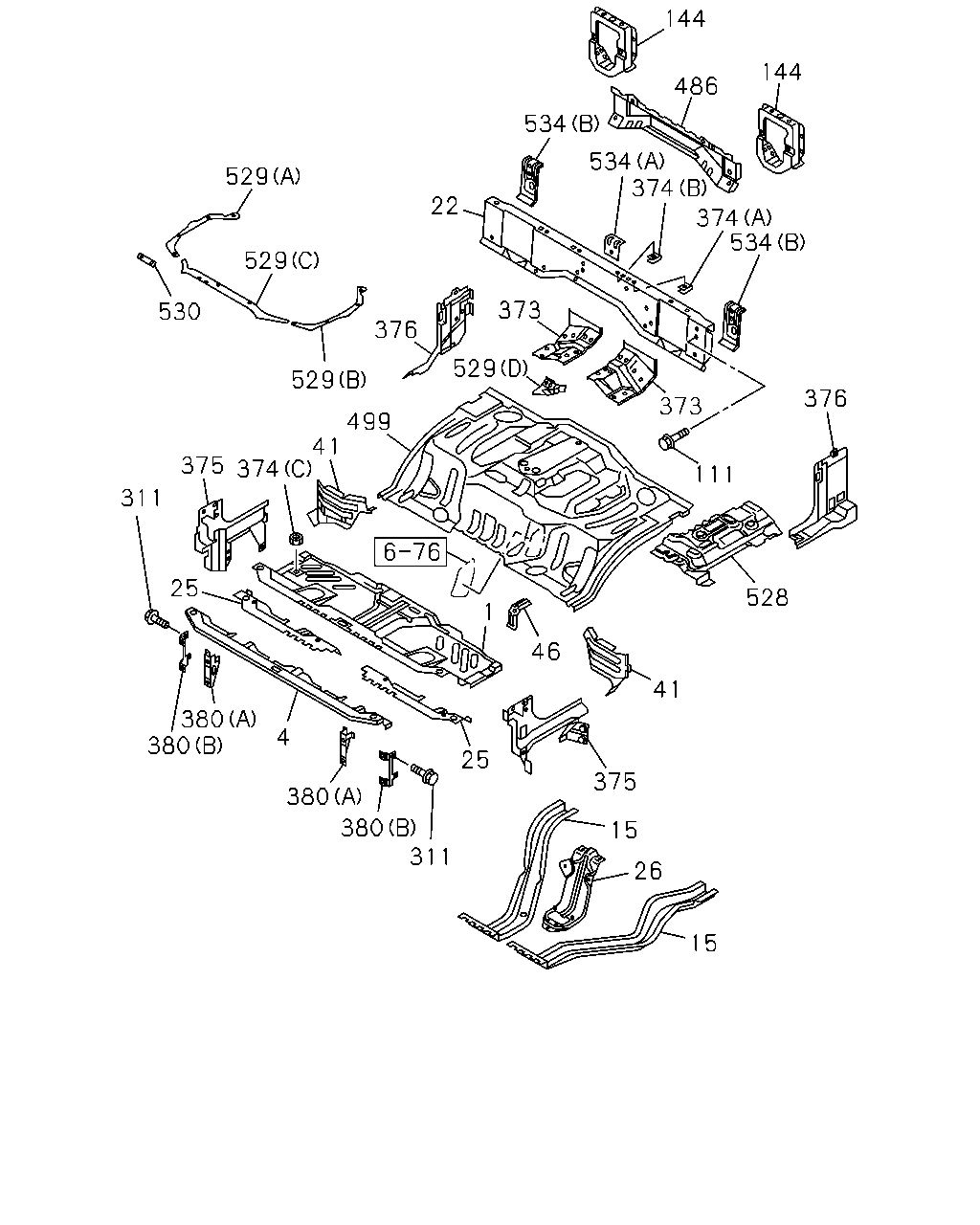

çizim 101450
15 26 15 375 41 46 1 25 311 380 380 4 380 380 25 311 375 530 529 529 529 374 41 22 376 499 534 144 144 486 534 374 374 534 376 373 111 528 373 529
BalonParca AdiParca NoAdetTipApplied Date
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1004-
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1004-
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1004-
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1004-
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97589-430-4 01 1 1206-
22 16.545 FRAME; FLOOR REAR 8-97589-418-4 01 1 1004-1506
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1507-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1004-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1004-
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1004-
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1004-
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1004-
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1004-
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1004-
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-2 02 1 1206-
144 16.545 BRACKET; MTG,RR 8-97589-544-2 02 1 1004-1506
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1507-
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1004-
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-525-2 01 1 1004-1506
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1507-
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-526-2 01 1 1004-1506
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1507-
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1004-1506
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1507-
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1206-1506
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1507-
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1004-
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1004-
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1004-
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1004-
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1004-
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1004-
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1004-
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1004-
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1004-
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1004-
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-615-2 01 1 1206-
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 1004-1506
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1507-
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-97589-426-4 01 1 1206-1207
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98207-188-0 01 1 1208-
499 16.545 PANEL; FLOOR,RR 8-97589-409-5 01 1 1004-1207
499 16.545 PANEL; FLOOR,RR 8-98204-799-0 01 1 1208-1506
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1507-
528 16.545 REINFORCEMENT; PARKING BRAKE 8-97589-410-2 01 1 1004-1506
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1507-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 1206-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 1206-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-98006-715-0 01 1 1206-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98031-663-0 01 1 1206-
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1206-
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1004-
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1004-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
