Isuzu WW
▶
TRUCKS
▶
NPR
▶
51245 - NPR CNG-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

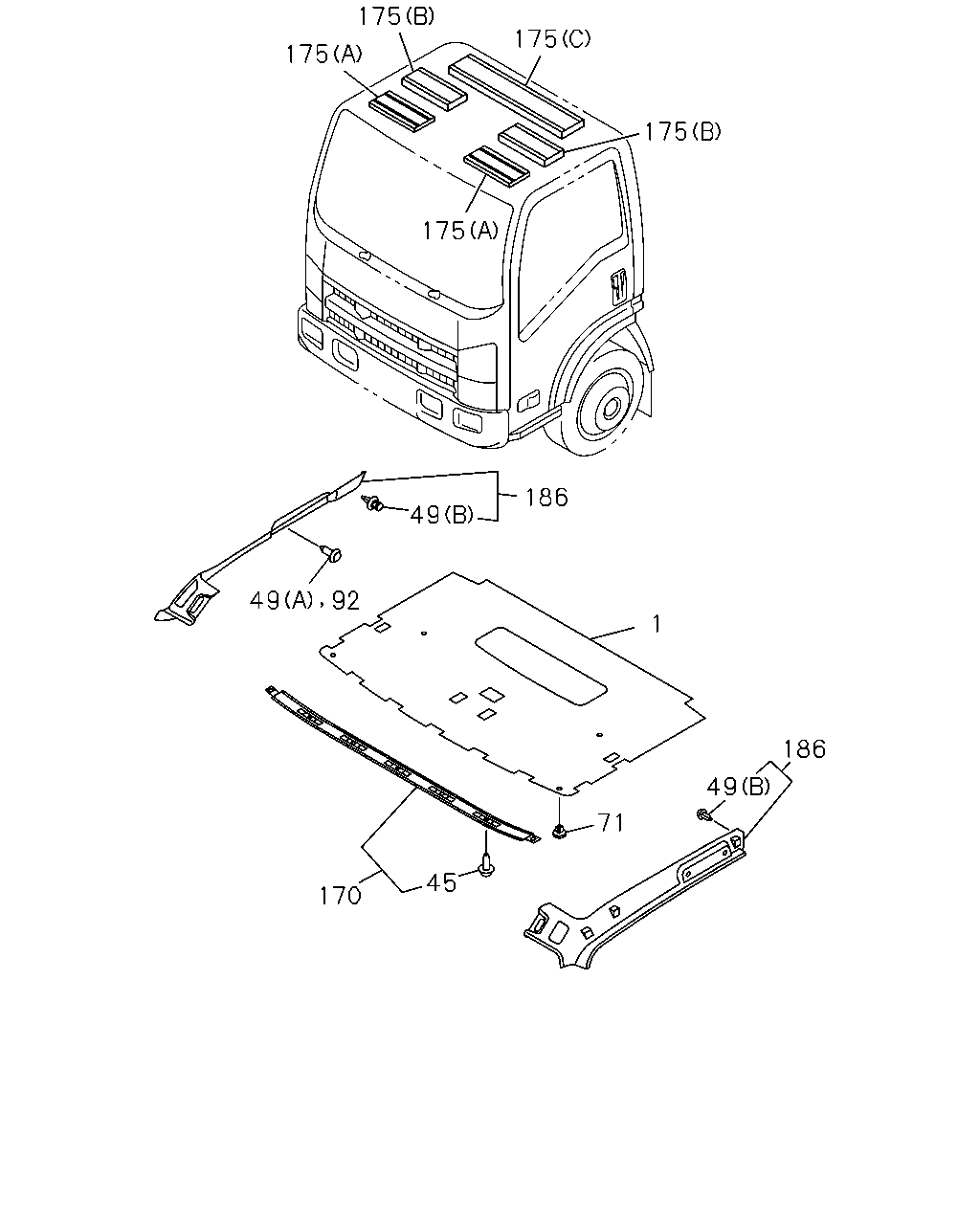

6-66 — HEAD LINING AND TRIM
(#50971) — 17 parça
175
175
175
175
175
186
49
49
92
1
186
49
71
45
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.742 LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY
8-97411-516-3
01
1
1004-
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-270-8
01
1
1004-
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-269-7
01
1
1004-
45
16.742 CLIP; FINISHER
8-98035-592-1
03
1
1004-
49
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
02
1
1004-
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
03
1
1004-1410
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
02
1
1411-
71
16.742 FASTENER; HD LINING
DARK GRAY
8-97405-282-0
06
1
1004-
92
16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY
8-97407-768-0
04
1
1004-
170
16.742 FINISHER; HEAD LINING
DARK GRAY
8-97405-281-5
01
1
1004-
175
16.742 CUSHION; HEAD LINING
(B)
8-98037-299-3
02
1
1004-
175
16.742 CUSHION; HEAD LINING
(C)
8-98037-300-3
01
1
1004-
175
16.742 CUSHION; HEAD LINING
(A)
8-98082-685-1
02
1
1004-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY
8-97405-252-3
01
1
1004-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-250-3
01
1
1004-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-263-3
01
1
1004-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-251-3
01
1
1004-
