Sayfa 3-20 - Isuzu EPC

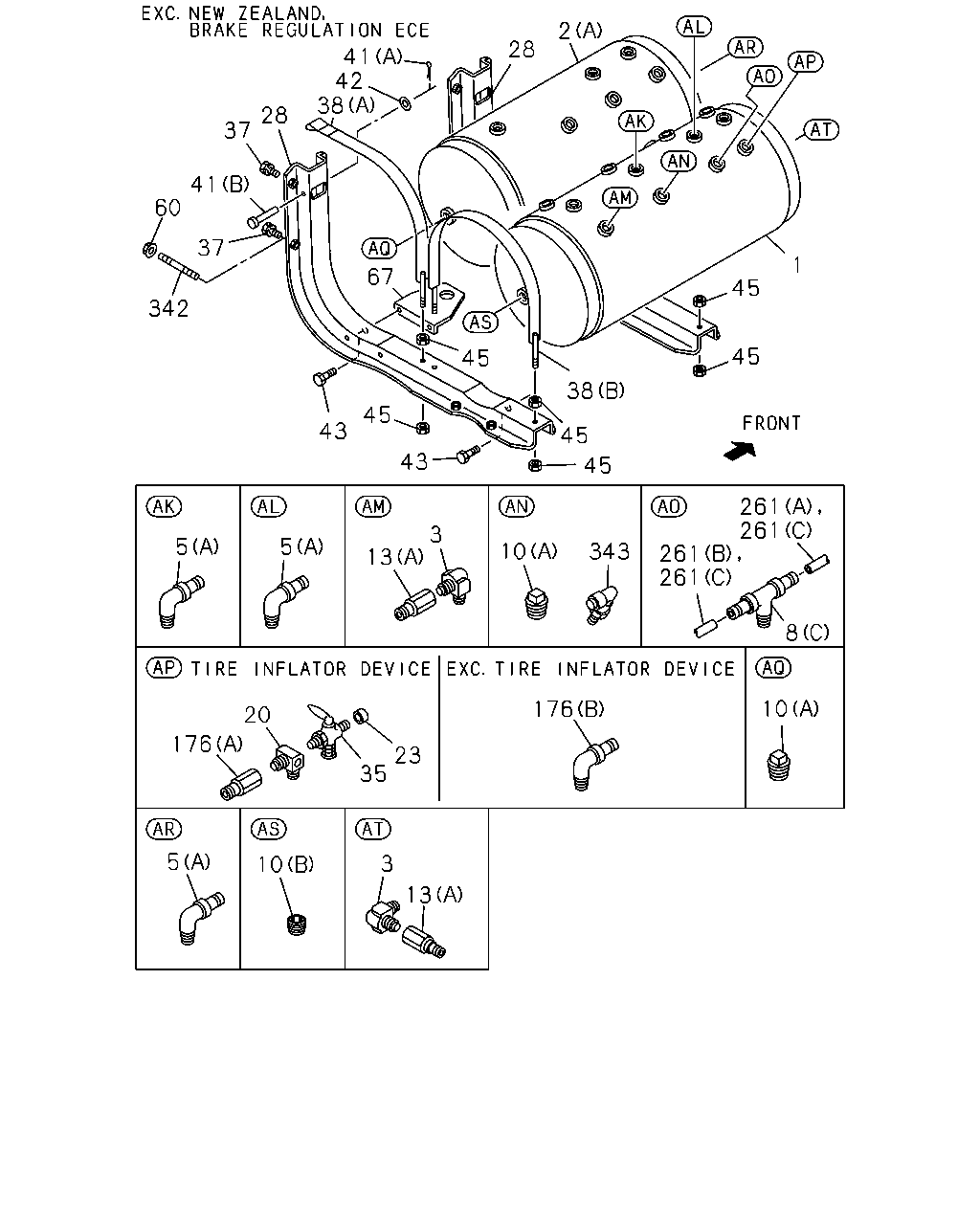

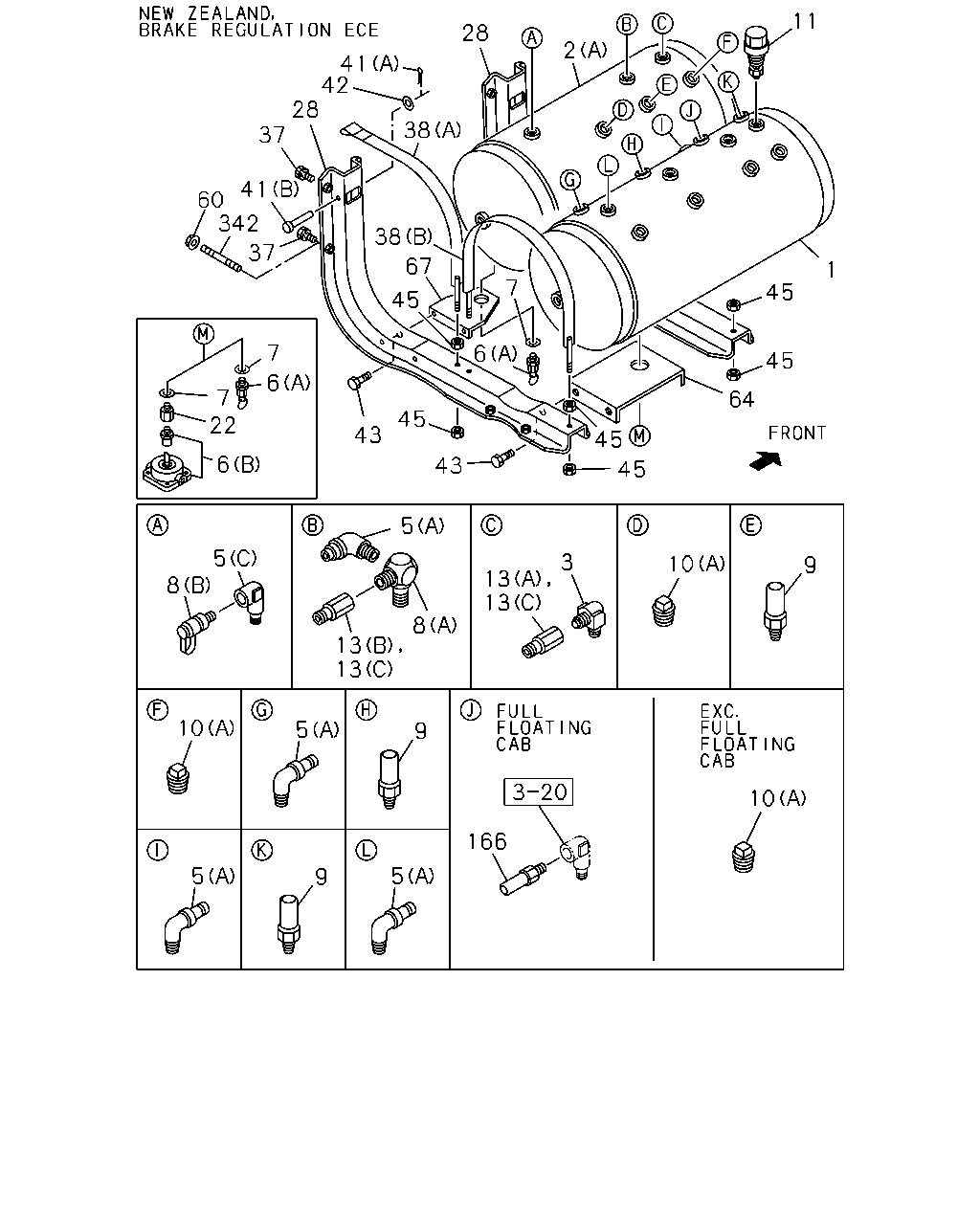

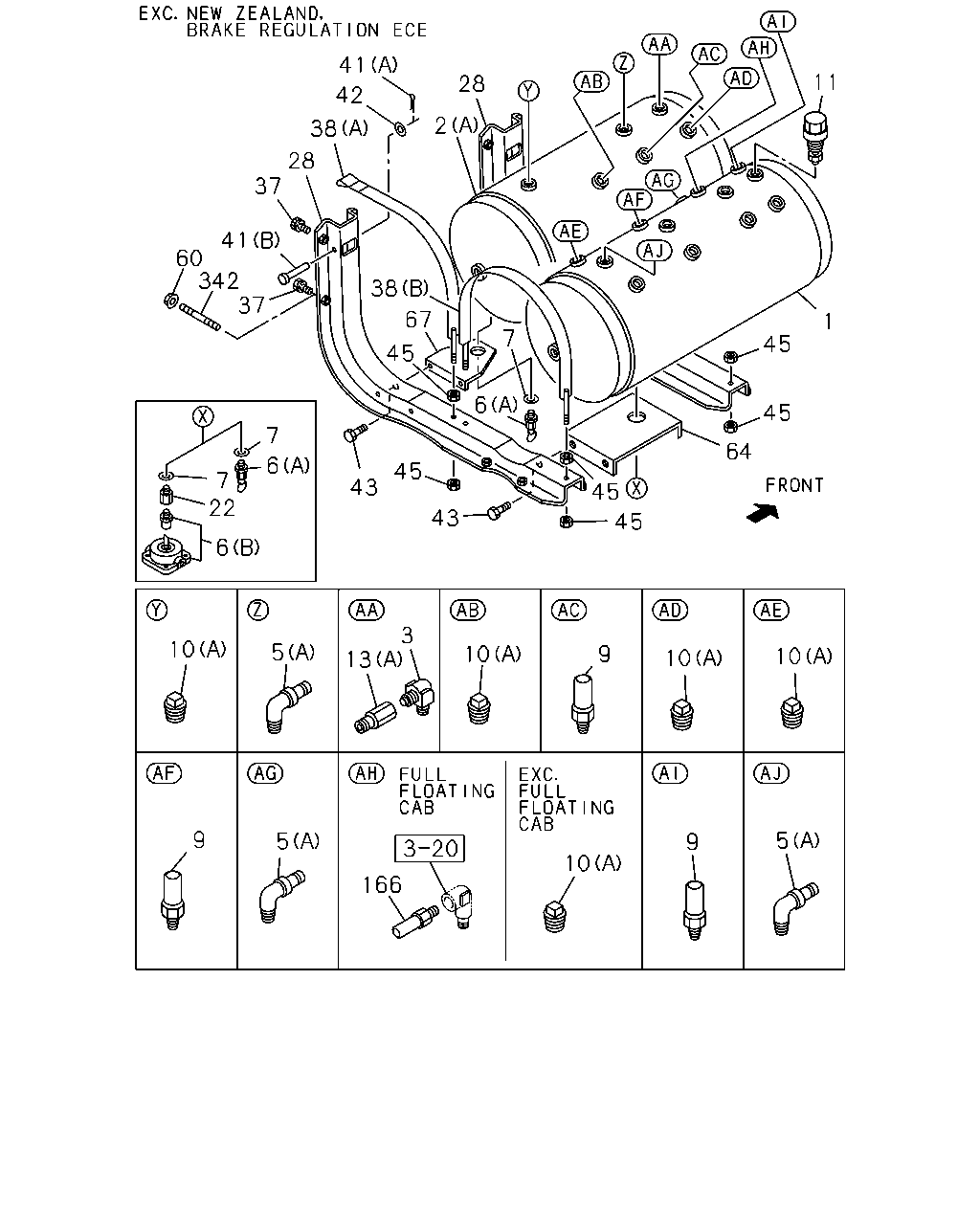

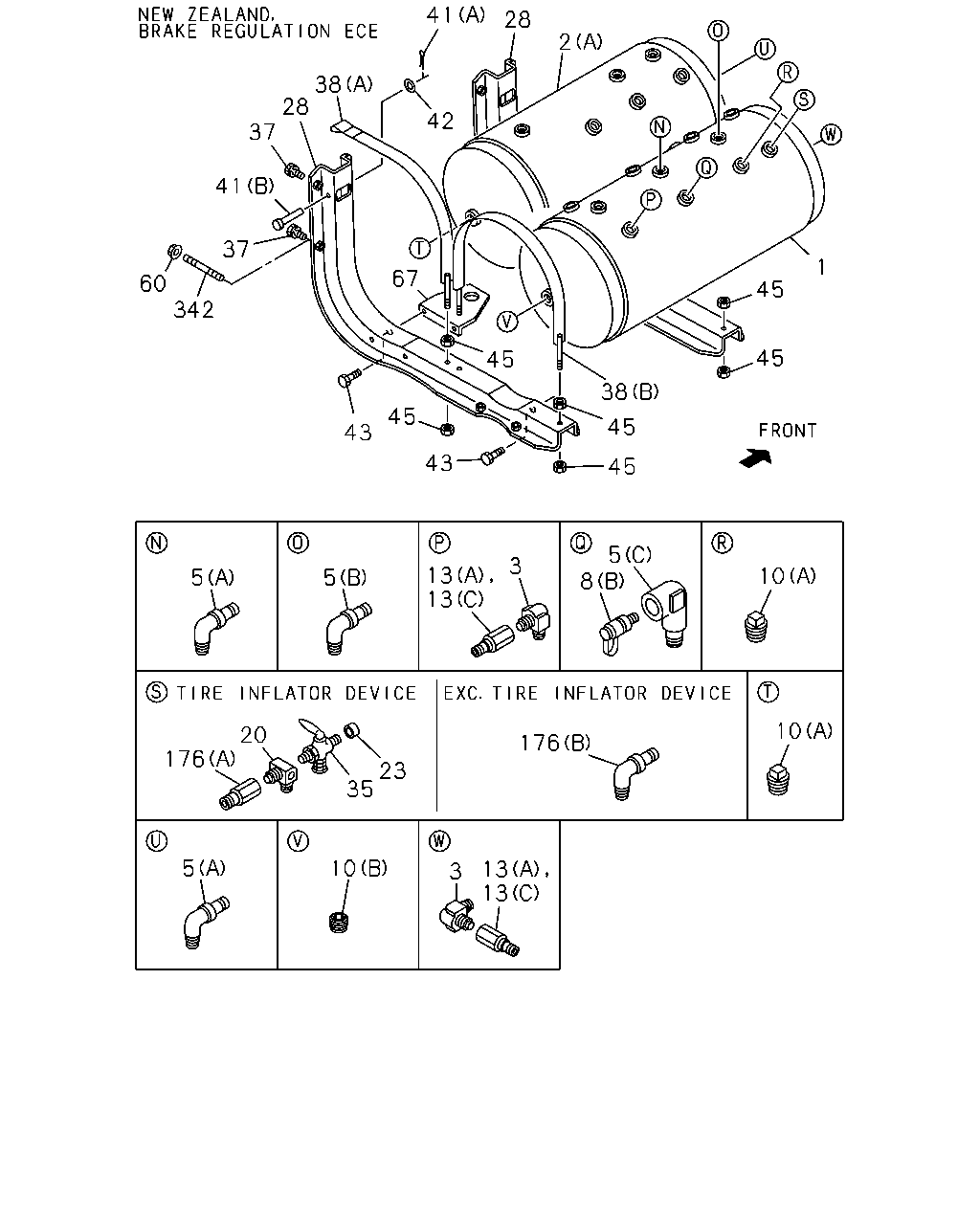

3-20 — AIR TANK (#5096) — 459 parça

41 42 38 2 28 28 37 41 60 37 1 67 45 342 45 45 38 45 43 45 43 45 261 261 261 261 3 5 5 343 10 13 8 10 176 20 176 23 35 5 3 10 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-221-0	01	1	9606-
2	TANK; AIR (A)	1-48370-222-1	01	1	9606-
2	TANK; AIR (B)	1-48370-223-1	01	1	9606-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	03	1	9606-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9905
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9606-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9606-9905
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9906-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9606-9905
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	02	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	02	1	9906-
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9606-9905
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9906-0001
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0002-
10	PLUG; AIR TANK (B) PT3/4	1-09605-025-0	01	1	9606-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	06	1	9606-9905
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (A) PT3/8	9-09204-517-0	01	1	9606-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	04	1	9606-9905
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	05	1	9606-9905
10	PLUG; AIR TANK EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	9906-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9606-9905
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-9906
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47>	1-09656-242-2	01	1	9606-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9606-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9606-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9606-0101
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9606-9905
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	04	1	9906-9907
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9908-
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9606-
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9606-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9606-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9606-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9606-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	9607-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9606-
60	NUT; AIR TANK FIX M12 FLANGE	0-91250-112-0	04	1	9906-9907
67	STAY; SUB TANK	1-48317-711-0	01	1	9606-
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9606-9905
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9906-0007
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
261	TUBE; NYLON EXC. BRAKE REGULATION ECE<TDV> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9906-0001
261	TUBE; NYLON EXC. BRAKE REGULATION ECE<TDV> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0002-
261	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=480 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9606-9905
261	TUBE; NYLON EXC. BRAKE REGULATION ECE<TDV> (B) L=480 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9906-0001
261	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=300 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9606-9905
342	STUD M12X40 L=64	9-94321-240-0	04	1	9906-9907
343	CONNECTOR; SWIVEL EXC. BRAKE REGULATION ECE<TDV> R3/8 OD=15.9	1-09661-082-0	01	1	0002-

11 28 2 41 42 28 37 38 41 60 342 38 37 67 1 7 45 45 6 7 45 6 7 22 64 45 43 45 6 43 45 5 5 8 3 10 9 13 13 8 13 13 10 5 9 10 166 5 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-221-0	01	1	9606-
2	TANK; AIR (A)	1-48370-222-1	01	1	9606-
2	TANK; AIR (B)	1-48370-223-1	01	1	9606-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	03	1	9606-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9905
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9606-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9606-9905
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9906-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	03	1	9606-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9606-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9606-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	9606-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9609-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9606-9905
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	02	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	02	1	9906-
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9606-9905
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9906-0001
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0002-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	9606-
10	PLUG; AIR TANK (B) PT3/4	1-09605-025-0	01	1	9606-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	06	1	9606-9905
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (A) PT3/8	9-09204-517-0	01	1	9606-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	04	1	9606-9905
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	05	1	9606-9905
10	PLUG; AIR TANK EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	9906-
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	9606-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9606-9905
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-9906
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9606-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9606-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9606-9905
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	04	1	9906-9907
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9908-
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9606-
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9606-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9606-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9606-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9606-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	9607-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9606-
60	NUT; AIR TANK FIX M12 FLANGE	0-91250-112-0	04	1	9906-9907
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9606-
67	STAY; SUB TANK	1-48317-711-0	01	1	9606-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9606-
342	STUD M12X40 L=64	9-94321-240-0	04	1	9906-9907

41 28 2 38 28 37 42 41 37 1 67 60 342 45 45 45 38 45 45 43 43 45 5 8 3 13 13 10 5 5 10 20 176 176 23 35 5 10 13 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-221-0	01	1	9606-
2	TANK; AIR (A)	1-48370-222-1	01	1	9606-
2	TANK; AIR (B)	1-48370-223-1	01	1	9606-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	03	1	9606-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9905
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9606-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9606-9905
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9906-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9606-9905
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	02	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	02	1	9906-
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9606-9905
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9906-0001
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0002-
10	PLUG; AIR TANK (B) PT3/4	1-09605-025-0	01	1	9606-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	06	1	9606-9905
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (A) PT3/8	9-09204-517-0	01	1	9606-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	04	1	9606-9905
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	05	1	9606-9905
10	PLUG; AIR TANK EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	9906-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9606-9905
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-9906
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47>	1-09656-242-2	01	1	9606-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9606-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9606-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9606-0101
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9606-9905
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	04	1	9906-9907
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9908-
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9606-
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9606-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9606-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9606-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9606-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	9607-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9606-
60	NUT; AIR TANK FIX M12 FLANGE	0-91250-112-0	04	1	9906-9907
67	STAY; SUB TANK	1-48317-711-0	01	1	9606-
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9606-9905
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9906-0007
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
342	STUD M12X40 L=64	9-94321-240-0	04	1	9906-9907

41 11 28 42 2 38 28 37 41 60 342 37 38 67 1 7 45 45 6 45 7 64 6 45 7 22 43 45 43 45 6 3 10 5 9 10 10 10 13 9 5 5 9 10 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-221-0	01	1	9606-
2	TANK; AIR (A)	1-48370-222-1	01	1	9606-
2	TANK; AIR (B)	1-48370-223-1	01	1	9606-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	03	1	9606-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9905
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9606-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9606-9905
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9606-9905
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9906-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	03	1	9606-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9606-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9606-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	9606-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9609-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	9606-
10	PLUG; AIR TANK (B) PT3/4	1-09605-025-0	01	1	9606-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	06	1	9606-9905
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (A) PT3/8	9-09204-517-0	01	1	9606-
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) PT3/8	9-09204-517-0	04	1	9606-9905
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	05	1	9606-9905
10	PLUG; AIR TANK EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	9906-
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	9606-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9606-9905
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-9906
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9606-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9606-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9606-9905
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	04	1	9906-9907
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9908-
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9606-
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9606-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9606-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9606-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9606-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	9607-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9606-
60	NUT; AIR TANK FIX M12 FLANGE	0-91250-112-0	04	1	9906-9907
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9606-
67	STAY; SUB TANK	1-48317-711-0	01	1	9606-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9606-
342	STUD M12X40 L=64	9-94321-240-0	04	1	9906-9907

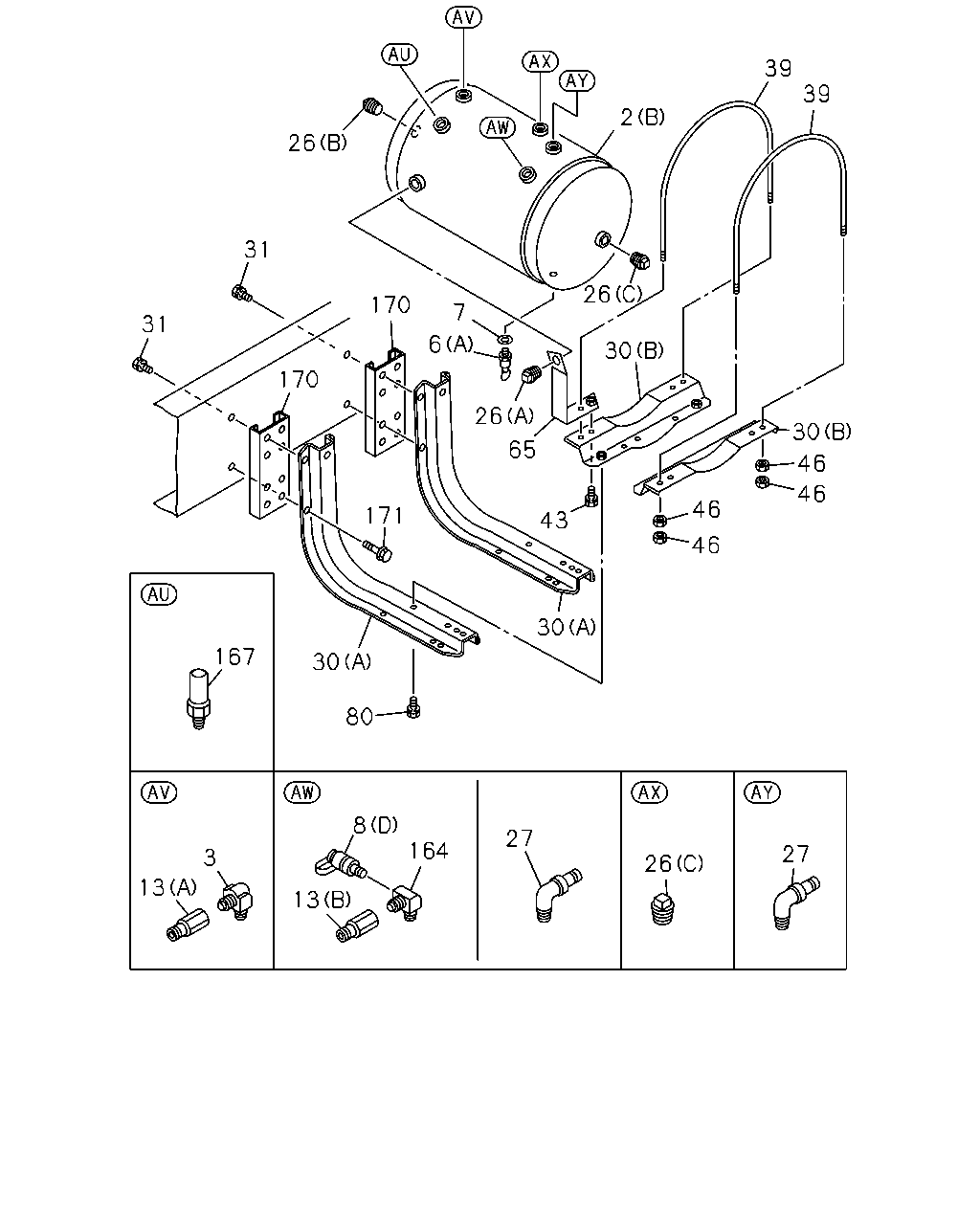

39 39 2 26 31 26 170 7 31 6 30 170 26 30 65 46 46 46 171 43 46 30 167 30 80 8 27 164 27 3 26 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48370-222-1	01	1	9606-
2	TANK; AIR (B)	1-48370-223-1	01	1	9606-
3	VALVE; CHECK,AIR TANK	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	03	1	9606-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9905
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9606-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	03	1	9606-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9606-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9606-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	9606-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9609-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9606-9905
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (A) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	01	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	01	1	9906-
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	02	1	9606-9905
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	02	1	9906-
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9606-9905
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9906-0001
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C)	1-09661-080-1	01	1	0002-
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9606-9905
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9906-9906
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-9906
13	ADAPTER; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9907-0007
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0008-0008
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9606-9905
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-9906
26	PLUG; SUB AIR TANK (C) PT3/8	9-09204-517-0	02	1	9606-
26	PLUG; SUB AIR TANK (A) PT3/4	9-09204-526-0	01	1	9606-
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	9606-
27	UNION; ELBOW,AIR TANK NEW ZEALAND EQUIPMENT(PK5) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9606-9905
27	UNION; ELBOW,AIR TANK BRAKE REGULATION ECE<TDV> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
27	UNION; ELBOW,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9606-9905
27	UNION; ELBOW,AIR TANK EXC. BRAKE REGULATION ECE<TDV> DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9906-
30	BRACKET; AIR TANK,SUB (B) L=360	1-48317-106-3	02	1	9606-
30	BRACKET; AIR TANK,SUB (A)	1-48317-716-0	02	1	9606-
31	BOLT; BRKT TO FRAME M12X40 W/LK WASHER	0-50041-240-0	08	1	9606-9606
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	9607-
39	U-BOLT; AIR TANK L=303	1-48317-087-2	02	1	9606-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	01	1	9607-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9606
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-
46	NUT; U-BOLT M8	9-09110-508-0	08	1	9606-
65	STAY; AIR TANK,SUB	1-48317-678-0	01	1	9606-
80	BOLT; BRKT M12X30 FLANGE	0-28081-230-0	04	1	9606-9606
80	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	04	1	9607-
164	CONNECTOR; SUB AIR TANK NEW ZEALAND EQUIPMENT(PK5) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9606-9905
164	CONNECTOR; SUB AIR TANK BRAKE REGULATION ECE<TDV> M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9906-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-0	01	1	9606-
170	DISTANCE; AIR TANK,SUB	1-48319-113-0	02	1	9606-
171	BOLT; BRKT TO DIST M12X25 FLANGE	0-28081-225-0	08	1	9606-9606
171	BOLT; BRKT TO DIST M12X30 FLANGE	0-28681-230-0	08	1	9607-

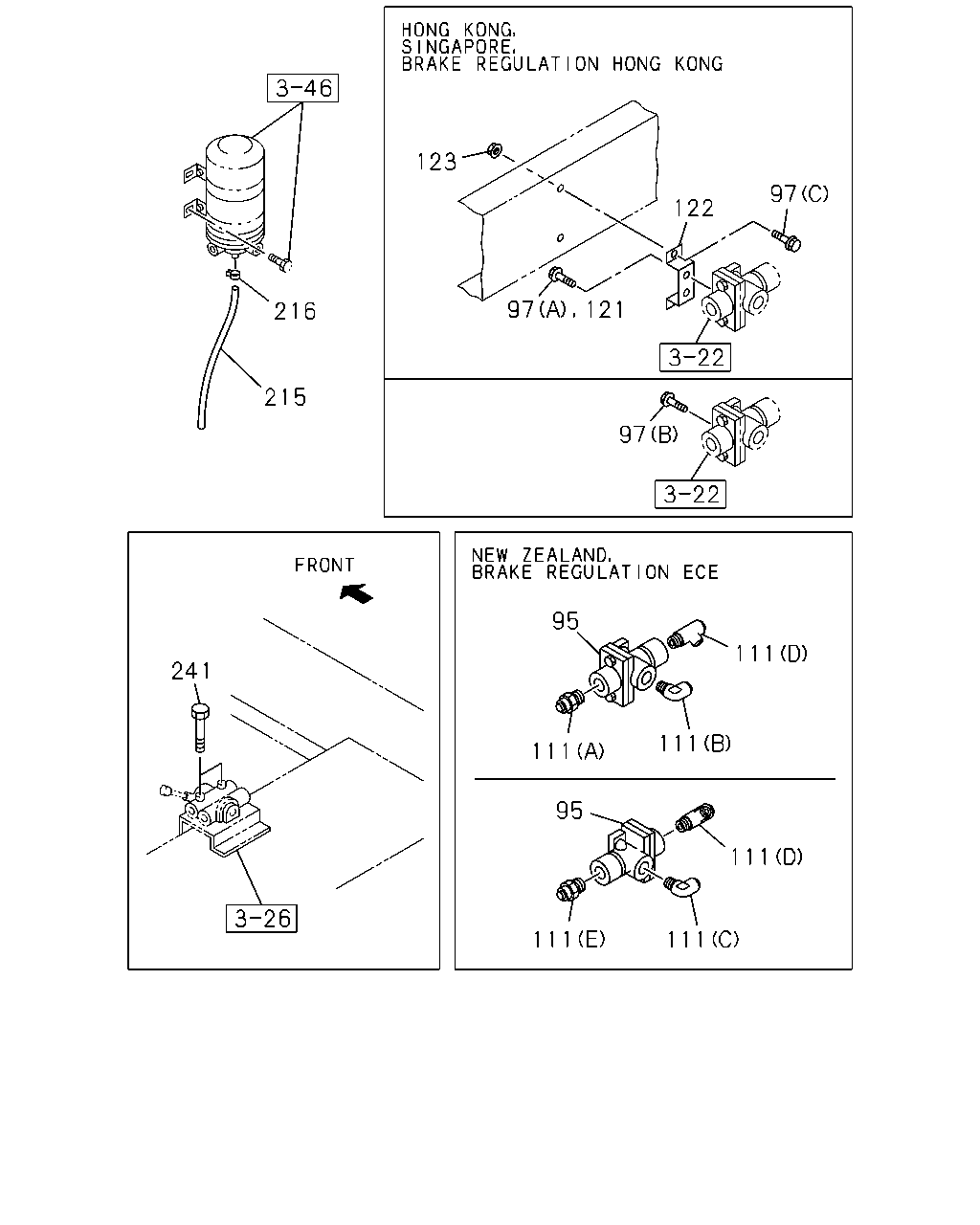

123 97 122 97 121 216 215 97 95 111 241 111 111 95 111 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	02	1	9606-9902
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	02	1	9903-9905
95	VALVE; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	02	1	9906-
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (A) M8X16 FLANGE	0-28080-816-0	02	1	9606-9701
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X16 FLANGE	0-28080-816-0	02	1	9702-9905
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (A) M8X16 FLANGE	0-28080-816-0	02	1	9906-
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (B) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (B) M8X12 FLANGE	0-28080-812-0	02	1	9607-9701
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X12 FLANGE	0-28080-812-0	02	1	9702-9905
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) M8X12 FLANGE	0-28080-812-0	02	1	9906-
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (C) M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) (C) M8X35 FLANGE	0-28680-835-0	02	1	9607-9701
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X35 FLANGE	0-28680-835-0	02	1	9702-9905
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (C) M8X35 FLANGE	0-28680-835-0	02	1	9906-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9606-9905
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9905
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9606-9905
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	02	1	9606-9905
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	02	1	9906-
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9606-9905
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	04	1	9606-9905
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	04	1	9906-
122	BRACKET; DBL CHECK VLV HONG KONG EQUIPMENT(PQ1)	1-48495-030-1	01	1	9606-9701
122	BRACKET; DBL CHECK VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-48495-030-1	01	1	9702-9905
122	BRACKET; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48495-030-1	01	1	9906-
123	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9606-9606
123	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	02	1	9607-9701
123	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91150-108-0	02	1	9702-9905
123	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	02	1	9906-
215	PIPE; VINYL AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9606-0103
215	PIPE; VINYL AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0104-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9606-
241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9606-9708
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9709-9905
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9906-9906
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9907-
241	BOLT; SET,CONT VLV EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28080-870-0	02	1	9709-9905
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28080-870-0	02	1	9906-9906
241	BOLT; SET,CONT VLV EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28080-870-0	02	1	9907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
