Isuzu WW
▶
TRUCKS
▶
NMR
▶
51385 - NMR 71(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶

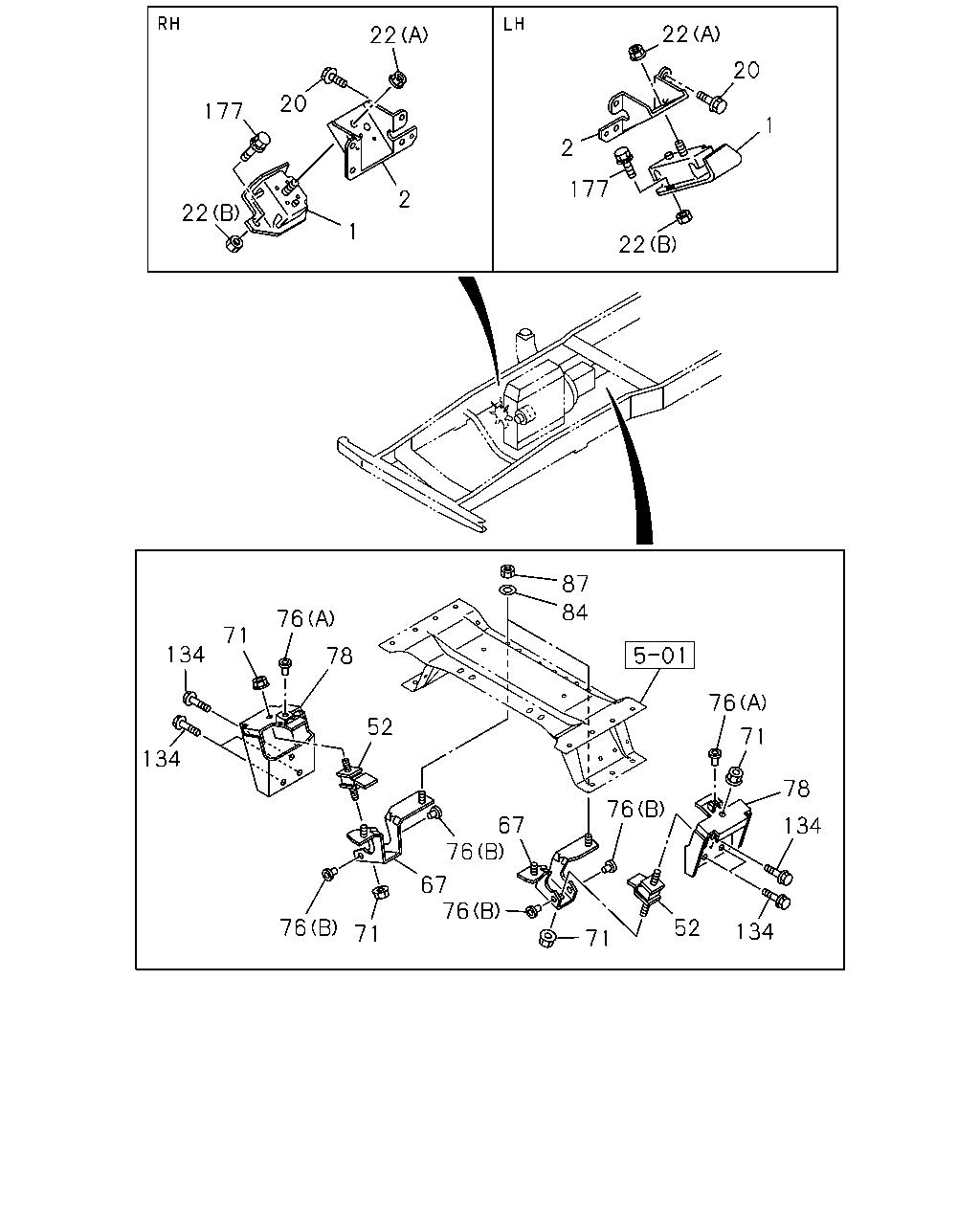

0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#50939) — 19 parça
22
22
20
20
177
1
2
177
22
2
1
22
87
84
76
71
134
78
76
52
71
134
78
76
67
76
134
67
76
76
52
134
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.027 RUBBER; ENG FOOT,FRT
8-97122-893-1
01
1
0810-
1
00.027 RUBBER; ENG FOOT,FRT
8-97122-895-1
01
1
0810-
2
00.029 FOOT; ENG
8-97228-669-2
02
1
0810-
20
00.029 BOLT; ENG FOOT
M10X20 FLANGE
0-28161-020-0
08
1
0810-
22
00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE
0-91180-112-0
02
1
0810-
22
00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE
0-91180-210-0
04
1
0810-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
8-94111-903-1
02
1
0810-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-97255-776-1
01
1
0810-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-97255-778-1
01
1
0810-
71
00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
0810-
76
00.002 STOPPER; ENG MTG RUBBER
00.027 (A)
8-94111-904-0
02
1
0810-
76
00.002 STOPPER; ENG MTG RUBBER
(B)
8-97039-947-1
04
1
0810-
78
00.029 BRACKET; ENG MTG,RR
FRAME-KICK UP<7EW>
8-98092-719-0
01
1
0810-
78
00.029 BRACKET; ENG MTG,RR
FRAME-KICK UP<7EW>
8-98092-720-0
01
1
0810-
78
00.029 BRACKET; ENG MTG,RR
EXC. FRAME-KICK UP<7EW>
8-97255-756-1
02
1
0810-
84
00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0810-
87
00.029 NUT; ENG MTG RR
03.162 M10 FLANGE
0-91180-110-0
04
1
0810-
134
00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE
0-28751-225-0
06
1
0810-
177
00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5
8-94468-733-1
04
1
0810-
