6-32 — FRONT DOOR LOCK AND HANDLE (#50929) — 73 parça

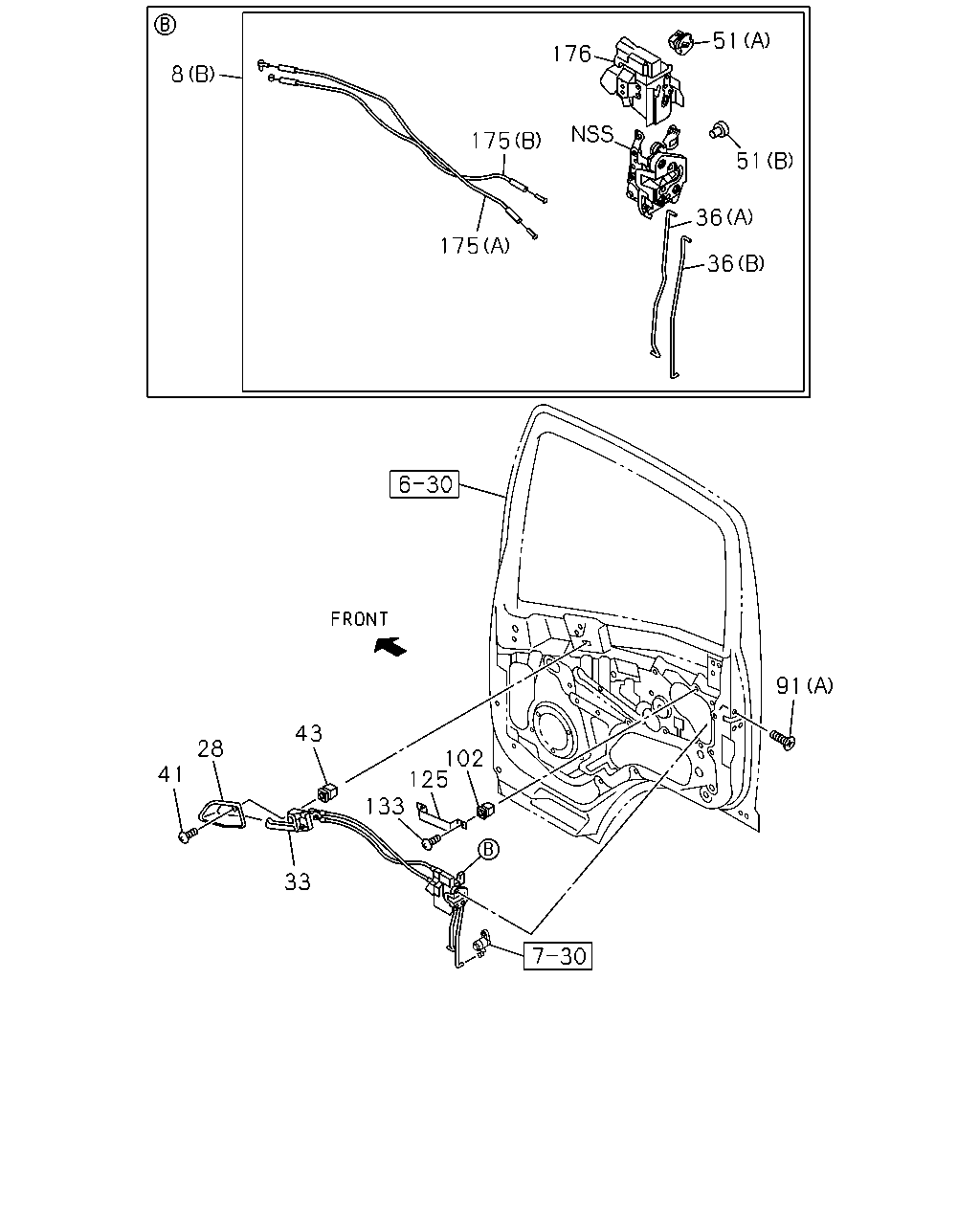

8 176 175 175 51 51 36 36 91 102 125 133 33 43 28 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A)	8-98017-421-0	01	1	1004-
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A)	8-98017-422-1	01	1	1004-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-98029-052-2	01	1	1004-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-98029-053-2	01	1	1004-
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-311-0	01	1	1004-
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-312-0	01	1	1004-
33	16.345 LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-309-1	01	1	1004-
33	16.345 LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-310-1	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (A)	8-98058-531-0	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (A)	8-98058-532-0	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (B)	8-98058-535-0	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (B)	8-98058-536-0	01	1	1004-
41	16.345 SCREW; INSIDE HANDLE 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1004-
43	16.345 GROMMET; SCREW,INSIDE LEVER,DOOR 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD (B) BLACK	8-98058-228-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD (B) RED	8-98058-229-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	02	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	02	1	1004-
91	16.330 BOLT; DOOR LOCK AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1004-
91	16.330 BOLT; DOOR LOCK (A) M6X14.5	8-98004-342-0	06	1	1004-
102	16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1004-
125	16.341 BRACKET; DOOR PULL	8-97585-927-0	02	1	1004-
133	16.345 SCREW; DOOR PULL STAY 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	1004-
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98058-537-0	01	1	1004-
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98058-538-0	01	1	1004-
175	16.341 CABLE ASM; LOCK CONTROL (B)	8-98058-539-0	02	1	1004-
176	16.270 COVER; DOOR LOCK	8-98058-238-0	01	1	1004-
176	16.270 COVER; DOOR LOCK	8-98058-239-0	01	1	1004-

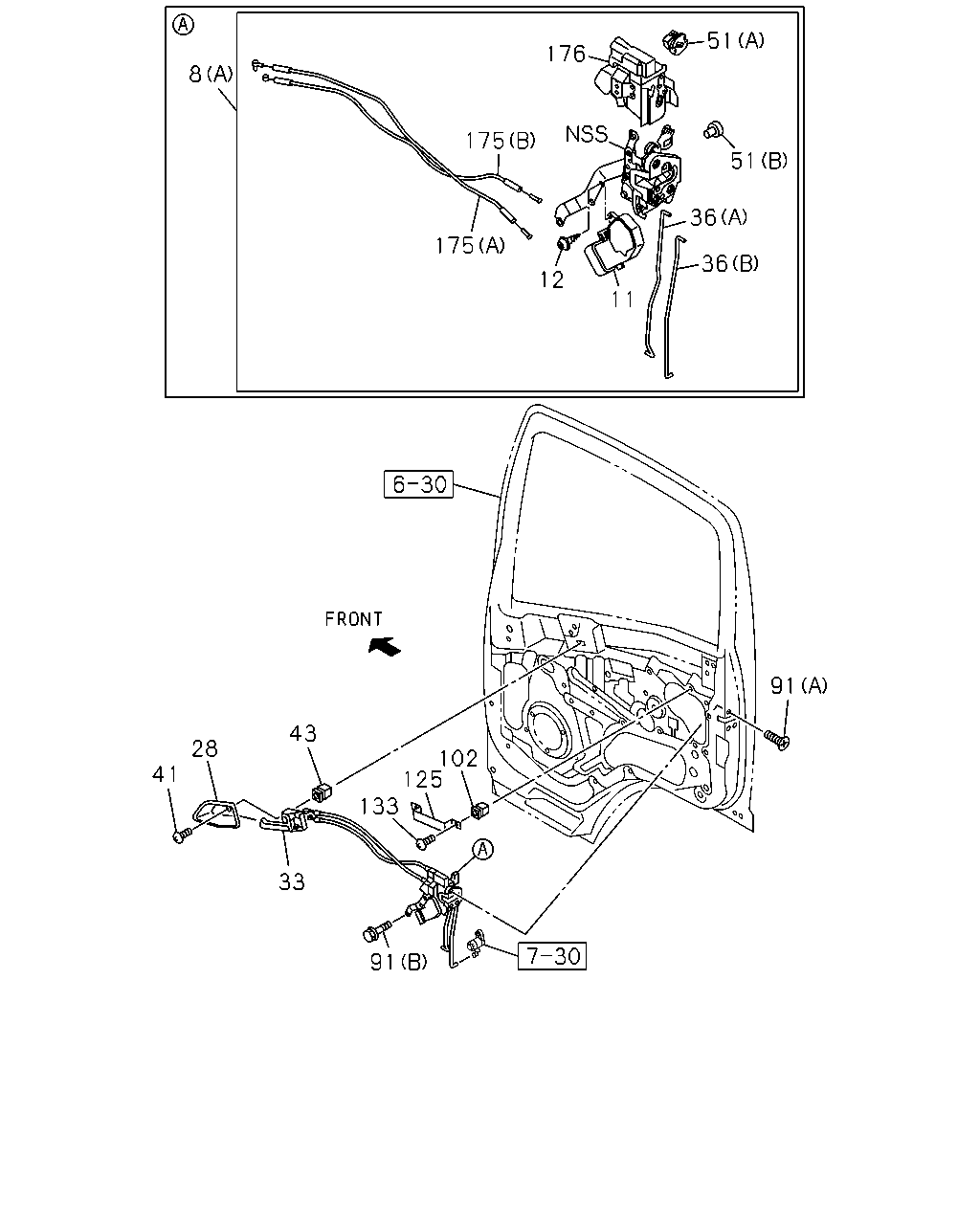

8 176 175 175 12 11 51 51 36 36 91 102 125 133 43 28 41 33 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A)	8-98017-421-0	01	1	1004-
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A)	8-98017-422-1	01	1	1004-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-98029-052-2	01	1	1004-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-98029-053-2	01	1	1004-
11	16.263 ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4>	8-98089-561-0	01	1	1004-
11	16.263 ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4>	8-98089-562-0	01	1	1004-
12	16.330 SCREW; DOOR LK AUTO DOOR LOCK<AU4>	8-97310-549-0	04	1	1004-
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-311-0	01	1	1004-
28	16.345 BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-312-0	01	1	1004-
33	16.345 LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-309-1	01	1	1004-
33	16.345 LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-310-1	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (A)	8-98058-531-0	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (A)	8-98058-532-0	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (B)	8-98058-535-0	01	1	1004-
36	16.332 LINK; DOOR LOCK,OUTSIDE (B)	8-98058-536-0	01	1	1004-
41	16.345 SCREW; INSIDE HANDLE 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1004-
43	16.345 GROMMET; SCREW,INSIDE LEVER,DOOR 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD (B) BLACK	8-98058-228-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD (B) RED	8-98058-229-0	01	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	02	1	1004-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	02	1	1004-
91	16.330 BOLT; DOOR LOCK AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1004-
91	16.330 BOLT; DOOR LOCK (A) M6X14.5	8-98004-342-0	06	1	1004-
102	16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1004-
125	16.341 BRACKET; DOOR PULL	8-97585-927-0	02	1	1004-
133	16.345 SCREW; DOOR PULL STAY 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	1004-
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98058-537-0	01	1	1004-
175	16.341 CABLE ASM; LOCK CONTROL (A)	8-98058-538-0	01	1	1004-
175	16.341 CABLE ASM; LOCK CONTROL (B)	8-98058-539-0	02	1	1004-
176	16.270 COVER; DOOR LOCK	8-98058-238-0	01	1	1004-
176	16.270 COVER; DOOR LOCK	8-98058-239-0	01	1	1004-

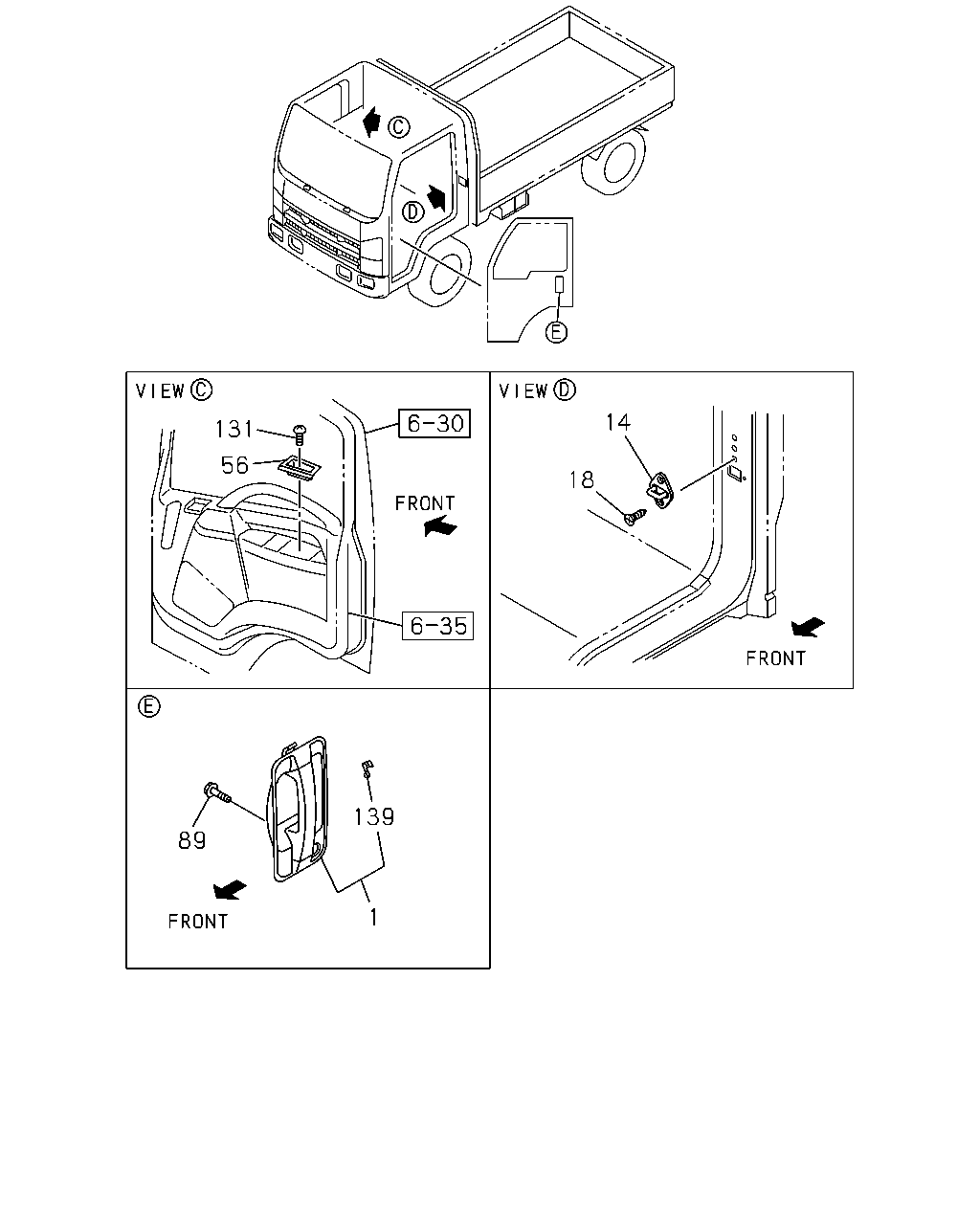

14 131 56 18 139 89 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.350 HANDLE; OUTSIDE,FRT DOOR	8-98037-100-2	01	1	1004-
1	16.350 HANDLE; OUTSIDE,FRT DOOR	8-98037-101-2	01	1	1004-
14	16.335 STRIKER; FRT DOOR	8-98029-173-2	02	1	1004-
18	16.335 SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	1004-
56	16.157 ESCUTCHEON; LOCK KNOB GRAY	8-97405-314-1	01	1	1004-
56	16.157 ESCUTCHEON; LOCK KNOB GRAY	8-97405-315-1	01	1	1004-
89	16.350 BOLT; DOOR OUTSIDE HANDLE 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1004-
131	16.345 SCREW; ESCUTCHEON,DOOR PULL 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1004-
139	16.350 HOLDER; ROD,DOOR HANDLE 16.330 WHITE	8-97333-303-0	01	1	1004-
139	16.350 HOLDER; ROD,DOOR HANDLE BLACK	8-98095-813-0	01	1	1004-
