6-05 — FRONT PANEL (#50924) — 144 parça

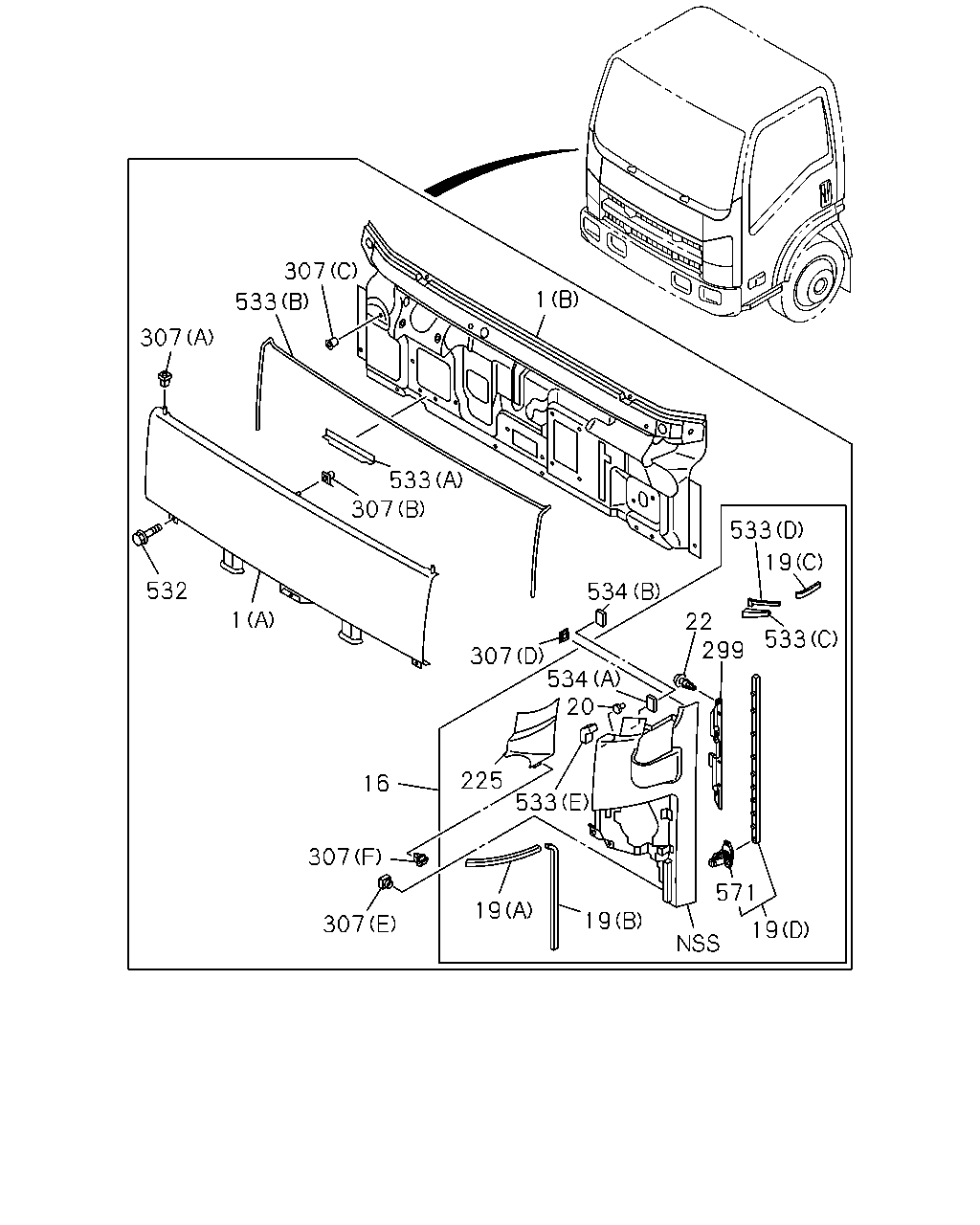

çizim 60321
307 533 307 532 1 16 307 307 19 19 571 19 533 225 307 534 20 22 299 533 19 533 534 307 533 1
BalonParca AdiParca NoAdetTipApplied Date

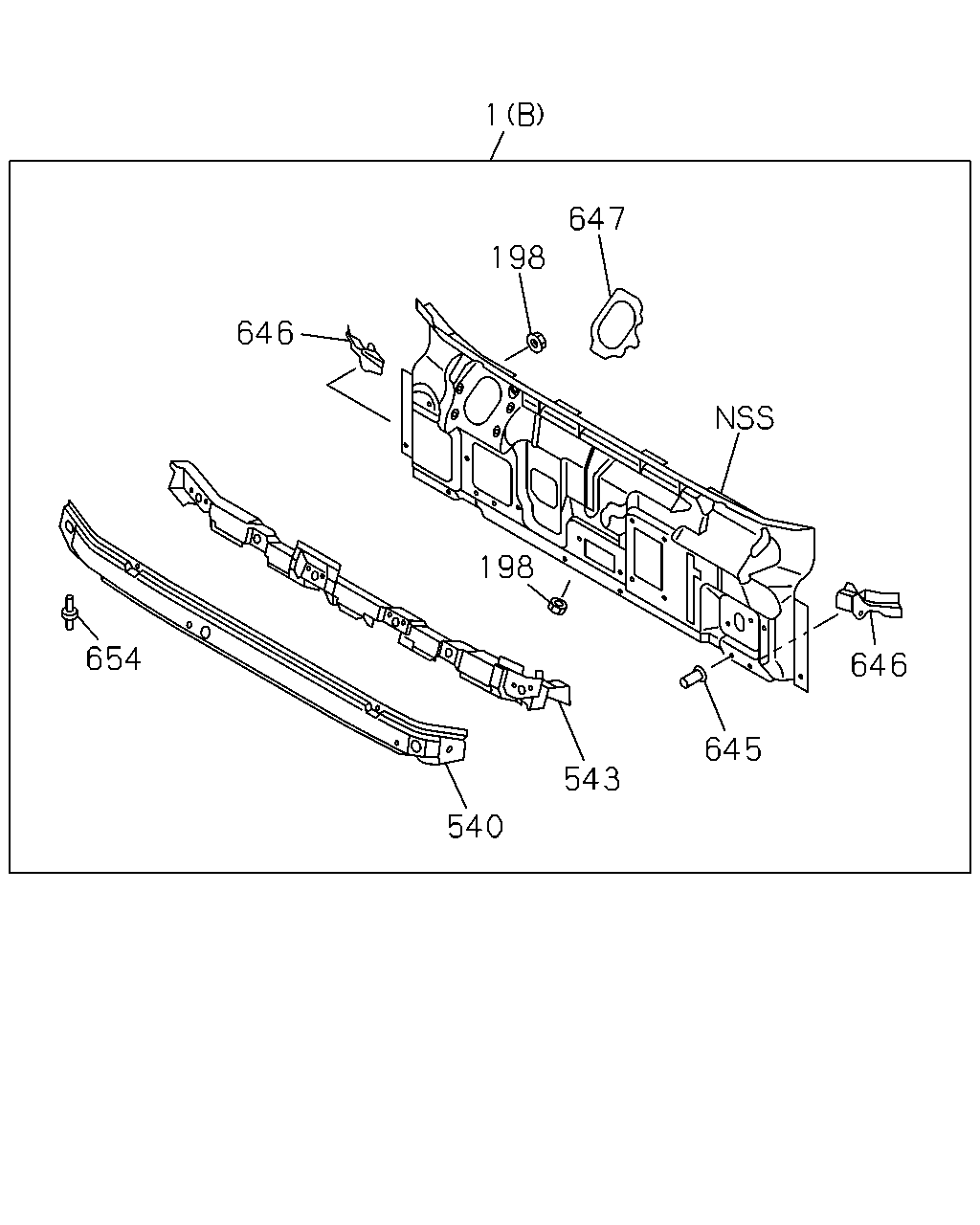

1 16.550 PANEL ASM; FRT
(B) 		8-97585-955-2 01 1 1004-1012
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1101-
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1004-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97407-904-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97407-909-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97417-302-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97417-308-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97417-303-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97417-310-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97417-304-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97417-311-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97417-305-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97417-312-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97407-905-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97407-910-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97406-039-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97406-040-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97407-342-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97407-343-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97407-906-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97407-911-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97407-907-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97407-912-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97417-306-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97417-314-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97415-715-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97415-716-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> ORANGE 		8-97417-307-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> ORANGE 		8-97417-313-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-842-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-843-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97414-635-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97414-636-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97409-870-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97409-872-9 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLACK 		8-97417-315-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLACK 		8-97417-316-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> GRAY 		8-97412-096-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> GRAY 		8-97412-107-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> WHITE 		8-97412-105-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> WHITE 		8-97412-116-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-097-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-108-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> RED 		8-97409-579-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> RED 		8-97409-588-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-098-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-109-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> WHITE 		8-97405-621-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> WHITE 		8-97405-625-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> RED 		8-97412-099-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> RED 		8-97412-110-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> DARK GREEN 		8-97412-100-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> DARK GREEN 		8-97412-111-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> YELLOW 		8-97412-101-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> YELLOW 		8-97412-112-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BEIGE 		8-97412-102-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BEIGE 		8-97412-113-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-103-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-114-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> DARK YELLOW 		8-97412-104-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> DARK YELLOW 		8-97412-115-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> GREEN 		8-97412-106-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> GREEN 		8-97412-117-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> LIGHT GRAY 		8-97405-619-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> LIGHT GRAY 		8-97405-623-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97405-620-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1004-1011
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97405-624-8 01 1 1012-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1004-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1004-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1004-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1004-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1004-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1004-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1004-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1004-1011
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR ARC WH ITE(729),BODY COLOR CARDINAL RED(736), BODYCOLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLO R QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1012-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1004-1011
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR ARC WH ITE(729),BODY COLOR CARDINAL RED(736), BODYCOLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1012-
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1004-
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1004-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1004-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1004-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1004-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1004-
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1004-
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1004-
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1004-1011
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> (F) 		8-98028-743-0 02 1 1012-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1004-
533 08.143 SEAL; FRT PANEL
(A) 		8-98049-007-0 01 1 1004-
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1004-1506
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1004-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1004-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1004-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1004-
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 40X25 		8-98089-412-1 02 1 1012-
534 16.550 FASTENER
(A) 20X30 		8-98059-208-1 02 1 1004-1011
534 16.550 FASTENER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR ARC WH ITE(729),BODY COLOR CARDINAL RED(736), BODYCOLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> (A) 20X30 		8-98059-208-1 02 1 1012-
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 40X25 		8-98089-411-1 02 1 1012-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1004-
çizim 101413
1 647 198 646 198 654 646 645 543 540
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(B) 		8-97585-955-2 01 1 1004-1012
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1101-
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1004-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1004-
540 16.588 PANEL; FRONT,OUTER 8-97585-964-0 01 1 1004-
543 16.570 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 1004-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1004-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1004-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1004-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1004-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1004-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
