◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 3 - Brakes, Brake System ▶ 3-08A - PARKING BRAKE ▶
3-08A — PARKING BRAKE (#5092) — 130 parça

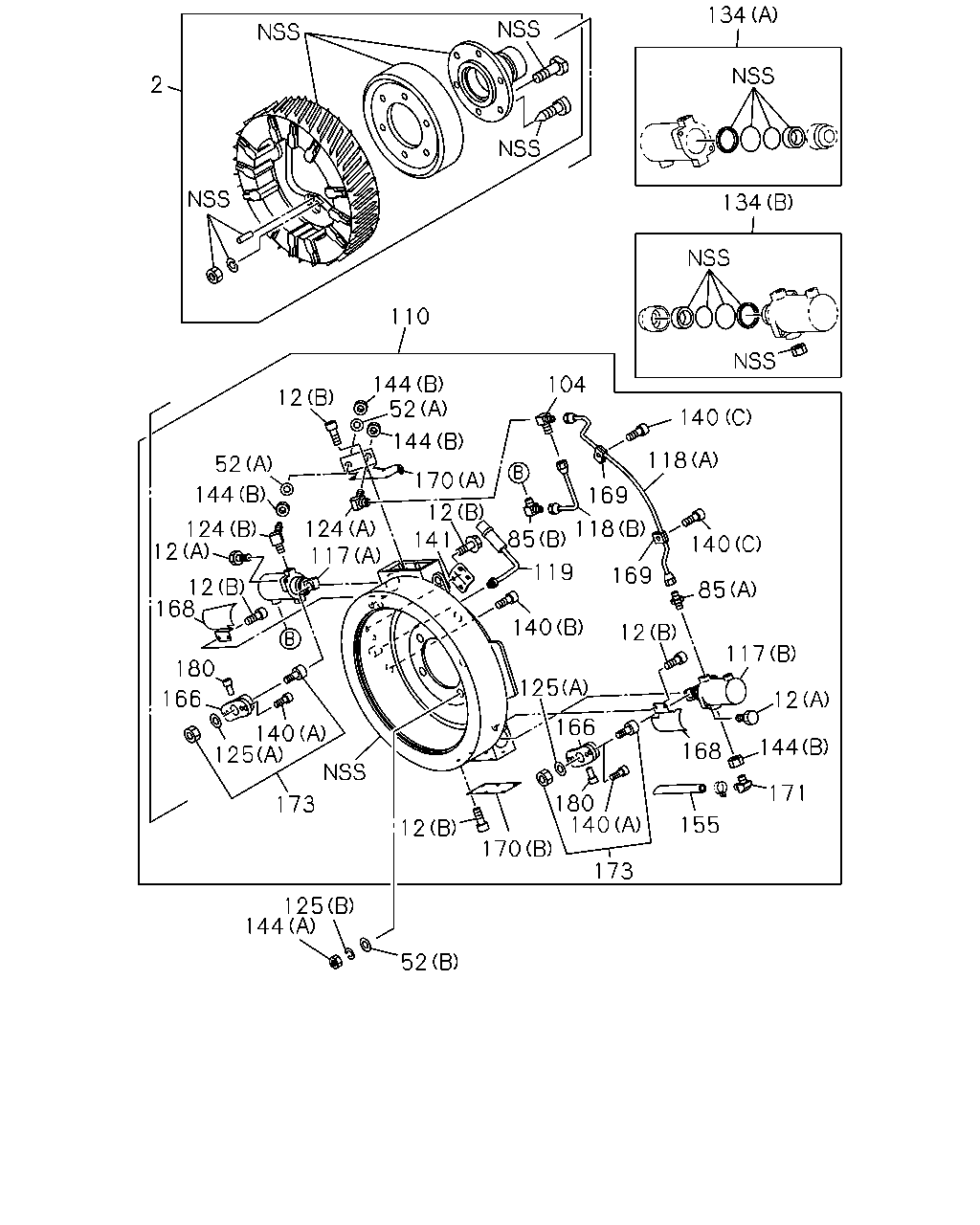

çizim 3324
134 2 134 110 144 52 104 12 140 144 118 52 170 12 141 144 169 118 124 117 124 12 85 140 119 169 12 168 85 140 12 117 180 125 166 12 166 140 125 144 168 171 180 140 173 155 12 170 173 125 144 52
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK 1-46210-227-2 01 1 9606-9905
2 DRUM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-46210-257-2 01 1 9906-
12 BOLT; FIX
BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET 		1-48629-145-0 20 1 9906-
12 BOLT; FIX
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-170-0 04 1 9906-
52 WASHER; PL
(B) ID=16.2 		1-09503-223-0 04 1 9606-9905
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2 		1-09503-223-0 04 1 9906-
52 WASHER; PL
(A) ID=10.5 OD=26 		9-09160-710-0 05 1 9606-9905
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26 		9-09160-612-0 02 1 9906-
85 CONNECTOR; RETARDER
(B) 		1-48629-060-1 02 1 9606-9905
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-211-0 01 1 9906-
85 CONNECTOR; RETARDER
(A) M12 & PT1/8 		9-09224-306-2 04 1 9606-9905
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8 		9-09224-306-2 01 1 9906-
104 CONNECTOR 1-48629-059-0 02 1 9606-9905
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-202-0 01 1 9906-
110 BRAKE ASM; PARKING 1-48610-257-0 01 1 9606-9702
110 BRAKE ASM; PARKING 1-48610-328-0 01 1 9703-9905
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-381-4 01 1 9906-
117 CYLINDER ASM; AIR
(C) 		1-48629-020-1 03 1 9606-9905
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-192-0 01 1 9906-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-193-0 01 1 9906-
118 PIPE ASM; AIR CYL
(E) 		1-49112-398-1 01 1 9606-9905
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-210-0 01 1 9906-
118 PIPE ASM; AIR CYL
(F) 		1-49112-399-1 01 1 9606-9905
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-201-0 01 1 9906-
118 PIPE ASM; AIR CYL
(A) 		1-49114-769-0 01 1 9606-9905
118 PIPE ASM; AIR CYL
(B) 		1-49114-770-0 01 1 9606-9606
118 PIPE ASM; AIR CYL
(B) 		1-49117-520-0 01 1 9607-9905
118 PIPE ASM; AIR CYL
(C) 		1-49114-771-0 01 1 9606-9905
118 PIPE ASM; AIR CYL
(D) 		1-49114-772-0 01 1 9606-9905
119 SWITCH; THERMO 1-82450-043-0 01 1 9606-9905
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER<RE2> 		1-82450-054-0 01 1 9906-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-203-0 01 1 9906-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-204-0 01 1 9906-
125 WASHER; LK
(A) ID=5.1 		9-09150-505-0 12 1 9606-9905
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-206-0 02 1 9906-
125 WASHER; LK
(B) ID=16.2 		9-09150-516-0 04 1 9606-9905
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2 		9-09150-516-0 04 1 9906-
134 REPAIR KIT; AIR CYL
(C) 		1-85576-130-1 03 1 9606-9905
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-217-0 01 1 9906-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-218-0 01 1 9906-
140 BOLT
(A) M10X25 		0-28191-025-0 06 1 9606-9905
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) M10X20 		1-48629-070-0 08 1 9906-
140 BOLT
(B) 		1-48629-040-0 12 1 9606-9905
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (C) M8X18 		1-48629-134-0 02 1 9906-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) M8X12 		1-48629-205-0 02 1 9906-
141 BRACKET 1-48629-122-1 01 1 9606-9606
141 BRACKET 1-48629-185-0 01 1 9607-9905
141 BRACKET
BRAKE SYSTEM RETARDER<RE2> 		1-48629-172-0 01 1 9906-
144 NUT
(A) M16 		9-99110-516-0 04 1 9606-9905
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M16 		9-99110-516-0 04 1 9906-
144 NUT
(B) M12 		9-99111-412-0 02 1 9606-9905
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M12 		9-09840-280-0 04 1 9906-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-092-0 01 1 9906-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-191-0 02 1 9906-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-194-0 02 1 9906-
169 CLAMP
BRAKE SYSTEM RETARDER<RE2> 		1-48629-209-0 04 1 9906-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-195-0 01 1 9906-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-196-0 01 1 9906-
171 BREATHER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-144-0 01 1 9906-
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 02 1 9906-
180 PIN; RETAINING
BRAKE SYSTEM RETARDER<RE2> 		1-48629-198-0 02 1 9906-

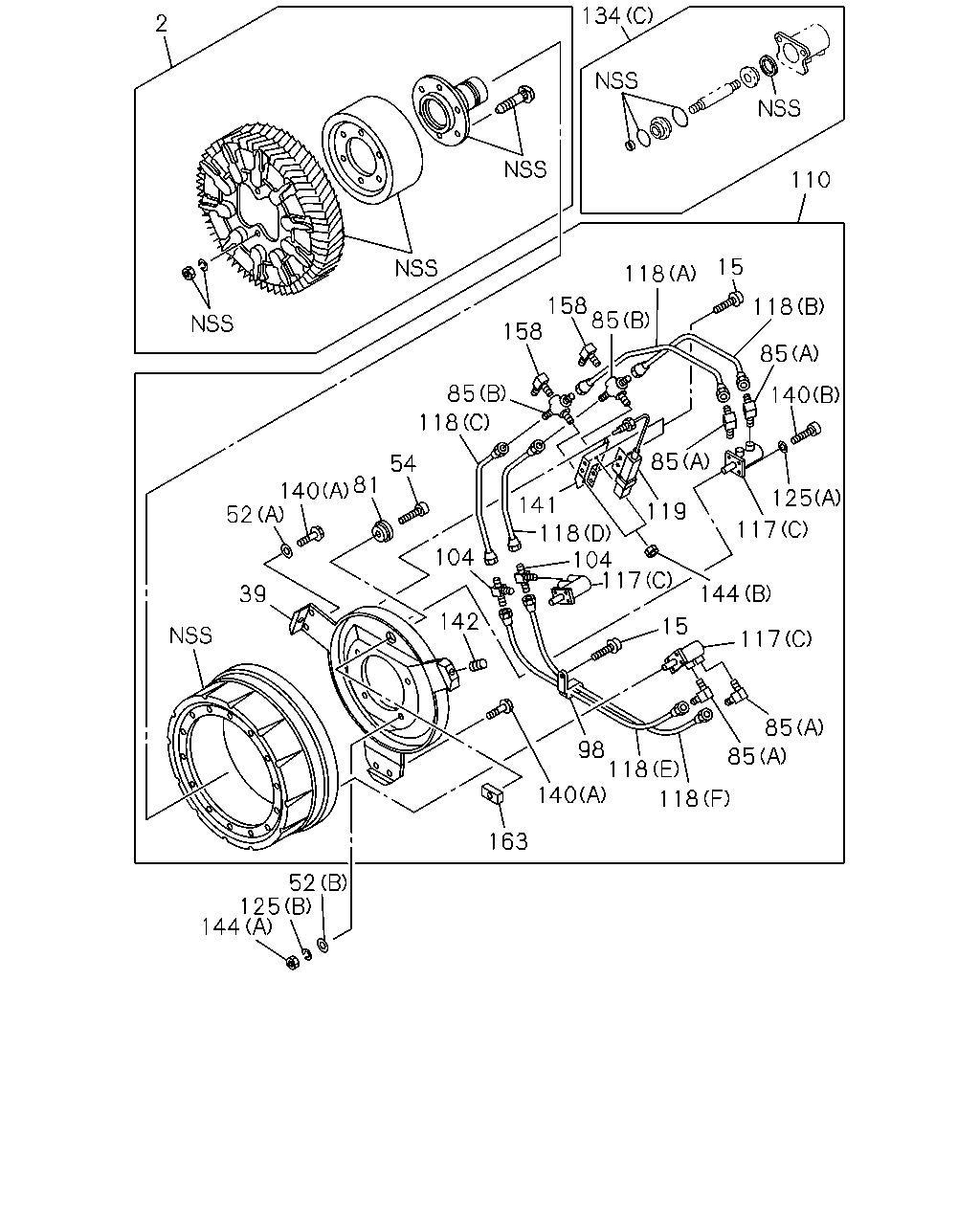

çizim 40589
134 2 110 15 118 158 85 158 118 85 85 140 118 85 54 81 140 125 141 118 104 117 119 52 117 104 144 39 142 15 117 85 98 118 85 140 118 163 52 125 144
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK 1-46210-227-2 01 1 9606-9905
2 DRUM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-46210-257-2 01 1 9906-
15 BOLT; FLANGE 1-48629-123-0 05 1 9606-9905
39 COVER; DUST,PARKING BRK 1-46213-094-1 01 1 9606-9905
52 WASHER; PL
(B) ID=16.2 		1-09503-223-0 04 1 9606-9905
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2 		1-09503-223-0 04 1 9906-
52 WASHER; PL
(A) ID=10.5 OD=26 		9-09160-710-0 05 1 9606-9905
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26 		9-09160-612-0 02 1 9906-
54 BOLT; COVER
M8X16 		9-05820-816-0 01 1 9606-9905
81 COVER; CHECK HOLE,PARKING BRK 1-48629-151-0 01 1 9606-9905
85 CONNECTOR; RETARDER
(B) 		1-48629-060-1 02 1 9606-9905
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-211-0 01 1 9906-
85 CONNECTOR; RETARDER
(A) M12 & PT1/8 		9-09224-306-2 04 1 9606-9905
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8 		9-09224-306-2 01 1 9906-
98 CLIP; AIR PIPE 1-47477-009-0 01 1 9606-9905
104 CONNECTOR 1-48629-059-0 02 1 9606-9905
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-202-0 01 1 9906-
110 BRAKE ASM; PARKING 1-48610-257-0 01 1 9606-9702
110 BRAKE ASM; PARKING 1-48610-328-0 01 1 9703-9905
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-381-4 01 1 9906-
117 CYLINDER ASM; AIR
(C) 		1-48629-020-1 03 1 9606-9905
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-192-0 01 1 9906-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-193-0 01 1 9906-
118 PIPE ASM; AIR CYL
(E) 		1-49112-398-1 01 1 9606-9905
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-210-0 01 1 9906-
118 PIPE ASM; AIR CYL
(F) 		1-49112-399-1 01 1 9606-9905
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-201-0 01 1 9906-
118 PIPE ASM; AIR CYL
(A) 		1-49114-769-0 01 1 9606-9905
118 PIPE ASM; AIR CYL
(B) 		1-49114-770-0 01 1 9606-9606
118 PIPE ASM; AIR CYL
(B) 		1-49117-520-0 01 1 9607-9905
118 PIPE ASM; AIR CYL
(C) 		1-49114-771-0 01 1 9606-9905
118 PIPE ASM; AIR CYL
(D) 		1-49114-772-0 01 1 9606-9905
119 SWITCH; THERMO 1-82450-043-0 01 1 9606-9905
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER<RE2> 		1-82450-054-0 01 1 9906-
125 WASHER; LK
(A) ID=5.1 		9-09150-505-0 12 1 9606-9905
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-206-0 02 1 9906-
125 WASHER; LK
(B) ID=16.2 		9-09150-516-0 04 1 9606-9905
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2 		9-09150-516-0 04 1 9906-
134 REPAIR KIT; AIR CYL
(C) 		1-85576-130-1 03 1 9606-9905
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-217-0 01 1 9906-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-218-0 01 1 9906-
140 BOLT
(A) M10X25 		0-28191-025-0 06 1 9606-9905
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) M10X20 		1-48629-070-0 08 1 9906-
140 BOLT
(B) 		1-48629-040-0 12 1 9606-9905
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (C) M8X18 		1-48629-134-0 02 1 9906-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) M8X12 		1-48629-205-0 02 1 9906-
141 BRACKET 1-48629-122-1 01 1 9606-9606
141 BRACKET 1-48629-185-0 01 1 9607-9905
141 BRACKET
BRAKE SYSTEM RETARDER<RE2> 		1-48629-172-0 01 1 9906-
142 SCREW 9-06043-810-0 03 1 9606-9905
144 NUT
(A) M16 		9-99110-516-0 04 1 9606-9905
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M16 		9-99110-516-0 04 1 9906-
144 NUT
(B) M12 		9-99111-412-0 02 1 9606-9905
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) M12 		9-09840-280-0 04 1 9906-
158 NIPPLE
M20 & PT1/4 ELBOW 		1-09660-681-0 02 1 9606-9702
158 NIPPLE
M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9703-9905
163 BAR; FLAT 1-48629-125-0 01 1 9606-9905

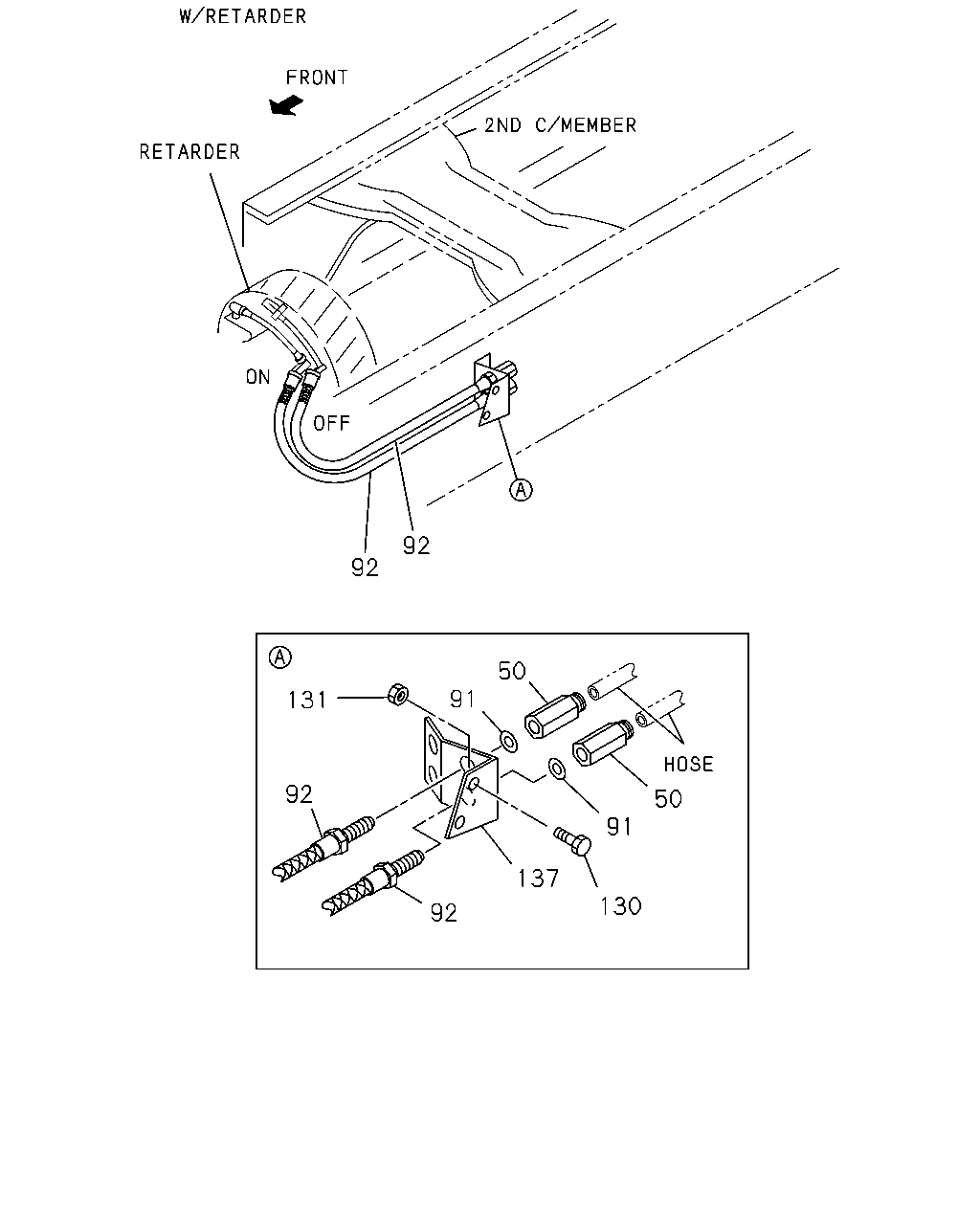

çizim 41116
92 92 50 91 131 92 50 91 137 130 92
BalonParca AdiParca NoAdetTipApplied Date
50 ADAPTER; PARK BRK
BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9606-9905
50 ADAPTER; PARK BRK
BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 9906-0005
50 ADAPTER; PARK BRK
BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-
91 GASKET
BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18 		9-09572-510-0 02 1 9606-9702
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> 10PE1S(60L) L=320 		0-07120-320-0 02 1 9606-9702
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> 10PE1S(60L) L=320 		1-09363-656-0 02 1 9703-9905
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> V TYPE ENG<91L> L=320 		1-09363-656-0 02 1 9906-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9606-9905
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE 		0-28080-830-0 02 1 9906-
131 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8 		9-09110-408-0 02 1 9606-9606
131 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9607-
137 BRACKET; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> 		1-47477-635-0 01 1 9606-
