5-01 — FRAME AND OTHER PARTS
(#50916) — 56 parça
◀

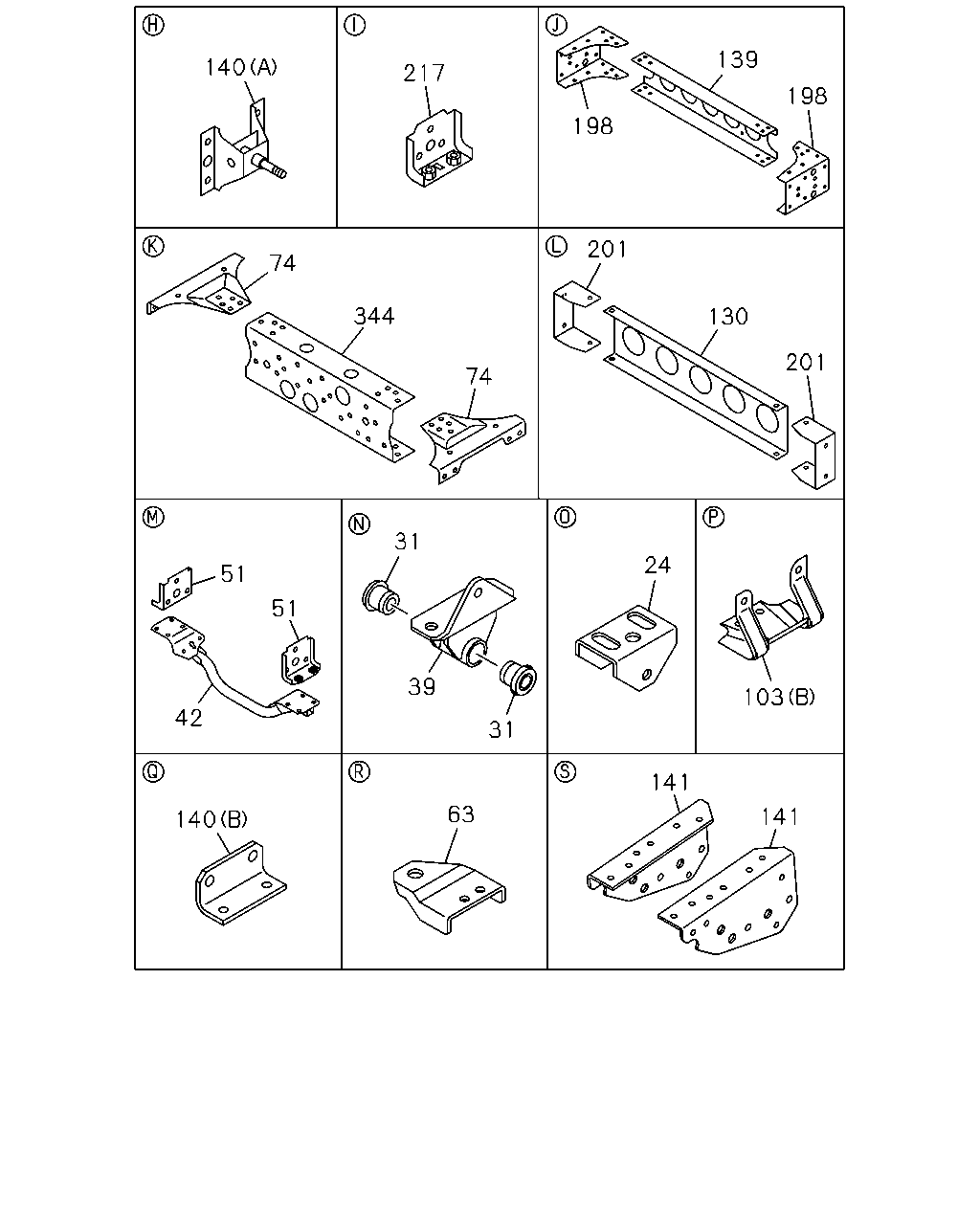

[501A] CROSS MEMBER AND BRACKET(NO.2) (21 parça)
[501A] RIVET,BOLT AND NUT (17 parça)

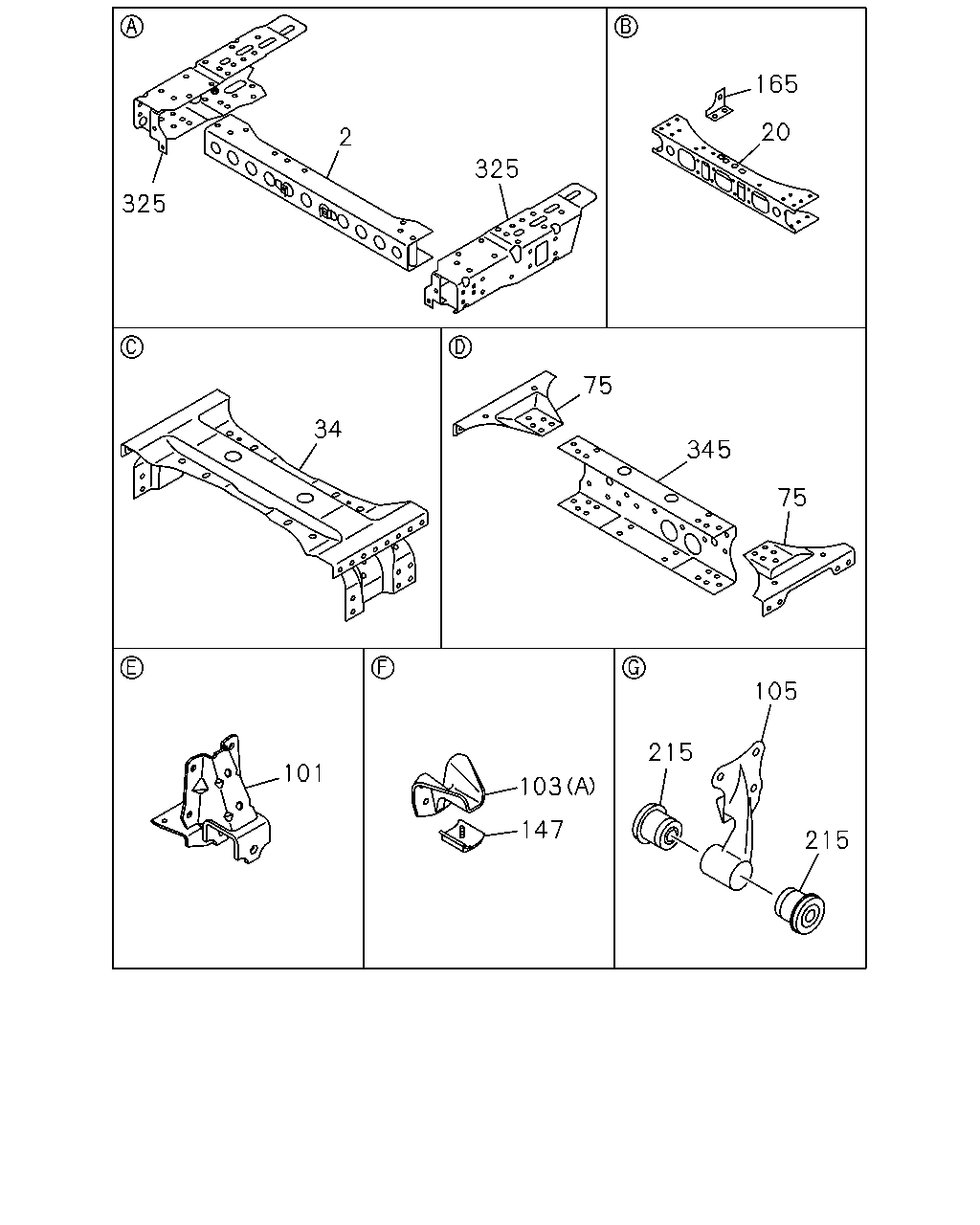

[501A] CROSS MEMBER AND BRACKET(NO.1) (16 parça)

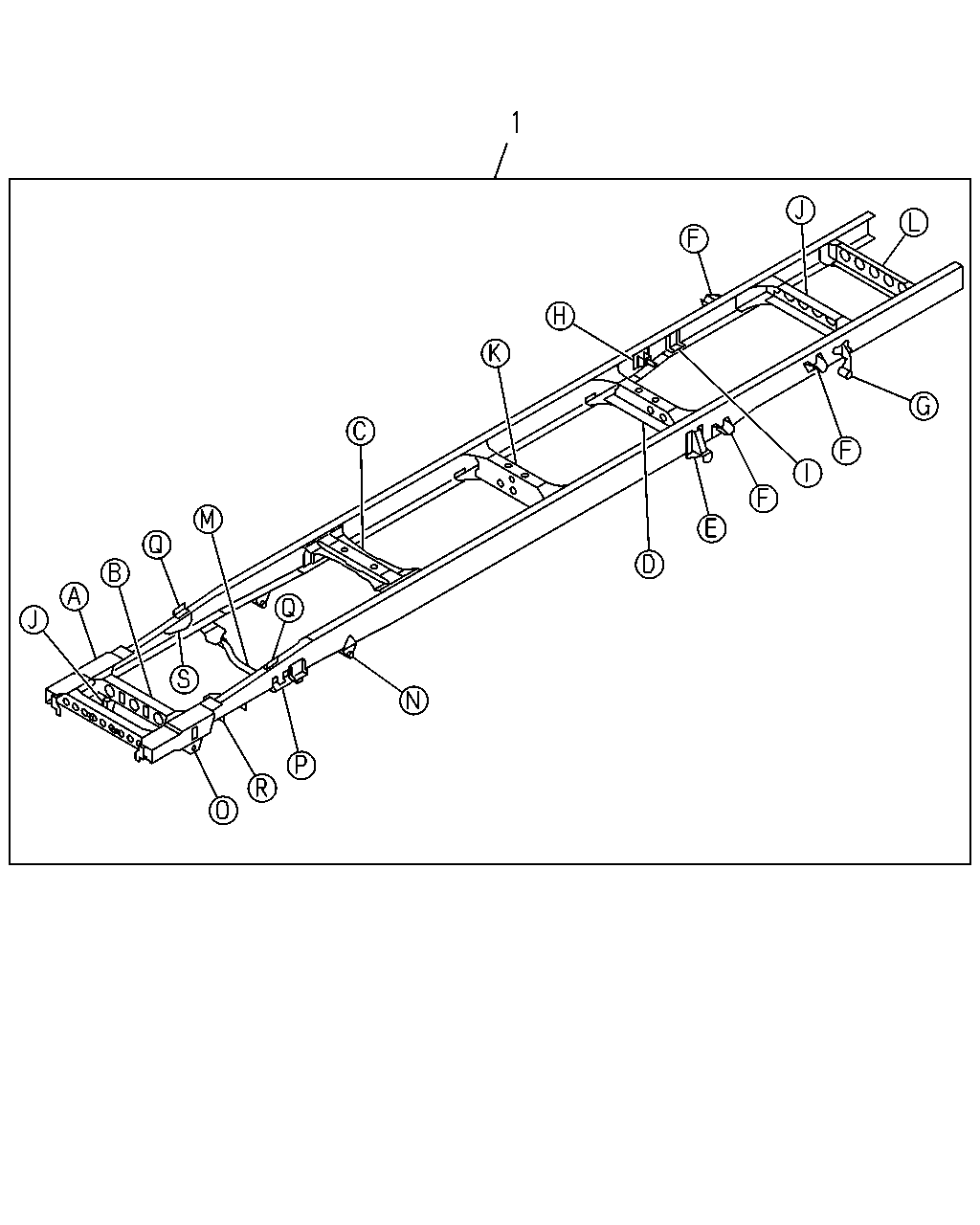

[501A] FRAME ASM (2 parça)
▶
140
217
198
139
198
201
130
201
24
103
141
141
63
31
39
31
51
51
42
140
344
74
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
07.105 BRACKET; FRT SPR,FRT
8-98015-274-0
02
1
1004-
31
07.428 BUSHING; FRT SPR,RR
07.524
8-97184-699-1
04
1
1004-
39
07.112 BRACKET; FRT SPR,RR
8-98014-125-0
02
1
1004-
42
07.011 MEMBER; CROSS,ENG MTG
8-98032-389-0
01
1
1004-
51
07.011 BRACKET; ENG SUPPORT,OUTER
8-98034-961-0
02
1
1004-
63
01.270 BRACKET; RAD MTG
EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-98163-763-1
01
1
1004-
74
07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER
8-98000-583-0
02
1
1004-
74
07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER
8-98000-584-0
02
1
1004-
103
07.420 STOPPER; SUB SPR
07.524 (B)
8-97079-659-1
02
1
1004-
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
1004-
130
07.014 MEMBER; CROSS,END
8-97080-872-0
01
1
1004-
139
07.012 MEMBER; CROSS,6TH
IDENTIFICATION LABEL FOR KD<6UT>
8-97326-394-0
01
1
1004-
139
07.012 MEMBER; CROSS,6TH
EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97107-384-0
01
1
1004-
140
07.112 BRACKET; S/ABS,RR
(A)
8-97080-884-1
02
1
1004-
140
07.112 BRACKET; S/ABS,RR
07.395 (B)
8-97302-511-0
02
1
1004-
141
07.112 STIFFENER
8-98064-354-2
01
1
1004-
141
07.112 STIFFENER
8-98064-355-2
01
1
1004-
198
07.039 GUSSET; 6TH C/MBR
8-98014-079-1
02
1
1004-
201
07.039 GUSSET; C/MBR
8-97096-871-0
02
1
1004-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-97202-417-0
02
1
1004-
344
07.012 MEMBER; CROSS,4TH
8-97175-993-3
01
1
1004-
376
376
376
376
376
376
376
376
376
376
376
376
176
176
296
118
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
18
1
1004-
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
02
1
1004-
176
04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE
0-28051-030-0
04
1
1004-
176
04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
1004-
296
07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
16
1
1004-
376
07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END
9-06750-824-0
AR
1
1004-
376
07.039 RIVET; FRAME
(B) D10X22 TAPER END
9-06751-022-0
AR
1
1004-
376
07.039 RIVET; FRAME
(C) D10X24 TAPER END
9-06751-024-0
AR
1
1004-
376
07.039 RIVET; FRAME
(D) D10X26 TAPER END
9-06751-026-0
AR
1
1004-
376
07.039 RIVET; FRAME
(E) D10X28 TAPER END
9-06751-028-0
AR
1
1004-
376
07.039 RIVET; FRAME
(F) D10X32 TAPER END
9-06751-032-0
AR
1
1004-
376
07.039 RIVET; FRAME
(G) D10X36 TAPER END
9-06751-036-0
AR
1
1004-
376
07.039 RIVET; FRAME
(H) D11X26 TAPER END
9-06751-126-0
AR
1
1004-
376
07.039 RIVET; FRAME
(I) D11X30 TAPER END
9-06751-130-0
AR
1
1004-
376
07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END
9-06751-230-0
AR
1
1004-
376
07.039 RIVET; FRAME
07.428 (K) D12X36 TAPER END
9-06751-236-0
AR
1
1004-
376
07.039 RIVET; FRAME
07.112 (L) D12X40 TAPER END
9-06751-240-0
AR
1
1004-
165
20
2
325
325
75
34
345
75
105
215
101
103
147
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.010 MEMBER; CROSS,1ST
8-97387-866-5
01
1
1004-
20
07.012 MEMBER; CROSS,2ND
8-98014-074-7
01
1
1004-
34
07.012 MEMBER; CROSS,3RD
8-98074-639-4
01
1
1004-
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER
8-98000-583-0
02
1
1004-
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER
8-98000-584-0
02
1
1004-
101
07.112 BRACKET; RR SPR,FRT
8-97042-245-1
02
1
1004-
103
07.420 STOPPER; SUB SPR
07.524 (B)
8-97079-659-1
02
1
1004-
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
1004-
105
07.112 BRACKET; RR SPR,RR
8-98032-488-0
01
1
1004-
105
07.112 BRACKET; RR SPR,RR
8-98032-489-0
01
1
1004-
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
1004-
165
01.270 BRACKET; RAD STAY
8-98000-886-0
01
1
1004-
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
1004-
325
07.039 EXTENSION; FRAME
8-98073-346-0
01
1
1004-
325
07.039 EXTENSION; FRAME
8-98073-347-1
01
1
1004-
345
07.012 MEMBER; CROSS,5TH
8-97175-993-3
01
1
1004-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
IDENTIFICATION LABEL FOR KD<6UT>
8-98122-751-2
01
1
1004-
1
07.003 FRAME ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-98164-904-2
01
1
1004-
