Isuzu WW
▶
TRUCKS
▶
NPR
▶
51245 - NPR CNG-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#50915) — 22 parça
◀

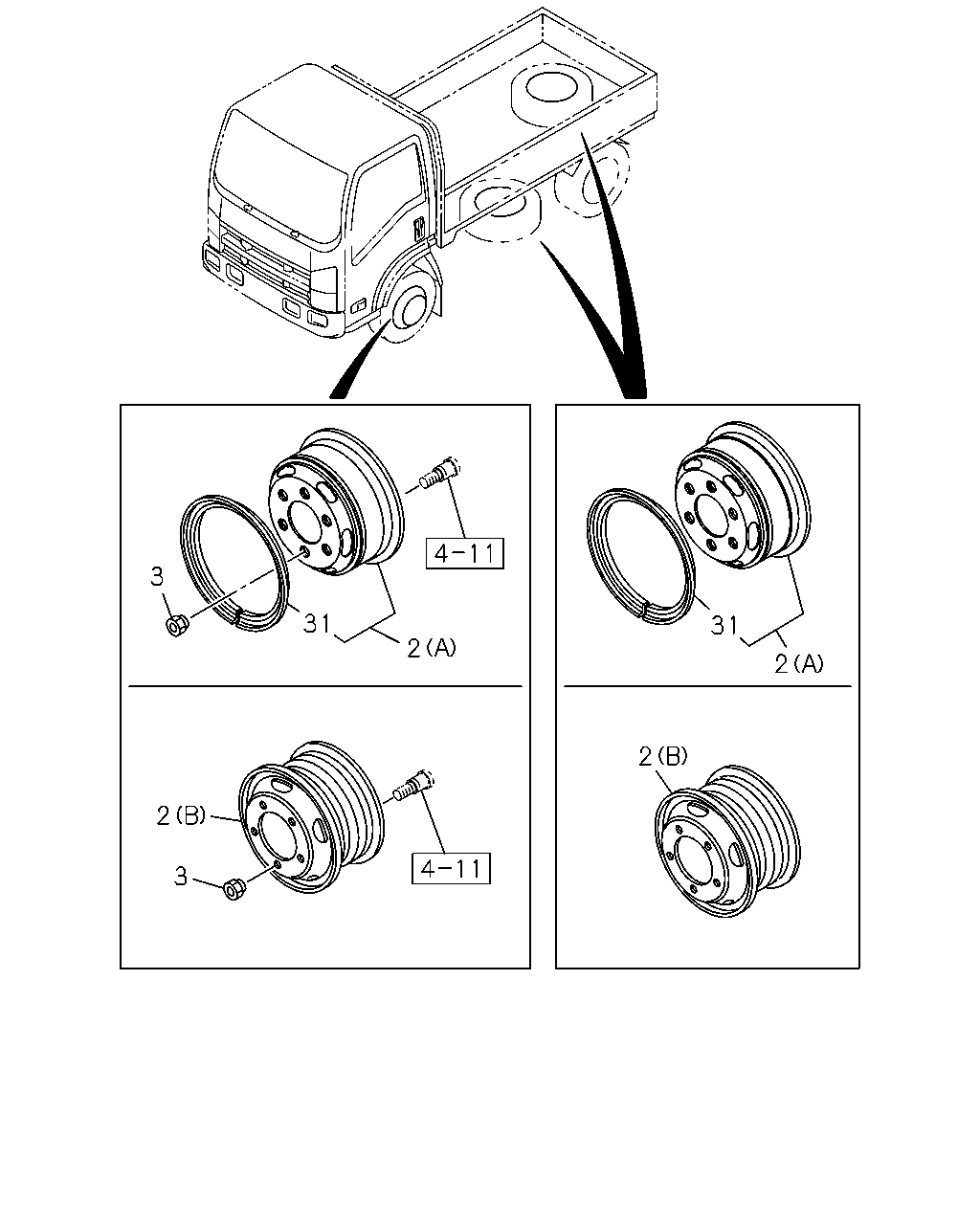

[480A] FRONT AND SPARE (10 parça)
[480A] REAR (12 parça)
▶
3
31
31
2
2
2
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
1004-1010
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1011-
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
1004-1010
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1011-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1004-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1004-
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
1004-
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
1004-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1004-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1004-
31
2
5
31
2
2
4
2
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
1004-1010
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1011-
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
1004-1010
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1011-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1004-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1004-
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1004-
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1004-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1004-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1004-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1004-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1004-
