6-80 — BACK PANEL (#50914) — 64 parça

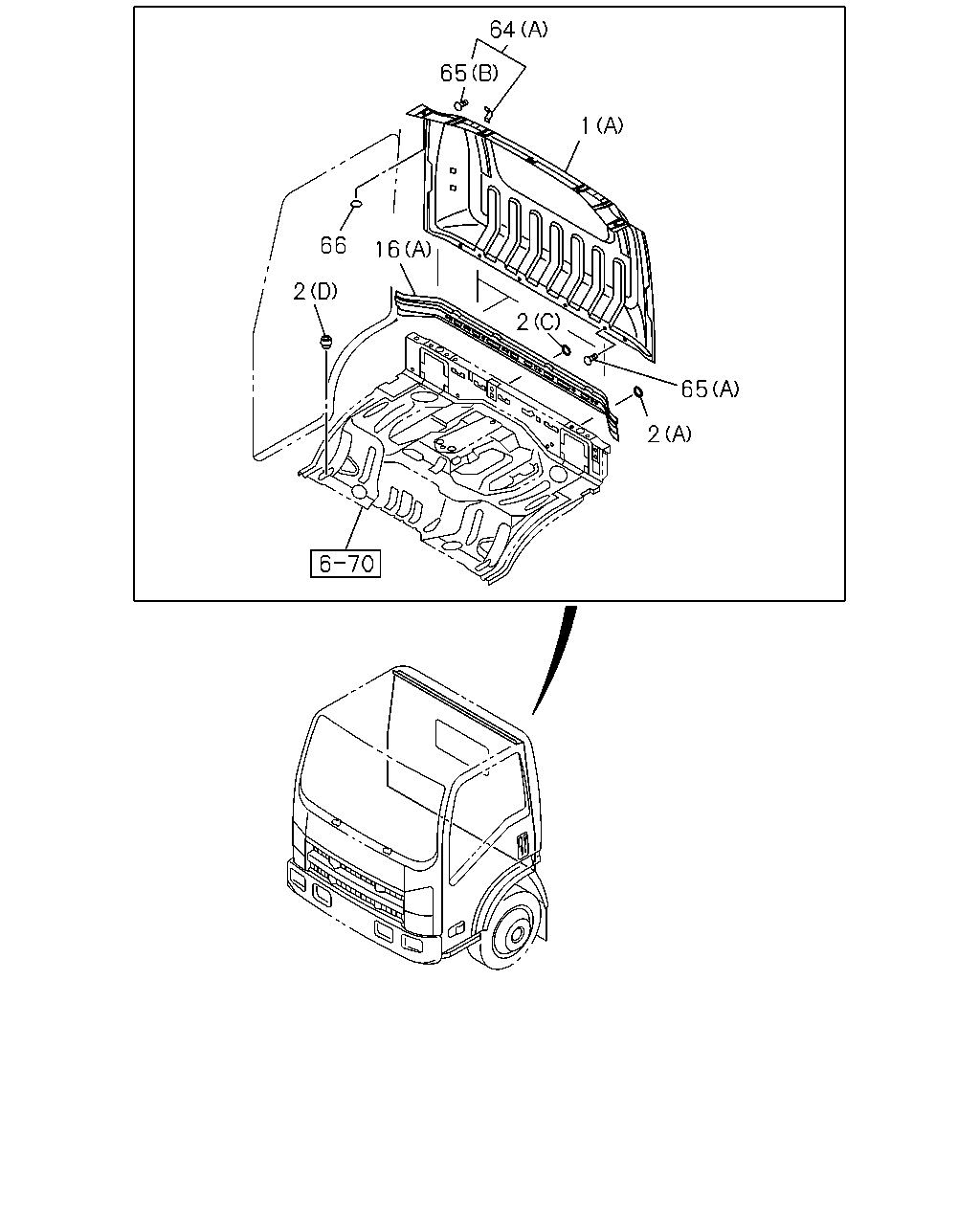

64 65 1 66 16 2 2 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; BACK OUTER WINDOW RR<8LF> (A)	8-97584-304-3	01	1	0804-	●	●
1	PANEL; BACK OUTER EXC. WINDOW RR<8LF> (A)	8-97584-311-4	01	1	0804-	●	●
1	PANEL; BACK OUTER (B)	8-97583-749-5	01	1	0804-			●
2	GROMMET; LOCATION HOLE,BACK PANEL INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	10	1	0804-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK SOU	1-76798-019-0	02	1	0804-1109	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK SOU	1-76798-019-0	02	1	1110-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	02	1	0804-1109	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=32 BLACK	8-98031-126-0	02	1	1110-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	06	1	0804-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (D) OD=12.1	8-97898-423-0	04	1	0804-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (E) OD=35	8-94122-971-0	04	1	0804-			●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=16.2	8-94492-493-0	02	1	0804-0908			●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=15.0 SOU	8-94279-040-0	02	1	0909-			●
16	REINFORCEMENT; BACK OUTER PNL (A)	8-97584-608-2	01	1	0804-	●	●
16	REINFORCEMENT; BACK OUTER PNL (B)	8-97583-754-0	01	1	0804-			●
16	REINFORCEMENT; BACK OUTER PNL (C)	8-98006-213-0	01	1	0804-			●
64	BRACKET; AIR INTAKE DUCT (A)	8-97584-611-1	01	1	0804-	●	●
64	BRACKET; AIR INTAKE DUCT (B)	8-98054-615-0	01	1	0804-			●
64	BRACKET; AIR INTAKE DUCT (C)	8-98054-617-0	01	1	0804-			●
65	STUD; BACK PANEL (B) SOU	8-94389-701-0	01	1	0804-	●	●
65	STUD; BACK PANEL (A) M6X12 SOU	8-98013-112-0	04	1	0804-1001	●	●	●
65	STUD; BACK PANEL RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) (A) M6X12 SOU	8-98013-112-0	04	1	1002-	●
65	STUD; BACK PANEL DUMP CHASSIS(V4D) (A) M6X12 SOU	8-98013-112-0	04	1	1002-	●
65	STUD; BACK PANEL (A) M6X12 SOU	8-98013-112-0	04	1	1002-			●
65	STUD; BACK PANEL (B) SOU	8-94389-701-0	02	1	0804-			●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0804-	●	●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0804-			●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE	8-98059-421-0	05	1	0804-	●	●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0804-	●	●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0804-			●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK	5-76777-036-0	05	1	0804-	●	●

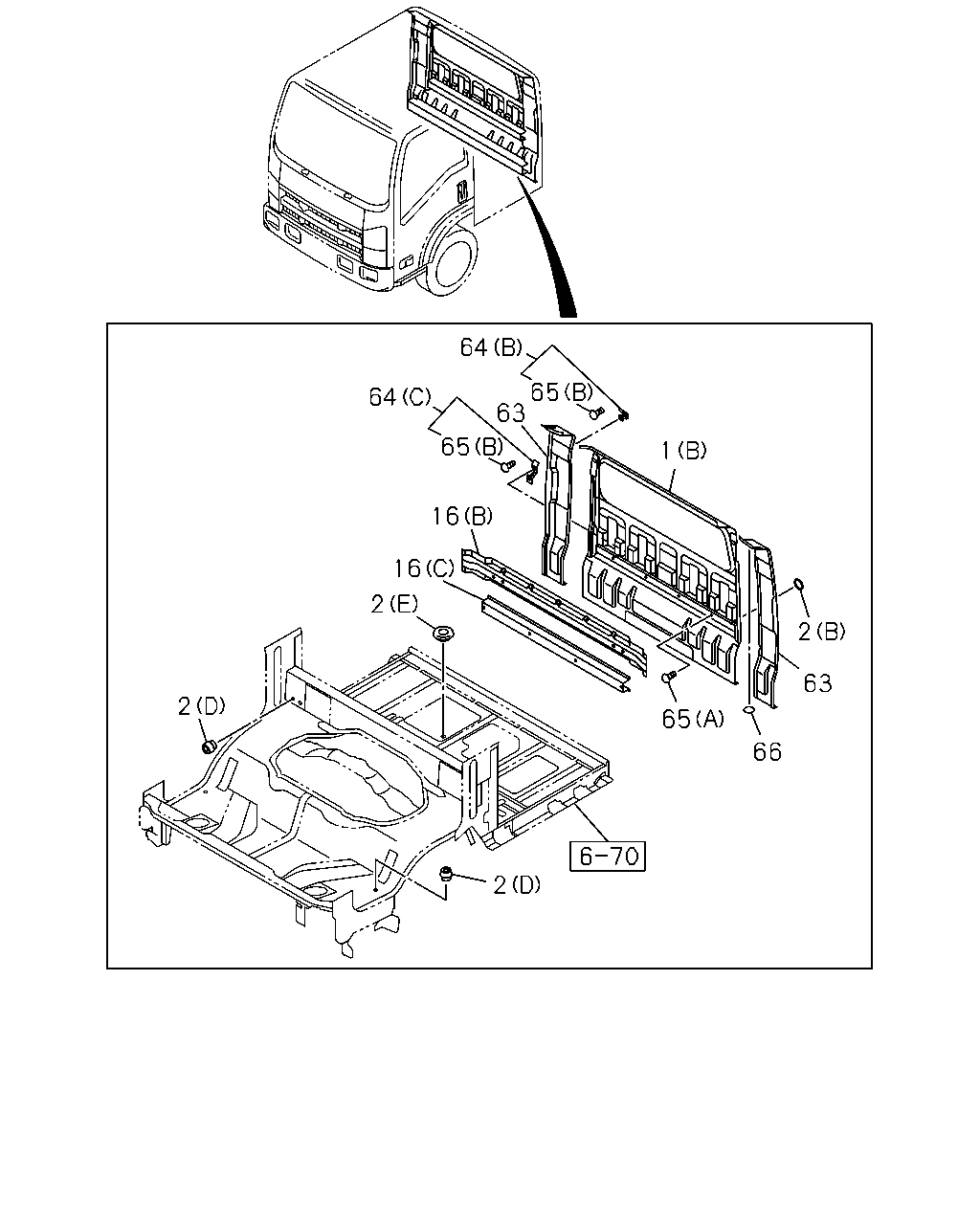

64 65 63 64 65 1 16 16 2 2 63 2 65 66 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; BACK OUTER WINDOW RR<8LF> (A)	8-97584-304-3	01	1	0804-	●	●
1	PANEL; BACK OUTER EXC. WINDOW RR<8LF> (A)	8-97584-311-4	01	1	0804-	●	●
1	PANEL; BACK OUTER (B)	8-97583-749-5	01	1	0804-			●
2	GROMMET; LOCATION HOLE,BACK PANEL INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	10	1	0804-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK SOU	1-76798-019-0	02	1	0804-1109	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK SOU	1-76798-019-0	02	1	1110-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	02	1	0804-1109	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=32 BLACK	8-98031-126-0	02	1	1110-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK	8-98031-126-0	06	1	0804-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (D) OD=12.1	8-97898-423-0	04	1	0804-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (E) OD=35	8-94122-971-0	04	1	0804-			●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=16.2	8-94492-493-0	02	1	0804-0908			●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=15.0 SOU	8-94279-040-0	02	1	0909-			●
16	REINFORCEMENT; BACK OUTER PNL (A)	8-97584-608-2	01	1	0804-	●	●
16	REINFORCEMENT; BACK OUTER PNL (B)	8-97583-754-0	01	1	0804-			●
16	REINFORCEMENT; BACK OUTER PNL (C)	8-98006-213-0	01	1	0804-			●
63	PANEL; BACK,SIDE	8-97583-751-5	01	1	0804-			●
63	PANEL; BACK,SIDE	8-97583-750-6	01	1	0804-			●
64	BRACKET; AIR INTAKE DUCT (A)	8-97584-611-1	01	1	0804-	●	●
64	BRACKET; AIR INTAKE DUCT (B)	8-98054-615-0	01	1	0804-			●
64	BRACKET; AIR INTAKE DUCT (C)	8-98054-617-0	01	1	0804-			●
65	STUD; BACK PANEL (B) SOU	8-94389-701-0	01	1	0804-	●	●
65	STUD; BACK PANEL (A) M6X12 SOU	8-98013-112-0	04	1	0804-1001	●	●	●
65	STUD; BACK PANEL RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) (A) M6X12 SOU	8-98013-112-0	04	1	1002-	●
65	STUD; BACK PANEL DUMP CHASSIS(V4D) (A) M6X12 SOU	8-98013-112-0	04	1	1002-	●
65	STUD; BACK PANEL (A) M6X12 SOU	8-98013-112-0	04	1	1002-			●
65	STUD; BACK PANEL (B) SOU	8-94389-701-0	02	1	0804-			●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0804-	●	●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0804-			●
66	SEAL; BACK PANEL BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE	8-98059-421-0	05	1	0804-	●	●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0804-	●	●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0804-			●
66	SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK	5-76777-036-0	05	1	0804-	●	●
