Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

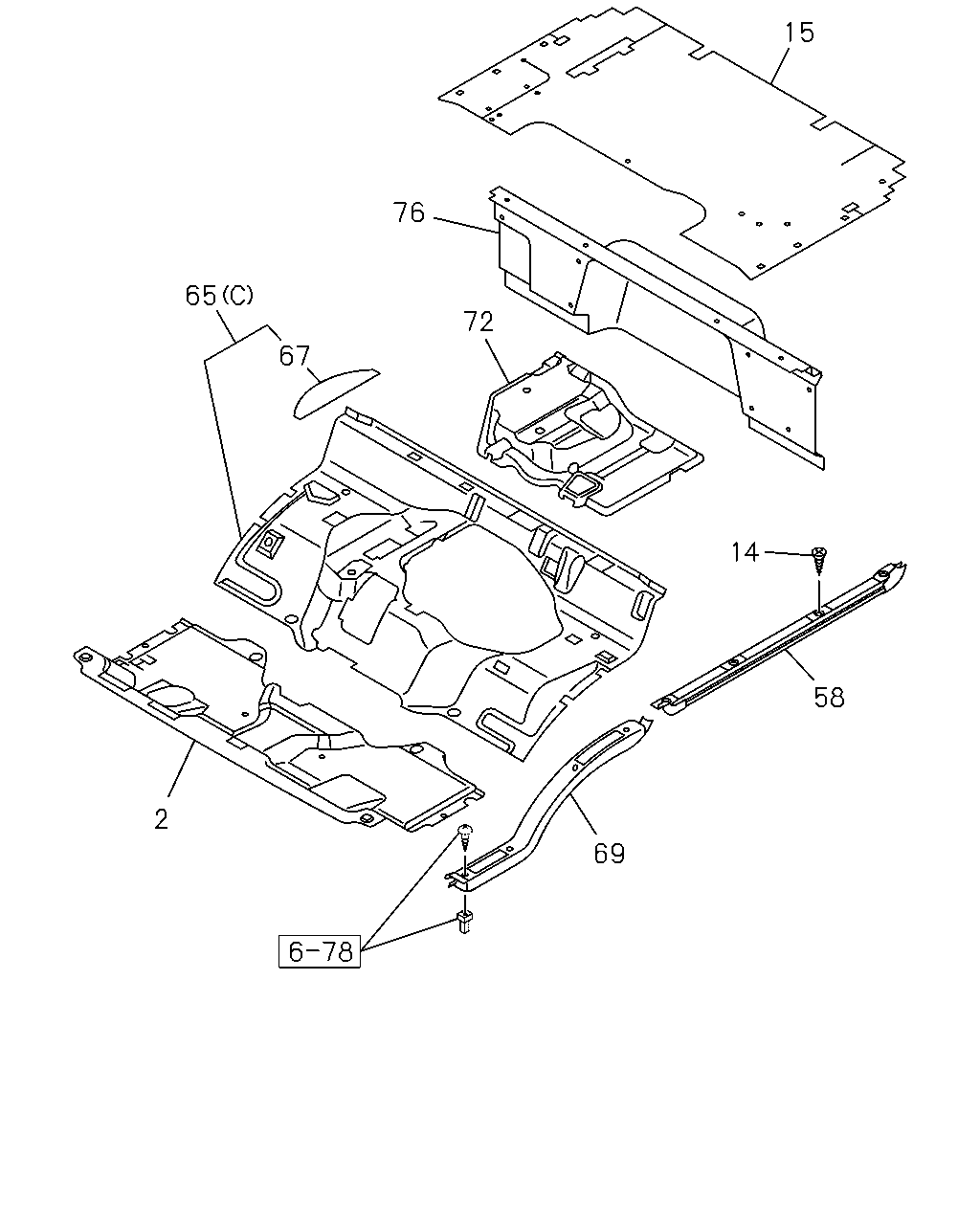

6-75 — MAT AND CARPET (#50911) — 32 parça

15 76 65 72 67 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0804-	●	●	●
2	MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0804-	●	●	●
14	SCREW; PLATE T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0804-			●
15	MAT; FLOOR REAR GRAY	8-97412-602-1	01	1	0804-			●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0804-			●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0804-1303	●	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0804-1303	●	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●	●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0804-1303			●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-			●
67	LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0804-0904	●	●
67	LID; COVER GRAY	8-97408-863-0	01	1	0804-0904			●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0804-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0804-	●	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0804-	●	●
72	MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0804-			●
76	MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97412-600-1	01	1	0804-			●

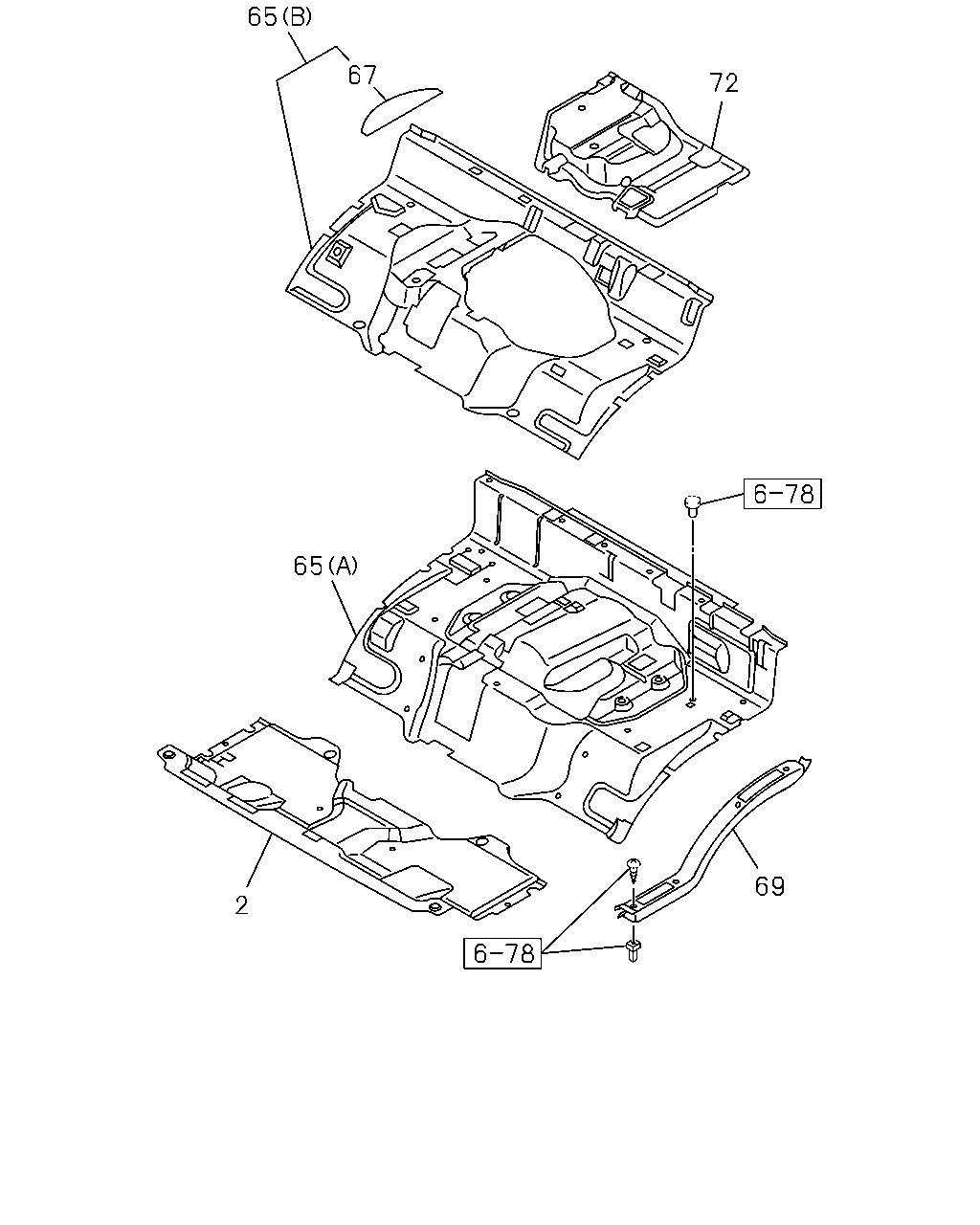

65 67 72 65 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0804-	●	●	●
2	MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0804-	●	●	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0804-1303	●	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0804-1303	●	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●	●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0804-1303			●
65	MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-			●
67	LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0804-0904	●	●
67	LID; COVER GRAY	8-97408-863-0	01	1	0804-0904			●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0804-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0804-	●	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0804-	●	●
72	MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0804-			●
