◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#50910) — 145 parça

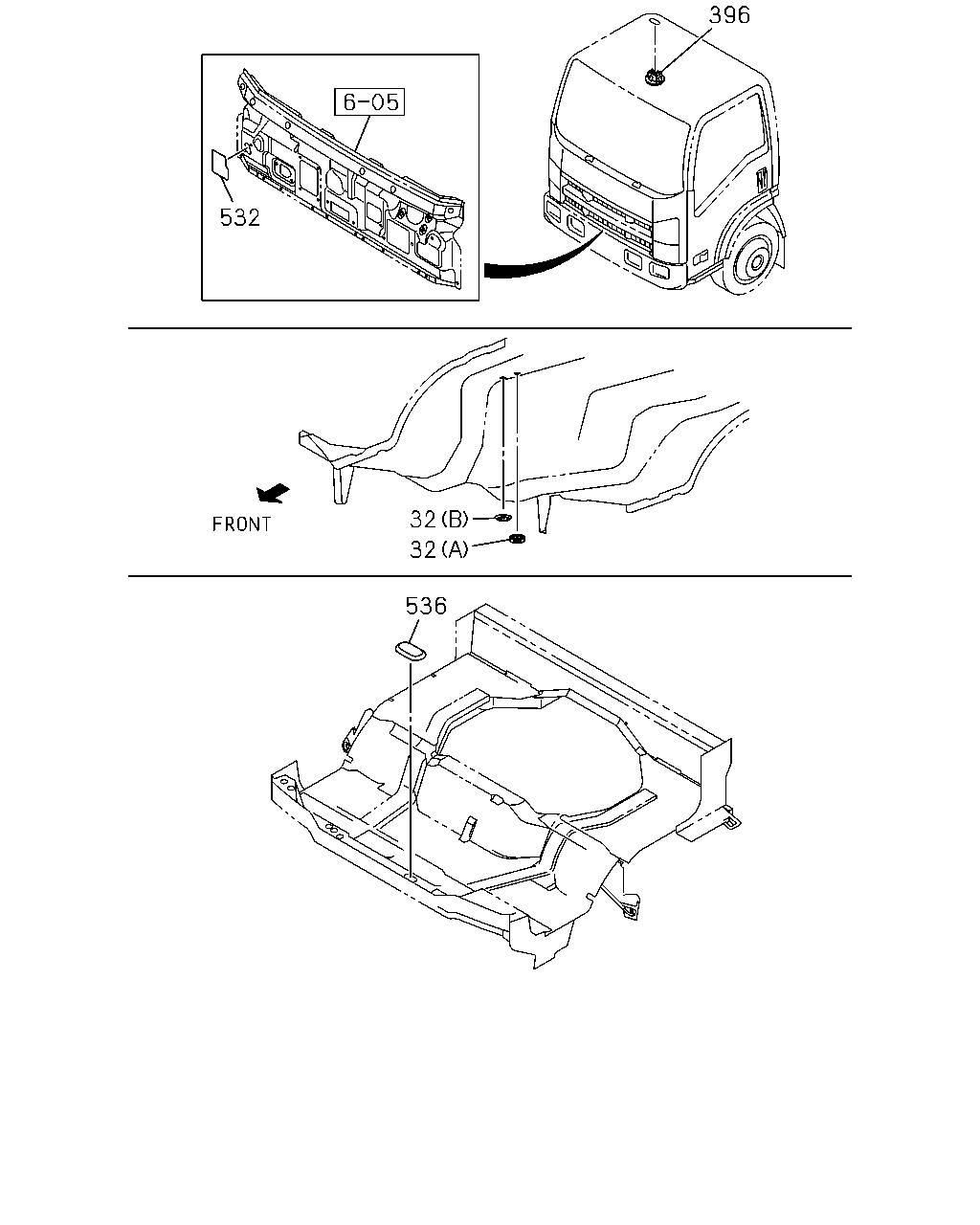

çizim 157519
396 532 32 32 536
BalonParca AdiParca NoAdetTipApplied Date A B C
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=16.2 		8-94492-493-0 02 1 0804-0908 ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 SOU 		8-94279-040-0 02 1 0909- ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 		8-97898-423-0 02 1 0804- ● ● ●
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 0804- ● ●
532 SEAL; CABLE
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 0804- ●
532 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 0804- ● ●
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 0804- ● ● ●

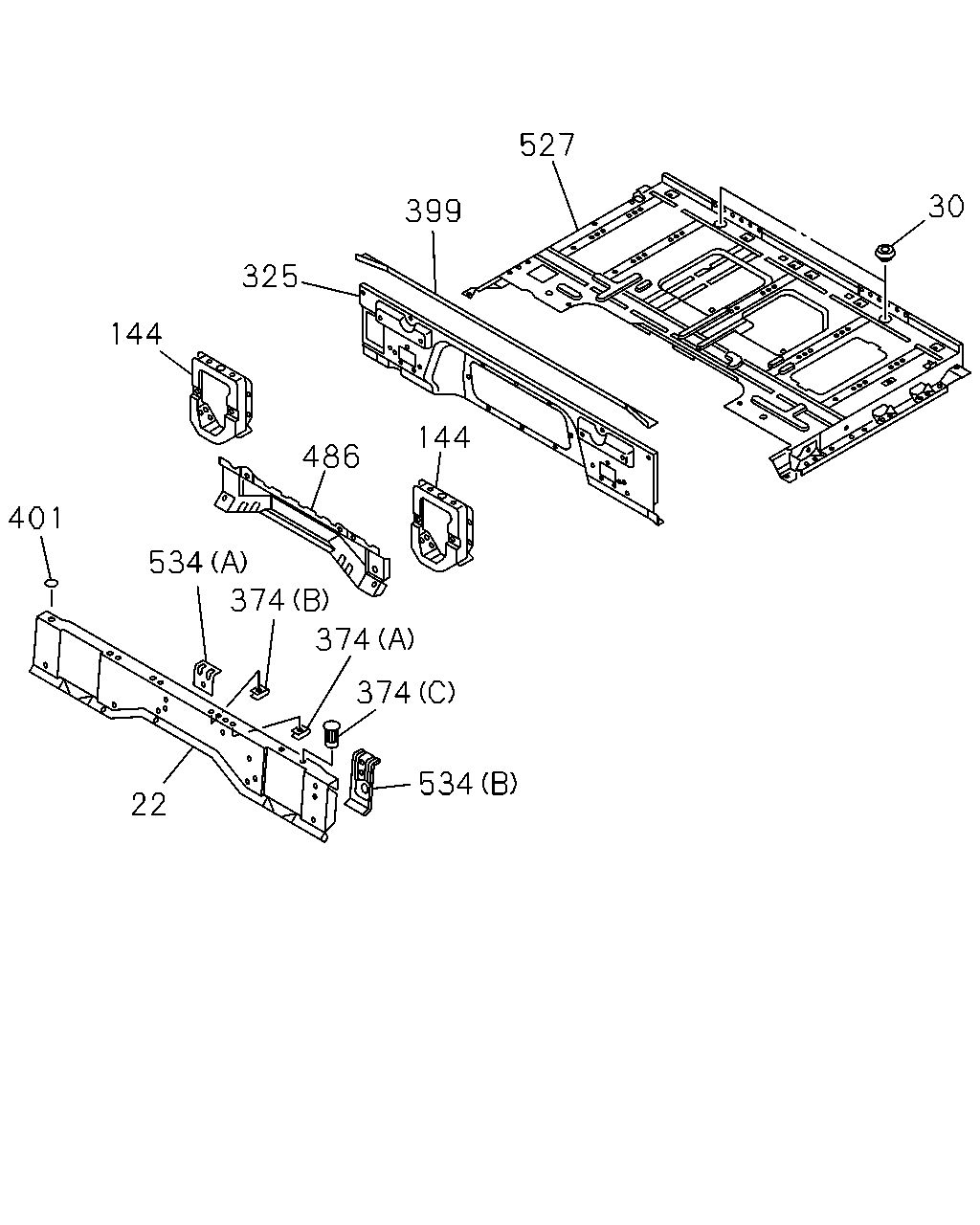

çizim 157520
527 30 399 325 144 144 486 401 534 374 374 374 534 22
BalonParca AdiParca NoAdetTipApplied Date A B C
22 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 0804- ● ●
22 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97587-394-4 01 1 0804- ● ●
22 FRAME; FLOOR REAR 8-97587-394-4 01 1 0804- ●
30 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 0804- ●
144 BRACKET; MTG,RR 8-97589-544-3 02 1 0804- ● ●
144 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98112-244-2 02 1 0804- ● ●
144 BRACKET; MTG,RR 8-98112-244-2 02 1 0804- ●
325 REINFORCEMENT ASM; RR MTG 8-98006-699-3 01 1 0804- ●
374 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0804- ● ●
374 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 0804- ● ●
374 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 0804- ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0804- ● ● ●
374 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 0804- ● ● ●
374 NUT; FLOOR
(C) M6 POP NUT 		8-98013-752-0 01 1 0804- ●
399 PANEL; EXTENSION,RR MTG RAIL 8-97587-702-1 01 1 0804- ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0804- ● ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0804- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-614-2 01 1 0804- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-614-2 01 1 0804- ●
527 FLOOR; RR 8-98030-051-4 01 1 0804- ●
534 REINFORCEMENT; SEAT BACK
(B) SOU 		8-97583-851-3 01 1 0804- ● ● ●
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0804- ● ● ●

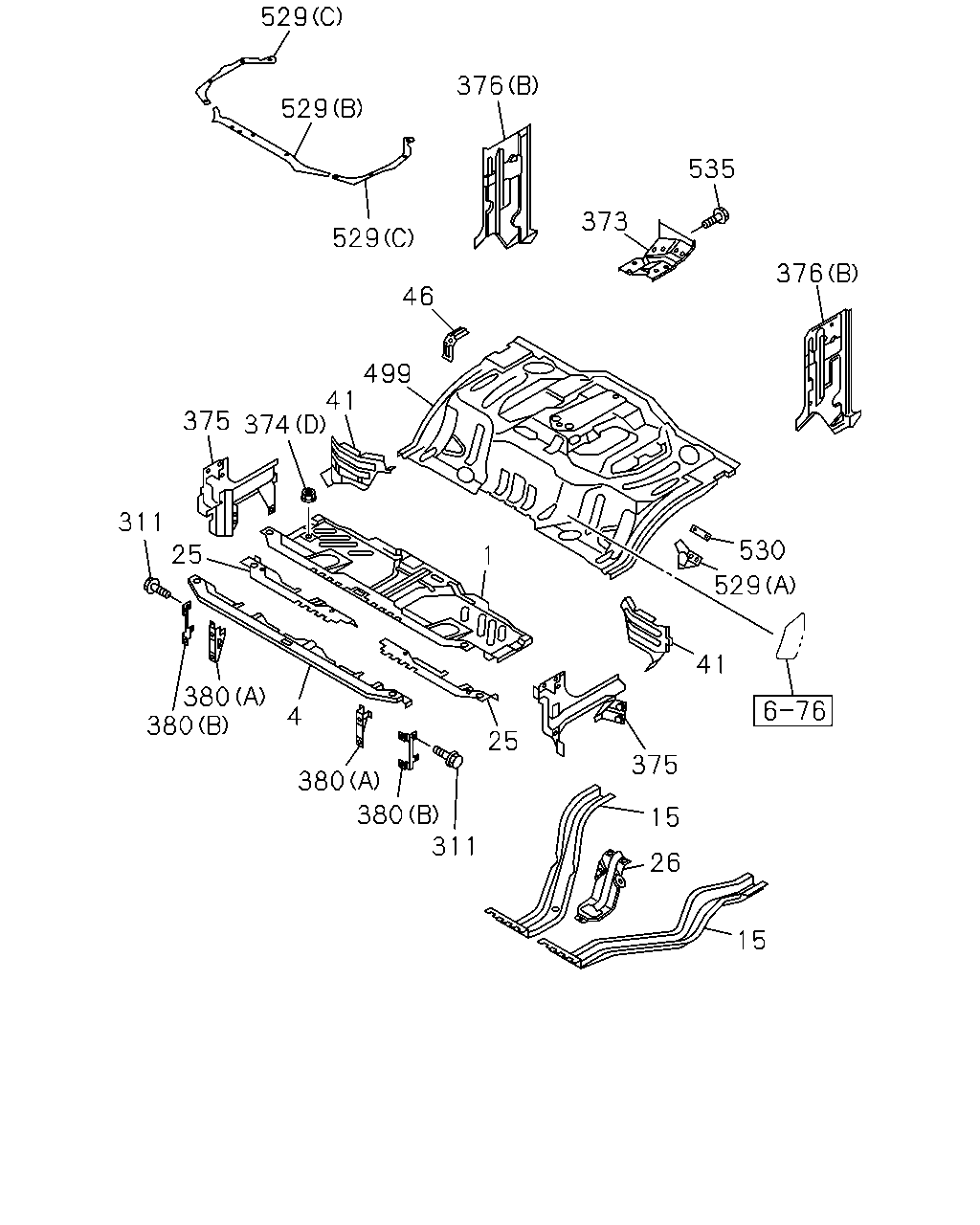

çizim 157525
529 376 529 535 373 529 376 46 499 41 374 375 311 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR 8-97583-820-4 01 1 0804-0804 ● ● ●
1 PANEL; FLOOR 8-98112-870-0 01 1 0804- ● ● ●
4 FRAME; FLOOR,FRT
SOU 		8-98059-495-0 01 1 0804-0805 ● ● ●
4 FRAME; FLOOR,FRT
SOU 		8-98107-595-0 01 1 0806- ● ● ●
15 FRAME; UNDER
SOU 		8-98059-498-1 01 1 0804-0901 ● ●
15 FRAME; UNDER
SOU 		8-98059-498-1 01 1 0902- ● ● ●
15 FRAME; UNDER
SOU 		8-98059-498-1 01 1 0804-0901 ●
15 FRAME; UNDER
SOU 		8-98059-497-1 01 1 0804- ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0804- ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0804- ● ● ●
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0804- ● ● ●
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 0804- ● ● ●
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 0804- ● ● ●
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0804- ● ● ●
311 BOLT; BRKT
M6X16 SOU 		0-52000-616-0 04 1 0804-0804 ● ● ●
311 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 04 1 0805- ● ● ●
373 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 0804- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 0804- ● ●
373 REINFORCEMENT; SEAT BELT 8-98015-216-2 01 1 0804- ●
374 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0804- ● ●
374 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 0804- ● ●
374 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 0804- ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0804- ● ● ●
374 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 0804- ● ● ●
374 NUT; FLOOR
(C) M6 POP NUT 		8-98013-752-0 01 1 0804- ●
375 CLOSING; PILLAR 8-97583-883-2 01 1 0804- ● ● ●
375 CLOSING; PILLAR 8-97583-882-3 01 1 0804- ● ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 0804- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 0804- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 0804- ●
376 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 0804- ●
380 BRACKET; HEAD LAMP
(A) SOU 		8-97589-385-3 01 1 0804- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0804- ● ● ●
380 BRACKET; HEAD LAMP
(A) SOU 		8-97589-384-4 01 1 0804- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0804- ● ● ●
499 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-828-6 01 1 0804-1207 ● ●
499 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1208- ● ●
499 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-97587-390-4 01 1 0804-1207 ● ●
499 PANEL; FLOOR,RR 8-97587-390-4 01 1 0804-1207 ●
499 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98205-116-0 01 1 1208- ● ●
499 PANEL; FLOOR,RR 8-98205-116-0 01 1 1208- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-249-0 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(B) 		8-97589-249-0 01 1 0804- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-98030-358-0 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 0804- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-97589-468-1 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(C) 		8-97589-468-1 01 1 0804- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-97589-467-1 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(C) 		8-97589-467-1 01 1 0804- ●
530 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 0804- ● ●
530 BRACKET; COVER 8-97589-255-0 01 1 0804- ●
535 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 05 1 0804- ●

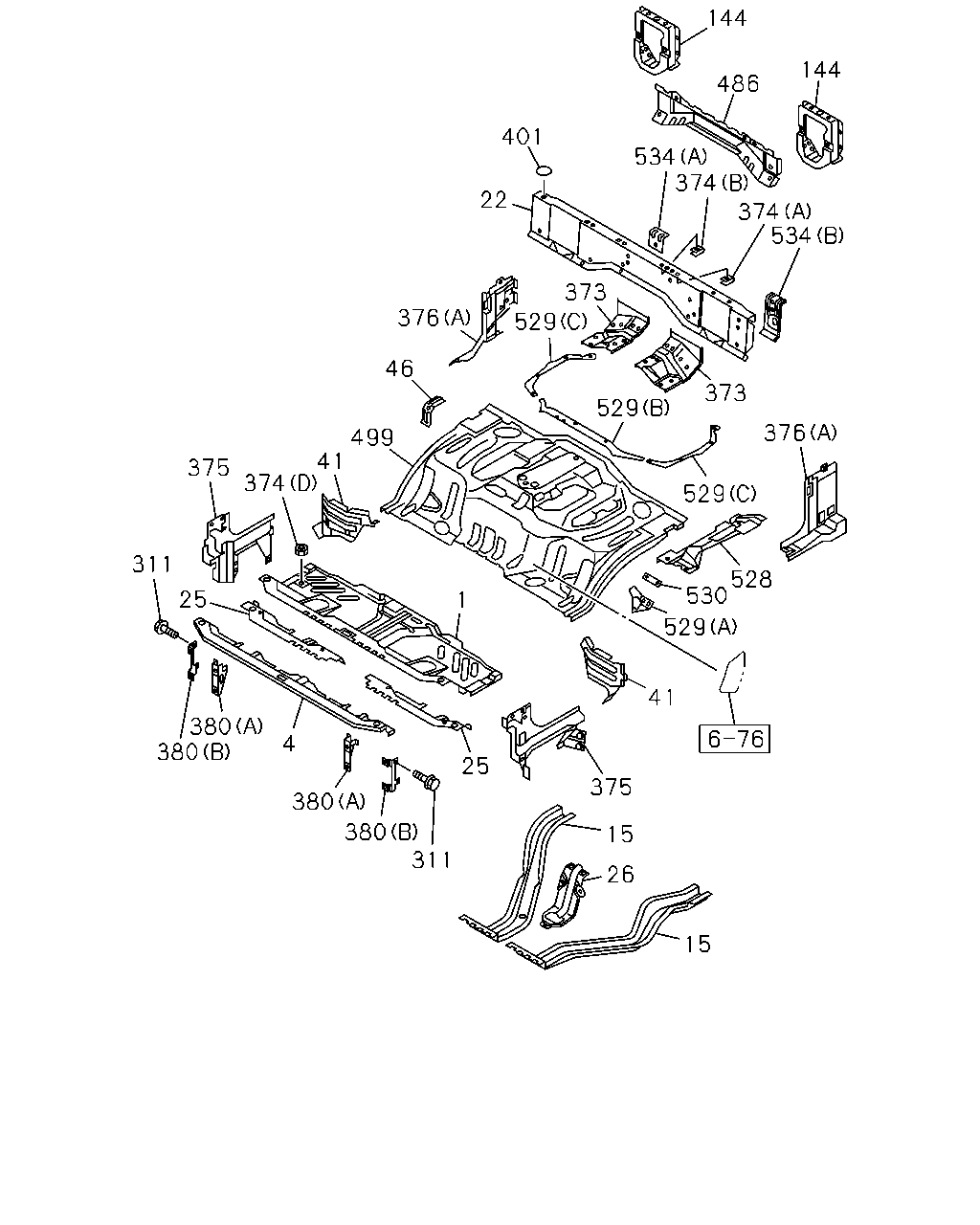

çizim 157569
144 144 486 401 534 374 22 374 534 373 376 529 46 373 529 376 499 41 374 375 529 311 528 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR 8-97583-820-4 01 1 0804-0804 ● ● ●
1 PANEL; FLOOR 8-98112-870-0 01 1 0804- ● ● ●
4 FRAME; FLOOR,FRT
SOU 		8-98059-495-0 01 1 0804-0805 ● ● ●
4 FRAME; FLOOR,FRT
SOU 		8-98107-595-0 01 1 0806- ● ● ●
15 FRAME; UNDER
SOU 		8-98059-498-1 01 1 0804-0901 ● ●
15 FRAME; UNDER
SOU 		8-98059-498-1 01 1 0902- ● ● ●
15 FRAME; UNDER
SOU 		8-98059-498-1 01 1 0804-0901 ●
15 FRAME; UNDER
SOU 		8-98059-497-1 01 1 0804- ● ● ●
22 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 0804- ● ●
22 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97587-394-4 01 1 0804- ● ●
22 FRAME; FLOOR REAR 8-97587-394-4 01 1 0804- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0804- ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0804- ● ● ●
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0804- ● ● ●
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 0804- ● ● ●
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 0804- ● ● ●
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0804- ● ● ●
144 BRACKET; MTG,RR 8-97589-544-3 02 1 0804- ● ●
144 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98112-244-2 02 1 0804- ● ●
144 BRACKET; MTG,RR 8-98112-244-2 02 1 0804- ●
311 BOLT; BRKT
M6X16 SOU 		0-52000-616-0 04 1 0804-0804 ● ● ●
311 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 04 1 0805- ● ● ●
373 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 0804- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 0804- ● ●
373 REINFORCEMENT; SEAT BELT 8-98015-216-2 01 1 0804- ●
374 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0804- ● ●
374 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 0804- ● ●
374 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 0804- ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0804- ● ● ●
374 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 0804- ● ● ●
374 NUT; FLOOR
(C) M6 POP NUT 		8-98013-752-0 01 1 0804- ●
375 CLOSING; PILLAR 8-97583-883-2 01 1 0804- ● ● ●
375 CLOSING; PILLAR 8-97583-882-3 01 1 0804- ● ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 0804- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 0804- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 0804- ●
376 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 0804- ●
380 BRACKET; HEAD LAMP
(A) SOU 		8-97589-385-3 01 1 0804- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0804- ● ● ●
380 BRACKET; HEAD LAMP
(A) SOU 		8-97589-384-4 01 1 0804- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0804- ● ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0804- ● ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0804- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-614-2 01 1 0804- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-614-2 01 1 0804- ●
499 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-828-6 01 1 0804-1207 ● ●
499 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1208- ● ●
499 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-97587-390-4 01 1 0804-1207 ● ●
499 PANEL; FLOOR,RR 8-97587-390-4 01 1 0804-1207 ●
499 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98205-116-0 01 1 1208- ● ●
499 PANEL; FLOOR,RR 8-98205-116-0 01 1 1208- ●
528 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-619-4 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-249-0 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(B) 		8-97589-249-0 01 1 0804- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-98030-358-0 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 0804- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-97589-468-1 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(C) 		8-97589-468-1 01 1 0804- ●
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-97589-467-1 01 1 0804- ● ●
529 RETAINER; FLOOR PANEL
(C) 		8-97589-467-1 01 1 0804- ●
530 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 0804- ● ●
530 BRACKET; COVER 8-97589-255-0 01 1 0804- ●
534 REINFORCEMENT; SEAT BACK
(B) SOU 		8-97583-851-3 01 1 0804- ● ● ●
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0804- ● ● ●
