Sayfa 3-05 - Isuzu EPC

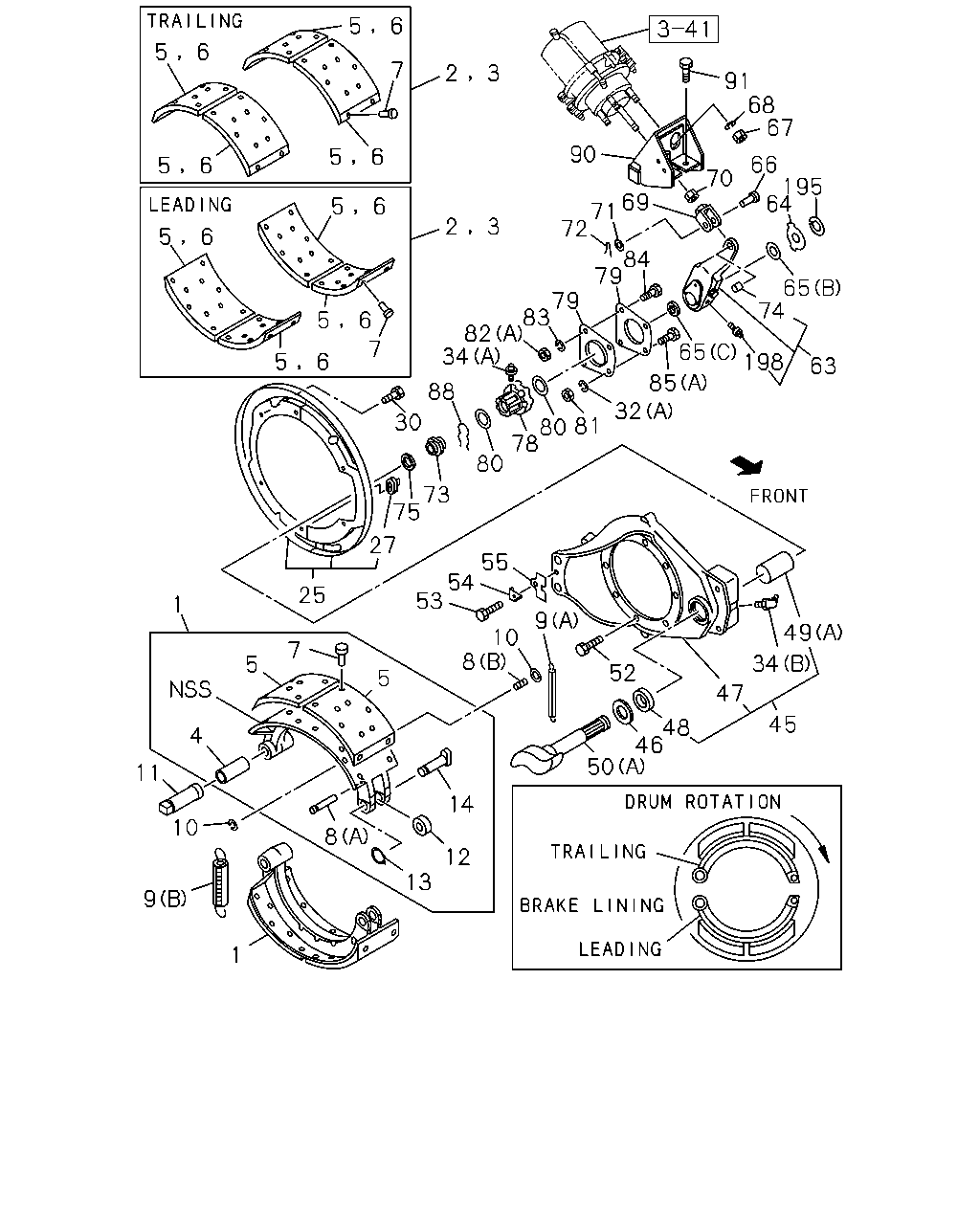

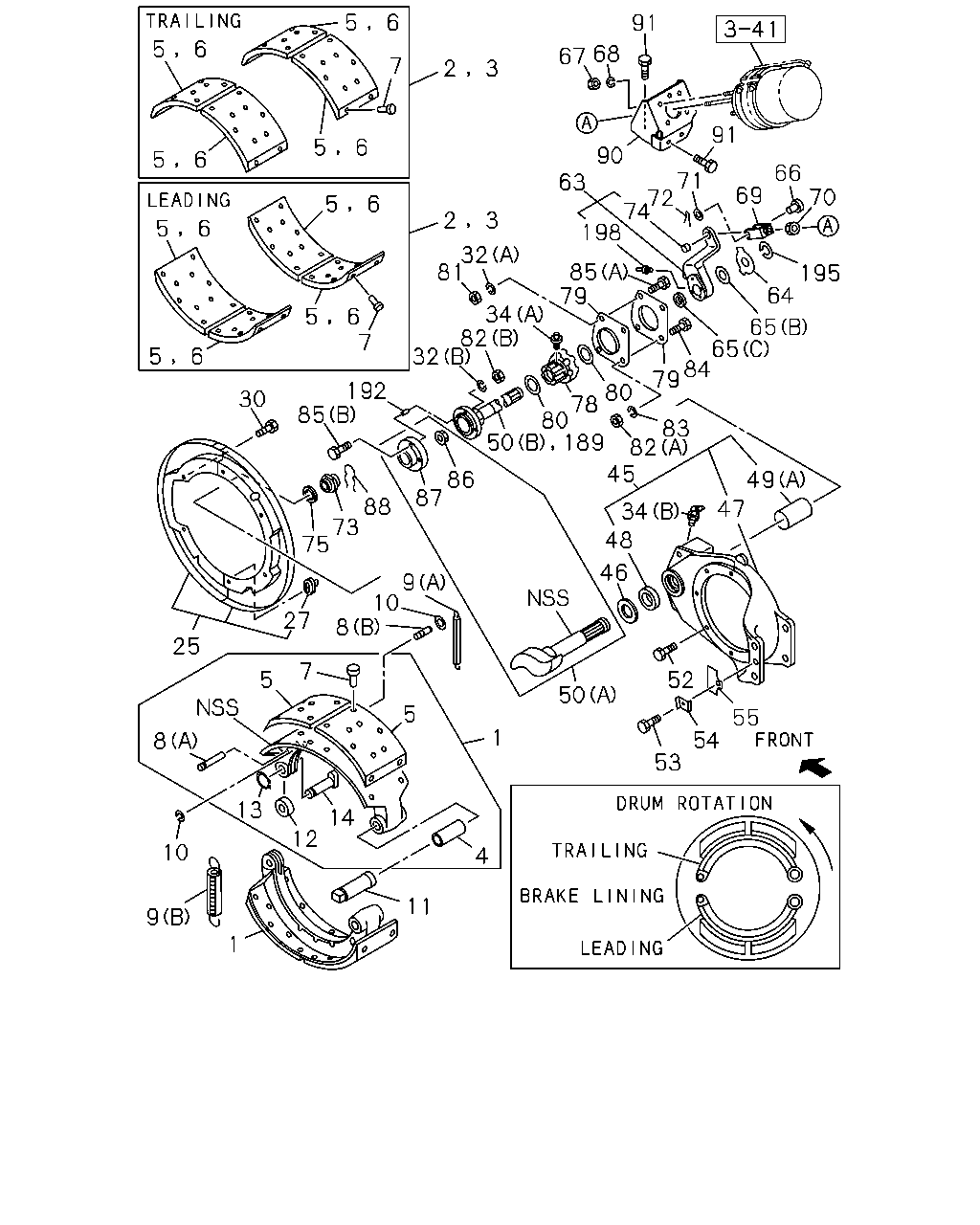

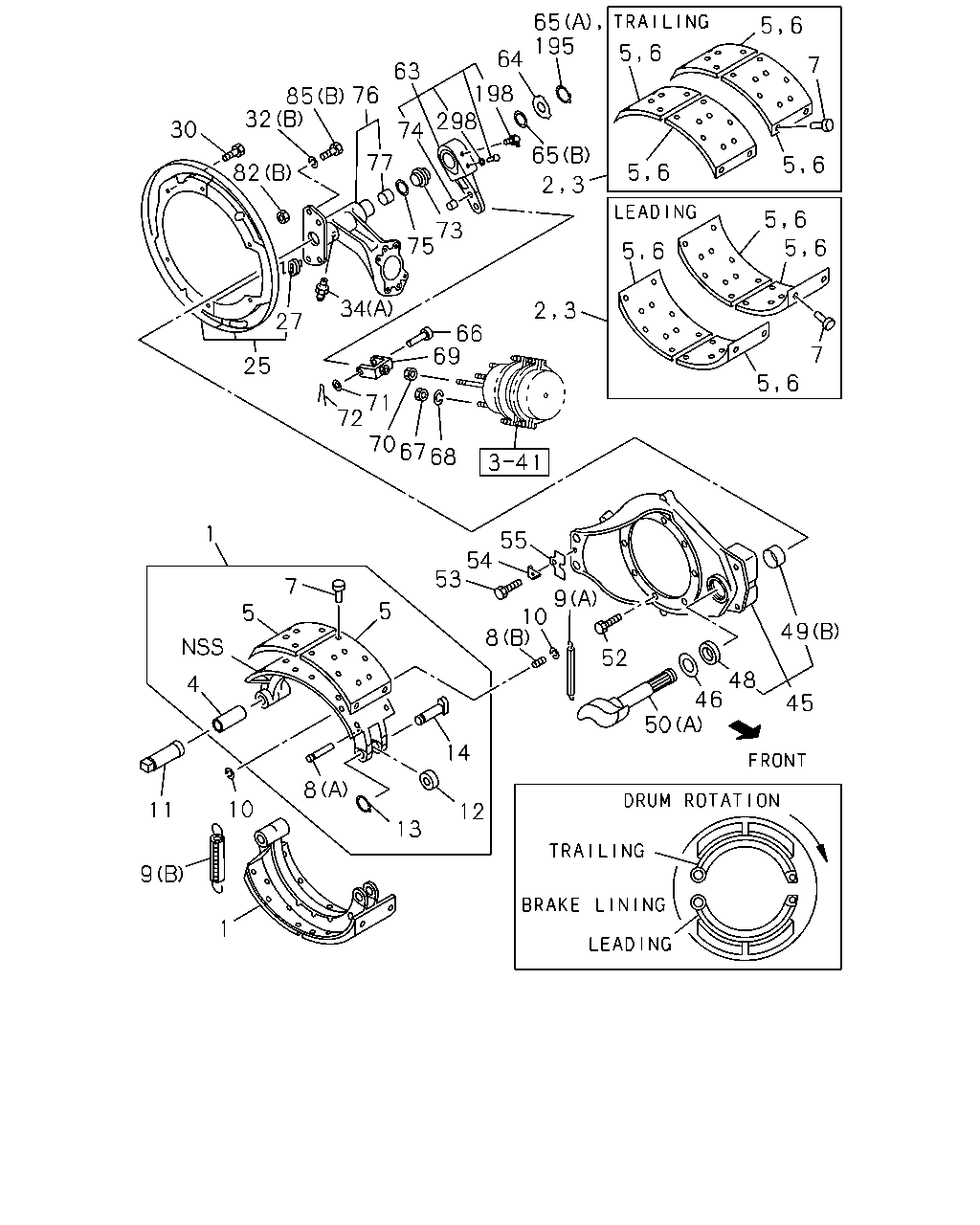

3-05 — REAR WHEEL BRAKE (#5091) — 634 parça

5 6 91 5 6 67 68 7 2 3 91 90 5 6 5 6 66 70 71 72 74 198 63 69 5 6 2 3 5 6 32 81 85 79 195 64 34 82 32 5 6 7 65 65 84 79 5 6 80 78 80 50 189 192 85 30 83 82 45 86 87 49 88 73 75 47 34 48 46 9 10 8 27 25 7 5 52 50 5 55 1 54 8 53 13 14 12 10 4 11 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9702-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9606-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9606-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9606-9701
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9606-9701
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9606-9701
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9606-9701
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9702-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9606-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9606-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9606-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9606-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9606-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9606-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9606-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9606-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9606-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9606-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9606-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9606-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9606-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9606-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9606-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9606-
32	WASHER; LK (A) REARWARD ID=10.2	9-09150-510-0	04	1	9606-
32	WASHER; LK BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) ID=12.2	9-09150-612-0	04	1	0007-0007
32	WASHER; LK (B) ID=12.2	9-09150-612-0	04	1	0007-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-
34	NIPPLE; GREASE,CHAMBER BRKT (B) REARWARD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	9606-
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD	1-47137-128-1	02	1	0007-0007
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	01	1	0007-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9606-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9606-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-153-0	02	1	9606-9905
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9606-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9606-
49	BUSHING; CM/SHF,RR BRK (B)	1-47146-003-1	02	1	9606-
49	BUSHING; CM/SHF,RR BRK (A)	1-47146-009-0	02	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9606-0006
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9606-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9606-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9606-9701
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9702-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9606-9701
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9702-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9606-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9606-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9606-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9606-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9606-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	9606-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	9606-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9606-9708
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-014-0	02	1	9709-
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9606-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9606-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9606-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9606-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9606-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9606-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9606-
69	JOINT; JAW	1-09768-060-1	02	1	9606-
69	JOINT; JAW	1-09768-060-1	02	1	9606-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9606-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9606-
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	9606-9708
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9606-9708
74	BUSHING; SLACK ADJ REARWARD	1-09330-041-0	02	1	9606-
74	BUSHING; SLACK ADJ REARWARD	1-09330-041-0	02	1	9606-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-
78	BUSHING; BRKT REARWARD	1-47146-008-0	02	1	9606-
79	BRACKET; CM/SHF REARWARD	9-47145-013-0	04	1	9606-
80	GASKET; BUSHING REARWARD ID=39.7	9-09561-340-0	04	1	9606-
81	NUT REARWARD M10	9-09110-410-0	04	1	9606-
82	NUT (A) REARWARD M16	9-99110-516-0	04	1	9606-
82	NUT BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) M12	9-99110-512-0	04	1	0007-0007
82	NUT (B) M12	9-99110-512-0	04	1	0007-
83	WASHER; PL REARWARD ID=16.2	9-09851-672-2	08	1	9606-
84	BOLT; BRKT TO CASE REARWARD M16X40	9-92061-640-0	04	1	9606-
85	BOLT; CM/SHF BRKT (A) REARWARD M10X20	0-20801-020-0	04	1	9606-
85	BOLT; CM/SHF BRKT BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) M12X50	5-09000-143-0	04	1	0007-0007
85	BOLT; CM/SHF BRKT (B) M12X50	5-09000-143-0	04	1	0007-
86	NUT; FLANGE REARWARD	1-09440-020-0	01	1	9606-
87	FLANGE; SHAFT REARWARD	1-47149-041-0	01	1	9606-
88	CLIP; BRKT REARWARD	1-09589-018-0	02	1	9606-
90	BRACKET; CHAMBER REARWARD	1-42129-046-3	01	1	9606-9612
90	BRACKET; CHAMBER REARWARD	1-42129-240-0	01	1	9701-
90	BRACKET; CHAMBER REARWARD	1-42129-045-3	01	1	9606-9612
90	BRACKET; CHAMBER REARWARD	1-42129-241-0	01	1	9701-
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	9606-
189	SHAFT; RR,BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD	1-47141-065-1	01	1	0007-0007
189	SHAFT; RR,BRK REARWARD	1-47141-065-1	01	1	0007-
192	PIN; KNOCK,FLANGE BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD OD=12 L=20	9-08161-220-0	01	1	0007-0007
192	PIN; KNOCK,FLANGE REARWARD OD=12 L=20	9-08161-220-0	01	1	0007-
195	RING; SNAP,CM/SHF FORWARD	9-09180-038-0	01	1	9606-
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9606-9909
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9606-9909
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	04	1	9910-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-

5 6 5 6 7 2 91 68 67 90 5 6 66 195 64 5 6 70 69 71 72 5 6 3 2 5 6 84 79 65 74 79 83 5 6 82 34 7 65 198 5 6 63 85 32 88 30 78 80 73 75 27 55 54 53 25 1 9 49 10 8 7 34 5 52 5 47 45 48 46 4 50 11 14 10 8 12 13 9 1 3 80 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9702-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9606-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9606-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9606-9701
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9606-9701
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9606-9701
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9606-9701
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9702-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9606-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9606-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9606-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9606-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9606-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9606-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9606-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9606-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9606-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9606-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9606-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9606-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9606-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9606-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9606-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9606-
32	WASHER; LK (A) REARWARD ID=10.2	9-09150-510-0	04	1	9606-
32	WASHER; LK BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) ID=12.2	9-09150-612-0	04	1	0007-0007
32	WASHER; LK (B) ID=12.2	9-09150-612-0	04	1	0007-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-
34	NIPPLE; GREASE,CHAMBER BRKT (B) REARWARD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	9606-
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD	1-47137-128-1	02	1	0007-0007
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	01	1	0007-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9606-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9606-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-153-0	02	1	9606-9905
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9606-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9606-
49	BUSHING; CM/SHF,RR BRK (B)	1-47146-003-1	02	1	9606-
49	BUSHING; CM/SHF,RR BRK (A)	1-47146-009-0	02	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9606-0006
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9606-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9606-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9606-9701
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9702-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9606-9701
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9702-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9606-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9606-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9606-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9606-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9606-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	9606-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	9606-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9606-9708
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-014-0	02	1	9709-
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9606-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9606-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9606-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9606-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9606-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9606-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9606-
69	JOINT; JAW	1-09768-060-1	02	1	9606-
69	JOINT; JAW	1-09768-060-1	02	1	9606-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9606-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9606-
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	9606-9708
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9606-9708
74	BUSHING; SLACK ADJ REARWARD	1-09330-041-0	02	1	9606-
74	BUSHING; SLACK ADJ REARWARD	1-09330-041-0	02	1	9606-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-
78	BUSHING; BRKT REARWARD	1-47146-008-0	02	1	9606-
79	BRACKET; CM/SHF REARWARD	9-47145-013-0	04	1	9606-
80	GASKET; BUSHING REARWARD ID=39.7	9-09561-340-0	04	1	9606-
81	NUT REARWARD M10	9-09110-410-0	04	1	9606-
82	NUT (A) REARWARD M16	9-99110-516-0	04	1	9606-
82	NUT BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) M12	9-99110-512-0	04	1	0007-0007
82	NUT (B) M12	9-99110-512-0	04	1	0007-
83	WASHER; PL REARWARD ID=16.2	9-09851-672-2	08	1	9606-
84	BOLT; BRKT TO CASE REARWARD M16X40	9-92061-640-0	04	1	9606-
85	BOLT; CM/SHF BRKT (A) REARWARD M10X20	0-20801-020-0	04	1	9606-
85	BOLT; CM/SHF BRKT BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) M12X50	5-09000-143-0	04	1	0007-0007
85	BOLT; CM/SHF BRKT (B) M12X50	5-09000-143-0	04	1	0007-
88	CLIP; BRKT REARWARD	1-09589-018-0	02	1	9606-
90	BRACKET; CHAMBER REARWARD	1-42129-046-3	01	1	9606-9612
90	BRACKET; CHAMBER REARWARD	1-42129-240-0	01	1	9701-
90	BRACKET; CHAMBER REARWARD	1-42129-045-3	01	1	9606-9612
90	BRACKET; CHAMBER REARWARD	1-42129-241-0	01	1	9701-
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	9606-
195	RING; SNAP,CM/SHF FORWARD	9-09180-038-0	01	1	9606-
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9606-9909
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9606-9909
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	04	1	9910-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-

65 195 64 7 63 198 298 32 30 74 65 77 82 73 75 34 27 66 69 7 25 71 72 70 67 68 1 55 54 53 7 9 10 8 5 5 49 52 48 46 4 45 50 14 8 10 11 12 13 9 1 85 76 2 3 5 6 5 6 5 6 5 6 6 5 6 5 6 5 6 5 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9606-9701
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9702-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9702-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9606-9701
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9702-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9702-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9606-9701
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9702-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9702-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9702-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9606-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9606-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9606-9701
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9606-9701
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9702-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9702-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9606-9701
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9606-9701
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9702-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9702-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9702-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9606-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9606-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9606-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9606-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9606-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9606-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9606-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9606-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9606-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9606-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9606-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9606-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9606-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9606-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9606-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9606-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9606-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9606-
32	WASHER; LK (A) REARWARD ID=10.2	9-09150-510-0	04	1	9606-
32	WASHER; LK BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) ID=12.2	9-09150-612-0	04	1	0007-0007
32	WASHER; LK (B) ID=12.2	9-09150-612-0	04	1	0007-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-
34	NIPPLE; GREASE,CHAMBER BRKT (B) REARWARD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	9606-
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD	1-47137-128-1	02	1	0007-0007
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	01	1	0007-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9606-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9606-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9606-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9606-
49	BUSHING; CM/SHF,RR BRK (B)	1-47146-003-1	02	1	9606-
49	BUSHING; CM/SHF,RR BRK (A)	1-47146-009-0	02	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9606-0006
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	9606-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9606-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9606-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9606-9701
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9702-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9606-9701
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9702-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9606-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9606-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9606-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9606-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9606-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9606-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	9606-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	9606-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9606-
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9606-9708
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-014-0	02	1	9709-
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9606-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9606-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9606-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9606-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9606-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9606-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9606-
69	JOINT; JAW	1-09768-060-1	02	1	9606-
69	JOINT; JAW	1-09768-060-1	02	1	9606-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9606-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9606-
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	9606-9708
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9606-9708
74	BUSHING; SLACK ADJ REARWARD	1-09330-041-0	02	1	9606-
74	BUSHING; SLACK ADJ REARWARD	1-09330-041-0	02	1	9606-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD	1-48258-083-0	01	1	9606-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD	1-48258-084-0	01	1	9606-
77	BUSHING	1-47146-003-1	02	1	9606-
82	NUT (A) REARWARD M16	9-99110-516-0	04	1	9606-
82	NUT BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) M12	9-99110-512-0	04	1	0007-0007
82	NUT (B) M12	9-99110-512-0	04	1	0007-
85	BOLT; CM/SHF BRKT (A) REARWARD M10X20	0-20801-020-0	04	1	9606-
85	BOLT; CM/SHF BRKT BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) M12X50	5-09000-143-0	04	1	0007-0007
85	BOLT; CM/SHF BRKT (B) M12X50	5-09000-143-0	04	1	0007-
195	RING; SNAP,CM/SHF FORWARD	9-09180-038-0	01	1	9606-
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9606-9909
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	02	1	9606-9909
195	RING; SNAP,CM/SHF REARWARD	9-09180-038-0	04	1	9910-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9606-
298	GASKET ID=23.3	9-09561-223-0	02	1	9906-
298	GASKET ID=23.3	9-09561-223-0	02	1	9906-

204 204 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

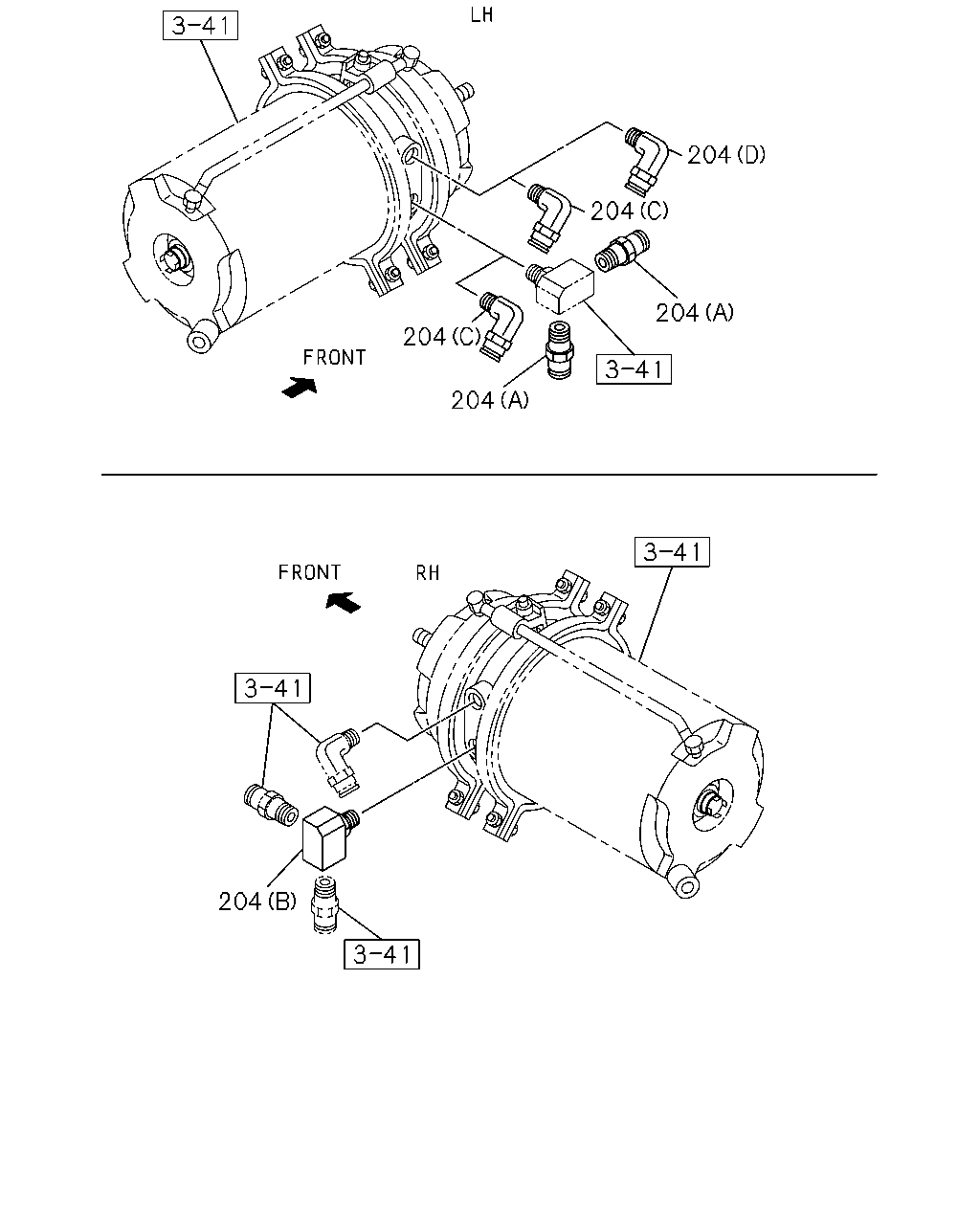

204	CONNECTOR; SPR CHAMBER (D) FORWARD LH DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9606-
204	CONNECTOR; SPR CHAMBER (C) FORWARD LH,REARWARD LH DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9909
204	CONNECTOR; SPR CHAMBER (C) FORWARD LH,REARWARD LH DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9606-9909
204	CONNECTOR; SPR CHAMBER (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9910-0003
204	CONNECTOR; SPR CHAMBER (C) FORWARD LH,REARWARD LH DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0004-
204	CONNECTOR; SPR CHAMBER (C) FORWARD LH,REARWARD LH DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0004-
204	CONNECTOR; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) REARWARD DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9606-9905
204	CONNECTOR; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL AL<SDM> (A) REARWARD DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9906-0003
204	CONNECTOR; SPR CHAMBER EXC. BRAKE REGULATION ECE<TDV> (A) REARWARD DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	0004-
204	CONNECTOR; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) REARWARD	1-09660-697-1	01	1	9606-9905
204	CONNECTOR; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL AL<SDM> (B) REARWARD	1-09660-697-1	01	1	9906-0003
204	CONNECTOR; SPR CHAMBER EXC. BRAKE REGULATION ECE<TDV> (B) REARWARD	1-09660-697-1	01	1	0004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
