Sayfa 3-22 - Isuzu EPC

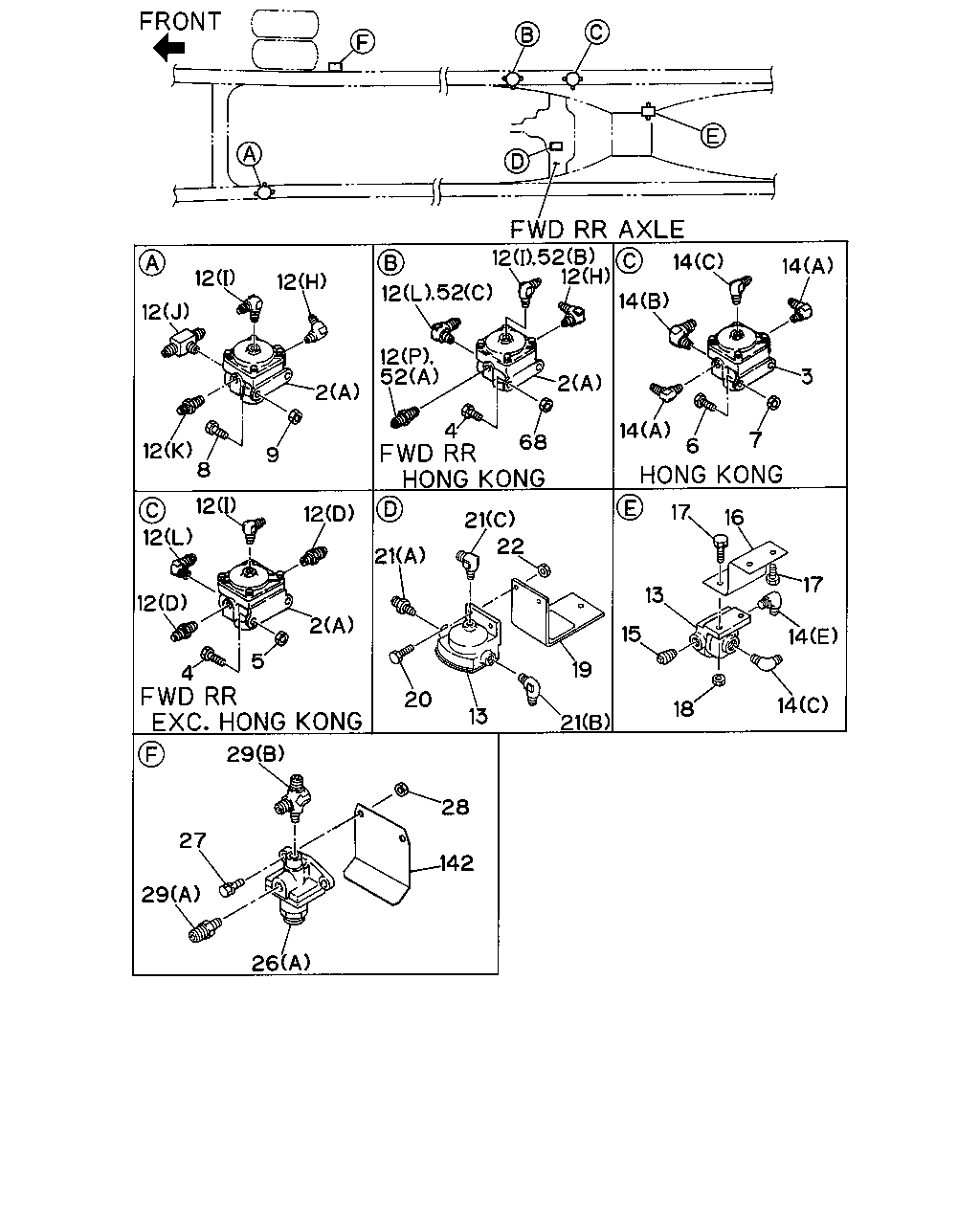

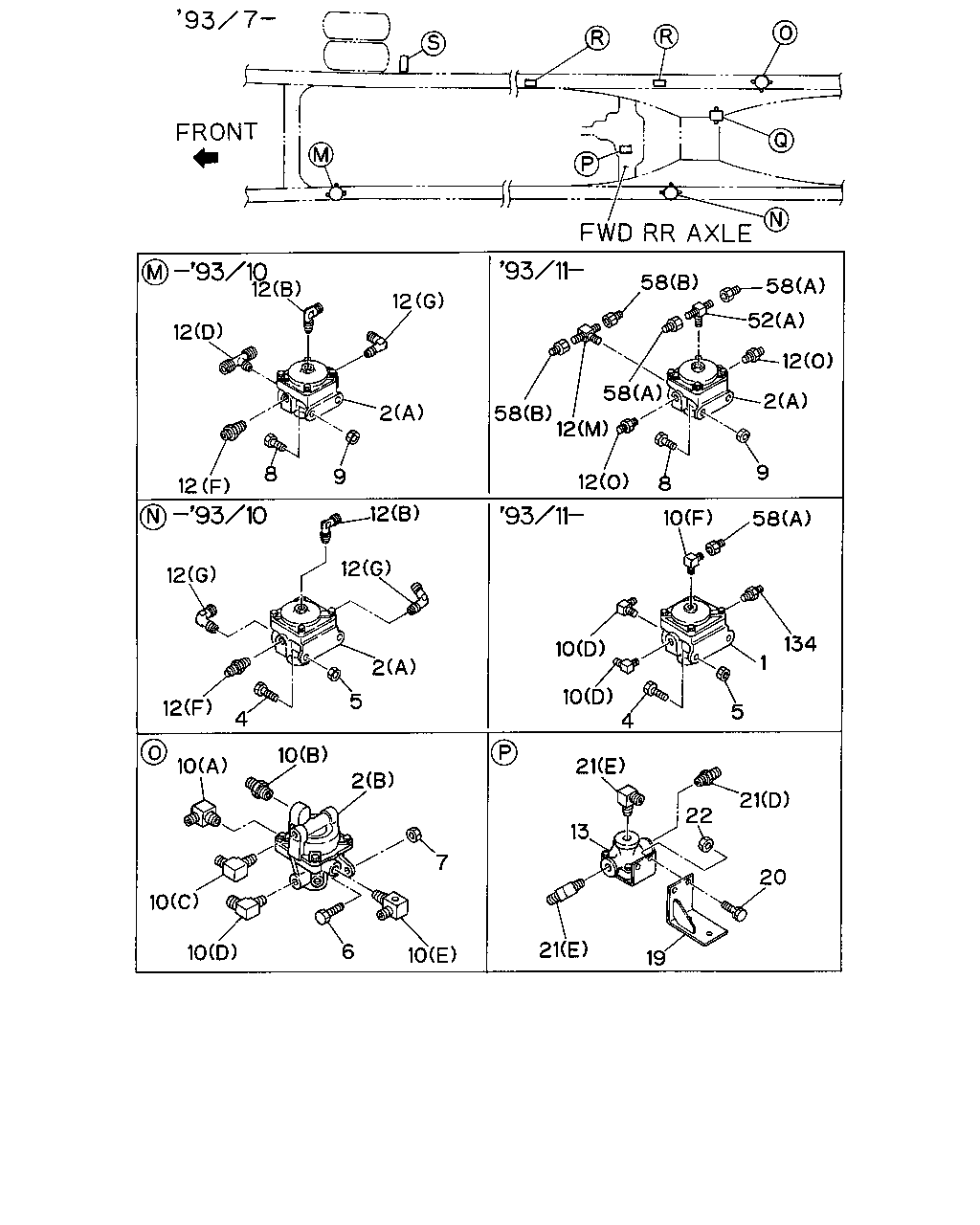

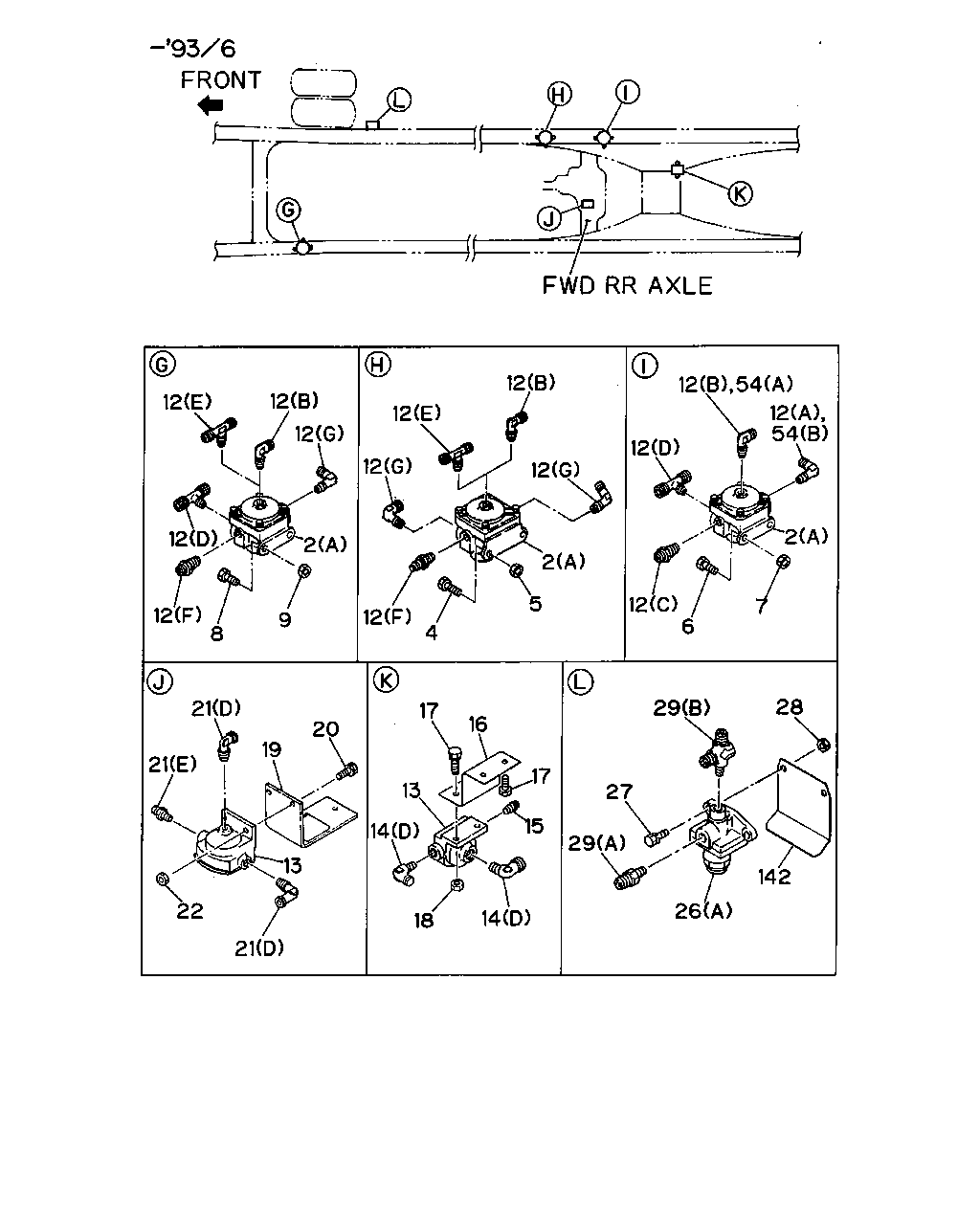

3-22 — AIR CONTROL PARTS (#509) — 630 parça

12 12 12 2 9 8 12 12 12 12 2 5 4 12 29 28 142 26 27 29 20 13 21 19 22 21 21 18 15 13 17 16 17 14 14 14 6 7 3 14 14 14 2 12 12 52 52 12 12 52 68 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	8712-9105
2	VALVE; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	03	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48210-278-0	02	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9406-
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9307-9310
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
3	VALVE; RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-278-0	01	1	8712-
4	BOLT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10X45	9-01911-045-0	02	1	8712-9002
4	BOLT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10X45 W/LK WASHER	0-50041-045-0	02	1	9003-
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-8911
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8912-9002
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
5	NUT EXC. HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-
6	BOLT; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	02	1	9106-9306
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8712-9002
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-
6	BOLT; VLV NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-9105
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9106-9306
7	NUT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9106-9306
7	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9307-
8	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8712-9002
8	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-
8	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-9002
8	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
9	NUT M10	9-09110-510-0	02	1	8712-
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (E)	1-09660-248-0	02	1	8712-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-09660-228-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-09660-332-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (P) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	8712-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	8712-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9306
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-230-0	02	1	8712-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (O)	1-09660-298-0	02	1	9311-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G) M18 & PT1/2 ELBOW	1-09660-236-0	03	1	8712-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	8712-9105
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	02	1	9106-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (M)	1-09656-530-1	01	1	9311-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G) M18 & PT1/2 ELBOW	1-09660-236-0	03	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (H)	1-09650-221-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (H)	1-09650-221-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (H) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (H) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (K) M16	1-09650-245-1	01	1	8712-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (J) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	8712-
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	01	1	8712-9005
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9006-9306
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	8712-9005
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-234-0	02	1	9307-
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9307-9307
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-320-0	02	1	9308-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14	1-09650-041-1	02	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT1/2 ELBOW	1-09650-441-0	02	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-535-0	03	1	9307-
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9105
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9106-9306
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M14	1-09650-092-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M14	1-09650-092-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (E) M27	1-09650-102-0	01	1	8712-9401
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (E) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9402-
15	PLUG; VALVE PT3/8	9-09204-517-0	01	1	8712-9306
15	PLUG; VALVE EXC. NYLON TUBE AIR PIPING<Z29> PT3/8	9-09204-517-0	01	1	9307-
16	BRACKET; VLV,PARKING BRK NYLON TUBE AIR PIPING<Z29>	1-48495-128-0	01	1	9307-
16	BRACKET; VLV,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	8712-9005
16	BRACKET; VLV,PARKING BRK	1-47475-540-1	01	1	9006-9306
16	BRACKET; VLV,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	9307-
17	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	02	1	8712-9001
17	BOLT; BRKT M8X35 W/LK WASHER	9-01910-835-0	02	1	8712-9001
17	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
17	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-
17	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
17	BOLT; BRKT M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-
18	NUT; BRKT M8	9-09110-408-0	02	1	8712-9001
18	NUT; BRKT M8	9-09110-408-0	02	1	9006-
18	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9005
19	BRACKET; QUICK RELEASE VLV	1-47475-199-1	01	1	8712-9306
19	BRACKET; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-199-1	01	1	9307-
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29>	1-47476-866-0	01	1	9307-
20	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	02	1	8712-9005
20	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-535-0	02	1	9307-
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-555-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	8712-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09660-569-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	01	1	9307-
22	NUT; BRKT M8	9-09110-408-0	02	1	8712-
26	VALVE; AIR EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48110-006-0	01	1	8712-9306
26	VALVE; AIR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48110-006-0	01	1	9307-
26	VALVE; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48110-060-0	01	1	9307-
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-
28	NUT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
28	NUT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) M22	1-09650-246-1	01	1	8712-9306
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M20X2 & PT1/4 3WAY	1-09656-382-1	01	1	8712-9306
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M22	1-09650-246-1	01	1	9307-
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT1/4 3WAY	1-09656-382-1	01	1	9307-
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9306
52	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M16	1-09656-455-2	01	1	9311-
68	NUT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-
142	PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1)	1-22159-219-0	01	1	9009-9404
142	PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-22159-219-0	01	1	9405-

12 12 8 9 2 12 12 58 58 12 12 8 9 2 12 52 58 58 10 10 4 5 1 134 58 10 12 12 2 5 4 12 12 10 10 2 7 10 6 10 10 2 13 21 21 22 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-278-0	01	1	9311-9405
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-500-0	01	1	9406-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	8712-9105
2	VALVE; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	03	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48210-278-0	02	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9406-
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9307-9310
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
4	BOLT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10X45	9-01911-045-0	02	1	8712-9002
4	BOLT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10X45 W/LK WASHER	0-50041-045-0	02	1	9003-
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-8911
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8912-9002
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
5	NUT EXC. HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-
6	BOLT; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	02	1	9106-9306
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8712-9002
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-
6	BOLT; VLV NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-9105
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9106-9306
7	NUT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9106-9306
7	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9307-
8	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8712-9002
8	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-
8	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-9002
8	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
9	NUT M10	9-09110-510-0	02	1	8712-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-288-0	01	1	9307-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E)	1-09660-472-0	01	1	9307-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	01	1	9307-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (D)	1-09660-571-0	01	1	9307-9310
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (D)	1-09660-571-0	03	1	9311-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (F)	1-09660-705-0	01	1	9311-
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (E)	1-09660-248-0	02	1	8712-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-09660-228-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-09660-332-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (P) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	8712-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	8712-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9306
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-230-0	02	1	8712-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (O)	1-09660-298-0	02	1	9311-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G) M18 & PT1/2 ELBOW	1-09660-236-0	03	1	8712-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	8712-9105
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	02	1	9106-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (M)	1-09656-530-1	01	1	9311-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G) M18 & PT1/2 ELBOW	1-09660-236-0	03	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (H)	1-09650-221-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (H)	1-09650-221-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (H) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (H) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (K) M16	1-09650-245-1	01	1	8712-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (J) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	8712-
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	01	1	8712-9005
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9006-9306
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	8712-9005
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-234-0	02	1	9307-
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9307-9307
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-320-0	02	1	9308-
19	BRACKET; QUICK RELEASE VLV	1-47475-199-1	01	1	8712-9306
19	BRACKET; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-199-1	01	1	9307-
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29>	1-47476-866-0	01	1	9307-
20	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	02	1	8712-9005
20	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-535-0	02	1	9307-
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-555-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	8712-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09660-569-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	01	1	9307-
22	NUT; BRKT M8	9-09110-408-0	02	1	8712-
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
52	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9306
52	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M16	1-09656-455-2	01	1	9311-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (A)	1-09660-415-0	03	1	9311-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (B) M20X36	1-09660-576-0	02	1	9311-
134	PLUG; RELAY VALVE NYLON TUBE AIR PIPING<Z29>	1-09660-298-0	01	1	9311-

12 12 12 2 9 8 12 12 12 12 12 12 2 5 4 12 12 12 54 12 54 2 7 6 12 28 29 27 29 142 26 17 16 17 15 14 18 14 13 20 19 21 21 22 13 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	8712-9105
2	VALVE; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	03	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48210-278-0	02	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9406-
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9307-9310
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
4	BOLT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10X45	9-01911-045-0	02	1	8712-9002
4	BOLT; RELAY VLV TO BRKT HONG KONG EQUIPMENT(PQ1) M10X45 W/LK WASHER	0-50041-045-0	02	1	9003-
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-8911
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8912-9002
4	BOLT; RELAY VLV TO BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
5	NUT EXC. HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-
6	BOLT; VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	02	1	9106-9306
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8712-9002
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-
6	BOLT; VLV NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	8712-9105
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9106-9306
7	NUT; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9106-9306
7	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9307-
8	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	9-01911-040-0	02	1	8712-9002
8	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-
8	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-9002
8	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
9	NUT M10	9-09110-510-0	02	1	8712-
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (E)	1-09660-248-0	02	1	8712-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-09660-228-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-09660-332-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (P) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	8712-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	8712-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9306
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-230-0	02	1	8712-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (O)	1-09660-298-0	02	1	9311-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G) M18 & PT1/2 ELBOW	1-09660-236-0	03	1	8712-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	8712-9105
12	CONNECTOR; RELAY VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	02	1	9106-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (M)	1-09656-530-1	01	1	9311-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (G) M18 & PT1/2 ELBOW	1-09660-236-0	03	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	9307-9310
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (D) M18X2 & PT1/2 3WAY	1-09660-249-0	01	1	9106-9306
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (H)	1-09650-221-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (H)	1-09650-221-1	01	1	8712-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (H) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
12	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (H) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (K) M16	1-09650-245-1	01	1	8712-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (J) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	8712-
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	01	1	8712-9005
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9006-9306
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	8712-9005
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-234-0	02	1	9307-
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9307-9307
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-320-0	02	1	9308-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14	1-09650-041-1	02	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT1/2 ELBOW	1-09650-441-0	02	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-535-0	03	1	9307-
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9105
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9106-9306
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M14	1-09650-092-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M14	1-09650-092-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (E) M27	1-09650-102-0	01	1	8712-9401
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (E) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9402-
15	PLUG; VALVE PT3/8	9-09204-517-0	01	1	8712-9306
15	PLUG; VALVE EXC. NYLON TUBE AIR PIPING<Z29> PT3/8	9-09204-517-0	01	1	9307-
16	BRACKET; VLV,PARKING BRK NYLON TUBE AIR PIPING<Z29>	1-48495-128-0	01	1	9307-
16	BRACKET; VLV,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	8712-9005
16	BRACKET; VLV,PARKING BRK	1-47475-540-1	01	1	9006-9306
16	BRACKET; VLV,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	9307-
17	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	02	1	8712-9001
17	BOLT; BRKT M8X35 W/LK WASHER	9-01910-835-0	02	1	8712-9001
17	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
17	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-
17	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
17	BOLT; BRKT M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-
18	NUT; BRKT M8	9-09110-408-0	02	1	8712-9001
18	NUT; BRKT M8	9-09110-408-0	02	1	9006-
18	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9005
19	BRACKET; QUICK RELEASE VLV	1-47475-199-1	01	1	8712-9306
19	BRACKET; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-199-1	01	1	9307-
19	BRACKET; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29>	1-47476-866-0	01	1	9307-
20	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	02	1	8712-9005
20	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-535-0	02	1	9307-
21	CONNECTOR; QUICK RELEASE VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-555-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	8712-9306
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	8712-9302
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	8712-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09660-569-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-570-0	01	1	9307-
22	NUT; BRKT M8	9-09110-408-0	02	1	8712-
26	VALVE; AIR EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48110-006-0	01	1	8712-9306
26	VALVE; AIR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48110-006-0	01	1	9307-
26	VALVE; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48110-060-0	01	1	9307-
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-
28	NUT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
28	NUT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) M22	1-09650-246-1	01	1	8712-9306
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M20X2 & PT1/4 3WAY	1-09656-382-1	01	1	8712-9306
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M22	1-09650-246-1	01	1	9307-
29	CONNECTOR; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT1/4 3WAY	1-09656-382-1	01	1	9307-
54	CONNECTOR; QUICK RELEASE VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9006-9105
54	CONNECTOR; QUICK RELEASE VLV FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-09660-245-0	01	1	9006-9105
142	PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1)	1-22159-219-0	01	1	9009-9404
142	PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-22159-219-0	01	1	9405-

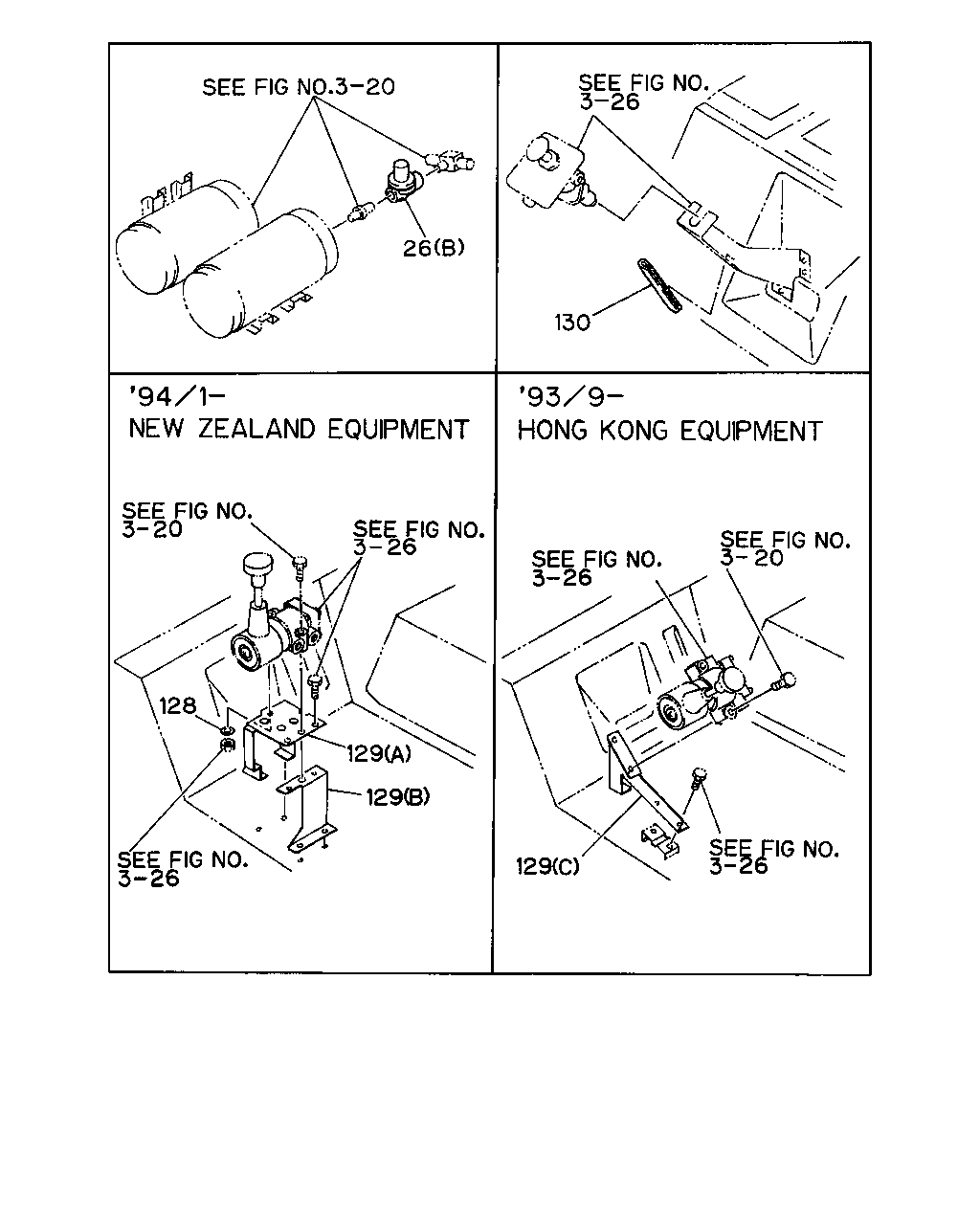

26 130 129 129 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	VALVE; AIR EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48110-006-0	01	1	8712-9306
26	VALVE; AIR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48110-006-0	01	1	9307-
26	VALVE; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48110-060-0	01	1	9307-
128	WASHER; LK,PARK BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	01	1	9401-
129	BRACKET; PARKING BRK VLV BRKT HONG KONG EQUIPMENT(PQ1) (C)	1-62172-587-2	01	1	9309-
129	BRACKET; PARKING BRK VLV BRKT NEW ZEALAND EQUIPMENT(PK5) (A)	1-79997-213-0	01	1	9401-
129	BRACKET; PARKING BRK VLV BRKT NEW ZEALAND EQUIPMENT(PK5) (B)	1-79997-214-0	01	1	9401-
130	FINISHER; BEAD,BRKT NYLON TUBE AIR PIPING<Z29> L=240	1-71998-400-0	01	1	8712-

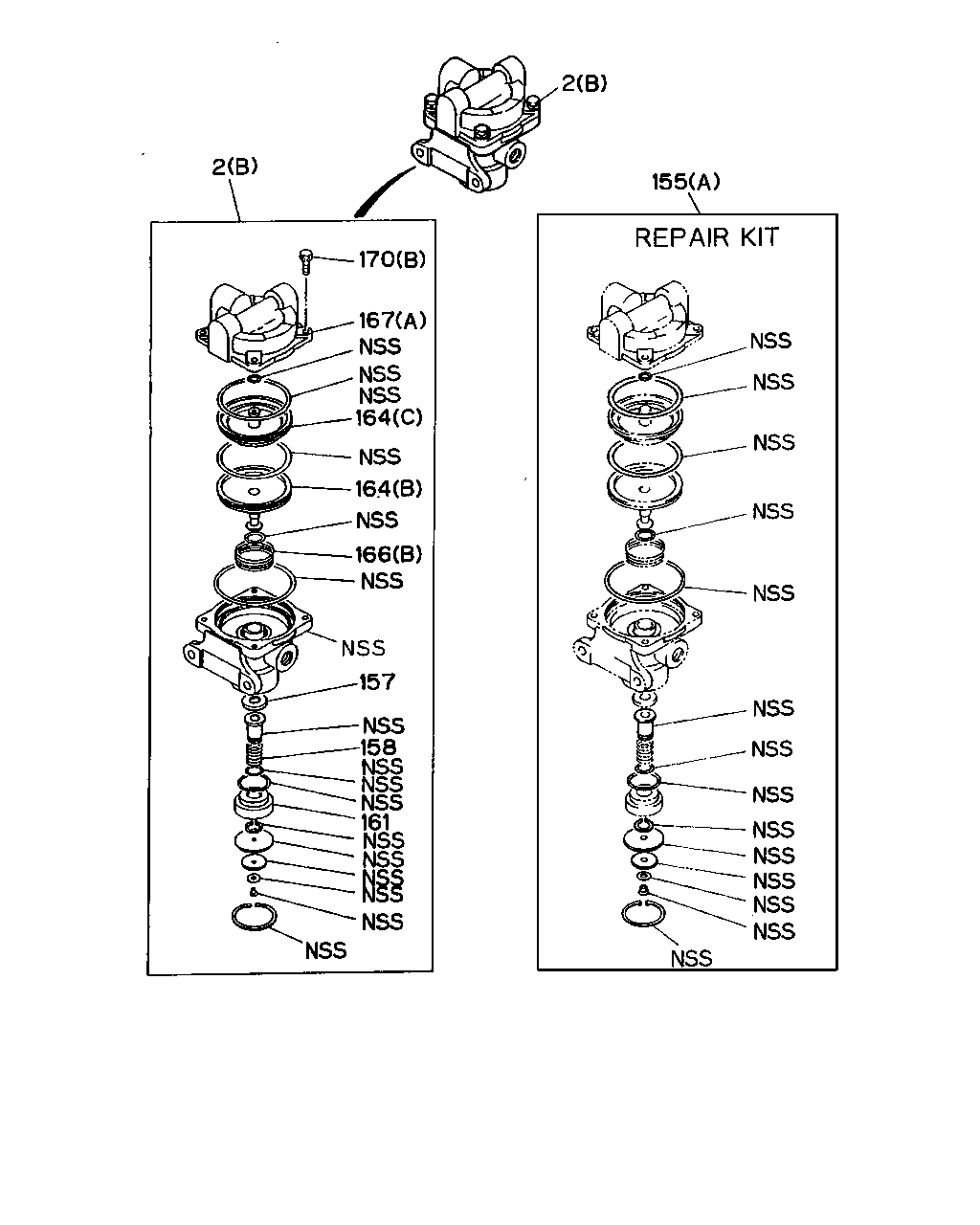

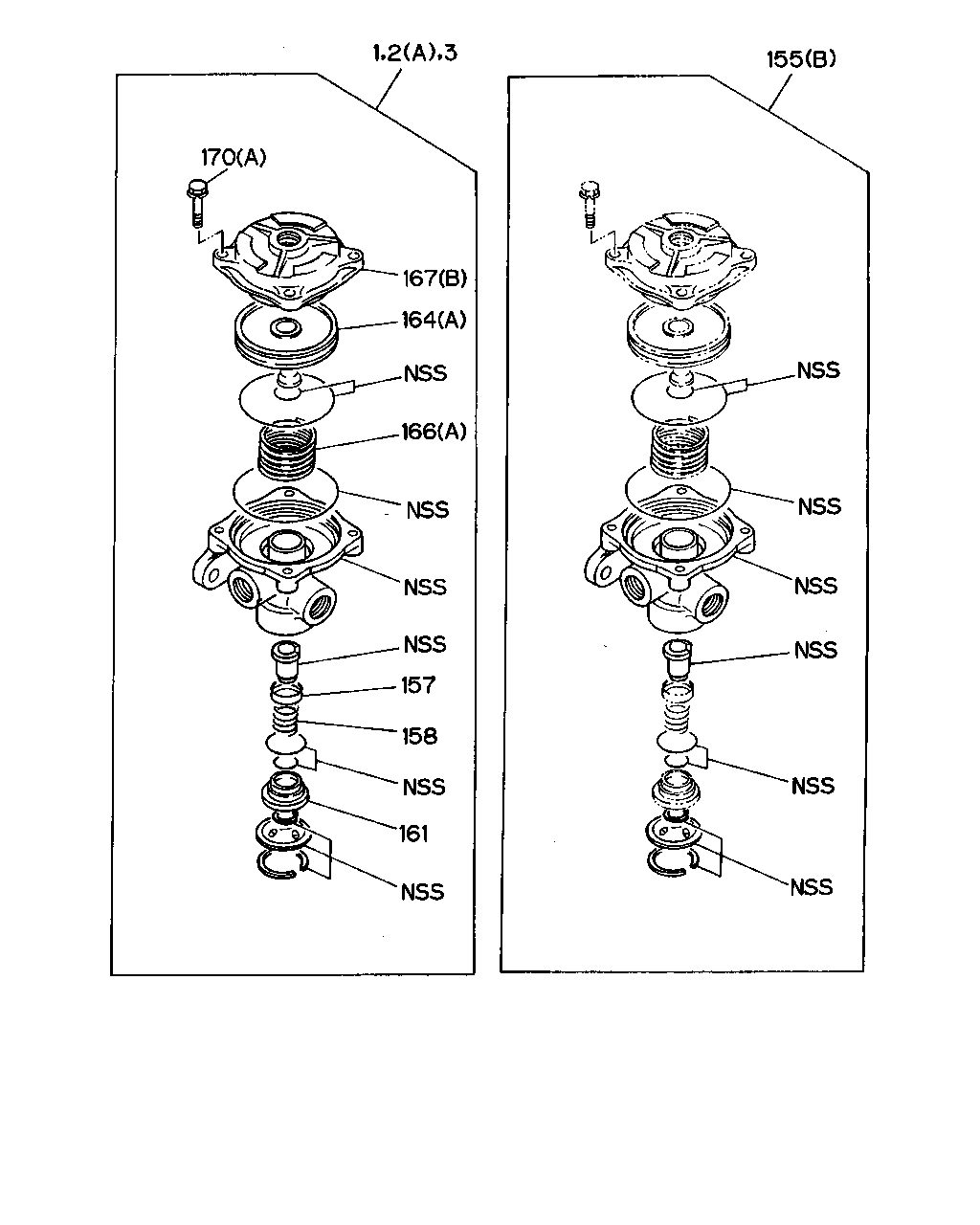

1 2 3 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-278-0	01	1	9311-9405
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29>	1-48210-500-0	01	1	9406-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	8712-9105
2	VALVE; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	03	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48210-278-0	02	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9406-
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9307-9310
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
3	VALVE; RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-278-0	01	1	8712-
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	02	1	8712-9105
155	REPAIR KIT; RELAY VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	03	1	9106-9306
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-85576-033-0	02	1	9106-9306
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-85576-035-0	01	1	9307-
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	02	1	9307-
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-033-0	02	1	9307-
155	REPAIR KIT; RELAY VALVE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	01	1	8712-
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	01	1	8712-
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	02	1	9307-
157	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	02	1	8712-9105
157	RETAINER; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	03	1	9106-9306
157	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-48213-002-0	02	1	9106-9306
157	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	03	1	9307-
157	RETAINER; VALVE EXC. NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	01	1	8712-
157	RETAINER; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	01	1	8712-
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1)	1-47819-089-0	02	1	9307-
158	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	02	1	8712-9105
158	SPRING; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	03	1	9106-9306
158	SPRING; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-47819-089-0	02	1	9106-9306
158	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	03	1	9307-
158	SPRING; VALVE EXC. NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	01	1	8712-
158	SPRING; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	01	1	8712-
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1)	1-48129-014-0	02	1	9307-
161	GUIDE; VALVE NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	02	1	8712-9105
161	GUIDE; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	03	1	9106-9306
161	GUIDE; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-48129-014-0	02	1	9106-9306
161	GUIDE; VALVE NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	03	1	9307-
161	GUIDE; VALVE EXC. NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	01	1	8712-
161	GUIDE; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	01	1	8712-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	02	1	8712-9105
164	PISTON; RELAY VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	03	1	9106-9306
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48219-071-0	02	1	9106-9306
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9307-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9307-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	02	1	9307-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-071-0	02	1	9307-
164	PISTON; RELAY VALVE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	01	1	8712-
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	01	1	8712-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	8712-9105
166	SPRING; PISTON FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	03	1	9106-9306
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-47819-090-0	02	1	9106-9306
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9307-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	9307-9405
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	02	1	9307-9405
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	02	1	9406-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-165-0	02	1	9406-
166	SPRING; PISTON EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	8712-
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	8712-
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	02	1	8712-9105
167	COVER; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	03	1	9106-9306
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-48219-070-0	02	1	9106-9306
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-050-1	01	1	9307-
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	02	1	9307-
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-070-0	02	1	9307-
167	COVER; VALVE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	01	1	8712-
167	COVER; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	01	1	8712-
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	08	1	8712-9105
170	SCREW; COVER TO BODY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	12	1	9106-9306
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48219-039-0	08	1	9106-9306
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9307-
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	08	1	9307-
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (A)	1-48219-039-0	08	1	9307-
170	SCREW; COVER TO BODY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	04	1	8712-
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	04	1	8712-

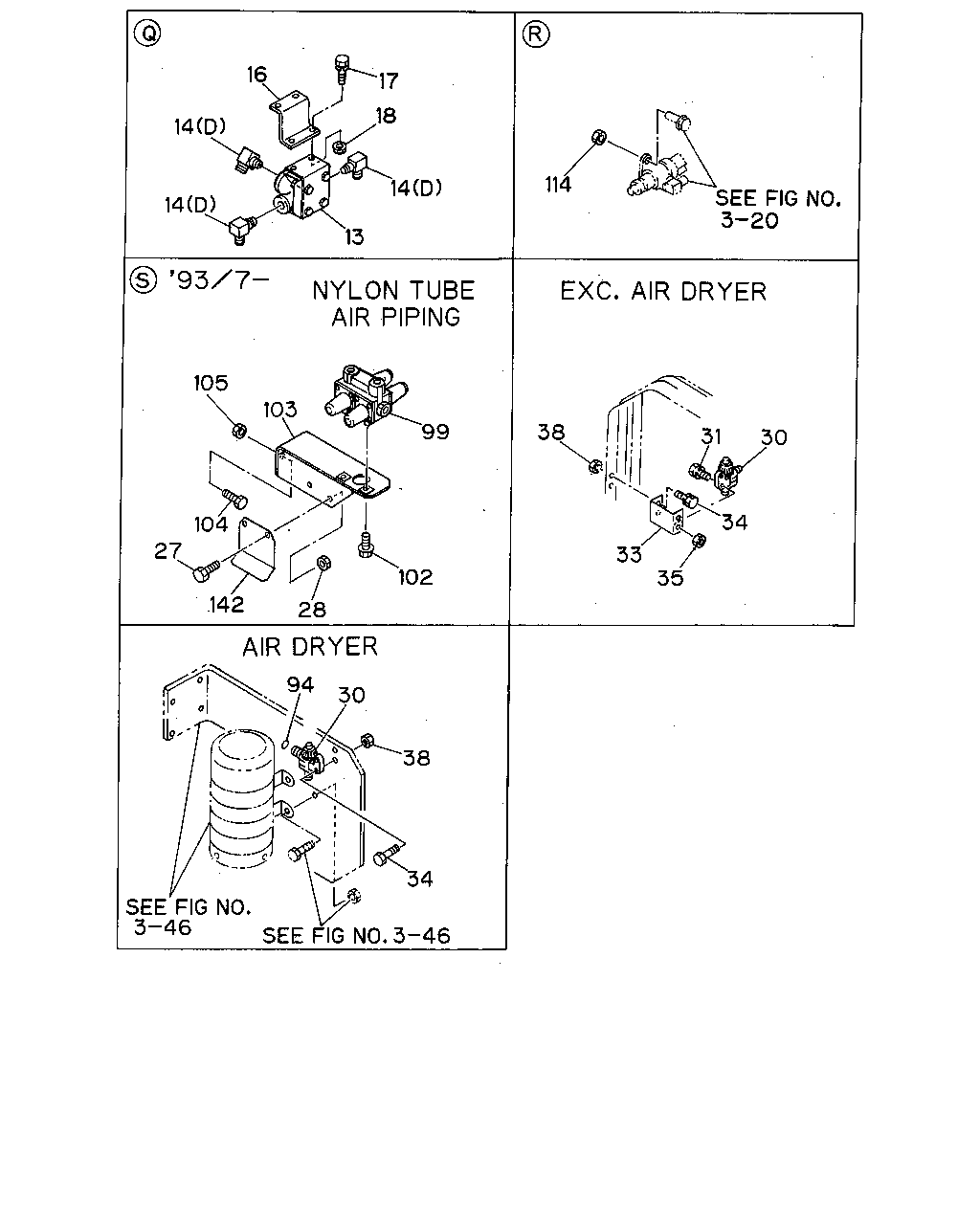

14 14 16 17 18 14 13 105 99 103 102 28 142 27 104 38 33 35 34 30 31 94 30 38 34 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	01	1	8712-9005
13	VALVE ASM; QUICK RELEASE	1-48410-052-1	02	1	9006-9306
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	8712-9005
13	VALVE ASM; QUICK RELEASE NYLON TUBE AIR PIPING<Z29>	1-48410-234-0	02	1	9307-
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-052-1	02	1	9307-9307
13	VALVE ASM; QUICK RELEASE EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-320-0	02	1	9308-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14	1-09650-041-1	02	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT1/2 ELBOW	1-09650-441-0	02	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-535-0	03	1	9307-
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9105
14	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9106-9306
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M14	1-09650-092-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M14	1-09650-092-1	01	1	8712-9302
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (E) M27	1-09650-102-0	01	1	8712-9401
14	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (E) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9402-
16	BRACKET; VLV,PARKING BRK NYLON TUBE AIR PIPING<Z29>	1-48495-128-0	01	1	9307-
16	BRACKET; VLV,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	8712-9005
16	BRACKET; VLV,PARKING BRK	1-47475-540-1	01	1	9006-9306
16	BRACKET; VLV,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	9307-
17	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	02	1	8712-9001
17	BOLT; BRKT M8X35 W/LK WASHER	9-01910-835-0	02	1	8712-9001
17	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
17	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-
17	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
17	BOLT; BRKT M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-
18	NUT; BRKT M8	9-09110-408-0	02	1	8712-9001
18	NUT; BRKT M8	9-09110-408-0	02	1	9006-
18	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9005
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01910-830-0	02	1	8712-9005
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	02	1	9006-9302
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
27	BOLT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-
28	NUT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
28	NUT; AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	8712-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME EXC. AIR DRYER<PS7> M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	8712-9204
31	BOLT; GOV TO FRAME EXC. AIR DRYER<PS7> M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-9306
31	BOLT; GOV TO FRAME EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	02	1	9307-
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7>,CAB UP +50MM<W60>	1-48359-035-0	01	1	9002-
33	BRACKET; GOV,AIR CONT CAB UP +50MM<W60> EXC. AIR DRYER<PS7>	1-47475-419-2	01	1	9002-
33	BRACKET; GOV,AIR CONT HONG KONG EQUIPMENT(PQ1)	1-48359-035-0	01	1	8712-9001
33	BRACKET; GOV,AIR CONT EXC. HONG KONG EQUIPMENT(PQ1)	1-47475-419-1	01	1	8712-9001
34	BOLT; BRKT,GOV M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-8805
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X28 W/LK&PL WASHER	9-01960-828-0	02	1	8806-9001
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	9002-9204
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	8806-9204
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-
35	NUT; GOV TO FRAME EXC. AIR DRYER<PS7> M8	9-09110-408-0	02	1	8712-
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	8712-
94	GASKET; GOV AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	8806-
99	VALVE; PROTECTION NYLON TUBE AIR PIPING<Z29>	1-48110-018-0	01	1	9307-
102	BOLT; PROTECTION VALVE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-
103	BRACKET; PROTECTION VALVE NYLON TUBE AIR PIPING<Z29>	1-48495-129-0	01	1	9307-
104	BOLT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8X35 FLANGE	0-28080-835-0	03	1	9307-9312
104	BOLT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	03	1	9401-
105	NUT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-
114	NUT; VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
142	PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1)	1-22159-219-0	01	1	9009-9404
142	PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-22159-219-0	01	1	9405-

2 155 2 170 167 164 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	8712-9105
2	VALVE; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	03	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48210-278-0	02	1	9106-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9307-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9406-
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	8712-9306
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	02	1	9307-9310
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-9310
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9311-9405
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (A)	1-48210-278-0	01	1	9406-
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9406-
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	02	1	8712-9105
155	REPAIR KIT; RELAY VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	03	1	9106-9306
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-85576-033-0	02	1	9106-9306
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-85576-035-0	01	1	9307-
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	02	1	9307-
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-033-0	02	1	9307-
155	REPAIR KIT; RELAY VALVE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	01	1	8712-
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-85576-033-0	01	1	8712-
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	02	1	9307-
157	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	02	1	8712-9105
157	RETAINER; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	03	1	9106-9306
157	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-48213-002-0	02	1	9106-9306
157	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	03	1	9307-
157	RETAINER; VALVE EXC. NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	01	1	8712-
157	RETAINER; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48213-002-0	01	1	8712-
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1)	1-47819-089-0	02	1	9307-
158	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	02	1	8712-9105
158	SPRING; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	03	1	9106-9306
158	SPRING; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-47819-089-0	02	1	9106-9306
158	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	03	1	9307-
158	SPRING; VALVE EXC. NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	01	1	8712-
158	SPRING; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47819-089-0	01	1	8712-
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1)	1-48129-014-0	02	1	9307-
161	GUIDE; VALVE NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	02	1	8712-9105
161	GUIDE; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	03	1	9106-9306
161	GUIDE; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-48129-014-0	02	1	9106-9306
161	GUIDE; VALVE NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	03	1	9307-
161	GUIDE; VALVE EXC. NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	01	1	8712-
161	GUIDE; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48129-014-0	01	1	8712-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	02	1	8712-9105
164	PISTON; RELAY VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	03	1	9106-9306
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48219-071-0	02	1	9106-9306
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9307-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9307-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	02	1	9307-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-071-0	02	1	9307-
164	PISTON; RELAY VALVE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	01	1	8712-
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-071-0	01	1	8712-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	8712-9105
166	SPRING; PISTON FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	03	1	9106-9306
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-47819-090-0	02	1	9106-9306
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9307-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	02	1	9307-9405
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	02	1	9307-9405
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	02	1	9406-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-165-0	02	1	9406-
166	SPRING; PISTON EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	8712-
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	8712-
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	02	1	8712-9105
167	COVER; VALVE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	03	1	9106-9306
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-48219-070-0	02	1	9106-9306
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (A)	1-48219-050-1	01	1	9307-
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	02	1	9307-
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-070-0	02	1	9307-
167	COVER; VALVE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	01	1	8712-
167	COVER; VALVE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-48219-070-0	01	1	8712-
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	08	1	8712-9105
170	SCREW; COVER TO BODY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	12	1	9106-9306
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-48219-039-0	08	1	9106-9306
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9307-
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	08	1	9307-
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (A)	1-48219-039-0	08	1	9307-
170	SCREW; COVER TO BODY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	04	1	8712-
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-48219-039-0	04	1	8712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
