◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#50899) — 53 parça

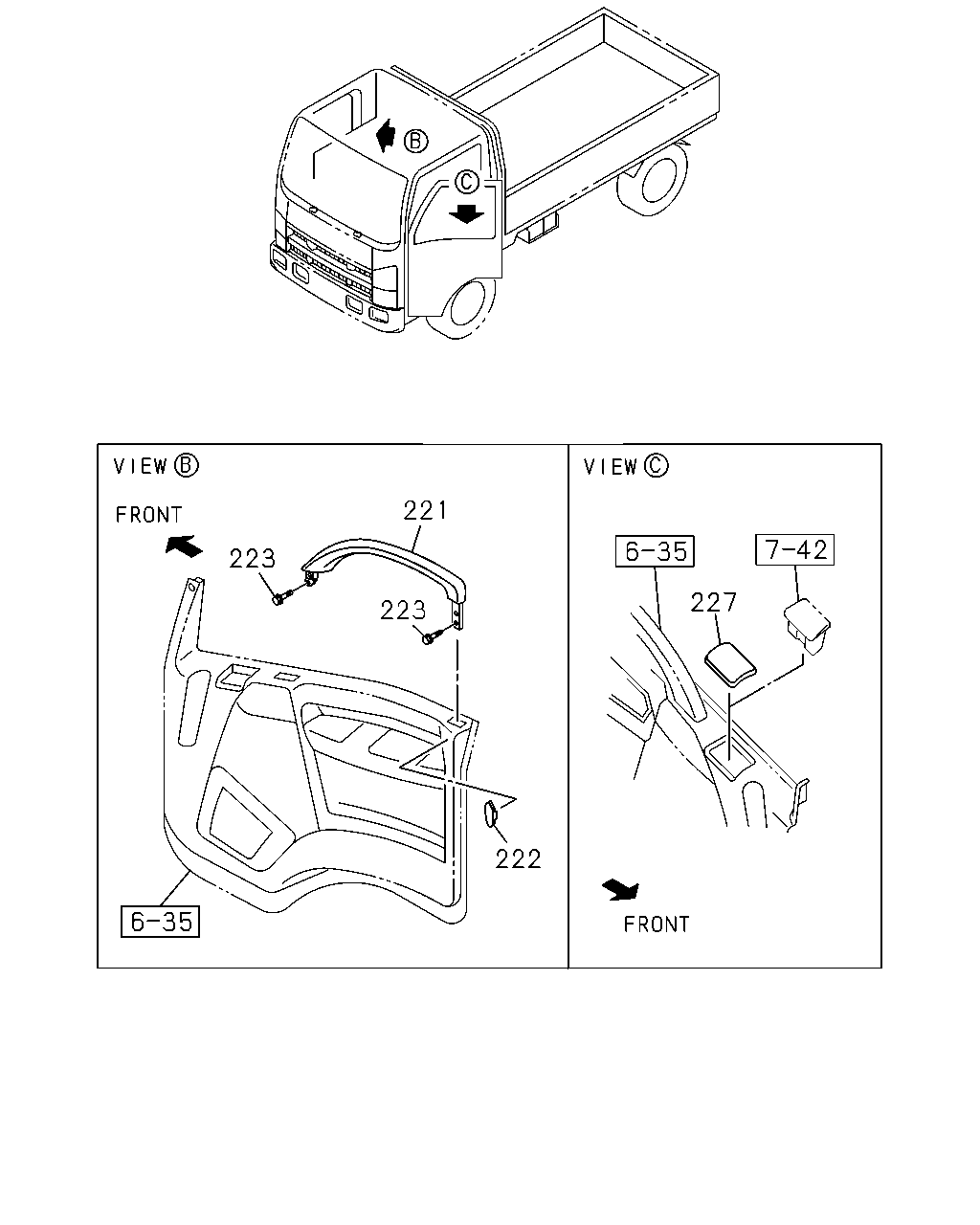

çizim 157499
221 223 227 223 222
BalonParca AdiParca NoAdetTipApplied Date A B C
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 0804- ● ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 0804- ● ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0804- ● ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0804- ● ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0804-1101 ● ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1102-1212 ● ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY ASSIST DOOR<8LX> GRAY 		8-97405-321-0 01 1 0804- ● ● ●

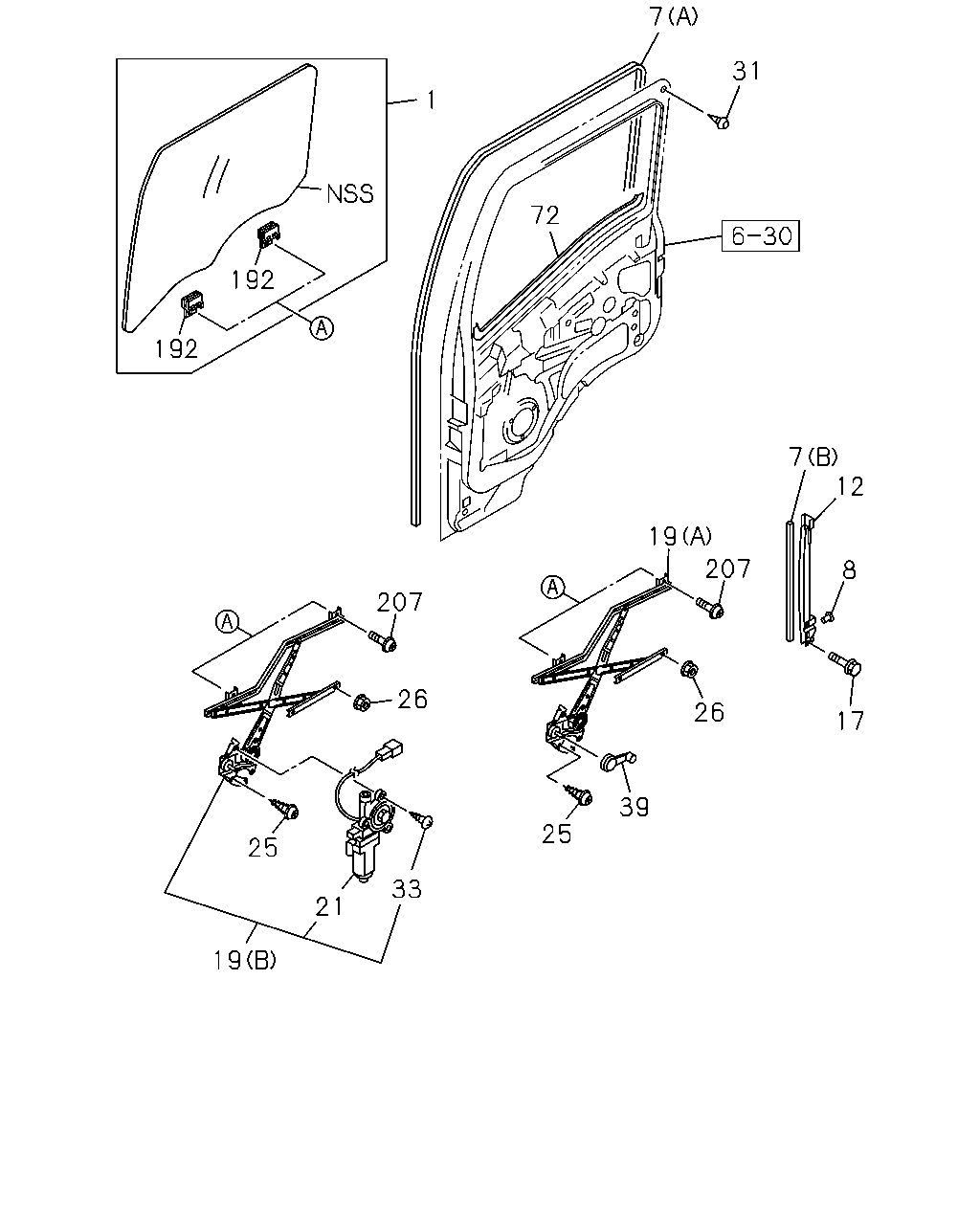

çizim 157504
7 31 1 72 192 192 7 12 19 207 8 207 26 26 17 39 25 25 33 21 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR 8-98029-190-1 01 1 0804-1204 ● ● ●
1 GLASS; FRT DOOR 8-98211-765-0 01 1 1205-1408 ● ● ●
1 GLASS; FRT DOOR 8-98134-018-0 01 1 1409- ● ● ●
1 GLASS; FRT DOOR 8-98029-189-1 01 1 0804-1204 ● ● ●
1 GLASS; FRT DOOR 8-98211-764-0 01 1 1205-1408 ● ● ●
1 GLASS; FRT DOOR 8-98134-017-0 01 1 1409- ● ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0804-1411 ● ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412- ● ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0804-1411 ● ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412- ● ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0804-1411 ● ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412- ● ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0804- ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0804-1105 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-1411 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412- ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0804-1105 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-1411 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412- ● ● ●
17 SCREW; RR CHANNEL
M6X10 FLANGE SOU 		0-28050-610-0 04 1 0804- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 0804- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98029-237-3 01 1 0804- ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98050-288-2 01 1 0804- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98050-288-2 01 1 0804- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A) 		8-98029-234-3 01 1 0804- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98029-234-3 01 1 0804- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A) 		8-98029-233-3 01 1 0804- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98029-233-3 01 1 0804- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 0804- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-430-0 01 1 0804- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0804- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-429-0 01 1 0804- ●
25 BOLT; WINDOW REG
M6X10 FLANGE SOU 		0-28050-610-0 08 1 0804- ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE SOU 		0-91180-106-0 04 1 0804- ● ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 0804- ● ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 0804- ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-431-0 06 1 0804- ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0804- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-313-3 02 1 0804- ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0804- ● ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0804- ● ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 04 1 0804-1204 ● ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 04 1 1205-1408 ● ● ●
192 HOLDER; DOOR GLASS 8-98134-194-0 04 1 1409- ● ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE SOU 		0-28050-610-0 04 1 0804- ● ● ●
