◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#50893) — 19 parça

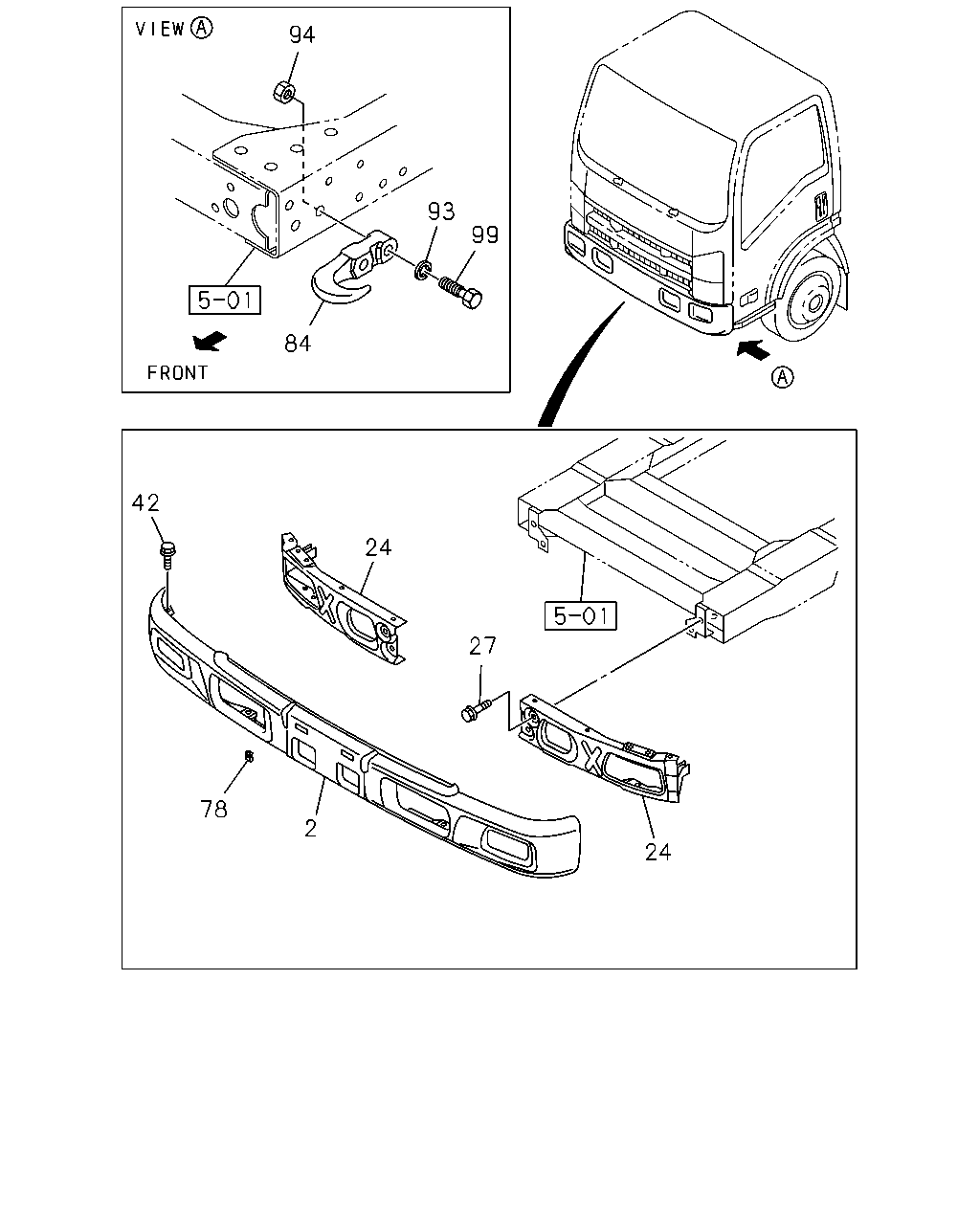

çizim 157486
94 93 99 84 42 24 27 78 2 24
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97405-627-5 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-080-2 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97405-634-5 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> WHITE 		8-97405-635-5 01 1 0804- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> BLUE 		8-97405-636-5 01 1 0804- ● ● ●
24 BAR; FRT BUMPER 8-98025-185-5 01 1 0804- ● ● ●
24 BAR; FRT BUMPER 8-98025-184-5 01 1 0804- ● ● ●
27 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 0804- ● ● ●
42 BOLT; BUMPER
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0804- ● ● ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 0804- ● ● ●
84 HOOK
SOU 		8-97387-665-0 01 1 0804- ● ● ●
93 WASHER; LK,HOOK
ID=14.2 SOU 		0-91510-814-0 02 1 0804- ● ● ●
94 NUT; HOOK
M14 SOU 		0-91110-514-0 01 1 0804- ● ● ●
99 BOLT; HOOK
M14X50 SOU 		0-10856-450-0 02 1 0804-1001 ● ● ●
99 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1002-1103 ● ● ●
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1104- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
