5-30 — SPARE TIRE CARRIER AND COVER (#50892) — 47 parça

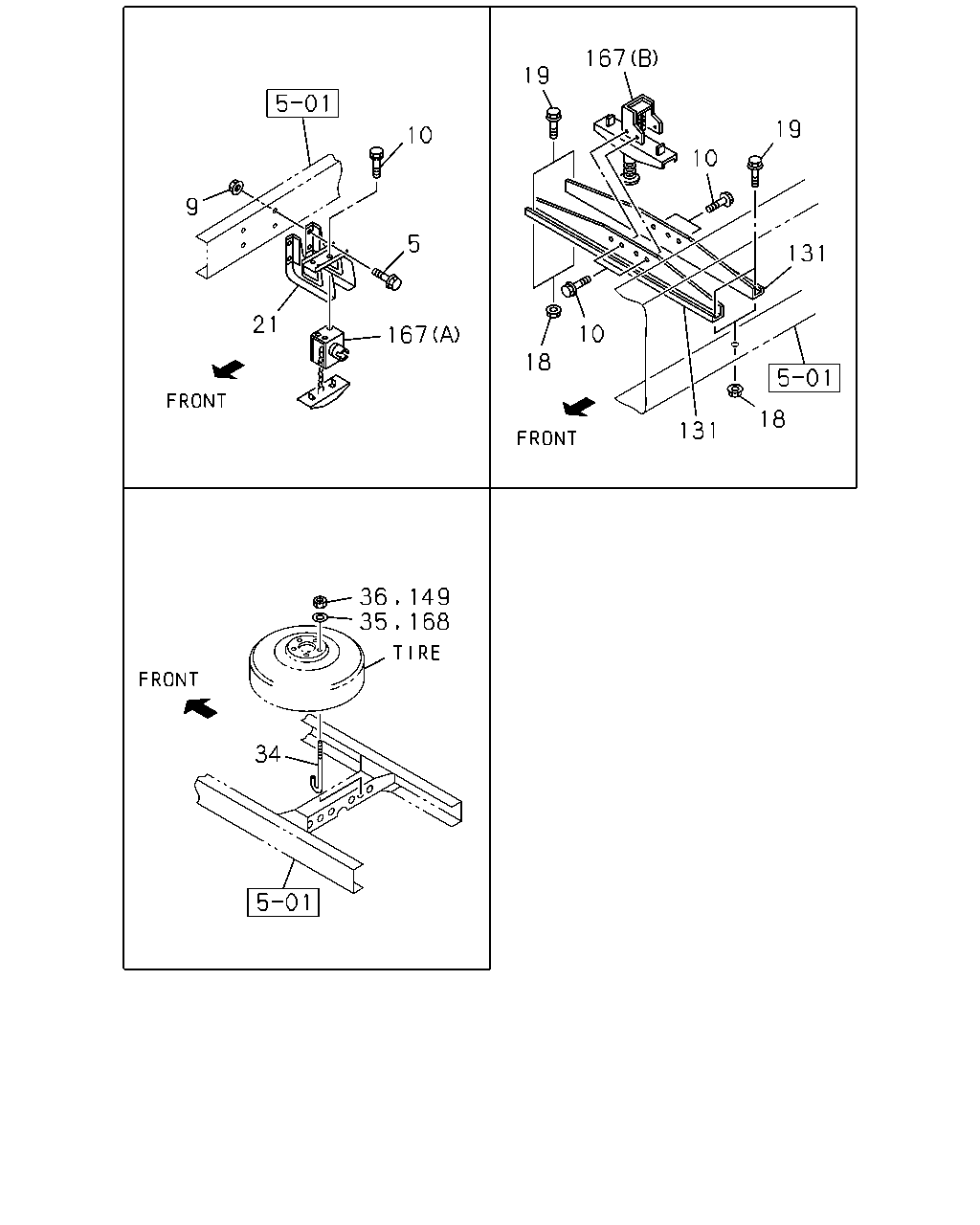

çizim 157478
167 19 19 10 10 9 5 131 21 10 167 18 18 131 36 35 149 168 34
BalonParca AdiParca NoAdetTipApplied Date A B C
5 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0806-0903 ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W) M10X30 FLANGE SOU 		0-28651-030-0 04 1 0806-0903 ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X25 FLANGE 		0-28051-025-0 04 1 0904- ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W) M10X25 FLANGE 		0-28051-025-0 04 1 0904- ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ●
5 BOLT; BRKT TO FRAME
M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE SOU 		0-91180-110-0 04 1 0806- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W) M10 FLANGE SOU 		0-91180-110-0 04 1 0806- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) M8 FLANGE SOU 		0-91180-108-0 04 1 0804- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) M8 FLANGE SOU 		0-91180-108-0 04 1 0804- ●
9 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 04 1 0804- ●
10 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ●
10 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ●
10 BOLT; TIRE HANGER
M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ●
10 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
10 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W) M8X20 FLANGE 		0-28650-820-0 03 1 0804- ●
18 NUT; MEMBER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●
18 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●
18 NUT; MEMBER
M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●
19 BOLT; C/MBR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ●
19 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ●
19 BOLT; C/MBR
M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> 		8-98072-378-2 01 1 0804- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W) 		8-98072-378-2 01 1 0804- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> 		8-98036-085-2 01 1 0804- ●
34 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 SOU 		8-94441-189-0 01 1 0804-1209 ●
34 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1210- ●
34 BOLT; SPARE TIRE
M12X305 SOU 		8-94441-189-0 02 1 0804-1209 ● ● ●
34 BOLT; SPARE TIRE
M12X330 		8-98226-501-0 02 1 1210- ● ● ●
35 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> ID=12.5 OD=54 SOU 		8-94466-483-0 01 1 0804- ●
36 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12 SOU 		0-91110-512-0 01 1 0804- ●
131 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 		8-98035-827-1 02 1 0804- ●
131 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-98035-827-1 02 1 0804- ●
131 CROSSMEMBER; SPARE TIRE 8-98035-827-1 02 1 0804- ●
149 NUT; CARRIER
M12 SOU 		0-91110-512-0 02 1 0804- ● ● ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FR T&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE WHEEL CARRIER<P10> (A) 		8-97010-955-1 01 1 0804-0809 ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) 		8-97010-955-1 01 1 0804-0809 ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE WHEEL CARRIER<P10> (A) 		8-97010-955-1 01 1 0810- ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) 		8-97010-955-1 01 1 0810- ●
167 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FR T&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE WHEEL CARRIER<P10> (B) 		8-98036-383-0 01 1 0804-0809 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (B) 		8-98036-383-0 01 1 0804-0809 ●
167 HANGER; TIRE
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5- 16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (B) 		8-98036-383-0 01 1 0804-0809 ●
167 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE WHEEL CARRIER<P10> (B) 		8-98036-383-0 01 1 0810- ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (B) 		8-98036-383-0 01 1 0810- ●
167 HANGER; TIRE
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) (B) 		8-98036-383-0 01 1 0810- ●
168 WASHER; SPARE TIRE
ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 0804- ● ● ●
