Isuzu WW
▶
TRUCKS
▶
NPR
▶
51172 - NPR/NQR(SOUTHAFRICA)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

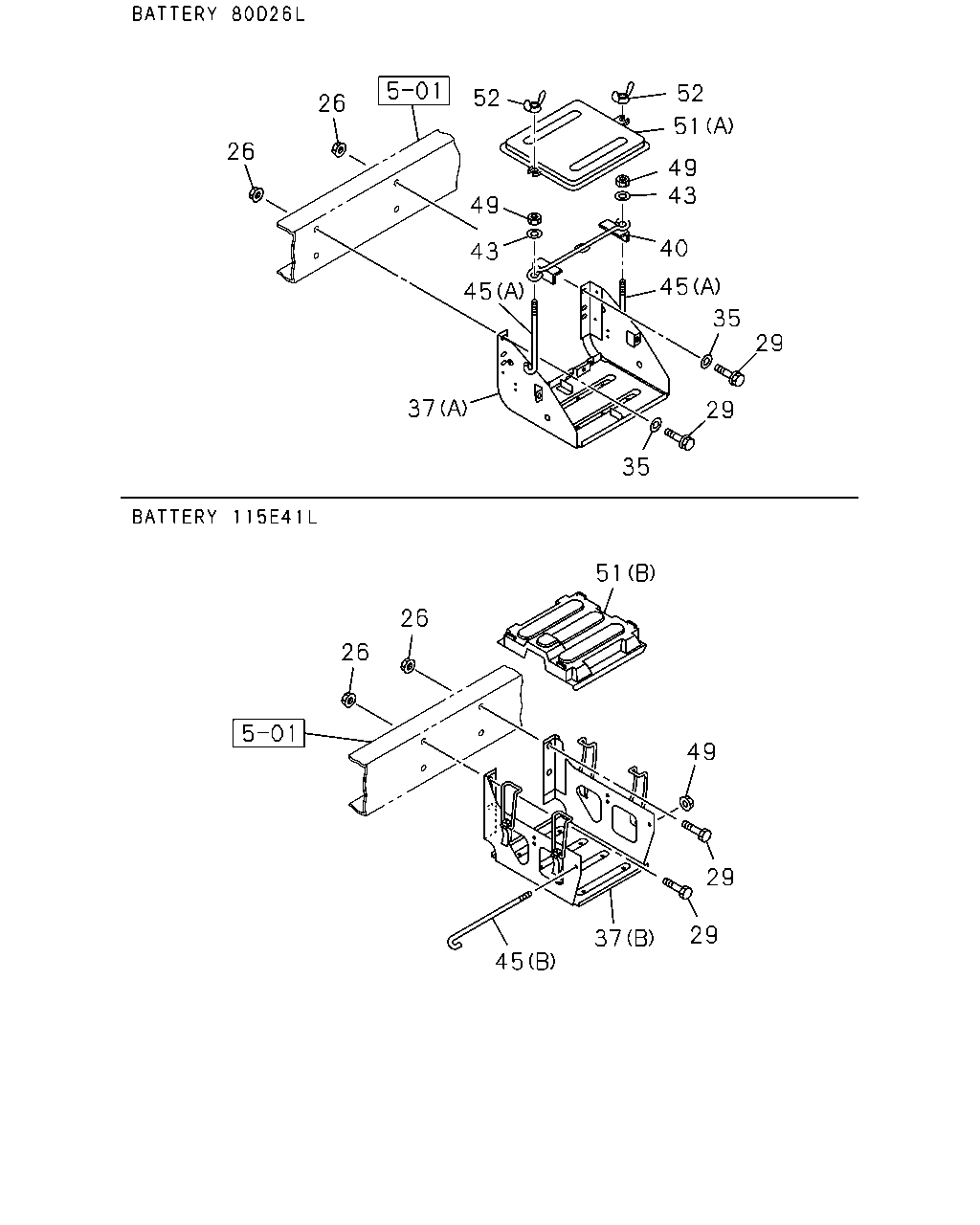

5-20 — BATTERY CARRIER
(#50891) — 13 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
52
52
26
51
26
49
43
49
40
43
45
45
35
29
37
29
35
51
26
26
49
29
29
37
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
0804-
●
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
0804-
●
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0804-
●
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
0804-
●
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0804-
●
●
●
40
CLAMP; BATTERY
BATTERY 80D26L<TM1>
5-53615-004-1
01
1
0804-
●
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1> ID=8.4 OD=22
0-91614-708-0
02
1
0804-
●
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B)
8-97134-740-0
02
1
0804-
●
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) SOU
9-53616-615-0
02
1
0804-
●
●
●
49
NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (B)
1-53612-029-1
01
1
0804-
●
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1> (A)
8-97120-747-0
01
1
0804-
●
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT
0-91118-408-0
02
1
0804-
●
●
●
