5-10 — CAB MOUNTING; FRAME SIDE (#50889) — 153 parça

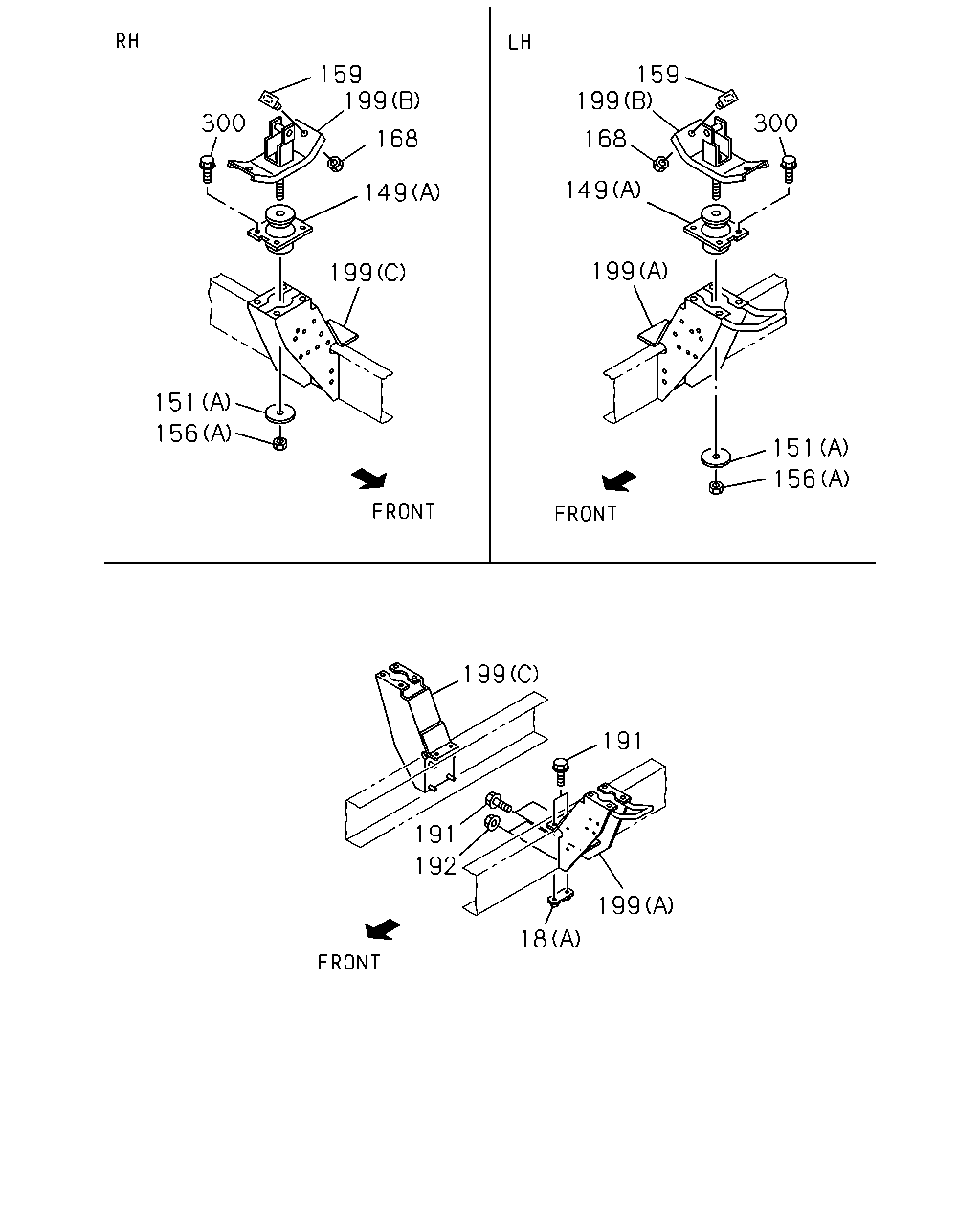

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0804-	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-98038-868-0	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR (D)	8-98038-868-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (B) H=35	8-97256-684-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (B) ID=15 OD=36	0-91614-714-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	0804-			●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0804-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	0804-	●	●
156	NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	0804-			●
156	NUT; CAB MTG RR (B) M14 SOU	0-91110-514-0	04	1	0804-			●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0804-	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE SOU	0-91180-108-0	04	1	0804-	●	●
191	BOLT; BRKT FIX M12X40 FLANGE SOU	0-28651-240-0	08	1	0804-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0804-	●	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98024-777-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98178-618-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98024-776-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98178-617-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (A)	8-98024-778-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG (A)	8-98024-778-1	01	1	0804-			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98024-773-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0804-1101			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0804-	●	●	●

156 151 156 151 300 300 149 149 199 199 191 191 192 199 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0804-	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-98038-868-0	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR (D)	8-98038-868-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (B) H=35	8-97256-684-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (B) ID=15 OD=36	0-91614-714-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	0804-			●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0804-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	0804-	●	●
156	NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	0804-			●
156	NUT; CAB MTG RR (B) M14 SOU	0-91110-514-0	04	1	0804-			●
191	BOLT; BRKT FIX M12X40 FLANGE SOU	0-28651-240-0	08	1	0804-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0804-	●	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98024-777-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98178-618-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98024-776-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98178-617-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (A)	8-98024-778-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG (A)	8-98024-778-1	01	1	0804-			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98024-773-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0804-1101			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0804-	●	●	●

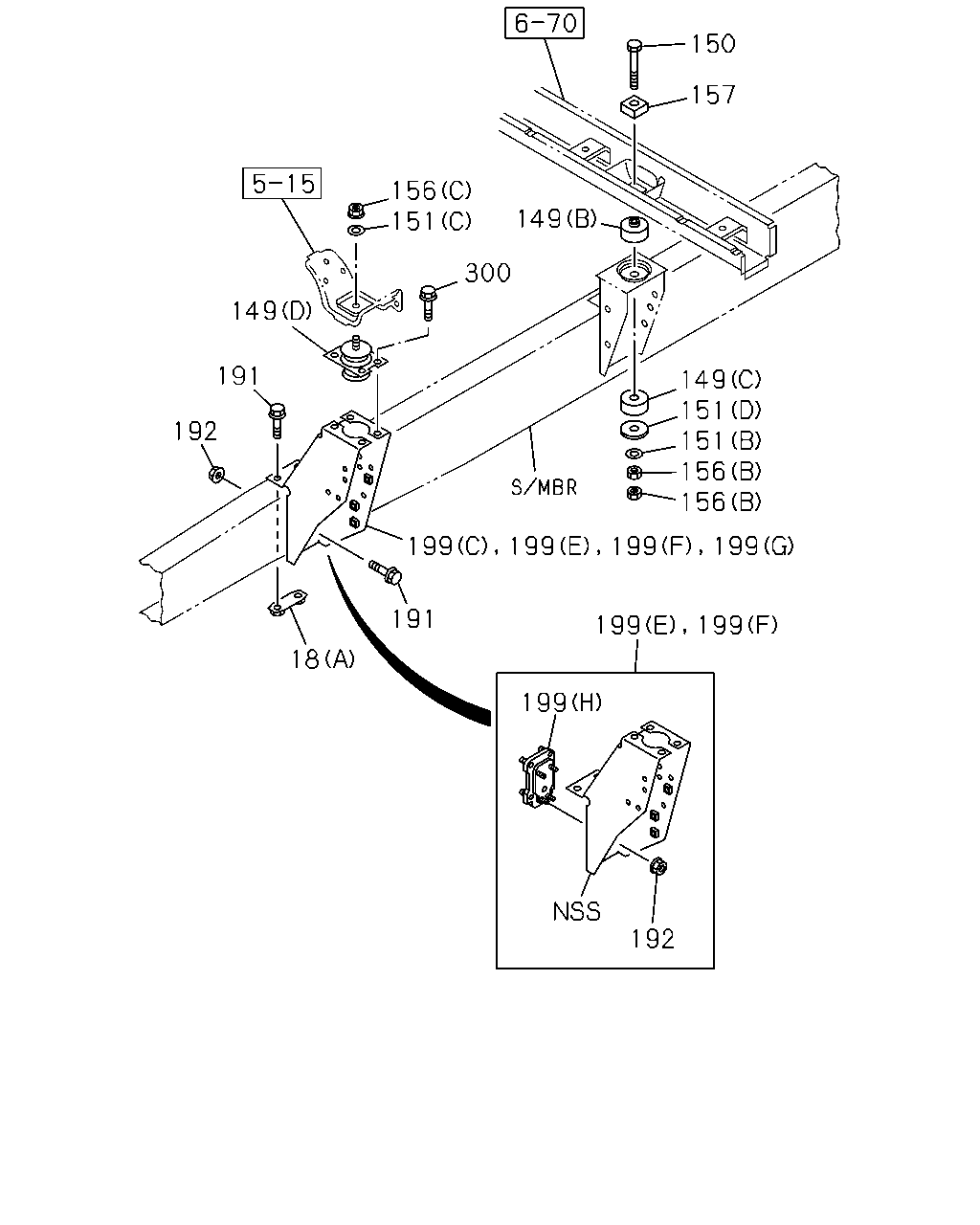

150 157 156 151 149 300 149 191 149 151 151 156 156 192 199 199 199 199 191 199 199 18 199 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0804-	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-98038-868-0	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR (D)	8-98038-868-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (B) H=35	8-97256-684-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	0804-			●
150	BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (B) ID=15 OD=36	0-91614-714-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	0804-			●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0804-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	0804-	●	●
156	NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	0804-			●
156	NUT; CAB MTG RR (B) M14 SOU	0-91110-514-0	04	1	0804-			●
157	RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	0804-			●
191	BOLT; BRKT FIX M12X40 FLANGE SOU	0-28651-240-0	08	1	0804-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0804-	●	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98024-777-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98178-618-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98024-776-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98178-617-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (A)	8-98024-778-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG (A)	8-98024-778-1	01	1	0804-			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98024-773-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0804-1101			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0804-	●	●	●

150 157 156 151 149 300 149 191 149 151 151 156 156 192 199 199 191 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0804-	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (D)	8-98038-868-0	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR (D)	8-98038-868-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (B) H=35	8-97256-684-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	0804-			●
150	BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (B) ID=15 OD=36	0-91614-714-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	0804-			●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0804-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (C) M14 FLANGE	0-91180-114-0	02	1	0804-	●	●
156	NUT; CAB MTG RR (C) M14 FLANGE	0-91180-114-0	02	1	0804-			●
156	NUT; CAB MTG RR (B) M14 SOU	0-91110-514-0	04	1	0804-			●
157	RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	0804-			●
191	BOLT; BRKT FIX M12X40 FLANGE SOU	0-28651-240-0	08	1	0804-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0804-	●	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98024-777-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (A)	8-98178-618-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98024-776-3	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) MANUAL TILT CAB<RWZ> (C)	8-98178-617-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (A)	8-98024-778-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG (A)	8-98024-778-1	01	1	0804-			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98024-773-1	01	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98024-772-1	01	1	0804-1101	●	●
199	BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0804-1101			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1102-	●	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0804-	●	●	●

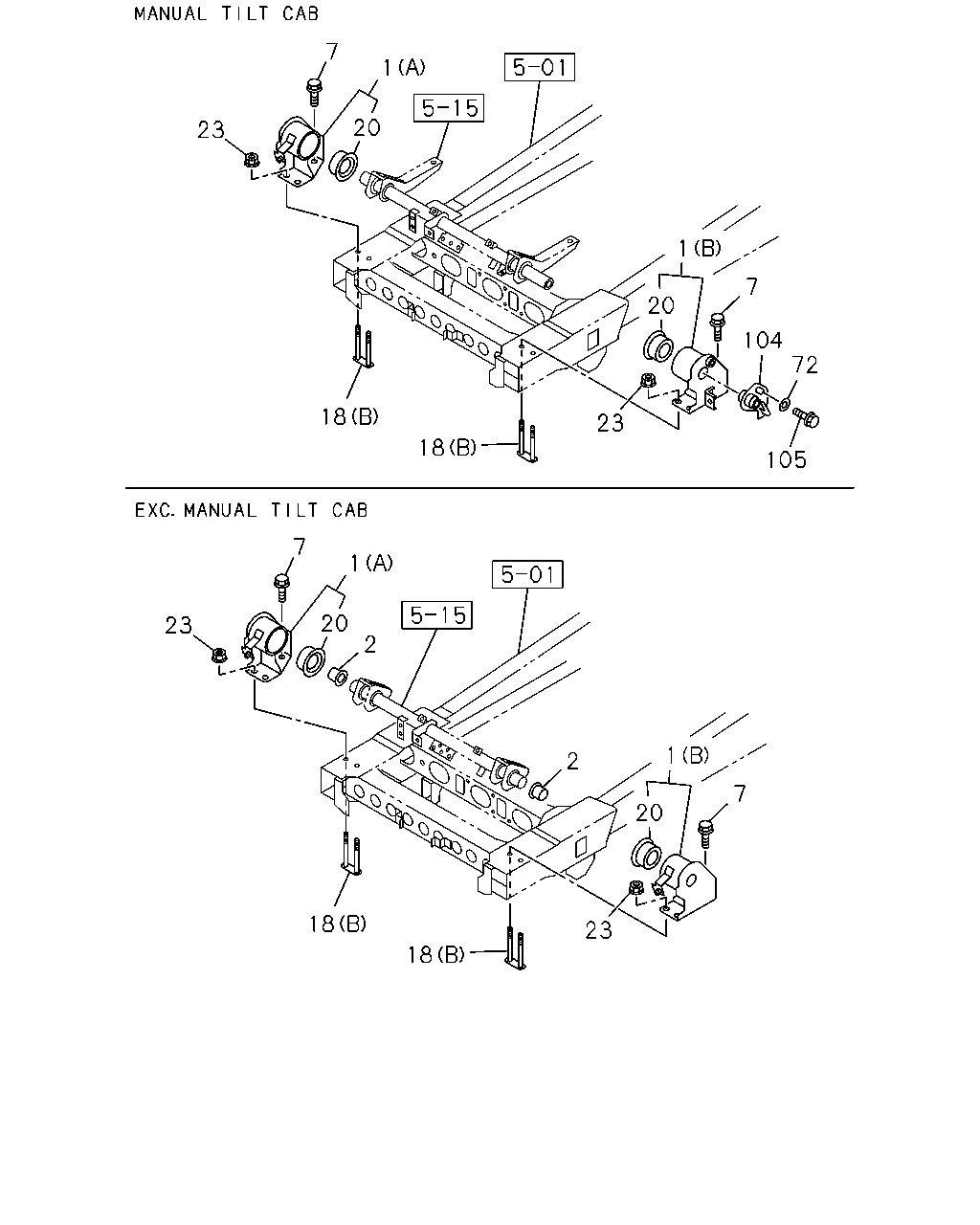

7 1 20 23 1 7 20 104 72 18 23 18 105 7 1 20 23 2 1 2 7 20 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (B)	8-98020-467-3	01	1	0804-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98074-800-0	01	1	0804-	●	●
1	BRACKET; CAB MTG (B)	8-98074-800-0	01	1	0804-			●
1	BRACKET; CAB MTG (A)	8-98074-798-0	01	1	0804-	●	●	●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0804-	●	●
2	BUSHING; TORSION BAR	8-97061-514-0	02	1	0804-			●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0804-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0804-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0804-			●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	0804-	●	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0804-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	0804-	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0804-	●	●
