Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#50888) — 245 parça

376 376 376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 118 222 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
67	NUT; C/MBR WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M10 FLANGE SOU	0-91180-210-0	17	1	0804-	●
67	NUT; C/MBR WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D) M10 FLANGE SOU	0-91180-210-0	18	1	0804-	●
67	NUT; C/MBR WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-210-0	18	1	0804-	●
67	NUT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M10 FLANGE SOU	0-91180-210-0	18	1	0804-	●
67	NUT; C/MBR M10 FLANGE SOU	0-91180-210-0	18	1	0804-		●	●
118	NUT; STOPPER M8 LOCK NUT SOU	0-91370-008-0	02	1	0804-	●	●	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE	0-28051-030-0	04	1	0804-	●	●	●
176	BOLT; C/MBR,ENG MTG (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	0804-	●	●	●
221	BOLT; RAD MTG BRKT,FRAME M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-0901	●	●	●
221	BOLT; RAD MTG BRKT,FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) M8X25 FLANGE SOU	0-28650-825-0	02	1	0902-1004	●	●
221	BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU	0-28650-825-0	02	1	0902-1004		●
221	BOLT; RAD MTG BRKT,FRAME WHEEL BASE 2700MM(27W) M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
221	BOLT; RAD MTG BRKT,FRAME WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
221	BOLT; RAD MTG BRKT,FRAME WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
221	BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-		●
222	NUT; RAD MTG BRKT,FRAME M8 FLANGE SOU	0-91180-208-0	02	1	0804-0901	●	●	●
222	NUT; RAD MTG BRKT,FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) M8 FLANGE SOU	0-91180-208-0	02	1	0902-1004	●	●
222	NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU	0-91180-208-0	02	1	0902-1004		●
222	NUT; RAD MTG BRKT,FRAME WHEEL BASE 2700MM(27W) M8 FLANGE SOU	0-91180-208-0	02	1	1005-	●	●
222	NUT; RAD MTG BRKT,FRAME WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	0-91180-208-0	02	1	1005-	●	●
222	NUT; RAD MTG BRKT,FRAME WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-208-0	02	1	1005-	●	●
222	NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU	0-91180-208-0	02	1	1005-		●
296	BOLT; 3RD C/MBR WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M10X30 FLANGE SOU	0-28651-030-0	15	1	0804-	●
296	BOLT; 3RD C/MBR WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D) M10X30 FLANGE SOU	0-28651-030-0	16	1	0804-	●
296	BOLT; 3RD C/MBR WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE SOU	0-28651-030-0	16	1	0804-	●
296	BOLT; 3RD C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) M10X30 FLANGE SOU	0-28651-030-0	16	1	0804-	●
296	BOLT; 3RD C/MBR M10X30 FLANGE SOU	0-28651-030-0	16	1	0804-		●	●
376	RIVET; FRAME (A) D8X24 TAPER END	9-06750-824-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (B) D10X22 TAPER END	9-06751-022-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (F) D10X32 TAPER END	9-06751-032-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (G) D10X36 TAPER END	9-06751-036-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (H) D11X26 TAPER END	9-06751-126-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (I) D11X30 TAPER END	9-06751-130-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (J) D12X30 TAPER END	9-06751-230-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (K) D12X32 TAPER END	9-06751-232-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (L) D12X36 TAPER END	9-06751-236-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (M) D12X40 TAPER END	9-06751-240-0	AR	1	0804-	●	●	●

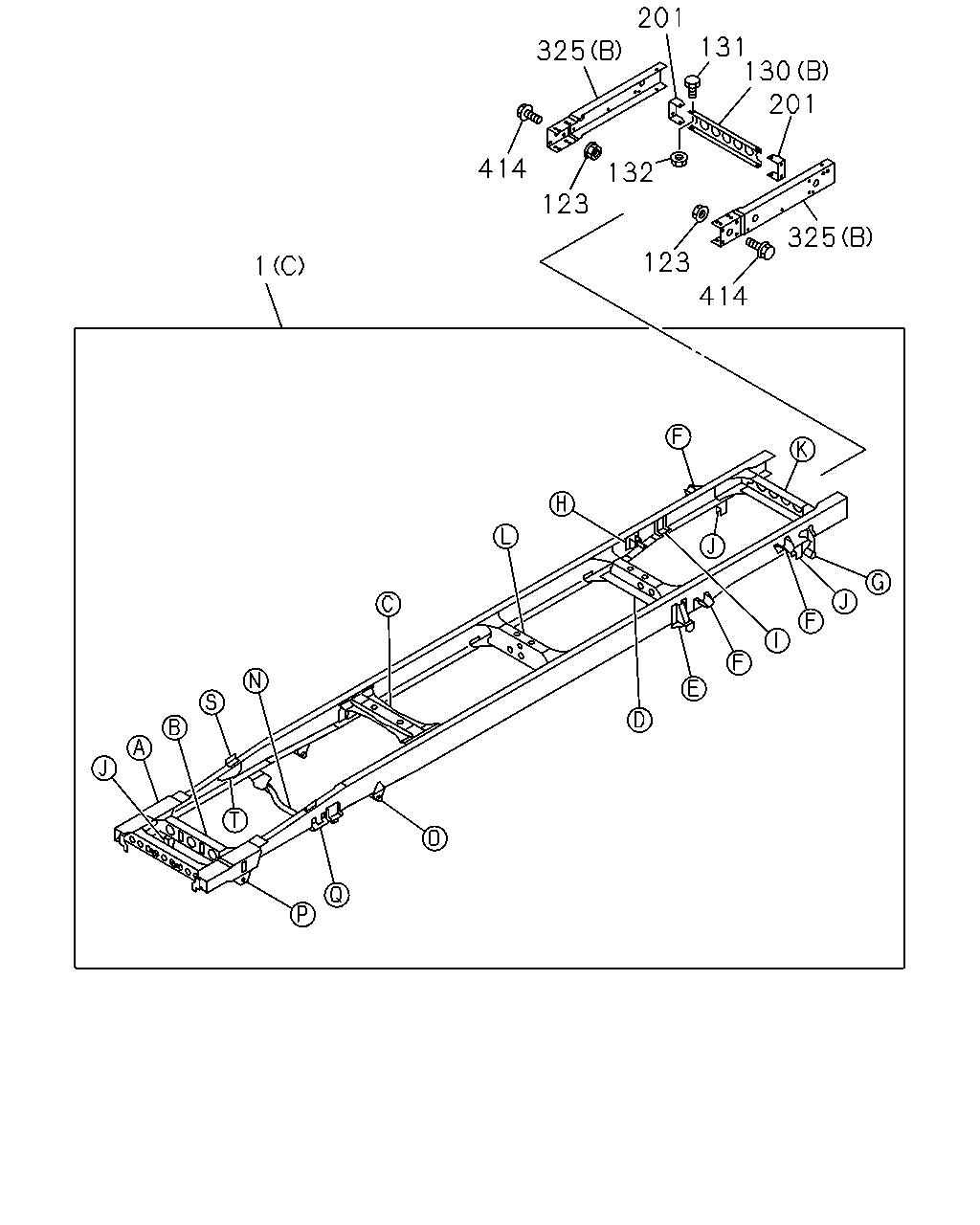

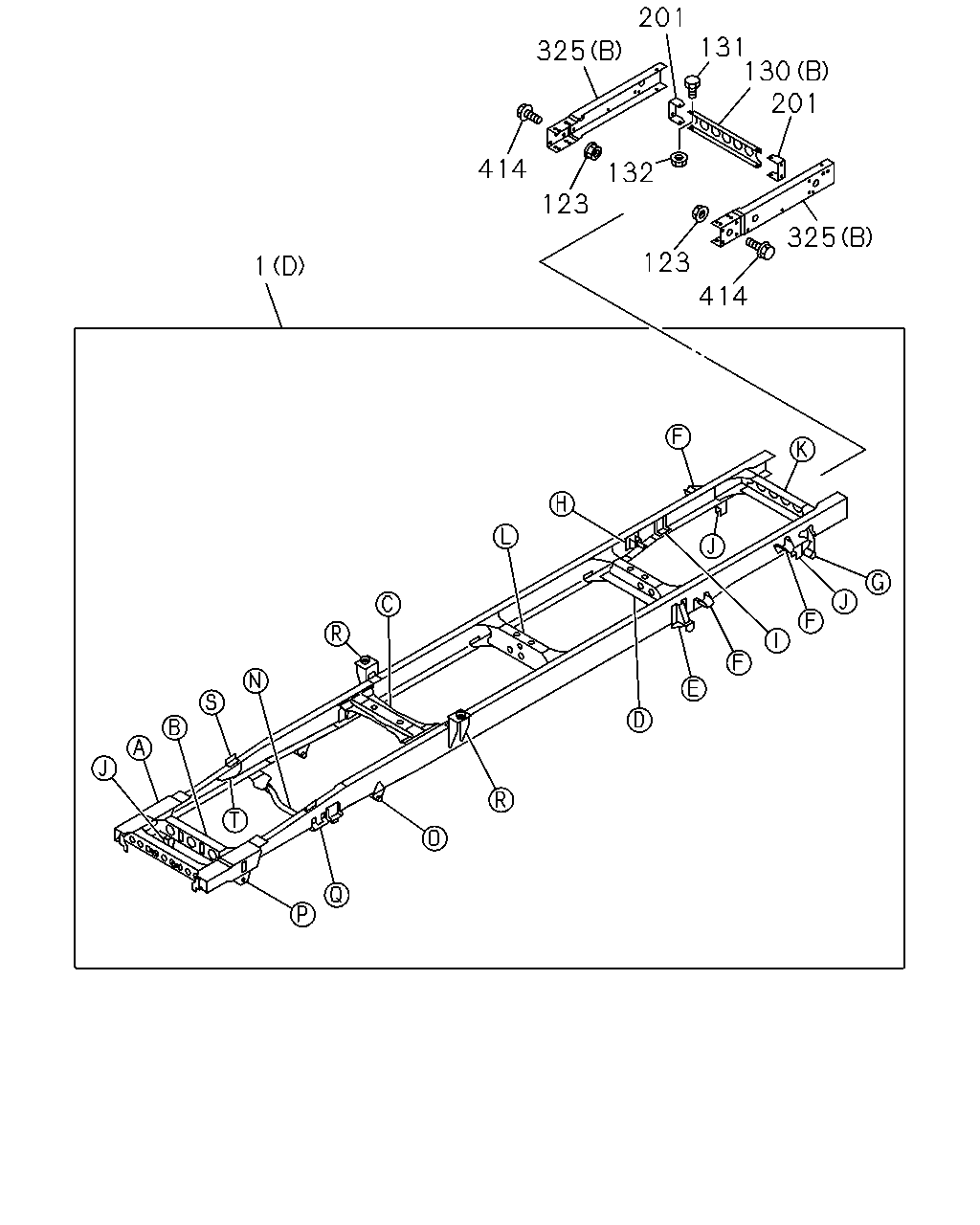

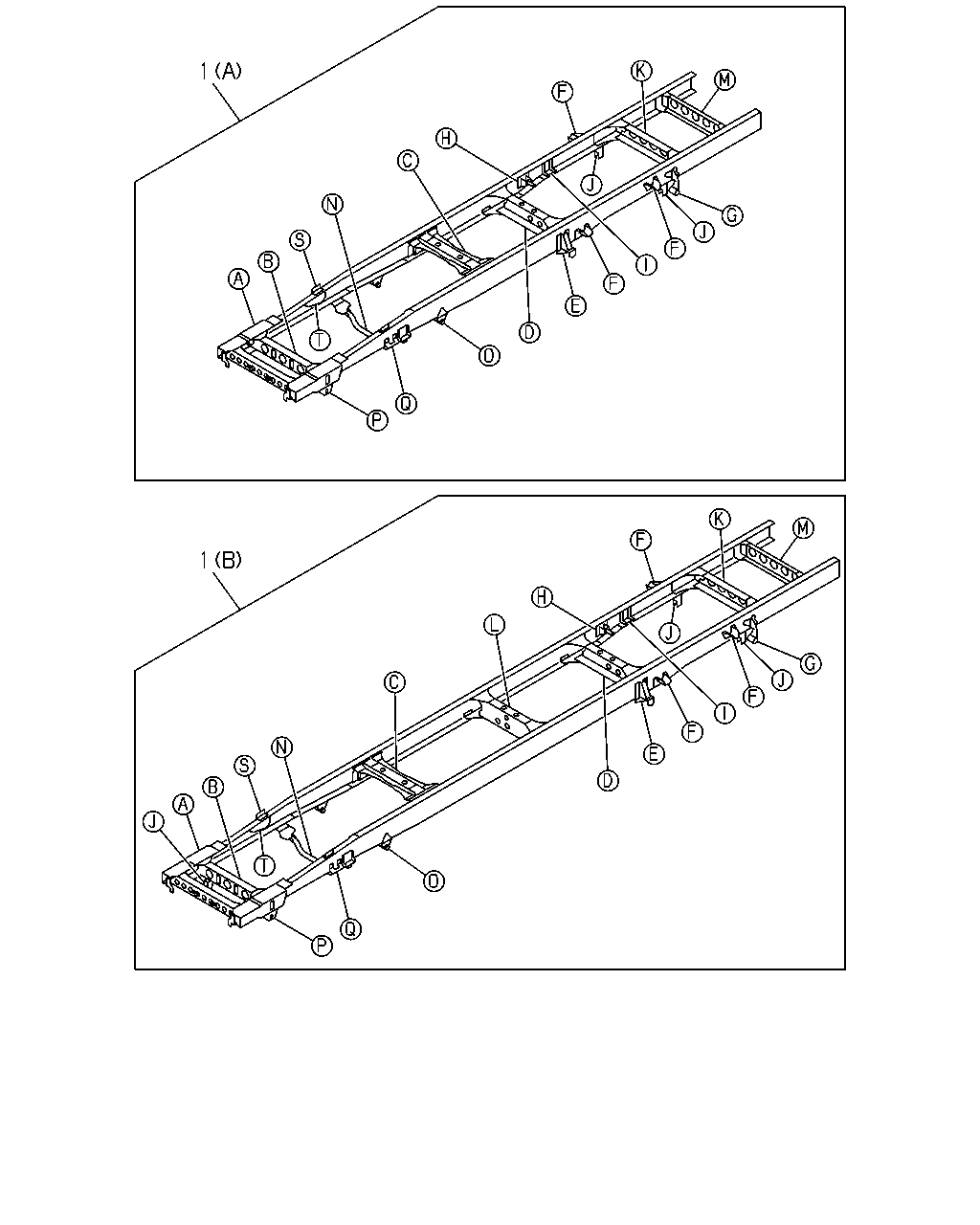

1 414 325 201 131 130 132 123 123 414 325 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1> (B)	8-98157-949-1	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1> (B) SOU	8-98157-948-1	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98110-998-0	01	1	0804-		●
1	FRAME ASM WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-610-2	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-611-2	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98088-800-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,DUMP CHASSIS(V4D) (A)	8-98071-608-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-609-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-617-3	01	1	0804-1004	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-617-3	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98071-617-3	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-618-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-615-4	01	1	0804-1004	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-615-4	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B) SOU	8-98071-615-4	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-616-4	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-636-6	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-637-6	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-634-5	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-635-5	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98101-574-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98101-575-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98071-655-6	01	1	0804-	●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (C) SOU	8-98071-655-6	01	1	0804-		●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98101-573-3	01	1	0804-	●	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-653-6	01	1	0804-			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-654-6	01	1	0804-			●
1	FRAME ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-651-5	01	1	0804-			●
1	FRAME ASM TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98071-652-5	01	1	0804-			●
123	NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12	8-97360-126-0	16	1	0804-	●	●
130	MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (A) SOU	8-97080-872-0	01	1	0804-	●	●
130	MEMBER; CROSS,END (A) SOU	8-97080-872-0	01	1	0804-			●
130	MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	0804-	●	●
131	BOLT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 FLANGE	0-28661-025-0	08	1	0804-	●	●
132	NUT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	08	1	0804-	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0804-	●	●	●
325	EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	0804-	●
325	EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	0804-	●
325	EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0804-	●	●
325	EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0804-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-348-1	01	1	0804-	●	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-349-0	01	1	0804-	●	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0804-	●	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0804-	●	●	●
414	BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X30 FLANGE	0-28661-230-0	12	1	0804-	●	●
414	BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X40 FLANGE	0-28661-240-0	04	1	0804-	●	●

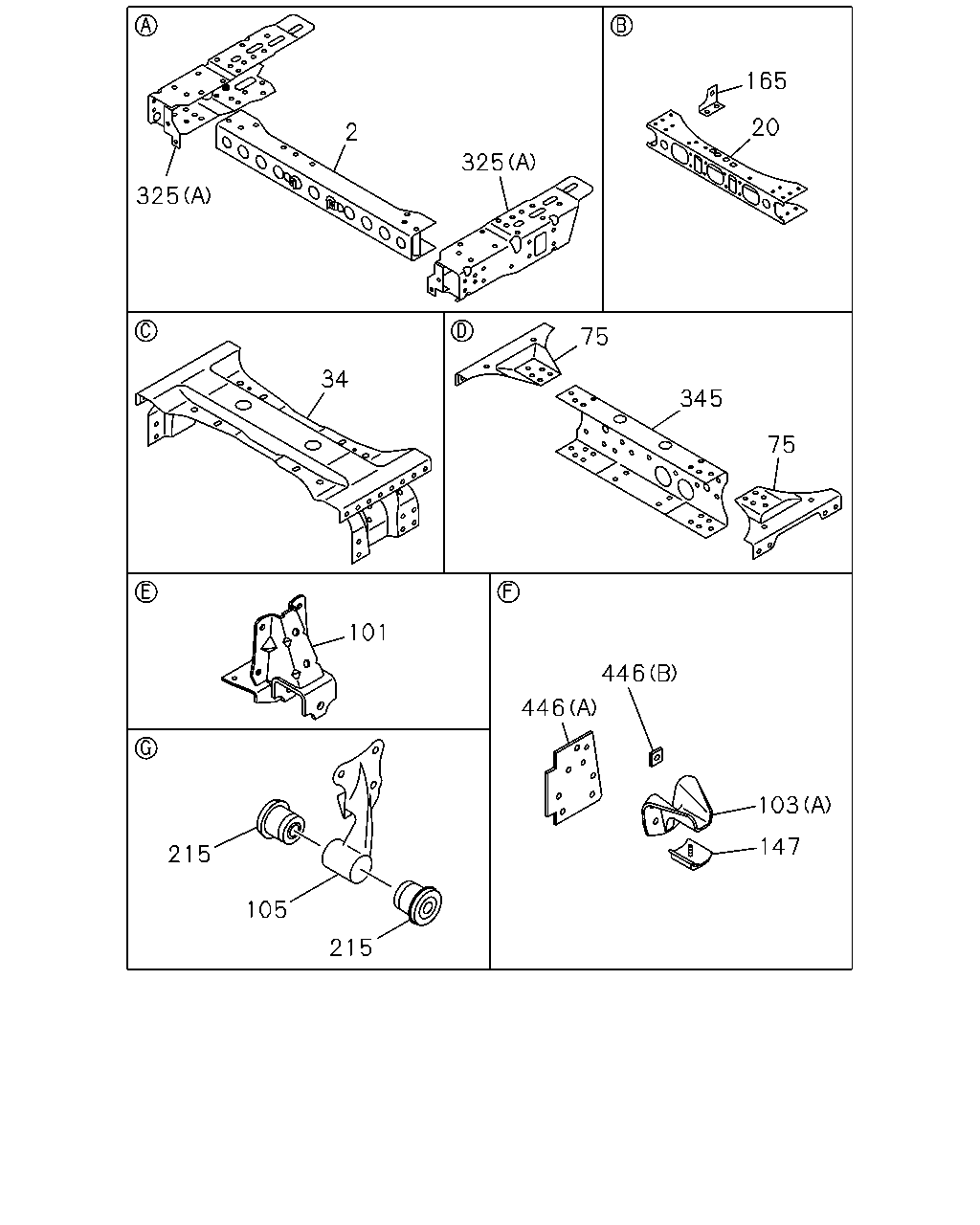

165 20 2 325 325 75 34 345 75 101 446 446 103 147 215 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97387-866-5	01	1	0804-	●	●	●
20	MEMBER; CROSS,2ND	8-98014-074-7	01	1	0804-	●	●	●
34	MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98074-639-4	01	1	0804-	●	●	●
34	MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-98074-640-2	01	1	0804-	●	●	●
75	GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-583-0	02	1	0804-	●	●	●
75	GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-584-0	02	1	0804-	●	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0804-	●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0804-	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0804-	●	●	●
105	BRACKET; RR SPR,RR SOU	8-98032-488-0	01	1	0804-	●	●	●
105	BRACKET; RR SPR,RR SOU	8-98032-489-0	01	1	0804-	●	●	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	0804-	●	●	●
165	BRACKET; RAD STAY SOU	8-98000-886-0	01	1	0804-	●	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0804-	●	●	●
325	EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	0804-	●
325	EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	0804-	●
325	EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0804-	●	●
325	EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0804-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-348-1	01	1	0804-	●	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-349-0	01	1	0804-	●	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0804-	●	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0804-	●	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	0804-	●	●	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98014-080-1	02	1	0804-	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-97122-173-0	02	1	0804-	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) (B)	8-97122-173-0	02	1	0804-	●
446	STIFFENER; SPRING STOPPER (B)	8-97122-173-0	02	1	0804-		●	●

51 51 42 31 39 31 103 24 43 140 141 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	0804-	●	●	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	0804-	●	●	●
39	BRACKET; FRT SPR,RR	8-98014-125-0	02	1	0804-	●	●	●
42	MEMBER; CROSS,ENG MTG	8-98032-389-0	01	1	0804-	●	●	●
43	BRACKET; CAB MTG,RR	8-98061-561-1	01	1	0804-			●
43	BRACKET; CAB MTG,RR	8-98061-560-1	01	1	0804-			●
51	BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	02	1	0804-	●	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0804-	●	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	0804-	●	●	●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0804-	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	0804-	●	●	●
141	STIFFENER	8-98064-354-2	01	1	0804-	●	●	●
141	STIFFENER	8-98064-355-2	01	1	0804-	●	●	●

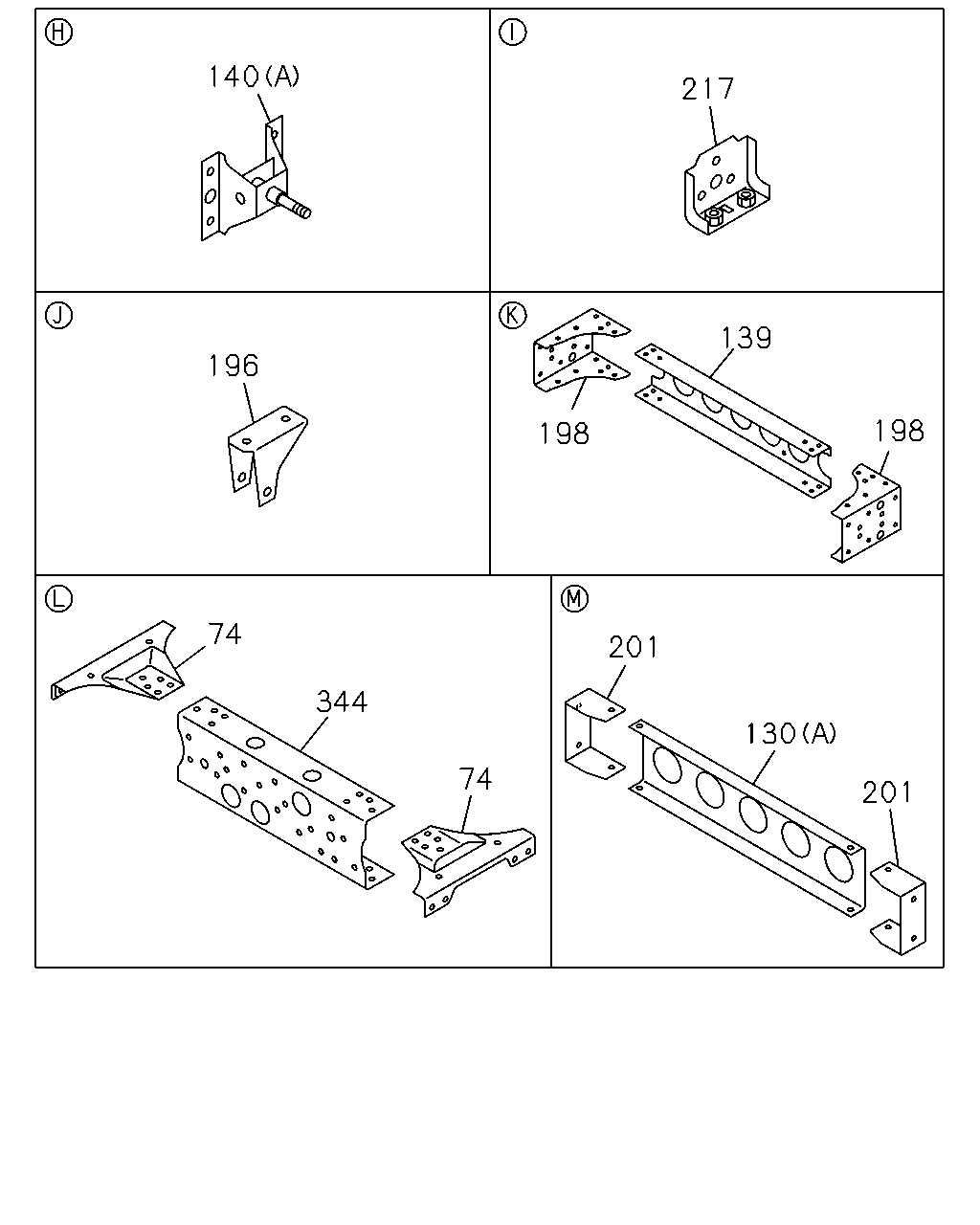

140 217 139 196 198 198 74 201 344 130 74 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
74	GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) RH-LOWER,LH-UPPER SOU	8-98000-583-0	02	1	0804-	●	●
74	GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-583-0	02	1	0804-			●
74	GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) RH-UPPER,LH-LOWER SOU	8-98000-584-0	02	1	0804-	●	●
74	GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-584-0	02	1	0804-			●
130	MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (A) SOU	8-97080-872-0	01	1	0804-	●	●
130	MEMBER; CROSS,END (A) SOU	8-97080-872-0	01	1	0804-			●
130	MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	0804-	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) SOU	8-97326-394-0	01	1	0902-1004	●
139	MEMBER; CROSS,6TH WHEEL BASE 3800MM(38W) SOU	8-97326-394-0	01	1	0902-1004		●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-97326-394-0	01	1	0902-1004		●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) SOU	8-97326-394-0	01	1	0902-1004		●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97326-394-0	01	1	0902-1004		●
139	MEMBER; CROSS,6TH SOU	8-97326-394-0	01	1	0902-1004			●
139	MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> SOU	8-97326-394-0	01	1	1005-	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) SOU	8-97326-394-0	01	1	1005-	●
139	MEMBER; CROSS,6TH WHEEL BASE 3800MM(38W) SOU	8-97326-394-0	01	1	1005-		●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-97326-394-0	01	1	1005-		●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) SOU	8-97326-394-0	01	1	1005-		●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97326-394-0	01	1	1005-		●
139	MEMBER; CROSS,6TH SOU	8-97326-394-0	01	1	1005-			●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	0804-0901	●	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SOU	8-97107-384-0	01	1	0902-1004	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-97107-384-0	01	1	0902-1004		●
139	MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W) SOU	8-97107-384-0	01	1	1005-	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-97107-384-0	01	1	1005-	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97107-384-0	01	1	1005-	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-97107-384-0	01	1	1005-		●
140	BRACKET; S/ABS,RR (B) SOU	8-97302-511-0	02	1	0804-	●	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	0804-	●	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	02	1	0804-0901	●
196	BRACKET; STAB TO FRAME WHEEL BASE 3800MM(38W)	8-98033-523-0	02	1	0902-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98033-523-0	02	1	0902-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98033-523-0	02	1	0902-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98033-523-0	02	1	0902-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	02	1	0902-	●
196	BRACKET; STAB TO FRAME	8-98033-523-0	02	1	0902-			●
196	BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	04	1	0804-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W)	8-98033-523-0	04	1	0804-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	04	1	0804-	●	●
198	GUSSET; 6TH C/MBR SOU	8-98014-079-1	02	1	0804-	●	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0804-	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	0804-	●	●	●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4100MM(41W) SOU	8-97175-993-3	01	1	0804-	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	0804-			●

1 414 123 123 414 325 201 130 131 201 325 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1> (B)	8-98157-949-1	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1> (B) SOU	8-98157-948-1	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98110-998-0	01	1	0804-		●
1	FRAME ASM WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-610-2	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-611-2	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98088-800-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,DUMP CHASSIS(V4D) (A)	8-98071-608-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-609-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-617-3	01	1	0804-1004	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-617-3	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98071-617-3	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-618-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-615-4	01	1	0804-1004	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-615-4	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B) SOU	8-98071-615-4	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-616-4	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-636-6	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-637-6	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-634-5	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-635-5	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98101-574-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98101-575-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98071-655-6	01	1	0804-	●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (C) SOU	8-98071-655-6	01	1	0804-		●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98101-573-3	01	1	0804-	●	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-653-6	01	1	0804-			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-654-6	01	1	0804-			●
1	FRAME ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-651-5	01	1	0804-			●
1	FRAME ASM TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98071-652-5	01	1	0804-			●
123	NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12	8-97360-126-0	16	1	0804-	●	●
130	MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W), WHEEL BASE 3800MM(38W) (A) SOU	8-97080-872-0	01	1	0804-	●	●
130	MEMBER; CROSS,END (A) SOU	8-97080-872-0	01	1	0804-			●
130	MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	0804-	●	●
131	BOLT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 FLANGE	0-28661-025-0	08	1	0804-	●	●
132	NUT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU	0-91180-110-0	08	1	0804-	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	0804-	●	●	●
325	EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	0804-	●
325	EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	0804-	●
325	EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0804-	●	●
325	EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0804-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-348-1	01	1	0804-	●	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-349-0	01	1	0804-	●	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0804-	●	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0804-	●	●	●
414	BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X30 FLANGE	0-28661-230-0	12	1	0804-	●	●
414	BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X40 FLANGE	0-28661-240-0	04	1	0804-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1> (B)	8-98157-949-1	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1> (B) SOU	8-98157-948-1	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98110-998-0	01	1	0804-		●
1	FRAME ASM WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-610-2	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-611-2	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98088-800-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,DUMP CHASSIS(V4D) (A)	8-98071-608-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-609-4	01	1	0804-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-617-3	01	1	0804-1004	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-617-3	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98071-617-3	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-618-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-615-4	01	1	0804-1004	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-615-4	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B) SOU	8-98071-615-4	01	1	1005-	●	●
1	FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-616-4	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-636-6	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-637-6	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-634-5	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98071-635-5	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98101-574-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98101-575-3	01	1	0804-	●	●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98071-655-6	01	1	0804-	●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (C) SOU	8-98071-655-6	01	1	0804-		●
1	FRAME ASM WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98101-573-3	01	1	0804-	●	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-653-6	01	1	0804-			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-654-6	01	1	0804-			●
1	FRAME ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-651-5	01	1	0804-			●
1	FRAME ASM TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98071-652-5	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
