4-80 — ROAD WHEEL (#50887) — 40 parça

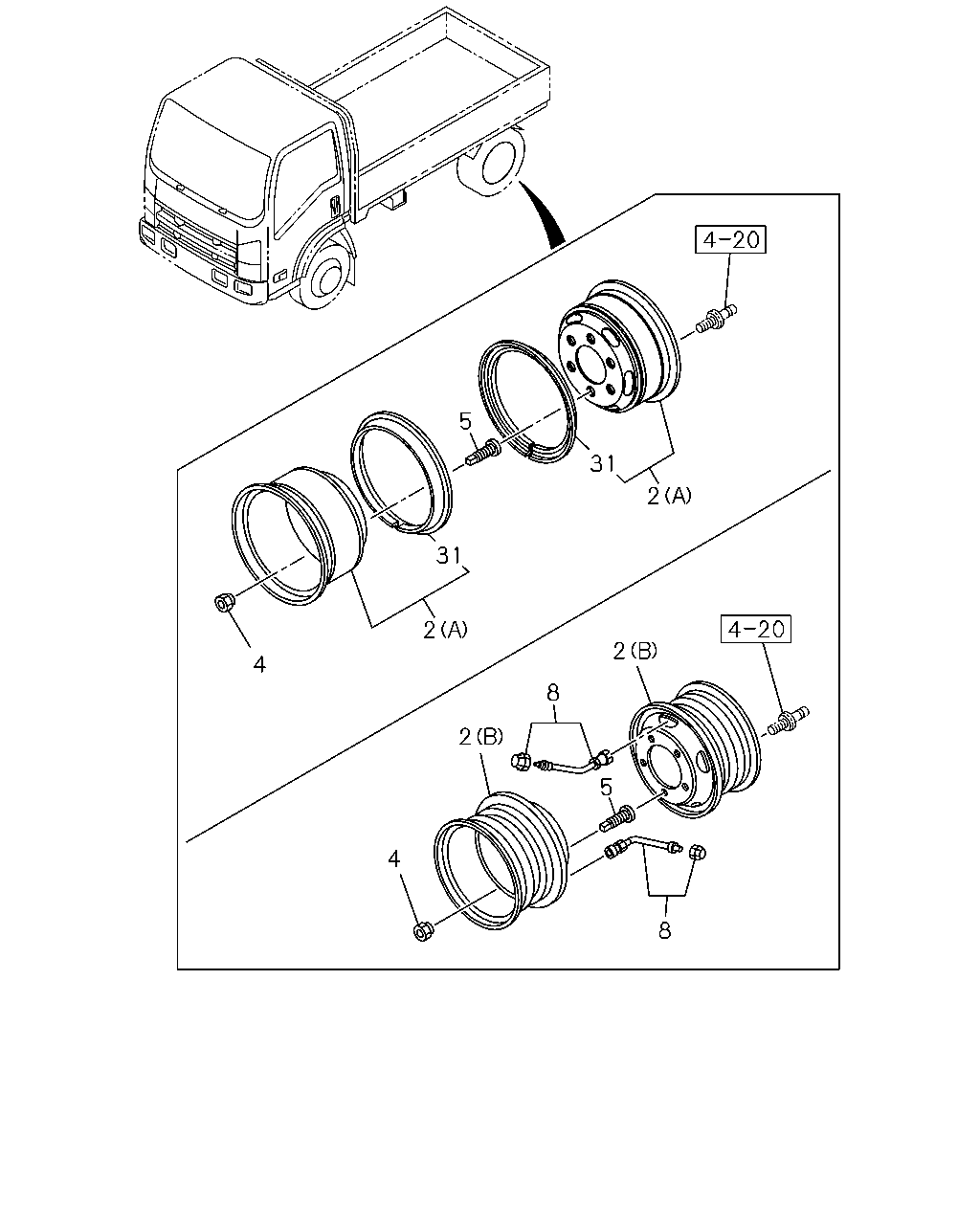

2 31 5 31 2 4 4 2 8 5 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	01	1	0804-	●
2	WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	06	1	0804-	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0804-0809	●	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0810-	●	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0804-0809	●	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0810-	●	●	●
2	WHEEL; DISC FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE	8-97179-773-4	01	1	0804-		●
2	WHEEL; DISC FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE	8-97179-773-4	04	1	0804-		●
2	WHEEL; DISC FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98080-745-1	02	1	0804-		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD SOU	8-97359-810-0	06	1	0804-	●	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD SOU	8-97359-809-0	06	1	0804-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	0804-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	0804-	●	●	●
8	VALVE; TIRE FRT&RR 225/70R19.5 19.5X6.00-127(CRR) SPARE SOU	1-42370-010-1	01	1	0804-		●
8	VALVE; TIRE FRT&RR 225/70R19.5 19.5X6.00-127(CRR) FRONT,REAR SOU	1-42370-010-1	06	1	0804-		●
8	VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE SOU	8-98221-106-0	01	1	0804-	●
8	VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR SOU	8-98221-106-0	06	1	0804-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0804-0809	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0810-	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0804-0809	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0810-	●	●	●

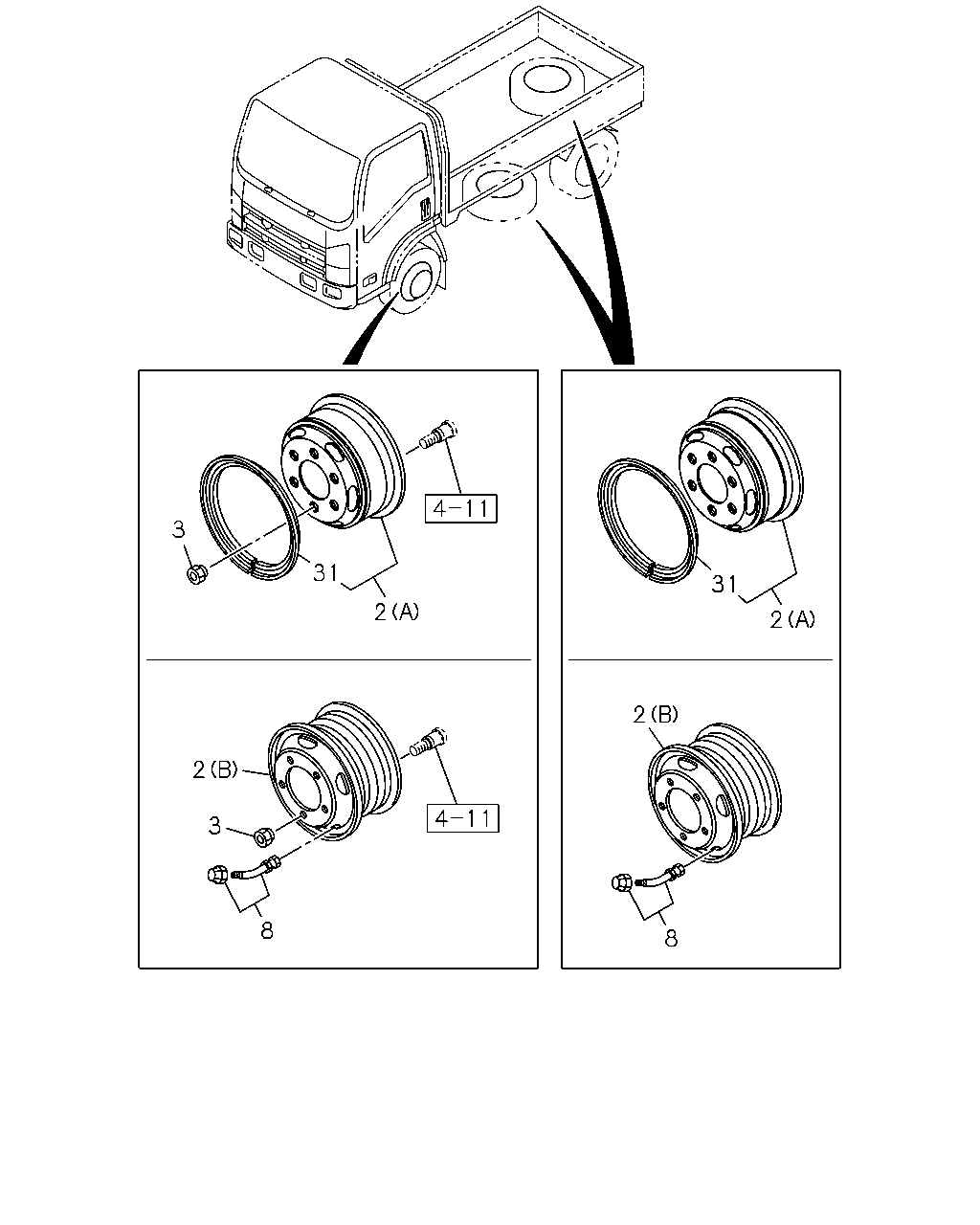

3 31 2 31 2 2 8 2 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	01	1	0804-	●
2	WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	06	1	0804-	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0804-0809	●	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	0810-	●	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0804-0809	●	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	0810-	●	●	●
2	WHEEL; DISC FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE	8-97179-773-4	01	1	0804-		●
2	WHEEL; DISC FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE	8-97179-773-4	04	1	0804-		●
2	WHEEL; DISC FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98080-745-1	02	1	0804-		●
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0804-	●	●	●
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0804-	●	●	●
8	VALVE; TIRE FRT&RR 225/70R19.5 19.5X6.00-127(CRR) SPARE SOU	1-42370-010-1	01	1	0804-		●
8	VALVE; TIRE FRT&RR 225/70R19.5 19.5X6.00-127(CRR) FRONT,REAR SOU	1-42370-010-1	06	1	0804-		●
8	VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE SOU	8-98221-106-0	01	1	0804-	●
8	VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR SOU	8-98221-106-0	06	1	0804-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0804-0809	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	0810-	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1276-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0804-0809	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	0810-	●	●	●
