◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51172 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#50881) — 47 parça

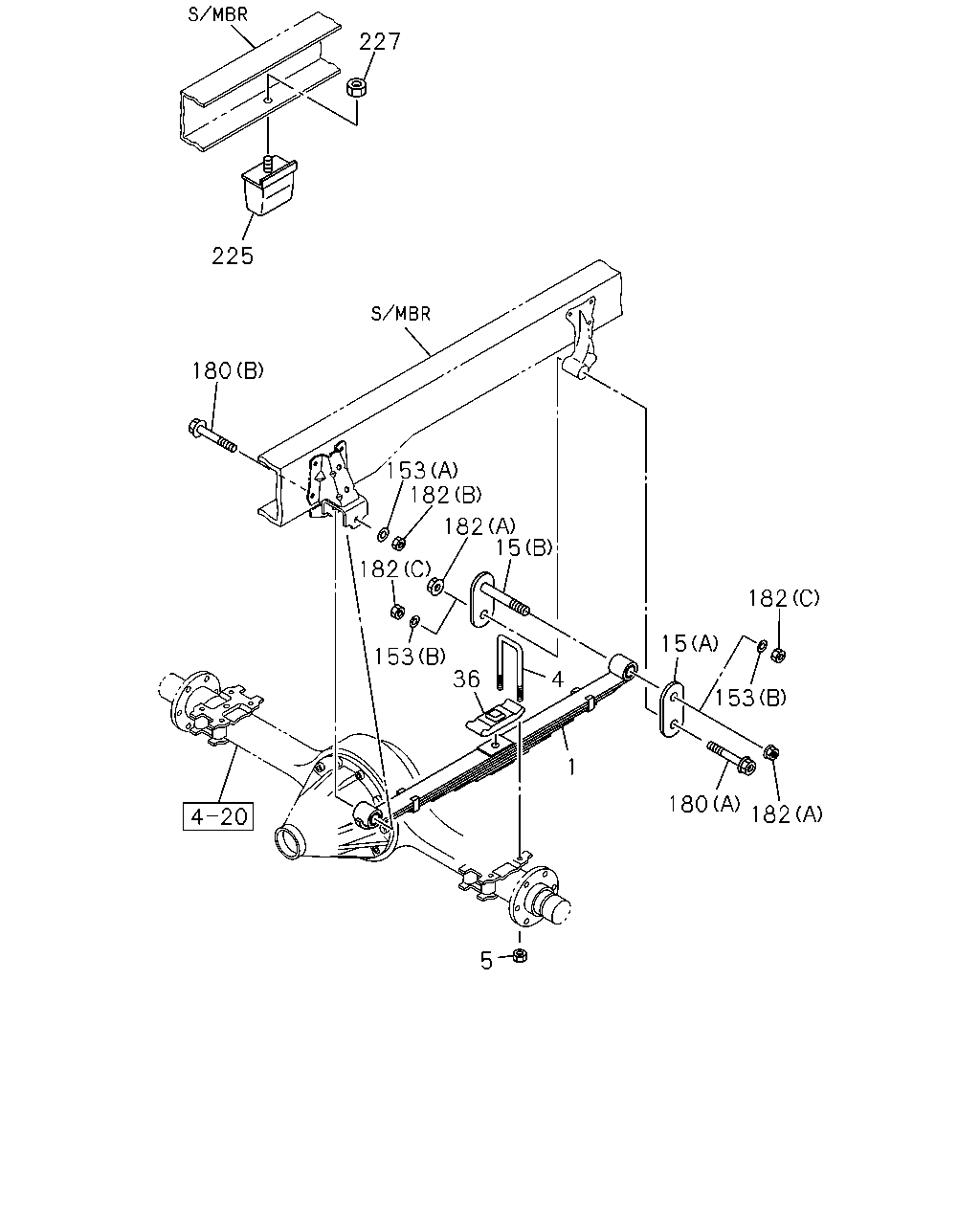

çizim 157446
227 225 180 153 182 182 15 182 182 15 153 36 4 15 1 180 182 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 12-LEAF 		8-98025-051-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98079-902-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) 13-LEAF 		8-98079-903-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98025-058-0 02 1 0804-1105 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1106- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98025-060-0 02 1 0804-1105 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS VAR.2(6GQ) 9-LEAF 		8-98190-548-0 02 1 1106- ●
4 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=315 		1-51371-194-2 04 1 0804- ●
4 U-BOLT; RR SPR
MINI BUS CHASSIS VAR.2(6GQ) L=315 		1-51371-194-2 04 1 0804- ●
4 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) L=345 		1-51371-195-2 04 1 0804- ●
4 U-BOLT; RR SPR
EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 0804- ●
4 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 0804- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0804- ● ● ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0804- ● ● ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0804- ● ● ●
36 SEAT; HELPER RUBBER,RR SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) 		1-51372-059-0 02 1 0804- ●
36 SEAT; HELPER RUBBER,RR SPR 1-51372-059-0 02 1 0804- ● ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 0804- ● ● ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 0804- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 0804- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0804- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 0804- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ● ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0804- ● ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 SOU 		0-91110-516-0 04 1 0804- ● ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 0804- ● ● ●
225 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0804-1103 ● ● ●
225 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104- ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 0804- ● ● ●

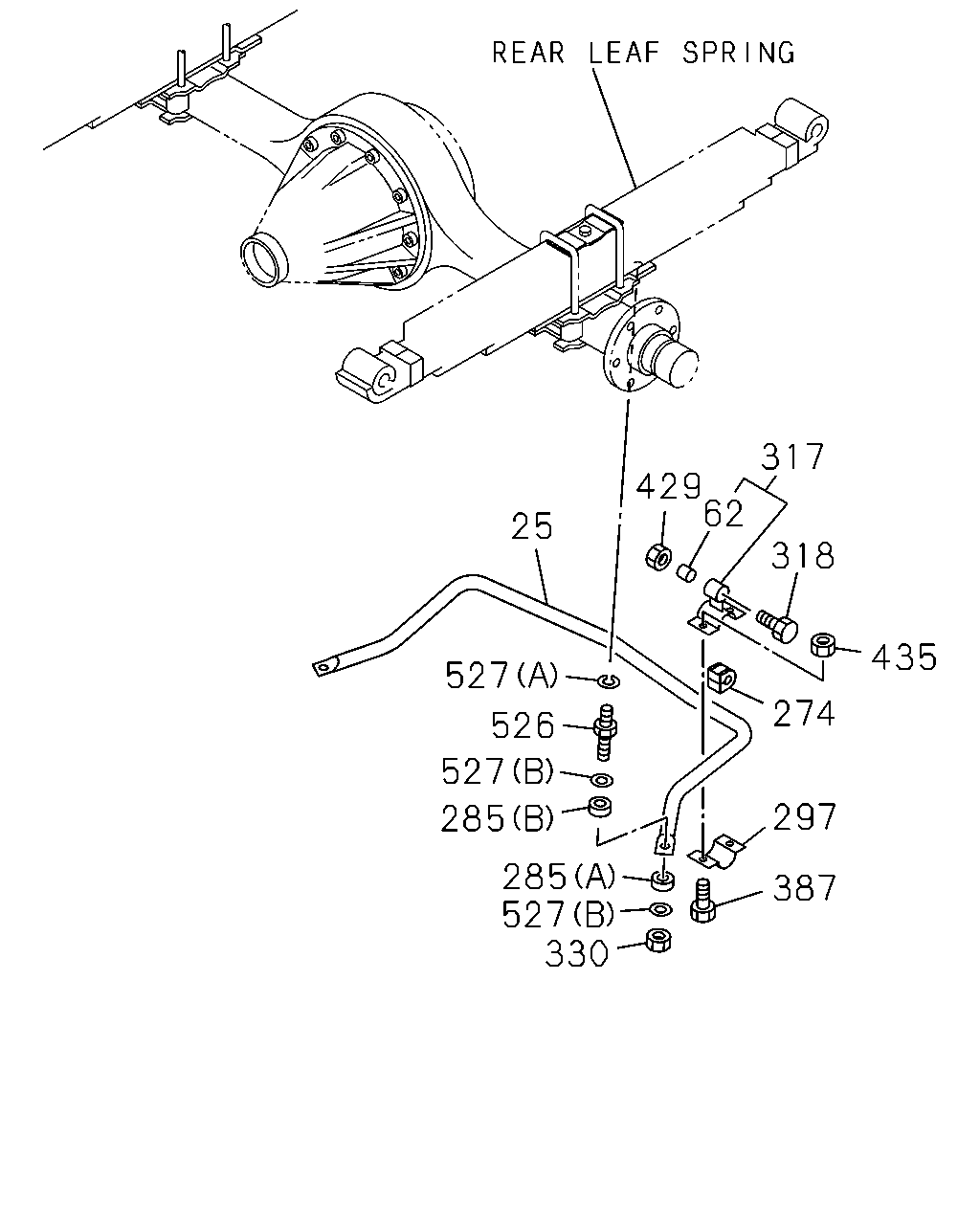

çizim 157450
317 429 62 25 318 435 527 274 526 527 297 285 285 527 330 387
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 0804- ● ●
62 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 0804- ● ●
274 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 0804- ● ●
285 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 0804- ● ●
285 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 0804- ● ●
297 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 0804- ● ●
317 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 0804- ● ●
318 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 0804- ● ●
330 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 0804- ● ●
387 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> M10X25 FLANGE SOU 		0-28651-025-0 04 1 0804- ● ●
429 NUT; LINK
STABILIZER REAR<GN1> M14 FLANGE 		8-97360-124-0 02 1 0804- ● ●
435 NUT; CAP
STABILIZER REAR<GN1> M10 FLANGE SOU 		0-91180-210-0 04 1 0804-1006 ● ●
435 NUT; CAP
STABILIZER REAR<GN1> M10 FLANGE SOU 		0-91180-110-0 04 1 1007- ● ●
526 STUD; STABILIZER
STABILIZER REAR<GN1> 		8-97360-120-0 02 1 0804- ● ●
527 WASHER; STABILIZER
STABILIZER REAR<GN1> (A) ID=14.2 SOU 		0-91510-514-0 02 1 0804- ● ●
527 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) 		8-97360-055-0 04 1 0804- ● ●
