2-85B — POWER TAKE OFF CONTROL (#5088) — 29 parça
çizim 6877
1 3 132 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 9606-9905
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 9906-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9606-9905
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-09983-068-0 01 1 9606-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9606-9905
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9906-

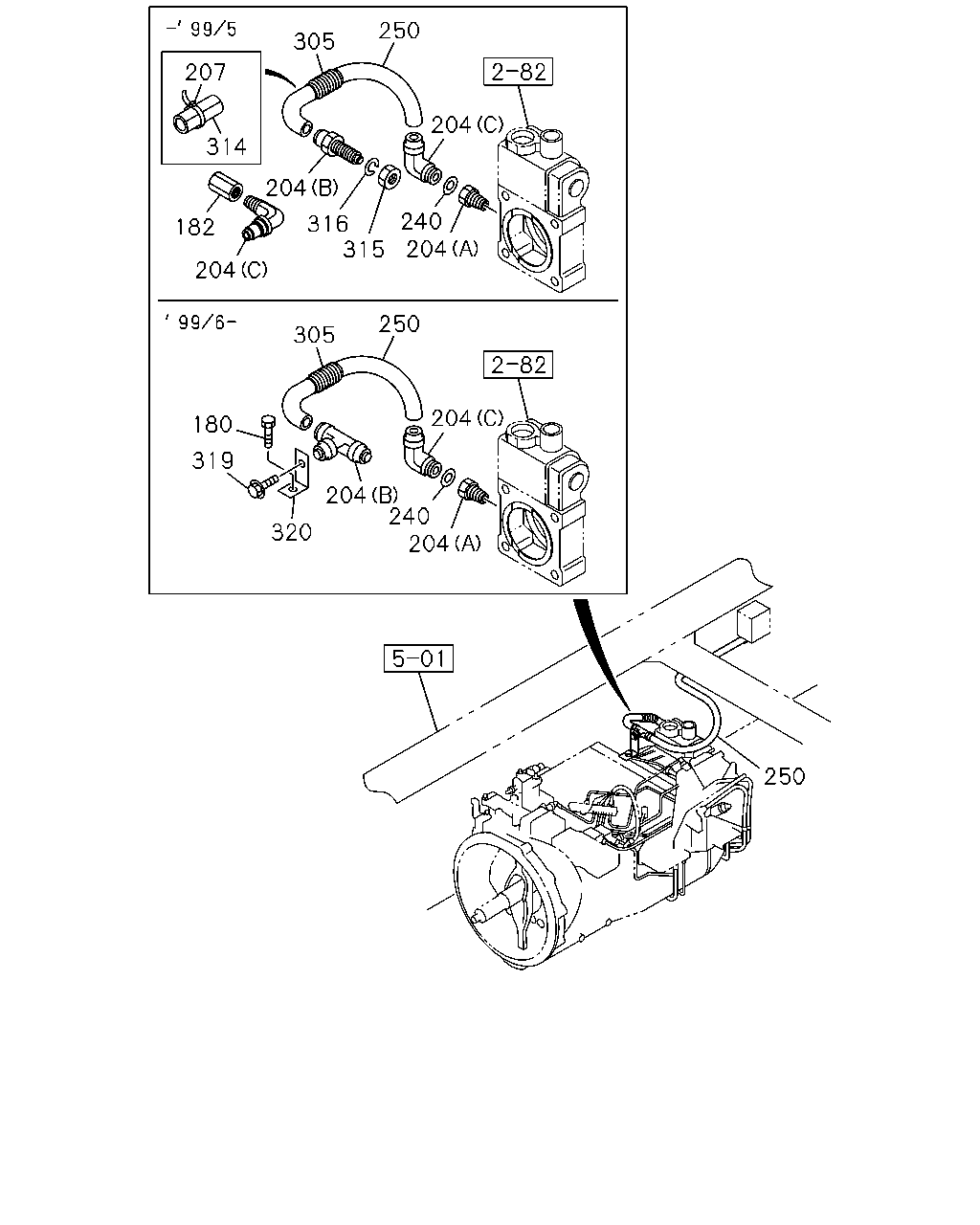

çizim 39515
250 305 207 204 314 204 240 204 316 315 182 204 250 305 204 180 319 204 240 204 320 250
BalonParca AdiParca NoAdetTipApplied Date
180 BOLT; BRKT
POWER TAKE OFF-ZF TRANSMISSION<BDM> M16X25 FLANGE 		0-28881-625-0 01 1 9906-
182 CONNECTOR; FLARE
POWER TAKE OFF-ZF TRANSMISSION<BDM> DIN8 & M12 STRAIGHT 		1-09660-766-0 01 1 9606-9802
182 CONNECTOR; FLARE
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-09660-880-0 01 1 9803-9905
204 CONNECTOR; NYLON TUBE
POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) 		1-09654-396-0 01 1 9803-9905
204 CONNECTOR; NYLON TUBE
POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) 		1-09654-396-0 01 1 9906-
204 CONNECTOR; NYLON TUBE
POWER TAKE OFF-ZF TRANSMISSION<BDM> (C) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9803-9905
204 CONNECTOR; NYLON TUBE
POWER TAKE OFF-ZF TRANSMISSION<BDM> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9906-
204 CONNECTOR; NYLON TUBE
POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) DIN8 & M14 STRAIGHT 		1-09660-726-2 01 1 9803-9905
204 CONNECTOR; NYLON TUBE
POWER TAKE OFF-ZF TRANSMISSION<BDM> (B) 		1-09660-788-0 01 1 9906-
207 CLIP; BAND
POWER TAKE OFF-ZF TRANSMISSION<BDM> L=140 		5-09707-031-1 02 1 9803-9905
240 GASKET; CONNECTOR,PTO
POWER TAKE OFF-ZF TRANSMISSION<BDM> ID=12.2 		9-09571-412-0 01 1 9606-9802
240 GASKET; CONNECTOR,PTO
POWER TAKE OFF-ZF TRANSMISSION<BDM> ID=12.2 		1-09630-084-0 01 1 9803-9905
240 GASKET; CONNECTOR,PTO
POWER TAKE OFF-ZF TRANSMISSION<BDM> ID=12.2 		1-09630-084-0 01 1 9906-
250 TUBE; NYLON
POWER TAKE OFF-ZF TRANSMISSION<BDM> L=480 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9905
250 TUBE; NYLON
POWER TAKE OFF-ZF TRANSMISSION<BDM> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9906-
305 TUBE; CORRUGATE
POWER TAKE OFF-ZF TRANSMISSION<BDM> SERVICED BY L=800 ID=7 L=400 		1-83129-031-1 01 1 9803-9905
305 TUBE; CORRUGATE
POWER TAKE OFF-ZF TRANSMISSION<BDM> SERVICED BY L=800 ID=7 L=150 		1-83129-031-1 01 1 9906-
314 SLEEVE; RUBBER
POWER TAKE OFF-ZF TRANSMISSION<BDM> ID=14 OD=18 L=60 		1-09337-030-0 02 1 9803-9905
315 NUT; CONNECTOR
POWER TAKE OFF-ZF TRANSMISSION<BDM> M14 		9-99110-414-0 01 1 9803-9905
316 WASHER; CONNECTOR
POWER TAKE OFF-ZF TRANSMISSION<BDM> ID=14.2 		9-09150-514-0 01 1 9803-9905
319 BOLT; CONNECTOR
POWER TAKE OFF-ZF TRANSMISSION<BDM> M8X16 FLANGE 		0-28080-816-0 01 1 9906-
320 BRACKET; UNION
POWER TAKE OFF-ZF TRANSMISSION<BDM> 		1-47478-250-0 01 1 9906-
