Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#50879) — 147 parça

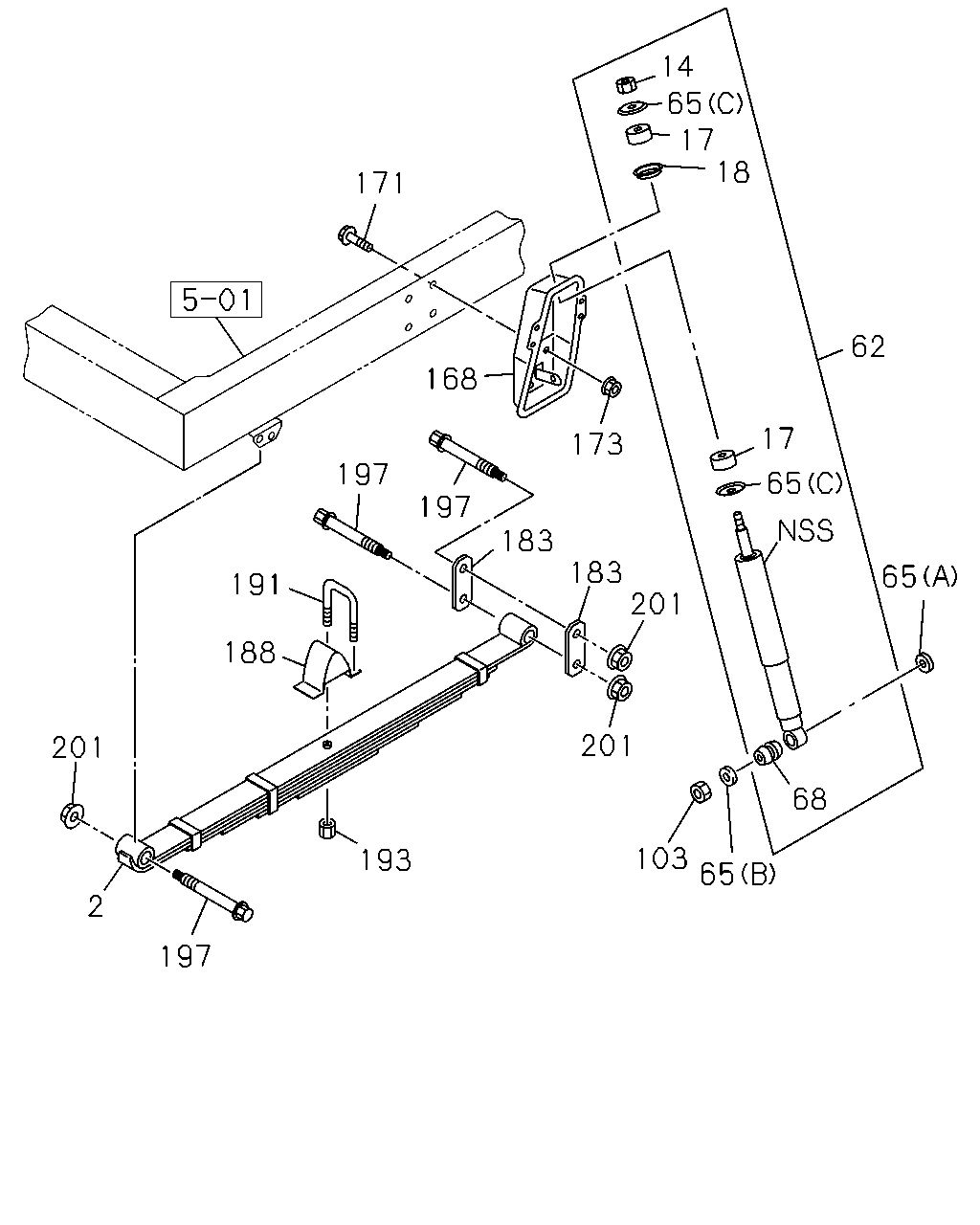

62 14 65 17 18 171 168 17 173 65 201 183 183 191 65 185 188 201 197 68 193 185 103 65 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98190-541-1	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98190-542-1	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) 6-LEAF	8-98079-914-0	01	1	0902-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) 6-LEAF	8-98079-916-0	01	1	0902-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98079-920-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	1106-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98079-922-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	1106-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-910-0	01	1	0804-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-912-0	01	1	0804-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-923-0	01	1	0804-0901			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSISVAR.2(6GQ) 6-LEAF	8-98079-923-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	1106-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-924-0	01	1	0804-0901			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSISVAR.2(6GQ) 6-LEAF	8-98079-924-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	1106-			●
14	NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0804-	●	●	●
17	BUSHING; RUBBER,S/ABS TOKICO SOU	9-51631-603-0	04	1	0804-	●	●	●
18	WASHER; CENTERING,S/ABS TOKICO SOU	8-94412-791-0	02	1	0804-	●	●	●
62	ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97253-618-1	02	1	0804-		●
62	ABSORBER ASM; SHOCK,FRT G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98080-130-1	02	1	0804-		●
62	ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98080-130-1	02	1	0804-	●
62	ABSORBER ASM; SHOCK,FRT	8-98080-130-1	02	1	0804-			●
62	ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98080-129-1	02	1	0804-	●
62	ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-129-1	02	1	1304-		●
62	ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0804-	●	●	●
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0804-	●	●	●
65	WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0804-	●	●	●
68	BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0804-	●	●	●
103	NUT; S/ABS TO LWR LINK M14 SOU	0-91110-514-0	02	1	0804-	●	●	●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52>	8-98006-958-1	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52>	8-98006-959-1	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>	8-98015-001-0	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0804-			●
168	BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>	8-98015-002-0	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0804-			●
171	BOLT; S/ABS BRKT M12X35 FLANGE SOU	0-28651-235-0	08	1	0804-	●	●	●
173	NUT; S/ABS M12	8-97360-126-0	08	1	0804-	●	●	●
183	SHACKLE; FRT SUSP	8-94110-399-3	04	1	0804-	●	●	●
185	WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0804-	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0804-0906	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98033-516-0	02	1	0907-0907		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0907-0907	●		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0908-	●	●	●
191	U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0804-		●	●
191	U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0804-	●
193	NUT; U BOLT G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) M14 FLANGE	8-97360-124-0	08	1	0804-		●
193	NUT; U BOLT M14 FLANGE	8-97360-124-0	08	1	0804-			●
193	NUT; U BOLT M16	8-97360-121-0	08	1	0804-	●
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0804-	●	●	●
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0804-	●	●	●
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16 SOU	0-91110-516-0	06	1	0804-	●	●	●
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0804-	●	●	●

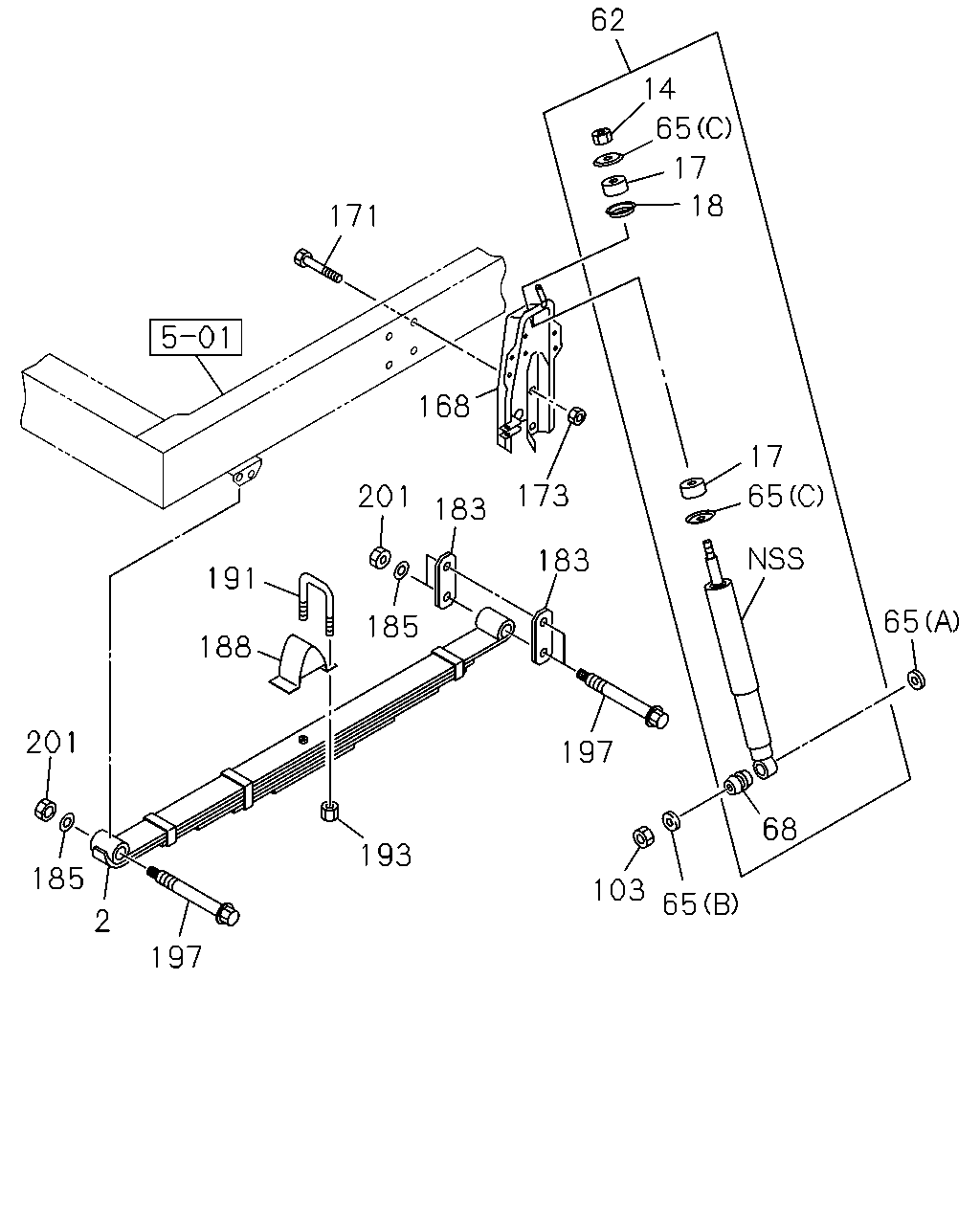

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98190-541-1	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98190-542-1	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) 6-LEAF	8-98079-914-0	01	1	0902-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) 6-LEAF	8-98079-916-0	01	1	0902-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98079-920-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-920-0	01	1	1106-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF	8-98079-922-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-922-0	01	1	1106-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-910-0	01	1	0804-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-912-0	01	1	0804-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-923-0	01	1	0804-0901			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSISVAR.2(6GQ) 6-LEAF	8-98079-923-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	1106-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0804-0901		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0804-0901	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-924-0	01	1	0804-0901			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0902-1105		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0902-1105	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	1106-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSISVAR.2(6GQ) 6-LEAF	8-98079-924-0	01	1	1106-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	1106-			●
14	NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0804-	●	●	●
17	BUSHING; RUBBER,S/ABS TOKICO SOU	9-51631-603-0	04	1	0804-	●	●	●
18	WASHER; CENTERING,S/ABS TOKICO SOU	8-94412-791-0	02	1	0804-	●	●	●
62	ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97253-618-1	02	1	0804-		●
62	ABSORBER ASM; SHOCK,FRT G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98080-130-1	02	1	0804-		●
62	ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98080-130-1	02	1	0804-	●
62	ABSORBER ASM; SHOCK,FRT	8-98080-130-1	02	1	0804-			●
62	ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98080-129-1	02	1	0804-	●
62	ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-129-1	02	1	1304-		●
62	ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0804-	●	●	●
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0804-	●	●	●
65	WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0804-	●	●	●
68	BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0804-	●	●	●
103	NUT; S/ABS TO LWR LINK M14 SOU	0-91110-514-0	02	1	0804-	●	●	●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52>	8-98006-958-1	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52>	8-98006-959-1	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>	8-98015-001-0	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0804-			●
168	BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>	8-98015-002-0	01	1	0804-	●	●
168	BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0804-			●
171	BOLT; S/ABS BRKT M12X35 FLANGE SOU	0-28651-235-0	08	1	0804-	●	●	●
173	NUT; S/ABS M12	8-97360-126-0	08	1	0804-	●	●	●
183	SHACKLE; FRT SUSP	8-94110-399-3	04	1	0804-	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0804-0906	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98033-516-0	02	1	0907-0907		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0907-0907	●		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0908-	●	●	●
191	U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0804-		●	●
191	U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0804-	●
193	NUT; U BOLT G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY) M14 FLANGE	8-97360-124-0	08	1	0804-		●
193	NUT; U BOLT M14 FLANGE	8-97360-124-0	08	1	0804-			●
193	NUT; U BOLT M16	8-97360-121-0	08	1	0804-	●
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0804-	●	●	●
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0804-	●	●	●
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16 SOU	0-91110-516-0	06	1	0804-	●	●	●
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
