4-36 — POWER STEERING CONTROL; ENGINE SIDE (#50876) — 13 parça

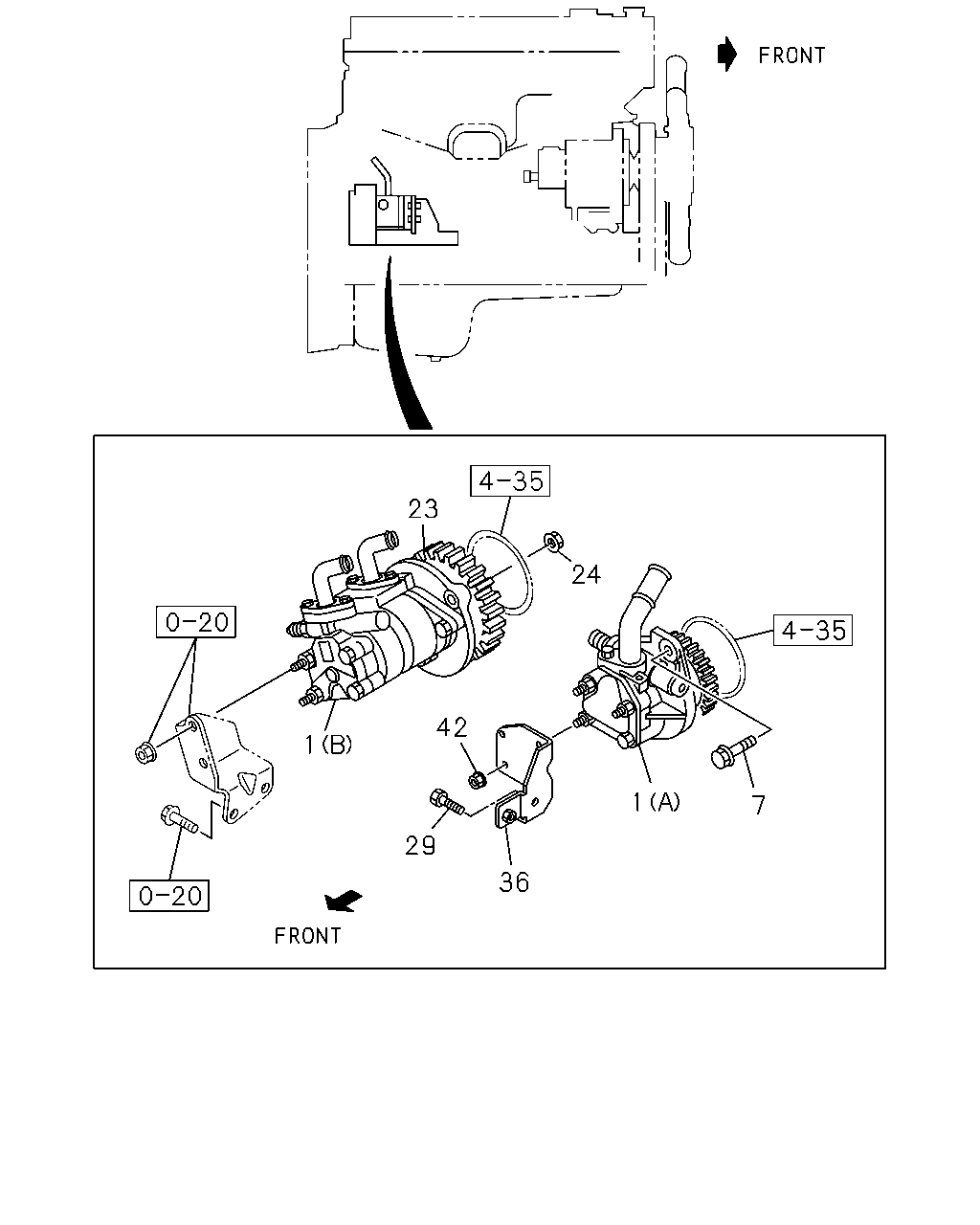

çizim 157451
23 24 42 1 1 7 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 0804- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-2 01 1 0804- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 0804- ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 02 1 0804- ● ● ●
23 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 0804- ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 0804- ● ●
24 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) M12 FLANGE SOU 		0-91180-212-0 01 1 0804- ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE SOU 		0-91180-212-0 01 1 0804- ● ●
29 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 0804- ●
36 BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 0804- ●
42 NUT; ADJ PLATE
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU 		0-91180-108-0 01 1 0809- ●
42 NUT; ADJ PLATE
M8 FLANGE SOU 		0-91180-108-0 01 1 0809- ● ●
42 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ●
